PVG 100 High Flow Option Blue Graphics Concept

PVG 100 High Flow Option © Blue Graphics Concept Sauer-Danfoss Launch 2011

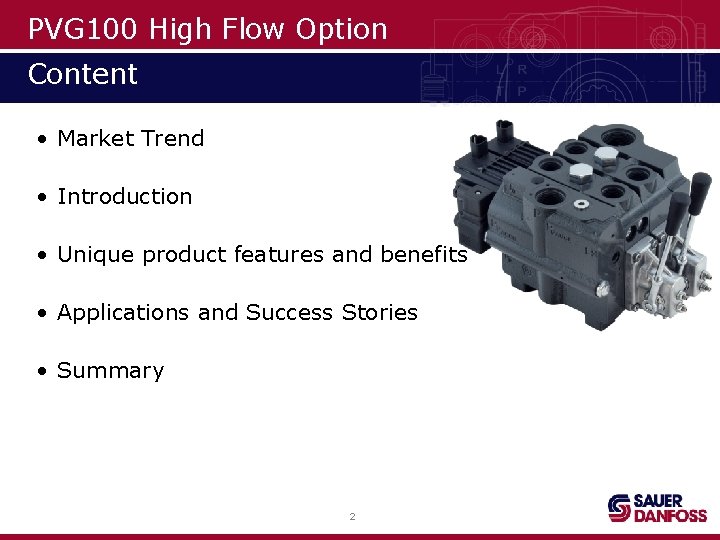

PVG 100 High Flow Option Content • Market Trend • Introduction • Unique product features and benefits • Applications and Success Stories • Summary 2

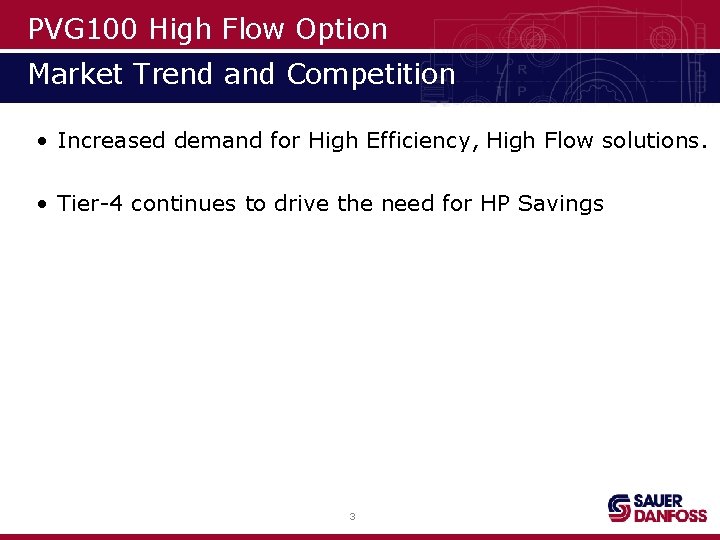

PVG 100 High Flow Option Market Trend and Competition • Increased demand for High Efficiency, High Flow solutions. • Tier-4 continues to drive the need for HP Savings 3

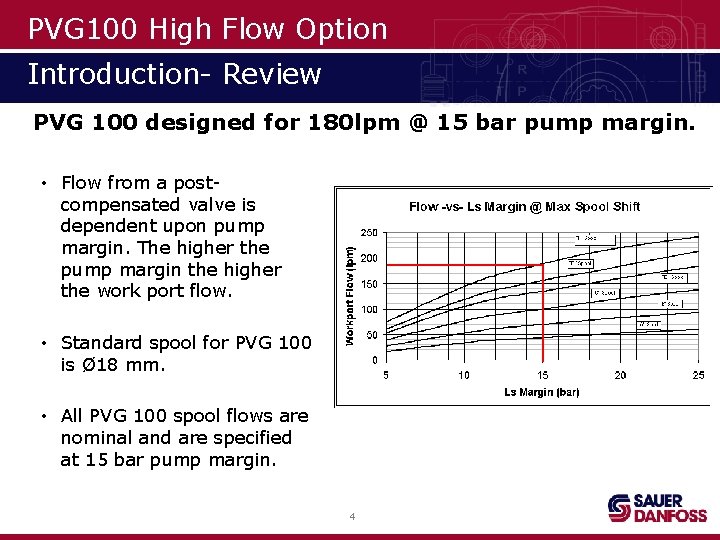

PVG 100 High Flow Option Introduction- Review PVG 100 designed for 180 lpm @ 15 bar pump margin. • Flow from a postcompensated valve is dependent upon pump margin. The higher the pump margin the higher the work port flow. • Standard spool for PVG 100 is Ø 18 mm. • All PVG 100 spool flows are nominal and are specified at 15 bar pump margin. 4

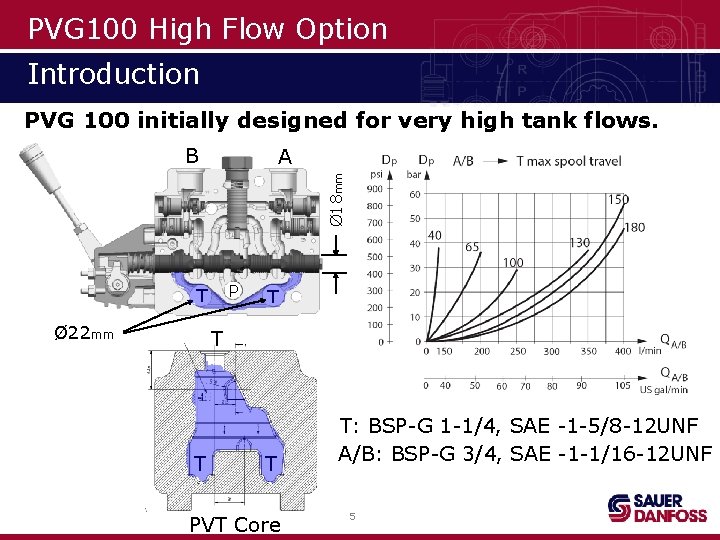

PVG 100 High Flow Option Introduction PVG 100 initially designed for very high tank flows. B Ø 18 mm A P T Ø 22 mm T T PVT Core T: BSP-G 1 -1/4, SAE -1 -5/8 -12 UNF A/B: BSP-G 3/4, SAE -1 -1/16 -12 UNF 5

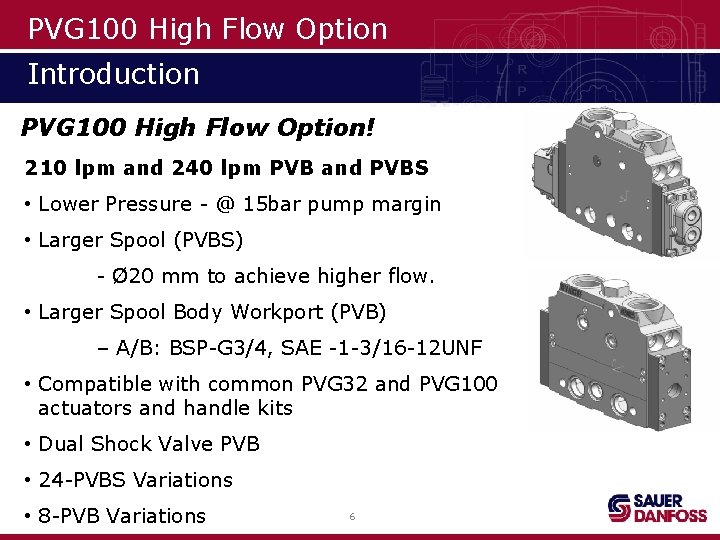

PVG 100 High Flow Option Introduction PVG 100 High Flow Option! 210 lpm and 240 lpm PVB and PVBS • Lower Pressure - @ 15 bar pump margin • Larger Spool (PVBS) - Ø 20 mm to achieve higher flow. • Larger Spool Body Workport (PVB) – A/B: BSP-G 3/4, SAE -1 -3/16 -12 UNF • Compatible with common PVG 32 and PVG 100 actuators and handle kits • Dual Shock Valve PVB • 24 -PVBS Variations • 8 -PVB Variations 6

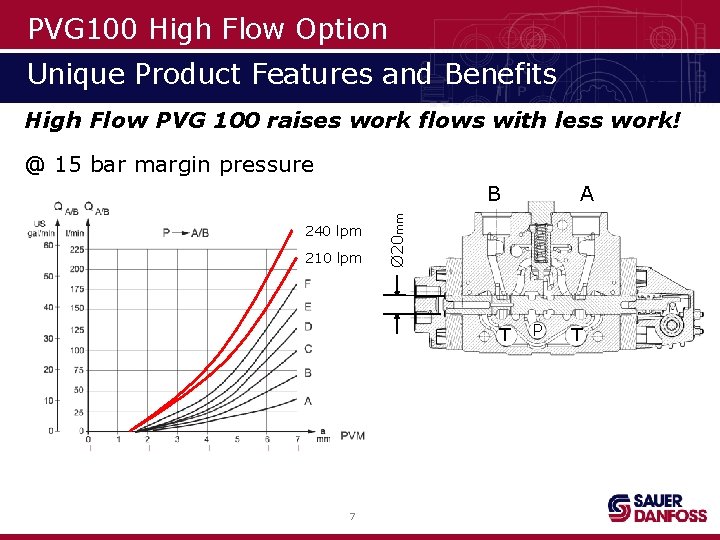

PVG 100 High Flow Option Unique Product Features and Benefits High Flow PVG 100 raises work flows with less work! @ 15 bar margin pressure A 240 lpm 210 lpm Ø 20 mm B T 7 P T

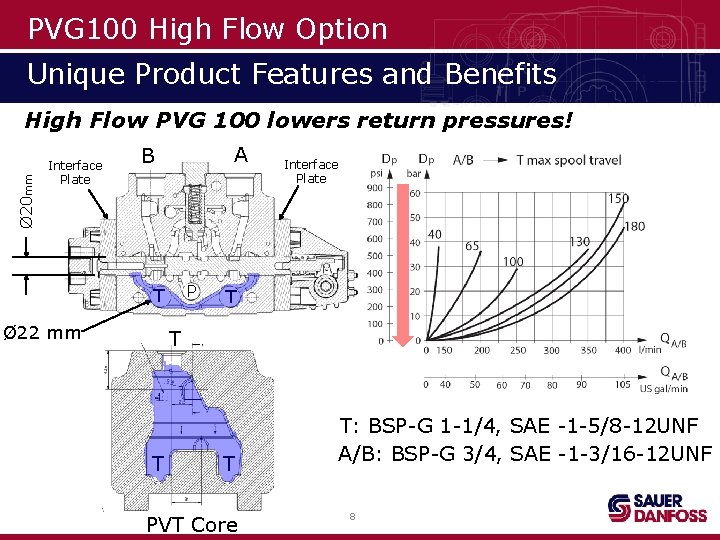

PVG 100 High Flow Option Unique Product Features and Benefits Ø 20 mm High Flow PVG 100 lowers return pressures! Interface Plate A B P T Ø 22 mm Interface Plate T T PVT Core T: BSP-G 1 -1/4, SAE -1 -5/8 -12 UNF A/B: BSP-G 3/4, SAE -1 -3/16 -12 UNF 8

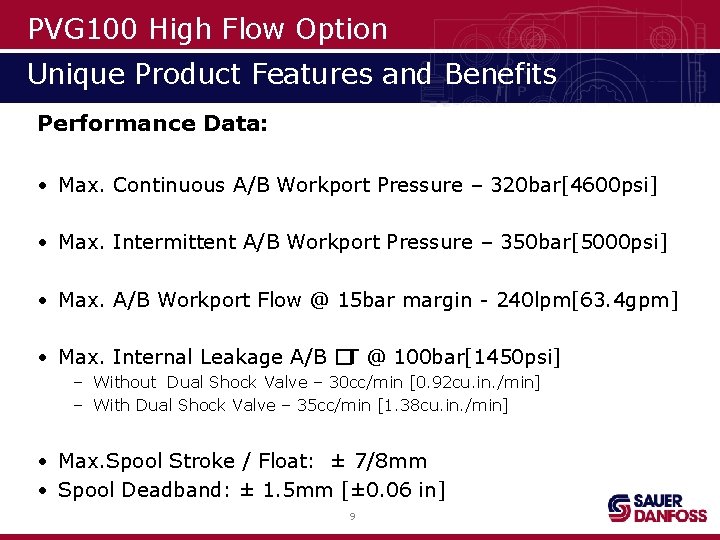

PVG 100 High Flow Option Unique Product Features and Benefits Performance Data: • Max. Continuous A/B Workport Pressure – 320 bar[4600 psi] • Max. Intermittent A/B Workport Pressure – 350 bar[5000 psi] • Max. A/B Workport Flow @ 15 bar margin - 240 lpm[63. 4 gpm] • Max. Internal Leakage A/B �T @ 100 bar[1450 psi] – Without Dual Shock Valve – 30 cc/min [0. 92 cu. in. /min] – With Dual Shock Valve – 35 cc/min [1. 38 cu. in. /min] • Max. Spool Stroke / Float: ± 7/8 mm • Spool Deadband: ± 1. 5 mm [± 0. 06 in] 9

PVG 100 High Flow Option Unique Product Options High Flow PVB Refer to PIB PV 2011 -009 and 520 L 0720 for detailed Technical Information. PVB includes standard PVM and PVE interface plates. 10

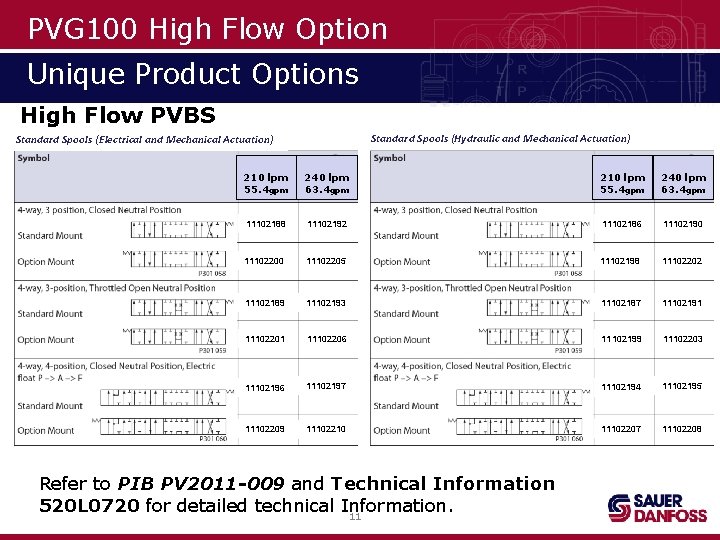

PVG 100 High Flow Option Unique Product Options High Flow PVBS Standard Spools (Hydraulic and Mechanical Actuation) Standard Spools (Electrical and Mechanical Actuation) 210 lpm 55. 4 gpm 240 lpm 63. 4 gpm 11102188 11102192 11102186 11102190 11102205 11102198 11102202 11102189 11102193 11102187 11102191 11102206 11102199 11102203 11102196 11102197 11102194 11102195 11102209 11102210 11102207 11102208 Refer to PIB PV 2011 -009 and Technical Information 520 L 0720 for detailed technical Information. 11

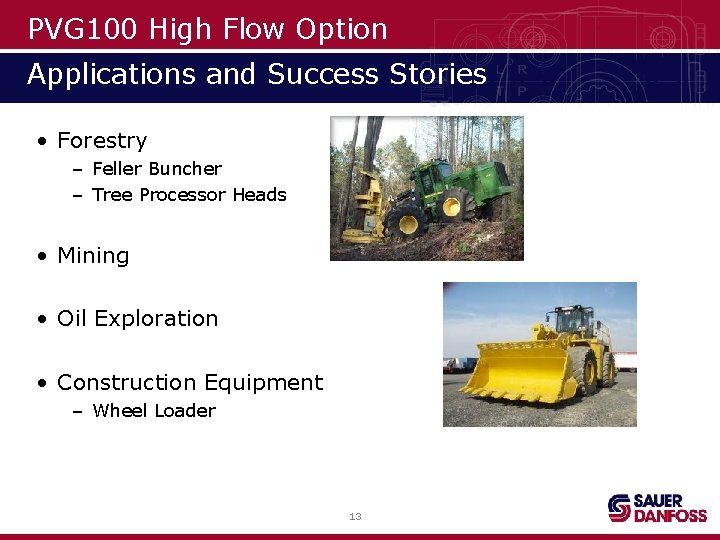

PVG 100 High Flow Option Applications and Success Stories • Forestry – Feller Buncher – Tree Processor Heads • Mining • Oil Exploration • Construction Equipment – Wheel Loader 13

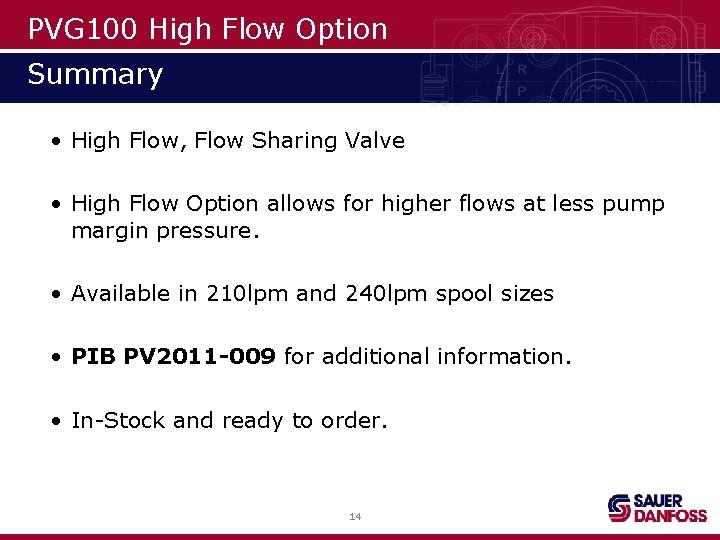

PVG 100 High Flow Option Summary • High Flow, Flow Sharing Valve • High Flow Option allows for higher flows at less pump margin pressure. • Available in 210 lpm and 240 lpm spool sizes • PIB PV 2011 -009 for additional information. • In-Stock and ready to order. 14

PVG 100 High Flow Option 15 15

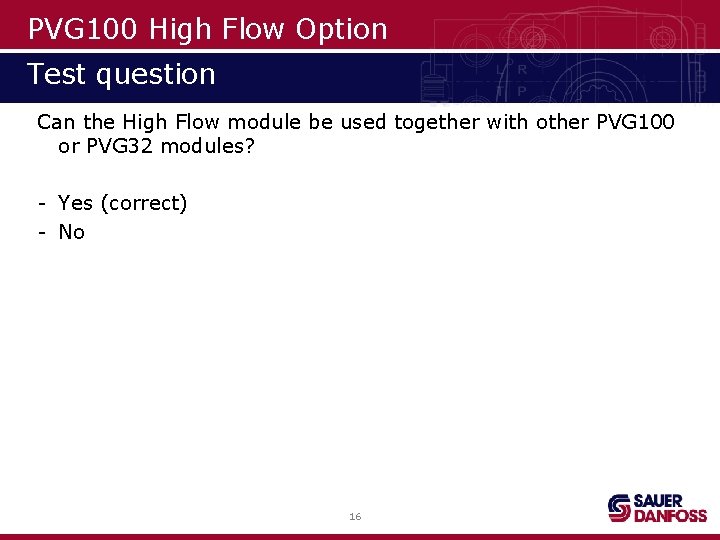

PVG 100 High Flow Option Test question Can the High Flow module be used together with other PVG 100 or PVG 32 modules? - Yes (correct) - No 16
