Purus Channel 100 A stainless steel floor channel
- Slides: 31
Purus Channel 100 A stainless steel floor channel for industry, kitchens, showers & bathrooms
• 100 mm wide floor channel • Large capacity compared to the size • Well thought-out, flexible design • High level functionality, hygiene and durability Purus Channel 100
• For various environments, e. g. baths, showers, spa facilities, kitchens, hospitals, laboratories, factories & garages. • Adapted for different floor types, e. g. concrete, resin, vinyl and tile flooring. • 10 standard lengths from stock – bespoke lengths on request. Purus Channel 100
• Made in Sweden. • Designed according to EN 1253 • EN 1. 4404 (316 L) acid resistant stainless steel • 100% selected for highest corrosion resistance Purus Channel 100 – High quality
1. Select channel a. b. c. d. Floor type Length Outlet position Type of grate or tile insert 2. Select outlet a. b. c. d. Purus Channel 100 – Flexible construction Stainless steel or plastic Outlet diameter Bottom or side outlet Optional strainer and water trap
Central outlet Standard lengths: End outlet 600 mm 1200 mm 800 mm 1400 mm 900 mm 1500 mm 1000 mm 2000 mm 1100 mm 2500 mm Bespoke lengths on request. 100 mm L Purus Channel 100 – Outlet location & lengths
Wave Grate for tile insert Chess Grates in two different load classes L 15: 1500 kg M 125: 12, 500 kg Multiple grates on channel lengths over 1 meter. Purus Channel 100 – Grates
50 mm side outlet low Plastic 50 mm side outlet Plastic Untrapped 1. 5 l/s With trap 0. 5 l/s 75 mm side outlet Plastic Untrapped 1. 8 l/s With trap 1. 0 l/s 75 mm bottom outlet Plastic Untrapped 3. 5 l/s With trap 1. 3 l/s Purus Channel 100 – Outlets Untrapped 3. 5 l/s With trap 1. 3 l/s 75 mm side outlet Stainless steel Untrapped 3. 5 l/s With trap 1. 3 l/s 110 mm bottom outlet Stainless steel Untrapped 3. 5 l/s With trap 1. 4 l/s 75 mm bottom outlet Stainless steel Untrapped 3. 5 l/s With trap 1. 3 l/s
Total length Length Gallretsoflängd grate Installed height Recess dimensions Purus Channel 100 – Channel dimensional drawing
Installed height Purus Channel 100 – Outlet dimensional drawing
Channel (H 1) Floor type Central outlet All lengths Outlet (H 2) End outlet Lengths Height Concrete 70 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 85 mm 90 mm 95 mm Resin 70 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 85 mm 90 mm 95 mm Vinyl 71 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 89 mm 91 mm 96 mm Tile with gluing flange 72 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 87 mm 92 mm 97 mm Tile with clamping frame 84 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 97 mm 104 mm 109 mm Tile with gluing flange Tile insert 72 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 87 mm 92 mm 97 mm Tile with clamping frame Tile insert 84 mm 600 -1000 mm 1100 -1400 mm 1500 -2500 mm 99 mm 104 mm 109 mm Plastic Stainless steel Purus Channel 100 – Installation height (H 1+H 2)

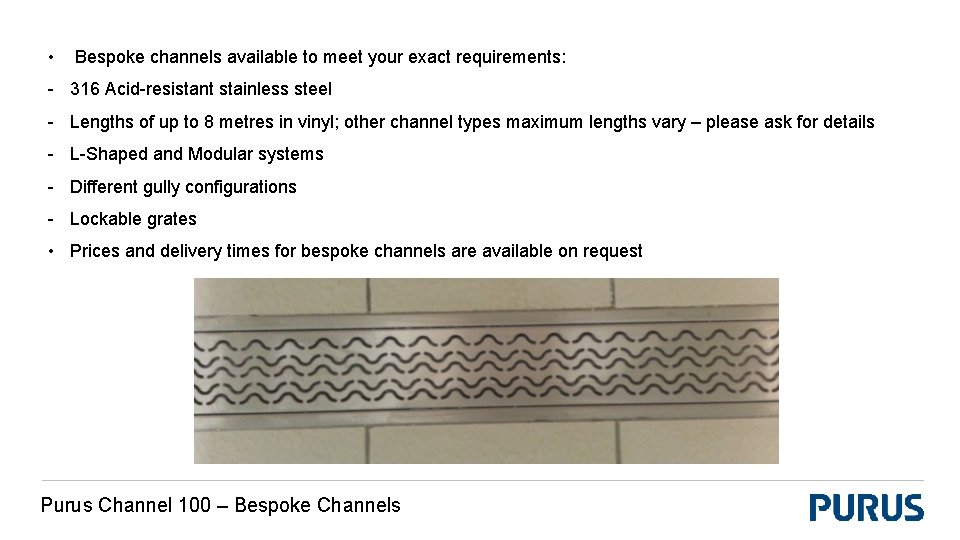

• Bespoke channels available to meet your exact requirements: - 316 Acid-resistant stainless steel - Lengths of up to 8 metres in vinyl; other channel types maximum lengths vary – please ask for details - L-Shaped and Modular systems - Different gully configurations - Lockable grates • Prices and delivery times for bespoke channels are available on request Purus Channel 100 – Bespoke Channels
• Perforated strainer with large surface area • Included with every channel • Can also be used as a scraper Purus Channel 100 – Strainer
- For embedding in concrete - No waterproof membrane - Chess / Wave / L 15 / M 125 grate - Central or end outlet - Add outlet in plastic or stainless steel Picture shows L 15 grate Purus Channel 100 – Concrete flooring
Concrete embedding up to upper edge of the channel EPDM Filler (included in the channel) Purus Channel 100 – Concrete flooring Grate Channel
- For embedding in concrete - Flange for resin as waterproof membrane - Chess / Wave / L 15 / M 125 grate - Central or end outlet - Add outlet in plastic or stainless steel Picture shows L 15 grate Purus Channel 100 – Resin flooring
Resin up to upper edge of the channel Grate Horizontal flange with good resin adhesion and sealing Concrete embedding up to resin flange EPDM Filler (included in the channel) Purus Channel 100 – Resin/epoxy flooring Channel
- For embedding in concrete - Clamping frame for vinyl flooring Vinyl thickness up to 4 mm based on type - Chess / Wave / L 15 / M 125 grate - Central or end outlet - Add outlet in plastic or stainless steel Picture shows Chess grate. Purus Channel 100 – Vinyl flooring
Clamping frame Grate Concrete embedding up to upper edge of the channel Vinyl flooring Channel Purus Channel 100 – Vinyl flooring
- For embedding in concrete, tile flooring - Flange for gluing of waterproof membrane - Chess / Wave / L 15 / M 125 grate - Central or end outlet - Add outlet in plastic or stainless steel Picture shows Chess grate. Purus Channel 100 – Tile flooring with gluing flange
Tiles Grate Concrete embedding up to upper edge of the gluing flange Waterproof membrane Flange for gluing of waterproof membrane Height adjustable tile frame (10 -20 mm tiles) Channel Purus Channel 100 – Tile flooring with gluing flange
- For embedding in concrete, tile flooring - Clamping frame for waterproof membrane - Thickness up to 4 mm based on type - Chess / Wave / L 15 / M 125 grate - Central or end outlet - Add outlet in plastic or stainless steel Picture shows Chess grate. Purus Channel 100 – Tile flooring with clamping frame
Tiles Grate Concrete embedding up to upper edge of the channel Waterproof membrane Clamping frame Height adjustable tile frame (10 -20 mm tiles) Channel Purus Channel 100 – Tile flooring with clamping frame
- For embedding in concrete, tile flooring - Flange for gluing of waterproof membrane - Tile Insert Grate (inner height dimension 85 mm) - Central or end outlet - Add outlet in plastic or stainless steel Purus Channel 100 – Tile flooring with gluing flange & tile insert
Tiles Tile insert box Concrete embedding up to upper edge of the gluing flange Waterproof membrane Flange for gluing of waterproof membrane Tile frame for ≥ 10 mm tiles (may exceed the stainless steel edge) Channel Purus Channel 100 – Tile flooring with gluing flange & tile insert
- For embedding in concrete, tile flooring - Clamping frame for waterproof membrane - Thickness up to 4 mm based on type - Tile Insert Grate (inner height dimension 85 mm) - Central or end outlet - Add outlet in plastic or stainless steel Purus Channel 100 – Tile flooring with clamping frame & tile insert
Tiles Tile insert box Concrete embedding up to upper edge of the channel Waterproof membrane Channel Tile frame for ≥ 10 mm tiles (may exceed the ss edge) Purus Channel 100 – Tile flooring with clamping frame & tile insert
Grate length Purus Channel 100 – Floor type 600 800 900 1000 1100 1200 1400 1500 2000 2500 End outlet Concrete Mid outlet End outlet Resin Mid outlet End outlet Vinyl Mid outlet End outlet Tile with gluing flange Mid outlet End outlet Tile with clamping frame Mid outlet End outlet Tile with gluing flange & tile insert box Mid outlet End outlet Tile with clamping frame & tile insert box Planned stock balance: Mid outlet ≥ 6 pcs 3 -5 pcs 1 -2 pcs On order Models not normally in stock may be available in stock – ask us! Purus Channel 100 – Stock availability
Channel 100 Configurator Purus Channel 100 – Product configurator • For architects, consultants, wholesalers, installers, and more. • Technical configuration with i-help • Stock & delivery time guide • Copiable description text on screen • Product data sheet and technical drawings • Multiple configurations in the same enquiry
