Purification of Green Fluorescent Protein NBC 2 Biomanufacturing

Purification of Green Fluorescent Protein NBC 2

Biomanufacturing Steps in Product Purification � UPSTREAM PROCESSING Genetically engineered protein produced by an organism (ex. E. coli) are grown to yield the optimal amount of product � DOWNSTREAM PROCESSING Cells which do not export product need to be, isolated, homogenized, and crude fractions obtained by centrifugation Chromatography of partially purified product is then carried out

Green Fluorescent Protein Why we use GFP production to exemplify Biomanufacturing Process Useful in following the purification process by using UV light detection of GFP In the presence of arabinose, GFP gene is transcribed into m. RNA and translated into protein product Green Fluorescent Protein Structure

Flow Chart for GFP Product in Process Step 1 Growth of cells of n o i t uc Prod by Cell GFP th and Grow ision Div Step 2 Crude separation of product and g n i t es Harv Initial ion t a c i f Puri 3. Step Purification by Chromatography r g o t a Chromd highly an d final e purifi duct pro

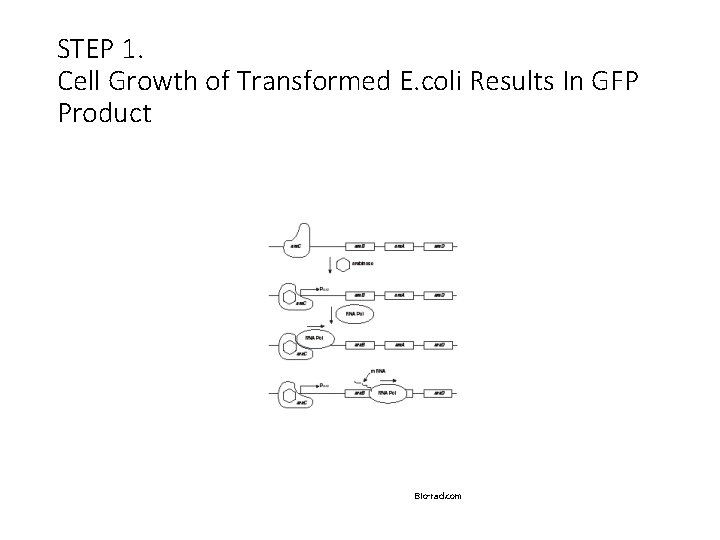

STEP 1. Cell Growth of Transformed E. coli Results In GFP Product Bio-rad. com

Growth of Transformed Cells in Culture Number of cells Time of E. coli growth in culture (hours)

Controller supplying gas, acid or base etc Bioreactor with cells Computer controlling bioreactor

Isolation of GFP from transformed E. coli Step 1: If product is retained in cell: Transfer all contents of media + cells into a Centrifuge tube once cell growth is achieved Place this tube plus balancing tube into centrifuge and spin at selected speed Remove tube with cells and a pellet should present (since GFP glows, check tube with UV light to determine the location of GFP)

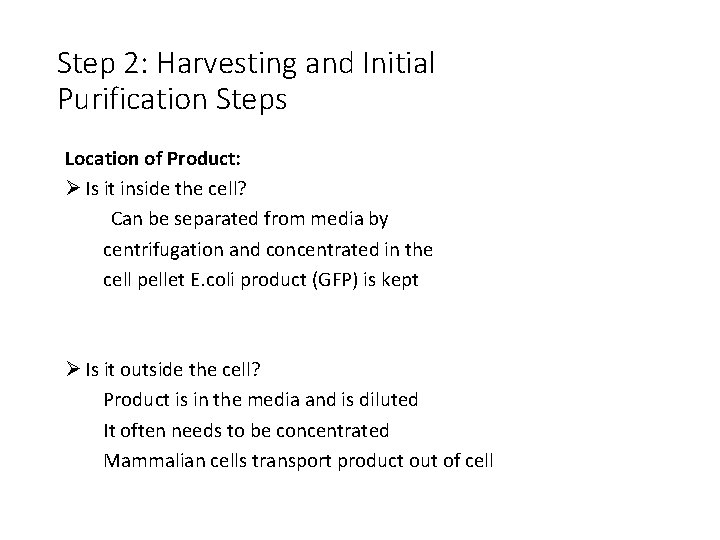

Step 2: Harvesting and Initial Purification Steps Location of Product: Ø Is it inside the cell? Can be separated from media by centrifugation and concentrated in the cell pellet E. coli product (GFP) is kept Ø Is it outside the cell? Product is in the media and is diluted It often needs to be concentrated Mammalian cells transport product out of cell

Centrifugation and Tangential Flow Filtration (TFF) Centrifuge Separates by centripetal force acting on different sized particles TFF process • Tangential Flow Filtration separates molecules by membrane pore size rotor Novasep. com Glossary. periodni. com

Pelleted Cells Will Glow under UV After Centrifugation media After spinning Colony is placed into media containing penicillin and arabinose and grown Cell pellet Seen under UV light

Tangential Flow Filtration Downstream Processing This technique allows large volumes of media to be concentrated, removal or exchange of salts in solutions etc.

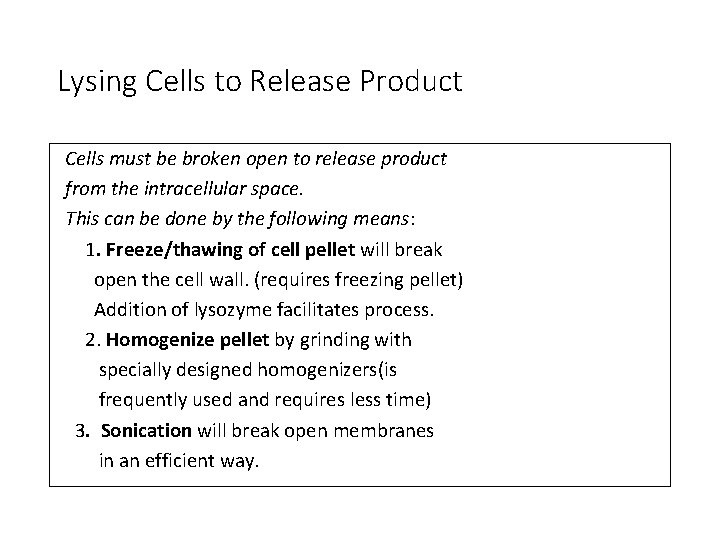

Lysing Cells to Release Product Cells must be broken open to release product from the intracellular space. This can be done by the following means: 1. Freeze/thawing of cell pellet will break open the cell wall. (requires freezing pellet) Addition of lysozyme facilitates process. 2. Homogenize pellet by grinding with specially designed homogenizers(is frequently used and requires less time) 3. Sonication will break open membranes in an efficient way.

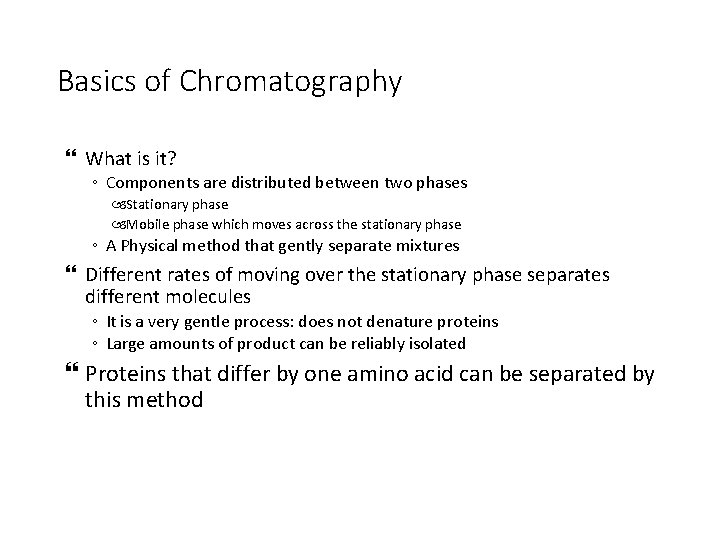

Basics of Chromatography What is it? ◦ Components are distributed between two phases Stationary phase Mobile phase which moves across the stationary phase ◦ A Physical method that gently separate mixtures Different rates of moving over the stationary phase separates different molecules ◦ It is a very gentle process: does not denature proteins ◦ Large amounts of product can be reliably isolated Proteins that differ by one amino acid can be separated by this method

Types of Low Pressure Liquid Chromatography (LPC) �Adsorption �Ion Exchange �Molecular Size Exclusion �Affinity

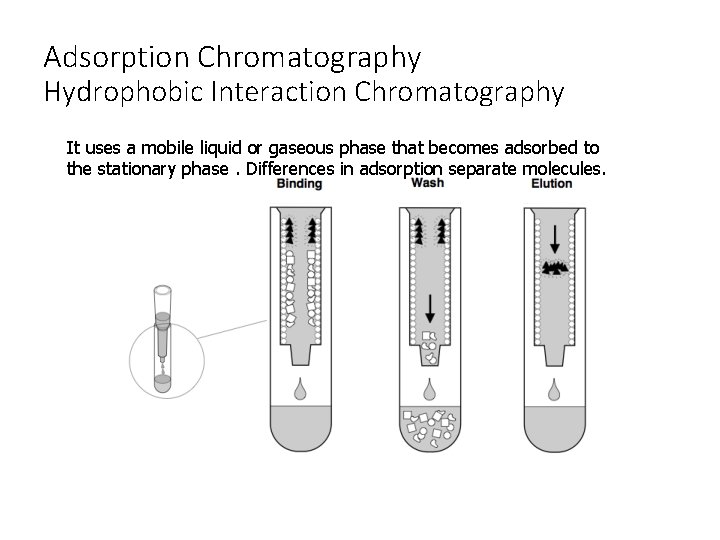

Adsorption Chromatography Hydrophobic Interaction Chromatography It uses a mobile liquid or gaseous phase that becomes adsorbed to the stationary phase. Differences in adsorption separate molecules.

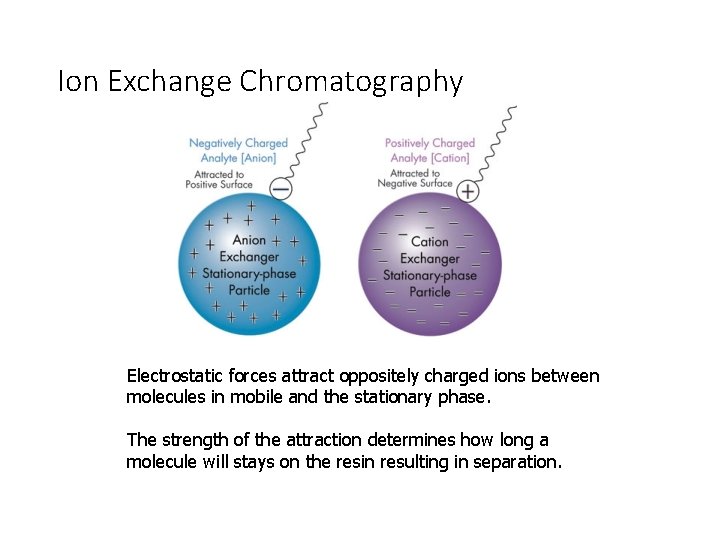

Ion Exchange Chromatography Electrostatic forces attract oppositely charged ions between molecules in mobile and the stationary phase. The strength of the attraction determines how long a molecule will stays on the resin resulting in separation.

Anion Exchange Columns and How They Work cont’d Positively charged Ions do not attach to resin & pass through Negatively charged ions attach to the column

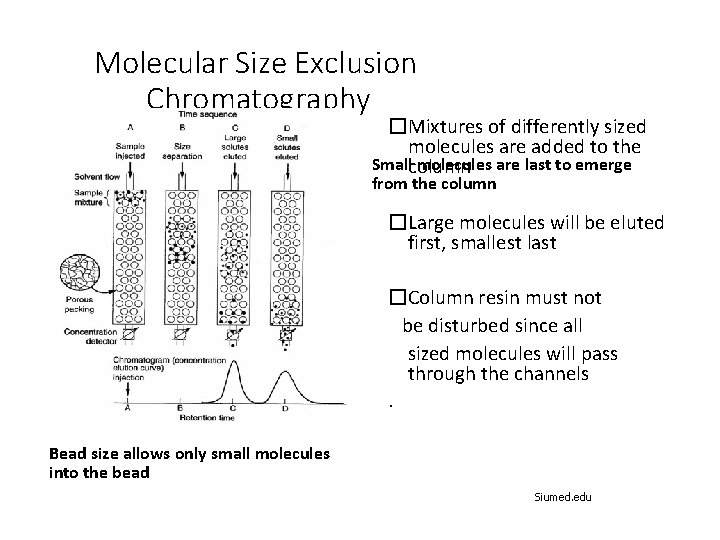

Molecular Size Exclusion Chromatography �Mixtures of differently sized molecules are added to the Smallcolumn molecules are last to emerge from the column �Large molecules will be eluted first, smallest last �Column resin must not be disturbed since all sized molecules will pass through the channels. Bead size allows only small molecules into the bead Siumed. edu

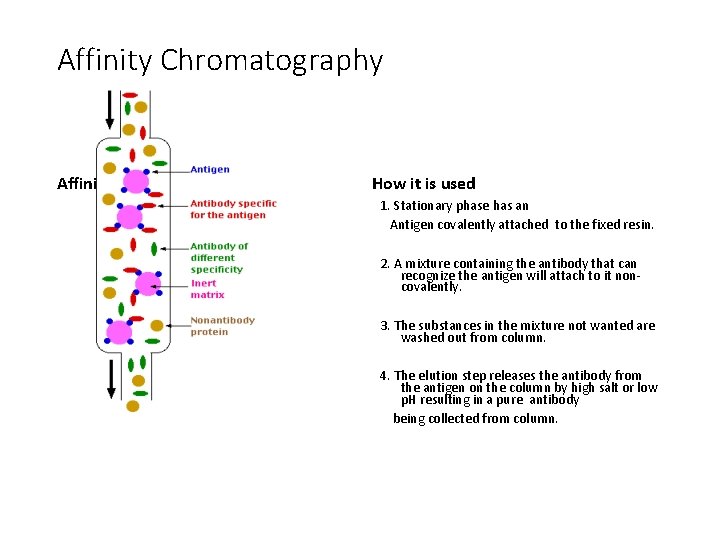

Affinity Chromatography Affinity Column How it is used 1. Stationary phase has an Antigen covalently attached to the fixed resin. 2. A mixture containing the antibody that can recognize the antigen will attach to it noncovalently. 3. The substances in the mixture not wanted are washed out from column. 4. The elution step releases the antibody from the antigen on the column by high salt or low p. H resulting in a pure antibody being collected from column.

Column Chromatography of GFP

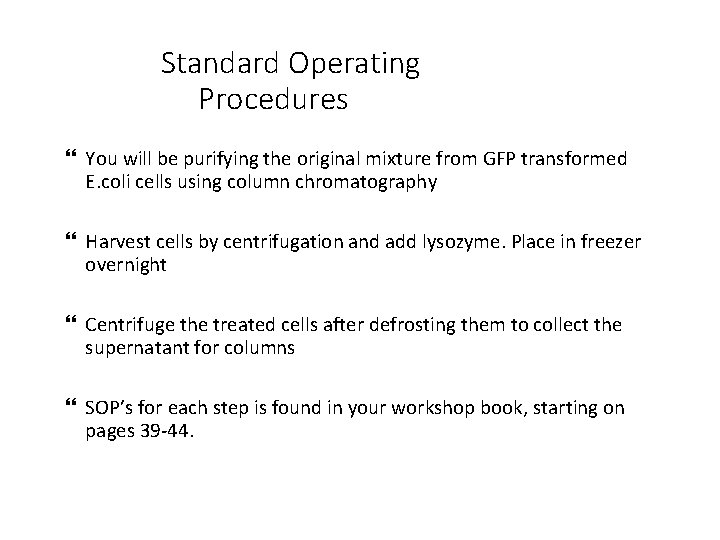

Standard Operating Procedures You will be purifying the original mixture from GFP transformed E. coli cells using column chromatography Harvest cells by centrifugation and add lysozyme. Place in freezer overnight Centrifuge the treated cells after defrosting them to collect the supernatant for columns SOP’s for each step is found in your workshop book, starting on pages 39 -44.

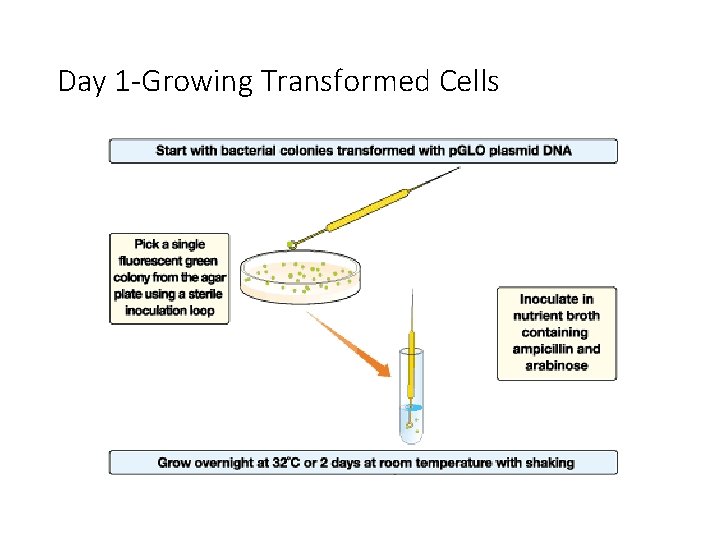

Day 1 -Growing Transformed Cells 1

Day 2 Cells must be lysed; freezing and thawing works well.

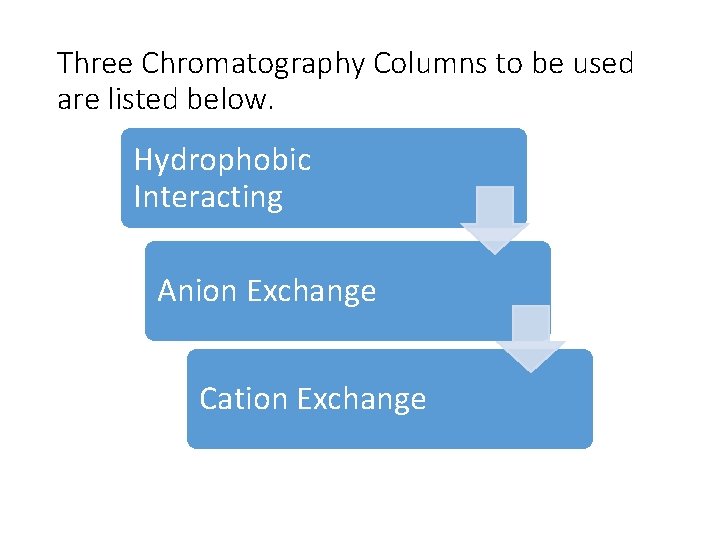

Three Chromatography Columns to be used are listed below. Hydrophobic Interacting Anion Exchange Cation Exchange

HIC Columns • Some proteins are hydrophobic or Water hating • High salt concentration causes protein to fold • Exposes hydrophobic regions to outside- & proteins stick to the column • When low salt buffer is added, hydrophilic areas are exposed – protein is released

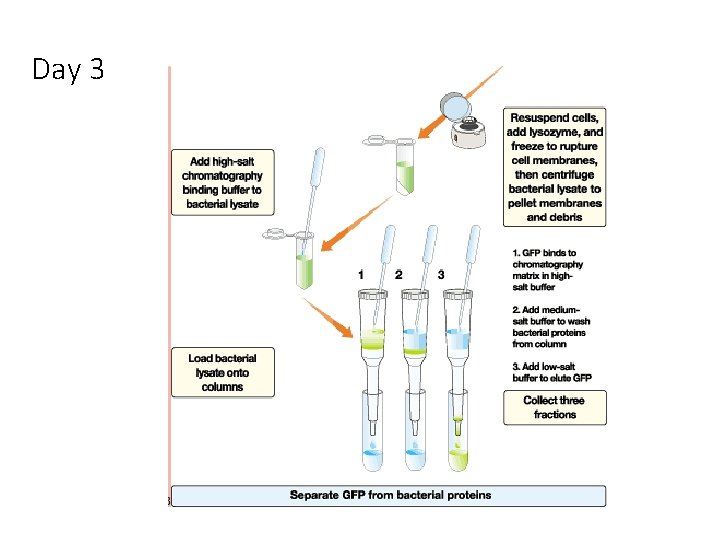

Day 3

Four Different Buffers for Use in Column • Equilibration buffer- 2 M ammonium sulfate • Binding buffer- 4 M ammonium sulfate • Wash buffer- 1. 3 M ammonium sulfate • Elution buffer- low salt TE buffer

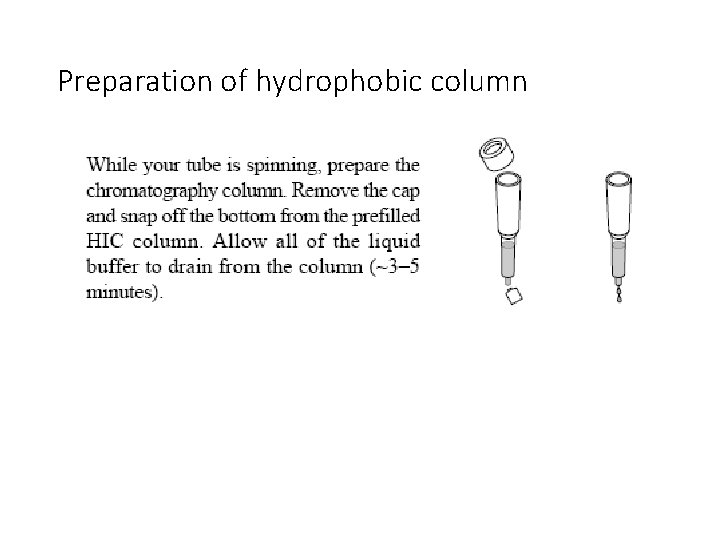

Preparation of hydrophobic column

Equilibration Buffer

Purification Step 1 • Label three collection tubes 1, 2, 3 • Place column into tube 1 and allow liquid to run through column • Place 250 ul of supernatant onto the top of the column • Let the liquid empty from column • Move column to tube 2

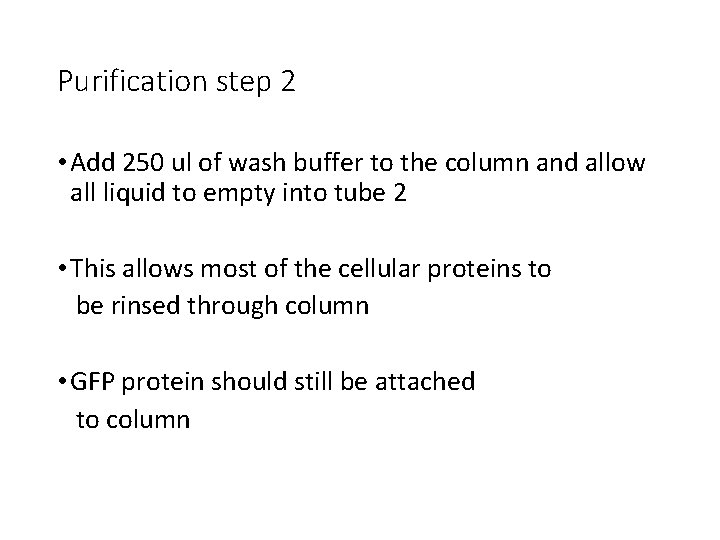

Purification step 2 • Add 250 ul of wash buffer to the column and allow all liquid to empty into tube 2 • This allows most of the cellular proteins to be rinsed through column • GFP protein should still be attached to column

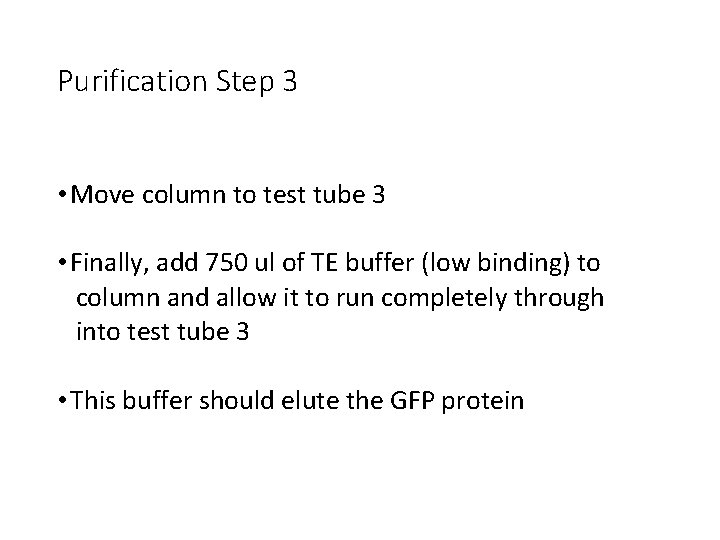

Purification Step 3 • Move column to test tube 3 • Finally, add 750 ul of TE buffer (low binding) to column and allow it to run completely through into test tube 3 • This buffer should elute the GFP protein

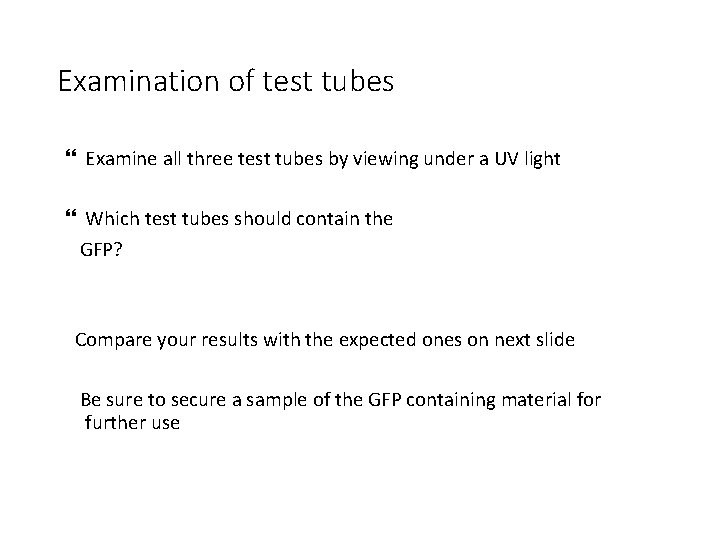

Examination of test tubes Examine all three test tubes by viewing under a UV light Which test tubes should contain the GFP? Compare your results with the expected ones on next slide Be sure to secure a sample of the GFP containing material for further use

Anion and Cation Columns • Continue in your workshop book and find the information for thenext column, Mono Q. • The solutions, Mono Q column and supernatant needed for the column • Test tubes labelled for use • Follow the SOP as given in your workbook • Continue on and complete the cation exchange column Mono S • Secure all your column fractions needed for PAGE analysis
