Pulp Protection Liners Varnishes Bases DR Ramesh Bharti

Pulp Protection: Liners, Varnishes & Bases DR Ramesh Bharti Assistant Professor Conservative Dentistry & Endodontics FODS, KGMU, Lucknow

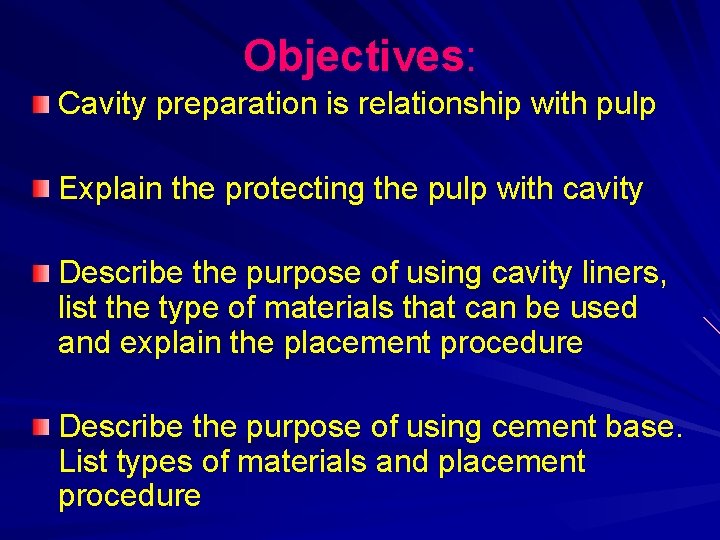

Objectives: Cavity preparation is relationship with pulp Explain the protecting the pulp with cavity Describe the purpose of using cavity liners, list the type of materials that can be used and explain the placement procedure Describe the purpose of using cement base. List types of materials and placement procedure

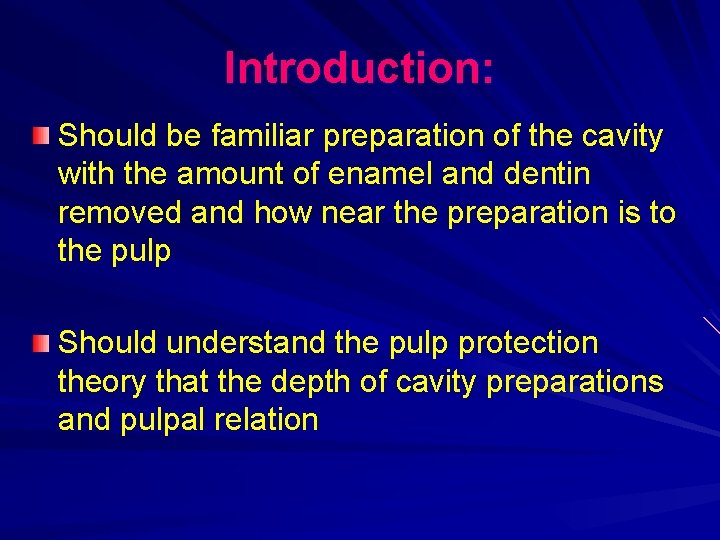

Introduction: Should be familiar preparation of the cavity with the amount of enamel and dentin removed and how near the preparation is to the pulp Should understand the pulp protection theory that the depth of cavity preparations and pulpal relation

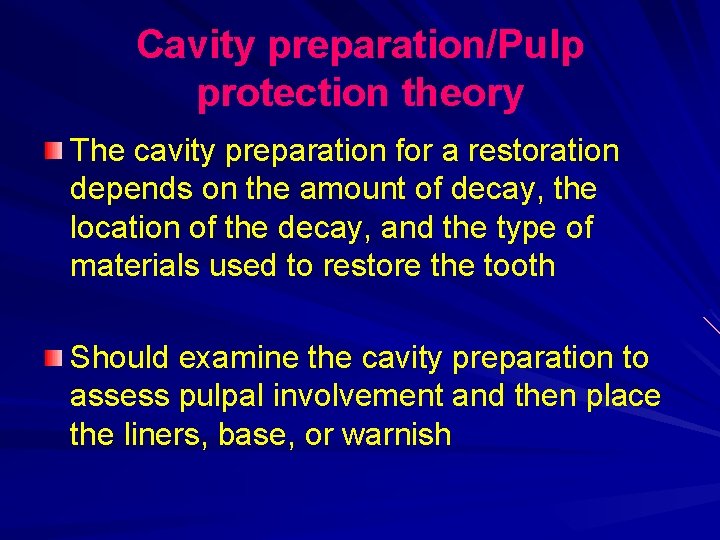

Cavity preparation/Pulp protection theory The cavity preparation for a restoration depends on the amount of decay, the location of the decay, and the type of materials used to restore the tooth Should examine the cavity preparation to assess pulpal involvement and then place the liners, base, or warnish

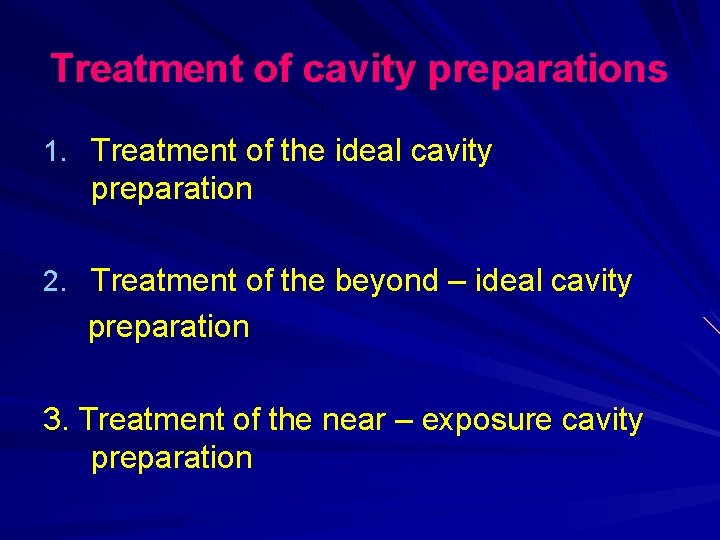

Treatment of cavity preparations 1. Treatment of the ideal cavity preparation 2. Treatment of the beyond – ideal cavity preparation 3. Treatment of the near – exposure cavity preparation

Treatment of the ideal cavity preparation: A base is not required because only a minimal amount of enamel and dentin has been removed Some dentists place only the restoration, while other prefer to place a fluoride –releasing liner If an amalgam restoration is going to be placed, two thin layers of cavity varnish are often placed over the dentin If a composite restoration is going to be used, a glass ionomer liner or calcium hydroxide is placed over the exposed dentin

Treatment of the beyond – ideal cavity preparation With a beyond –ideal preparation , the level of the dentin is restored with a cement base With an amalgam restoration, there are several options. One option is to placetwo thin layers of varnish to seal the dentin tubules and then place a layer of a cement base, such as zinc phosphate

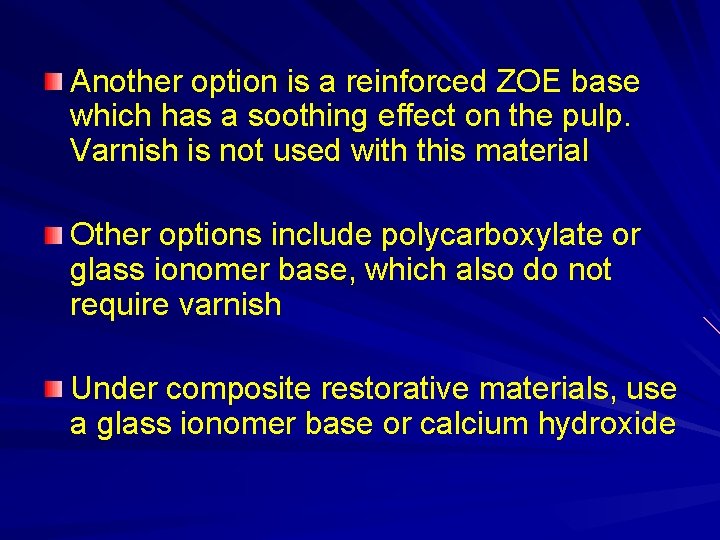

Another option is a reinforced ZOE base which has a soothing effect on the pulp. Varnish is not used with this material Other options include polycarboxylate or glass ionomer base, which also do not require varnish Under composite restorative materials, use a glass ionomer base or calcium hydroxide

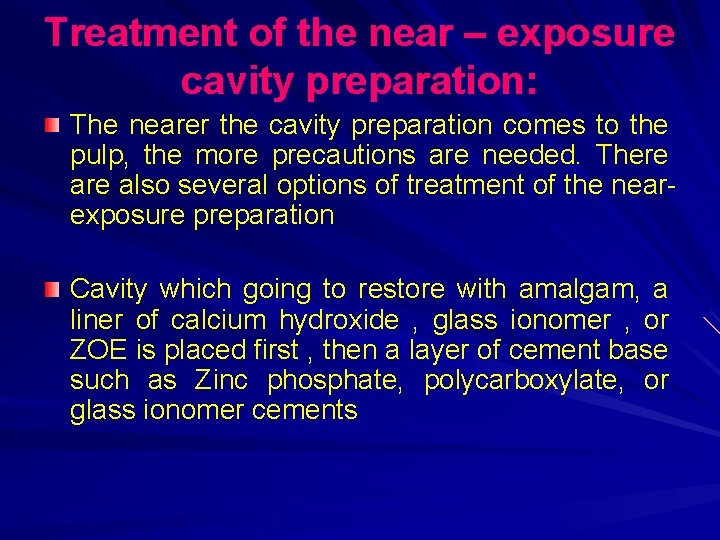

Treatment of the near – exposure cavity preparation: The nearer the cavity preparation comes to the pulp, the more precautions are needed. There also several options of treatment of the nearexposure preparation Cavity which going to restore with amalgam, a liner of calcium hydroxide , glass ionomer , or ZOE is placed first , then a layer of cement base such as Zinc phosphate, polycarboxylate, or glass ionomer cements

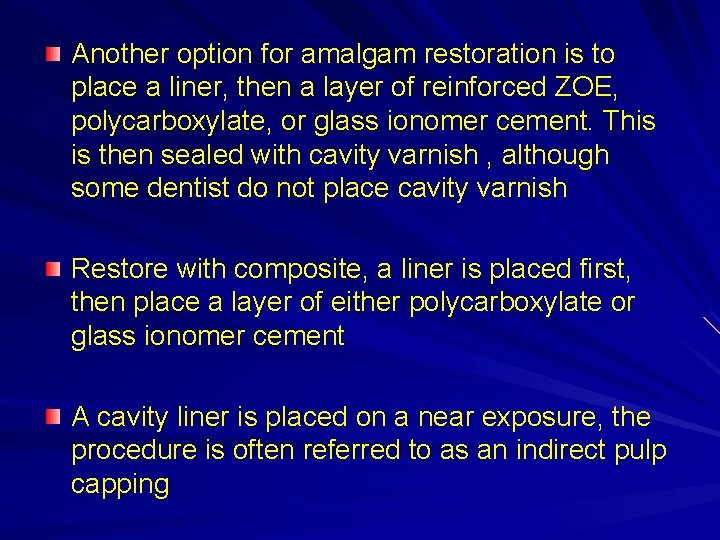

Another option for amalgam restoration is to place a liner, then a layer of reinforced ZOE, polycarboxylate, or glass ionomer cement. This is then sealed with cavity varnish , although some dentist do not place cavity varnish Restore with composite, a liner is placed first, then place a layer of either polycarboxylate or glass ionomer cement A cavity liner is placed on a near exposure, the procedure is often referred to as an indirect pulp capping

Treatment of the exposed- pulp cavity preparation: In an exposed pulp, should be decided whether endodontic treatment is indicated or should save the vitality of the tooth. If the treatment of choice is to save the pulp, a procedure called a direct pulp capping is performed

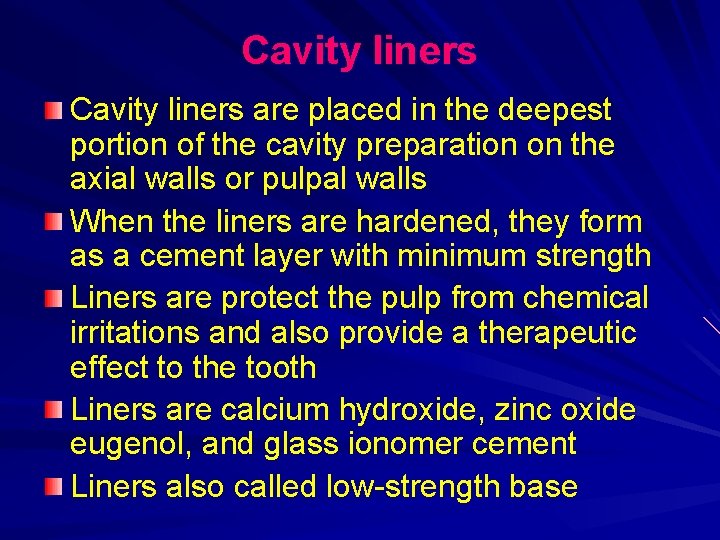

Cavity liners are placed in the deepest portion of the cavity preparation on the axial walls or pulpal walls When the liners are hardened, they form as a cement layer with minimum strength Liners are protect the pulp from chemical irritations and also provide a therapeutic effect to the tooth Liners are calcium hydroxide, zinc oxide eugenol, and glass ionomer cement Liners also called low-strength base

On this direct pulp capping treatment, place the calcium hydroxide or glass ionomer liner and then reinforced ZOE as a temporary restoration. This gives to the dentist time to see whether the pulp is going to heal Another treatment involves the placement of a liner, a layer of ZOE cement, two thin layers of varnish, and cement base Some dentist prefer to place a liner and then a layer of polycarboxylate or glass ionomer cement base

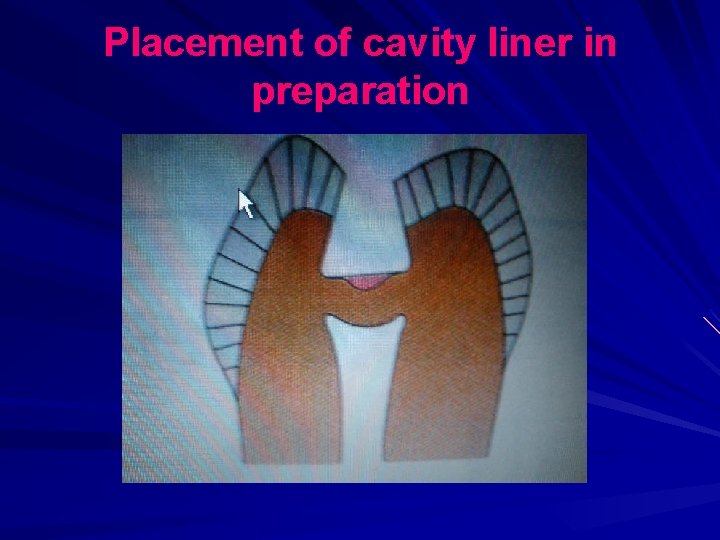

Placement of cavity liner in preparation

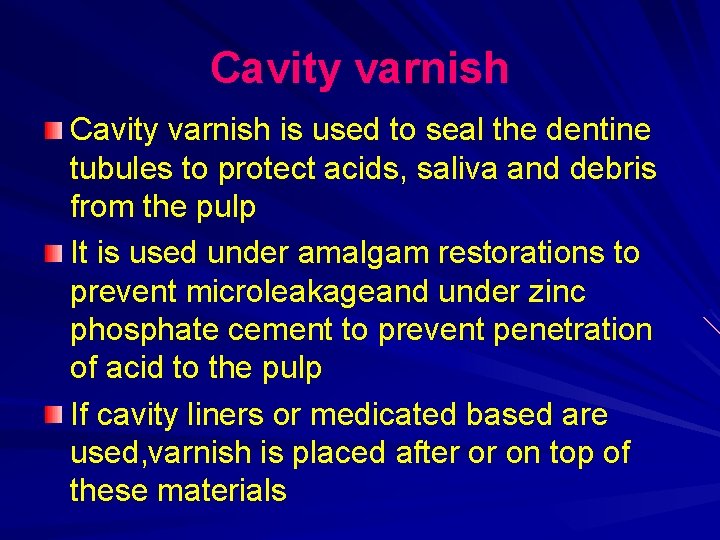

Cavity varnish is used to seal the dentine tubules to protect acids, saliva and debris from the pulp It is used under amalgam restorations to prevent microleakageand under zinc phosphate cement to prevent penetration of acid to the pulp If cavity liners or medicated based are used, varnish is placed after or on top of these materials

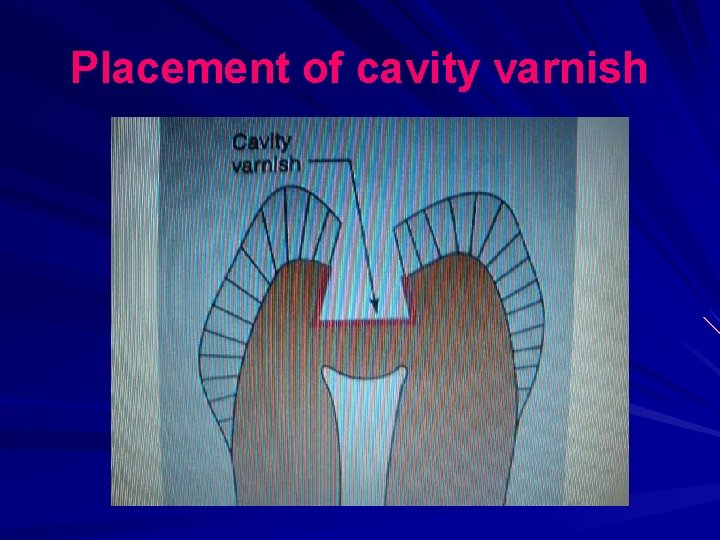

Placement of cavity varnish

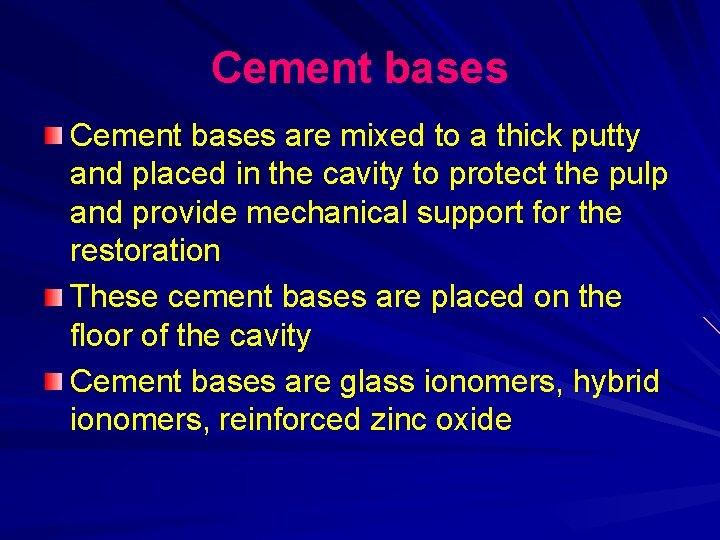

Cement bases are mixed to a thick putty and placed in the cavity to protect the pulp and provide mechanical support for the restoration These cement bases are placed on the floor of the cavity Cement bases are glass ionomers, hybrid ionomers, reinforced zinc oxide

Placement of cement bases

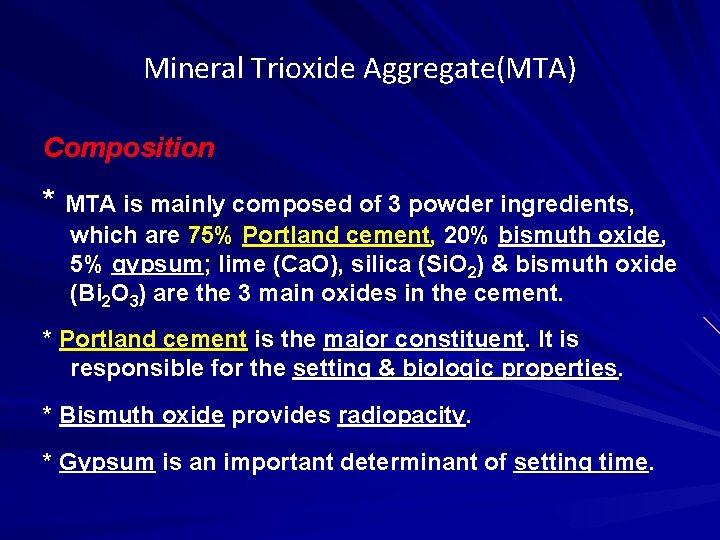

Mineral Trioxide Aggregate(MTA) Composition * MTA is mainly composed of 3 powder ingredients, which are 75% Portland cement, 20% bismuth oxide, 5% gypsum; lime (Ca. O), silica (Si. O 2) & bismuth oxide (Bi 2 O 3) are the 3 main oxides in the cement. * Portland cement is the major constituent. It is responsible for the setting & biologic properties. * Bismuth oxide provides radiopacity. * Gypsum is an important determinant of setting time.

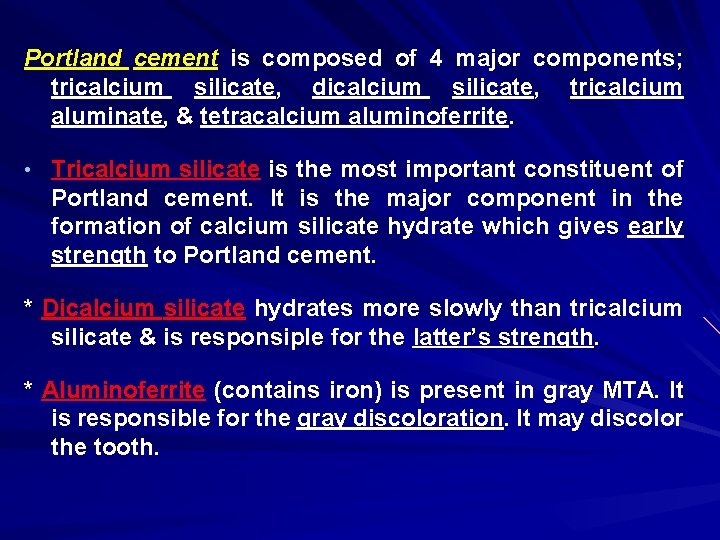

Portland cement is composed of 4 major components; tricalcium silicate, dicalcium silicate, tricalcium aluminate, & tetracalcium aluminoferrite. • Tricalcium silicate is the most important constituent of Portland cement. It is the major component in the formation of calcium silicate hydrate which gives early strength to Portland cement. * Dicalcium silicate hydrates more slowly than tricalcium silicate & is responsiple for the latter’s strength. * Aluminoferrite (contains iron) is present in gray MTA. It is responsible for the gray discoloration. It may discolor the tooth.

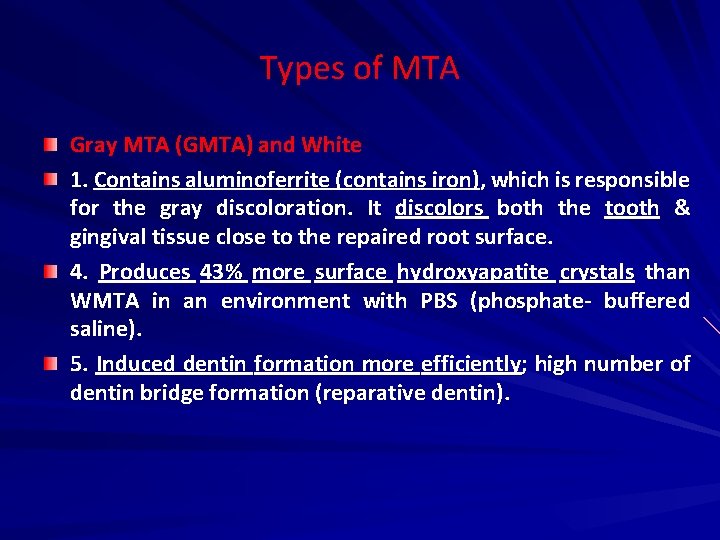

Types of MTA Gray MTA (GMTA) and White 1. Contains aluminoferrite (contains iron), which is responsible for the gray discoloration. It discolors both the tooth & gingival tissue close to the repaired root surface. 4. Produces 43% more surface hydroxyapatite crystals than WMTA in an environment with PBS (phosphate- buffered saline). 5. Induced dentin formation more efficiently; high number of dentin bridge formation (reparative dentin).

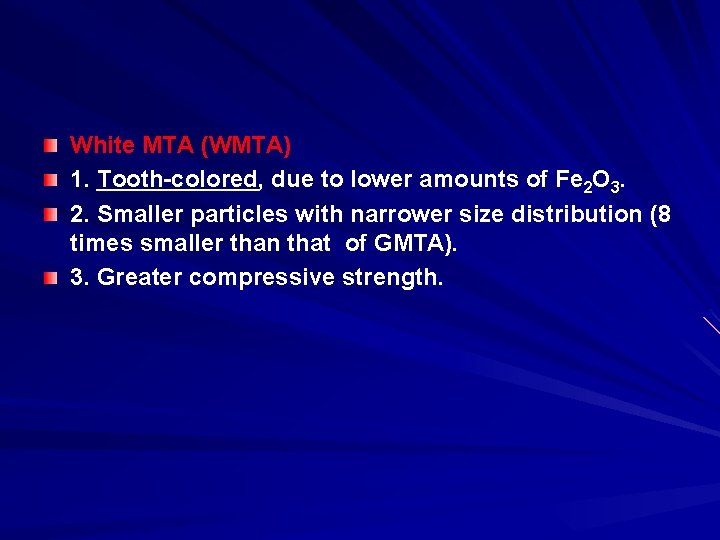

White MTA (WMTA) 1. Tooth-colored, due to lower amounts of Fe 2 O 3. 2. Smaller particles with narrower size distribution (8 times smaller than that of GMTA). 3. Greater compressive strength.

MTA Manipulation Mixing: gray MTA & white MTA are mixed with supplied sterile water in a powder to liquid ratio of 3: 1 according to the manufacturer’s instruction. Note: Poor handling properties. The loose sandy nature of the mixture causes much difficulty for the insertion & packing of MTA.

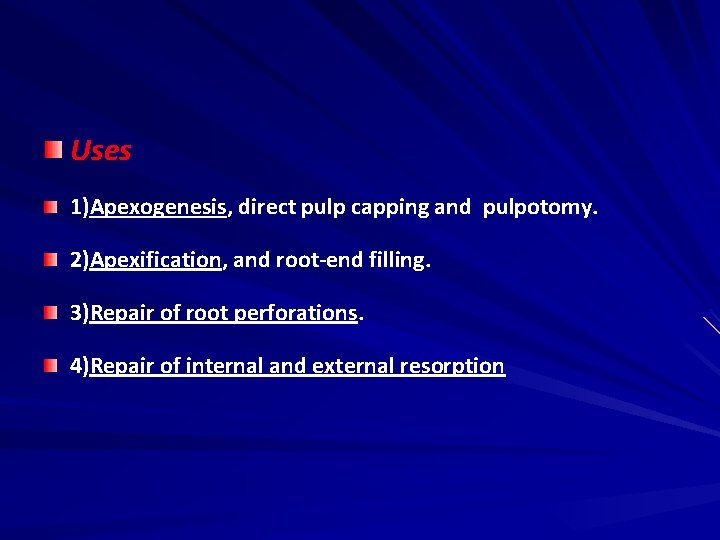

Uses 1)Apexogenesis, direct pulp capping and pulpotomy. 2)Apexification, and root-end filling. 3)Repair of root perforations. 4)Repair of internal and external resorption

Advantages 1) Save treatment time. High success rate. It is the material of choice for apexification & apexogenesis. 2) Alkaline p. H, which may impart antibacterial effect on some facultative bacteria. 3) Can induce formation (regeneration) of dentin, cementum, bone & periodontal ligament. 4) Excellent biocompatibility and appropriate mechanical properties. 5) Excellent sealing ability.

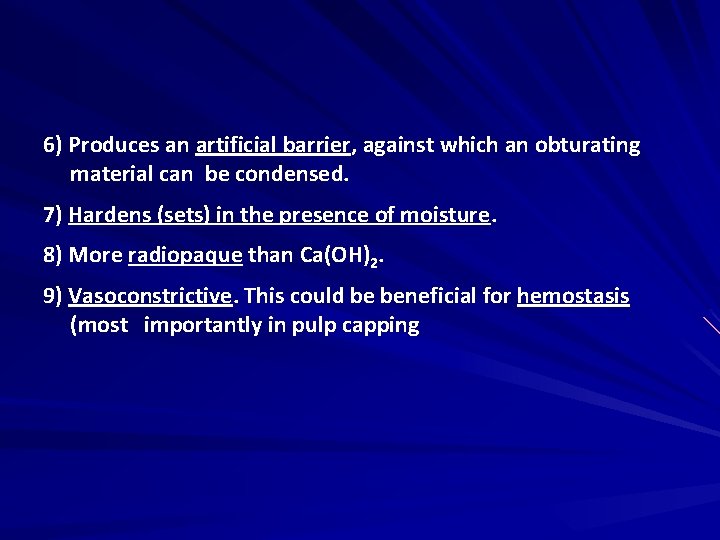

6) Produces an artificial barrier, against which an obturating material can be condensed. 7) Hardens (sets) in the presence of moisture. 8) More radiopaque than Ca(OH)2. 9) Vasoconstrictive. This could be beneficial for hemostasis (most importantly in pulp capping

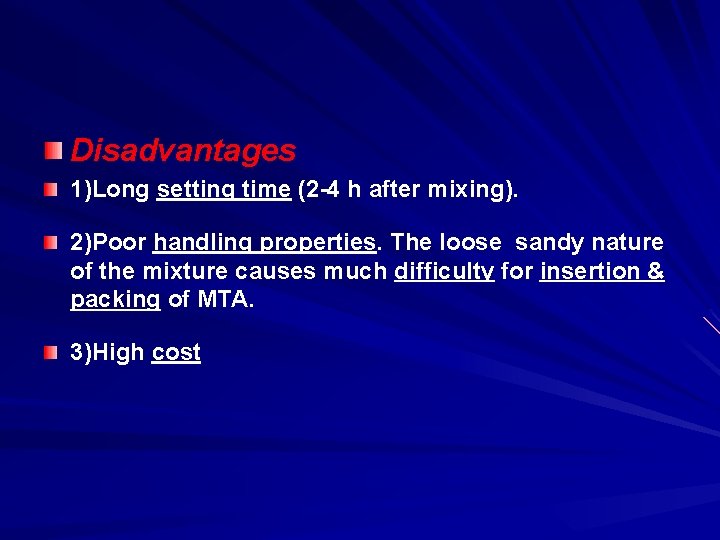

Disadvantages 1)Long setting time (2 -4 h after mixing). 2)Poor handling properties. The loose sandy nature of the mixture causes much difficulty for insertion & packing of MTA. 3)High cost
