Pulleys • Pulley are wheels and axles with a groove axles groove around the outside • A pulley needs a rope, chain or chain belt around belt the groove to make it do work

Lifting Pulleys • Lifting Pulleys in transmission systems – Single pulley – Moveable pulley – Block and Tackle

Pulley Examples • Reverses the direction of force direction • Two or more pulleys connected together permit a heavy load to be lifted with less force http: //www. sciencemuseum. org. uk/on-line/leonardo/Inventors. Toolbox. asp

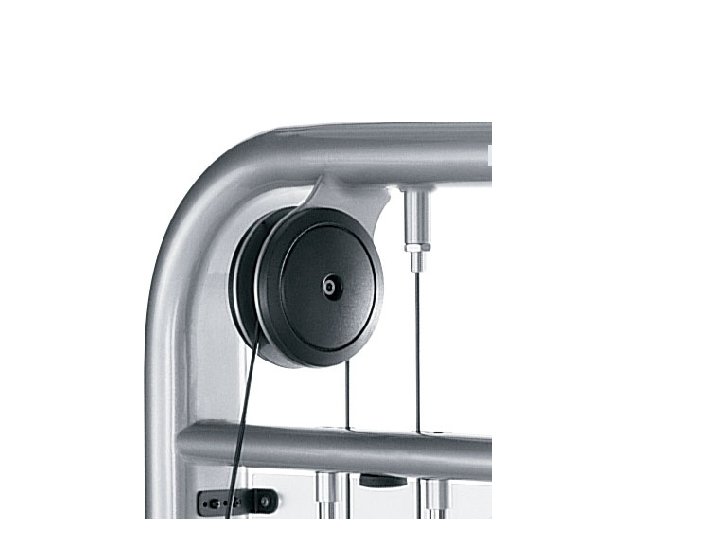

Fixed (single) pulley Fixed Pulley: • Wheel attached to surface • Changes the direction of the applied force • NO mechanical advantage – same amount of force is required

Single Pulley • The resistance arm and the effort arm are both the radius of the pulley. • Since they are equal, there is no mechanical advantage.

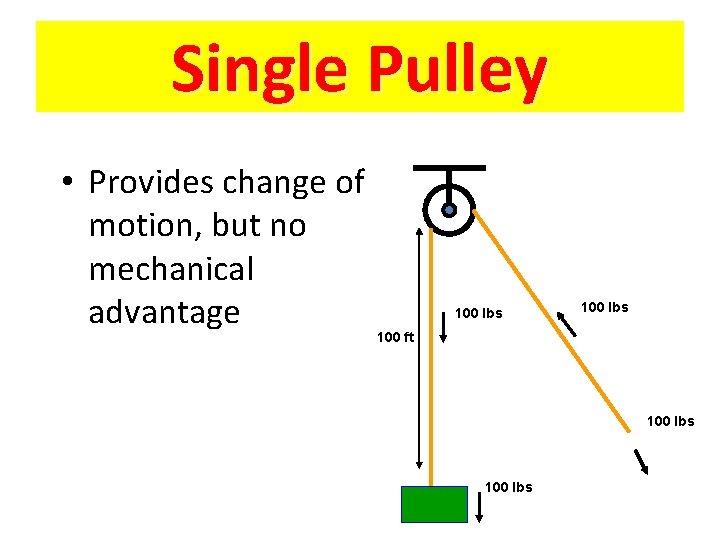

Single Pulley • Provides change of motion, but no mechanical advantage 100 lbs 100 ft 100 lbs

Movable pulley Movable Pulley: • Pulley moves along the rope • Wheel supports the load • Effort is in the same direction as movement • Reduces the forces needed to move an object

MA in a Moveable pulley • A moveable pulley is a second-class pulley. • The effort arm is the diameter and the resistance arm is the radius. • MA = d. E ÷ d. R • MA = 2 ÷ 1 = 2 Mechanical Advantage

Another Moveable pulley • Provides change of direction and a mechanical advantage of 1: 2 (at the expense of having to increase the amount of line to pull) These kinds of diagrams are easier to 50 lbs 100 lbs 50 lbs

In the second picture, the weight is held by two ropes instead of one. That means the weight is split equally between the two ropes, so each one holds only half the weight. http: //www. swe. org/iac/LP/pulley_03. html

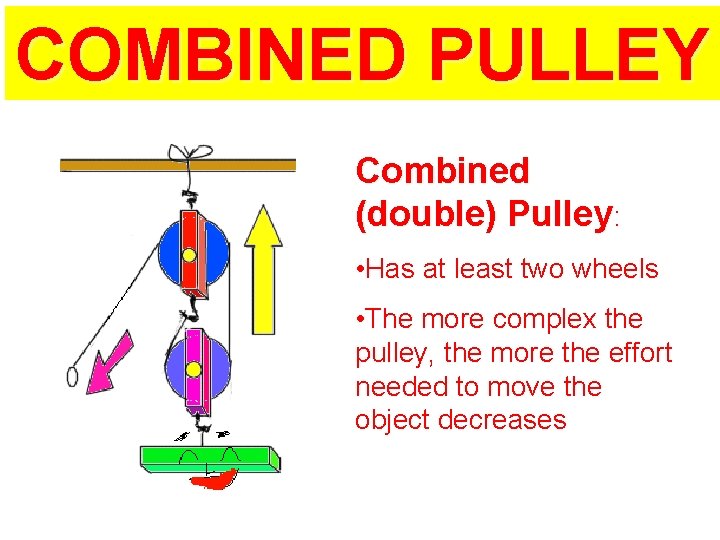

COMBINED PULLEY Combined (double) Pulley: • Has at least two wheels • The more complex the pulley, the more the effort needed to move the object decreases

COMBINED PULLEY • The effort needed to lift the load is less than half the weight of the load. • The main disadvantage is it travels a very long distance.

Mechanical Advantage • Mechanical Advantage is the same as the number of ropes supporting the object number of ropes MA=2 MA=4

How about these? Calculate MA for these and similar

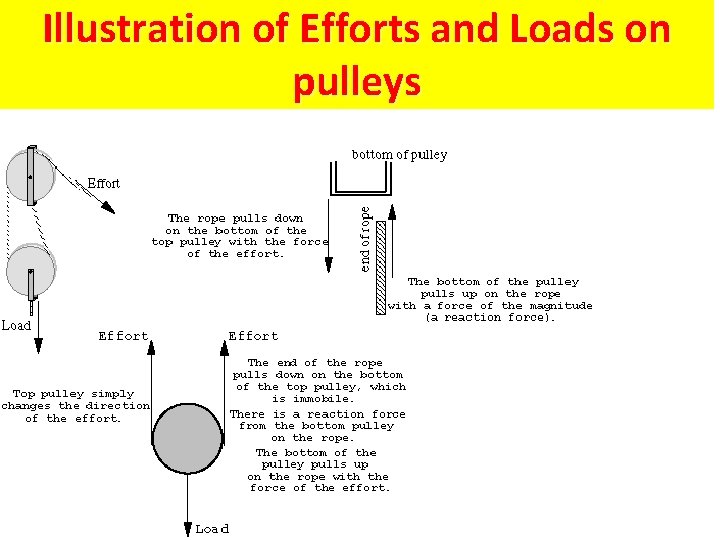

Illustration of Efforts and Loads on pulleys

Calculate MA

Pulley Calculations

Pulleys as used in robots • A pulley is basically a wheel with a groove in the circumference of the wheel, with a belt or cable being fed around the groove. • Pulleys create a mechanical advantage by connecting a small input drive pulley to a larger follower with a belt. Driver (Effort) Follower (Resistance)

Mechanical Advantage of a Pulley Drive Train MA = FOLLOWER ÷ DRIVER Driver 1 mm Follower 4 mm • The Pulley Drive Train above produces an MA of 4. This means 10 lbs of input torque will create 40 lbs output, but the driver must rotate 4 times to rotate output 1 time. Speed is reduced by 4.

Mechanical Advantage MA = FOLLOWER ÷ DRIVER Driver 3 mm Follower 9 mm Driver 2 mm Follower 14 mm

Increasing Speed • Increase the speed of the output by using a larger driver gear and a smaller follower gear. Speed increases and power decreases. Driver 4 mm Follower 1 mm

Compound Drive Pulley Trains • A Compound Drive Pulley Train has pairs of pulleys working in combination, with the follower of one pulley sharing the same axle as the driver of the next sequential pulley train.

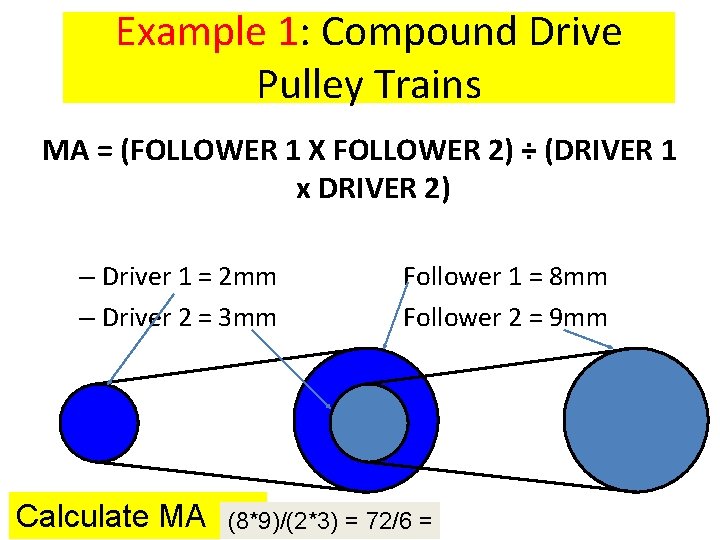

Example 1: Compound Drive Pulley Trains MA = (FOLLOWER 1 X FOLLOWER 2) ÷ (DRIVER 1 x DRIVER 2) – Driver 1 = 2 mm – Driver 2 = 3 mm Calculate MA Follower 1 = 8 mm Follower 2 = 9 mm (8*9)/(2*3) = 72/6 =

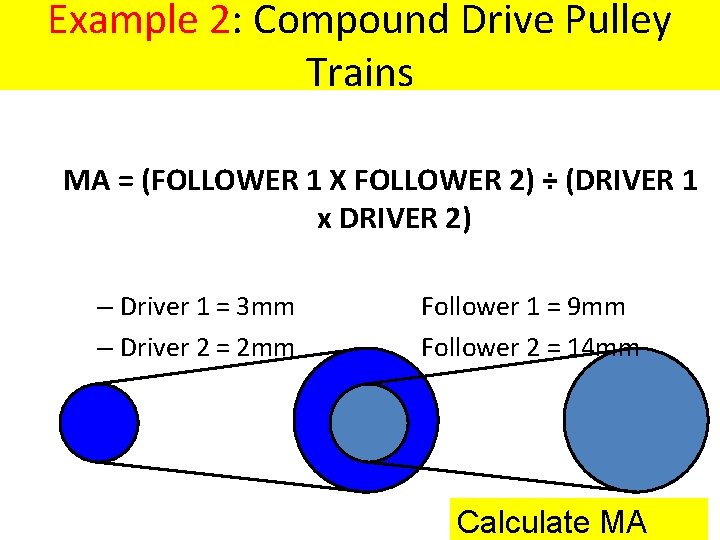

Example 2: Compound Drive Pulley Trains MA = (FOLLOWER 1 X FOLLOWER 2) ÷ (DRIVER 1 x DRIVER 2) – Driver 1 = 3 mm – Driver 2 = 2 mm Follower 1 = 9 mm Follower 2 = 14 mm Calculate MA

Problem 2 • Sketch the following two pulley trains: – A: Simple pulley train with belt wrapped so both pulleys rotate in same direction. – B. Simple pulley train with belt wrapped so both pulleys rotate in opposite direction.

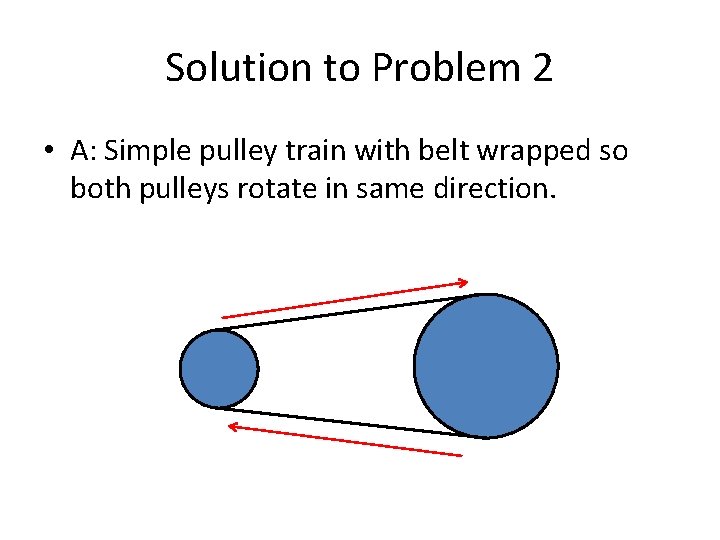

Solution to Problem 2 • A: Simple pulley train with belt wrapped so both pulleys rotate in same direction.

Solution to Problem 2 • B. Simple pulley train with belt wrapped so both pulleys rotate in opposite direction.

Problem 3 • Calculate the mechanical advantage of the compound pulley drive train model. – Show your work. – Small Pulley Diameter = 25 mm – Large Pulley Diameter = 100 mm

Last slide on Tuesday Jan 7

Block and Tackle

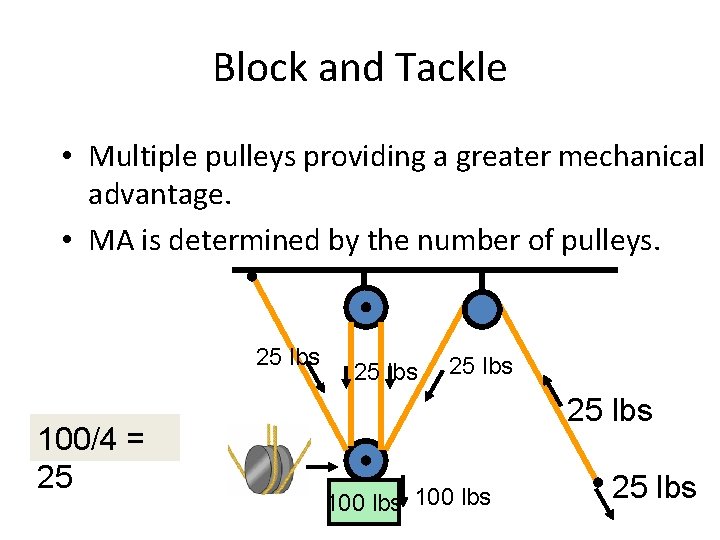

Block and Tackle • Multiple pulleys providing a greater mechanical advantage. • MA is determined by the number of pulleys. 25 lbs 100/4 = 25 25 lbs 100 lbs 25 lbs

Block and Tackle Gun Tackle Luff Tackle

Block and Tackle

Block and Tackle: Luff-upon-Luff Tacke 1200/100 = 12

Pulleys are used to gain mechanical advantage trading the amount of rope you have to pull to lift an object for how heavy the object can be.

The more lines of support (ropes) a pulley has, the more mechanical advantage it has! http: //www. swe. org/iac/LP/pulley_03. html

Review of Pulleys 1. Give real-world example of each of the following pulleys. 1. Force Multiplier 2. Speed Multiplier 3. Direction Changer 2. Give one example of a simple machine or transmission that changes output motion. Identify both input and output motions. 3. Give examples of using Pulleys in Robotics, especially humanoid robot design.

Elaboration Pulley Engineering • Design, Create, and Verify a pulley system with a mechanical advantage of: – 4 – 5 – 6 • Be sure to include drawings of your systems and how you verified the MA of the systems • For block and tackle systems, what effect most greatly reduces the MA?

Evaluation Pulley Puzzlers • The girl in the illustration is trying to lift herself and the swing using the rope. • What would you predict would happen if she pulled down on the rope? • If she weighs 90 pounds and the swing weighs ten pounds, how much force does she need to apply?

Evaluation Pulley Puzzlers 1. We should assume that it is an extensionless, massless rope, a massless pulley that does not hinder its rotation, and a rigid support. 2. We should imagine a box around the girl and the swing with only the rope extending out from the box to isolate the forces acting on the objects inside the box from the external forces. 3. The rope supports the box once, goes through the pulley and supports the box again. 4. The tension of the rope going upwards is T on each side, so the total tension is 2 T. 5. The combined force from the tension in the rope must be greater than the combined weight of the girl and the chair for the chair to be lifted. 6. For a 90 pound girl and 10 pound chair, she must use a

Evaluation Pulley Puzzlers • The man in the illustration below is trying to lift himself and the block on which he is standing off the ground. • Is this possible? 1. This movable pulley allows the man to pull upwards and the block on which he stands will rise with him on top. 2. He must apply a force equal to his weight and the weight of the block because there is only 1 supporting rope outside the system. 3. There is a mechanical advantage of 1. 4. Yes, it can be done.

Evaluation Pulley Puzzlers • A long rope passes over a single pulley and has bananas on one end a monkey on the other. • If the monkey and the bananas have the same mass, can the monkey ever reach the bananas if he climbs the rope? • Assume that the rope is massless, there is no friction, and the rope is limitless.

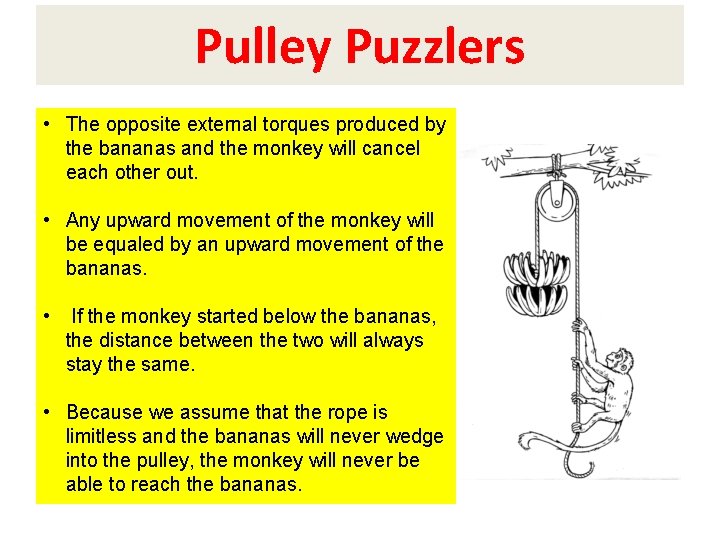

Evaluation Pulley Puzzlers • The opposite external torques produced by the bananas and the monkey will cancel each other out. • Any upward movement of the monkey will be equaled by an upward movement of the bananas. • If the monkey started below the bananas, the distance between the two will always stay the same. • Because we assume that the rope is limitless and the bananas will never wedge into the pulley, the monkey will never be able to reach the bananas.

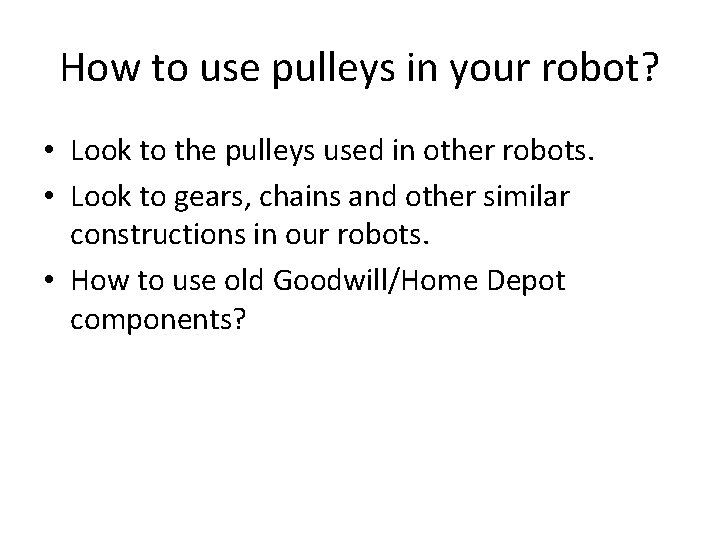

How to use pulleys in your robot? • Look to the pulleys used in other robots. • Look to gears, chains and other similar constructions in our robots. • How to use old Goodwill/Home Depot components?

Engagement Pulleys in history

Engagement Ancient Pulleys Archimedes, who was kinsman and a friend of King Hieron of Syracuse, wrote to him that with any given force it was possible to move any given weight, and emboldened, as we were told, by the strength of his demonstration, he declared that, if there were another world, and he could go to it, he could move this. Hieron was astonished, and begged him to put his proposition into execution, and show him some great weight moved by a slight force. Archimedes therefore fixed upon a three -master merchantman of the royal fleet, which had been dragged ashore by the great labors of many men, and after putting on board many passengers and the customary freight, he seated himself at a distance from her, and without any great effort, but quietly setting in motion with his hand a system of compound pulleys, drew her towards him smoothly and evenly, as though she were gliding through the water. - Plutarch Instructor: Read this in your best theatrical voice What else did Archimedes study?

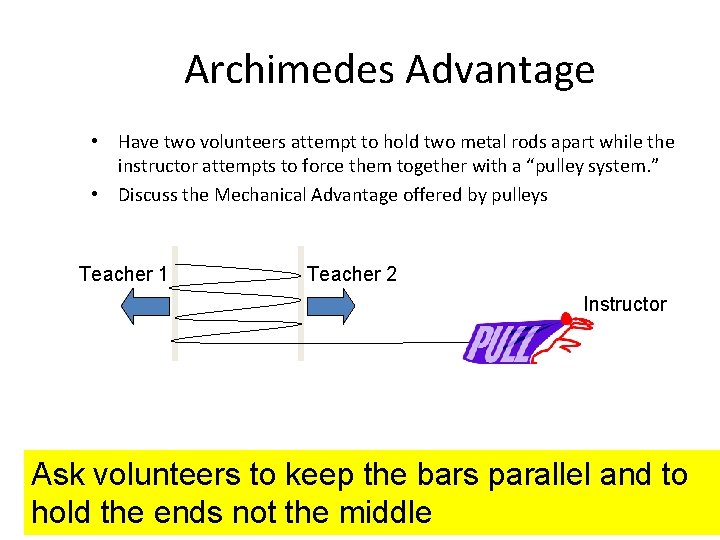

Engagement Archimedes Advantage • Have two volunteers attempt to hold two metal rods apart while the instructor attempts to force them together with a “pulley system. ” • Discuss the Mechanical Advantage offered by pulleys Teacher 1 Teacher 2 Instructor Ask volunteers to keep the bars parallel and to hold the ends not the middle
