PTS Data Center Solutions Data Center Decisions Presentation

PTS Data Center Solutions Data Center Decisions Presentation 2008

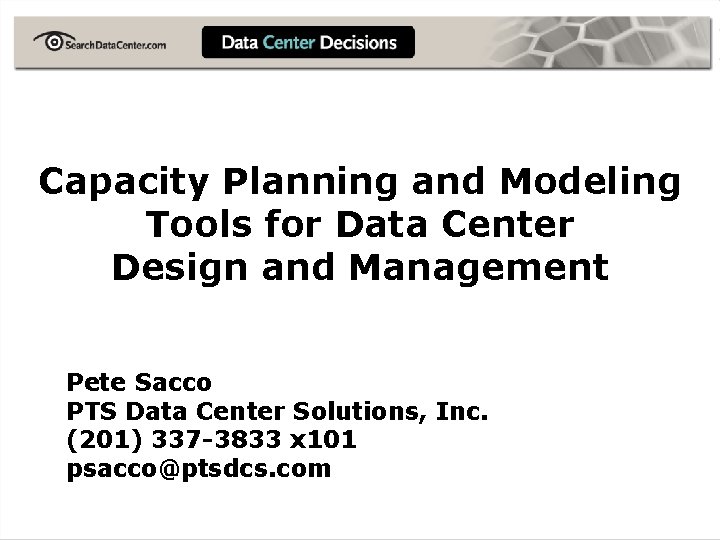

Capacity Planning and Modeling Tools for Data Center Design and Management Pete Sacco PTS Data Center Solutions, Inc. (201) 337 -3833 x 101 psacco@ptsdcs. com

Agenda • Why is data center management important? • What can be achieved with effective data center management? • The data center facility lifecycle • Data center facility lifecycle tools

Why Is Data Center Management (DCM) Important?

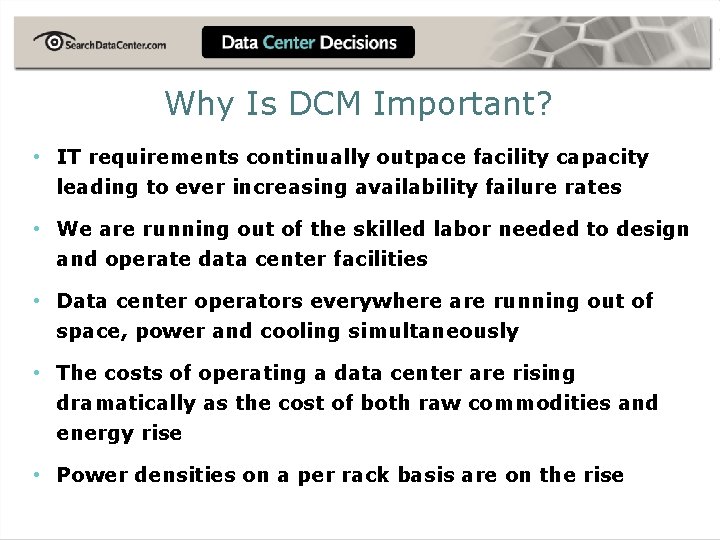

Why Is DCM Important? • IT requirements continually outpace facility capacity leading to ever increasing availability failure rates • We are running out of the skilled labor needed to design and operate data center facilities • Data center operators everywhere are running out of space, power and cooling simultaneously • The costs of operating a data center are rising dramatically as the cost of both raw commodities and energy rise • Power densities on a per rack basis are on the rise

The Grim Reality • DCI -- By 2015, the talent pool of qualified senior level technical and management data center professionals will shrink by 45% • AFCOM -- 71% will need to physically expand their data center and/or outsource some applications in the next 10 years due to business growth, aging facilities and new technology • DCI -- Over the next five years power failures and limits on power availability will halt data center operations at more than 90% of all companies

The Grim Reality • ARI -- 2/3 were not planning to build new data centers due to the cost and time it takes to complete such a project • AFCOM -- 81. 2% of members have experienced a data center failure in the last five years • DOE -- 100% probability of another ‘August 14, 2003’ wide area outage in the next five years

AFCOM Survey Results • What are the greatest facility problems in data centers? • • • 29% Excessive Heat 29% Insufficient Power 21% Insufficient Floor Space 6% Poor Location 3% Excessive Operating Costs 13% None of the Above

APC’s Rack Power Density Study

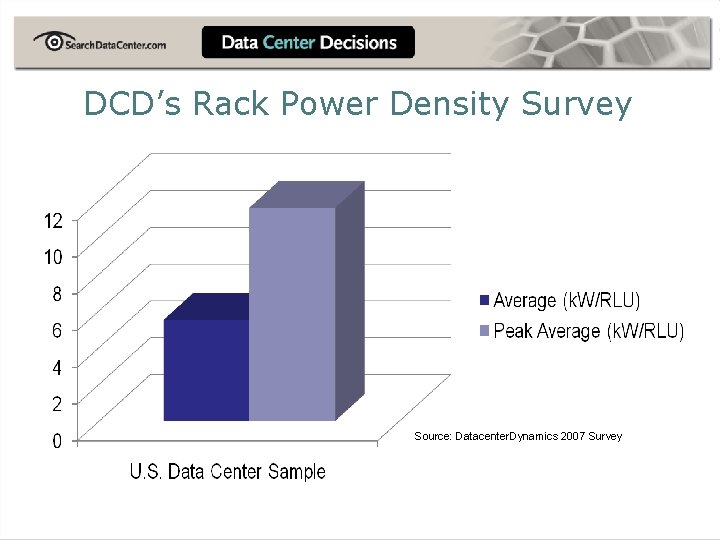

DCD’s Rack Power Density Survey Source: Datacenter. Dynamics 2007 Survey

What Can be Achieved with Effective Data Center Management?

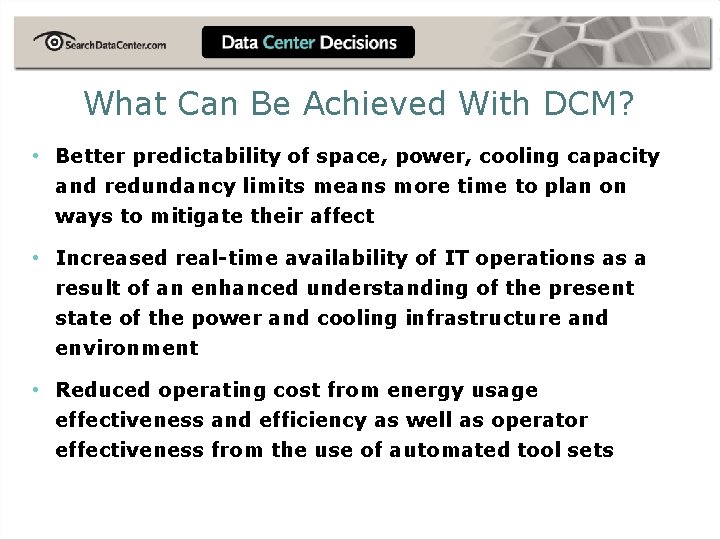

What Can Be Achieved With DCM? • Better predictability of space, power, cooling capacity and redundancy limits means more time to plan on ways to mitigate their affect • Increased real-time availability of IT operations as a result of an enhanced understanding of the present state of the power and cooling infrastructure and environment • Reduced operating cost from energy usage effectiveness and efficiency as well as operator effectiveness from the use of automated tool sets

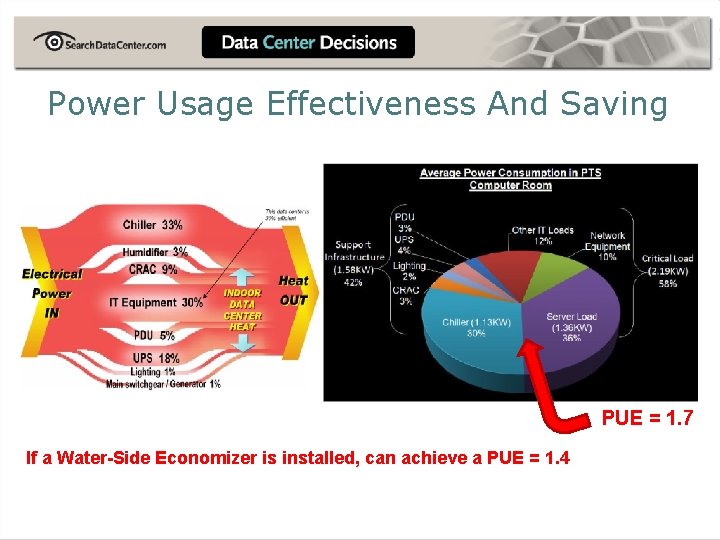

Power Usage Effectiveness And Saving PUE = 1. 7 If a Water-Side Economizer is installed, can achieve a PUE = 1. 4

Capacity And Redundancy Improvements

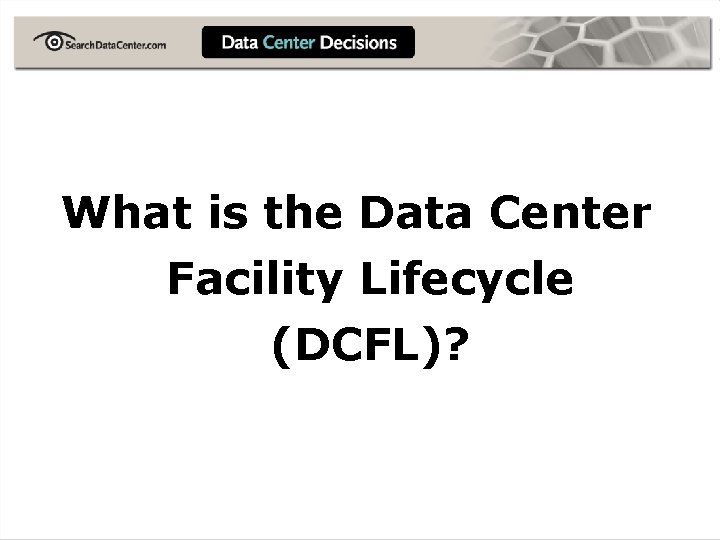

What is the Data Center Facility Lifecycle (DCFL)?

Data Center Management (DCM) Business Strategy Predictive Analysis Monitoring & Management Applications & IT Services An Adaptive Strategy Support Infrastructure IT Infrastructure Data Center Facility Design

Traditional Data Center Management IT Assets Facility Assets Access Control Servers Network Storage Management Software Systems Applications IT Services Liebert Many Site. Scan. Building SNMP Others Management Systems ALC Emergency Power Sensors Andover Environmental Systems Cooling System

Capacity Management • A process to provide facility and support infrastructure capacity, redundancy predictability and adaptability throughout the data center facility lifecycle: • 3 D Integrated Space, Power and Cooling Capacity and Redundancy Modeling • • Graphical Layout and Elevations • Room and Rack Cooling Capacity and Redundancy Planning (non-CFD) • • Energy Efficiency Analysis (CFD) Room and Rack Space Capacity and Redundancy Planning Room and Rack Power Capacity and Redundancy Planning Room and Rack Cooling Capacity and Redundancy Planning (CFD) Energy Efficiency Analysis (non-CFD)

The Data Center Facility Lifecycle Planni ng Predicti ve Analysis Design Constructio n & Commission ing Capacity Managem ent Maintena nce Real. Time Monitori ng IT Implementa tion Asset Managem ent

Data Center Planning Narrow the Scope Schedule Key Design Criteria Total Critical Load in k. W Required Availability Deployment Density of IT Infrastructure Budget

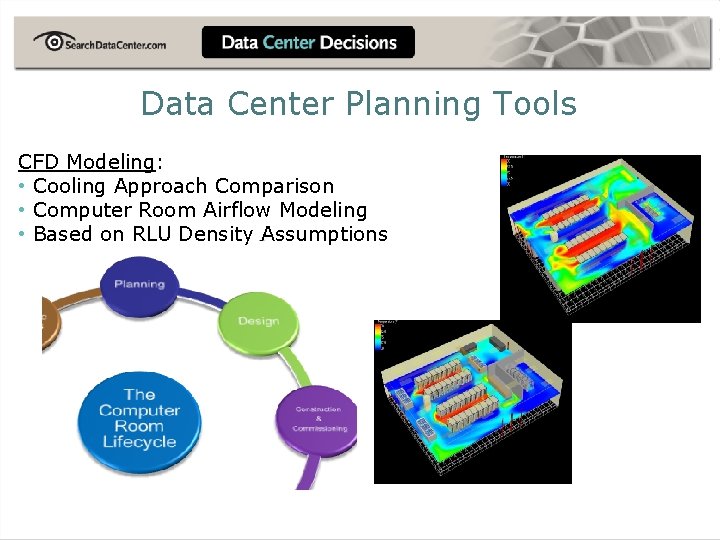

Data Center Planning Tools CFD Modeling: • Cooling Approach Comparison • Computer Room Airflow Modeling • Based on RLU Density Assumptions

Data Center Design Schematic Design (25%) Design Development (50%) Bid Documents (80%) Permit Documents (95%) Engineering Administration Construction Documents (100%)

Data Center Design Tools CFD Modeling: • Cooling Approach Comparison • Computer Room Airflow Modeling • Based on RLU Density Assumptions Auto. CAD: • Schematics and Specifications • Construction Documents Building Information Modeling: • Visual Coordination Modeling • Aesthetic Evaluation

Data Center Construction • Design / Build versus Bid and Specification • Same process regardless of large or small, new construction or retrofit, complete or partial • Construction tools include: • MS Project or other Project Management (PM) tools • Online Project Management Tools • Integrated Communication Technologies • Integrated Back Office Software Systems

Data Center Commissioning Level 1 Level 2 Level 3 Level 4 Level 5 • Submittal Review and Factory Testing • Site Inspection and Verification to Submittal • Installation Inspections and Verification to Design Drawings • Component Testing to Design Loads • System Integration Testing at Design Loads

IT Implementation • Installation of voice and data structured cabling, pathway and cable management • Installation of IT infrastructure including servers and storage, network and security and voice and communications systems • Construction tools include: • MS Project or other PM tools • Online Project Management Tools • Integrated Communication Technologies • Integrated Back Office Software Systems

Asset Management • Provides organization and ease management of both IT and support infrastructure • Should include: • Physical location, space requirement and service area requirement • Unique ID tag • Configuration and ratings information • Document and data management (SOW, contacts, etc. ) • Event history and alerts (start-up, maintenance, etc. )

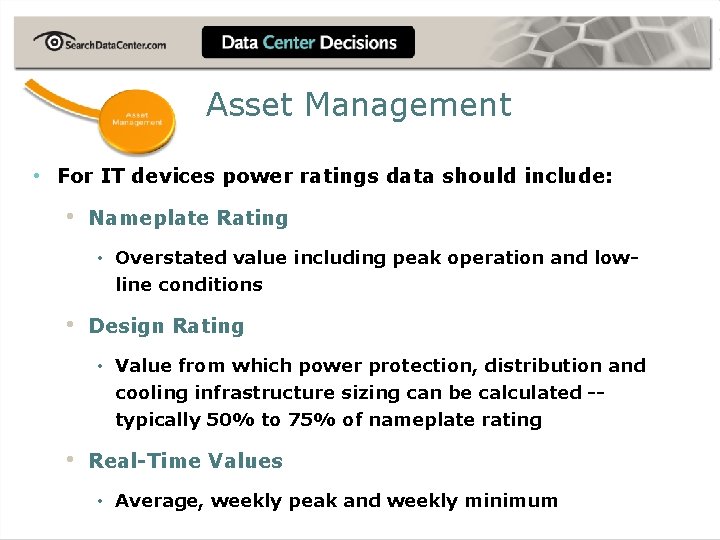

Asset Management • For IT devices power ratings data should include: • Nameplate Rating • Overstated value including peak operation and lowline conditions • Design Rating • Value from which power protection, distribution and cooling infrastructure sizing can be calculated -- typically 50% to 75% of nameplate rating • Real-Time Values • Average, weekly peak and weekly minimum

Asset Management Tools Spreadsheets or Custom Database: • Inexpensive • High management Visual Organizers (e. g. , Visio or Net. Zoom) • Less Expensive • High Management • Low Functionality Asset Management Software: • More Expensive • High Functionality • Medium Learning Curve to Maintain

Real-Time Monitoring · Honeywell · Johnson Controls · Siemens · CA Unicenter · Cisco. Works Building Management Systems · TAC · Tyco · APC Infra. Stru. Xure Central · HP Open. View · IBM Tivoli · Nagios · Microsoft Operations Manager · Whats. Up Gold Network Management Systems Data Center Monitoring Systems · Avocent’s DSView 3 · Emerson’s Aperture VISTA · Epicenter’s Synatix · Modius’ Open. Data Enterprise DCi. M · Raritan’s Command. Center

Real-Time Monitoring -- BMS • Building Management System (BMS) is a computer based control system installed in buildings that controls and monitors the building’s mechanical and electrical equipment such as air handling and cooling plant systems, lighting, power systems, fire systems and security systems.

Real-Time Monitoring -- NMS • A Network Management System (NMS) is a combination of hardware and software used to monitor and administer a network as opposed to controlling it. • An NMS is commonly a suite of software applications which allow large-scale system and network management of an organization's IT infrastructure.

Real-Time Monitoring -- DCMS • A Data Center Monitoring System (DCMS) uses a combination of hardware and software to monitor and administer a data center or computer room facility.

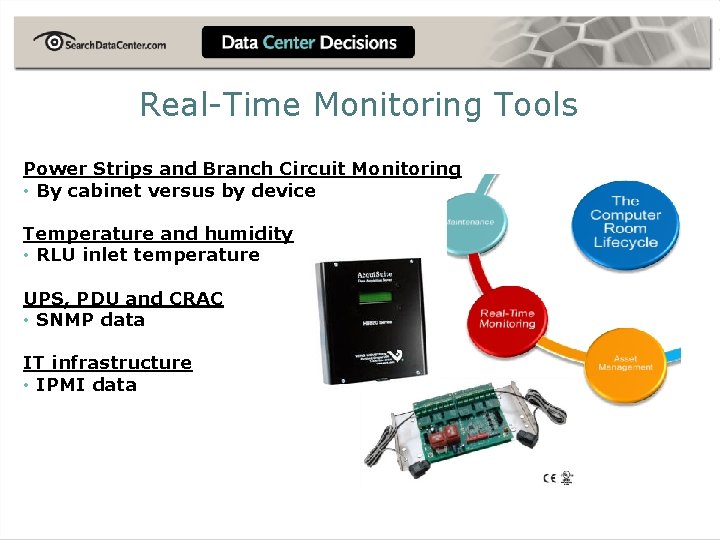

Real-Time Monitoring Tools Power Strips and Branch Circuit Monitoring • By cabinet versus by device Temperature and humidity • RLU inlet temperature UPS, PDU and CRAC • SNMP data IT infrastructure • IPMI data

Data Center Maintenance Computerized Maintenance Monitoring Software (CMMS) is an application that helps organizations increase asset life, track maintenance costs, prevent and predict equipment failures, improve labor productivity, reduce costly equipment downtimes, minimize investments in inventory and lower the total cost of maintenance. Features Modules • Hierarchical • Assets • Multi-Site Asset Tracking Classifications • Work Orders • Multi-Site Work Orders • Document Library / • Work Order Scheduling / Work • Purchase Orders HTML Manager • Preventative • Document Editor • Preventive Maintenance • Access Groups / • Procedure Library (300+ Procedures) • Inventory Security • Multiple Stockroom Inventory • Procedures • Integrated Report Tracking • Tasks Writer • Generate Purchase Orders • Projects • Print, Email, or Fax • Project Management Contract • Repair Centers Reports Management • Shops • Accounts / Budgeting • Labor • Crafts • Requesters • Categories • Tools Failures • Classificatio ns • Specification s • Companies • Stock Rooms • Tool Rooms • Contacts • Documents • Bulletins

Data Center Maintenance Tools

Predictive Analysis 5 1 Power and Cooling Infrastructure Design • Support infrastructure capacity and redundancy constraints designed and constructed in accordance with established key design criteria 4 CFD Model Updates • Operational baseline model based on real-time data used for assessing changing conditions CFD Model • Based on RLU density assumptions 2 3 Real-Time Load Data • Actual loads compared to design rating provides capacity and redundancy planning data IT and Support Infrastructure Inventory • Device design load ratings established in coordination with facility constraints

Available DC Facility Lifecycle Tools 1. Data center lifecycle management tools presently fall into five classes: a) Monitoring Tools I. Network Management II. Building Management III. Data Center Monitoring b) Asset Management Tools c) CFD Modeling Tools d) KVM Tool e) Maintenance Management Tools 2. No single vendor encompasses all the attributes necessary for effective management 3. The available tool sets overlap on many of the attributes in delivering on their core capability

• MODIUS’ Open. Data • Nassoura Technology Associates’ dc. Track 2. 0 • Optimum Path Systems’ Visual Data Center • Synap. Sense’s Synap. Soft • GDCM’s nlyte Enterprise • Visual Network Design’s Rackwise • Future Facilities’ 6 Sigma. DC KVM • Emerson’s Aperture VISTA CFD • APC’s Infra. Stru. Xure Central ASSET MANAGEMENT MONITORING Covered Data Center Management Tools • Avocent’s DSView 3 • Epicenter’s Centerline • Raritan’s Command Center NOC

APC’s Infra. Stru. Xure Central Evaluation Criteria Rating Alert / Alarm / Event Management A Asset Relationship Management N/A Capacity Management Notes Evaluation Criteria Rating SI Asset Inventory Management N/A SI Maintenance Management N/A A Add-on Surveillance / Threat Management A CFD Modeling N/A 3 rd Party Trend Analysis A Device Configuration Management N/A Unified Console A Document Management N/A 3 rd Party Application Integration B Notes SNMP Change Control Management C Add-on Customization Support B Graphical Layout & Elevations C No CAD Data Capture / Auto. Discovery A Both Graphical User Interface (GUI) A Field Service Support A Direct & 3 rd Party

APC’s Infra. Stru. Xure Central • An IT-ready, scalable monitoring system which collects, organizes and distributes critical alerts, surveillance video and key information • Provides a unified view of complex power, cooling, security and environmental infrastructure from anywhere on the network • Available in three appliance platforms: up to 525 devices, up to 2, 025 devices, up to 4, 025 devices • Real-time monitoring, user-defined reports and graphs and instant fault notification and escalation enable quick assessment and resolution of critical infrastructure events

APC’s Infra. Stru. Xure Central

MODIUS’ Open. Data Enterprise DCi. M Evaluation Criteria Rating Notes Evaluation Criteria Rating Alert / Alarm / Event Management A SI Asset Inventory Management N/A Asset Relationship Management A SI Maintenance Management N/A Capacity Management A Surveillance / Threat Management N/A CFD Modeling N/A Device Configuration Management 3 rd Party Trend Analysis A N/A Unified Console A Document Management N/A 3 rd Party Application Integration N/A Change Control Management N/A Customization Support N/A Graphical Layout & Elevations B Graphical User Interface (GUI) A Some CAD Notes Data Capture / Auto. Discovery A Auto Discovery & Manual Input Field Service Support A Direct & 3 rd Party

MODIUS’ Open. Data Enterprise DCi. M Monitors • All equipment, all locations, via secure browser Measures • All performance data, continuously, in real-time Manages • All data, correlations, alerts, analytics, trends and reports Notifies • Risk conditions, via auditable alarm workflow engine Integrates • All system layers, for security, reliability and scaling Informs • Actionable management info, via dashboard and reports

MODIUS’ Open. Data Enterprise DCi. M

Nassoura Technology Associates’ dc. Track 2. 0 Evaluation Criteria Rating Notes Alert / Alarm / Event Management A SI Asset Inventory Management N/A Coming Soon Asset Relationship Management A SI Maintenance Management N/A Coming Soon Capacity Management A Surveillance / Threat Management N/A CFD Modeling Device Configuration Management Document Management N/A 3 rd Party B N/A Trend Analysis A Unified Console A 3 rd Party Application Integration N/A Coming Soon Customization Support B Partial Data Capture / Auto. Discovery C Manual Input A-D Coming Soon Change Control Management A Graphical Layout & Elevations A Graphical User Interface (GUI) A Field Service Support B Direct IT Asset Inventory A HW / SW / Web / Saa. S C SW Reads CAD in Real-Time

Nassoura Technology Associates’ dc. Track 2. 0 Data Center Visualization • View color-coded Auto. CAD floor plans in real-time Multi-site Support • Manage multiple data center sites Asset Management • Track IT infrastructure assets IP and Network Management • Manage logical relationships including VLANs

Nassoura Technology Associates’ dc. Track 2. 0 (continued) Servers and Host Devices • Track locations via elevation drawings as well as connectivity Data Cabling • Track and manage all cable infrastructure, routes and ports Data and Power Connectivity • Track connectivity as well as real-time power monitoring Change Management • Maintain a defined change management process Administration • Search, customization support and security

Nassoura Technology Associates’ dc. Track 2. 0 (continued) Floor Plan Elevations IP Address and VLAN Real-Time Monitoring

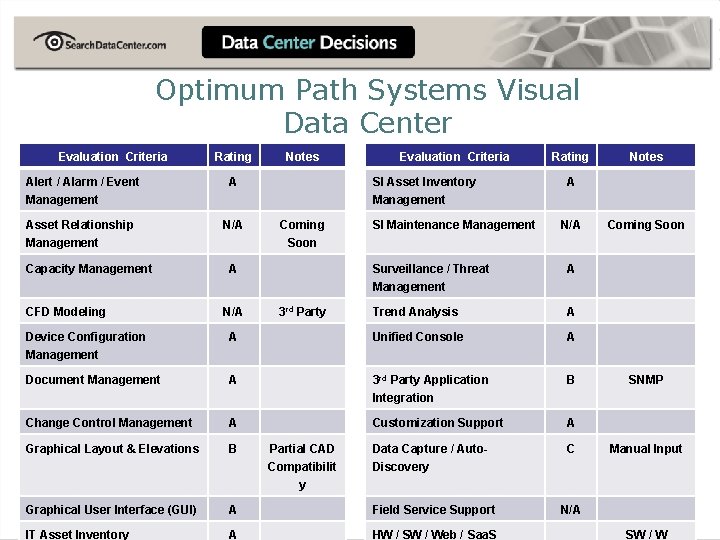

Optimum Path Systems Visual Data Center Evaluation Criteria Rating Alert / Alarm / Event Management A Asset Relationship Management N/A Capacity Management CFD Modeling Notes SI Asset Inventory Management Coming Soon A N/A Evaluation Criteria 3 rd Party SI Maintenance Management Rating A N/A Surveillance / Threat Management A Trend Analysis A Device Configuration Management A Unified Console A Document Management A 3 rd Party Application Integration B Change Control Management A Customization Support A Graphical Layout & Elevations B Data Capture / Auto. Discovery C Graphical User Interface (GUI) A Field Service Support IT Asset Inventory A HW / SW / Web / Saa. S Partial CAD Compatibilit y Notes Coming Soon SNMP Manual Input N/A SW / W

Optimum Path Systems Visual Data Center Monitoring and Trending: Track temperature, humidity, power and airflow Notifications: Manage user defined thresholds and notifications Document Management: Track, search, archive and share multiple file types Reporting: Internal reporting engine

Optimum Path Systems Visual Data Center Security: Administer access, policies and audit trail Rack Design: Flash-based design interface for layouts and elevations Open. VDC Plugin Architecture: Third-party hardware and software integration RFID Asset Management: Manage inventory and asset controls

Optimum Path Systems Visual Data Center

Synap. Sense’s Synapsoft Evaluation Criteria Rating Alert / Alarm / Event Management A Asset Relationship Management N/A Capacity Management Notes A CFD Modeling N/A Device Configuration Management Complimen tary Evaluation Criteria Rating SI Asset Inventory Management N/A SI Maintenance Management N/A Surveillance / Threat Management N/A Trend Analysis A N/A Unified Console A Document Management N/A 3 rd Party Application Integration N/A Change Control Management N/A Customization Support N/A Graphical Layout & Elevations B Graphical User Interface (GUI) A Some CAD Ability Notes Data Capture / Auto. Discovery A Auto Discovery & Manual Input Field Service Support A Direct & 3 rd Party

Synap. Sense’s Synapsoft IT Equipment Power Air Flow Management k. W to Racks Visibility Adaptive Cooling Control Data Center Infrastructure CRAH Power CRAH Cooling Efficiency CRAH Air Loss Efficiency Chilled Water Supply (tons) Data Center Environmentals Rack Thermals & Humidity CRAH Thermals & Humidity Sub-Floor Pressure

Synap. Sense’s Synapsoft Baseline H C H After Containment C H C With Control H C

Emerson’s Aperture VISTA Evaluation Criteria Rating Notes Alert / Alarm / Event Management A Module Asset Relationship Management A Capacity Management A CFD Modeling Device Configuration Management Document Management Evaluation Criteria SI Asset Inventory Management Rating Notes A SI Maintenance Management N/A Module Surveillance / Threat Management N/A 3 rd Party Trend Analysis A A Module Unified Console A 3 rd Party Application Integration A Customization Support A Add-on Data Capture / Auto. Discovery A Auto. Discovery & Manual Input Field Service Support B Direct Only HW / SW / Web / Saa. S B SW / W N/A Change Control Management A Module Graphical Layout & Elevations A CAD Compatible Graphical User Interface (GUI) A IT Asset Inventory A Module

Emerson’s Aperture VISTA

Emerson’s Aperture VISTA

GDCM’s nlyte Enterprise Evaluation Criteria Ratin g Notes Evaluation Criteria Ratin g Alert / Alarm / Event Management A SI Asset Inventory Management N/A Asset Relationship Management A SI Maintenance Management N/A Capacity Management C No Real. Time Surveillance / Threat Management N/A CFD Modeling N/A 3 rd Party Trend Analysis A Device Configuration Management N/A Unified Console N/A Document Management N/A 3 rd Party Application Integration N/A Customization Support N/A Change Control Management A Graphical Layout & Elevations C Graphical User Interface A No CAD Data Capture / Auto. Discovery Field Service Support C N/A Notes Manual Input

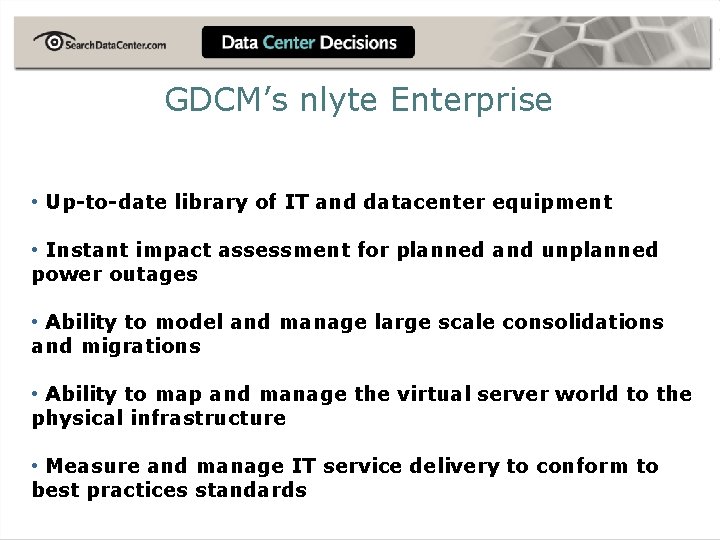

GDCM’s nlyte Enterprise • Up-to-date library of IT and datacenter equipment • Instant impact assessment for planned and unplanned power outages • Ability to model and manage large scale consolidations and migrations • Ability to map and manage the virtual server world to the physical infrastructure • Measure and manage IT service delivery to conform to best practices standards

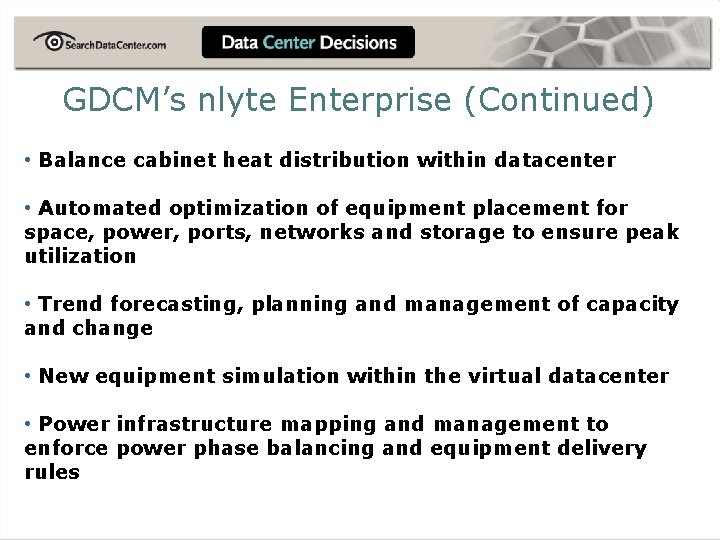

GDCM’s nlyte Enterprise (Continued) • Balance cabinet heat distribution within datacenter • Automated optimization of equipment placement for space, power, ports, networks and storage to ensure peak utilization • Trend forecasting, planning and management of capacity and change • New equipment simulation within the virtual datacenter • Power infrastructure mapping and management to enforce power phase balancing and equipment delivery rules

GDCM’s nlyte Enterprise

Visual Network Design’s Rackwise Evaluation Criteria Rating Alert / Alarm / Event Management N/A Asset Relationship Management Capacity Management Notes Evaluation Criteria Rating SI Asset Inventory Management N/A A SI Maintenance Management N/A B Surveillance / Threat Management N/A CFD Modeling N/A Device Configuration Management Document Management Trend Analysis A N/A Unified Console N/A 3 rd Party Application Integration N/A Change Control Management A Graphical Layout & Elevations A Graphical User Interface (GUI) IT Asset Inventory Management 3 rd Party Notes Customization Support B Data Capture / Auto. Discovery C Manual Input A Field Service Support B 3 rd Party A HW / SW / Web / Saa. S B SW / Saa. S CAD Compatible

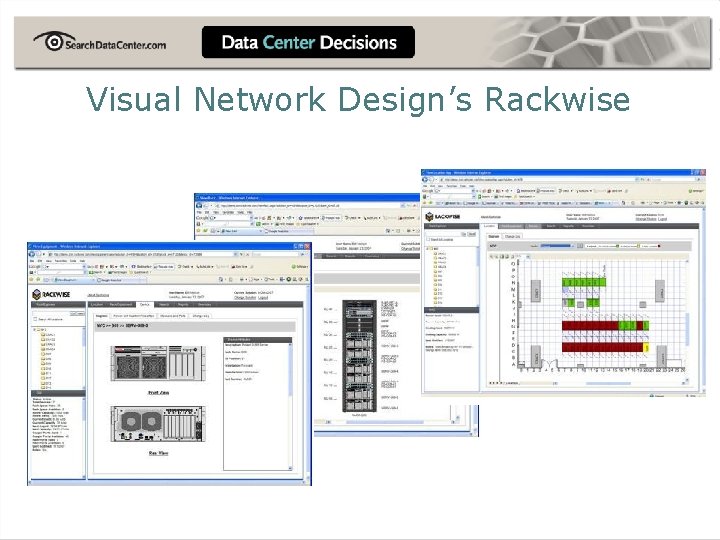

Visual Network Design’s Rackwise • Visualize • Produce layout and elevation views with selectable overlays and drill through to details • Document • Create custom reports by specific criteria • Model • Perform ‘what if’ analysis on power, cooling and weight considerations • Analyze • Create custom dashboards to display capacity planning and trend analysis for power consumption, heat dissipation and space allocation • Manage • Track moves, adds and changes to all infrastructure

Visual Network Design’s Rackwise

Future Facilities’ 6 Sigma. DC Evaluation Criteria Rating Alert / Alarm / Event Management A Asset Relationship Management Capacity Management CFD Modeling Notes Evaluation Criteria Rating SI Asset Inventory Management N/A SI Maintenance Management N/A Surveillance / Threat Management N/A A Trend Analysis A Device Configuration Management N/A Unified Console A Document Management N/A 3 rd Party Application Integration N/A Customization Support N/A Change Control Management B Graphical Layout & Elevations C Graphical User Interface (GUI) IT Asset Inventory No CAD Compatibilit y Notes Data Capture / Auto. Discovery C Manual Input A Field Service Support A Direct & 3 P A HW / SW / Web / Saa. S SW

Future Facilities’ 6 Sigma. DC (Continued) • Easy to use graphical user interface with full access to create and change the architectural geometry, cooling/ ventilation, power and IT configurations • Can read data from other IT management tools and CAD • Extensive libraries of IT equipment, cabinets and cooling units • Drag and drop capabilities for model construction and update • Provides a complete view of the inventory

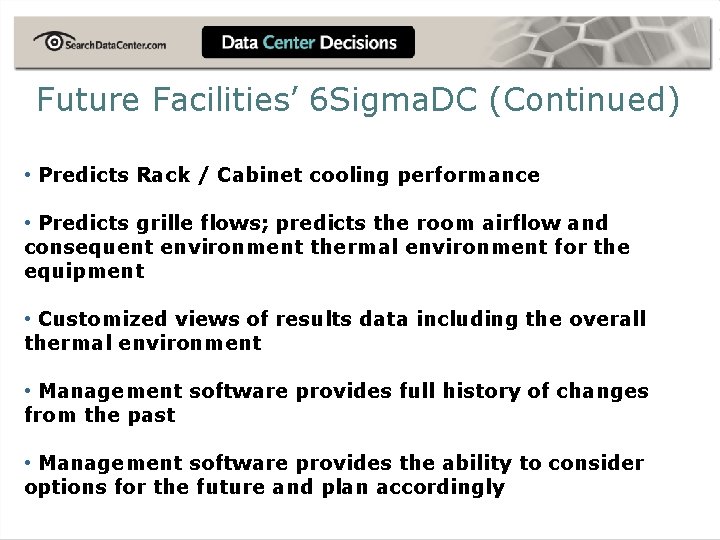

Future Facilities’ 6 Sigma. DC (Continued) • Predicts Rack / Cabinet cooling performance • Predicts grille flows; predicts the room airflow and consequent environment thermal environment for the equipment • Customized views of results data including the overall thermal environment • Management software provides full history of changes from the past • Management software provides the ability to consider options for the future and plan accordingly

Future Facilities’ 6 Sigma. DC (Continued)

Avocent’s DSView 3 Evaluation Criteria Rating Notes Evaluation Criteria Alert / Alarm / Event Management A Asset Relationship Management N/A SI Maintenance Management N/A Capacity Management N/A Surveillance / Threat Management N/A CFD Modeling N/A Device Configuration Management SI Asset Inventory Management Rating 3 rd Party A A Trend Analysis A Unified Console A Document Management N/A 3 rd Party Application Integration N/A Change Control Management N/A Customization Support N/A Graphical Layout & Elevations C Graphical User Interface (GUI) IT Asset Inventory Management No CAD Compatibilit y Notes Data Capture / Auto. Discovery A Auto. Discovery & Manual Input A Field Service Support A Direct & 3 P A HW / SW / Web / Saa. S B HW / SW / W

Avocent’s DSView 3 Data Center Centralized Management The DSView 3 management software platform provides secure, remote and consolidated out-of-band management of the entire IT infrastructure enabling a single interface to ensure the data center is continuously up and running by controlling KVM over IP switches, console management appliances, power distribution units and IPMI-enabled servers LANDesk Server Manager monitors and manages uninterrupted server availability for multi-vendor environments through a single in-band console enabling server administrators and managers to reduce operational costs by standardizing the way servers are deployed and maintained in their data centers

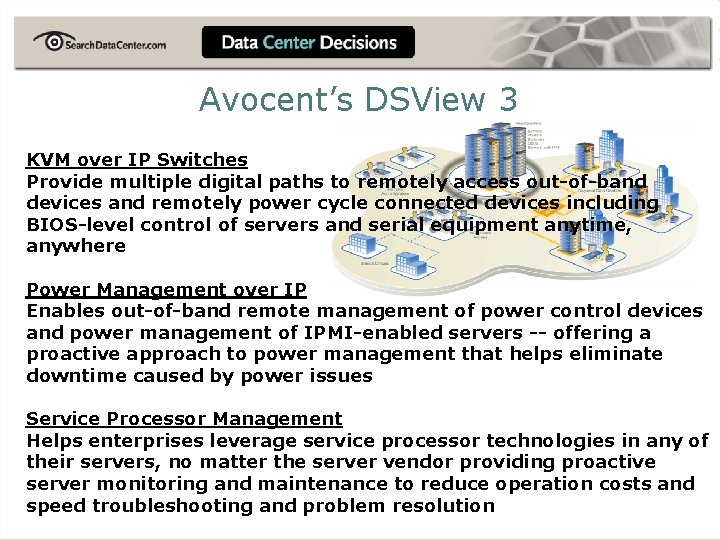

Avocent’s DSView 3 KVM over IP Switches Provide multiple digital paths to remotely access out-of-band devices and remotely power cycle connected devices including BIOS-level control of servers and serial equipment anytime, anywhere Power Management over IP Enables out-of-band remote management of power control devices and power management of IPMI-enabled servers -- offering a proactive approach to power management that helps eliminate downtime caused by power issues Service Processor Management Helps enterprises leverage service processor technologies in any of their servers, no matter the server vendor providing proactive server monitoring and maintenance to reduce operation costs and speed troubleshooting and problem resolution

Epicenter’s SYNAPTIX Evaluation Criteria Rating Notes Evaluation Criteria Alert / Alarm / Event Management A Asset Relationship Management N/A SI Maintenance Management N/A Capacity Management N/A Surveillance / Threat Management N/A CFD Modeling N/A Device Configuration Management SI Asset Inventory Management Rating 3 rd Party A A Trend Analysis A Unified Console A Document Management N/A 3 rd Party Application Integration N/A Change Control Management N/A Customization Support N/A Graphical Layout & Elevations C Graphical User Interface (GUI) A Field Service Support N/A IT Asset Inventory A HW / SW / Web / Saa. S B No CAD Compatibilit y Data Capture / Auto. Discovery Notes A Auto. Discovery & Manual Input HW / SW / W

Epicenter’s SYNAPTIX is a collection of items that together deliver a comprehensive IT infrastructure management solution providing complete enterprise access and reporting across disparate devices. SEMA: Enterprise software providing system level access and power efficiency reporting Centerline: KVP-over-IP Remote Infrastructure Management Power Distribution: Delivery, Control and Reporting Analog: Local access to the cabinet RCI: Engineered Structured Cabling Solutions

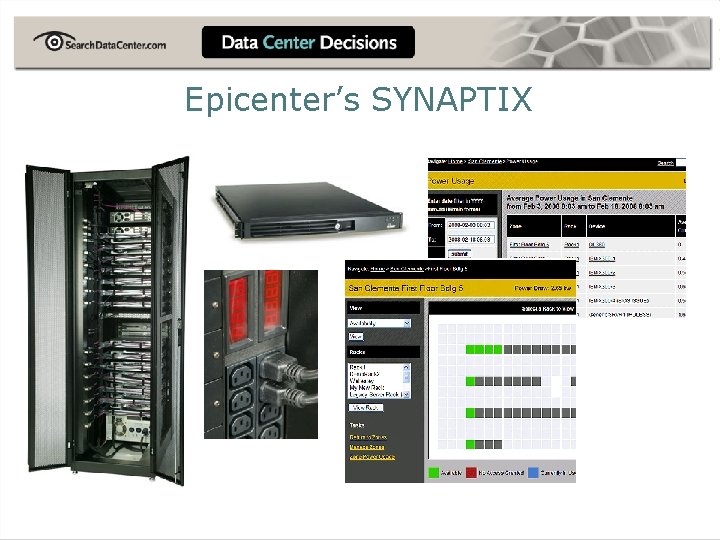

Epicenter’s SYNAPTIX

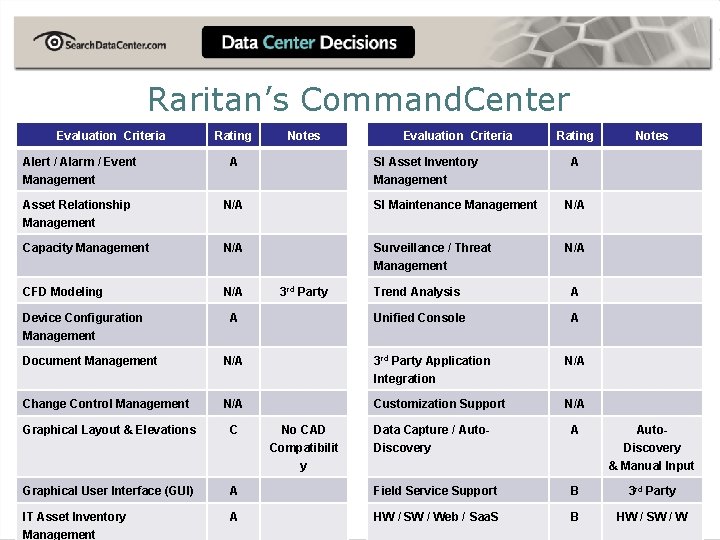

Raritan’s Command. Center Evaluation Criteria Rating Notes Evaluation Criteria Alert / Alarm / Event Management A Asset Relationship Management N/A SI Maintenance Management N/A Capacity Management N/A Surveillance / Threat Management N/A CFD Modeling N/A Device Configuration Management SI Asset Inventory Management Rating 3 rd Party A A Trend Analysis A Unified Console A Document Management N/A 3 rd Party Application Integration N/A Change Control Management N/A Customization Support N/A Graphical Layout & Elevations C Graphical User Interface (GUI) IT Asset Inventory Management No CAD Compatibilit y Notes Data Capture / Auto. Discovery A Auto. Discovery & Manual Input A Field Service Support B 3 rd Party A HW / SW / Web / Saa. S B HW / SW / W

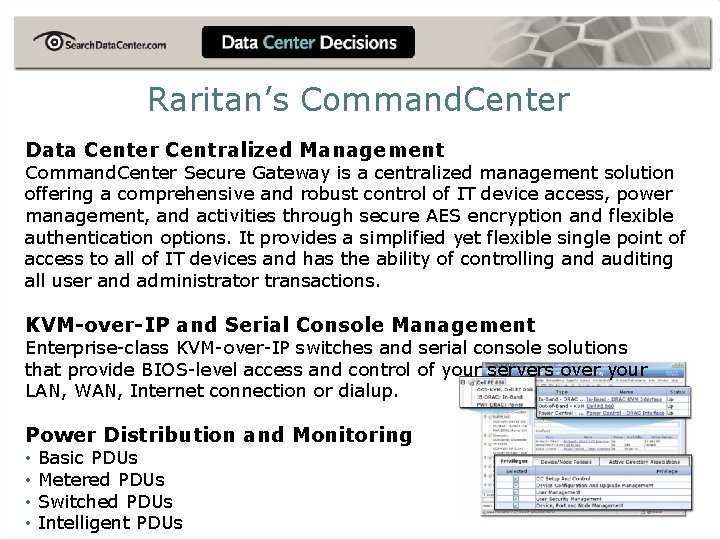

Raritan’s Command. Center Data Center Centralized Management Command. Center Secure Gateway is a centralized management solution offering a comprehensive and robust control of IT device access, power management, and activities through secure AES encryption and flexible authentication options. It provides a simplified yet flexible single point of access to all of IT devices and has the ability of controlling and auditing all user and administrator transactions. KVM-over-IP and Serial Console Management Enterprise-class KVM-over-IP switches and serial console solutions that provide BIOS-level access and control of your servers over your LAN, WAN, Internet connection or dialup. Power Distribution and Monitoring • Basic PDUs • Metered PDUs • Switched PDUs • Intelligent PDUs

Raritan’s Command. Center

What Is The Future Of DCFL Tools? • There will be a race among the manufacturers to release a single tool set that encompasses all aspects of data center facility lifecycle management • A future challenge will be that computer room load will become dynamic, versus static, as a result of virtualized server support infrastructure control

About PTS • Founded in 1998, PTS is a data center consulting, engineering, and design firm as well as turnkey solutions provider. We offer a broad range of project experience in designing data centers, computer rooms and technical spaces. We employ industry best practice and integrate proven, ‘best-of-breed’, critical infrastructure technologies that result in always available, scalable, redundant, fault-tolerant, manageable and maintainable mission critical environments. Experts for Your Always Available Data Center

Questions and Answers For more information please contact: Pete Sacco PTS Data Center Solutions, Inc. (201) 337 -3833 x 101 psacco@ptsdcs. com
