PSY 368 Human Memory Short Term Memory cont

PSY 368 Human Memory Short Term Memory cont. Working Memory

Reminders • Exam 1 one week from today (Feb 15) • Review sheet posted, linked to syllabus • Experiment 1 report also due 1 week from today

Experiment 1 assignment • Experiment 1 - Primacy and Recency Effects in Short-term Memory (modified from Neath & Surprenant book pg. 61) • Download from BB assignments page. Find 3 friends willing to participate • Report (Due Wednesday Feb. 15): The results for all subjects will be reported in class. Your assignment is to write a 2 -3 page report that includes the following: • brief description of the purpose and design of the experiment, including independent and dependent variables • brief description of the participants, materials, and procedure of the study, written in your own words • description of results and line graph of mean percentage recall by serial position • discussion of conclusions that can be made from the results. Include answers to these questions: • How long does short-term memory appear to last? • How important is attention to retrieval from short-term memory? • What kinds of everyday tasks in life use short-term memory?

Structural Model • Memory composed of storage structures that hold memories for a period of time • Sensory memory • Short-term memory (STM) • Long-term memory (LTM)

Structural Model • Brief review from last time • Capacity: • Can hold 7 + or - 2 “chunks”(capacity) • Chunking increases capacity of STM • Encoding: • Info mostly stored in auditory form (but some visual, some semantic) • Duration: • Brown/Peterson task: decay, gone by 15 -20 sec • Keppel & Underwood; Waugh and Norman suggest interference as better explanation • Retrieval:

STM Duration Wickens, Born, & Allen (1963) • Changing the nature of the items to be remembered reverses the decline in performance due to proactive interference- release from proactive interference • Proactive interference: already learned info interferes with new information • Retroactive interference: new information interferes with old information (more on this in chapter 6) • Two groups of subjects given 3 trials following the Brown. Peterson task (letters) - Memory performance declined with each trial • Control group given a 4 th trial using letters • Experimental group switched to remembering digits

STM Duration Wickens, Born, & Allen (1963) • Changing the nature of the items to be remembered reverses the decline in performance due to proactive interference- release from proactive interference • Experimental group, but not control group, performed perfectly; they were released from proactive interference 7

STM Duration Wickens (1970, 1972, 1976) • Proactive interference occurring as a result of semantic coding in STM • 5 groups of subjects given 3 trials of lists of 3 words each all from the same category where all list contained names of fruit • Group 1 – names of fruit • Group 2 – vegetable names • Group 3 – flower names • Group 4 - names of meats • Group 5 – names of different professions • Then all groups given a 4 trial where all list contained names of fruit 8

STM Duration Wickens (1970, 1972, 1976) • Results : 1 st trial all groups about 90% correct 2 nd trial more words in same category all groups about 50% 3 rd trial words still in same category all groups 35– 45 % 4 th trial , shift to fruit category professions 80%, meat 50%, flowers 47%, vegetables 40% and fruit 32%

STM Duration Wickens (1970, 1972, 1976) • Results : • Conclusion: • Interference rather than decay causes the drop in performance • Information was coded using semantic information causing groups to confuse current list with previous lists

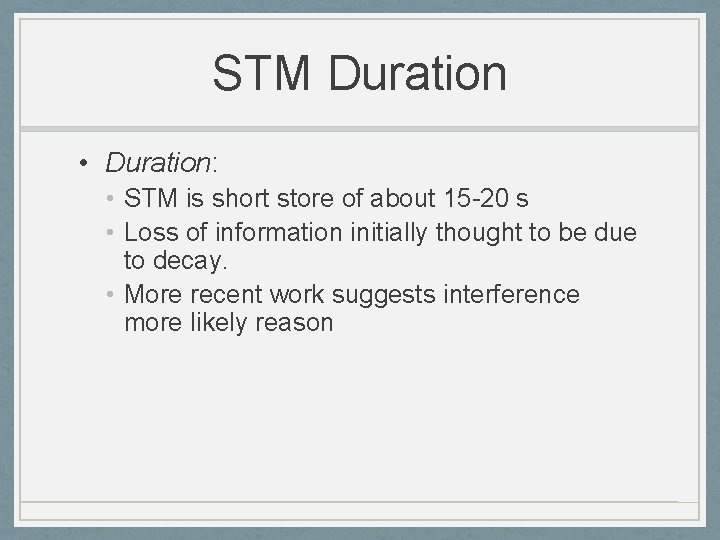

STM Duration • Duration: • STM is short store of about 15 -20 s • Loss of information initially thought to be due to decay. • More recent work suggests interference more likely reason

STM Retrieval How do we get information out of STM? • Retrieval from STM appears to operate by searching STM contents one at a time (serial search) • Sternberg (1966) • Serial position recall curves: primacy and recency

STM Retrieval Sternberg (1966) • study short list of 1 to 6 items followed by test probe - must decide if probe item was in list, measured time to make Y/N response • Two important variables were involved • The number of letters in each list • The location of the letter in the memory probe – in the beginning, middle, or end

STM Retrieval Sternberg (1966) • Parallel processing • Serial processing • Simultaneous handling • Operations being done after of multiple operations another • Response times should • It should take longer to retrieve four be the same, digits than to retrieve two digits regardless of the size • Exhaustive serial processing – the of the set of items, participant always checks the test digit because all against all digits in the set, even if a comparisons would be match were found partway through the list done at once • Self-terminating serial processing – the participant would check the test digit against only those digits needed to make a response

STM Retrieval Sternberg (1966) • Results • Response times increased linearly with set size but were the same regardless of serial position • It indicates that serial exhaustive model seems to • Conclusion: people search all be right • Subjects take longer to respond by probe (by 40 ms) when an additional item is added to the • list • Same results for probes that were in the list and probes that were not items in STM when asked to retrieve an item (happens very fast) Automatic process - fast and efficient, done for every item – doesn’t stop once a match is found

STM Retrieval Serial Position Curve: Free recall • Primacy: • better recall for items in the beginning of the list than those in the middle • Recency: • better recall for items at the end of the list than those in the middle

STM Retrieval Free recall Curve • Primacy: • better recall for items in the beginning of the list than those in the middle • Recency: • better recall for items at the end of the list than those in the middle From Murdock (1962) • Models of STM propose that • Primacy is due to more rehearsal for items at beginning of list LTM • Recency due to immediate dumping of items from STM

STM Retrieval Free recall Curve vs. serial recall curves From Klien et al. (2005) • Primacy: • better recall for items in the beginning of the list than those in the middle • Recency: • better recall for items at the end of the list than those in the middle • due to retrieval from STM • Models of STM propose that • Primacy is due to more rehearsal for items at beginning of list LTM • Recency due to immediate dumping of items from STM • Recency is stronger effect than primacy in free recall

Modal Model of STM: Summary • Duration: STM is short store of about 20 s • Capacity: • Can hold 7 + or - 2 “chunks”(capacity) • Chunking increases capacity of STM • Encoding: Info mostly stored in auditory form • Retrieval: Modal models suggest recency effects mostly due to STM retrieval

Problems with the Modal Models • When distractor task is done after every list item preventing items from staying in STM, recency effect still occurs • Primacy effects have also been shown to disappear when rehearsal is prevented • Long-term recency effects • Baddeley and Hitch (1977) Rugby Study • Question: “Which teams have you played this past season? ” • Results: • Recency effect: Recent games were recalled best. • The total number of games played, not the amount of time gone by, best predicted forgetting.

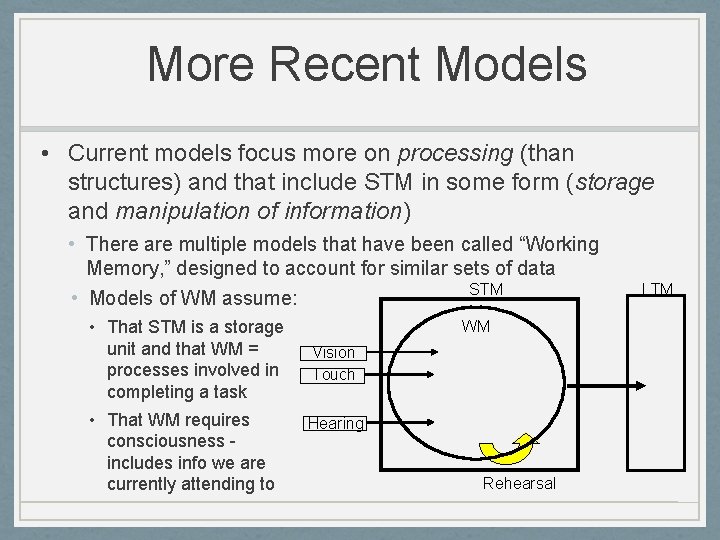

More Recent Models • Current models focus more on processing (than structures) and that include STM in some form (storage and manipulation of information) • There are multiple models that have been called “Working Memory, ” designed to account for similar sets of data STM • Models of WM assume: • That STM is a storage unit and that WM = processes involved in completing a task • That WM requires consciousness includes info we are currently attending to WM Vision Touch Hearing Rehearsal LTM

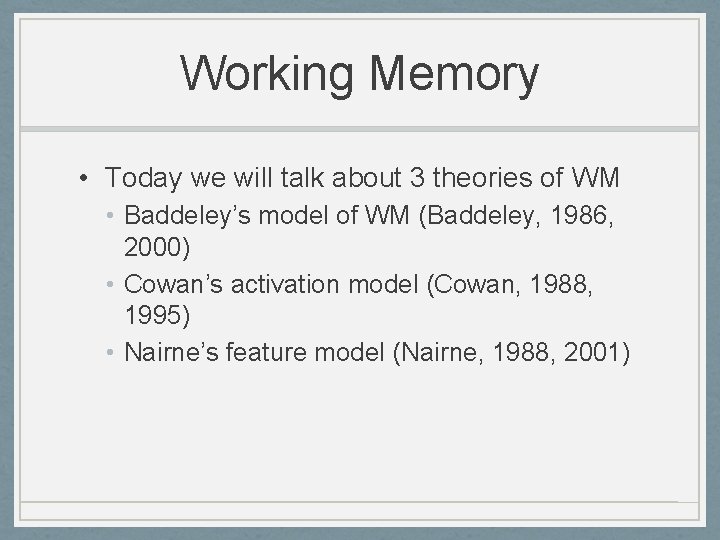

Working Memory • Today we will talk about 3 theories of WM • Baddeley’s model of WM (Baddeley, 1986, 2000) • Cowan’s activation model (Cowan, 1988, 1995) • Nairne’s feature model (Nairne, 1988, 2001)

Baddeley’s Model • Currently the most influential model • Baddeley and Hitch (1974) • Components of the model: • Central executive controls the focus of attention • Three subsystems under its control • Visuospatial sketchpad • Phonological loop • Episodic buffer

Baddeley’s Model Visual scribe Articulatory Control

Baddeley’s Model Visual scribe Articulatory Control

Central Executive • Thought to be an attentional controller, with two main modes of operation (Norman & Shallice, 1986): • A semi-automatic conflict-resolution system, based on existing habits and requiring little attention. • The supervisory attentional system (SAS), based on an attentionally limited executive. • Major Functions: • Direct attention to the task at hand • Divide attention between two or more tasks

Baddeley’s Model Visual scribe Articulatory Control

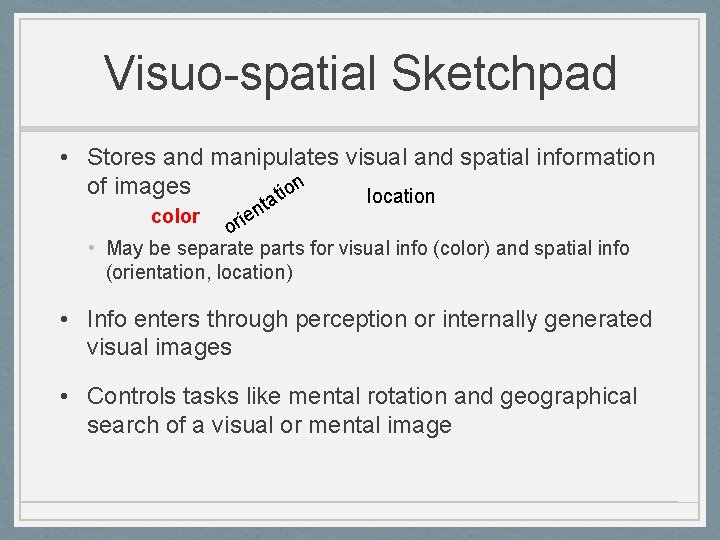

Visuo-spatial Sketchpad • Stores and manipulates visual and spatial information n of images tio location color ta n ie or • May be separate parts for visual info (color) and spatial info (orientation, location) • Info enters through perception or internally generated visual images • Controls tasks like mental rotation and geographical search of a visual or mental image

Visuo-spatial Sketchpad Baddeley (1992) • found that subjects’ memory for chess patterns was more disrupted by a visual distractor task than an auditory one Shepard and Feng (1972) • Imagine folding the shapes below to create a solid, with the shaded area as the base. Will the arrows meet head on? • found that the time it takes to answer the question depends on the number of folds required

Baddeley’s Model Visual scribe Articulatory Control

Episodic Buffer • Back-up storage - allows for recall when other systems are engaged with other tasks • A storage system with a capacity of around 4 chunks of information in a multidimensional code. • Multiple dimensions permit links between the subsystems, as well as with LTM & perception. • Information is retrieved through conscious awareness – consciousness pulls info together. • Allows for the binding of previously unrelated concepts -disrupting the executive does not impair binding, so it may be automatic/passive. • Newest component of the model, not much research yet

Baddeley’s Model Visual scribe Articulatory Control

Phonological Loop • Two parts: Phonological Store (PS) and Articulatory Control Process (ACP) • PS - stores auditory info for 1 -2 s and then it starts to decay • ACP - recodes visual info into auditory code for storage and controls rehearsal • 4 Main Effects in Serial Recall Task to account for • • Phonological similarity effect Articulatory suppression effect Irrelevant speech effect Word length effect

Phonological Loop • Demos Listen to list, recall words in order Rhinoceros Zinc Gorilla Tuberculosis Measles Calcium Uranium Carbon Hippopotamus Mumps Listen to list, recall words in order, while I read the words say ‘the’ aloud Planet Musician Land Property Trumpet House Star Comet Orchestra Moon Bronze Book Magazine Bike Copper Dress Copier Soda Shoe Rock Listen to list, recall words in order, while I read the words say ‘the’ aloud Block Brick Stick Blue Chew Trick Prick Clue Click Blimp Read list, recall words in Recall order, while I read the words say ‘the’ aloud Gold Code Bold Hold Told Cold Mode Slowed Hope Goad

Phonological Loop • Demos Listen to list, recall words in order Rhinoceros Zinc Gorilla Tuberculosis Measles Calcium Uranium Carbon Hippopotamus Mumps Listen to list, recall words in order, while I read the words say ‘the’ aloud Planet Musician Land Property Trumpet House Star Comet Orchestra Moon Bronze Book Magazine Bike Copper Dress Copier Soda Shoe Rock Listen to list, recall words in order, while I read the words say ‘the’ aloud Block Brick Stick Blue Chew Trick Prick Clue Click Blimp Read list, recall words in order, while I read the words say ‘the’ aloud Gold Code Bold Hold Told Cold Mode Slowed Hope Goad

Phonological Loop • Phonological Similarity Effect • Memory worse for items that sound alike than those that look alike or have similar meanings • Visual items are recoded to auditory for storage and rehearsal by ACP • Works for both auditory presentation and visual presentation of the letters. • List 1 (Easy to remember/dissimilar phonology and semantics): • PIT, DAY, COW, PEN, HOT • List 2 (Only slightly harder than List #1/similar semantics) : • HUGE, WIDE, BIG, LONG, TALL • List 3 (Much harder than List #1/similar phonology) : • CAT, MAP, MAN, CAP, MAD • What happens if you prevent the recoding of visual information into auditory information?

Phonological Loop • Articulatory Suppression Effect • Engaging in an auditory task after study removes phonological similarity effect for visual items • Procedure: Say “the” aloud over and over • No re-coding of visual info by ACP • Phonological info gets in directly, doesn’t need re-coding Auditory presentation: PGTCD (similar sounding) harder to recall than RHXKW (different sounding) Visual presentation: PGTCD (similar sounding) recalled equally as RHXKW (different sounding)

Phonological Loop • Irrelevant Speech Effect • Background speech presented during study decreases memory for visual items • Irrelevant speech interferes with recoding of visual info to auditory • Visual info weak in WM • Something stored in the visuospatial sketchpad, but this system not as efficient as the phonological loop

Phonological Loop • Word-length Effect Baddeley, Thomson, and Buchanan (1975) Results • Recall decreases as the length of time it takes to say a word increases. • Rehearsal takes longer for longer words - can’t rehearse as many times • Retrieval from PS also takes longer due to auditory coding of items • Reading rate correlated with memory ability • Digit span depends on language - how long it takes to say numbers

Baddeley’s Model • Potential Problems with the model • Some of the supportive results can’t be replicated (e. g. , irrelevant speech effect) • Model can’t explain all results: • why word-length effect is larger for visual than auditory items • why it differs based on serial list position • Model is not precise in explanation of effects

Cowan’s Activation Model • Cowan (1999) • WM = info that is currently highly activated from STM or LTM • Focus of attention • Emphasizes attention’s role in activation • Activation of info when attention is oriented to it • Activation will decay to cause loss of info from WM WM STM

Cowan’s Activation Model • Central Executive • Focuses attention and other control processes • Capacity of about 4 chunks • Duration of 20 s without reactivation • STM • activated items that are just outside of attention passive store • Things within attentional focus are available to consciousness WM STM

Cowan’s Activation Model • Potential problems with the model • Only general descriptions so specific predictions are hard to make • Activation is not operationally defined very well when is something is “activated”? • What causes decay? Passage of time isn’t causal

Nairne’s Feature Model • Items represented in WM as individual features (e. g. , color, length, etc. ) • Features indicate • presentation info (e. g. , font, size, gender of voice, etc. ) • meaning info (e. g. , what the item means, category, etc. ) • Features represented by -1 or +1 when studied (yes or no for a feature, 0 if no info for feature) • Interference: Later items with same features overwrite feature info for previous items

Nairne’s Feature Model Bold Lower Upper Blue SCHOOL +1 -1 fish +1 +1 +1 -1 -1 -1 • “fish” presented after “SCHOOL” - features in common can be overwritten - SCHOOL can become 0, -1, +1, 0 - interference During retrieval, item features are compared with items in memory - lost features can be updated and restored

Nairne’s Feature Model • Quantitative model - numerical predictions are possible - can simulate data to generate predictions for studies • Simulations show that model can predict: 1) Recency effect 2) Suffix effect 3) Phonological similarity effect 4) Word length effect

Nairne’s Feature Model • Criticisms of the model • • Jones and Macken (1995) showed that irrelevant speech similarity had no effect Model is complex - lack of parsimony

Summary of WM (1) Focus on processing (vs. storage) (2) Three main modern models - Baddeley model - - Cowan activation model - - Central executive controls VS, PL, EB WM = attention focus, STM = activated Nairne feature model (quatitative) - Items coded as features with overwriting interference
