PSY 368 Human Memory Sensory Memory Structural Model

  • Slides: 47
Download presentation
PSY 368 Human Memory Sensory Memory

PSY 368 Human Memory Sensory Memory

Structural Model • Memory composed of storage structures that hold memories for a period

Structural Model • Memory composed of storage structures that hold memories for a period of time • Sensory memory • Short-term memory (STM) • Long-term memory (LTM)

Sensory Memory • Sensory memory • Very short storage of info from senses •

Sensory Memory • Sensory memory • Very short storage of info from senses • Functions: • To allow further processing of the info (STM) • Helps us to connect our sensory experiences • Multiple stores: • Visual sensory memory = iconic memory (Neisser, 1967) • Auditory sensory memory = echoic memory • Touch sensory memory = haptic memory

The eye and how it behaves • At its center is the fovea, a

The eye and how it behaves • At its center is the fovea, a pit that is most sensitive to light and is responsible for our sharp central vision. • The central retina is conedominated and the peripheral retina is rod-dominated. • Limitations of the visual field • 130 degrees vertically, 180 degrees horizontally (including peripheral vision)

The eye and how it behaves • Eye Movements serve two major functions •

The eye and how it behaves • Eye Movements serve two major functions • Saccades to Fixations – Position target objects of interest on the fovea • Duration 10 ms - 120 ms • Very fast (up to 700 degrees/second) • No visual perception during saccades • Tracking – Keep fixated objects on the fovea despite movements of the object or head • eye movement video • Eye Fixations perceptions are gathered during fixations • 90% of the time the eye is fixated • duration: 150 ms - 600 ms Video examples: 1|2|3|4

Iconic Memory • Questions: • What happens to the visual image? • How do

Iconic Memory • Questions: • What happens to the visual image? • How do we get information out of the image? • How do we connect visual images (from different fixations)? • One answer: have a memory storage separate from the visual image itself Video example

Iconic Memory • Is there scientific evidence for iconic memory? • The number of

Iconic Memory • Is there scientific evidence for iconic memory? • The number of items that can be accurately perceived at a glance • The number of objects that can be attended to at once • Problem: If the info decays quickly, subjects don’t have enough time to report it.

Iconic Sensory Store If I show you this…. your iconic memory does this… …but

Iconic Sensory Store If I show you this…. your iconic memory does this… …but faster! • Reports of “seeing” a scene after it disappeared • This introspective description was suggestive of some kind of "single, visible, precategorical, high-capacity, quicklydecaying memory that holds incoming visual stimulation for further processing" (Loftus & Irwin, 1998).

Iconic Memory George Sperling (1960) • Believed that he can see more than he

Iconic Memory George Sperling (1960) • Believed that he can see more than he can report • The limitation is not in storing the information but in reporting it • Solved this problem (span limit problem) and supported the existence of iconic memory • Used two techniques: • whole report • partial report

Iconic Memory 50 msec Whole Report: • Presented a 4 x 3 matrix of

Iconic Memory 50 msec Whole Report: • Presented a 4 x 3 matrix of letters and digits for 50 ms, and asked subjects to report all the items they saw. Report Cue

read y

read y

A N P L K M D T W B S R

A N P L K M D T W B S R

Iconic Memory Whole Report: • Subjects are shown an array of items and asked

Iconic Memory Whole Report: • Subjects are shown an array of items and asked to report all the items they saw. A N P L K M D T W B S R so 9/12 would be = 75% accuracy Results: • Subjects could not report more than about 4. 5 items on each trial. (4. 5/12 = 38%) • held true over wide range of exposure durations (. 015 -. 5 sec)

Iconic Memory 50 msec Partial Report: • 4 x 3 matrix of letters for

Iconic Memory 50 msec Partial Report: • 4 x 3 matrix of letters for 50 ms, subjects report all the items from one particular row. • He cued them which row to report by playing a high, medium, or low tone. Report Cue (I have horn, drum, pong)

S B U C M Y D F L K W D

S B U C M Y D F L K W D

S B U C M Y D F L K W D

S B U C M Y D F L K W D

S B U C M Y D F L K W D

S B U C M Y D F L K W D

read y

read y

B M C K N V P A W J U L

B M C K N V P A W J U L

Iconic Memory Partial Report: • Subjects are shown an array of items and asked

Iconic Memory Partial Report: • Subjects are shown an array of items and asked to report a subset of the items they saw. B M C K N V P A W J U L So 3/4 = 75% accuracy Results: • Subjects could typically report all 4 items on each trial. (4/4= 100%)

Iconic Memory • So far we’ve addressed capacity of iconic memory, what about duration,

Iconic Memory • So far we’ve addressed capacity of iconic memory, what about duration, how long does it last? • Effect of delay of tone Report • Varied time between the disappearance of Cue the display and the onset of the cue tone: 0 to 1 sec

Iconic Memory Results: • With short delays, can report proportionately more, but with longer

Iconic Memory Results: • With short delays, can report proportionately more, but with longer delays partial report performance is similar to whole report Report Cue

Iconic Memory • Conclusions from Sperling (1960): • Evidence of iconic memory • Properties:

Iconic Memory • Conclusions from Sperling (1960): • Evidence of iconic memory • Properties: • High capacity of information • Very short duration (lasts about. 5 sec) • Pre-categoical (“raw, ” unprocessed) information (we’ll return to this)

Iconic Memory • Memory vs. afterimage of the eye?

Iconic Memory • Memory vs. afterimage of the eye?

A little on color vision Wavelength Input Cones “Blue” “Green” Signal to Brain Blue

A little on color vision Wavelength Input Cones “Blue” “Green” Signal to Brain Blue Equal Parts Red and Green = Yellow “Red” • Trichromatic theory of color vision

A little on color vision • Trichromatic theory of color vision • Opponent Process

A little on color vision • Trichromatic theory of color vision • Opponent Process Theory • Red opposes Green • (Red + Green) opposes Blue • Explains color afterimages

Iconic Memory report cue Banks and Barber (1977) • Similar to Sperling methodology •

Iconic Memory report cue Banks and Barber (1977) • Similar to Sperling methodology • If using a retinal after-image then letters with complimentary colours would be reported • Red becomes Green • Yellow becomes Blue Results: - their data showed subjects can recall correctly with a color cue KJF SBN EWP 50 msec presentation short interval (250 msec) red

Iconic Memory • Is the information in iconic memory “unprocessed? ” • Pre-categorical report:

Iconic Memory • Is the information in iconic memory “unprocessed? ” • Pre-categorical report: based on sensory properties (location/color) • Post-categorical report: based on categorical properties (type of item - letters or digits) • Von Wright (1972) • Merikle (1980)

Iconic Memory Is info in iconic memory pre-categorical? Von Wright (1972) Used partial report

Iconic Memory Is info in iconic memory pre-categorical? Von Wright (1972) Used partial report method with different report criteria • type (numbers vs letters) • color • location

Iconic Memory • BUT Merikle (1980) used different kinds of displays (perceptual groupings, letters,

Iconic Memory • BUT Merikle (1980) used different kinds of displays (perceptual groupings, letters, and numbers) and found that the partial report advantage for type (number vs letter) as strong as location • So it’s possible info processed to some degree

Problems with Iconic Memory 1. Information may not be precategorical • e. g. ,

Problems with Iconic Memory 1. Information may not be precategorical • e. g. , Merikle (1980) 2. The idea of output interference rather than decay. • Dick (1971) found that the first item was reported correctly equally often for whole and partial reports. • The act of recalling one item can interfere with recall of the next item, so the more items you're required to report, the less likely you are to report the last one successfully 3. The types of errors that the subjects make. • Auditory confusion errors (e. g. if letter is B, subjects more likely to report V than R) • Mewhort & Leppman (1985) – identification (‘T’ was there or not) error rates didn’t increase with duration between display and probe

Sensory Memory 4. An important distinction: • Stimulus persistence: Something that looks or sounds

Sensory Memory 4. An important distinction: • Stimulus persistence: Something that looks or sounds like the stimulus continues to be present for a short amount of time after the stimulus is no longer present • Information persistence: Information can be extracted from a stimulus for a short amount of time after the stimulus is no longer present Early view: stimulus persistence and information persistence were basically the same thing. But more recent research suggests that: • Stimulus persistence reflects residual neural activity after exposure to a stimulus • Information persistence reflects the same type of memory that is used for longer-lasting information

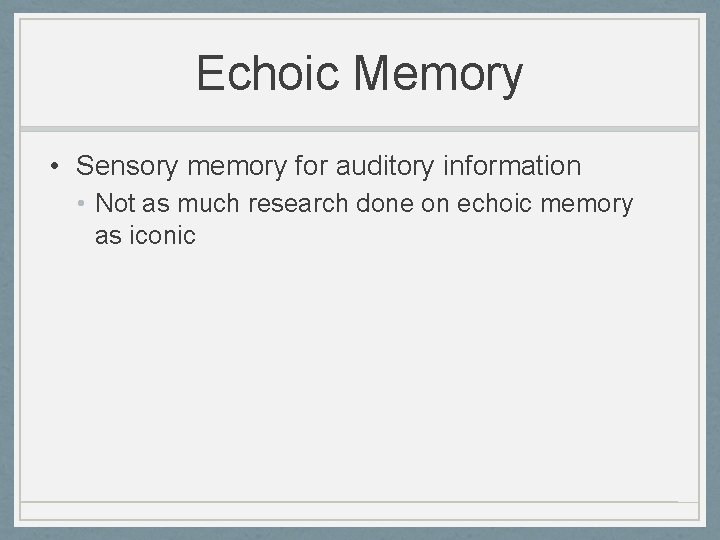

Echoic Memory • Sensory memory for auditory information • Not as much research done

Echoic Memory • Sensory memory for auditory information • Not as much research done on echoic memory as iconic

The ear and how it behaves Changes in Air Pressure • Stimulus is much

The ear and how it behaves Changes in Air Pressure • Stimulus is much more linear and transitory

Echoic Memory • Darwin, Turvey, and Crowder (1972) • Whole report: report all 3

Echoic Memory • Darwin, Turvey, and Crowder (1972) • Whole report: report all 3 lists • For partial report, the cue was: - light on the left = report left speaker list - light on the right = report right speaker list - light in the center = report list that was • The interval from list offset to cue onset was: - 0 seconds, 1 second, or 4 seconds

Echoic Memory • Darwin, Turvey, and Crowder (1972) • Findings: • Partial report advantage

Echoic Memory • Darwin, Turvey, and Crowder (1972) • Findings: • Partial report advantage up until about 4 sec • so echoic memory lasts 4 s or more • Echoic memory holds less than iconic memory

Echoic Memory • Some of the Effects discovered in study of echoic memory •

Echoic Memory • Some of the Effects discovered in study of echoic memory • Using Immediate Serial Recall tasks • Presented a list of items and asked to recall them in the order in which they were presented • Recency effect • Modality effect • Suffix effect • Note: while these effects were discovered in the study of echoic memory, they are currently believed to reflect general memory principles rather than exclusively features of echoic memory

Echoic Memory • Recency effect - last item of list better remembered than items

Echoic Memory • Recency effect - last item of list better remembered than items earlier in the list

Echoic Memory • Suffix effect - recency effect disappears if an auditory item follows

Echoic Memory • Suffix effect - recency effect disappears if an auditory item follows last list. Typical item. Suffix Effect experiment has 2 conditions: • Control condition list of auditory items presented. • Suffix condition the same, except that each list is followed by a spoken word. • Why the effect? • Interference from last item disrupts memory trace

Echoic Memory • Modality effect - last item of list better remembered when presented

Echoic Memory • Modality effect - last item of list better remembered when presented aloud than visually or silently Why? Acoustic information persistence lasts approx. 2 seconds -- unless a subsequent similar stimulus interferes with it. When the subject reports the last item, it is still present in echoic memory. In contrast, visual stimulus persistence doesn't last that long.

Sensory Memory Summary (1) Capacity - limited only by amount of info that can

Sensory Memory Summary (1) Capacity - limited only by amount of info that can be received by the perceptual system (e. g. , eye, ear) (2) Duration of memory: - iconic - up to about 1 sec - echoic - about 4 - 20 sec depending on type of info (3) Type of info - mostly pre-processed, but some processing may occur after 250 - 300 ms
