PSo C 4000 New Product Introduction PSo C

PSo. C® 4000 New Product Introduction PSo. C = Programmable System-on-Chip Quickly Upgrade Your Product With 32 -Bit Performance And Reliable Cap. Sense 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering)

Embedded System Design Is Evolving Embedded system designs now require higher performing MCUs at the same cost Legacy 8 -bit and 16 -bit MCUs are being broadly replaced by 32 -bit ARM Cortex-M MCUs Reliable, easy-to-use solutions accelerate time-to-market Embedded system designs now require reliable, easy-to-use solutions, such as touch sensing Embedded system designs have moved to power-optimized solutions for battery-powered applications “ 2013 Semiconductor of the Year” award Semiconductor Industry News “Most Innovative Product” of 2013 Embedded Computing Design “PSo. C 4 is truly a revolutionary device that symbolizes a new era of flexibility in design. ” “We selected the PSo. C 4 architecture as an Editor’s Choice Product for its combination of flexible analog and digital resources with capacitive touch technology and the 32 -bit ARM Cortex-M 0 MCU. ” - Wataru Izumiya, President of Sangyo Times, Publisher of Semiconductor Industry News - Warren Webb, Editorial Director at Embedded Computing Design 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 2

PSo. C: The World’s First Programmable Embedded Design Platform PSo. C is a programmable embedded design platform that: Includes the 32 -bit ARM Cortex-M MCU Accelerates embedded system design with reliable, easy-to-use solutions, such as touch sensing Optimizes power consumption PSo. C is as proven, and reliable, solution that has sold over 1. 7 billion units Cypress has invested in PSo. C continuously since 2000 PSo. C is used in applications in the industrial, consumer, medical, networking and automotive segments 2002 2005 PSo. C 1 Cap. Sense Cypress launches the world’s first one-chip solution integrating programmable analog, digital logic and a microcontroller 001 -91927 Rev*D 2006 PSo. C 3 Cypress ships its firstgeneration PSo. C-based capacitive touchsensing solution Owner: JFMD 2009 Cypress ships its 100 millionth PSo. C unit 2011 PSo. C 5 Cypress enters into a partnership with ARM® to expand the PSo. C portfolio 2013 PSo. C 4 Cypress ships its onebillionth PSo. C unit PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) Cypress launches the world’s most flexible, lowest-power ARM® Cortex™-M 0 one-chip solution for $1 3

PSo. C Terms PSo. C is the world’s only programmable embedded system-on-chip integrating an MCU core, Programmable Analog Blocks, Programmable Digital Blocks, Programmable Interconnect and Routing and Cap. Sense Illustration of a PSo. C Device Being Flexibly Configured by Plugging in PSo. C Components 1 Programmable Analog Block A hardware block that is configured using PSo. C Components 1 to create Analog Front Ends (AFEs), signal conditioning circuits with opamps and filters Includes analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) Programmable Digital Block A hardware block that is configured using PSo. C Components 1 to implement custom digital peripherals and glue logic Includes Timer, Counter, PWM (TCPWM) Block A PSo. C Programmable Digital Block that is configurable as a 16 -bit timer, counter, PWM or quadrature decoder Cap. Sense® Cypress’s third-generation touch-sensing user interface solution that “just works” in noisy environments and in the presence of water The industry’s No. 1 solution in sales by 4 x over No. 2 Programmable Interconnect and Routing Connects the Programmable Analog Blocks, Programmable Digital Blocks and I/Os Enables flexible connections of internal analog and digital signals to internal buses and external I/Os 1 Free embedded ICs represented by an icon in PSo. C Creator software 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 4

PSo. C Terms PSo. C Creator™ PSo. C 3, PSo. C 4 and PSo. C 5 Integrated Design Environment (IDE) Software that installs on your PC that allows: Concurrent hardware and firmware design of PSo. C systems, or PSo. C hardware design followed by export to popular IDEs 75+ Components available for PSo. C 4000 designs Components Free embedded ICs represented by an icon in PSo. C Creator software Used to integrate multiple ICs and system interfaces into one PSo. C Dragged and dropped as icons to design systems in PSo. C Creator Component Configuration Tools Simple graphical user interfaces in PSo. C Creator embedded in each Component Used to customize Component parameters Component Icon Component Configuration Tool Smart. Sense™ Auto-tuning Cap. Sense algorithm that automatically sets sensing parameters for optimal performance after the design phase Continuously compensates for system, manufacturing and environmental changes PSo. C 4 A PSo. C with an ARM® Cortex®-M 0 MCU 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 5

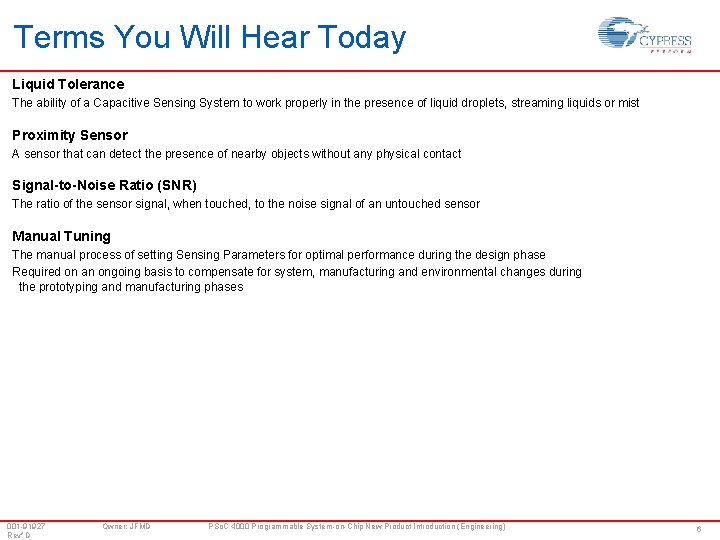

Terms You Will Hear Today Liquid Tolerance The ability of a Capacitive Sensing System to work properly in the presence of liquid droplets, streaming liquids or mist Proximity Sensor A sensor that can detect the presence of nearby objects without any physical contact Signal-to-Noise Ratio (SNR) The ratio of the sensor signal, when touched, to the noise signal of an untouched sensor Manual Tuning The manual process of setting Sensing Parameters for optimal performance during the design phase Required on an ongoing basis to compensate for system, manufacturing and environmental changes during the prototyping and manufacturing phases 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 6

Design Problems Engineers Face Legacy 8 -bit and 16 -bit MCUs do not offer the performance required for today’s applications 8 -bit and 16 -bit MCUs do not meet customer requirements for processing speed and power consumption Reliable touch-sensing solutions are difficult to design Touch-sensing solutions require specialized expertise to implement Curved or thick overlays, gloves and noisy environments reduce SNR performance Advanced features like proximity sensing and Liquid Tolerance further complicate the system design It is difficult to achieve the lowest power at the required performance level Optimizing performance in a low-power system requires careful use of low-power modes Cypress’s PSo. C 4000 family solves these problems The PSo. C 4000 family uses a 32 -bit ARM Cortex-M 0 MCU to quickly upgrade legacy 8 -bit and 16 -bit MCUs Complicated customer requirements are simple to meet using PSo. C Creator Components and your application code The PSo. C 4000 family enables reliable Cap. Sense designs that work under all conditions using Smart. Sense Auto-tuning PSo. C Creator simplifies power optimization using the PSo. C 4000 low-power modes PSo. C 4000 enables you to quickly upgrade your product with 32 -bit performance, reliable Cap. Sense and low power consumption 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 7

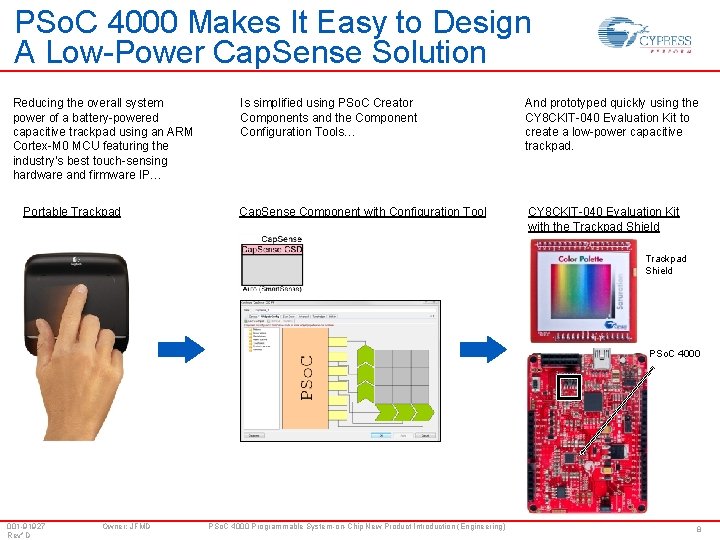

PSo. C 4000 Makes It Easy to Design A Low-Power Cap. Sense Solution Reducing the overall system power of a battery-powered capacitive trackpad using an ARM Cortex-M 0 MCU featuring the industry’s best touch-sensing hardware and firmware IP… Portable Trackpad Is simplified using PSo. C Creator Components and the Component Configuration Tools… And prototyped quickly using the CY 8 CKIT-040 Evaluation Kit to create a low-power capacitive trackpad. Cap. Sense Component with Configuration Tool CY 8 CKIT-040 Evaluation Kit with the Trackpad Shield PSo. C 4000 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 8

PSo. C 4000 Delivers 32 -Bit Performance The PSo. C 4000 family has a 32 -bit ARM Cortex-M 0 MCU to upgrade legacy 8 -bit and 16 -bit MCUs The ARM Cortex-M 0 processes instructions three times faster than the MSP 430 and 45 times faster than the PIC 18 Faster instruction processing enables the ARM Cortex-M 0 to spend more time in sleep modes, reducing system power consumption MCU Performance Comparison Using the Dhrystone Benchmark 1 1. 00 DMIPS per MHz 2 8 -bit MCU 16 -bit MCU 32 -bit MCU 0. 75 0. 50 0. 25 0. 00 PIC 18 Microchip 8051 Intel MSP 430 H 8 S/2600 S 12 PIC 24 ARM TI Renesas Freescale Microchip Cortex-M 0 1 Dhrystone 2 is a computing benchmark program used to calculate the relative performance of an MCU DMIPS = Dhrystone million instructions per second; data referenced from The Definitive Guide to the ARM Cortex-M 0, ISBN: 978 -0 -12 -385477 -3 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 9

PSo. C 4000 Brings Proven Cap. Sense Technology to the ARM World Touch Buttons: 2003 Liquid Tolerance: 2008 Noise Immunity: 2010 >1 B Units Shipped: 2014 116 BR 3 CM CY 8 LG Chocolate Mobile Phone Cypress’s Cap. Sense research and development begins with buttons and sliders Indesit Induction Cooktop Cap. Sense algorithms offer Liquid Tolerance, proximity sensing, and improved noise immunity HP Touch. Smart Printer Smart. Sense™ Auto-tuning revolutionizes Cap. Sense design by removing Manual Tuning and improving noise immunity Cypress’s reliable Cap. Sense solution is proven in production Over 1 Billion Cap. Sense controllers shipped Cap. Sense Component Configuration Tool Industry’s No. 1 solution in sales by 4 x over No. 2 Cap. Sense buttons “just work” because of rigorous engineering and testing The PSo. C 4000 family enables Cap. Sense designs with: Up to 16 Cap. Sense I/Os that can be used as buttons, sliders and Proximity Sensors Robust noise immunity with a practical system SNR > 100: 1 Robust standing and running Liquid Tolerance capability Reduced time-to-market and increased manufacturing robustness with Smart. Sense Auto-tuning The Cap. Sense Component Configuration Low power consumption (5 μA average) Tool makes it easy to design buttons, sliders, Proximity Sensors and trackpads without writing code 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 10

PSo. C 4000 Enables Reliable Proximity Sensing PSo. C 4000 enables capacitive Proximity Sensors with: A proximity sensing distance of up to 30 cm A superior SNR that ensures reliable performance PSo. C 4000 Proximity Sensors enable: Aesthetic design with proximity-based LED lighting effects Enhanced reliability by eliminating mechanical contact Lower power consumption than other Proximity Sensors, such as IR sensors Advanced features such as wake-on-approach and spatial measurement Wake-on-Approach in Light Control Panels Spatial Measurement Using Multiple Proximity Sensors The wake-on-approach feature turns on the PSo. C 4000 capacitive sensing system from standby mode Spatial measurement uses multiple Proximity Sensors to measure position and distance. Proximity Sensors 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 11

Cap. Sense Works Under Liquids Cap. Sense maintains touch accuracy in wet conditions by using: Liquid-Tolerant Cap. Sense Sensor Layout A shield electrode to eliminate false touches from water droplets, mist and other liquids A guard sensor to eliminate false touches from streaming liquids or submersion Guard Sensor Shield Electrode Sensor Shield electrodes are copper fills around sensors that offset liquid droplets; guard sensors are copper traces that offset streaming liquids Signals Without a Shield Electrode Finger Touch Signals With a Shield Electrode Cap. Sense Works Under Liquids Finger Touch Water Droplet Touch Threshold Water Droplet Noise Floor The variation in signals generated by a water droplet exceeds a touch threshold, causing a false touch 001 -91927 Rev*D Owner: JFMD The variation in signals generated by a water droplet is below a touch threshold; therefore there is no false touch PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) Cap. Sense buttons even work under spaghetti sauce 12

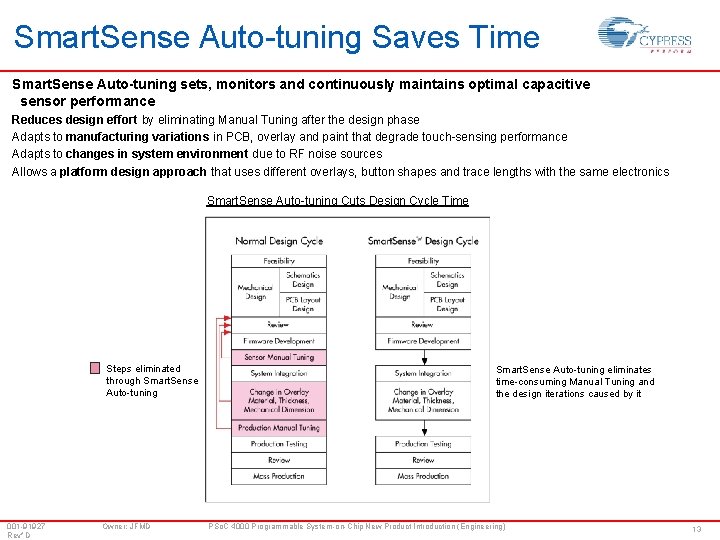

Smart. Sense Auto-tuning Saves Time Smart. Sense Auto-tuning sets, monitors and continuously maintains optimal capacitive sensor performance Reduces design effort by eliminating Manual Tuning after the design phase Adapts to manufacturing variations in PCB, overlay and paint that degrade touch-sensing performance Adapts to changes in system environment due to RF noise sources Allows a platform design approach that uses different overlays, button shapes and trace lengths with the same electronics Smart. Sense Auto-tuning Cuts Design Cycle Time Steps eliminated through Smart. Sense Auto-tuning 001 -91927 Rev*D Owner: JFMD Smart. Sense Auto-tuning eliminates time-consuming Manual Tuning and the design iterations caused by it PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 13

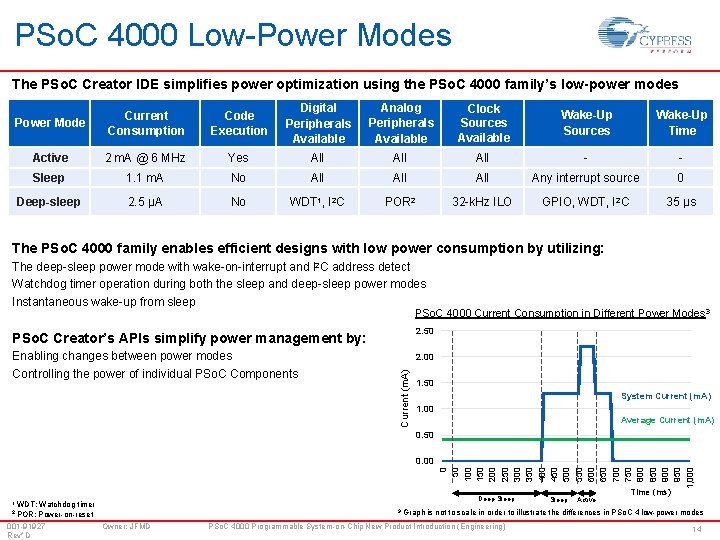

PSo. C 4000 Low-Power Modes The PSo. C Creator IDE simplifies power optimization using the PSo. C 4000 family’s low-power modes Power Mode Current Consumption Code Execution Digital Peripherals Available Analog Peripherals Available Clock Sources Available Wake-Up Sources Wake-Up Time Active 2 m. A @ 6 MHz Yes All All - - Sleep 1. 1 m. A No All All Any interrupt source 0 Deep-sleep 2. 5 μA No WDT 1, I 2 C POR 2 32 -k. Hz ILO GPIO, WDT, I 2 C 35 μs The PSo. C 4000 family enables efficient designs with low power consumption by utilizing: The deep-sleep power mode with wake-on-interrupt and I 2 C address detect Watchdog timer operation during both the sleep and deep-sleep power modes Instantaneous wake-up from sleep PSo. C 4000 Current Consumption in Different Power Modes 3 2. 50 Enabling changes between power modes Controlling the power of individual PSo. C Components 2. 00 Current (m. A) PSo. C Creator’s APIs simplify power management by: 1. 50 System Current (m. A) 1. 00 Average Current (m. A) 0. 50 0 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1, 000 0. 00 1 WDT: Watchdog timer 2 POR: Power-on-reset 001 -91927 Owner: JFMD Rev*D Deep-Sleep 3 Graph Sleep Active Time (ms) is not to scale in order to illustrate the differences in PSo. C 4 low-power modes PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 14

PSo. C 4000 System Design in PSo. C Creator Cap. Sense Starter Project on Six Windows in the PSo. C Creator IDE 1. Explore the library of 75+ Components 2. Complete your hardware system design by dragging and dropping Component icons 3. Configure Components using a Component-specific configuration tool 4. Access Component datasheets directly from the configuration tool for technical specification 5. Codesign your application firmware and hardware using the PSo. C Creator IDE C-based compiler 6. Review the Components’ application notes for usage guidelines Cap. Sense Design Guide 001 -91927 Rev*D Owner: JFMD Cap. Sense Component Datasheet Cap. Sense Component Configuration Tool PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 15

PSo. C 4000 vs. Low-Cost MCUs With Capacitive Sensing Feature CY 8 C 4014 LQI- LPC 1112 LVFH- LPC 812 M 101 - PIC 16 F 688 422 N 24 JDH 20 MSP 430 G 2432 CPU Core Cortex-M 0+ 8 bit 16 bit Flash Size (KB) 16 16 16 7 8 Touch-Sensing System: Capacitive Sensing Channels Tuning Method 16 8 - 8 16 Smart. Sense™ Manual Tuning - Manual Tuning Proximity Sensing Yes (30 cm) No - No No Liquid Tolerance Yes (Any liquid) No - No No Typ Current/Channel 5 µA N/A 1 - N/A 1 Price/Cap. Sense® Button As low as $0. 05 - - Comparator 1 - - 2 - IDAC 2 - - Analog MUX Channels 16 Serial Interfaces 1 I 2 C Timer/Counter/PWMs 1/1/1 8 1 SPI, 1 I 2 C, 1 UART 2/2/0 2 SPI, 1 I 2 C, 3 UART 4/3/0 8 1 SPI, 1 I 2 C, 1 UART 2/2/0 1 SPI, 1 I 2 C, 1 UART 1/1/1 Pin Count (GPIO) 24 (20) 20 (18) 14 (12) 20 (16) Supply Voltage (V) 1. 71 -5. 5 1. 65 -1. 95 1. 8 -3. 6 2. 0 -5. 5 1. 8 -3. 6 1 Current consumption per Capacitive Sensing Channel is not published online 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 16

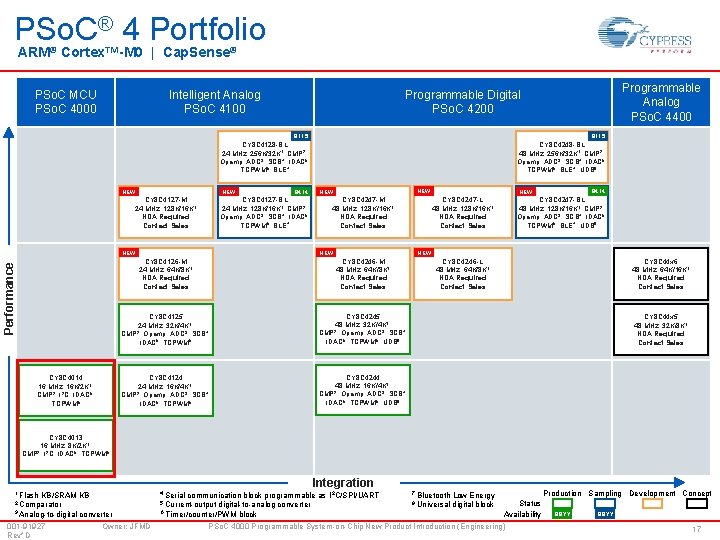

PSo. C® 4 Portfolio ARM® Cortex™-M 0 | Cap. Sense® PSo. C MCU PSo. C 4000 Intelligent Analog PSo. C 4100 Programmable Analog PSo. C 4400 Programmable Digital PSo. C 4200 Q 115 CY 8 C 4128 -BL 24 MHz, 256 K/32 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6, BLE 7 NEW CY 8 C 4127 -M 24 MHz, 128 K/16 K 1 NDA Required Contact Sales Performance NEW CY 8 C 4014 16 MHz, 16 K/2 K 1, CMP 2, I 2 C, IDAC 5, TCPWM 6 Q 414 CY 8 C 4127 -BL 24 MHz, 128 K/16 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6, BLE 7 CY 8 C 4248 -BL 48 MHz, 256 K/32 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6, BLE 7, UDB 8 NEW CY 8 C 4247 -M 48 MHz, 128 K/16 K 1 NDA Required Contact Sales NEW Q 414 NEW CY 8 C 4247 -L 48 MHz, 128 K/16 K 1 NDA Required Contact Sales CY 8 C 4247 -BL 48 MHz, 128 K/16 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6, BLE 7, UDB 8 NEW CY 8 C 4126 -M 24 MHz, 64 K/8 K 1 NDA Required Contact Sales CY 8 C 4246 -M 48 MHz, 64 K/8 K 1 NDA Required Contact Sales CY 8 C 4125 24 MHz, 32 K/4 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6 CY 8 C 4245 48 MHz, 32 K/4 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6, UDB 8 CY 8 C 4124 24 MHz, 16 K/4 K 1, 2 CMP , Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6 CY 8 C 4244 48 MHz, 16 K/4 K 1, CMP 2, Opamp, ADC 3, SCB 4, IDAC 5, TCPWM 6, UDB 8 CY 8 C 4246 -L 48 MHz, 64 K/8 K 1 NDA Required Contact Sales CY 8 C 44 x 6 48 MHz, 64 K/16 K 1 NDA Required Contact Sales CY 8 C 44 x 5 48 MHz, 32 K/8 K 1 NDA Required Contact Sales CY 8 C 4013 16 MHz, 8 K/2 K 1, CMP 2, I 2 C, IDAC 5, TCPWM 6 Integration 1 Flash KB/SRAM KB 2 Comparator 3 Analog-to-digital converter 001 -91927 Rev*D Owner: JFMD 4 Serial communication block programmable as I 2 C/SPI/UART 5 Current-output digital-to-analog converter 6 Timer/counter/PWM block 7 Bluetooth 8 Universal Low Energy digital block Production Sampling Development Concept Status Availability PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) QQYY 17

PSo. C 4000 (CY 8 C 40 xx) Family PSo. C MCU Family Block Diagram MCU and discrete analog replacement User interface for button replacement User interface for heating, ventilation, air conditioning PSo. C 4000 One-Chip Solution MCU Subsystem Programmable Analog Blocks Features Cortex-M 0 32 -bit MCU subsystem 16 -MHz ARM® Cortex™-M 0 MCU Up to 16 KB flash and 2 KB SRAM Programmable analog Two IDACs (7 bit and 8 bit); digitally controlled current source One comparator (CMP) Cap. Sense® with Smart. Sense™ Auto-tuning One Cypress Capacitive Sigma-Delta™ (CSD) controller Capacitive sensing supported on up to 16 pins Programmable digital One configurable 16 -bit timer, counter or pulse-width modulator (TCPWM) block One I 2 C master or slave Packages 8 -SOIC, 16 -QFN, 24 -QFN, 28 -SSOP 16 MHz Flash (8 KB to 16 KB) SRAM (2 KB) Availability Datasheet: www. cypress. com/Psoc 4000 Datasheet Application Note: www. cypress. com/go/AN 79953 Sampling: Production: Owner: JFMD CMP CSD Programmable Digital Blocks Serial Wire Debug Collateral 001 -91927 Rev*D Advanced High-Performance Bus (AHB) IDAC x 2 TCPWM I 2 C I/O Subsystem GPIO Port Programmable Interconnect and Routing Applications GPIO Port Now PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 18

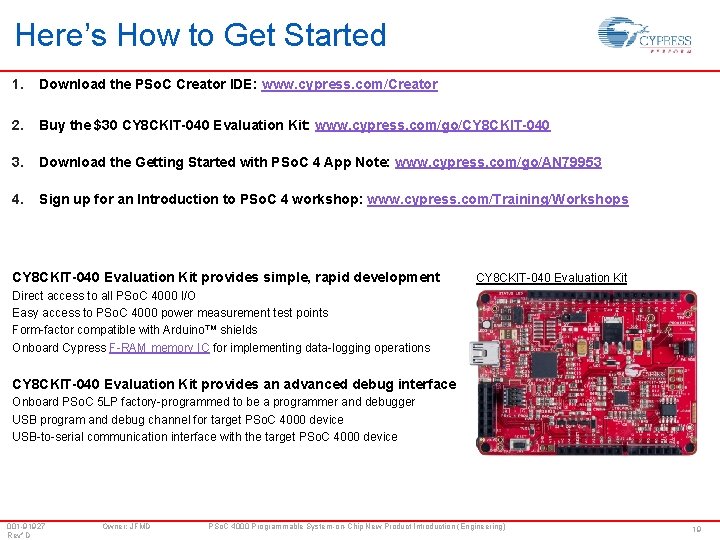

Here’s How to Get Started 1. Download the PSo. C Creator IDE: www. cypress. com/Creator 2. Buy the $30 CY 8 CKIT-040 Evaluation Kit: www. cypress. com/go/CY 8 CKIT-040 3. Download the Getting Started with PSo. C 4 App Note: www. cypress. com/go/AN 79953 4. Sign up for an Introduction to PSo. C 4 workshop: www. cypress. com/Training/Workshops CY 8 CKIT-040 Evaluation Kit provides simple, rapid development CY 8 CKIT-040 Evaluation Kit Direct access to all PSo. C 4000 I/O Easy access to PSo. C 4000 power measurement test points Form-factor compatible with Arduino™ shields Onboard Cypress F-RAM memory IC for implementing data-logging operations CY 8 CKIT-040 Evaluation Kit provides an advanced debug interface Onboard PSo. C 5 LP factory-programmed to be a programmer and debugger USB program and debug channel for target PSo. C 4000 device USB-to-serial communication interface with the target PSo. C 4000 device 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 19

APPENDIX 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering)

PSo. C 4000 Product Selector Guide Part Number CPU Speed (MHz) Flash Size (KB) SRAM (KB) Cap. Sense 7 -bit IDAC 1 8 -bit IDAC 1 TCPWM 2 CMP 3 I 2 C Package CY 8 C 4013 SXI-400 CY 8 C 4013 SXI-411 CY 8 C 4013 LQI-411 CY 8 C 4014 SXI-420 CY 8 C 4014 SXI-411 CY 8 C 4014 SXI-421 CY 8 C 4014 LQI-412 CY 8 C 4014 LQI-422 CY 8 C 4014 PVI-412 CY 8 C 4014 PVI-422 16 16 16 8 8 16 16 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 -SOIC 16 -SOIC 16 -QFN 24 -QFN 28 -SSOP PSo. C 4000 Part Numbering Decoder CY 8 C 40 1 X XXX Device Identification Number that corresponds to the part feature set Temperature Range: I = Industrial Package: LQ = QFN, SX = SOIC, PV = SSOP Flash Size: 3 = 8 KB, 4 = 16 KB CPU Speed: 1 = 16 MHz Product Type: 40 = MCU Marketing Code: 8 C = PSo. C Platform Company ID: CY = Cypress 1 IDAC = Current-output digital-to-analog converter TCPWM = Timer/counter/Pulse Width Modulator (PWM) block 3 CMP= Comparator 2 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 21

References and Links Introductory video: www. cypress. com/psoc 4 CY 8 CKIT-040 Evaluation Kit page: www. cypress. com/go/CY 8 CKIT-040 App Note AN 79953: Getting Started with PSo. C 4 www. cypress. com/go/AN 79953 App Note AN 86233: PSo. C 4 Low-Power Modes and Power Reduction Techniques www. cypress. com/go/AN 86233 PSo. C 4 Cap. Sense Design Guide: www. cypress. com/go/AN 85951 Cypress Platform PSo. C Product Roadmap: www. cypress. com/go/PSo. CRoadmaps Introduction to PSo. C 4 Workshop Registration page: www. cypress. com/Trainings/Workshops 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 22

PSo. C 4 Capacitive-Sensing Solution Value Competitor Capacitive Sensing Controller: NXP LPC 1112 LVFHN 24 Price: $1. 071 BOM Integration Proximity Sensing: 47 -n. F X 7 R capacitor (GRM 21 BR 71 H 473 KA 01 L) Price: $0. 032 Additional Value $0. 12 $0. 03 BOM Integration Value $0. 15 Smart. Sense Auto-tuning $0. 20 Total Additional Value $0. 20 Total Value Delivered Smart. Sense Auto-tuning: Saves four man-weeks of engineering effort at $2 k per man-week, amortized over 40, 000 units Value Added: $0. 20 2 Liquid Tolerance Proximity Sensing Liquid Tolerance: Opamp (LM 324 DR 2 G) to implement shield electrode Price: $0. 122 1 $1. 07 Competitor $1. 42 Target PSo. C Solution: CY 8 C 4014 LQI-422 Total Cost: $1. 252 12% Total Savings: $0. 17 Mouser 1 ku pricing as of 6/26/2014 Digikey 1 ku pricing as of 6/26/2014 001 -91927 Rev*D Owner: JFMD PSo. C 4000 Programmable System-on-Chip New Product Introduction (Engineering) 23
