PSK 31 What is PSK 31 u u

PSK 31

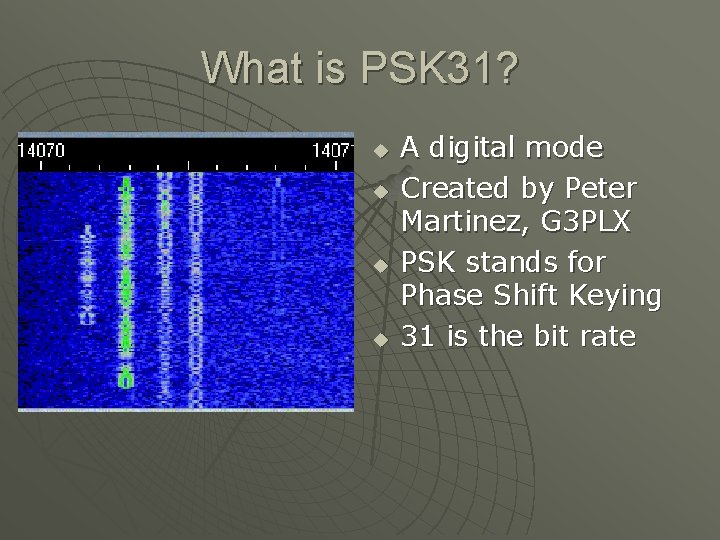

What is PSK 31? u u A digital mode Created by Peter Martinez, G 3 PLX PSK stands for Phase Shift Keying 31 is the bit rate

Characteristics of PSK 31 u u The power in a PSK-31 signal is concentrated in a 31 Hz bandwidth, versus 250 Hz for RTTY and 3300 Hz for SSB Transcontinental QSO’s using PSK-31 are possible using less than 50 W under any conditions and when conditions are good, QRP (< 5 W) PSK-31 contacts are possible to any point on the planet.

Equipment u Amateur transceiver that has low frequency drift • Any modern solid state rig is OK (IC-706, IC-746, TS-940, TS 2000, FT-1000, Omni VI, etc. ) u PC • Most PSK-31 software is compatible with any version of Windows • Sound card (16 bit Sound Blaster or better) is required u An interface that connects the PC and the transceiver • Commercially made (Rig. Blaster, RASCAL, etc. ) • Homebrew • Audio Coupled u Computer Software • Ham Radio Deluxe (HRD) • Digipan • Hamscope

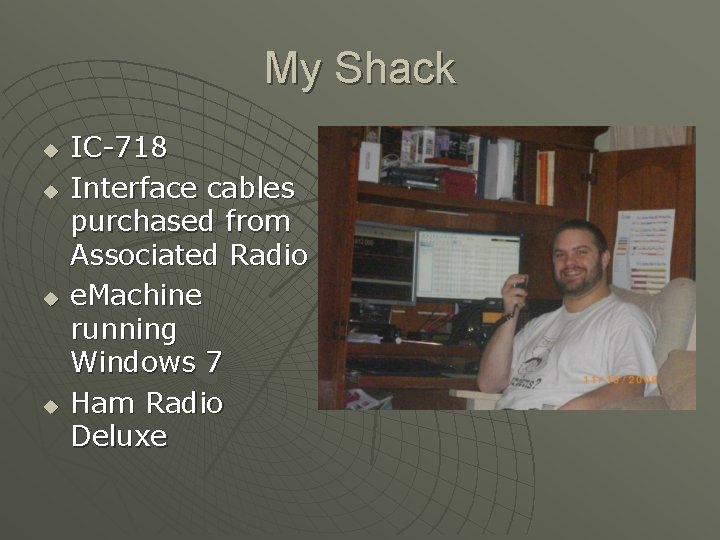

My Shack u u IC-718 Interface cables purchased from Associated Radio e. Machine running Windows 7 Ham Radio Deluxe

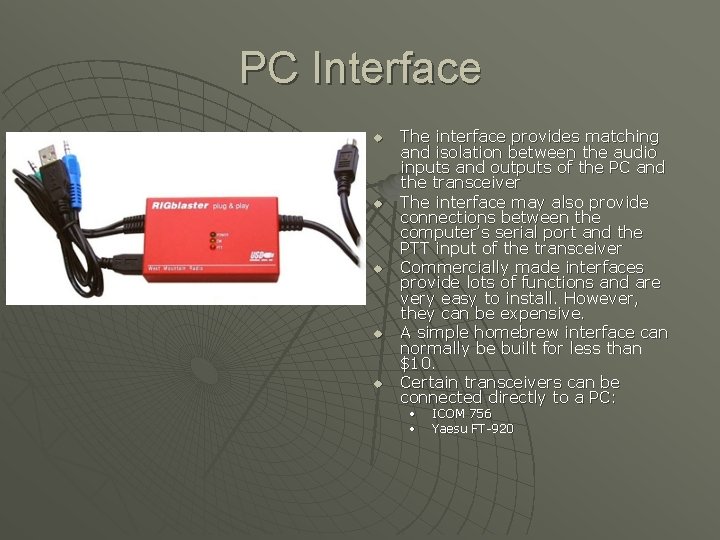

PC Interface u u u The interface provides matching and isolation between the audio inputs and outputs of the PC and the transceiver The interface may also provide connections between the computer’s serial port and the PTT input of the transceiver Commercially made interfaces provide lots of functions and are very easy to install. However, they can be expensive. A simple homebrew interface can normally be built for less than $10. Certain transceivers can be connected directly to a PC: • • ICOM 756 Yaesu FT-920

Acoustic Coupling Rig’s speaker is placed near the PC’s microphone • Rig’s microphone is placed next to the PC’s speaker • VOX is used for T/R switching • Advantages Absolutely no extra equipment required. u Good electrical isolation between PC and rig u • Disadvantages Transmit levels can be tricky to adjust u Ambient noise degrades signal u

Basic PSK 31 Setup u u u The HF rig should be in the USB mode. Output power should be set to 30 – 50 (this is a full duty mode – do not set to full power) The transmit level should be set using the level controls in the software or the rig’s mic gain control so that the ALC level is just tickled The receive level should be adjusted to a level that does not overdrive the sound card PSK 31 software running

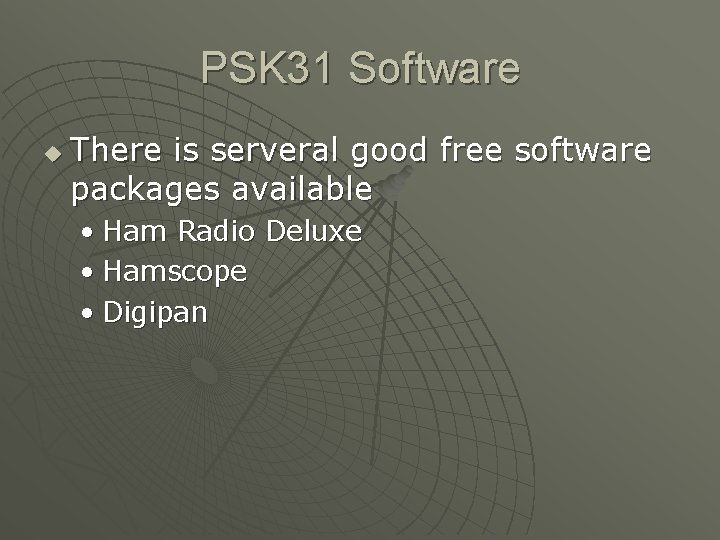

PSK 31 Software u There is serveral good free software packages available • Ham Radio Deluxe • Hamscope • Digipan

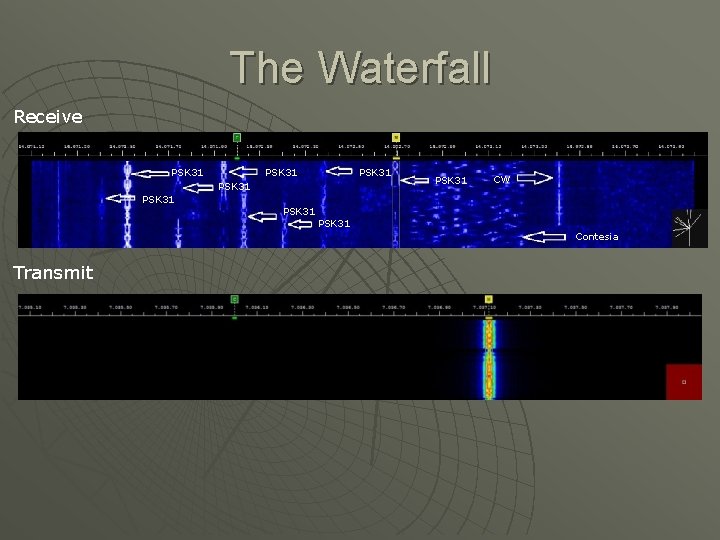

The Waterfall Receive PSK 31 PSK 31 CW PSK 31 Contesia Transmit

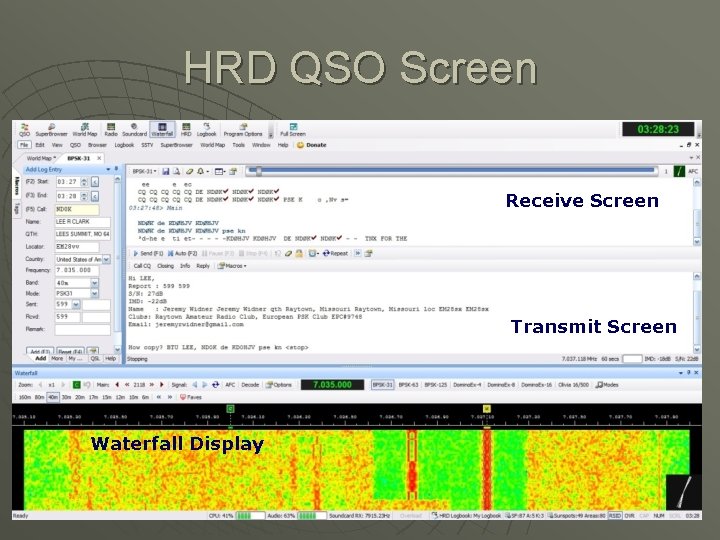

HRD QSO Screen Receive Screen Transmit Screen Waterfall Display

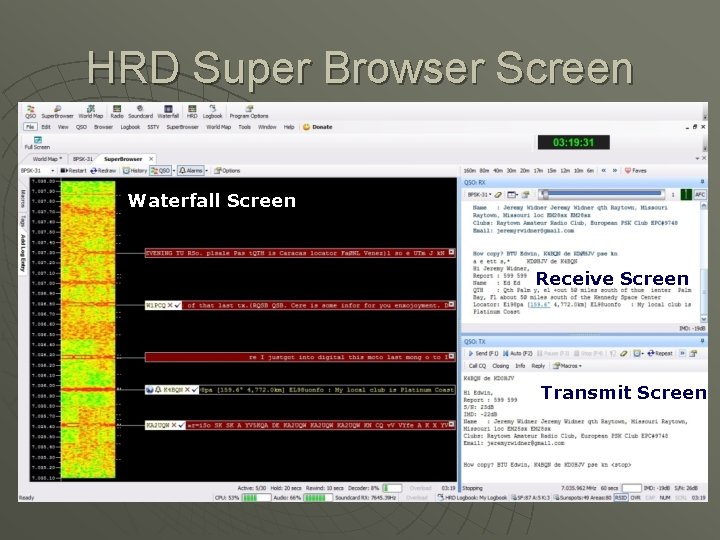

HRD Super Browser Screen Waterfall Screen Receive Screen Transmit Screen

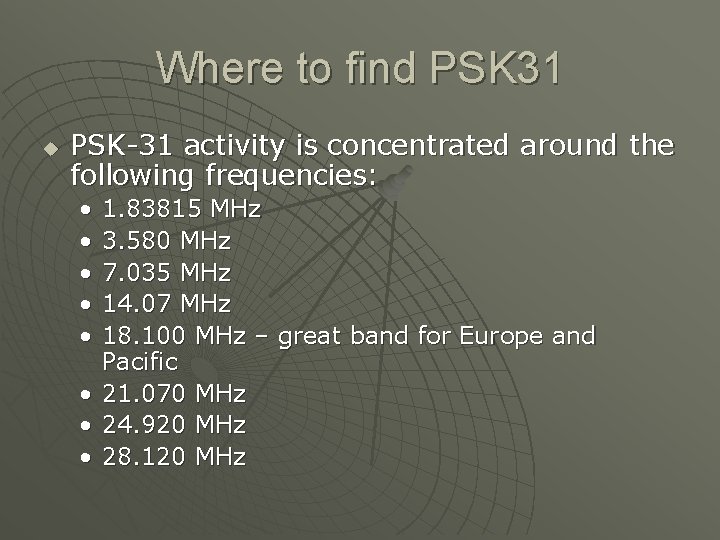

Where to find PSK 31 u PSK-31 activity is concentrated around the following frequencies: • • • 1. 83815 MHz 3. 580 MHz 7. 035 MHz 14. 07 MHz 18. 100 MHz – great band for Europe and Pacific • 21. 070 MHz • 24. 920 MHz • 28. 120 MHz

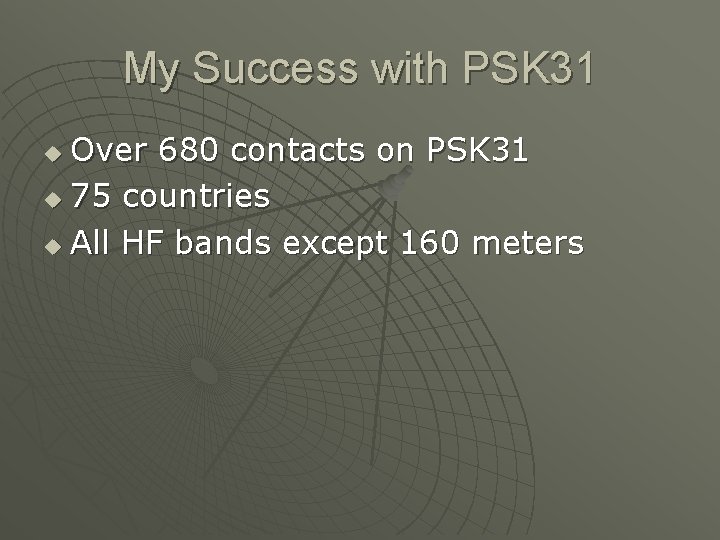

My Success with PSK 31 Over 680 contacts on PSK 31 u 75 countries u All HF bands except 160 meters u

Contacts for Last 3 months

Questions?
