PSB beam dump replacement project status PSB LS
PSB beam dump replacement project status PSB LS 1 coordination meeting Alba Sarrió 04 -Dec-2013

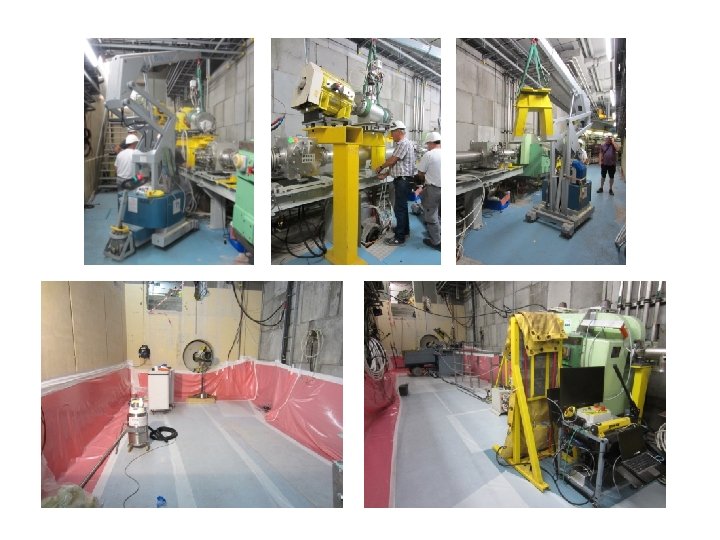

Work planning • Preparation of the area: dismantling of beam line equipment (BT, BTY, BTM) → 15/07/13 – 02/08/13 • Disposal operations of existing dump and its shielding: dismantling and storage in ISR → 05/08/13 – 29/08/13 • Cleaning and decontamination of cavity → 30/08/13 – 19/09/13 • Installation of new beam dump and its shielding → 30/09/13 – 08/10/13 • Re-assembly of BTM beam line equipment → 21/10/13 – 01/11/13 • Installation of BTY-QFO 108 new support → 26/11/13
Tasks to be done • Re-assembly BTY line elements: – Adjustments in BTY-QFO 108 new support: drilling holes, attach black plate (magnet support): 04/12/13 – Installation BTY magnets (BTY-QFO 108 and BTY-QDE 104) and stopper: 04/12/13 – 05/12/13 – Installation vacuum pipes in BTY line – Survey BTY line – Painting floor and walls
Tasks to be done • Re-assembly BTY line elements: – Installation cooling system: foreseen for 02/12/13 – 13/12/13, delayed until January, no confirmed date yet. – Re-assembly stairs: a modification is also needed, no design provided yet. – Re-assembly cable rack – Re-assembly cupboard
Tasks to be done
Planning: tasks to be completed
Thanks for your attention
