Providing Solutions ACF Electronics 3 M ACF 8794
- Slides: 25
异方性导电胶膜 Providing Solutions

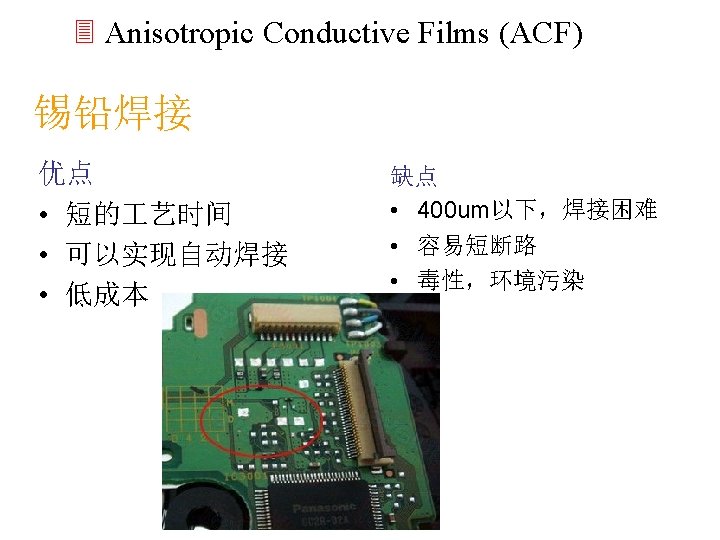

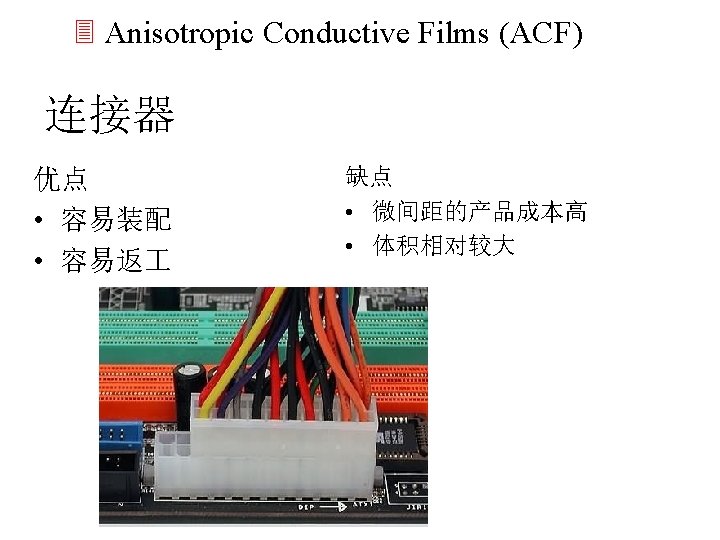

ACF 作原理 Electronics
3 M ACF 型号选择 8794
3 Anisotropic Conductive Films (ACF) 设计规范 : 线间距 ACF 7399 5363 7398 7303 9703 空隙 线间距 最小线间距 40 m 200 m 500 m 1000 m 最小空隙 20 m 100 m 250 m 400 m
ACF Bonding Process Flow 1. ACF Pre-Tacking Unwind 2. Pre-bonding Wind-up Bonding Head ACF Kiss Cut tool Release Liner Alignment q x y Circuit 1 (PWB) Bonding Head Circuit 2 (FPC) Circuit 1 (PWB) 3. Final Bonding Compliant Material Bonding Head Fully Assembled Circuits
3 Anisotropic Conductive Films (ACF) �� (5363) 温度 90 – 110 ºC �力 1 – 15 kg/cm 2 �� ~ 1 second 本� (5363) 温度 200ºC ± 10 o. C �力 30 – 50 kg/cm 2 �� 10 s

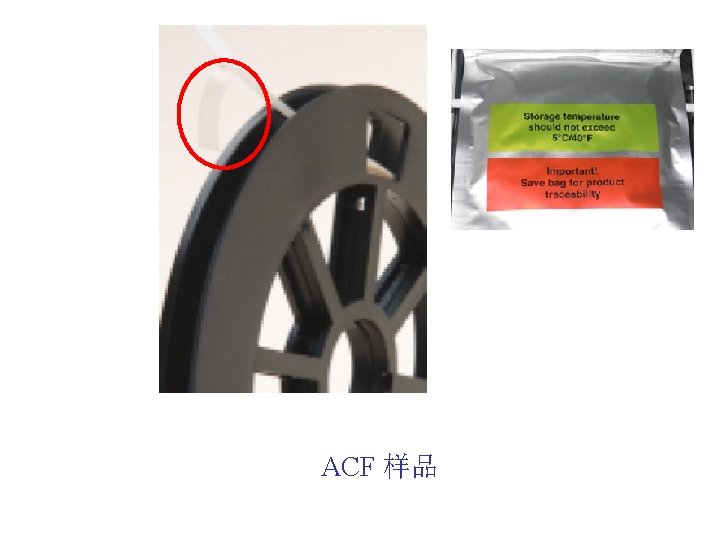

3 Anisotropic Conductive Films (ACF) Example: ACF 5363: 有效期 存��境 有效期 冷藏(2ºC) 15 月 室温 4周
ACF 5363 返

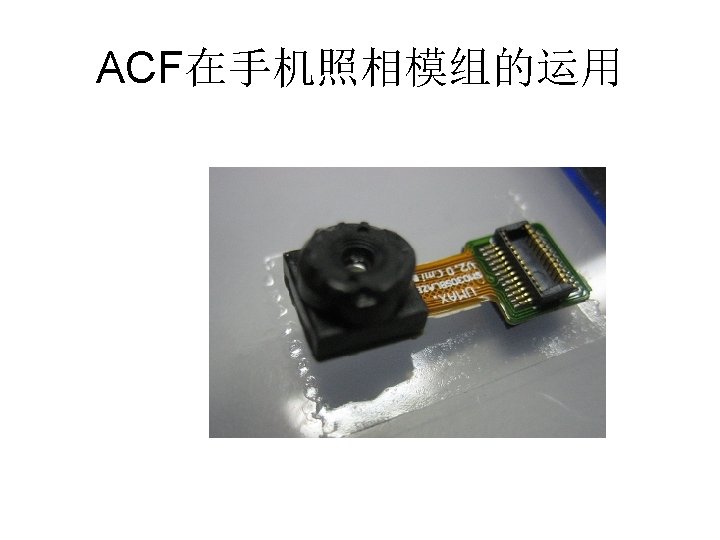

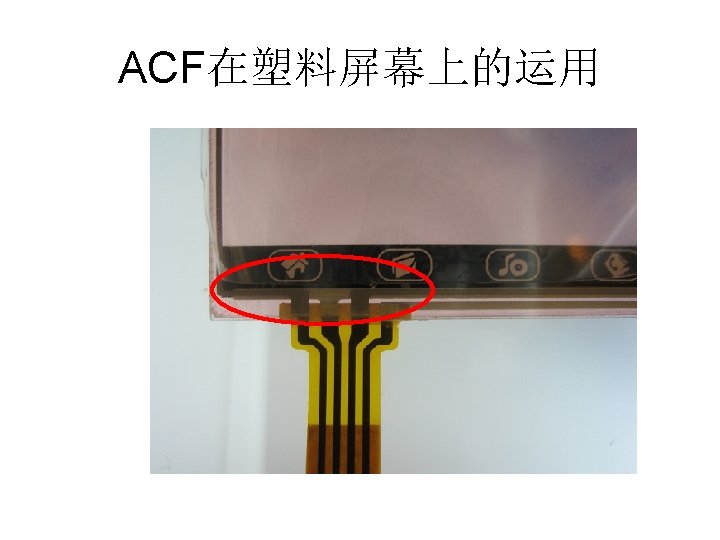

3 Anisotropic Conductive Films (ACF) 成功案例分享
3 Anisotropic Conductive Films (ACF) 3 ACF application • Product : 5363 • Application – FOB, 手机键盘PCB硬板 和FPC连接
3 Anisotropic Conductive Films (ACF) 3 ACF application • Product : 5363 • Application – FOF, FPC和FPC连接
3 Anisotropic Conductive Films (ACF) 3 ACF for printer • Product : 5460 R/7303 • Application: – FOF 3 M 7303 3 M #5460 R 3 M #7303
3 Anisotropic Conductive Films (ACF) 3 ACF for C&P • Product : 5363 • Application: – FOB, flex on board
3 Anisotropic Conductive Films (ACF) 3 ACF for smartcard • Product : 7303 • Application: – FOF 7303 bonding in Apple NB keyboard
