Prototypes • Why Create a Prototype? • Mock-Up /Presentation Prototype • Functioning Prototype • Examples of EDD Prototypes Sip and Drip

Why Create a Prototype? • If a picture is worth a thousand words, how much is a prototype worth? • Identify flaws, inefficiencies, and design alternatives • Gauge reactions from potential customers, buyers, or investors

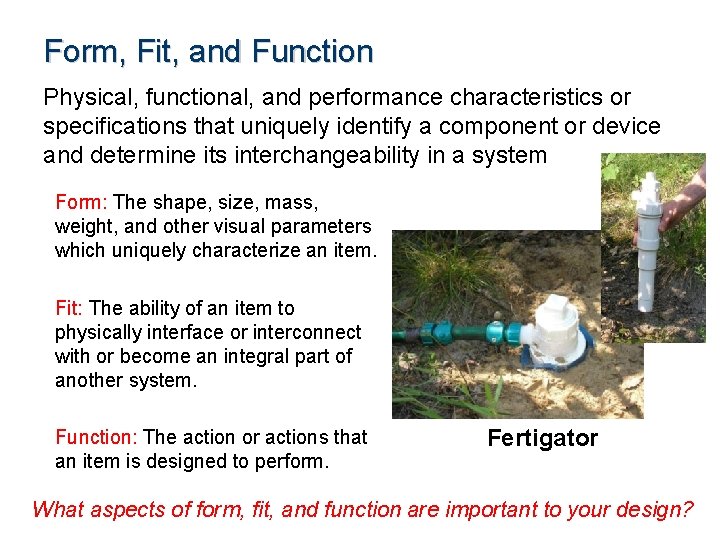

Form, Fit, and Function Physical, functional, and performance characteristics or specifications that uniquely identify a component or device and determine its interchangeability in a system Form: The shape, size, mass, weight, and other visual parameters which uniquely characterize an item. Fit: The ability of an item to physically interface or interconnect with or become an integral part of another system. Function: The action or actions that an item is designed to perform. Fertigator What aspects of form, fit, and function are important to your design?

Mock-Up/Presentation Prototype A three-dimensional representation of your invention that offers greater visual impact than a drawing would provide. What form, fit, and function questions can be answered with a presentation prototype? Images courtesy of Dimension

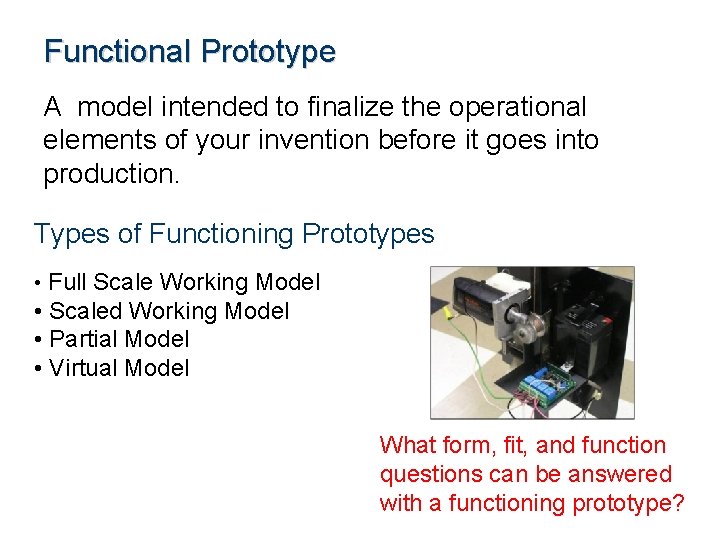

Functional Prototype A model intended to finalize the operational elements of your invention before it goes into production. Types of Functioning Prototypes • Full Scale Working Model • Scaled Working Model • Partial Model • Virtual Model What form, fit, and function questions can be answered with a functioning prototype?

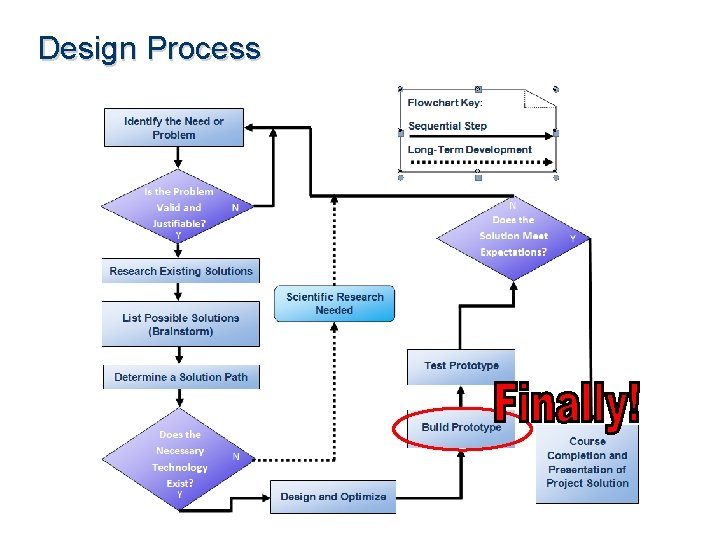

Design Process

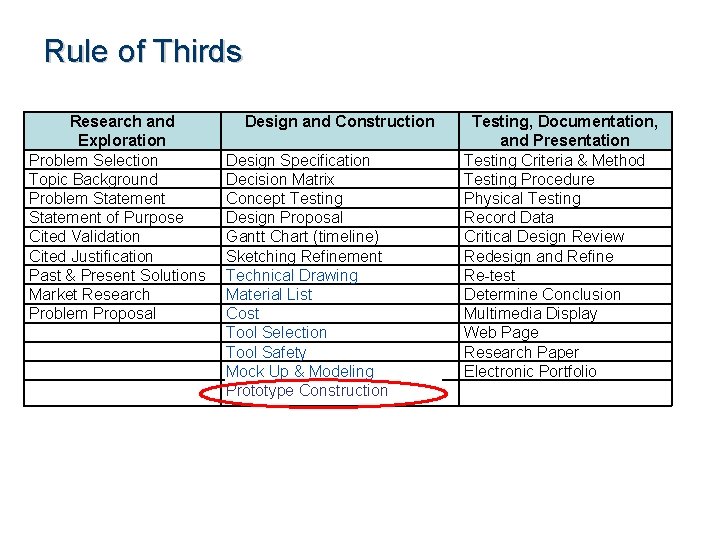

Rule of Thirds Research and Exploration Problem Selection Topic Background Problem Statement of Purpose Cited Validation Cited Justification Past & Present Solutions Market Research Problem Proposal Design and Construction Design Specification Decision Matrix Concept Testing Design Proposal Gantt Chart (timeline) Sketching Refinement Technical Drawing Material List Cost Tool Selection Tool Safety Mock Up & Modeling Prototype Construction Testing, Documentation, and Presentation Testing Criteria & Method Testing Procedure Physical Testing Record Data Critical Design Review Redesign and Refine Re-test Determine Conclusion Multimedia Display Web Page Research Paper Electronic Portfolio

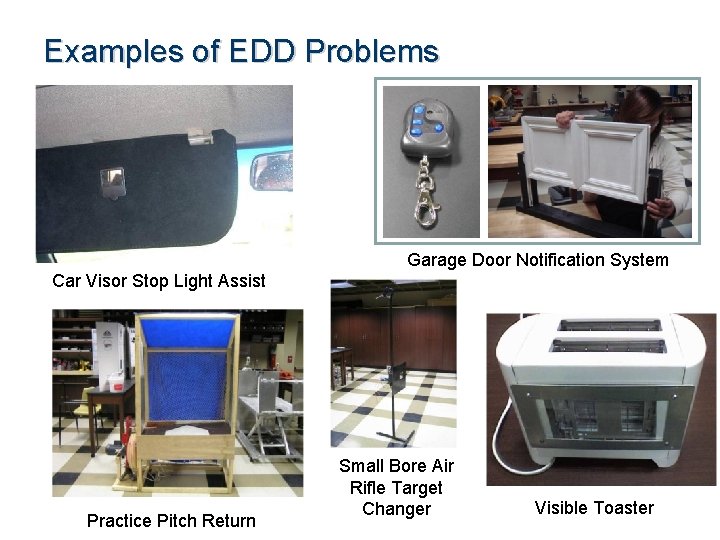

Examples of EDD Problems Garage Door Notification System Car Visor Stop Light Assist Practice Pitch Return Small Bore Air Rifle Target Changer Visible Toaster

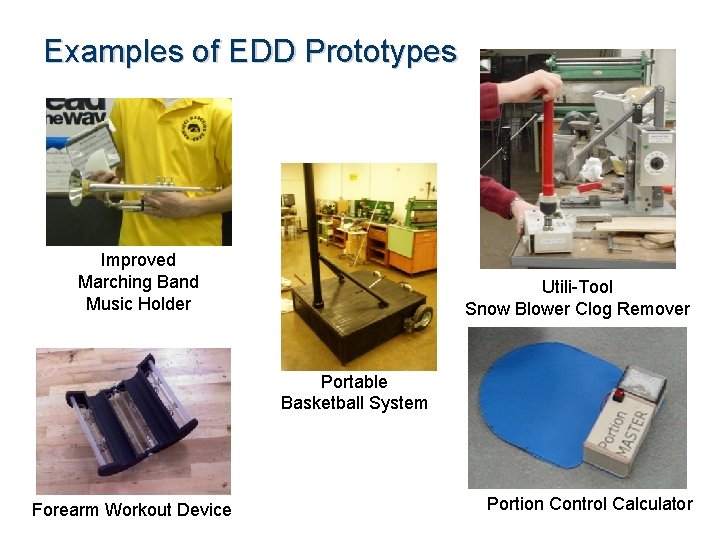

Examples of EDD Prototypes Improved Marching Band Music Holder Utili-Tool Snow Blower Clog Remover Portable Basketball System Forearm Workout Device Portion Control Calculator

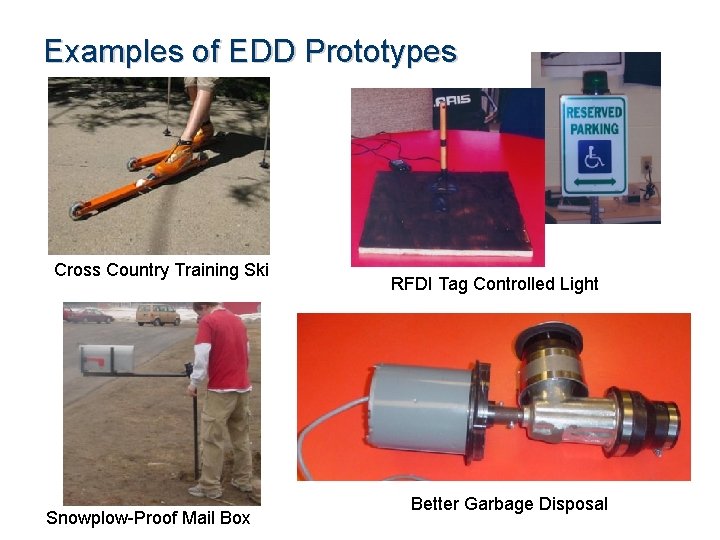

Examples of EDD Prototypes Cross Country Training Ski Snowplow-Proof Mail Box RFDI Tag Controlled Light Better Garbage Disposal

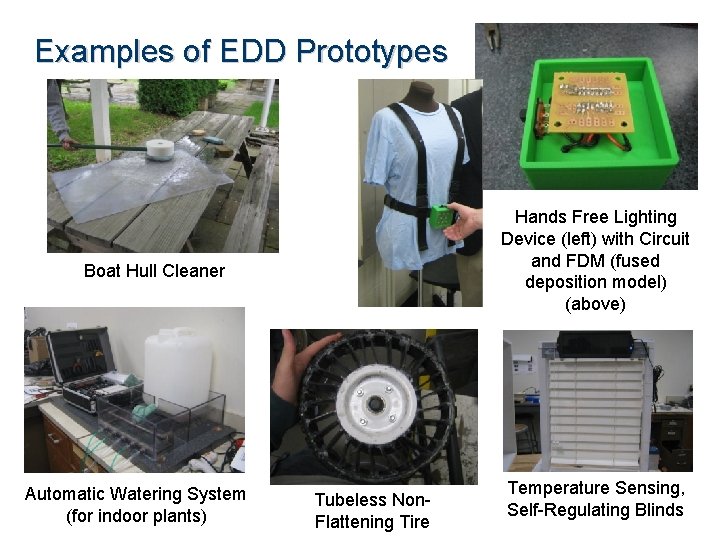

Examples of EDD Prototypes Hands Free Lighting Device (left) with Circuit and FDM (fused deposition model) (above) Boat Hull Cleaner Automatic Watering System (for indoor plants) Tubeless Non. Flattening Tire Temperature Sensing, Self-Regulating Blinds

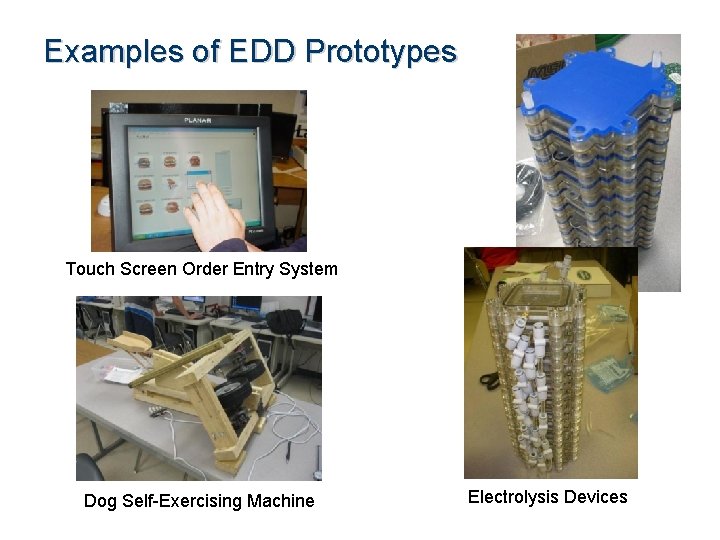

Examples of EDD Prototypes Touch Screen Order Entry System Dog Self-Exercising Machine Electrolysis Devices
