Protein Surface Analysis for Functional Analysis and Prediction

Protein Surface Analysis for Functional Analysis and Prediction T. Andrew Binkowski and Andrzej Joachimiak 2009 NIGMS Workshop: Enabling Technologies for Structural Biology March 4 -6, 2009

Outline How Can Surface Analysis Aid Your Structural Genomics Effort? § Protein Surfaces § Comparing Surfaces of Proteins § Surface Analysis in the Structural Genomics Pipeline § The Global Protein Surface Survey

Functional Inference in Proteins § Transfer function based on similarity to a protein with known biological activity § Sequence § 30 -70% § Functional sites result from spatial interactions of key residues in diverse regions of primary sequence § Structure § Reveal more distant relationships § 1 fold ~ many functions; vice versa § Example: generalized secondary structural element § Different SSE can bring residues in spatial proximity §(Jaroszewski & Godzick, ISMB 00) 3

Functional Inference in Proteins § Functional surfaces may be the most conserved structural features of proteins § Surfaces performing identical biochemical activity can be found within different protein scaffolds or in the absence clear evolutionary relationships §Novel heme-monooxygenase • 12% sequence identity • a/b vs. all a • Experimentally verified activity § Exploit ability of proteins to preserve local spatial residue patterns § Presents another opportunity to infer insightful ideas about their biological function and mechanisms 4

Surfaces of Proteins § Surface: § Local grouping of solvent accessible atoms § Pockets: § Empty concavity on a protein surfaces into which solvent can gain access § Identifying surfaces: § Methods: § Solvent accessibility, Geometry, Grids, Spheres § Applications: § CASTp, Surfnet, Pocket, Ligsite, Pass § Our approach: § Computational geometry (alpha § shape) § CASTp, PDB, Swiss-Prot, Catalytic Site Atlas Ligand binding surfaces: § Exclusion contact surface (solvent accessibility difference) §Muck & Edelsbrunner, ACM Tran Graph, 1994; Edelsbrunner, Facello, Liang, Disc Appl Math, 1996; Liang, Edelsbrunner, Woodward, Protein Sci, 1998 5

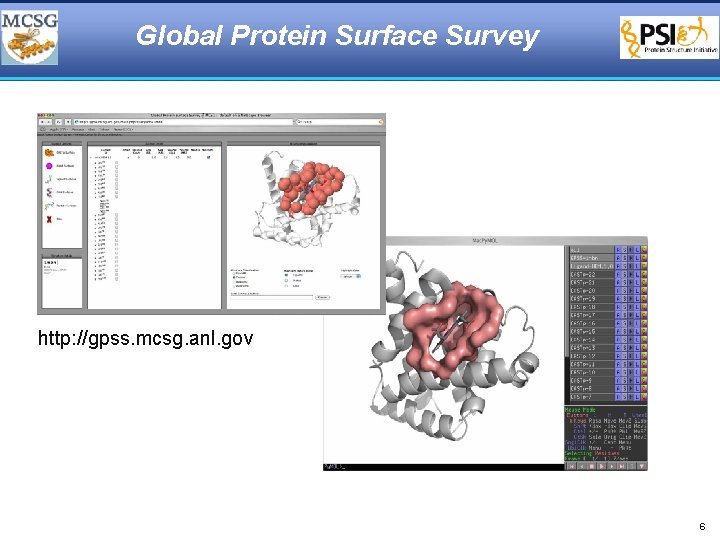

Global Protein Surface Survey http: //gpss. mcsg. anl. gov 6

Comparing Surfaces of Proteins § Surface. Screen § Methodology for identifying similarly shaped proteins and aligning them Surface § Optimizes two components § Global Shape § Perceived similarity § Size and scale, independent of Global Surface Shape Filtering chemistry § Local physicochemical texture § Preserved atom/residue orientation § Conservation of chemical complimentarity Surface Shape Alignment Constrained Spatial Surface Refinement Apply Scoring Functions 7

Comparing Surfaces of Proteins: Global Shape Similarity § Surface Shape Signatures (SSS) § Represent signature of a surface § as distribution sampled from a shape function (Osada et. Al. , 2002) Comparison of probability distributions § Kolmogorov-Smirnov § Earth Mover’s Distance § ATP Binding sites § protein kinase CK 2 from Z. mays (b) § phosphopantetheine § § adenylyltransferase from E. coli (c) maltose/maltodextrin transport protein from E. coli (d, cyan chain A, light blue chain B) 50 non-homologous sites (< 30% sequence identity) 8

Spatial Surface Alignment Refinement § Combinatorial comparison of residue sets in “neighborhood” § Maintain “like” correspondence § of types Maximum common residues § Enumerate and evaluate alignment orientations § Find optimal superposition using SVD of correlation matrix (Umeyama 1991) §Heme binding pockets of myoglobin from different organisms. 9

Evaluating Surface Alignments § RMSD Distance: § Estimate the probability of obtaining a specific RMSD for nres § Compute random surface alignments (108) and build lookup tables § RMSD variants: § § c. RMSD (coordinate) o. RMSD (orientation) § Surface Volume Overlap: § Interpretation of SVOT is not straightforward § Need global and local 10

Benchmarking Surface Alignments 11

Heme Binding Site Retrieval § Heme (iron-protoporphyrin IX) § Multi-functional (i. e. oxygen binding/transport, electron transfer and redox) § Binding on 20 different folds § Between proteins <2% seq. id. §seq. & fold § Query myoglobin (gray) against PDB structure to identify hemoproteins §surface analysis § Retrieval rate (area under ROC curve) § Sequence: 68. 7% § Structure (SSM): 64. 4% § Surface: 95. 8% § Detection of convergent heme binding site on Isd. G from S. aureus § Missing characteristic sequence motif § 12% seq id; different scaffold § Experimentally verified monooxygenase activity 12

ATP: Retrieval of a Flexible Ligand § Adenosine 5’-triphosphate multifunctional nucleotide (i. e. cell signaling, enegry transfer) § 58 unique EC classifications #. # § Conformational flexibility § Retrieval rates for 4 conformations (79. 1%-85. 4%); method is tolerant to flexible ligands 13

Prediction and Validation of GDP Binding Surface § Structure of F 420 -0: gamma-glutamyl ligase from A. fulgidus § Large binding surface was searched to support functional predictions and GDP binding surface is identified § Posed GDP based on superposition of surfaces (red) § Co-crystallization experiments validates prediction 14

Surface Analysis in the Structural Genomics Pipeline 15

Exploiting Protein Surfaces in Structural Genomics § Developing surface-based tools to address specific needs of structural genomics pipeline § § ystall iz Mutat ation electron density Functional annotation tools Drive further studies (i. e. ligand binding, discovery) Fu nc tio na l. A na lys is Future Studies Discovery Co-cr § Ligands for co-crystallization § Aid in the assignment of nd n a g Li catio fi nti e Id 16

Crystallization/Structure Improvement Partially Solved or Low Quality Structure Surface Identification Search GPSS for Binding Sites Co-crystallization Experiments §Introduction of GDP to F 420 -0: gamma-glutamyl ligase from A. fulgidus §improves resolution from 2. 8 to 1. 9 Angstroms and orders loop regions. 17

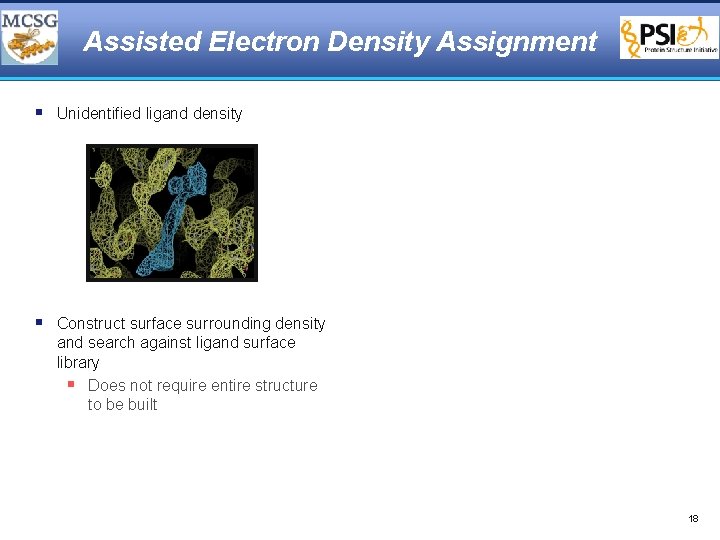

Assisted Electron Density Assignment § Unidentified ligand density § Construct surface surrounding density and search against ligand surface library § Does not require entire structure to be built 18

Assisted Electron Density Assignment § Applicable to ligands of various molecular weights and sizes § Fructose (pdb id=1 zx 5) § NADP (pdb id=2 ag 8) § Suggest a list in cases of ambiguity 19

Landscape Analysis: ATP § Classification based on surface similarity shows functional families have preferred (not necessarily unique) surfaces and conformation 20

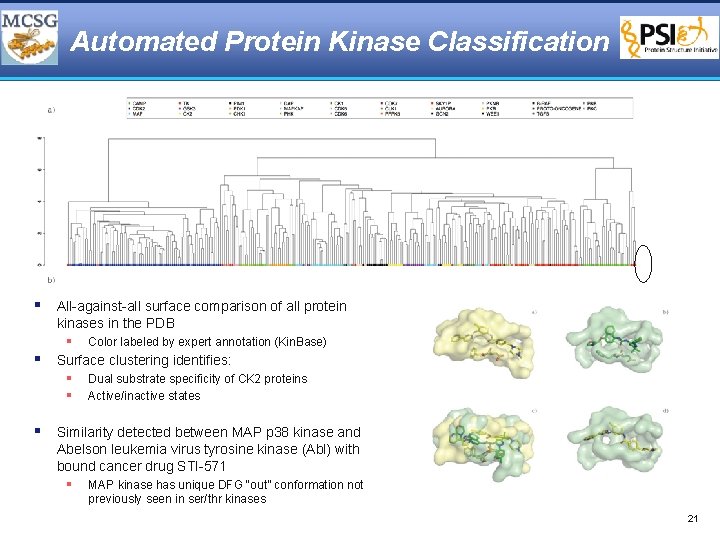

Automated Protein Kinase Classification § All-against-all surface comparison of all protein kinases in the PDB § Color labeled by expert annotation (Kin. Base) § Surface clustering identifies: § § Dual substrate specificity of CK 2 proteins Active/inactive states § Similarity detected between MAP p 38 kinase and Abelson leukemia virus tyrosine kinase (Abl) with bound cancer drug STI-571 § MAP kinase has unique DFG “out” conformation not previously seen in ser/thr kinases 21

Function Sleuth § Conserved protein of unknown function (VCA 0319) from V. cholerae § apc 29617 § Unique arrangement of common structural motifs § Problematic for secondary structure and fold analysis § Surface analysis identifies DNA binding surface and 5 putative metal binding sites § All 5 metal binding sites showed strong preference for Mg § Putative metalloregulated repressor with Mg-regulated mechanism of DNA binding 22

Function Sleuth 1 bdb NAD 1 hoh MGD 2 qwr ANP 1 jbw ACQ Target APC 7761 (3 fd 3) Agrobacterium tumefaciens str. C 58 23

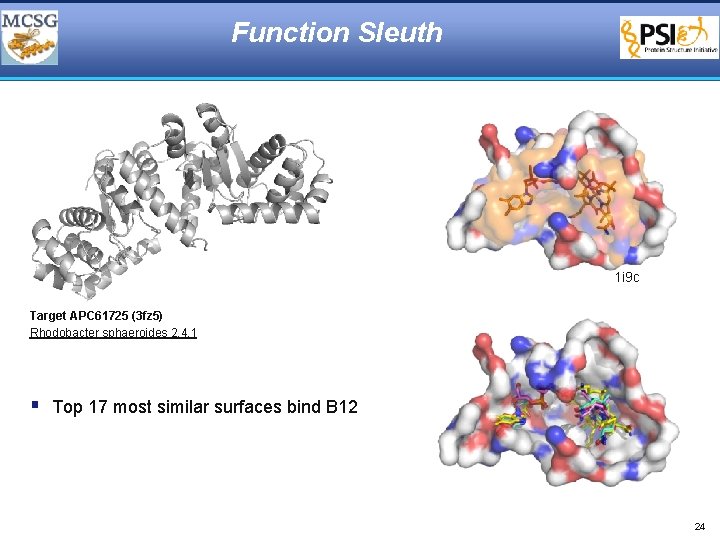

Function Sleuth 1 i 9 c Target APC 61725 (3 fz 5) Rhodobacter sphaeroides 2. 4. 1 § Top 17 most similar surfaces bind B 12 24

Global Protein Surface Survey § Surface. Screen for PSI ‘function sleuth’ targets § Automated analysis of largest 5 surfaces (per chain and unit) § Technical Note: § DOE INCITE on Blue/Gene. P at ANL http: //gpss. mcsg. anl. gov 25

Conclusion § Comparing surfaces of proteins can be a useful tool with many applications § Functional characterization § Assisted electron density assignment § Automated classification § Global Protein Surface Survey § http: //gpss. mcsg. anl. gov 26
