Protection Mechanisms for Optical WDM Networks based on

  • Slides: 34
Download presentation
Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Sunil Gowda, Expedia. com, Seattle, WA Krishna M. Sivalingam, Univ. of Maryland, Baltimore County, MD IEEE INFOCOM 2003 Monday, February 02, 2004 Presented by: Brian V. Jarvis Wright State University: CEG 790 -01 Winter 2004, 2 February 2004 [email protected] rr. com

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques • Introduction • Background • Proposed Mechanisms • Performance Analysis • Conclusions Monday, February 02, 2004 2

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques • Introduction • Background • Proposed Mechanisms • Performance Analysis • Conclusions Monday, February 02, 2004 3

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Introduction • Exponential growth in bandwidth requirements • This paper considers routing algorithm designs for optical WDM networks • Fault-tolerance (survivability) is an important consideration • Survivability is introduced into an optical network • Three different mechanisms to help improve network performance • Conversion Free Primary Routing (CFPR) • Converter Multiplexing Technique (CMT) • Backup Path Relocation Scheme (BPRS) • Results indicate that the proposed algorithms: • Reduced the required number of wavelength converters at each node by 75%. • Reduced the overall blocking probability from 60% to nearly 100%. • Reduced the number of primary paths undergoing conversion. • Reduced overall network blocking probability by up to an order of magnitude. • Provided higher improvements for low to moderate loads. • All with negligible additional overhead. Monday, February 02, 2004 4

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques • Introduction • Background • Proposed Mechanisms • Performance Analysis • Conclusions Monday, February 02, 2004 • Present relevant background material on wavelength division multiplexing (WDM) networks, routing and wavelength assignment (RWA) algorithms, protection techniques, and wavelength router architectures that incorporate conversion. 5

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Background • Routing and Wavelength Assignment (RWA) Problem • A dynamic network model where connection requests arrive randomly. • Determining the end-to-end route and the specific wavelength • Static or dynamic routing scheme approaches • Static routing scheme • Dynamic routing scheme (this technique is used in this paper) Monday, February 02, 2004 6

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Background • Wavelength Router Architecture • Without wavelength conversion, connections are often blocked • With wavelength conversion, the lightpath can use different wavelengths • High cost, lack of availability, signal degradation • Various optical wavelength conversion techniques • Minimize the usage of wavelength conversion • Reduce the number of converters required • Location of wavelength converters • Three architectures for a wavelength convertible switch • Dedicated • Share-per-link • Share-per-node Monday, February 02, 2004 7

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Multiplexers De-Multiplexers Input Links O p t I c a l S w i t c h WC WC Output Links WC WC Dedicated Wavelength Convertible Switch Architecture • A wavelength converter is available at each output port. • The incoming optical signal is de-multiplexed into separate wavelengths. • The output signal may have its wavelength changed. • The various wavelengths are multiplexed. Monday, February 02, 2004 8

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Multiplexers De-Multiplexers Input Links O p t I c a l W C B O S W Output Links S w i t c h Share-per-node Wavelength Convertible Switch Architecture • A wavelength converter bank (WCB) is available at the optical switch. • The incoming optical signal is de-multiplexed into separate wavelengths. • Only the wavelengths that require conversion are directed to the WCB. • Converted wavelengths are switched to the appropriate outbound fiber link. • The various wavelengths are multiplexed. Monday, February 02, 2004 9

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Multiplexers De-Multiplexers Input Links O p t I c a l S w i t c h WCB Output Links WCB Share-per-link Wavelength Convertible Switch Architecture • A wavelength converter bank (WCB) is available at each outgoing fiber link. • The incoming optical signal is de-multiplexed into separate wavelengths. • The optical switch is configured to direct wavelengths toward a particular link. • Only the wavelengths that require conversion are directed to the WCB. • The various wavelengths are multiplexed. Monday, February 02, 2004 10

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Protection in Mesh-Topology WDM Networks • Link Failures • Node Failures Recovery Mechanisms • Protection (proactive) • Backup lightpaths are identified and resources are reserved along the backup lightpaths at the time of establishing the primary lightpath itself. • Faster recovery • 100 percent restoration guarantee • Restoration (reactive) • When an existing lightpath fails, a search is initiated to find a new lightpath which does not use the failed components. (After the failure happens) • Longer restoration time • It can not guarantee successful recovery, Monday, February 02, 2004 11

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Monday, February 02, 2004 12

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

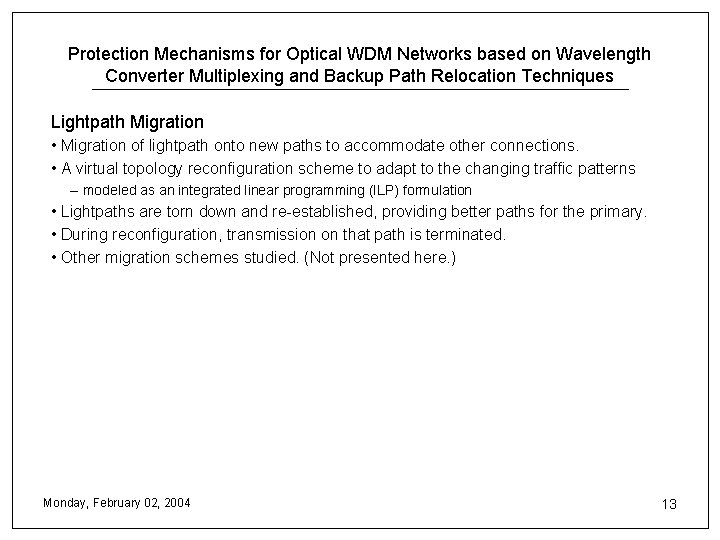

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Lightpath Migration • Migration of lightpath onto new paths to accommodate other connections. • A virtual topology reconfiguration scheme to adapt to the changing traffic patterns – modeled as an integrated linear programming (ILP) formulation • Lightpaths are torn down and re-established, providing better paths for the primary. • During reconfiguration, transmission on that path is terminated. • Other migration schemes studied. (Not presented here. ) Monday, February 02, 2004 13

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques • Introduction • Background • Proposed Mechanisms • Performance Analysis • Conclusions Monday, February 02, 2004 • Presents the network architecture studied and the details of three proposed mechanisms. 14

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Network Architecture • Dynamic routing; shortest path is computed between nodes based on current situation. • Path level protection; with dedicated and shared protection schemes for backup paths. • Wavelength router architecture is based on share-per-node wavelength converter configuration. – Offers the best cost to performance ratio. • Connections are blocked only if free wavelength or wavelength converters are unavailable. The design goals of the proposed mechanisms are to: • Improve performance • Increase cost effectiveness Proposed mechanisms: • Conversion-Free Primary Routing (CFPR) • Converter Multiplexing Technique (CMT) • Backup-Path Relocation (BPR) Monday, February 02, 2004 15

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Conversion Free Primary Routing (CFPR) • The goal is to avoid wavelength conversions while routing primary connections. • Multi-layered graph is used, the layers representing individual wavelength planes. • CFPR algorithm models such a graph. • For each wavelength plane, the nodes are the physical nodes. 4 2 Wavelength 0 1 3 5 2 4 Backup path b 1 Wavelength 1 3 5 2 4 1 Wavelength 2 5 3 Blocked route Unoccupied wavelengths// Wavelengths occupied by Backup paths Monday, February 02, 2004 Wavelengths occupied by Primary paths 16

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Conversion Free Primary Routing (CFPR) • An overlapping segment is defined as the part of the backup path occupying the wavelength assigned to the requested connection. • Relocation schemes may be used to relocate these overlapping segments. • Advantages of CFPR: • Reduces conversion delays and degradation due to converters • Reduces costs • Lower computational complexity • Computes path on each wavelength separately; alternate paths are available if shorted paths are blocked Monday, February 02, 2004 Potential primary path with some component links overlapping existing backup paths 17

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Converter Multiplexing: • Based on backup path multiplexing. • Allows wavelength converters to be shared among multiple backup paths • The converters are reserved during the establishment of the backup paths. • Objective is to: – Reduce the number of connections blocked – Reduce the numbers of converters in use. Monday, February 02, 2004 18

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Converter Multiplexing: • The node returns a CONV-RESV-ACK message if the request is accepted. • The node returns a CONV-RESV-NACK message if the request is not accepted. • A wavelength conversion status table (WCST) is maintained. • When a network fails, a CONV-SETUP message is sent to the node. Monday, February 02, 2004 Converter Multiplexing Between Paths b 1 and b 2 19

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

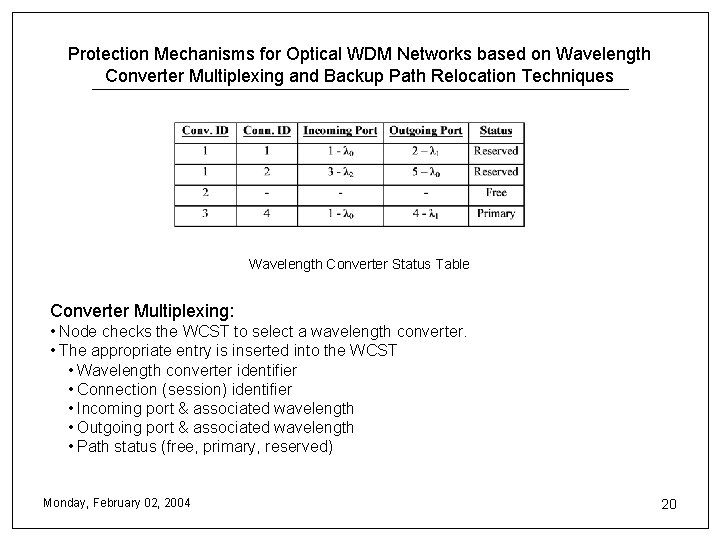

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Wavelength Converter Status Table Converter Multiplexing: • Node checks the WCST to select a wavelength converter. • The appropriate entry is inserted into the WCST • Wavelength converter identifier • Connection (session) identifier • Incoming port & associated wavelength • Outgoing port & associated wavelength • Path status (free, primary, reserved) Monday, February 02, 2004 20

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Backup Path Relocation (BPR) • Used when it becomes necessary for primary paths to accommodate certain routes which are occupied by the backup path. • Objective is to: • Help in providing primary paths with fewer hops. • Reduce blocking. • Improve network utilization. • Two relocation schemes are used to migrate an overlapping backup segment. • Wavelength Relocation (WR). • Segment Relocation (SR). • Backup paths are relocated only if all overlapping segments can be relocated. • If relocation fails, none of the overlapping segments are relocated. Monday, February 02, 2004 21

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques (Network states before relocation) (Network states after relocation) Examples of backup path relocation mechanisms. Monday, February 02, 2004 22

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques • Introduction • Background • Proposed Mechanisms • Performance Analysis • Conclusions Monday, February 02, 2004 • Presents the performance analysis of the proposed techniques, based on a discrete-event simulation model. 23

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Simulation Model • A dynamic network traffic model • Connection requests arrive at a node • Each connection request is assignment a wavelength • Traffic load is defined in Erlangs. • Share-per-node architecture is used; all nodes allocate an equal number of converters. • Both the dedicated and shared protection schemes are studied. Simulations are performed for two networks: • A 24 -node ARPANET-like network with 16 and 32 wavelength on each link. The results for this network is discussed. • Also, a random 50 -node network with 32 wavelength per link. Monday, February 02, 2004 24

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Comparison of mechanisms • Basic hop-count (HC) based shortest path routing algorithm, • CFPR routing algorithm with wavelength relocation, and • CFPR routing algorithm with segment relocation. • The notation X-Y-Z is used to specify an algorithm, where –X {HC, CFPR} denotes the routing algorithm, –Y {NR, WR, SR} denotes no relocation, wavelength relocation and segment relocation respectively, and –Z {DP, SP} denotes dedicated and shared protection, respectively. • The performance metrics presented are the: – – blocking probability (Pb), link and converter utilization, average hop count, and backup path relocation statistics Monday, February 02, 2004 25

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Blocking Probability • Network blocking probability; attempt to minimize this metric • Architectures employing converter multiplexing and backup path relocation schemes perform significantly better than the basic scheme. • CFPR with WR/SR has lower Pb than that of the basic scheme. Monday, February 02, 2004 26

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Reduction in Number of Converters. • Graph demonstrates the reduction in the number of converters required per node. • For an offered load of 3. 0 Erlangs, the basic architecture needs a minimum of 16 converters to offer a blocking probability of less than 10− 1. • The new techniques offer the same performance for as few as 4 converters. • We can also observe that having more than 8 converters, does not lower the blocking probability any further. Monday, February 02, 2004 27

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Reasons for blocked connections • Converter unavailability accounts for: • 2% - 3% for the CFPR-based techniques w/dedicated protection • 20% for the CFPR-based techniques w/shared protection • 99% for the basic scheme w/dedicated protection • 100% for the basic scheme w/shared protection Percentages of Connections Blocked Due to Wavelength Unavailability and Converter Unavailability. Monday, February 02, 2004 28

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Average Hop Count • Graph shows the average hop count of the primary paths for accepted connections. • Basic scheme exhausts all the converters as the network load increases. • In comparison, the converter multiplexing based algorithms have a steady hop count. * hop = the number of links between a pair of nodes. Monday, February 02, 2004 29

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Revenue Metric • Metric based on the number of hops routed. • Defined as the shortest–hop count based on the static topology. • For the basic scheme the revenue drops when load increases • The proposed algorithms, show only a marginal drop in revenue. Monday, February 02, 2004 30

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Conversion Statistics • One objective was to provide wavelength-conversion free paths for the primary paths. • Around 30% of the basic routing scheme connections need at least one wavelength converter. • The proposed algorithm eliminates the need for wavelength conversion. Monday, February 02, 2004 31

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Relocation Statistics • Performance of systems with and without backup path relocation schemes. • When relocation was deployed, the blocking probability was lower. • More significant benefits were seen in the context of wavelength conversion. • Results indicate that the backup relocation overhead is manageable, and only a reasonable number of relocations are necessary. Monday, February 02, 2004 32

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques • Introduction • Background • Proposed Mechanisms • Performance Analysis • Conclusions Monday, February 02, 2004 • Wraps up and concludes the paper. 33

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path

Protection Mechanisms for Optical WDM Networks based on Wavelength Converter Multiplexing and Backup Path Relocation Techniques Conclusion • Three different mechanisms were proposed analyzed. – The proposed converter multiplexing scheme reduces the number of connections blocked. – The CFPR routing algorithm significantly reduced the number of primary connections undergoing wavelength conversion. • Two different backup path relocation mechanisms were presented – Analysis showed that the combination of the mechanisms results in substantial reduction in blocking probability. – Also, lower number of converters were required per node to achieve a target blocking probability. • The additional overhead of using segment relocation compared to the wavelength relocation scheme did not result in much improvement. Monday, February 02, 2004 34
