Protection Mechanisms ASHRAY PATEL Roadmap Access Control Four

Protection Mechanisms ASHRAY PATEL

Roadmap �Access Control �Four access control processes �Managing access control �Firewalls �Scanning and Analysis tools �Cryptography and Encryption

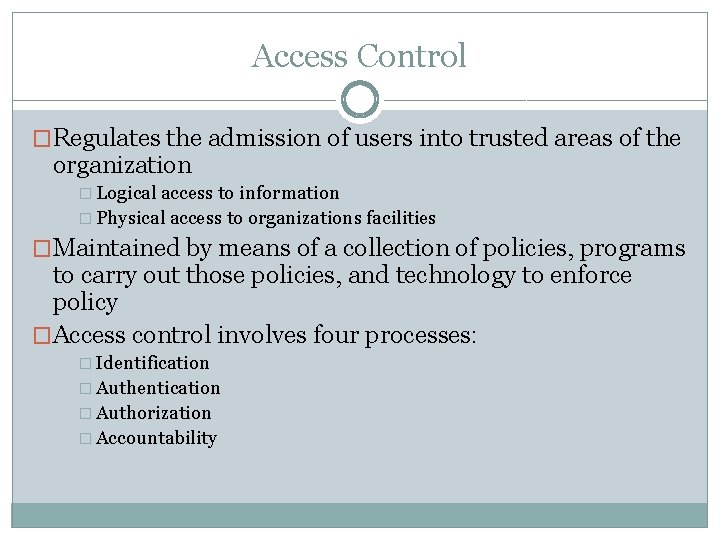

Access Control �Regulates the admission of users into trusted areas of the organization � Logical access to information � Physical access to organizations facilities �Maintained by means of a collection of policies, programs to carry out those policies, and technology to enforce policy �Access control involves four processes: � Identification � Authentication � Authorization � Accountability

Identification �A mechanism that provides information about an unverified entity that wants to be granted access �ID must be a unique value that can be traced to one and only one person within the security domain �Elements that make ID’s unique within security domain � First and last name � Picture � Department codes � Random numbers � Or special characters

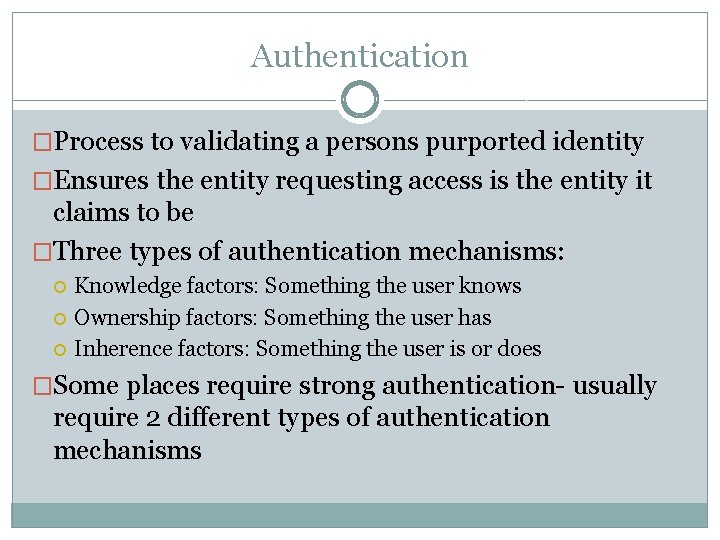

Authentication �Process to validating a persons purported identity �Ensures the entity requesting access is the entity it claims to be �Three types of authentication mechanisms: Knowledge factors: Something the user knows Ownership factors: Something the user has Inherence factors: Something the user is or does �Some places require strong authentication- usually require 2 different types of authentication mechanisms

Knowledge Factor Methods �Username/Password is the most common in work places and schools �Pass Phrase �Personal identification number �Challenge response �Weakness: is that any of these can often be stolen, accidentally revealed, or forgotten by the user

Ownership Method Factors �Photo Id �Key Cards- swipe or scan to get authentication �Wrist Bands �Security Token �Cell phone hardware token �Cell Phone software token hardware/software tokens acts like an electronic key to access something.

Inherence Method Factors �Fingerprints �Retina scans �Iris scans �Signatures �Face/voice recognition �Hand patterns �Palm vein authentication

Authorization �Process that determines if a user has been specifically and explicitly authorized by the proper authority to perform a function �Authorization can be handled in 3 ways: � Authorization for each authenticated user : in which the system performs an authentication process to verify each entity and then grants access to resources to only that entity � Authorization for members in a group: in which the system matches authenticated entities to a list of group memberships and then grants access to resources bases on group’s access rights � Authorization across multiple systems: in which a central authentication and authorization system verifies entity ID’s and grants a set of credentials to the verifies entity

Accountability �Ensures that all actions on a system can be attributed to an authenticated identity �Actions could be ones that the entity is authorized for: such as modifying data, �Or could include unauthorized attempts: such as modifying data that is beyond access level �Accountability is accomplished by implementing system logs and database journals

Managing Access Control �Access control policy: which specifies how access rights are granted to entities and groups �Policy must include: Reviewing all access rights periodically Granting access rights Changing access rights when needed Revoking access rights

Firewalls �A network security system that controls the incoming and outgoing network traffic �Can filter based on: IP address, type of packet, port request, and other elements presented in packet �Examines for packets for compliance with or violation of rules configured into firewalls database

Managing Firewalls �Training Read manuals and get educated on the firewall �Uniqueness Each brand of firewall is different, so you must learn what differences the firewalls you are using have �Responsibility Each and every person in security has a responsibility to keep the firewall updated and safe from hackers �Administration Must have administration hired to help with the firewalls

Scanning and Analysis Tools �Used to find vulnerabilities is systems, holes in security components, and other unsecured points �Different types of scanners and tools: Port Scanners Vulnerability Scanners Packet Sniffers Content Filters Trap and trace

Port Scanners �Are a group of utility software applications that can identify computers that are active on a network, as well as the active ports and services on those computers �The functions and roles fulfilled by the machines �Can scan for specific computers, protocols, resources, or conduct generic scans �The more specific the scanner is, the more detailed and useful the information is provided

Vulnerability Scanners �Variants of port scanners, are capable of scanning networks for very detailed information �It can identify exposed user names and groups, show open network shares, and expose configuration problems �Can also show what firewalls and OS/version is running

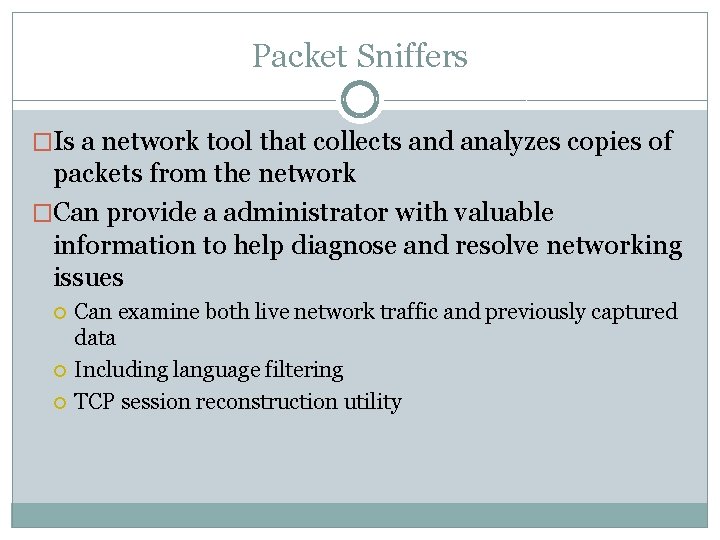

Packet Sniffers �Is a network tool that collects and analyzes copies of packets from the network �Can provide a administrator with valuable information to help diagnose and resolve networking issues Can examine both live network traffic and previously captured data Including language filtering TCP session reconstruction utility

Content Filters �Is a software program that allows administrators to restrict content that comes into a network �Such as: web sites with nonbusiness related material Pornography websites Entertainment websites �Can also keep spam e-mails away

Trap and Trace �Application that entice individuals who are illegally perusing the internal areas of a network by providing simulated rich content areas but distract the attacker while the software notifies the administrator of the intrusion �Then the administrator determine the identity of someone discovered in the unauthorized areas of the network or systems

Cryptography and Encryption �Is the set of processes involved in encoding and decoding messages so that others cannot understand them �Encryption: is the process of converting an original message into a form that cannot be used by unauthorized individuals �Messages are decoded by algorithms and keys used to perform the encryption

References �Management of Information Security- Whitman and Mattord �http: //en. wikipedia. org/wiki/Authentication �http: //searchsecurity. techtarget. com/feature/Protec tion-Mechanisms
