Protecting Web 2 0 Services from Botnet Exploitations

Protecting Web 2. 0 Services from Botnet Exploitations Cybercrime and Trustworthy Computing Workshop (CTC), 2010 Second Nguyen H Vo, Josef Pieprzyk Department of Computing, Macquarie University, Australia Reporter: 游明軒

Outline Introduction API Verifier Security analysis Conclusion & discussion

Introduction Web 2. 0 Blog, RSS, Social networking sites, etc. Web based bots Use web 2. 0 service as a C&C channel Instead of traditional bots sitting on IRC channel, the connections between web based bots are not permanent The authors implement a tool, API Verifier, to detect web based bots

Web based botnet

Botnet detection methods Analysis of network traffic flows Network traceback Honeypots These techniques do not cover web based botnet because the bot activities are indistinguishable and legitimate users and websites

API Verifier Motivation Because a web based bot must use Web 2. 0 service APIs, API Verifier is implemented to verify whether a user is a person or a bot Approach Completely Automated Public Turing test to tell Computers and Humans Apart (CAPTCHA) MAC address as identifier

API Verifier - architecture Components API Verifier Client API Verifier Server

API Verifier - functionality Authentication User profile Session key Encrypt MAC address Be generated independently each time when an API call is made Permanent MAC address CAPTCHA verification

API Verifier – work flow

Security analysis Spoofing MAC address API Verifier Client fraud DDo. S attack By-passing CAPTCHA verification

Spoofing MAC address Change MAC address (1 a) Hijacking OS kernel and modifying the OS communication with NIC is expensive Cause the high risk of being detection Change the encrypted MAC address (1 b) session key is generated each API call and is a combination of the secret key and a time token

API Verifier Client fraud It is hard to recover the secret key of the API Verifier Client AES 128 -bit it is hard to disassemble the API Verifier Client Obfuscation technique

DDo. S attack Set limit on the number of verification attempts Finite times to solve CAPTCHA A time interval for next MAC address verification

By-passing CAPTCHA verification Analyze the picture and extract characters on the image send the image to attacker to solve it

System short coming API Verifier cannot get permanent MAC address on virtual machine

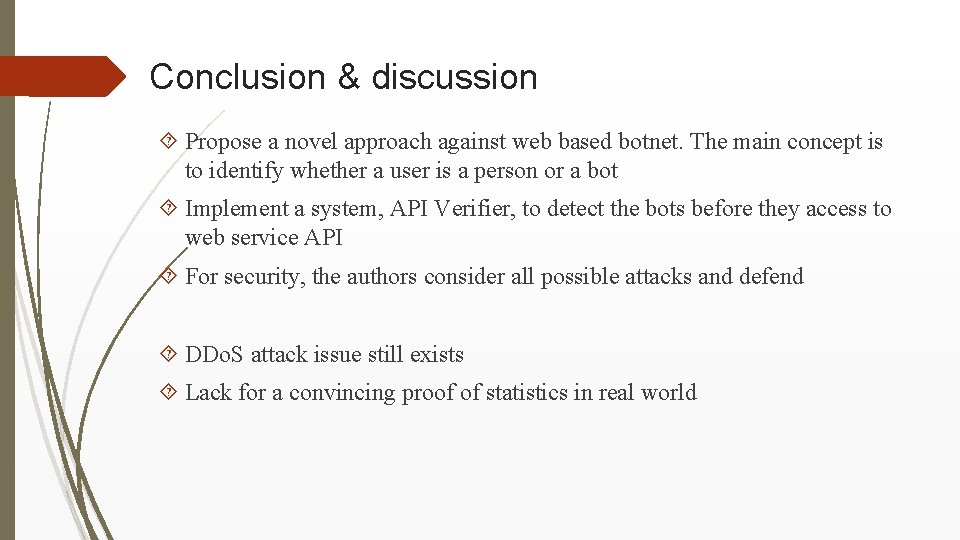

Conclusion & discussion Propose a novel approach against web based botnet. The main concept is to identify whether a user is a person or a bot Implement a system, API Verifier, to detect the bots before they access to web service API For security, the authors consider all possible attacks and defend DDo. S attack issue still exists Lack for a convincing proof of statistics in real world

Thanks
