Prosthetic planning Planning with the Cross Fit TM
- Slides: 8
Prosthetic planning Planning with the Cross. Fit. TM PLAN Set
Straumann Cross. Fit. TM PLAN Set STRAUMANN Education 2

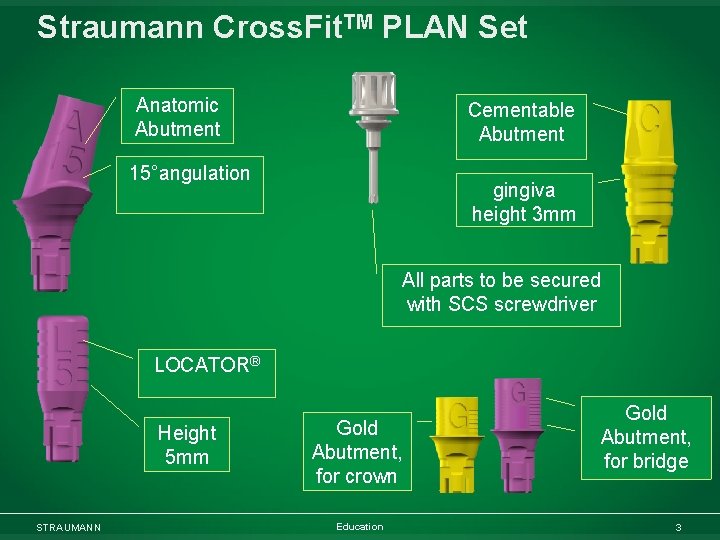

Straumann Cross. Fit. TM PLAN Set Anatomic Abutment Cementable Abutment 15°angulation gingiva height 3 mm All parts to be secured with SCS screwdriver LOCATOR® Height 5 mm STRAUMANN Gold Abutment, for crown Education Gold Abutment, for bridge 3

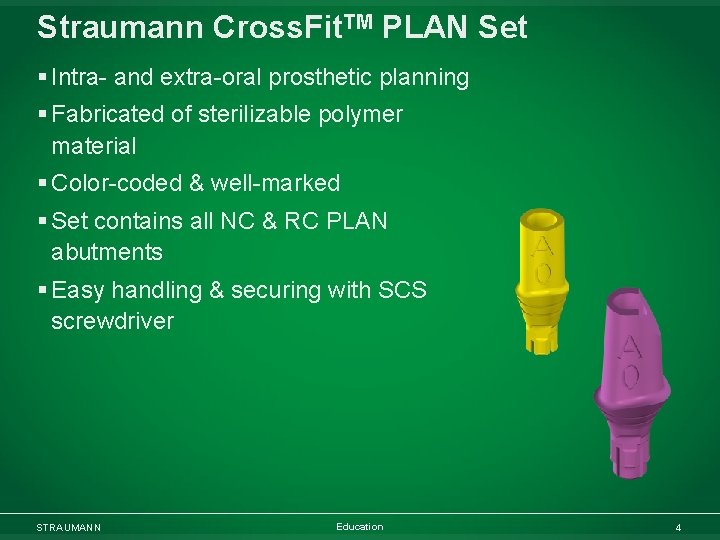

Straumann Cross. Fit. TM PLAN Set § Intra- and extra-oral prosthetic planning § Fabricated of sterilizable polymer material § Color-coded & well-marked § Set contains all NC & RC PLAN abutments § Easy handling & securing with SCS screwdriver STRAUMANN Education 4

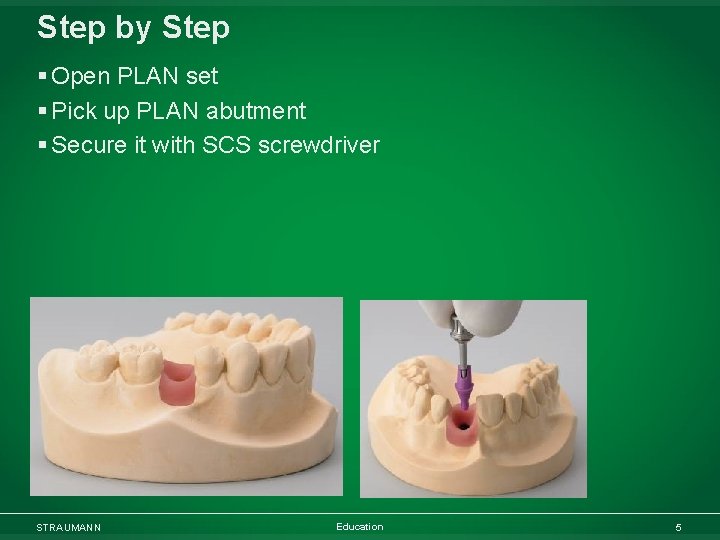

Step by Step § Open PLAN set § Pick up PLAN abutment § Secure it with SCS screwdriver STRAUMANN Education 5
Step by Step § Place PLAN abutment on implant (intra-oral use) or analog (extra-oral use) § Check dimensions: § gingiva height § axial alignment § screw axis § Proper seating of PLAN abutments verified through clearcut response from prosthetic connection STRAUMANN Education 6
Step by Step § Order corresponding stock abutment of the best-fitting PLAN abutment § Use allocation chart on the PLAN set inlay card STRAUMANN Education 7

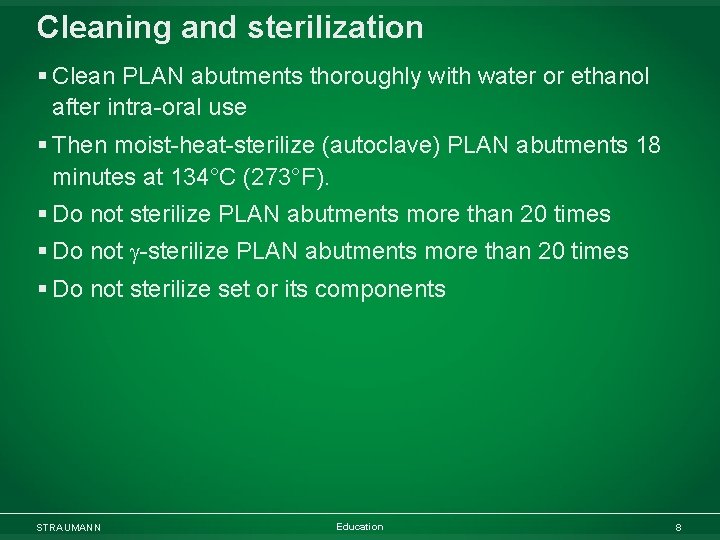

Cleaning and sterilization § Clean PLAN abutments thoroughly with water or ethanol after intra-oral use § Then moist-heat-sterilize (autoclave) PLAN abutments 18 minutes at 134°C (273°F). § Do not sterilize PLAN abutments more than 20 times § Do not g-sterilize PLAN abutments more than 20 times § Do not sterilize set or its components STRAUMANN Education 8
