Proses Manufaktur Machining operation and machine tools Machining
- Slides: 34
Proses Manufaktur Machining operation and machine tools
Machining operation and machine tools • Machining (prsoses permesinan) merupakan proses manufaktur paling serbaguna dan akurat dalam kemampuannya untuk memproduksi beragam bentuk part. • Casting (pengecoran) juga dapat memproduksi beragam bentuk, tetapi kurang dalam presisi dan akurasi.
Proses permesinan • Setiap proses permesinan menghasilkan karakteristik geometris dikarenakan 2 faktor: • Pergerakan relatif antara tool dan juga benda kerja • Bentuk dari cutting tool • Klasifikasi operasi dari bentuk benda yang dibuat • Generating: geometri dari benda kerja dipengaruhi oleh lintasan feed dari cutting tool (pahat) • Forming: bentuk dari benda kerja dibuat dari bentuk geometri cutting tool (pahat)
Generating
Forming
Kombinasi
Turning and lathe basics • Turning is a machining process in which a single-point tool removes material from the surface of a rotating workpiece N = rotational speed, rev/min v = cutting speed, m/min D 0 = original diameter, mm Df = final diameter, mm d = depth of cut f = feed, mm/rev fr = feed rate, mm/min Tm = time of actual machining, min L = length, mm MRR = material removal rate mm 3/min
Operation related to turning
Lathe (Mesin bubut)

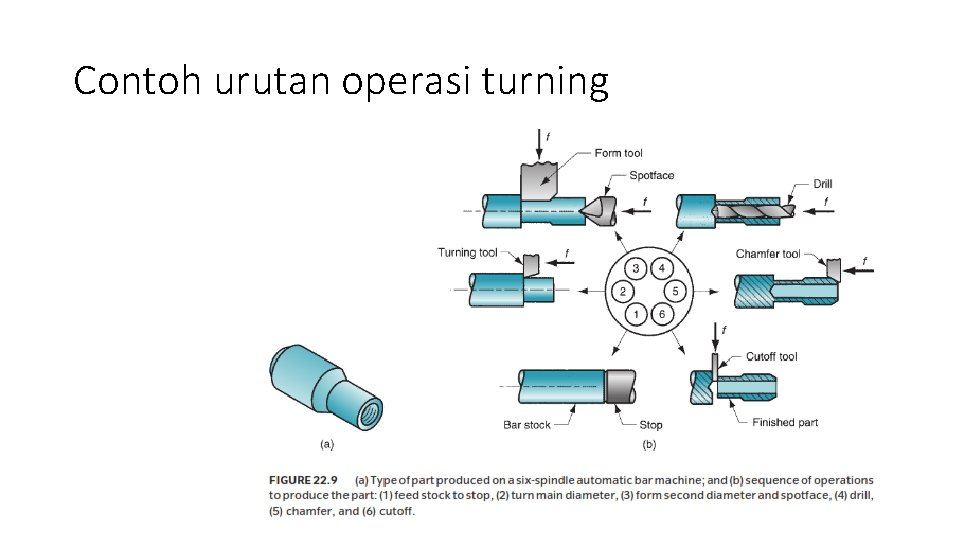

Contoh urutan operasi turning
Mesin bor • Boring is similar to turning. It uses a single-point tool against a rotating workpart. • The difference is that boring is performed on the inside diameter of an existing hole rather than the outside diameter of an existing cylinder.
Drilling and related operation • Drilling, is a machining operation used to create a round hole in a workpart. • This contrasts with boring, which can only be used to enlarge an existing hole. N = spindle speed, rev/min v = cutting speed, mm/min D = drill diameter, mm f = feed, mm/rev Fr = feed rate, mm/min Tm = machining time, min T = work thickness, mm A = approach allowance MRR = material rate of return
Operation related to drilling
Mesin drilling Upright Drill press & radial drill press
Milling • Milling is a machining operation in which a workpart is fed past a rotating cylindrical tool with multiple cutting edges
Peripheral milling • In peripheral milling, also called plain milling, the axis of the tool is parallel to the surface being machined, • The operation is performed by cutting edges on the outside periphery of the cutter.
Face milling • In face milling, the axis of the cutter is perpendicular to the surface being milled, • machining is performed by cutting edges on both the end and outside periphery of the cutter
Parameter permesinan milling (peripheral) • Nt = number of teeth
Parameter permesinan milling (face milling)
Mesin milling
Mesin milling
Machining centers A machining center is a highly automated machine tool capable of performing multiple machining operations under computer numerical control in one setup with minimal human attention, having features: • Multiple operations in one setup • Automatic tool-changing • Pallet shuttles • Automatic workpart positioning
Contoh operasi pada mill-turn centers
Other machining operation • Shaping and planing • Broaching • Sawing
Shaping and planning Shaping and planing are similar operations, both involving the use of a single-point cutting tool moved linearly relative to the workpart.
Mesin planer dan shaper
Bentuk-bentuk shaping dan planing
Broaching is performed using a multiple-teeth cutting tool by moving the tool linearly relative to the work in the direction of the tool axis
Sawing
High speed machining
Tugas 1. Pilih sebuah komponen nyata yang memiliki proses turning. • • Sketsa kondisi material awal dan setiap tahap proses pemotongan hingga bentuk akhir produk. Tentukan parameter pemesinannya; jika v=2. 5 m/s, f=0. 3 mm/rev. 2. Pilih sebuah komponen nyata lainnya yang memiliki proses milling • • • Sketsa kondisi material awal dan setiap tahap proses pemotongan hingga bentuk akhir produk. Tentukan diameter pahat yang cocok untuk setiap proses pemesinan komponen tersebut Tentukan parameter pemesinannya Dikumpulkan minggu depan
