Propositional Calculus Boolean Algebra and Simplification CS 270

Propositional Calculus: Boolean Algebra and Simplification CS 270: Mathematical Foundations of Computer Science Jeremy Johnson

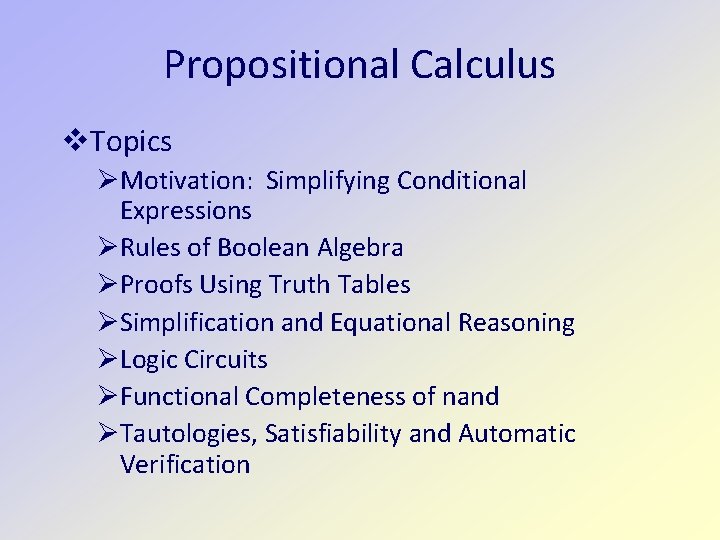

Propositional Calculus Topics Motivation: Simplifying Conditional Expressions Rules of Boolean Algebra Proofs Using Truth Tables Simplification and Equational Reasoning Logic Circuits Functional Completeness of nand Tautologies, Satisfiability and Automatic Verification

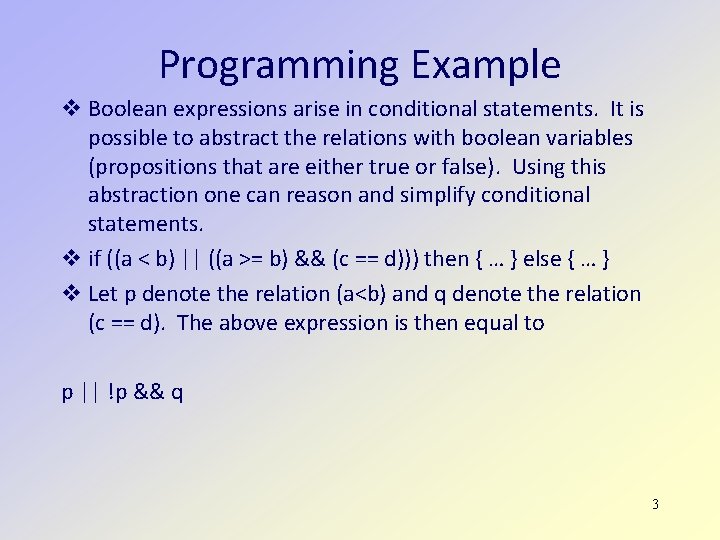

Programming Example Boolean expressions arise in conditional statements. It is possible to abstract the relations with boolean variables (propositions that are either true or false). Using this abstraction one can reason and simplify conditional statements. if ((a < b) || ((a >= b) && (c == d))) then { … } else { … } Let p denote the relation (a<b) and q denote the relation (c == d). The above expression is then equal to p || !p && q 3

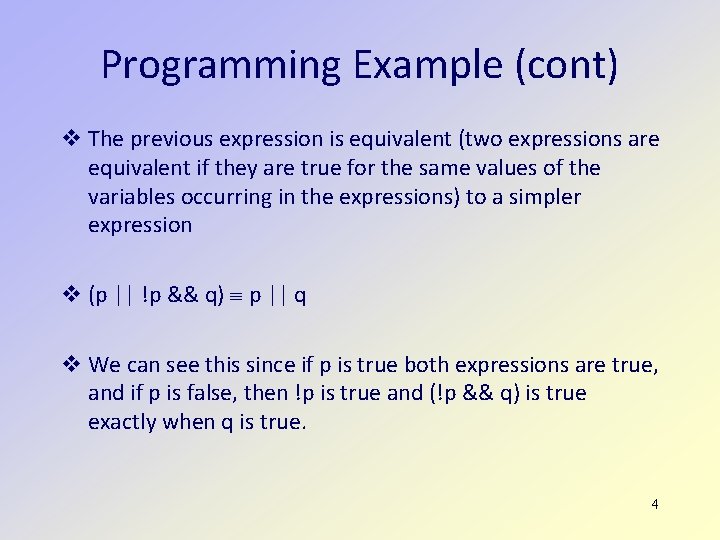

Programming Example (cont) The previous expression is equivalent (two expressions are equivalent if they are true for the same values of the variables occurring in the expressions) to a simpler expression (p || !p && q) p || q We can see this since if p is true both expressions are true, and if p is false, then !p is true and (!p && q) is true exactly when q is true. 4

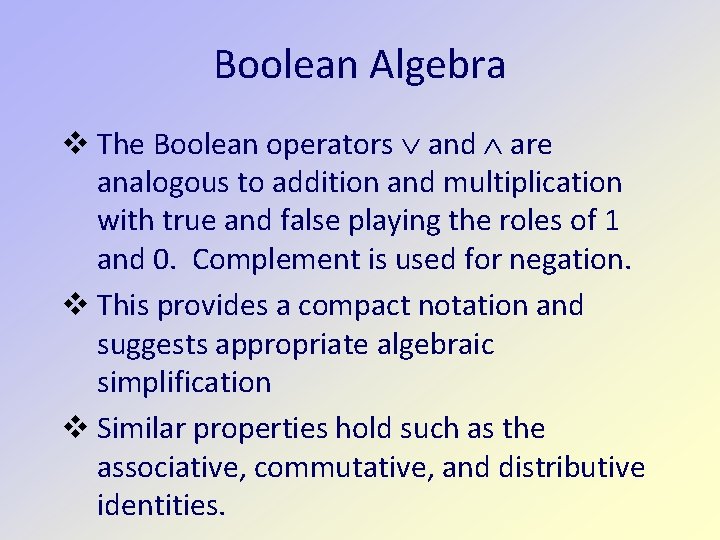

Boolean Algebra The Boolean operators and are analogous to addition and multiplication with true and false playing the roles of 1 and 0. Complement is used for negation. This provides a compact notation and suggests appropriate algebraic simplification Similar properties hold such as the associative, commutative, and distributive identities.

Disjunctive Normal Form A Boolean expression is a Boolean function Any Boolean function can be written as a Boolean expression Write a Boolean expression that evaluates to true for each row in the truth table that is true and false for other rows. The Boolean expression for a given row is the conjunction of the variables that are true and the negation of variables that are false. Take the disjunction of all such rows. E. G. (multiplexor function) ( s x 0 x 1 ) (s x 0 x 1 ) s x 0 x 1 f 0 0 0 1 0 1 1 0 0 0 1 1 1 1 0 0 1 1 6

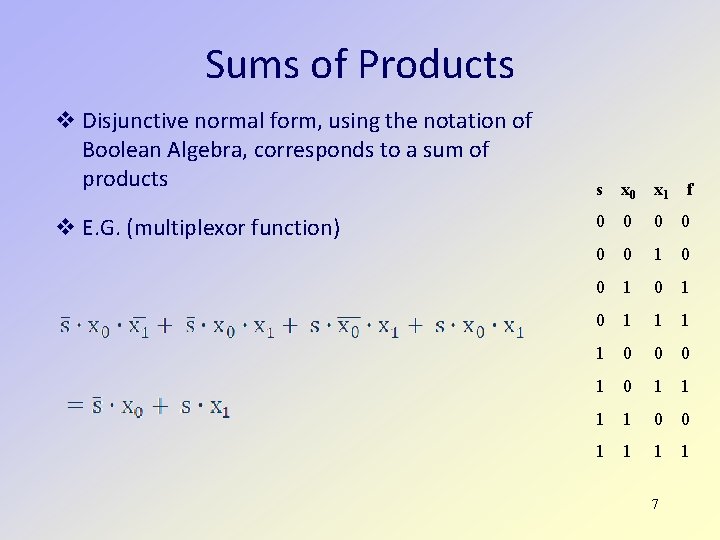

Sums of Products Disjunctive normal form, using the notation of Boolean Algebra, corresponds to a sum of products E. G. (multiplexor function) s x 0 x 1 f 0 0 0 1 0 1 1 0 0 0 1 1 1 1 0 0 1 1 7

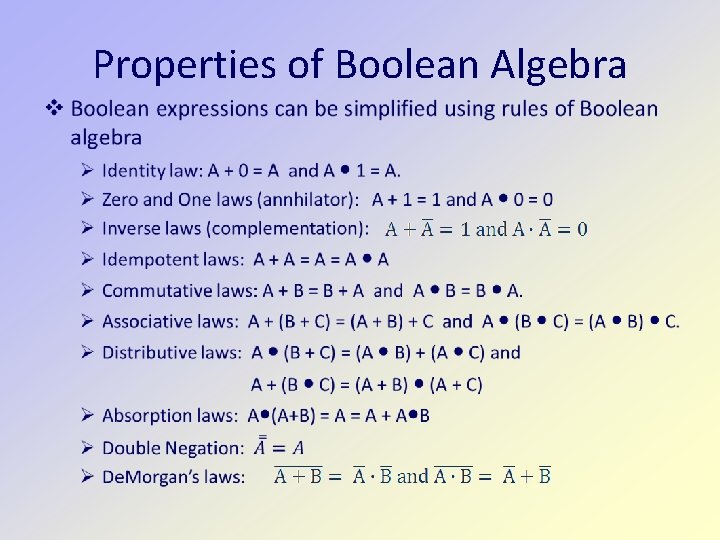

Properties of Boolean Algebra

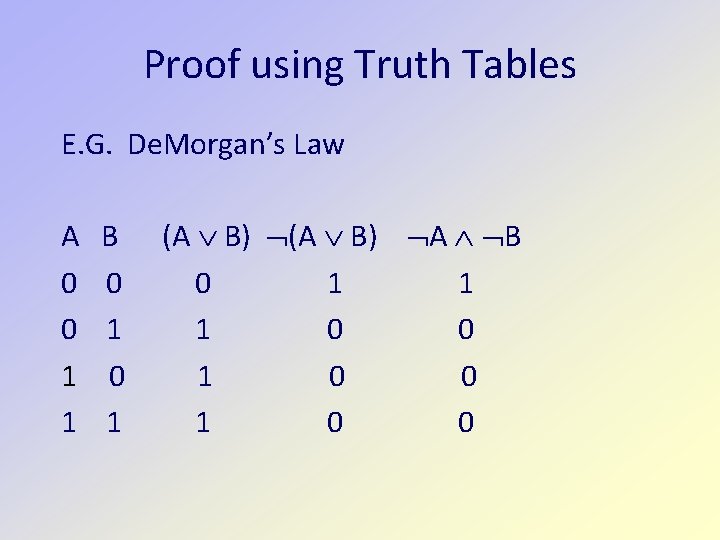

Proof using Truth Tables E. G. De. Morgan’s Law A 0 0 1 1 B 0 1 (A B) A B 0 1 1 1 0 0

Completeness Any identity from Boolean Algebra can be proved using the properties listed A sufficient subset Associativity, commutativity, absorption, one of the distributive laws and the two complement laws

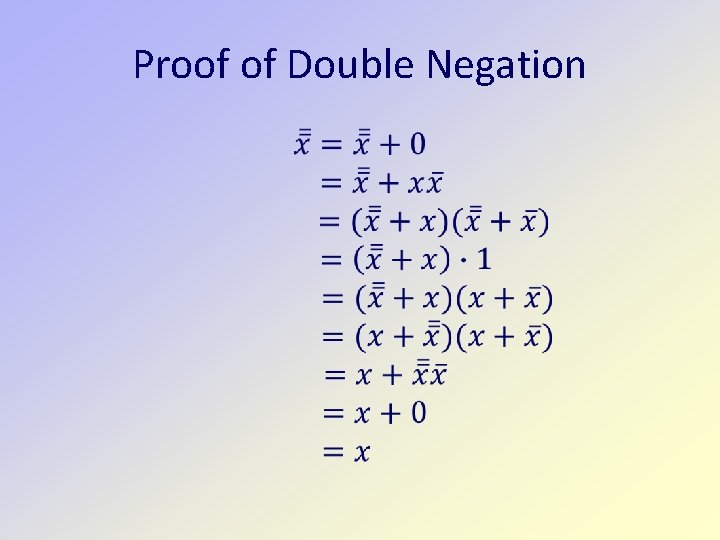

Proof of Double Negation

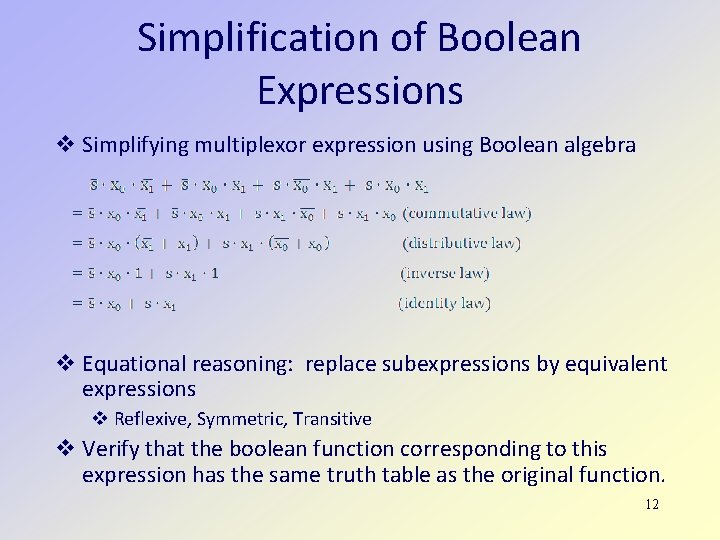

Simplification of Boolean Expressions Simplifying multiplexor expression using Boolean algebra Equational reasoning: replace subexpressions by equivalent expressions Reflexive, Symmetric, Transitive Verify that the boolean function corresponding to this expression has the same truth table as the original function. 12

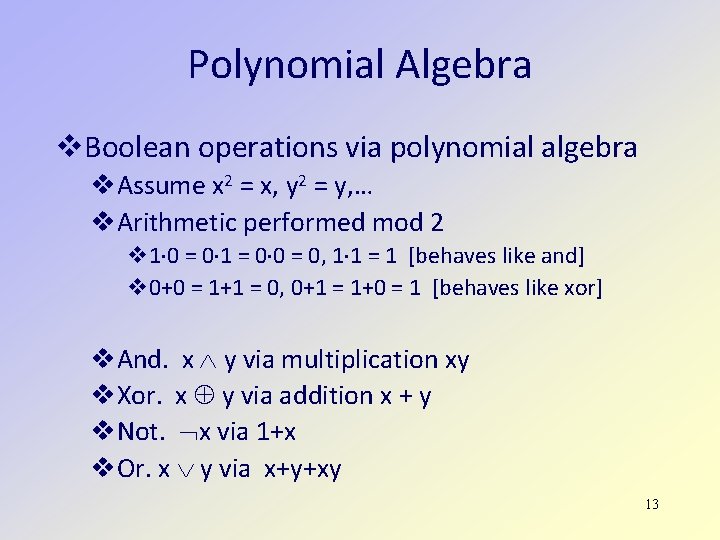

Polynomial Algebra Boolean operations via polynomial algebra Assume x 2 = x, y 2 = y, … Arithmetic performed mod 2 1 0 = 0 1 = 0 0 = 0, 1 1 = 1 [behaves like and] 0+0 = 1+1 = 0, 0+1 = 1+0 = 1 [behaves like xor] And. x y via multiplication xy Xor. x y via addition x + y Not. x via 1+x Or. x y via x+y+xy 13

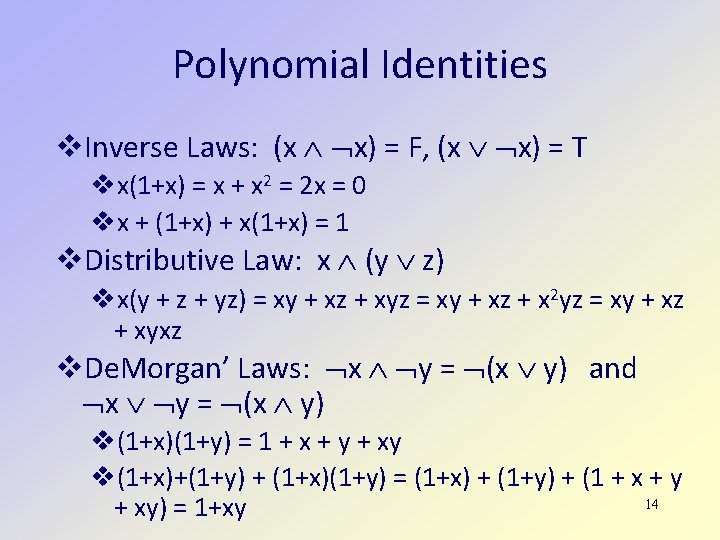

Polynomial Identities Inverse Laws: (x x) = F, (x x) = T x(1+x) = x + x 2 = 2 x = 0 x + (1+x) + x(1+x) = 1 Distributive Law: x (y z) x(y + z + yz) = xy + xz + xyz = xy + xz + x 2 yz = xy + xz + xyxz De. Morgan’ Laws: x y = (x y) and x y = (x y) (1+x)(1+y) = 1 + x + y + xy (1+x)+(1+y) + (1+x)(1+y) = (1+x) + (1+y) + (1 + x + y 14 + xy) = 1+xy

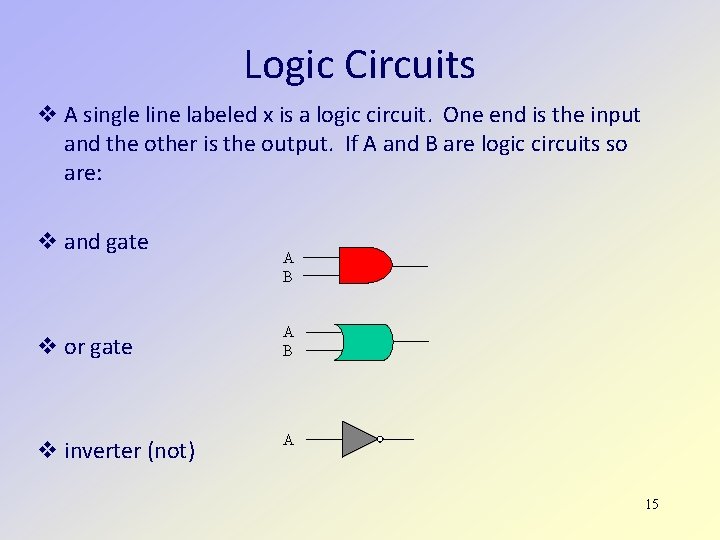

Logic Circuits A single line labeled x is a logic circuit. One end is the input and the other is the output. If A and B are logic circuits so are: and gate or gate inverter (not) A B A 15

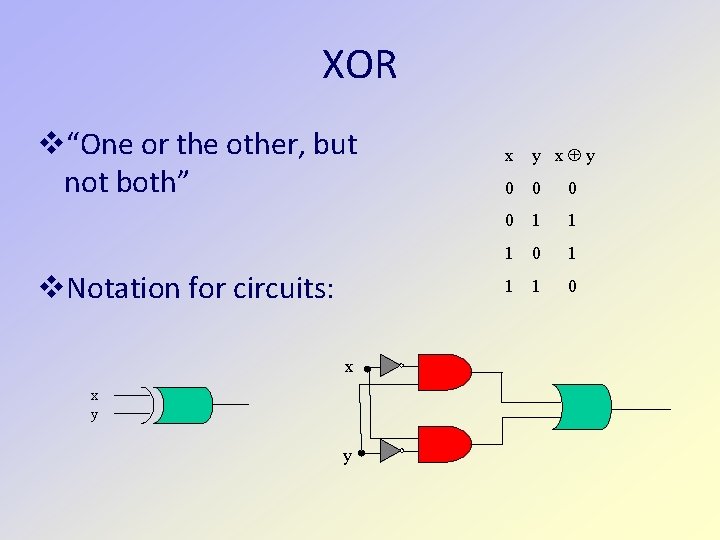

XOR “One or the other, but not both” Notation for circuits: x x y y x y 0 0 1 1 1 0

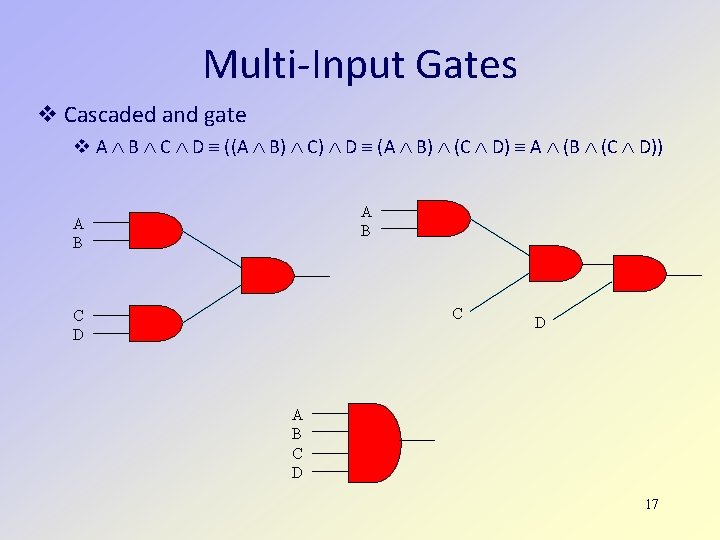

Multi-Input Gates Cascaded and gate A B C D ((A B) C) D (A B) (C D) A (B (C D)) A B C C D D A B C D 17

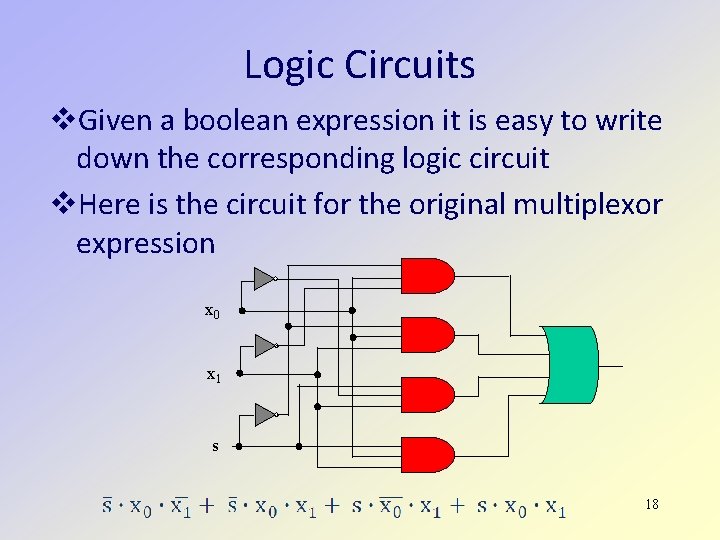

Logic Circuits Given a boolean expression it is easy to write down the corresponding logic circuit Here is the circuit for the original multiplexor expression x 0 x 1 s 18

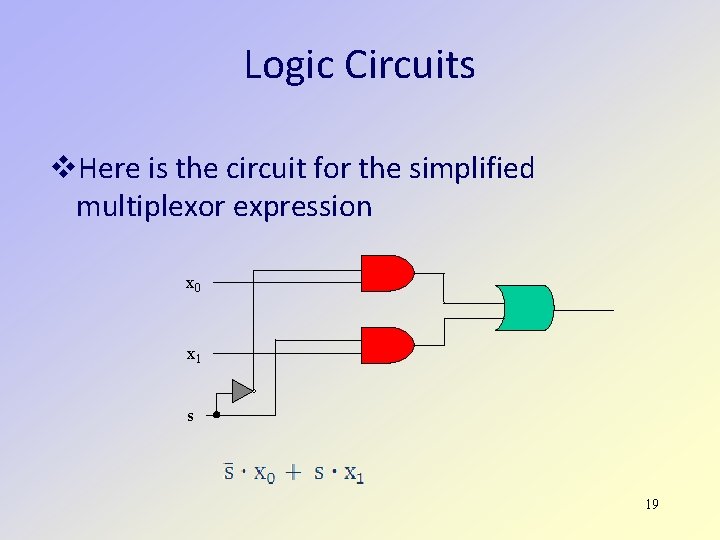

Logic Circuits Here is the circuit for the simplified multiplexor expression x 0 x 1 s 19

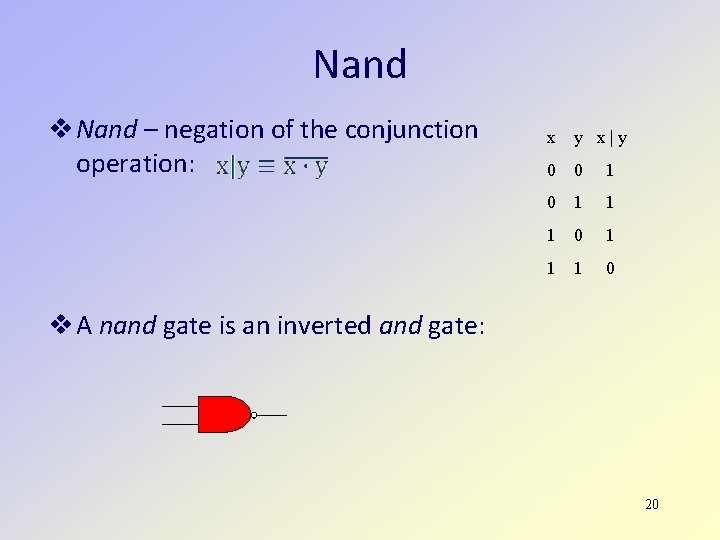

Nand – negation of the conjunction operation: x y x|y 0 0 1 1 1 0 A nand gate is an inverted and gate: 20

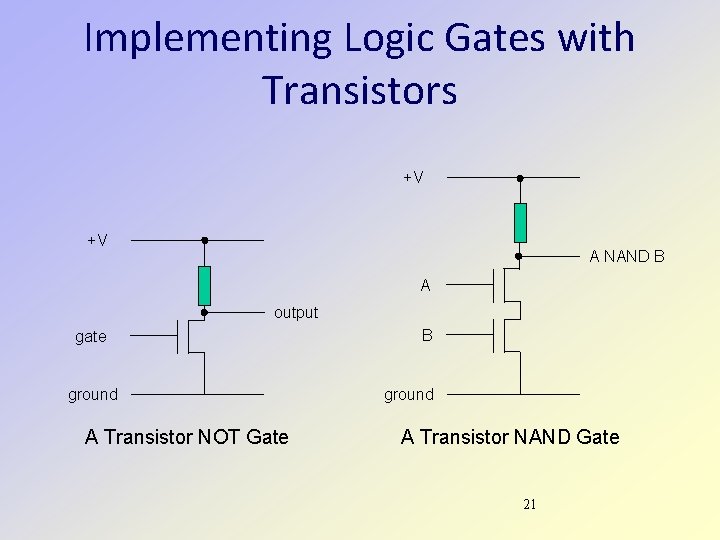

Implementing Logic Gates with Transistors +V +V A NAND B A output gate ground A Transistor NOT Gate B ground A Transistor NAND Gate 21

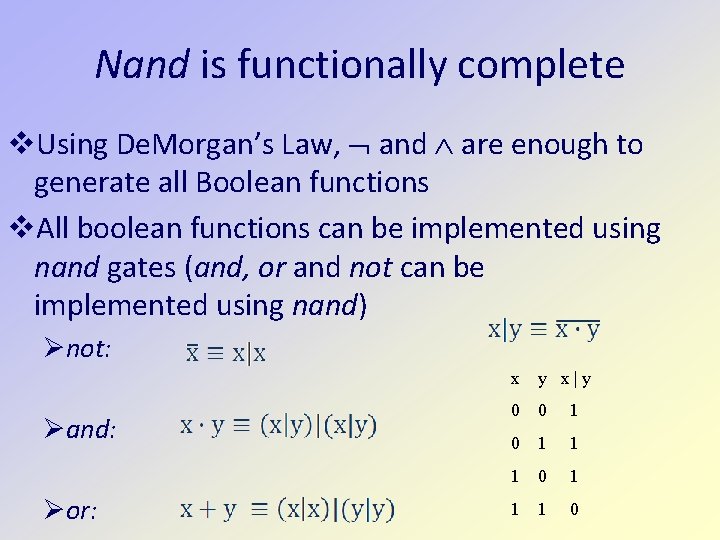

Nand is functionally complete Using De. Morgan’s Law, and are enough to generate all Boolean functions All boolean functions can be implemented using nand gates (and, or and not can be implemented using nand) not: and: or: x y x|y 0 0 1 1 1 0

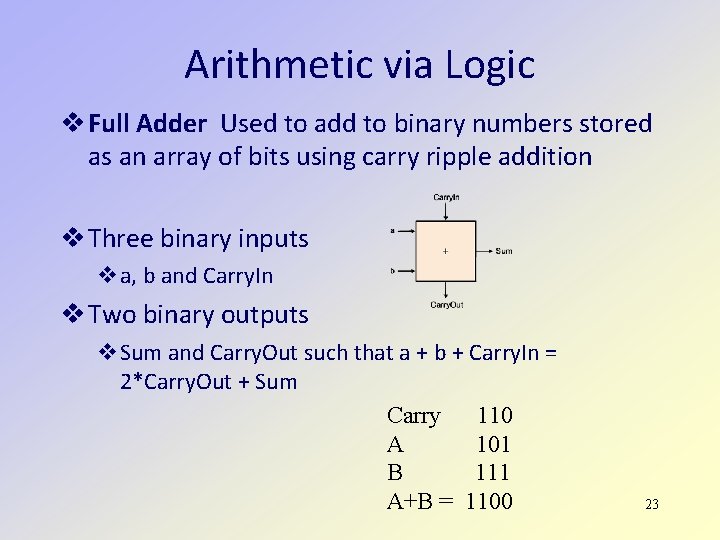

Arithmetic via Logic Full Adder Used to add to binary numbers stored as an array of bits using carry ripple addition Three binary inputs a, b and Carry. In Two binary outputs Sum and Carry. Out such that a + b + Carry. In = 2*Carry. Out + Sum Carry 110 A 101 B 111 A+B = 1100 23

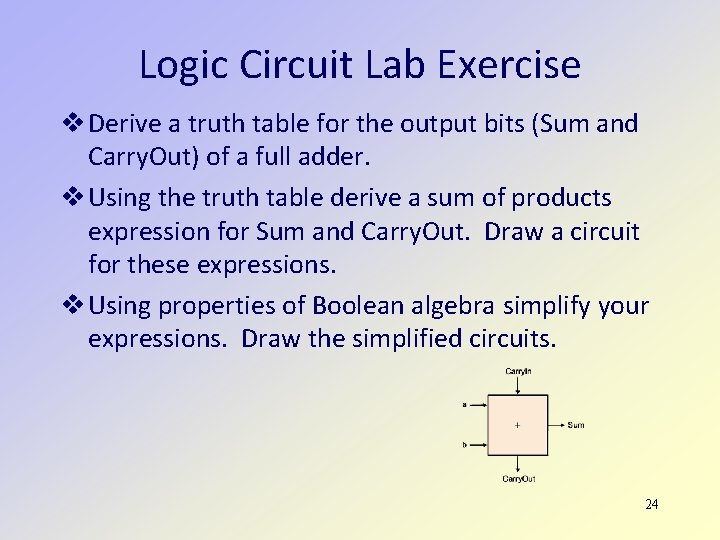

Logic Circuit Lab Exercise Derive a truth table for the output bits (Sum and Carry. Out) of a full adder. Using the truth table derive a sum of products expression for Sum and Carry. Out. Draw a circuit for these expressions. Using properties of Boolean algebra simplify your expressions. Draw the simplified circuits. 24

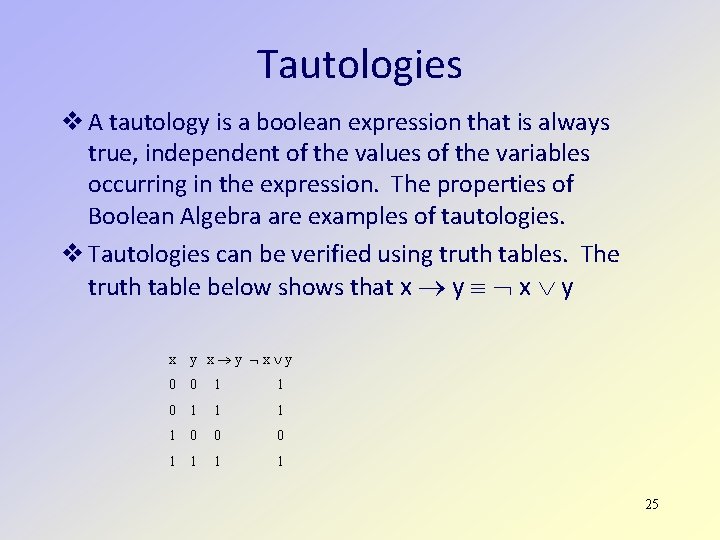

Tautologies A tautology is a boolean expression that is always true, independent of the values of the variables occurring in the expression. The properties of Boolean Algebra are examples of tautologies. Tautologies can be verified using truth tables. The truth table below shows that x y x y x y 0 0 1 1 1 1 0 0 0 1 1 25

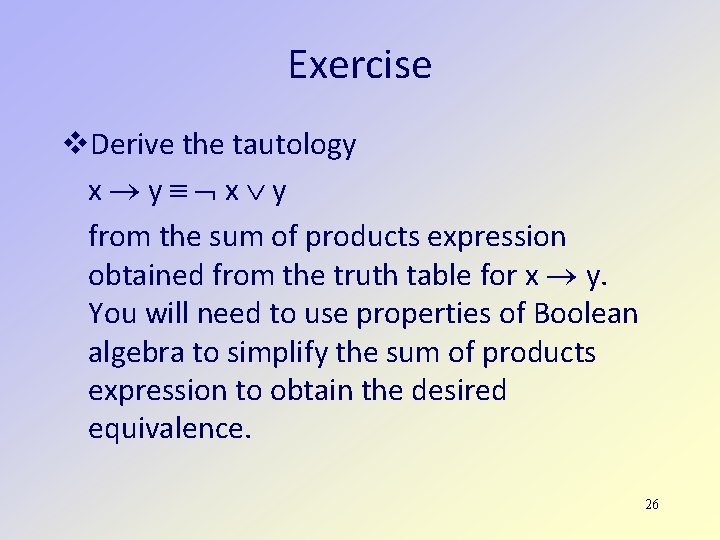

Exercise Derive the tautology x y from the sum of products expression obtained from the truth table for x y. You will need to use properties of Boolean algebra to simplify the sum of products expression to obtain the desired equivalence. 26

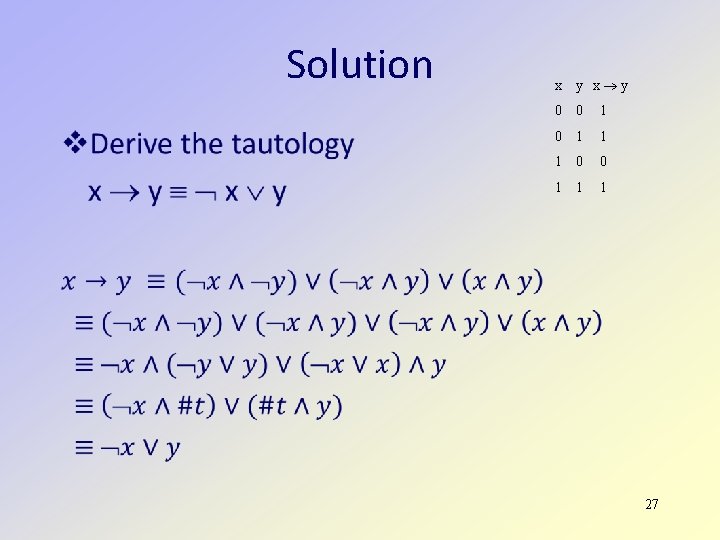

Solution x y 0 0 1 1 1 27

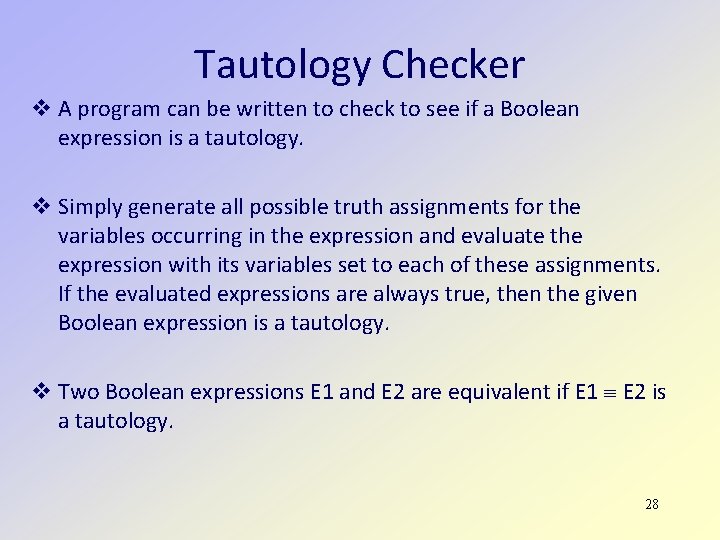

Tautology Checker A program can be written to check to see if a Boolean expression is a tautology. Simply generate all possible truth assignments for the variables occurring in the expression and evaluate the expression with its variables set to each of these assignments. If the evaluated expressions are always true, then the given Boolean expression is a tautology. Two Boolean expressions E 1 and E 2 are equivalent if E 1 E 2 is a tautology. 28

Proof using Truth Tables E. G. De. Morgan’s Law A 0 0 1 1 B 0 1 (A B) A B 0 1 1 1 0 0

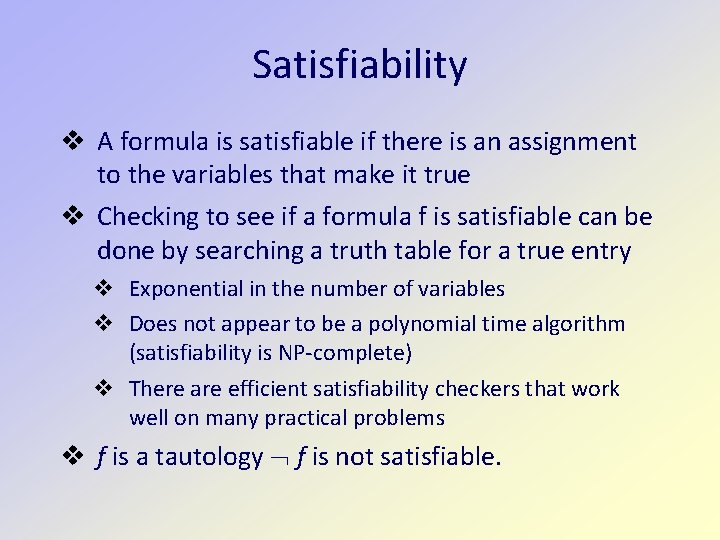

Satisfiability A formula is satisfiable if there is an assignment to the variables that make it true Checking to see if a formula f is satisfiable can be done by searching a truth table for a true entry Exponential in the number of variables Does not appear to be a polynomial time algorithm (satisfiability is NP-complete) There are efficient satisfiability checkers that work well on many practical problems f is a tautology f is not satisfiable.

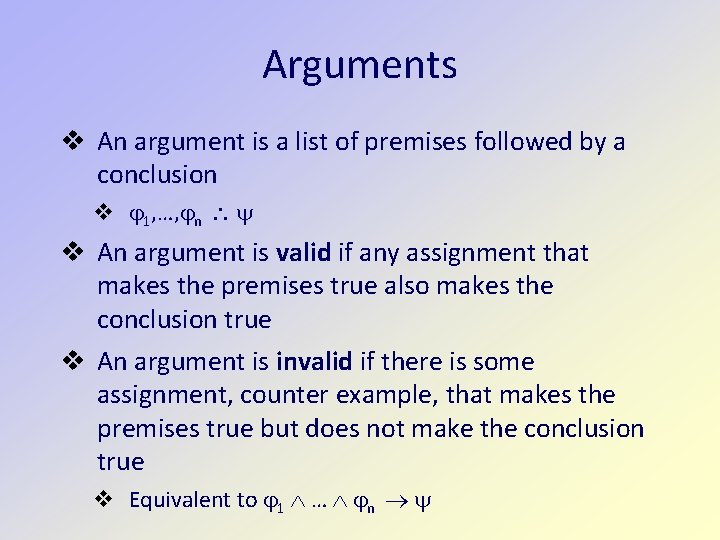

Arguments An argument is a list of premises followed by a conclusion 1, …, n An argument is valid if any assignment that makes the premises true also makes the conclusion true An argument is invalid if there is some assignment, counter example, that makes the premises true but does not make the conclusion true Equivalent to 1 … n

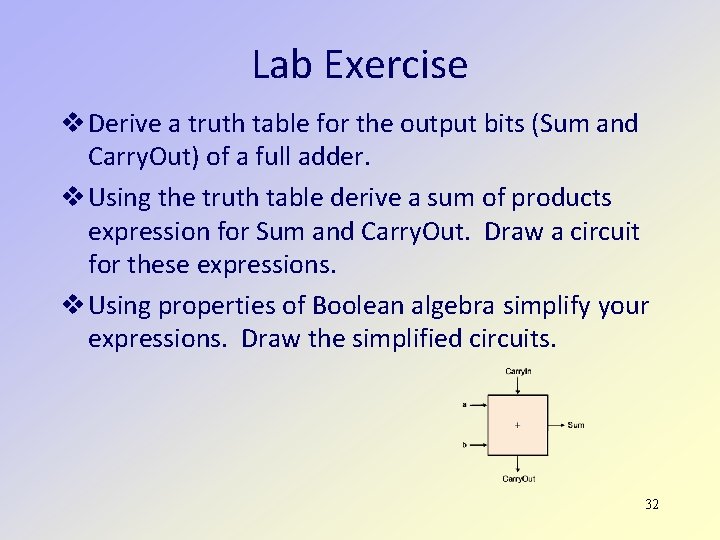

Lab Exercise Derive a truth table for the output bits (Sum and Carry. Out) of a full adder. Using the truth table derive a sum of products expression for Sum and Carry. Out. Draw a circuit for these expressions. Using properties of Boolean algebra simplify your expressions. Draw the simplified circuits. 32
