PROPERTIES OF WAVES WHAT DO YOU KNOW ABOUT

PROPERTIES OF WAVES WHAT DO YOU KNOW ABOUT WAVES? BILL NYE - WAVES

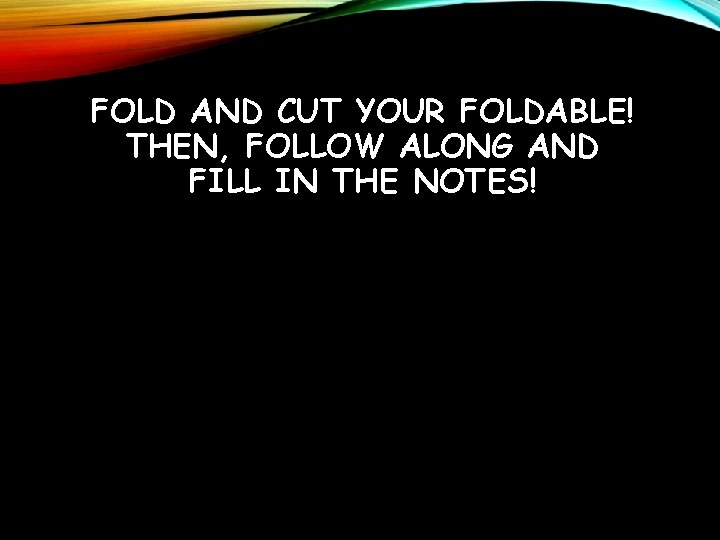

FOLD AND CUT YOUR FOLDABLE! THEN, FOLLOW ALONG AND FILL IN THE NOTES!

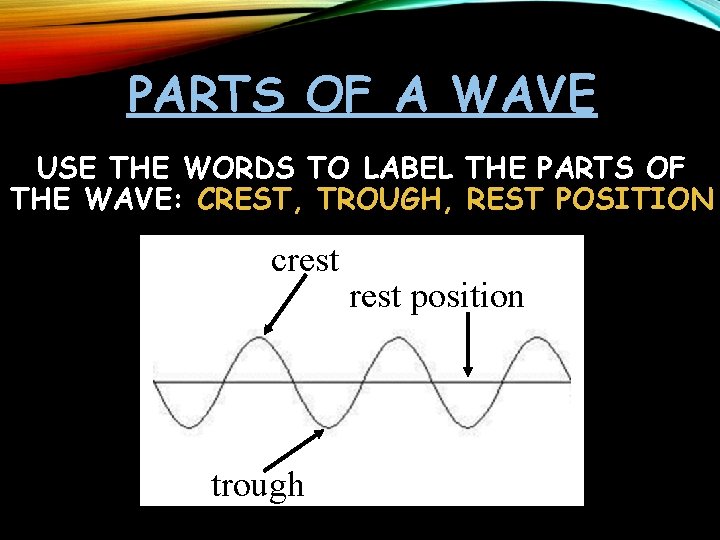

PARTS OF A WAVE USE THE WORDS TO LABEL THE PARTS OF THE WAVE: CREST, TROUGH, REST POSITION

PARTS OF A WAVE USE THE WORDS TO LABEL THE PARTS OF THE WAVE: CREST, TROUGH, REST POSITION crest trough rest position

THERE ARE 3 PROPERTIES OF WAVES: Amplitude, Wavelength, and Frequency

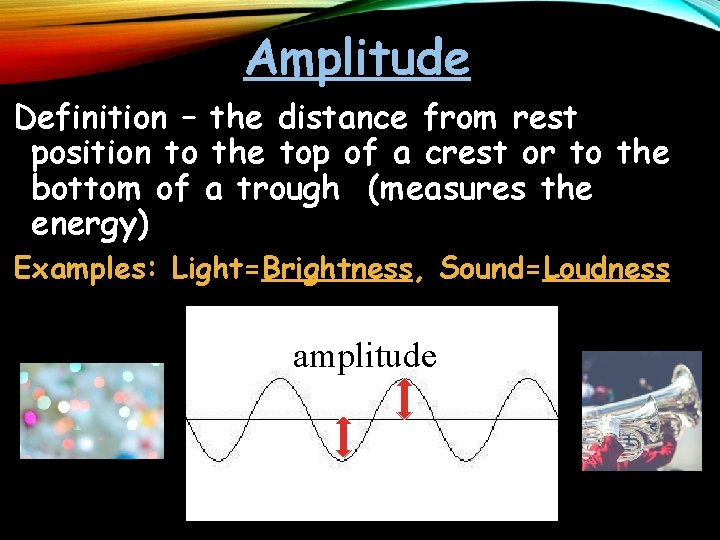

Amplitude Definition – the distance from rest position to the top of a crest or to the bottom of a trough (measures the energy) Examples: Light=Brightness, Sound=Loudness amplitude

Wavelength Definition – the distance between two crests or two troughs (measured in meters) wavelength

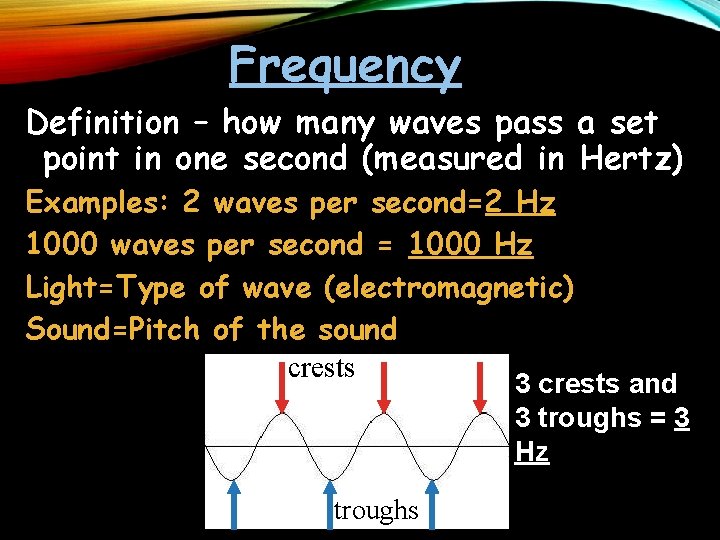

Frequency Definition – how many waves pass a set point in one second (measured in Hertz) Examples: 2 waves per second=2 Hz 1000 waves per second = 1000 Hz Light=Type of wave (electromagnetic) Sound=Pitch of the sound crests 3 crests and 3 troughs = 3 Hz troughs

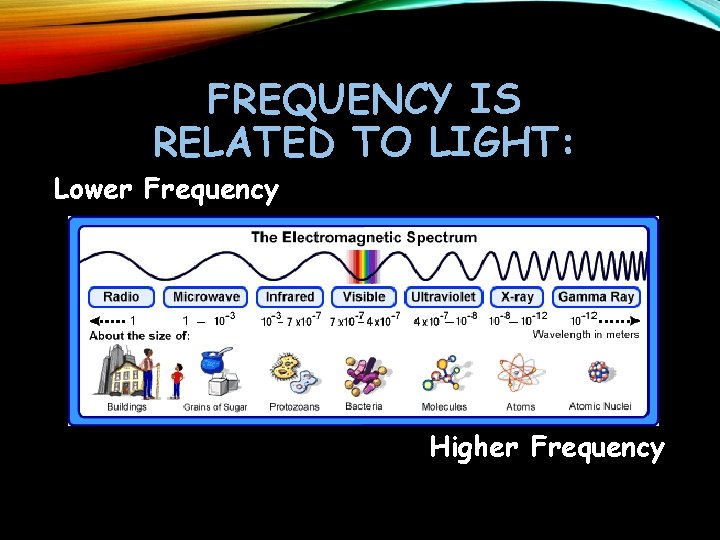

FREQUENCY IS RELATED TO LIGHT: Lower Frequency Higher Frequency

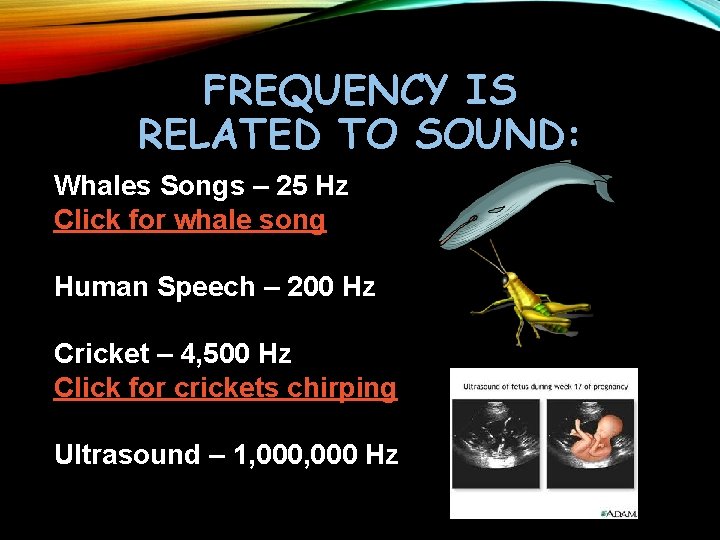

FREQUENCY IS RELATED TO SOUND: Whales Songs – 25 Hz Click for whale song Human Speech – 200 Hz Cricket – 4, 500 Hz Click for crickets chirping Ultrasound – 1, 000 Hz

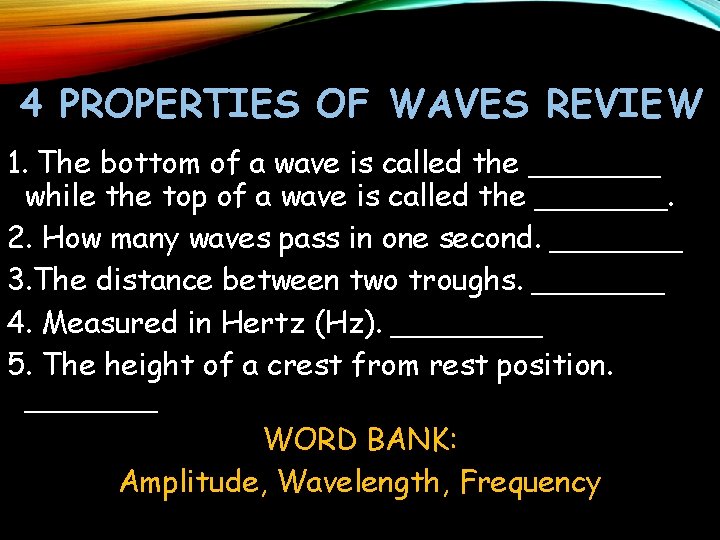

4 PROPERTIES OF WAVES REVIEW 1. The bottom of a wave is called the _______ while the top of a wave is called the _______. 2. How many waves pass in one second. _______ 3. The distance between two troughs. _______ 4. Measured in Hertz (Hz). ____ 5. The height of a crest from rest position. _______ WORD BANK: Amplitude, Wavelength, Frequency

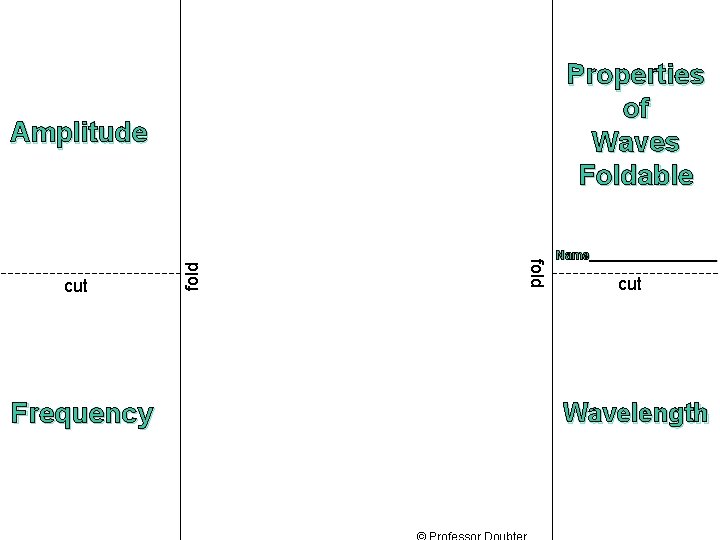

Properties of Waves Foldable Frequency © fold cut fold Amplitude Name__________ cut Wavelength

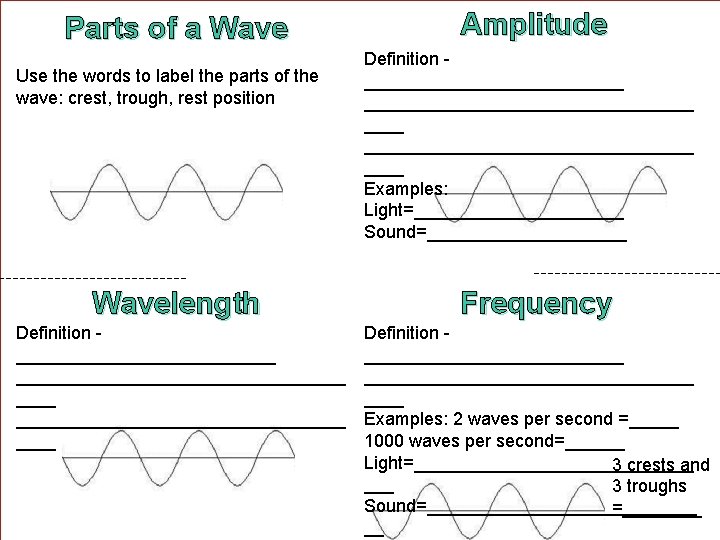

Parts of a Wave Use the words to label the parts of the wave: crest, trough, rest position Amplitude Definition _________________________________ ____ Examples: Light=___________ Sound=__________ Wavelength Frequency Definition _________________________________ ____ Definition _________________________________ Examples: 2 waves per second =_____ 1000 waves per second=______ Light=______________ 3 crests and ___ 3 troughs Sound=______________ =____ __
