Properties of Pure Substance Pressure Vs Volume of

Properties of Pure Substance

Pressure Vs Volume of Superheated Steam @200 C Pressure , k. Pa Specific Volume (m 3/kg) 200 1. 08034 300 0. 71629 400 0. 53422 500 0. 42492

Pressure Vs Volume of Superheated Steam @200 C Pressure , k. Pa Specific Volume (m 3/kg) 200 1. 08034 300 0. 71629 400 0. 53422 500 0. 42492

Evaporator of A Refrigerator

Condenser of A Refrigerator

Saturation Properties of R-22 : CHCl. F 2 Chlorodifluoromethane

Saturation Properties of Ammonia: NH 3

Saturation Properties of Pentane Temperature (C) Pressure (MPa) -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 0. 0051002 0. 0068318 0. 0090283 0. 011781 0. 015191 0. 019372 0. 024448 0. 030554 0. 037835 0. 046447 0. 056558 0. 068345 0. 081993 0. 097699 0. 11567 0. 13611 0. 15925 Volume (m 3/kg) vf 0. 0014869 0. 001497 0. 0015073 0. 0015178 0. 0015285 0. 0015395 0. 0015507 0. 0015622 0. 0015739 0. 0015859 0. 0015982 0. 0016109 0. 0016239 0. 0016372 0. 001651 0. 0016652 0. 0016798 vg 5. 466 4. 1593 3. 2061 2. 5013 1. 9735 1. 5734 1. 2668 1. 0292 0. 84341 0. 69666 0. 57975 0. 48584 0. 4098 0. 34777 0. 29682 0. 25469 0. 21963

Saturation Properties of Propane Temperature (C) Pressure (MPa) -25. 000 -20. 000 -15. 000 -10. 000 -5. 0000 0. 0000 5. 0000 10. 000 15. 000 20. 000 25. 000 30. 000 35. 000 40. 000 45. 000 50. 000 0. 20344 0. 24454 0. 29164 0. 34530 0. 40606 0. 47449 0. 55116 0. 63665 0. 73158 0. 83654 0. 95218 1. 0791 1. 2181 1. 3697 1. 5346 1. 7137 Volume (m 3/kg) Vf Vg 0. 0017836 0. 21614 0. 0018034 0. 1818 0. 0018240 0. 15393 0. 0018455 0. 13111 0. 0018680 0. 1123 0. 0018916 0. 096665 0. 0019164 0. 083591 0. 0019426 0. 072584 0. 0019702 0. 063261 0. 0019996 0. 055317 0. 0020309 0. 048512 0. 0020643 0. 042649 0. 0021002 0. 037571 0. 0021391 0. 033151 0. 0021813 0. 029282 0. 0022276 0. 02588

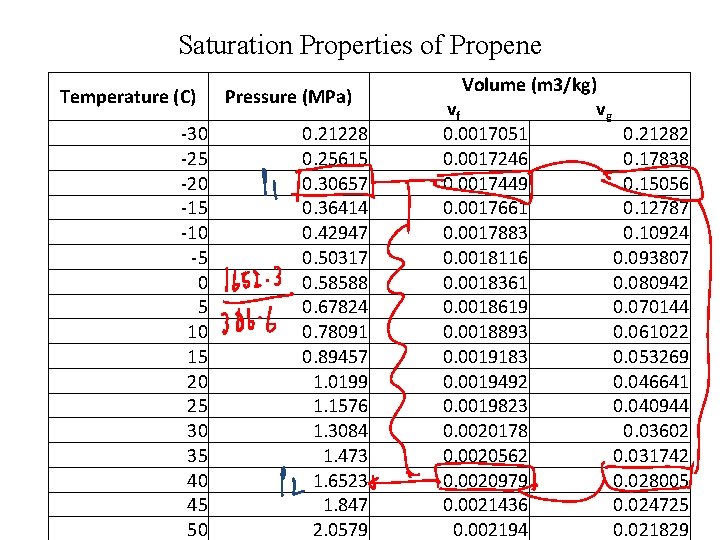

Saturation Properties of Propene Temperature (C) -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 Pressure (MPa) 0. 21228 0. 25615 0. 30657 0. 36414 0. 42947 0. 50317 0. 58588 0. 67824 0. 78091 0. 89457 1. 0199 1. 1576 1. 3084 1. 473 1. 6523 1. 847 2. 0579 Volume (m 3/kg) vf vg 0. 0017051 0. 21282 0. 0017246 0. 17838 0. 0017449 0. 15056 0. 0017661 0. 12787 0. 0017883 0. 10924 0. 0018116 0. 093807 0. 0018361 0. 080942 0. 0018619 0. 070144 0. 0018893 0. 061022 0. 0019183 0. 053269 0. 0019492 0. 046641 0. 0019823 0. 040944 0. 0020178 0. 03602 0. 0020562 0. 031742 0. 0020979 0. 028005 0. 0021436 0. 024725 0. 002194 0. 021829

A Solar Powered New Comen Engine
