PROMIS A Marie SkodowskaCurie Initial Training Network Postgraduate

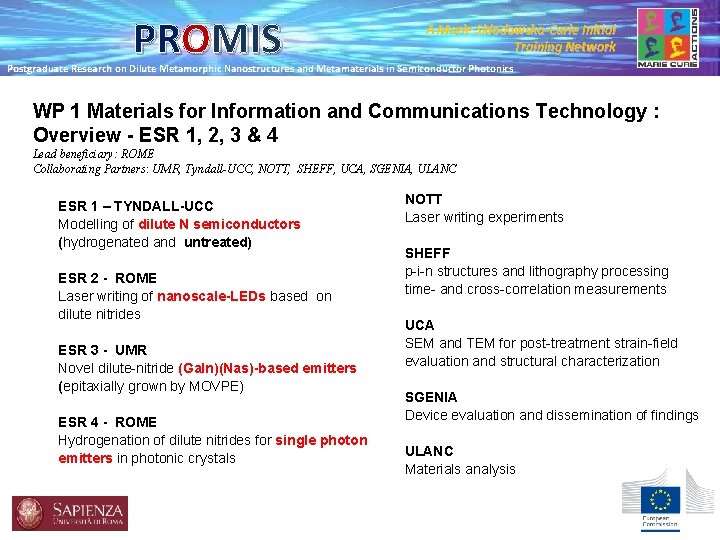

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Materials for Information and Communications Technology : Overview - ESR 1, 2, 3 & 4 Lead beneficiary: ROME Collaborating Partners: UMR, Tyndall-UCC, NOTT, SHEFF, UCA, SGENIA, ULANC ESR 1 – TYNDALL-UCC Modelling of dilute N semiconductors (hydrogenated and untreated) ESR 2 - ROME Laser writing of nanoscale-LEDs based on dilute nitrides ESR 3 - UMR Novel dilute-nitride (Ga. In)(Nas)-based emitters (epitaxially grown by MOVPE) ESR 4 - ROME Hydrogenation of dilute nitrides for single photon emitters in photonic crystals NOTT Laser writing experiments SHEFF p-i-n structures and lithography processing time- and cross-correlation measurements UCA SEM and TEM for post-treatment strain-field evaluation and structural characterization SGENIA Device evaluation and dissemination of findings ULANC Materials analysis

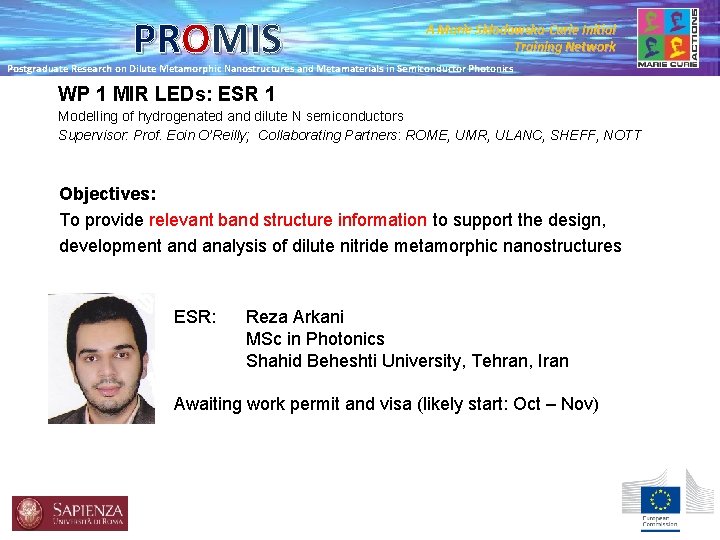

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 MIR LEDs: ESR 1 Modelling of hydrogenated and dilute N semiconductors Supervisor: Prof. Eoin O’Reilly; Collaborating Partners: ROME, UMR, ULANC, SHEFF, NOTT Objectives: To provide relevant band structure information to support the design, development and analysis of dilute nitride metamorphic nanostructures ESR: Reza Arkani MSc in Photonics Shahid Beheshti University, Tehran, Iran Awaiting work permit and visa (likely start: Oct – Nov)

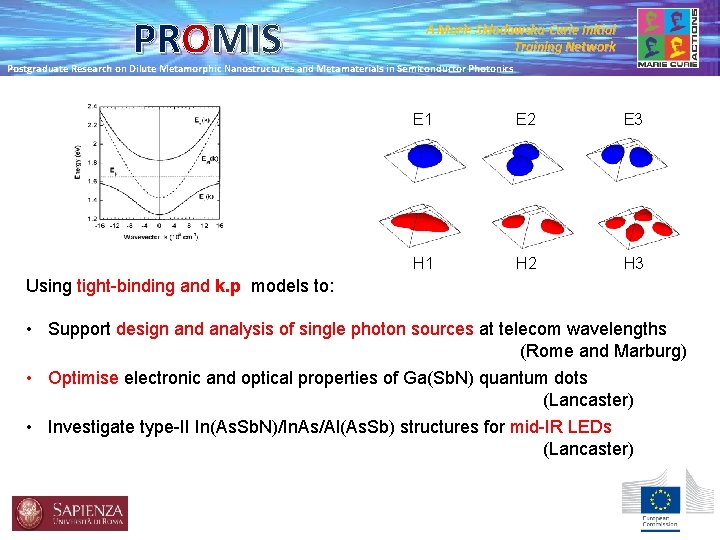

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics E 1 E 2 E 3 H 1 H 2 H 3 Using tight-binding and k. p models to: • Support design and analysis of single photon sources at telecom wavelengths (Rome and Marburg) • Optimise electronic and optical properties of Ga(Sb. N) quantum dots (Lancaster) • Investigate type-II In(As. Sb. N)/In. As/Al(As. Sb) structures for mid-IR LEDs (Lancaster)

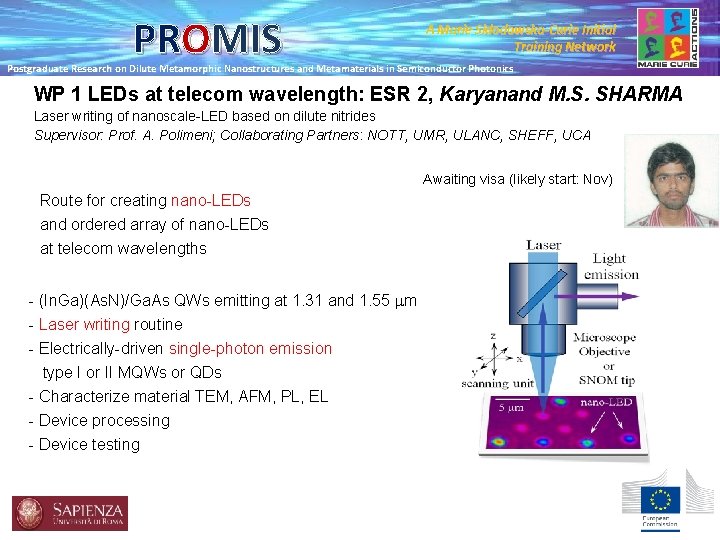

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 LEDs at telecom wavelength: ESR 2, Karyanand M. S. SHARMA Laser writing of nanoscale-LED based on dilute nitrides Supervisor: Prof. A. Polimeni; Collaborating Partners: NOTT, UMR, ULANC, SHEFF, UCA Awaiting visa (likely start: Nov) Route for creating nano-LEDs and ordered array of nano-LEDs at telecom wavelengths - (In. Ga)(As. N)/Ga. As QWs emitting at 1. 31 and 1. 55 mm - Laser writing routine - Electrically-driven single-photon emission type I or II MQWs or QDs - Characterize material TEM, AFM, PL, EL - Device processing - Device testing

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 MOVPE dilute nitrides: ESR 3, Shalini Gupta Novel dilute-nitride (Ga. In)(Nas)-based emitters epitaxially grown by MOVPE Supervisor: Prof. K. Volz; Collaborating Partners: ROME, SHEHH, NOTT, Tyndall-UCC, UCA, and SGENIA Quantitative structural characterization of various dilute nitride alloys (grown in Marburg & Lancaster): (Ga. In)(NAs) QWs, Ga(NAs. P) QWs, In(NAs. Sb) QDs, In. Sb QDs in Ga(NAs) Various STEM techniques: - Aberration-corrected high angle annular dark field imaging - Aberration-corrected high resolution imaging & strain state analysis Image simulation using different codes MOVPE growth of (Ga. In)(NAs) QW samples

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics Example: Quantitative composition and homogeneity evaluation of Ga(NAs. P) Scattered intensity for dilute nitrides: Characteristic behaviour Challenge: transfer to 3 -dimensional structures (QDs)

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Integration of single-photon sources in Ph. C: ESR 4, Mike S. YOUNIS Hydrogenation of dilute nitrides for single photon emitters in photonic crystals Supervisor: Prof. A. Polimeni; Collaborating Partners: Tyndall-UCC, NOTT, ULANC, SHEFF, UCA, UMR, and SGENIA Awaiting visa (likely start: Nov) - Single-photon sources at 1. 31 and 1. 55 mm - Deterministic positioning in Ph. C cavities - (In. Ga)(As. N)/Ga. As QWs emitting at 1. 31 and 1. 55 mm - Hydrogenation routine - Highly polarized 1 D emitters into Ph. C cavities - Characterize material TEM, AFM, PL, EL testing

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Integration of single-photon sources in Ph. C: ESR 4 Hydrogenation of dilute nitrides for single photon emitters in photonic crystals Supervisor: Prof. A. Polimeni; Collaborating Partners: Tyndall-UCC, NOTT, ULANC, SHEFF, UCA, UMR, and SGENIA Low resolution with Ti mask Improved electron-beam lithography processing by replacing Ti with a HSQ (hydrogen silsesquioxane, [HSi. O 3/2]n , n=8) resist HSQ Ti

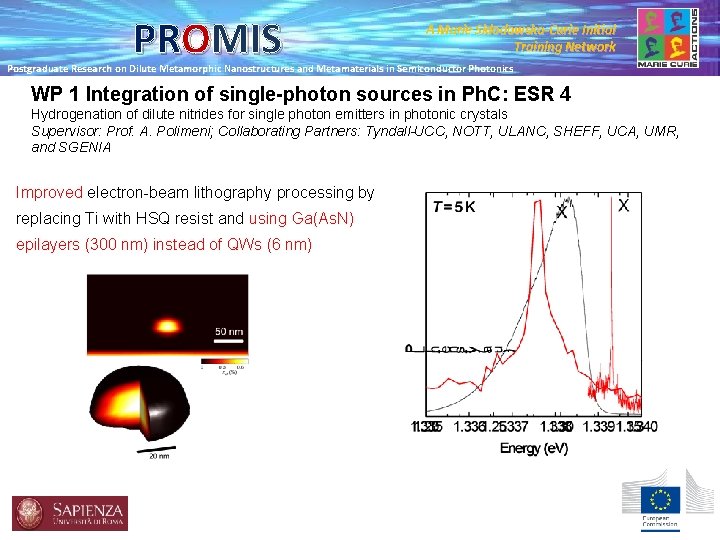

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Integration of single-photon sources in Ph. C: ESR 4 Hydrogenation of dilute nitrides for single photon emitters in photonic crystals Supervisor: Prof. A. Polimeni; Collaborating Partners: Tyndall-UCC, NOTT, ULANC, SHEFF, UCA, UMR, and SGENIA Improved electron-beam lithography processing by replacing Ti with HSQ resist and using Ga(As. N) epilayers (300 nm) instead of QWs (6 nm)

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Integration of single-photon sources in Ph. C: ESR 4 Hydrogenation of dilute nitrides for single photon emitters in photonic crystals Supervisor: Prof. A. Polimeni; Collaborating Partners: Tyndall-UCC, NOTT, ULANC, SHEFF, UCA, UMR, and SGENIA Improved electron-beam lithography processing by replacing Ti with HSQ resist Exciton and biexciton detected Random emission given by Poisson function m=1, exciton m=2, biexciton

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Integration of single-photon sources in Ph. C: ESR 4 Hydrogenation of dilute nitrides for single photon emitters in photonic crystals Supervisor: Prof. A. Polimeni; Collaborating Partners: Tyndall-UCC, NOTT, ULANC, SHEFF, UCA, UMR, and SGENIA Highly polarized wires suitable for optimal coupling with PCh cavities

PROMIS A Marie Skłodowska-Curie Initial Training Network Postgraduate Research on Dilute Metamorphic Nanostructures and Metamaterials in Semiconductor Photonics WP 1 Integration of single-photon sources in Ph. C: ESR 4 Hydrogenation of dilute nitrides for single photon emitters in photonic crystals Supervisor: Prof. A. Polimeni; Collaborating Partners: Tyndall-UCC, NOTT, ULANC, SHEFF, UCA, UMR, and SGENIA Highly polarized wires suitable for optimal coupling with PCh cavities M. Felici et al. , Phys. Rev. Appl. 2, 064007 (2014)
