PROLASER III PROLASER III SPEED MENU ESC MODE

PROLASER III

PROLASER III SPEED MENU ESC MODE RANGE BRT/VOL TEST ENTER

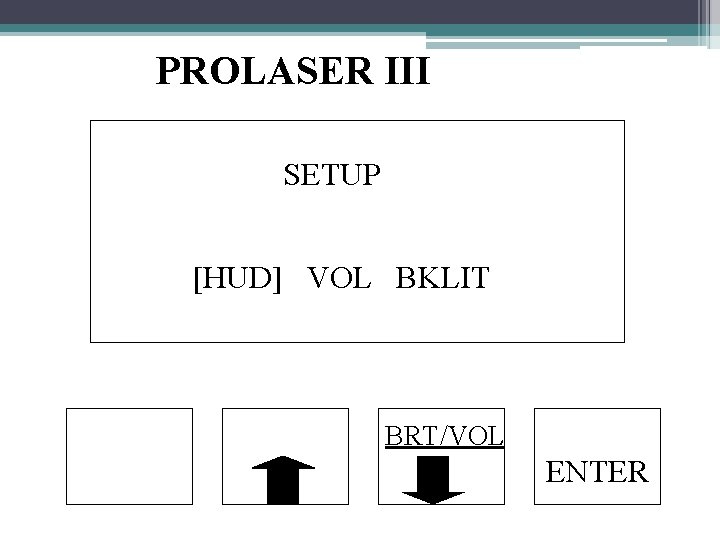

PROLASER III SETUP [HUD] VOL BKLIT BRT/VOL ENTER

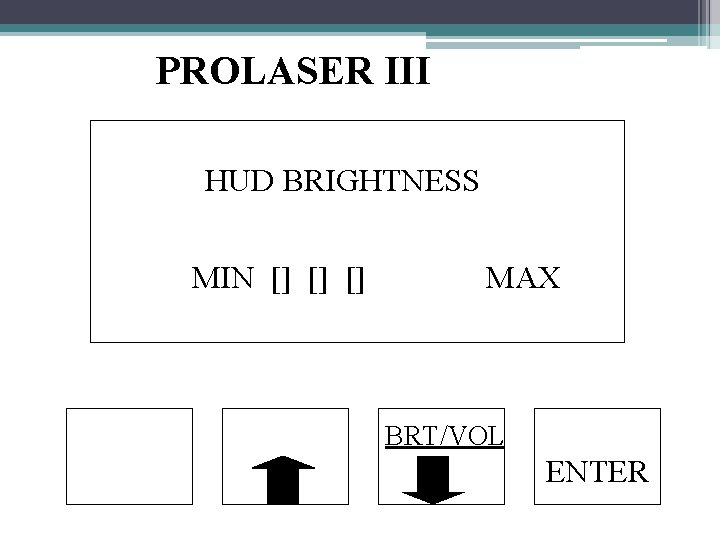

PROLASER III HUD BRIGHTNESS MIN [] [] [] MAX BRT/VOL ENTER

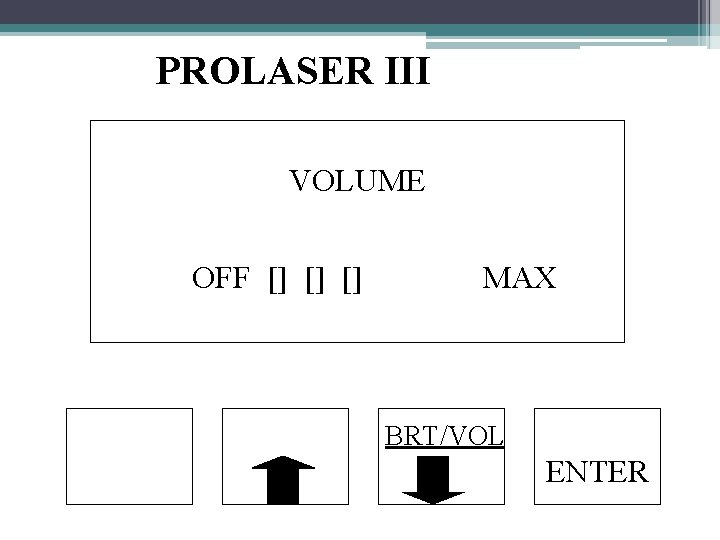

PROLASER III VOLUME OFF [] [] [] MAX BRT/VOL ENTER

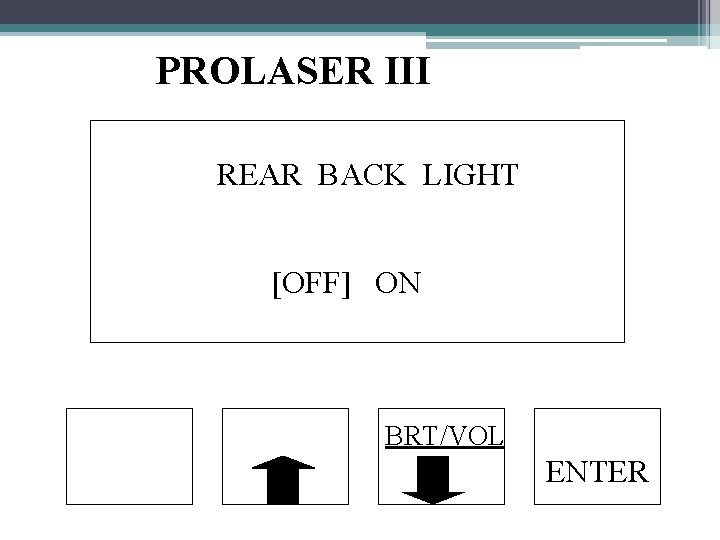

PROLASER III REAR BACK LIGHT [OFF] ON BRT/VOL ENTER

PROLASER III REAR BACK LIGHT [OFF] ON BRT/VOL ENTER

PROLASER III REAR BACK LIGHT [OFF] ON BRT/VOL ENTER

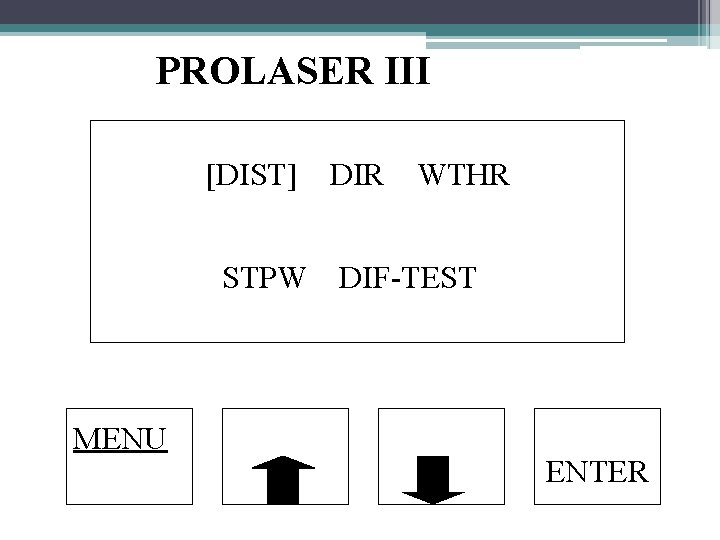

PROLASER III [DIST] STPW MENU DIR WTHR DIF-TEST ENTER

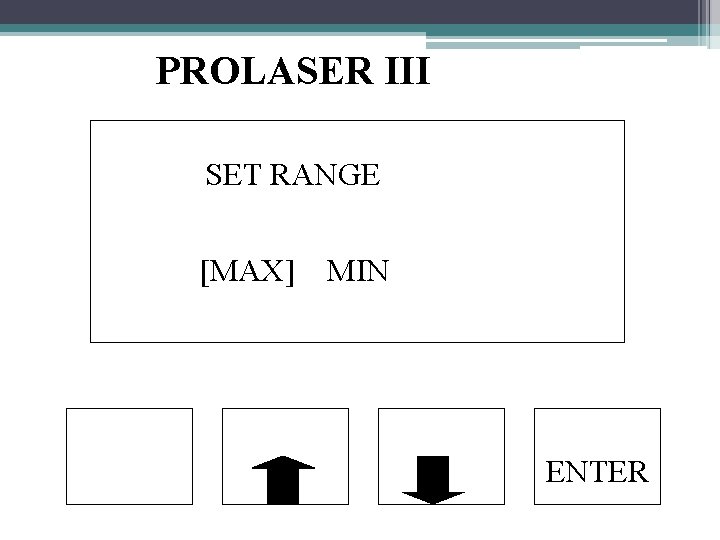

PROLASER III SET RANGE [MAX] MIN ENTER

PROLASER III SET MAX RANGE DIST MAX ENTER

PROLASER III SET MIN RANGE DIST 10 ENTER

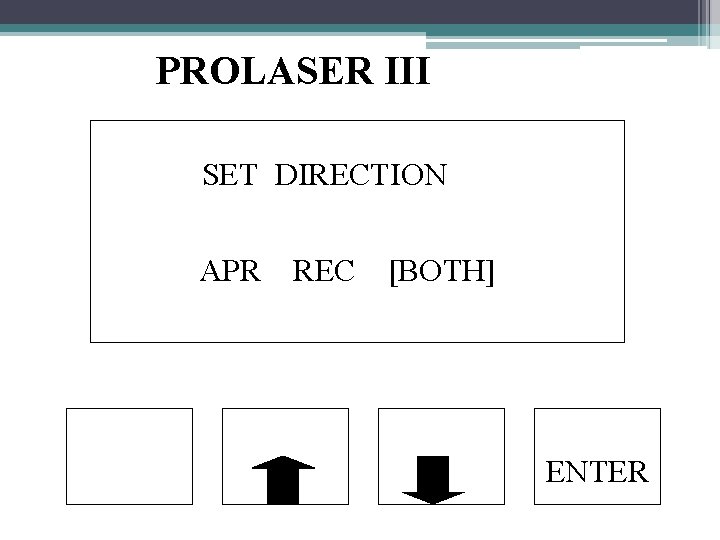

PROLASER III SET DIRECTION APR REC [BOTH] ENTER

PROLASER III SET WEATHER [NORMAL] POOR ENTER

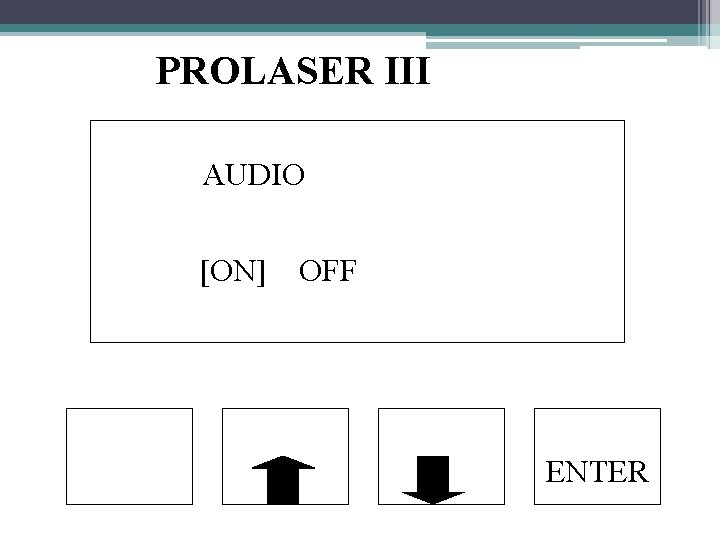

PROLASER III AUDIO [ON] OFF ENTER

PROLASER III AUDIO [ON] OFF ENTER

ACCURACY TESTING (REVIEW) • 1) Internal test. • 2) HUD/laser beam alignment test. • 3) Range/Differential distance test.

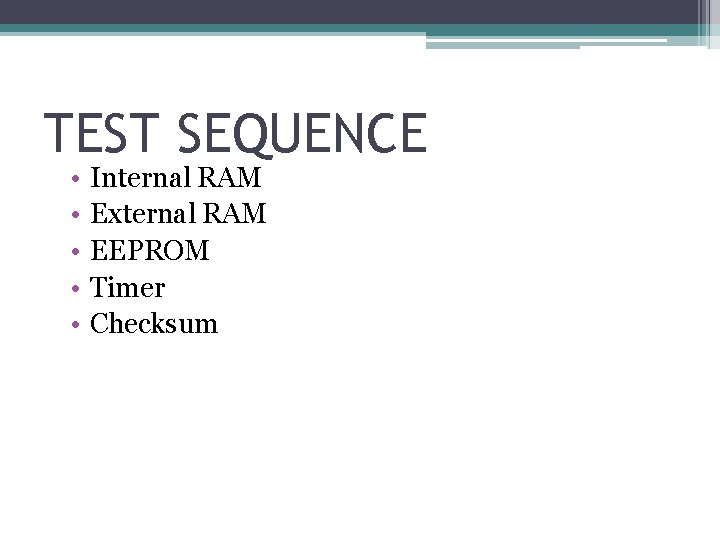

TEST SEQUENCE • • • Internal RAM External RAM EEPROM Timer Checksum

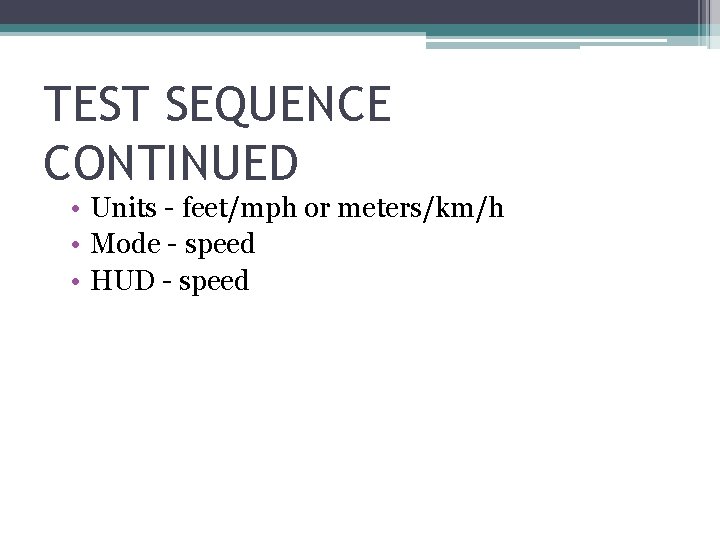

TEST SEQUENCE CONTINUED • Units - feet/mph or meters/km/h • Mode - speed • HUD - speed

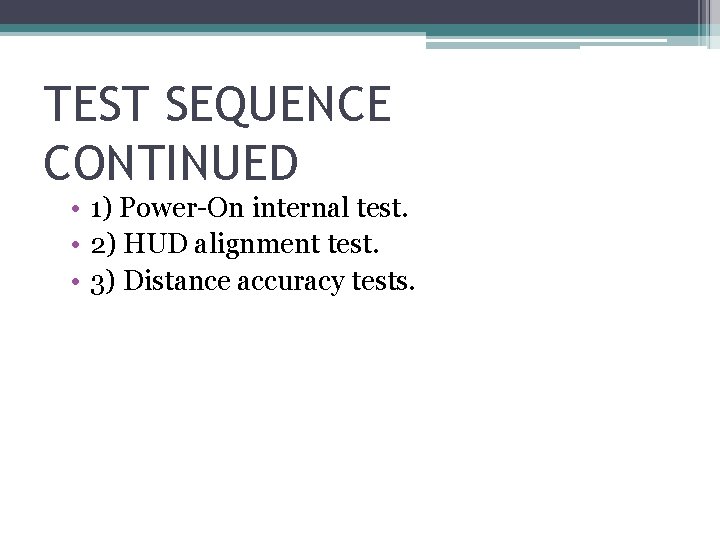

TEST SEQUENCE CONTINUED • 1) Power-On internal test. • 2) HUD alignment test. • 3) Distance accuracy tests.

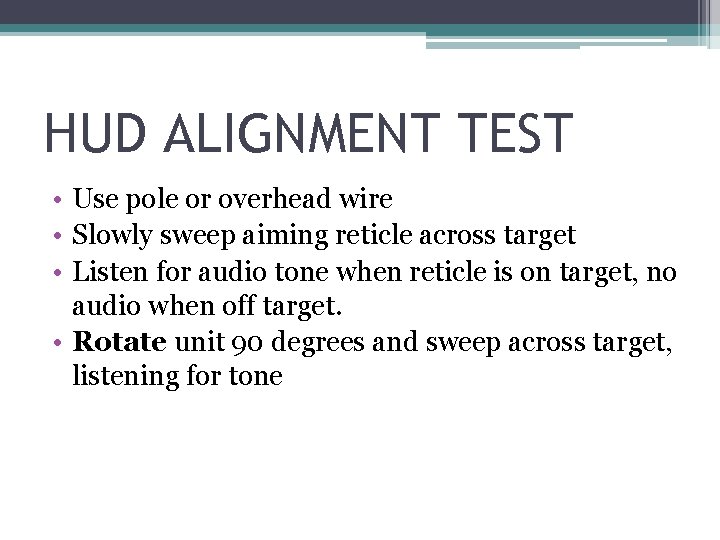

HUD ALIGNMENT TEST • Use pole or overhead wire • Slowly sweep aiming reticle across target • Listen for audio tone when reticle is on target, no audio when off target. • Rotate unit 90 degrees and sweep across target, listening for tone

PROLASER III CAL MEASURE DIST 1 ENTER

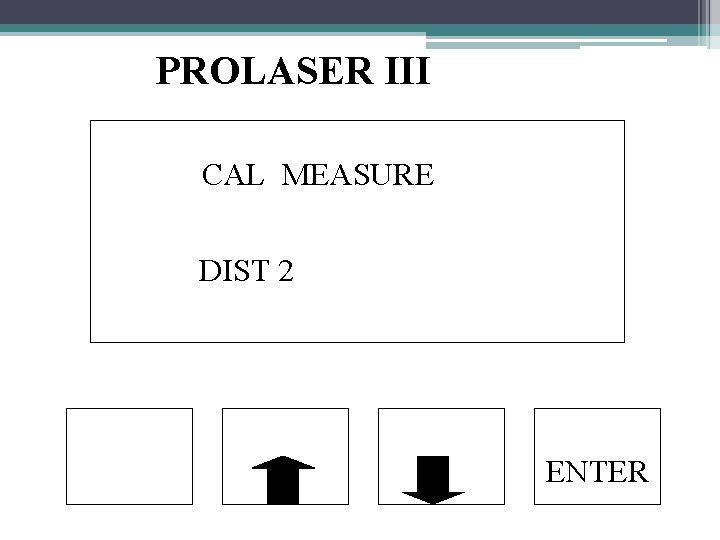

PROLASER III CAL MEASURE DIST 2 ENTER

PROLASER III SPEED TEST DIST 50 25. 0 ENTER

WEATHER MODE APPLICATIONS • 1) Poor weather - snow, rain, fog. • 2) Obstructed view - fences, trees, guy wires, etc. • 3) Clocking from inside the patrol vehicle (through windshields).

OPERATIONAL FACTORS • 1) Cosine angle (as with stationary radar, always favors the driver). • 2) Visual view for proper tracking history. • 3) Weather conditions - use of weather mode. • 4) Inside patrol vehicle operation.

TRACKING HISTORY • Visually estimate vehicle speed. • Place aiming reticle on target and obtain aiming tone. • Track vehicle with laser and obtain speed reading. • Verify visual estimate and speed display agree.

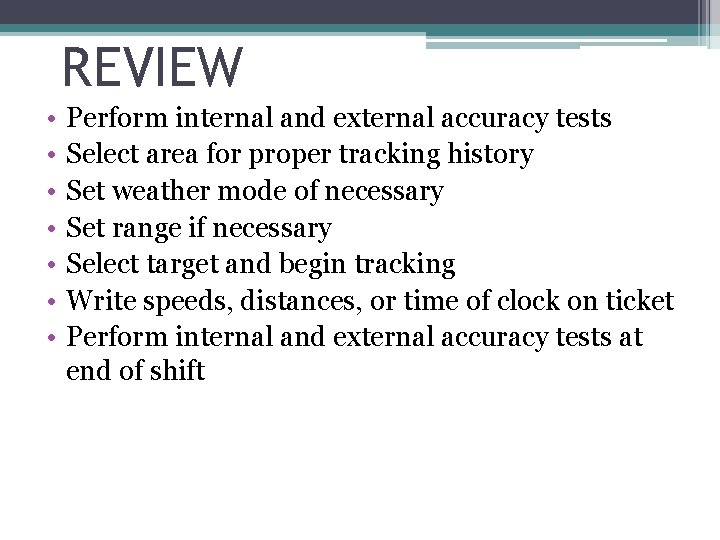

REVIEW • • Perform internal and external accuracy tests Select area for proper tracking history Set weather mode of necessary Set range if necessary Select target and begin tracking Write speeds, distances, or time of clock on ticket Perform internal and external accuracy tests at end of shift
