AMDA

ASTRO: premier paramètre de recherche = search cone PLASMAS: premier paramètre de recherche = event (time span) SOLEIL/PLANETO = combinaison des deux

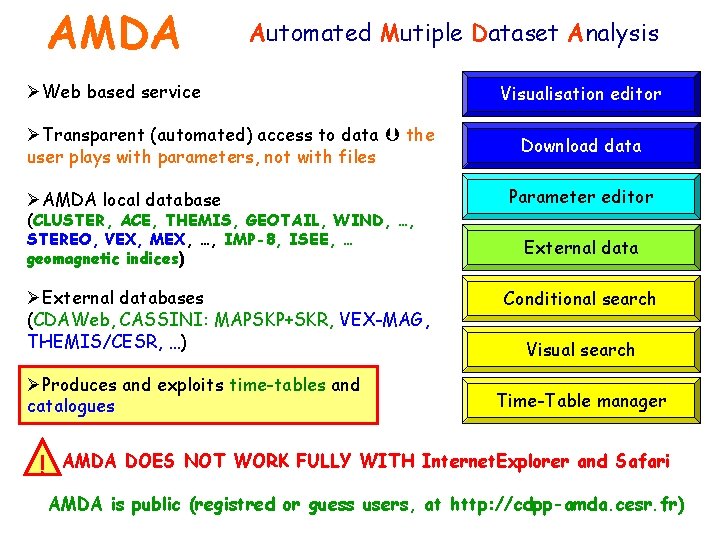

AMDA Automated Mutiple Dataset Analysis ØWeb based service ØTransparent (automated) access to data the user plays with parameters, not with files ØAMDA local database (CLUSTER, ACE, THEMIS, GEOTAIL, WIND, …, STEREO, VEX, MEX, …, IMP-8, ISEE, … geomagnetic indices) ØExternal databases (CDAWeb, CASSINI: MAPSKP+SKR, VEX-MAG, THEMIS/CESR, …) ØProduces and exploits time-tables and catalogues ! Visualisation editor Download data Parameter editor External data Conditional search Visual search Time-Table manager AMDA DOES NOT WORK FULLY WITH Internet. Explorer and Safari AMDA is public (registred or guess users, at http: //cdpp-amda. cesr. fr)

VO: AMDA SPASE compliant VEX-MAG AMDA System Local Database MAPSKP SKR THEMIS CDAWeb Any databases including a SPASE based interoperability layer can be used by AMDA

Using the resulting time-table Time-Table CL QSAS Start Time – Stop Time – number …. CAA Tools CDAWeb MEDOC Requirements: SUPERDARN APL server And others … ØA time-table format standard Collaboration CDPP/CAA/QSAS/CL: VOtable http: //cdpp 2. cesr. fr/twiki/bin/view/AMDA/Amda. Time. Table. Format ØAn interface for reading the standardised time-table ØA web interface module for skipping from one time interval to another one >>> Load Time-Table >>>

Using the time-table with CL

Envisioned future development of AMDA • AMDA prototype development → • AMDA (prototype) AMDA-NG (“industrialised”) Action funded and piloted by CNES • AMDA → Interoperable modules: Interoperability Layer AMDA portal Visualisation Visual-Search Parameter Computation Conditional Search External Data AMDA Parameter Builder Propagation Tool Coordinates, Locations, Physical Structure Tool Interoperability Interoperability Layer Layer

Projets OV européens The CDPP is a founder member of and an active participant to the SPASE consortium VO projects: %Euro. PLANET RI (FP 7) → JRA-4/Task-2: “Interoperable Data Access” (Collaboration CDPP / VO-Paris) → SA/Plasma Node: (Collaboration CDPP / IWF-Graz) %HELIO (FP 7) → WP-N 3: “Strategy and Standards” → JRA: Propagation tool, feature recognition (Collaboration CDPP / VO-Paris / MEDOC) %VISPANET (ESA) → WP 1200: “Technology Requirement Definition” → WP 2000: “Architectural Design” % CDPP solicited in other projects (FP 7)

HELIO

WP-N 3: Strategy and Standards Forum de réflexion en vue de fournir des recommandations sur: ØQuels standards venant d’autres disciplines (IVOA, …) doivent être supportés par HELIO ØMetadonnées (hierarchie, jeu minimum de métadonnées…) ØStandards futurs pour les données. (data types, moyens d’accès, …) ØPriorités sur les jeux de données à inclure dans HELIO ØStandardisation des services. ØRationalisation des coordonnées Action à développer en interaction (étroite) avec l’IVOA

August 15, 2007 Messenger VEX a ct e ej STEREO A and B d se s e pr m Co d in rw a ol s k oc h s etic Energ s le partic Ulysses Around the Earth: ACE, WIND THEMIS, CLUSTER, GEOTAIL, … MEX

JRA-2: Tools for 4 D-Heliosphere ØOutils de reconnaissance automatisée (basés sur AMDA) ØPropagation tool § “Encapsulage” de modèles § Exploitation de l’imagerie héliosphérique (Collaboration avec Alexis Rouillard (NRL) et MEDOC)

EUROPLANET RI IDIS (Integrated and Distributed Information Service) JRA: Tools for Transforming IDIS into a Planetary Virtual Observatory SA: Integrated and Distributed Information Services (IDIS)

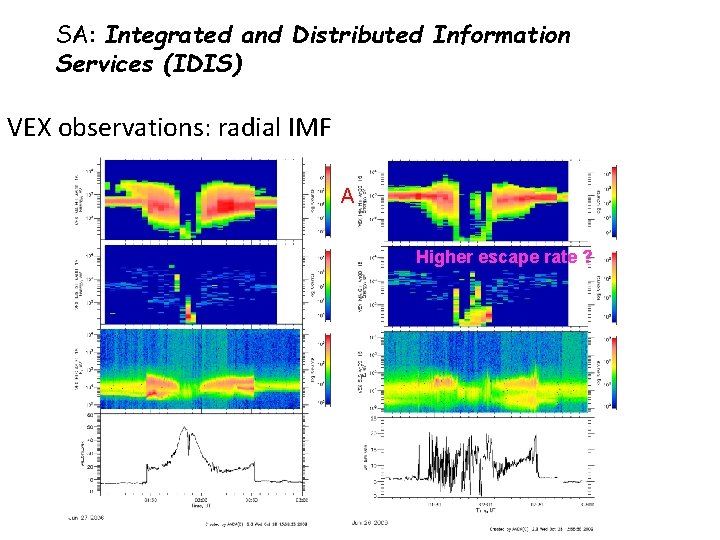

SA: Integrated and Distributed Information Services (IDIS) VEX observations: radial IMF A Higher escape rate ?

SA: Integrated and Distributed Information Services (IDIS) MEX observations: ICME Venus, Stereo A, Mars radial alignment Lack of magnetometer Marsis are particularly important at Mars

SC 3. 1 Solar wind interaction with Jupiter and Saturn aurorae Plasma (multi-points) Context Processes Cassini UVIS Nedd of resources coming from: Solar data Galileo UVS SOHO LASCO Solar community HST (STIS), IUE SOHO EIT Plasma community Atmosphere Heliospheric data Astronomy community (multi- ) High-latitude Polar emissions field-aligned currents Magnetopause MP Lower-latitude Auroral oval IRTF Solar wind / Types of resources : Magnetospheric data Magnetosphere / Ionosphere coupling Observational data ACE MAG/SWEPAM , ULYSSES MAG/SWOOPS Simulation data Cassini MAG/CAPS/MIMI, Galileo MAG/PLS/EPD Laboratory data + Sim. Models SW propagation + Ref. Models Spectroscopy + Sim. Models Magnetosphere Planetoplasma data Cassini INCA Cassini RPWS Galileo PWS XMM EPIC Chandra ACIS

Example: SC 3. 1, Solar Wind / Saturn magnetosphere interaction and aurorae Huble data , … Saturn Environment Voyager data PDS, CDAWeb, … Cassini data PDS, MAPSKP, … IDIS Models, Simulations Local Heliospheric Conditions Solar data PSA, MEDOC, … Heliospheric data CDAWeb, CDPP, … User Spectroscopy databases Models, Simulations VEX, MEX data PDS, PSA, CDPP, …

Perspective: IVOA tools 1. Visualization editor 2. Download data 3. Parameter editor 4. External data 5. Visual search 6. Conditional search 7. Time-Table manager 8. Astronomical data HST Aladin

SC 1. 7 Enceladus Plasma Dust Context Processes Multiphase interactions Cassini MAG Cassini EPD Cassini INMS in relation with the geological activity of Enceladus Cassini CAPS Cassini RPWS Cassini CDA Interior Cassini Radar Cassini CIRS Atmosphere Surface Cassini UVIS Cassini ISS Cassini CIRS

Example: SC 1. 7 Enceladus Environment Plasma Particules E, B ondes Poussières OV Atmosphère Surface/Intérieur Imagerie IR Radar Model/simulation User

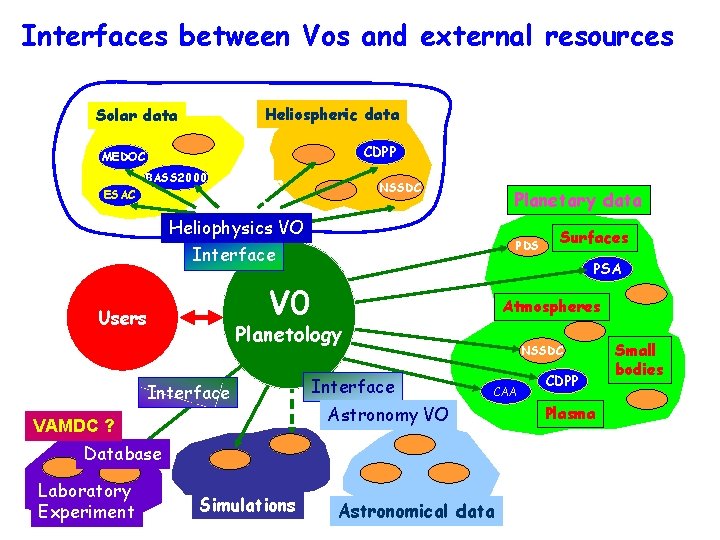

Interfaces between Vos and external resources Heliospheric data Solar data CDPP MEDOC BASS 2000 ESAC Other VOs NSSDC Planetary data Heliophysics VO PDS Interface PSA V 0 Users Atmospheres Planetology Interface VAMDC ? Interface NSSDC CAA Astronomy VO Database Laboratory Experiment Simulations Surfaces Astronomical data CDPP Plasma Small bodies

User Requirements: technical translation Level 1: Searching, retrieving, accessing the resources %JRA-4/Task-2 ·A datamodel (i. e. a structured standardised description of the resources), -low level but covering all the planetology fields -description up to the measurement type and granule levels ·Protocols for request and access to the resources ·A system: architecture, registries, protocols Level 2: After retrieval, exploiting the data for science analysis. %IDIS-SA + JRA-4/T 3, T 2 ·Much more complex datamodel(s) (likely thematics specific) ·Tools and services (reformating, visualisation, computation, …) Developing interface with other VOs (HELIO, IVOA) %IDIS-SA + (JRA-3 and JRA-4/T 2)

General philosophy: trying to use the existing standards, protocols and tools (PDS, IVOA, SPASE, …) From the resource provider side: A major aim: to publish resources in IDIS must remains as easy as possible, requiring a moderated effort for the data provider From the user side: A major aim: to implement access to IDIS must remains as easy as possible

In course… ØDevelopment of a PDAP based prototype: level 1. ing Registry VOTables harves t Request interface • extension of the “essential metadata” for plasma • prototype registry/resource branch: ØNow under study ØFirst release scheduled for the upcoming IDIS meeting (27 -29 January 2010) If successful, call for expert study for identifying the “essential metadata” in other disciplines MAPSKP

VISPANET Prototype d’observatoire virtuel en météorologie de l’espace. But: construire un système capable d’interfacer un certain nombre de services et de ressources Rôle du CDPP (spécialiste OV): ØDéfinition des spécifications sur les technologies à utiliser § Interface sur des services de simulation ØDéfinition de l’architecture

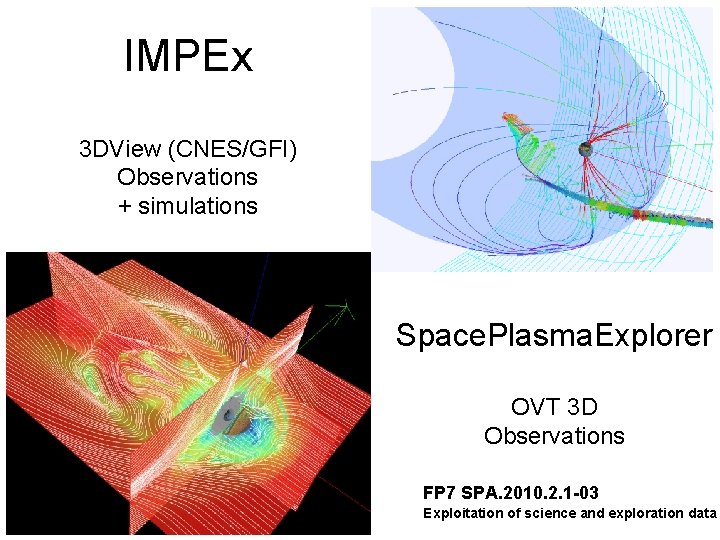

IMPEx 3 DView (CNES/GFI) Observations + simulations Space. Plasma. Explorer OVT 3 D Observations FP 7 SPA. 2010. 2. 1 -03 Exploitation of science and exploration data

Conclusion • Le CDPP est impliqué dans plusieurs projets européens (VISPANET, HELIO, EUROPLANET RI, …) • Le CDPP explore le problème du couplage données/simulation (VISPANET, HELIO) • Le CDPP étudie de plus en plus les standards, protocoles et outils de l’IVOA (HELIO, EUROPLANET RI)
