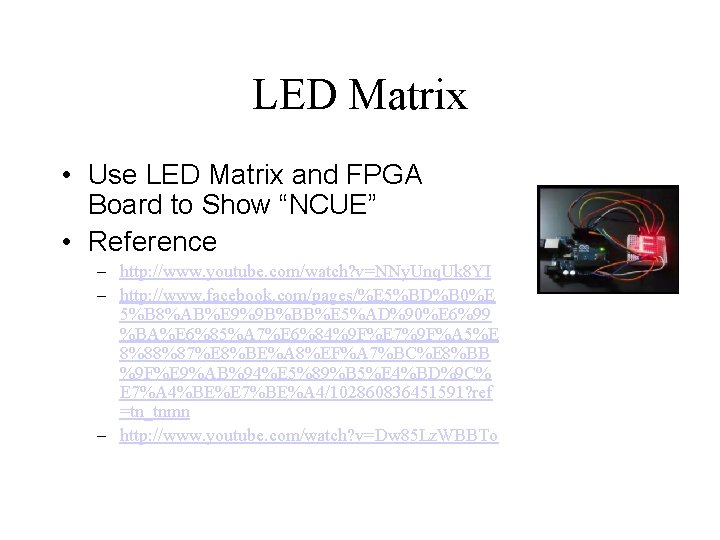

LED Matrix • Use LED Matrix and FPGA Board to Show “NCUE” • Reference – http: //www. youtube. com/watch? v=NNy. Unq. Uk 8 YI – http: //www. facebook. com/pages/%E 5%BD%B 0%E 5%B 8%AB%E 9%9 B%BB%E 5%AD%90%E 6%99 %BA%E 6%85%A 7%E 6%84%9 F%E 7%9 F%A 5%E 8%88%87%E 8%BE%A 8%EF%A 7%BC%E 8%BB %9 F%E 9%AB%94%E 5%89%B 5%E 4%BD%9 C% E 7%A 4%BE%E 7%BE%A 4/102860836451591? ref =tn_tnmn – http: //www. youtube. com/watch? v=Dw 85 Lz. WBBTo
LED Matrix • Member – 1 • The maximum number of teams – 2 • Note that please tell me if you refer to the code of other authors! • Grade – 80~90

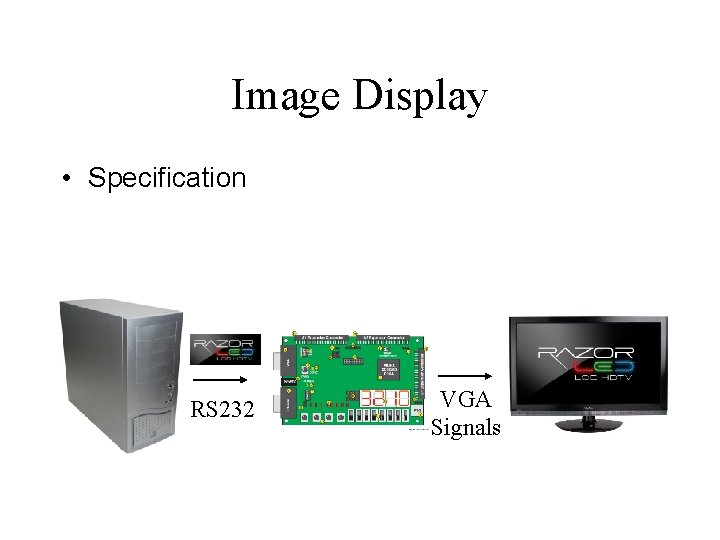

Image Display • Specification RS 232 VGA Signals
Image Display • Member – 1 • The maximum number of teams – 2 • Grade – 85~99

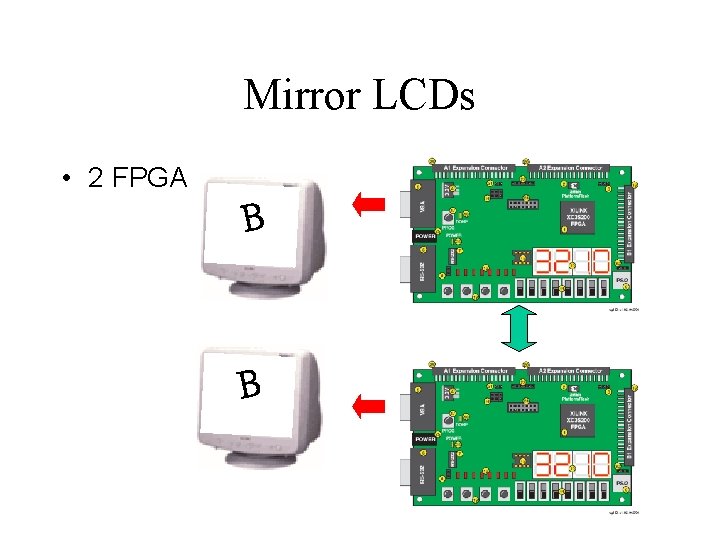

Mirror LCDs • 2 FPGA
Mirror LCDs • Member – 1~2 • The maximum number of teams – 2 • Grade – 85~99
File Transfer • Pass a File From FPGA to PC by RS 232
File Transfer • Member – 1~2 • The maximum number of teams – 2 • Grade – 85~95
Pi • Calculate and show 10000 digits of πin LCD
Pi • Member – 1~2 • The maximum number of teams – 2 • Grade – 85~99
Nokia 5110 • Show something on Nokia 5110
Nokia 5110 • Pins Not 5 V!

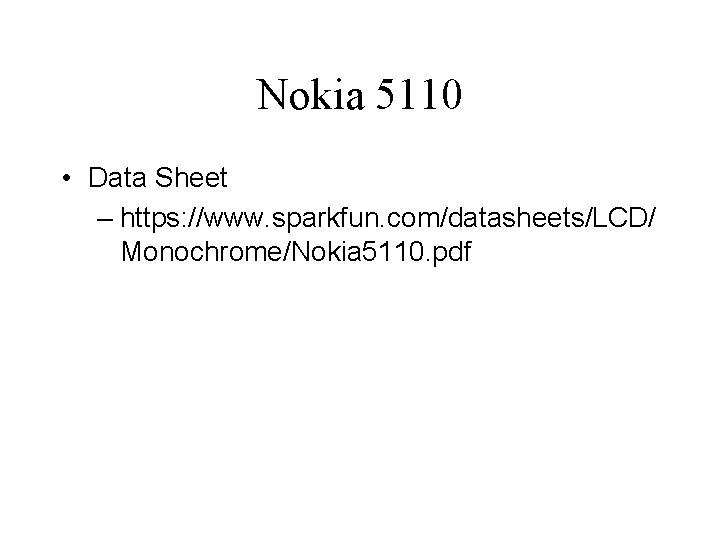

Nokia 5110 • Data Sheet – https: //www. sparkfun. com/datasheets/LCD/ Monochrome/Nokia 5110. pdf
Nokia 5110 • Member – 1~2 • The maximum number of teams – 2 • Grade – 90~99
