PROJECTIONS Orthographic drawings drawings where three views of
- Slides: 17
PROJECTIONS Orthographic drawings – drawings where three views of an object are drawn in perpendicular planes to one another.
ORTHOGRAPHIC DRAWINGS There are typically 3 views displayed in an Orthographic drawing Top Front Side
STANDARD VIEWS The top view of an object shows the width and depth dimensions. The front view of an object shows the width and height dimensions. The side view of an object shows the height and depth dimensions.
ORTHOGRAPHIC VIEWS Notice that the Top View is positioned above the front and they are aligned The Right Side view is positioned to the right of the front view and also aligned
ORTHOGRAPHIC VIEWS The most important view is the Front View You must determine which will be the front Choose the view that is the longest and the one with the most detail
MULTIVIEW DRAWING

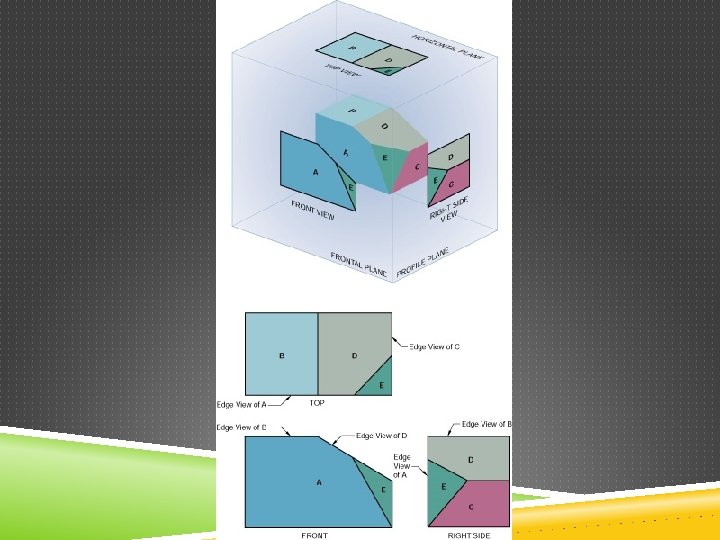

Orthographic Projection Orthographic projection is a technique that is used to create multiview drawings. Imagine a glass box
Try top view, side view and front view
Orthographic Projection A person standing in front of the object would see only the five corners identified in black. 2 3 1 4 ht g i f s gle o e n lin 0° a ction at 9 roje p to ne pla 5
Orthographic Projection lines are used to project each corner outward until they reach the projection plane.
Orthographic Projection The visible edges of the object are then identified on the projection plane by connecting the projected corners with object lines.
Orthographic Projection The orthographic projection process is then repeated on the other projection planes.
Completed Multiview Drawing Isometric (Pictorial) Orthographic
Object Line Layout
Draw the top view of all four objects. DO they have anything in common?
They all have identical top views!
