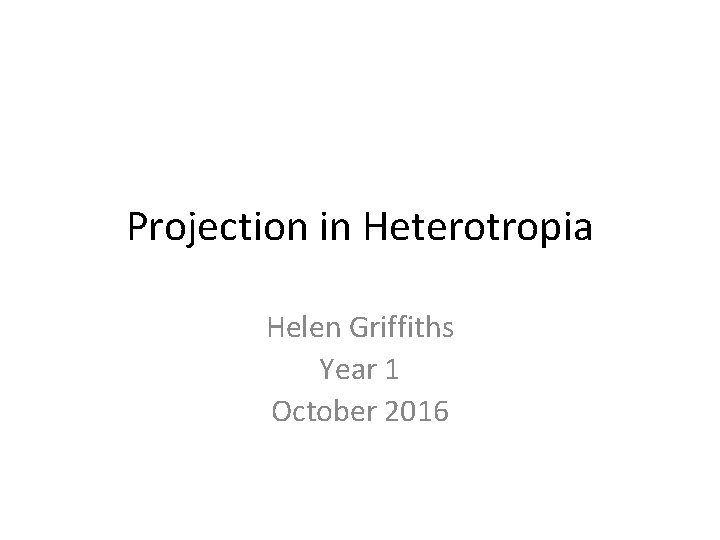

Projection in Heterotropia Helen Griffiths Year 1 October

Projection in Heterotropia Helen Griffiths Year 1 October 2016

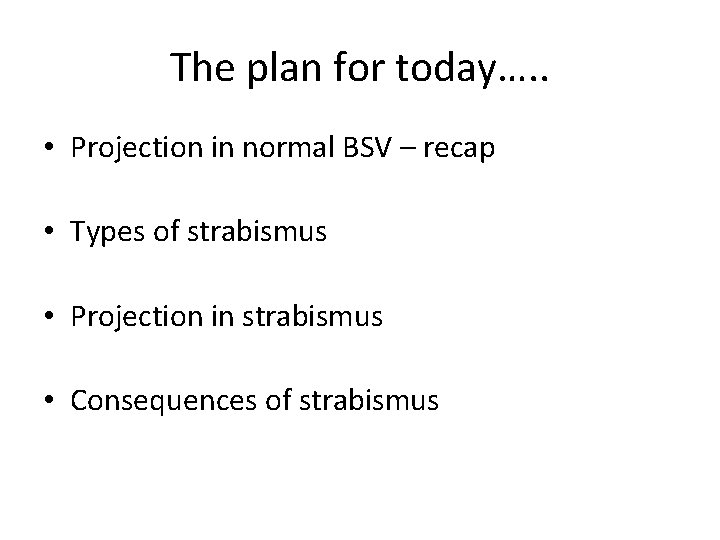

The plan for today…. . • Projection in normal BSV – recap • Types of strabismus • Projection in strabismus • Consequences of strabismus

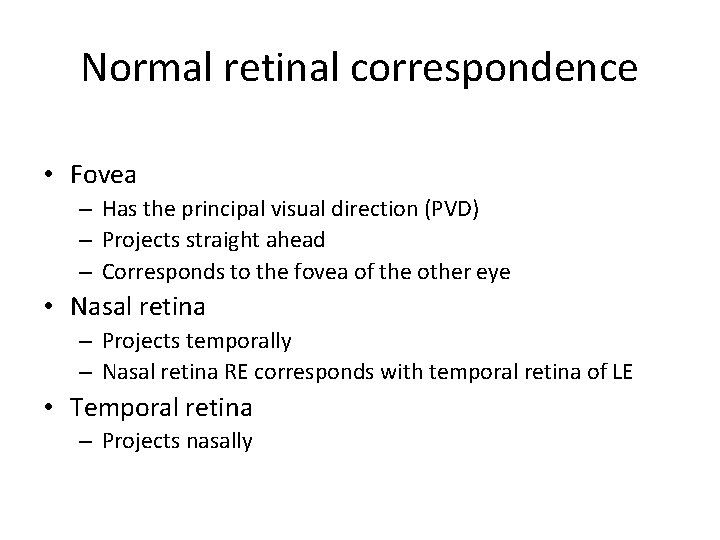

Normal retinal correspondence • Fovea – Has the principal visual direction (PVD) – Projects straight ahead – Corresponds to the fovea of the other eye • Nasal retina – Projects temporally – Nasal retina RE corresponds with temporal retina of LE • Temporal retina – Projects nasally

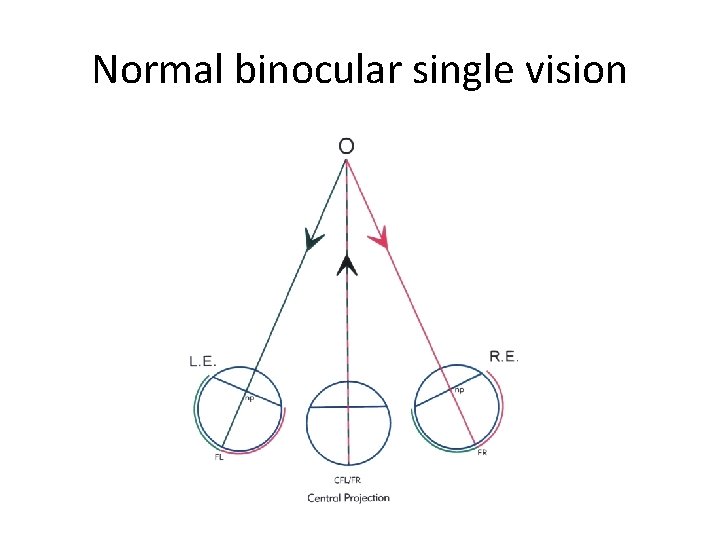

Normal binocular single vision

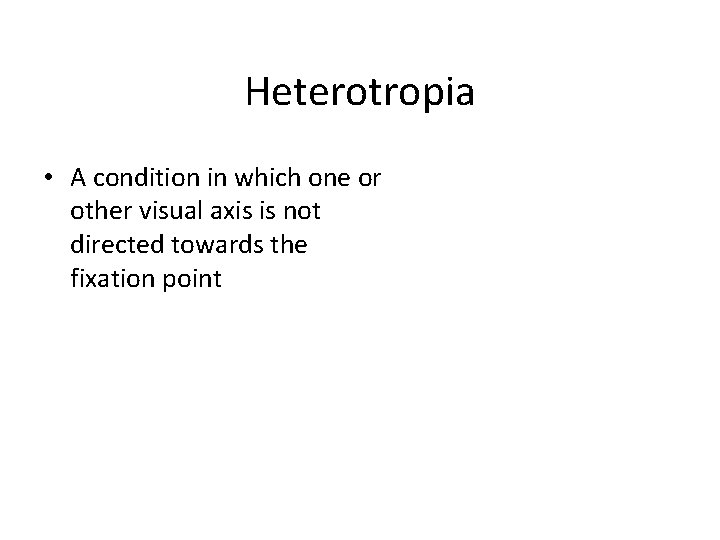

Heterotropia • A condition in which one or other visual axis is not directed towards the fixation point

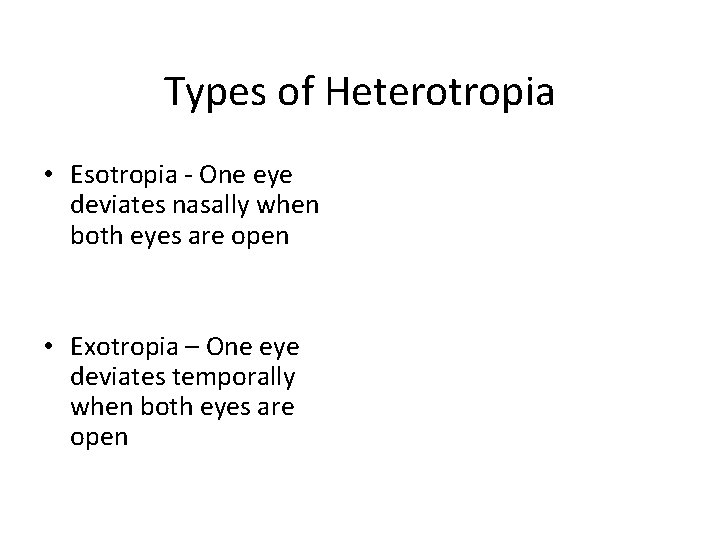

Types of Heterotropia • Esotropia - One eye deviates nasally when both eyes are open • Exotropia – One eye deviates temporally when both eyes are open

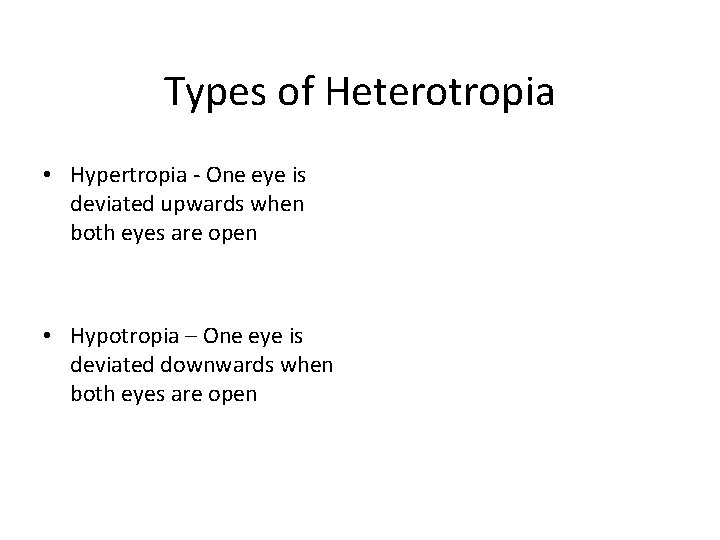

Types of Heterotropia • Hypertropia - One eye is deviated upwards when both eyes are open • Hypotropia – One eye is deviated downwards when both eyes are open

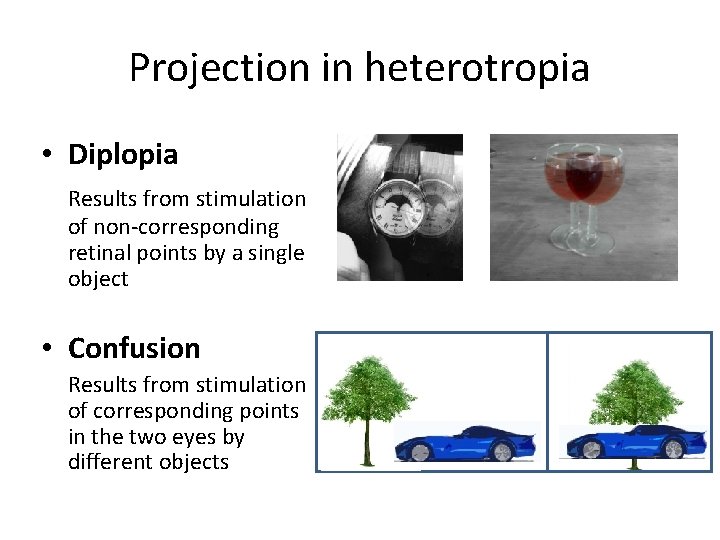

Projection in heterotropia • Diplopia Results from stimulation of non-corresponding retinal points by a single object • Confusion Results from stimulation of corresponding points in the two eyes by different objects

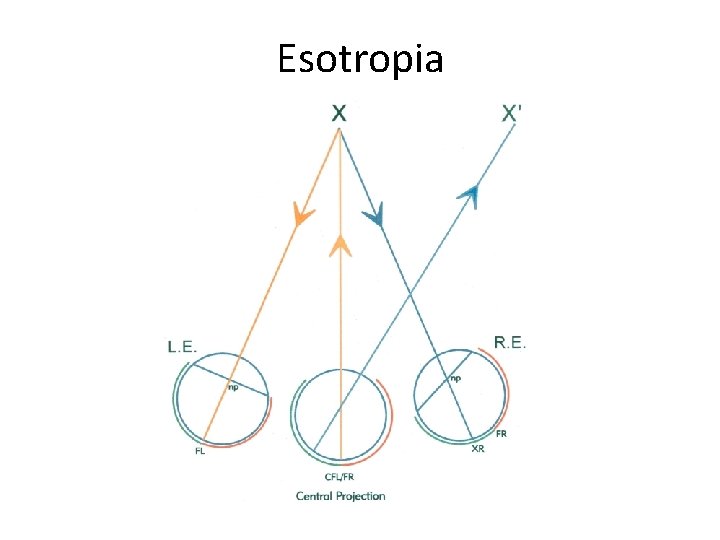

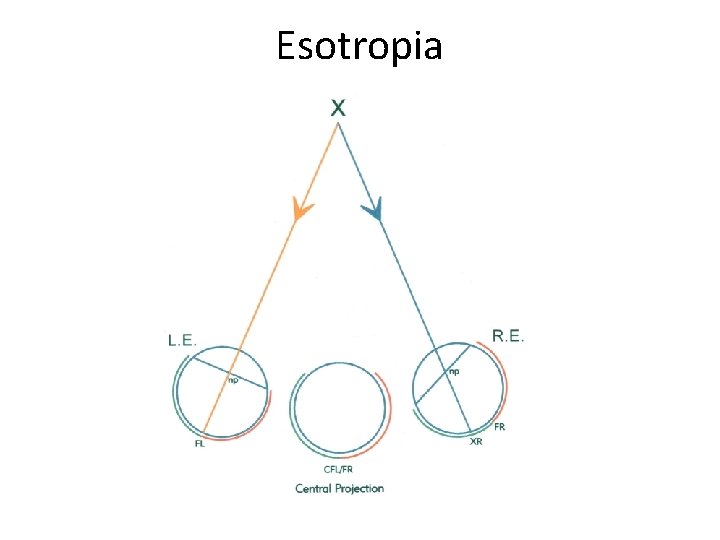

Esotropia

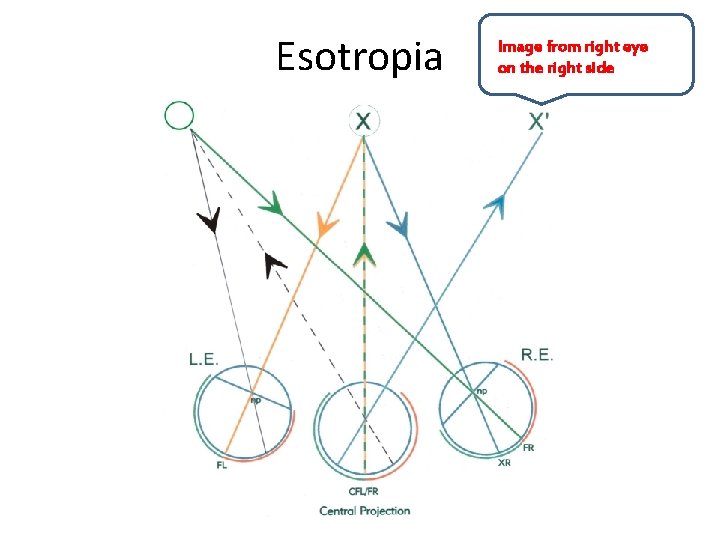

Esotropia Image from right eye on the right side

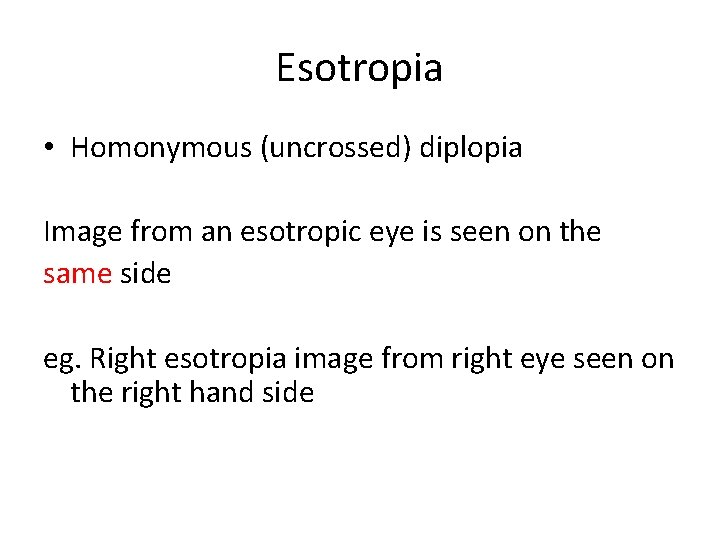

Esotropia • Homonymous (uncrossed) diplopia Image from an esotropic eye is seen on the same side eg. Right esotropia image from right eye seen on the right hand side

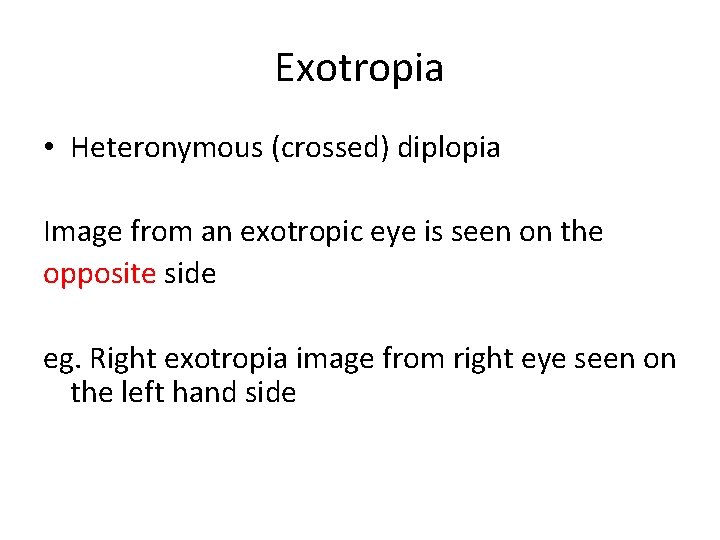

Exotropia • Heteronymous (crossed) diplopia Image from an exotropic eye is seen on the opposite side eg. Right exotropia image from right eye seen on the left hand side

Draw the following: Projection diagram: Right XT with normal retinal correspondence

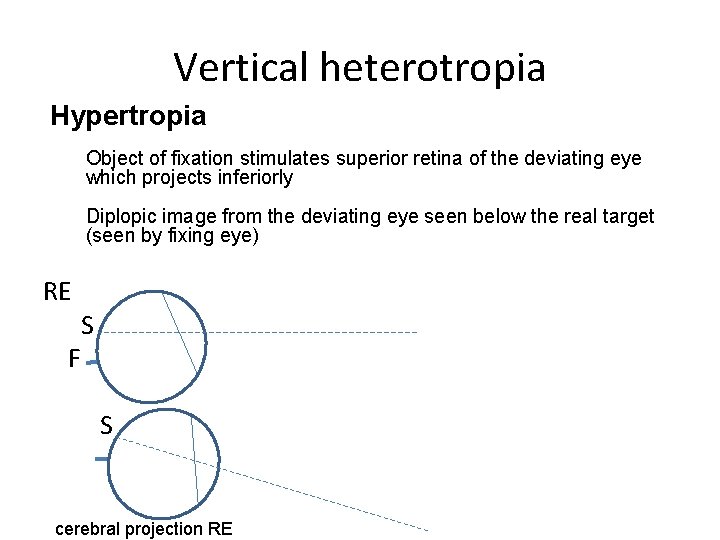

Vertical heterotropia Hypertropia Object of fixation stimulates superior retina of the deviating eye which projects inferiorly Diplopic image from the deviating eye seen below the real target (seen by fixing eye) RE S F S cerebral projection RE

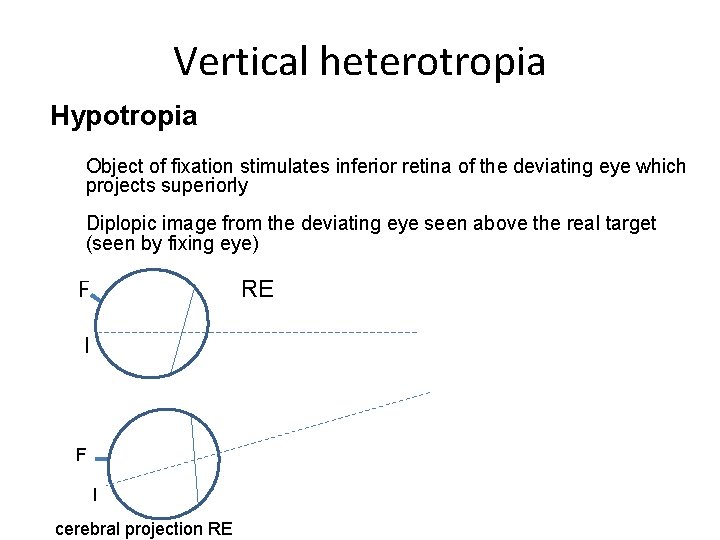

Vertical heterotropia Hypotropia Object of fixation stimulates inferior retina of the deviating eye which projects superiorly Diplopic image from the deviating eye seen above the real target (seen by fixing eye) F RE I F I cerebral projection RE

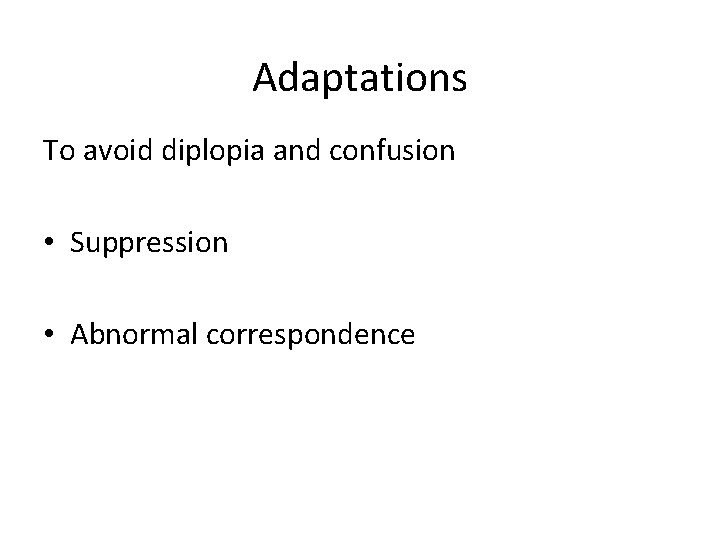

Adaptations To avoid diplopia and confusion • Suppression • Abnormal correspondence

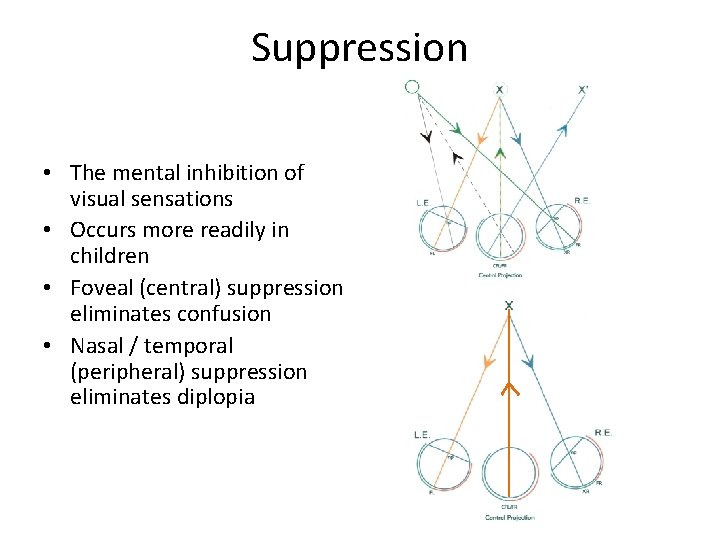

Suppression • The mental inhibition of visual sensations • Occurs more readily in children • Foveal (central) suppression eliminates confusion • Nasal / temporal (peripheral) suppression eliminates diplopia

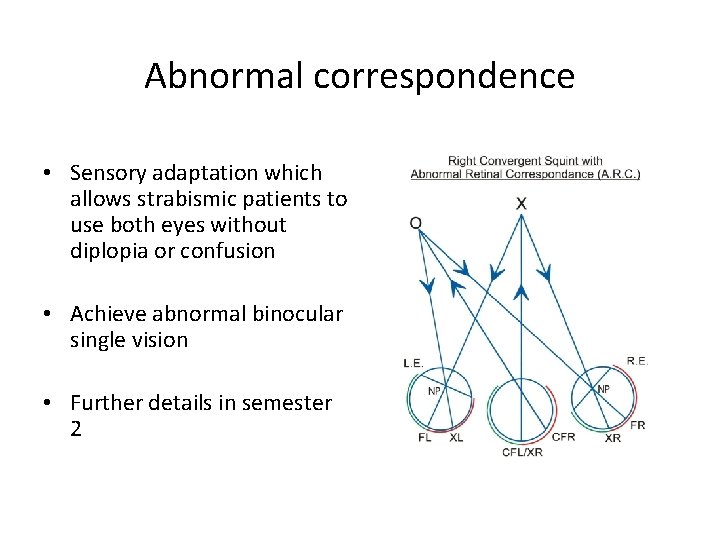

Abnormal correspondence • Sensory adaptation which allows strabismic patients to use both eyes without diplopia or confusion • Achieve abnormal binocular single vision • Further details in semester 2

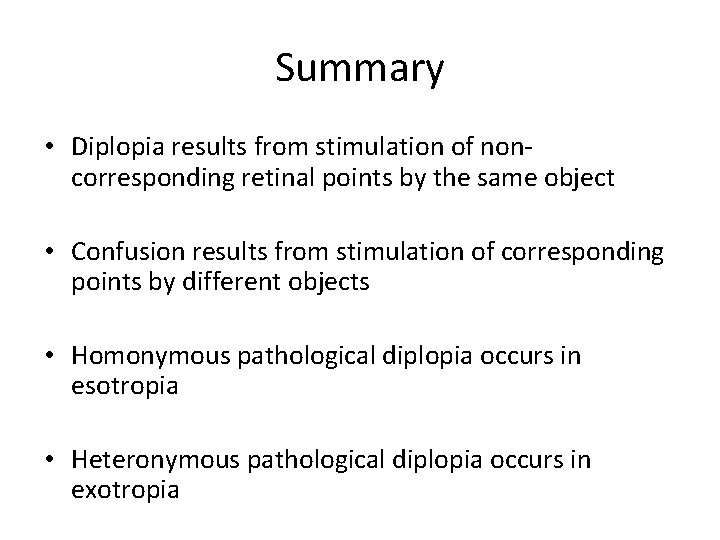

Summary • Diplopia results from stimulation of noncorresponding retinal points by the same object • Confusion results from stimulation of corresponding points by different objects • Homonymous pathological diplopia occurs in esotropia • Heteronymous pathological diplopia occurs in exotropia

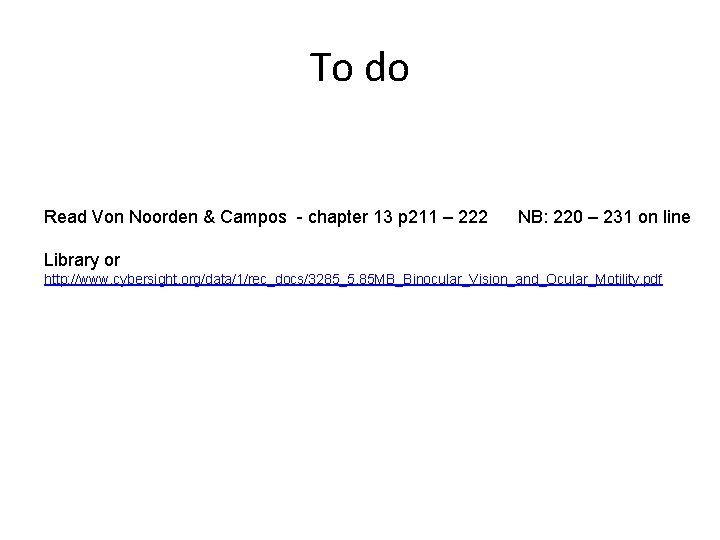

To do Read Von Noorden & Campos - chapter 13 p 211 – 222 NB: 220 – 231 on line Library or http: //www. cybersight. org/data/1/rec_docs/3285_5. 85 MB_Binocular_Vision_and_Ocular_Motility. pdf
