Project Snape October 2016 Objective of Snape To

Project Snape October 2016

Objective of Snape To help the stores increase in Happyplus availability and increase sales opportunity by using the new 3 -in 1 Terminal for Credit Card, Debit and Happyplus for Dine In and Delivery.

Flow of Discussion • Overview of the project • SOD – New Happyplus Opening Procedure • Operations – New Payment Process for Credit Card – New Payment Process for Happyplus • EOD – POS EOD – Terminal EOD • Reports

Overview of the Project • Replacement of Ldevice and VR Reader setup for HP and CC Terminal • Phase 1 Non-integrated POS-Terminal Transaction – Use of Ingenico 3 in 1 Terminal for Credit Card and Happyplus Transactions – Encoding of transactional information to the POS to tender Credit Card or Happyplus payment

3 in 1 Ingenico i. WL 250 Terminal • Wireless 3 in 1 (Swipe, Insert and Tap) Terminal. • GPRS Connectivity (Globe/Smart)

Terminologies to Remember

Credit Card Receipt 3 Copies: 1 Bank Copy 1 Merchant Copy 1 Customer Copy

Happyplus Receipt 2 Copies: 1 Merchant Copy 1 Customer Copy

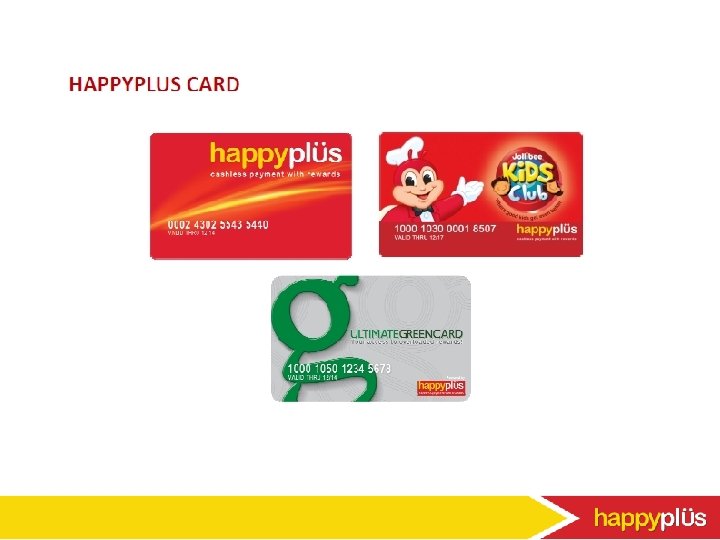

Card Types • Credit Cards – Mastercard – Visa – Diners • Happyplus Card – Happyplus Red Card – Happyplus JKC Card – Happyplus Green Card

SOD of Happyplus • No more six steps • Just turn on the device and ensure Authentication receipt is printed • Ensure terminal is authenticated during SOD for online availability and monitoring.

Payment Process for Dine In Credit Card

Punch Customer’s Orders

Select Payment Order

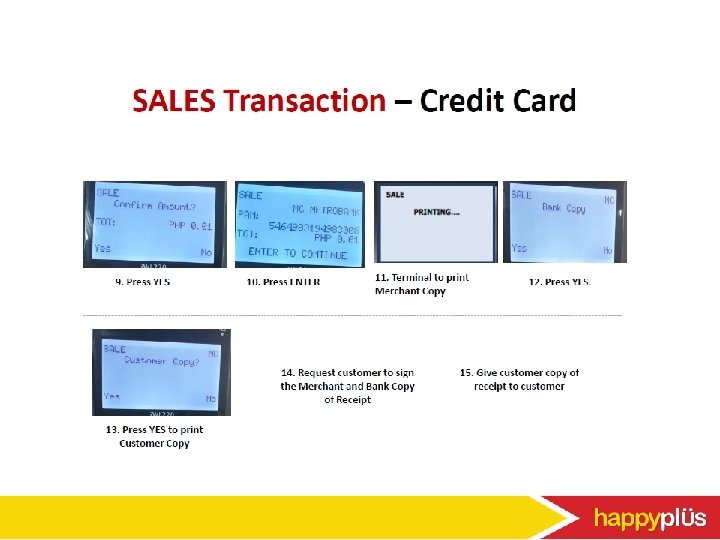

Proceed to the 3 in 1 Terminal to perform CC Transaction.

Go Back to the POS and Select Credit Card Type

Enter Manager’s Code and Password.

Encode Invoice Number for the Appr. Code and Amount

Encode Table Number:

Encode Customer’s Name:

Payment Process for Dine. In/Take. Out Happyplus using Happy Load (Please see video)

Cashier Cut-Off/EOD

Proceed to the BOS.

Click Store Operations then click Card Transaction Entry.

Select the start and end date of the report then select transaction type before click OK.

Select the transaction to review and verfiy Invoice and/or TID number click OK.

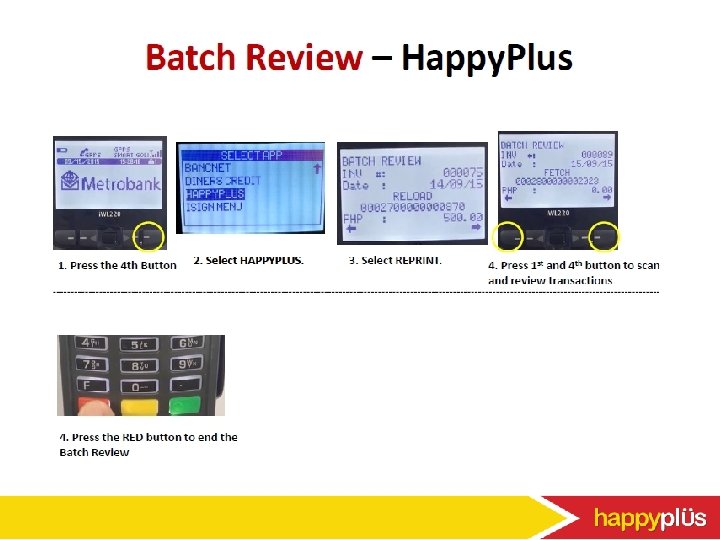

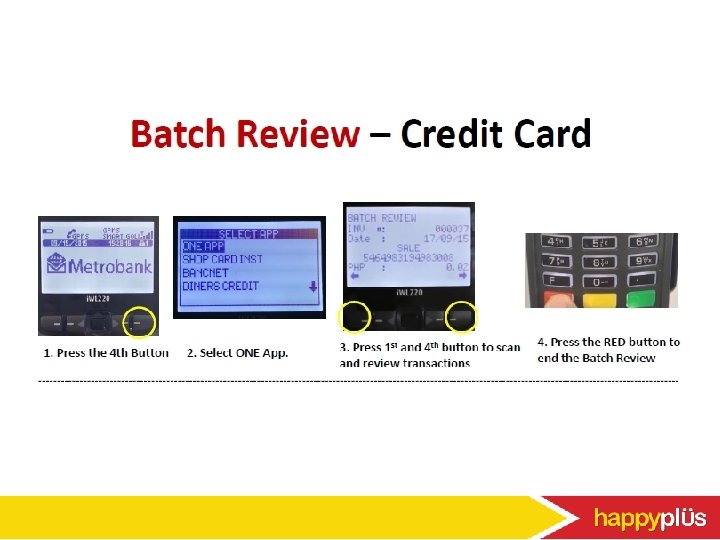

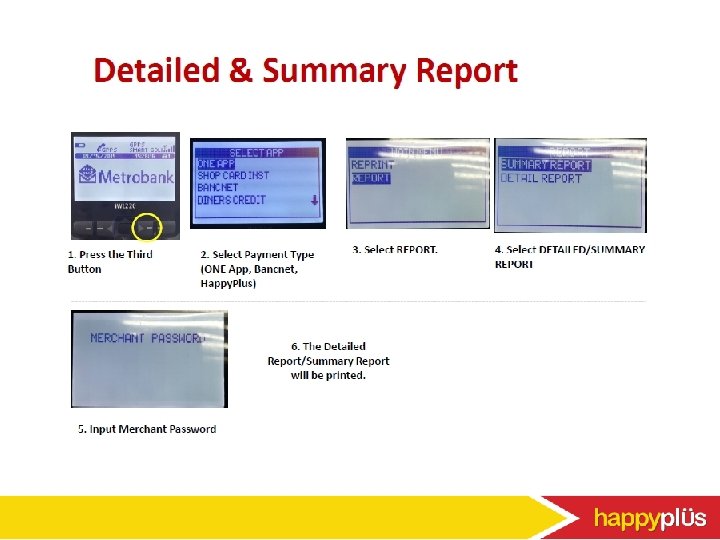

• Ensure that all approval codes are encoded correctly on each credit Card and Happyplus transactions. • Use the Terminal Batch Review and Detailed Report • Manager’s name is indicated if the transactions are verified. • Cashier Cut-off/EOD will not push if there are unverified transactions.

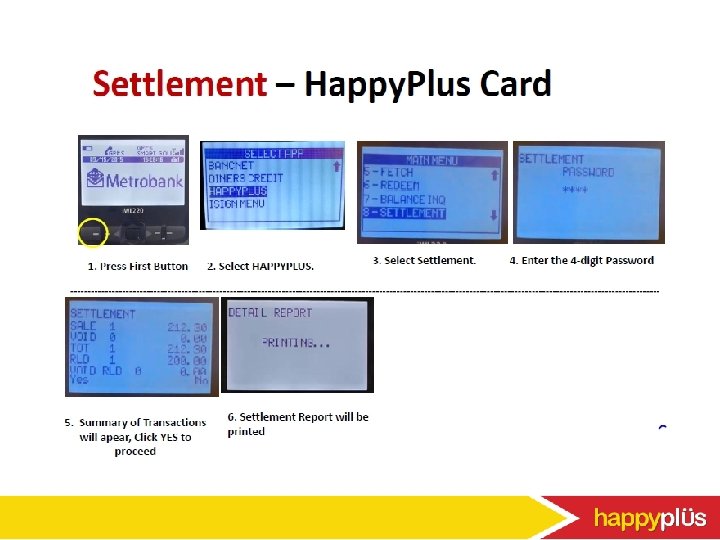

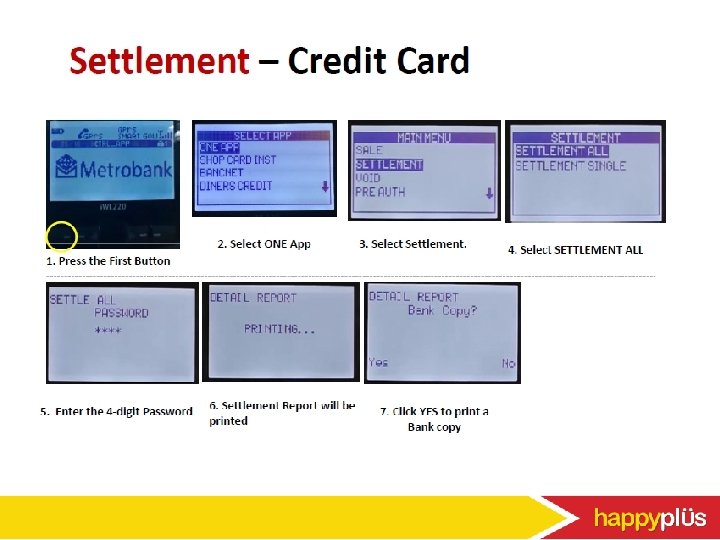

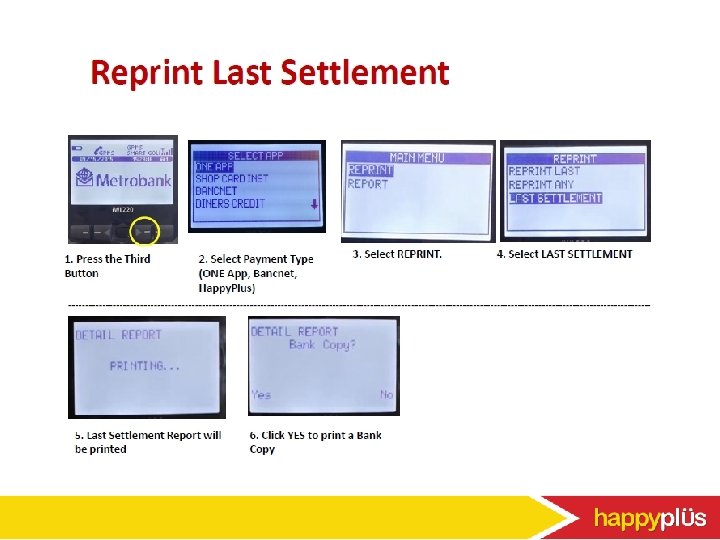

Terminal EOD • Perform separate Settlement for Credit Card and Happyplus for each terminals.

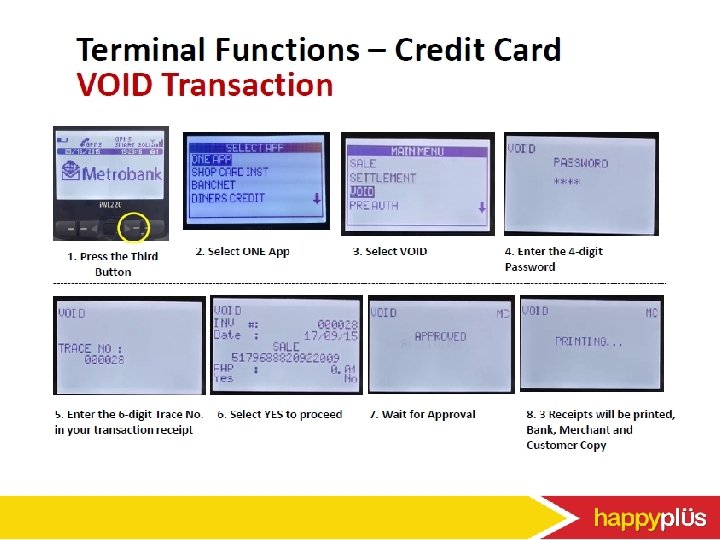

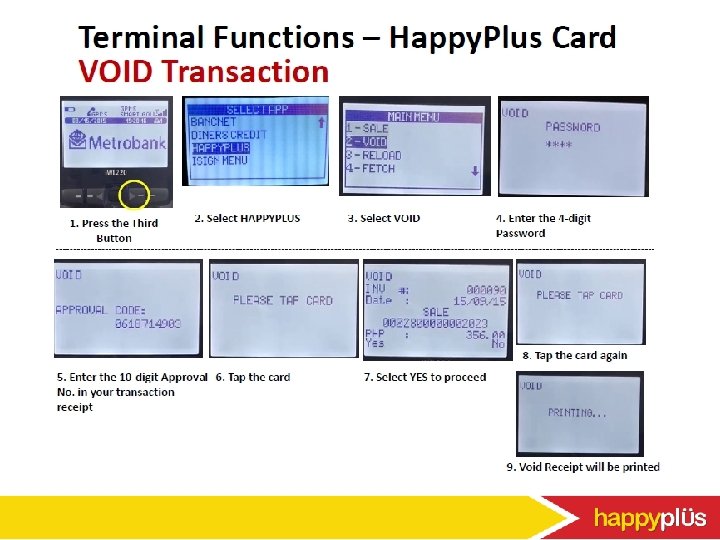

• Business Rule: No VOID for Reload • Follow Last In – First Out in Voiding

MCC Support Team • For merchants’ supplies / POS terminal concerns: – 8 -700 -999 (24 hour help desk) – 0998 963 5258 (SMS Hotline, available Mon-Fri, 830 -530 pm)

Happyplus Support Team For Escalation: • Email: storesupport@happyplus. com. ph • CP#: 09285597351 Mike Tagasa Email: mike. tagasa@jollibee. com. ph CP#: 09088861458

Deployment • IM Team will send ANSI POS SNAPE update via ftp. • GHL Team will deliver the 3 in 1 terminal to store. – – Perform signal testing for Smart/Globe Perform credit card and Happyplus test transactions MOD will sign the test receipts as proof Endorse the Terminal, charger and thermal paper rolls 3 packs – Pullout of Ldevice and VR readers. • NOTE: Do not accept HP Transactions if POS is not updated or terminal are not delivered.
