Project Organization Project Organization Specialization of the human

Project Organization

Project Organization • Specialization of the human elements • Functional division, product line, geographical location, production process, type of customer, subsidiary organization, time, vertical or horizontal organization • How to tie project to the parent firm • How to organize the project itself

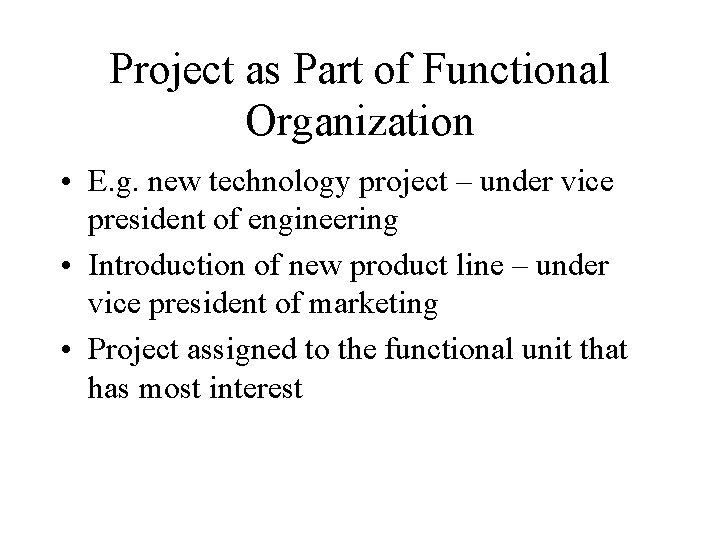

Project as Part of Functional Organization • E. g. new technology project – under vice president of engineering • Introduction of new product line – under vice president of marketing • Project assigned to the functional unit that has most interest

President VP Finance VP Marketing VP Manufacturing VP Engineering

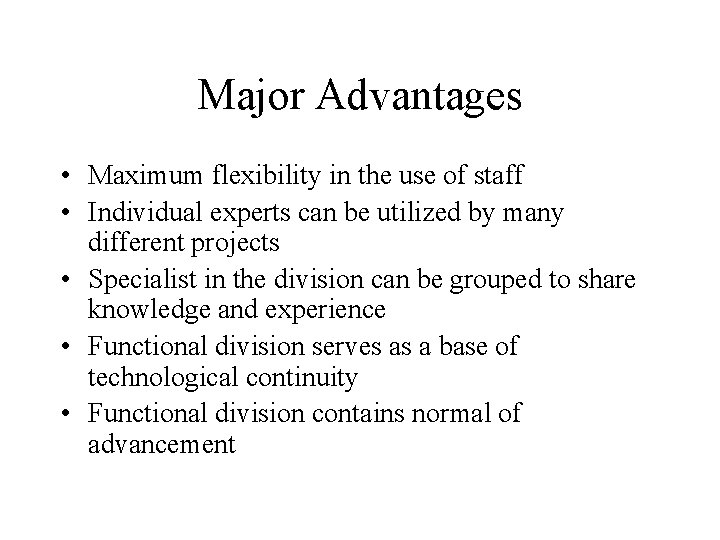

Major Advantages • Maximum flexibility in the use of staff • Individual experts can be utilized by many different projects • Specialist in the division can be grouped to share knowledge and experience • Functional division serves as a base of technological continuity • Functional division contains normal of advancement

Disadvantages • The client is not the focus of activity and concern • Tend to be oriented towards functional activities • No individual is given full responsibility for the project • Slow response to client’s needs • Tendency to sub-optimize the project • Motivation of project team is weak • Does not facilitate a holistic approach to the project

Project Organization • Project is separated from the rest of the parent system • Becomes self contained unit

Advantages • PM has full line authority over the project • All project workforce directly responsible to the PM • Lines of communication are shortened • Maintain permanent group of experts • High level of commitment • Ability to make swift decisions • Unity of command • Simple and flexible structure • Support holistic approach to the project

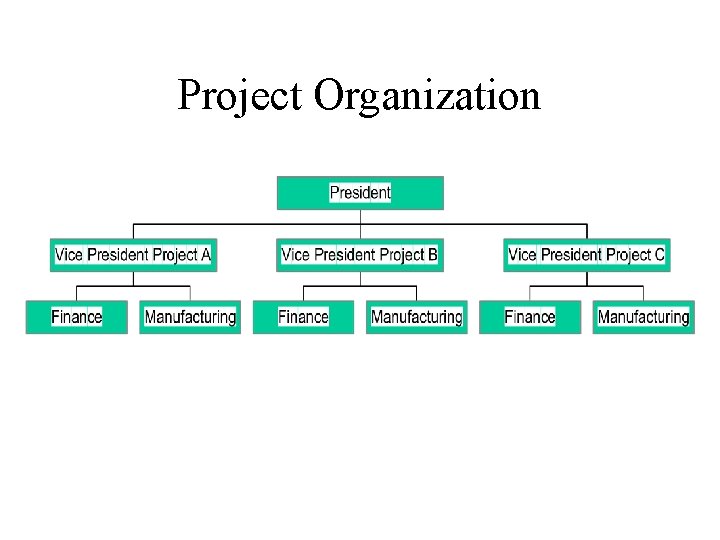

Project Organization

Disadvantages • Duplication of effort • Stockpile equipment and technical assistance “just in case” • Lack of expertise in high technology project • Foster inconsistency and cutting corners • Project takes on a life of its own • Worry about “life after project ends”

Matrix Organization • Combination of functional and pure project organizations • Matrix project is not separated from parent organizations • Individuals come from respective functions divisions and are assigned to the project full time or part time

Matrix Organization President Manufacturing PM 1 PM 2 PM 3 Program Manager R&D Marketing

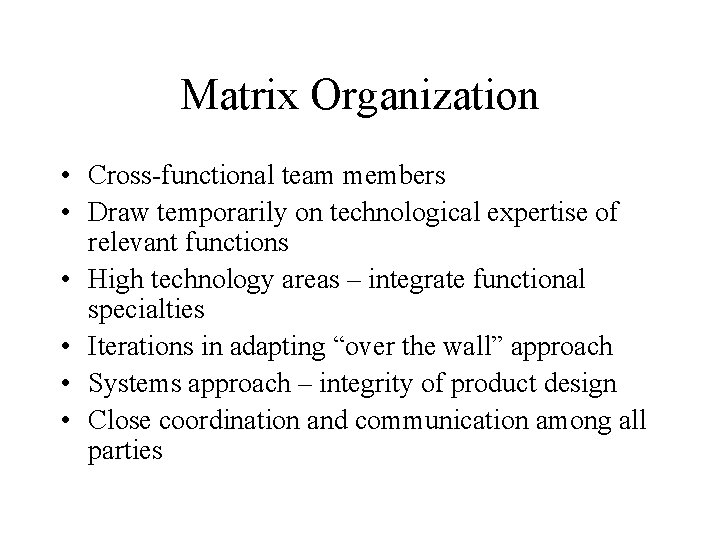

Matrix Organization • Cross-functional team members • Draw temporarily on technological expertise of relevant functions • High technology areas – integrate functional specialties • Iterations in adapting “over the wall” approach • Systems approach – integrity of product design • Close coordination and communication among all parties

Advantages of Matrix Approach • The project is the point of emphasis • Reasonable access t pools of technical talents • Less anxiety about what happens after project completion • Rapid response to client needs • Access to administrative units of the parent firms • Better balance of company resources in multiple projects • Flexibility in control

Disadvantages • • Delicate balance of power Movement of resources – conflict Projects resist death Complex division of authority and responsibility • Violates the principle of unity of command

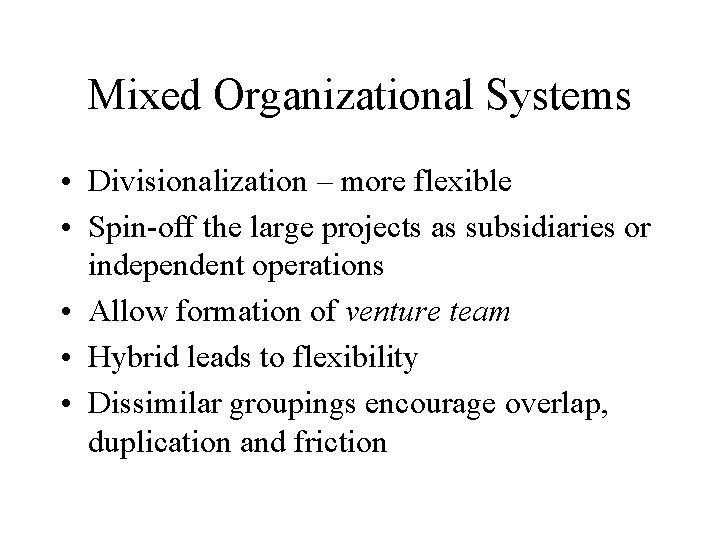

Mixed Organizational Systems • Divisionalization – more flexible • Spin-off the large projects as subsidiaries or independent operations • Allow formation of venture team • Hybrid leads to flexibility • Dissimilar groupings encourage overlap, duplication and friction

Mixed Organization

Staff Organization • Set up like functional organization • Adds a staff office to administer projects • Used for small, short run projects

Staff Organization President Project S Finance Manufacturing Engineering

Choosing an Organizational Form • Functional form – major focus on in-depth technology, require large capital investment • Pure project – large number of similar projects • Matrix organization – require integration of inputs from several functional areas and involves reasonably sophisticated technology and several projects must share technical expertise • Matrix organizations are complex

Selection of Project Organization • Define the project / objectives • Determine the key tasks • Arrange key tasks by sequence and decompose them into work packages • Determine project subsystems • List special characteristics – level of technology, probable length, resource requirements, level of outsourcing

Project Team • Project office – control center, chart room (focus of all project activity) • Close location to project manager • Co-location of external parties • Reduce physical distance • Better communication • Pressure to complete tasks

Key Team Members • • • Project Engineer Manufacturing Engineer Field Manager Contract Administrator Project Controller Support Services Manager

Work Organization • Project engineer (technical performance) and project controller (budget) report to PM • PM forecast of personnel needs • Prepare WBS to determine exact nature of tasks • Skills requirements are assessed and aggregated • Outsourcing of certain tasks

Typical Organization of Engineering Projects

Staff Critical to Project Success • Senior project team members • Staffs whom the PM will require close communication • Staffs with rare skills for project success

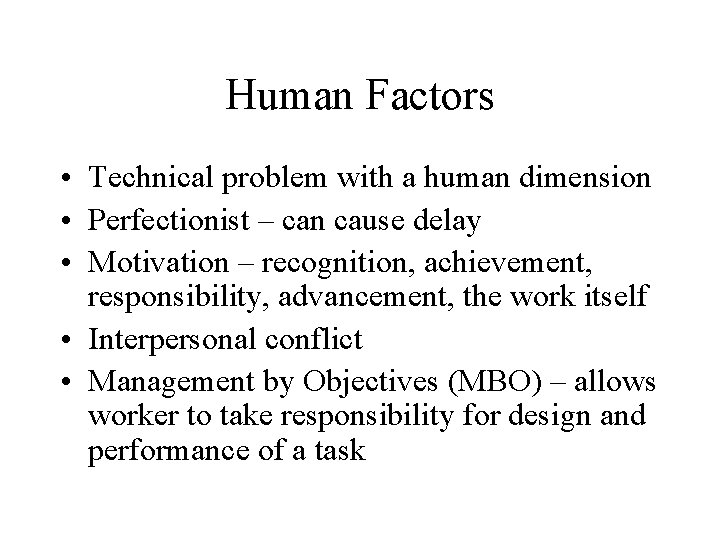

Human Factors • Technical problem with a human dimension • Perfectionist – can cause delay • Motivation – recognition, achievement, responsibility, advancement, the work itself • Interpersonal conflict • Management by Objectives (MBO) – allows worker to take responsibility for design and performance of a task

Advantages of MBO • • Participative mechanism Allow professionals to design their own method Team members know what is expected of them Members have the opportunity to participate in deciding their own responsibilities • Members get timely feedback on their performance • Project manager is provided a tool for evaluating and controlling performance

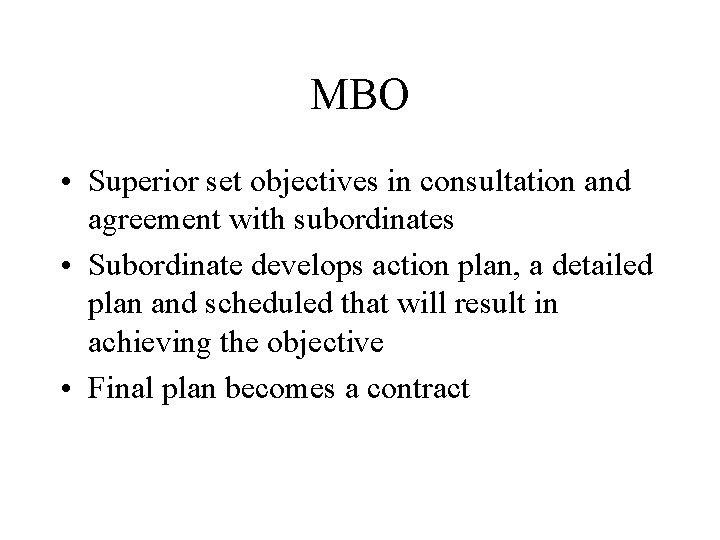

MBO • Superior set objectives in consultation and agreement with subordinates • Subordinate develops action plan, a detailed plan and scheduled that will result in achieving the objective • Final plan becomes a contract

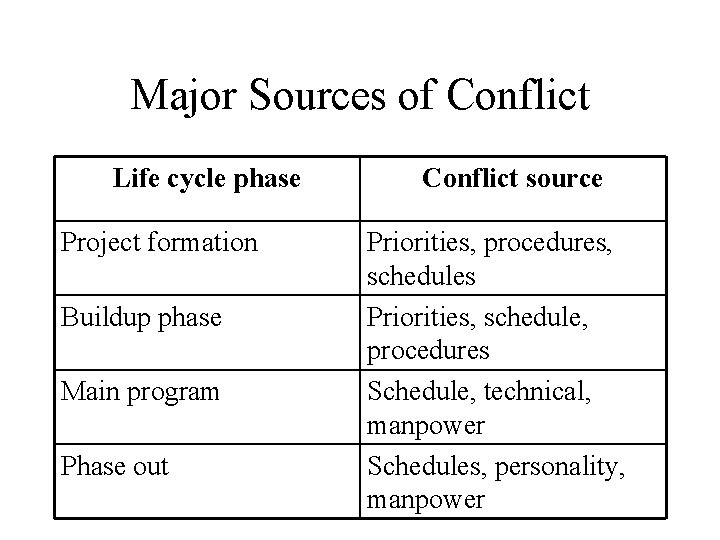

Major Sources of Conflict Life cycle phase Project formation Buildup phase Main program Phase out Conflict source Priorities, procedures, schedules Priorities, schedule, procedures Schedule, technical, manpower Schedules, personality, manpower
