Project Manager, Defense Message System - Army DMS-Army Classified Messaging Concept 0 10 70 60 20 50 30 40 02/26/98 Page 1

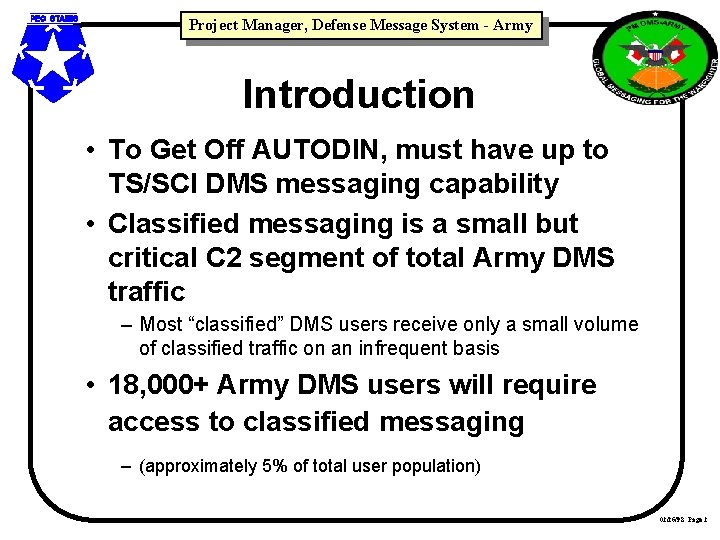

Project Manager, Defense Message System - Army Introduction • To Get Off AUTODIN, must have up to TS/SCI DMS messaging capability • Classified messaging is a small but critical C 2 segment of total Army DMS traffic – Most “classified” DMS users receive only a small volume of classified traffic on an infrequent basis • 18, 000+ Army DMS users will require access to classified messaging – (approximately 5% of total user population) 02/26/98 Page 2

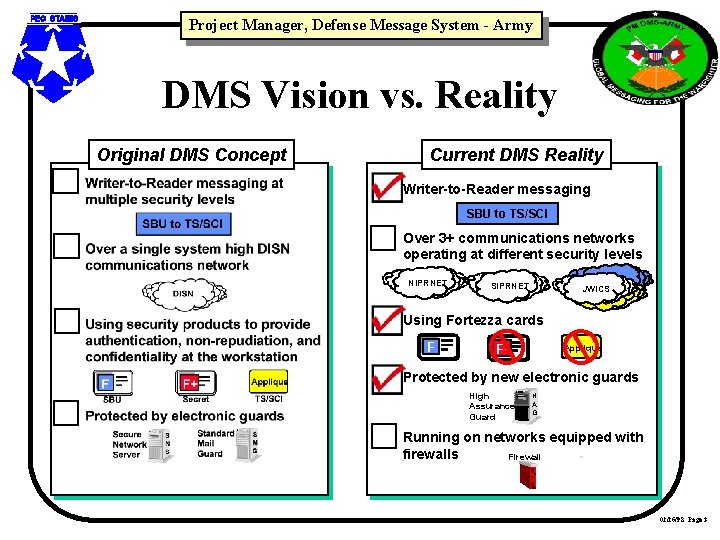

Project Manager, Defense Message System - Army DMS Vision vs. Reality Original DMS Concept Current DMS Reality Writer-to-Reader messaging SBU to TS/SCI Over 3+ communications networks operating at different security levels NIPRNET SIPRNET JWICS Using Fortezza cards F F+ Applique Protected by new electronic guards High Assurance Guard H A G Running on networks equipped with firewalls Firewall 02/26/98 Page 3

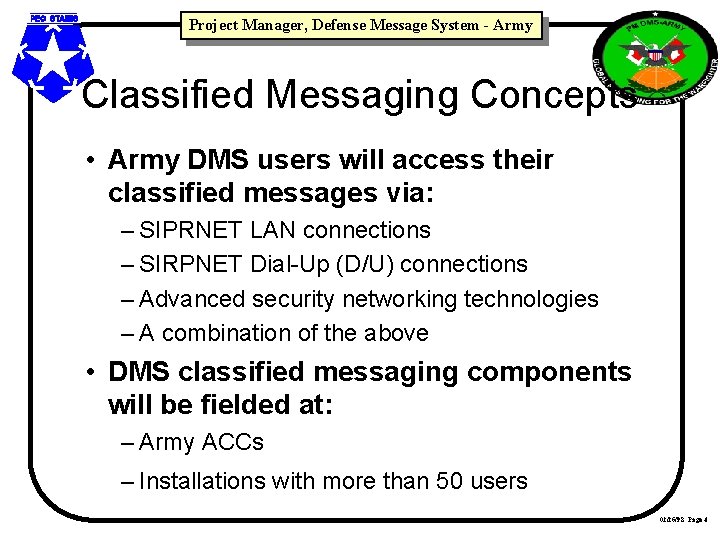

Project Manager, Defense Message System - Army Classified Messaging Concepts • Army DMS users will access their classified messages via: – SIPRNET LAN connections – SIRPNET Dial-Up (D/U) connections – Advanced security networking technologies – A combination of the above • DMS classified messaging components will be fielded at: – Army ACCs – Installations with more than 50 users 02/26/98 Page 4

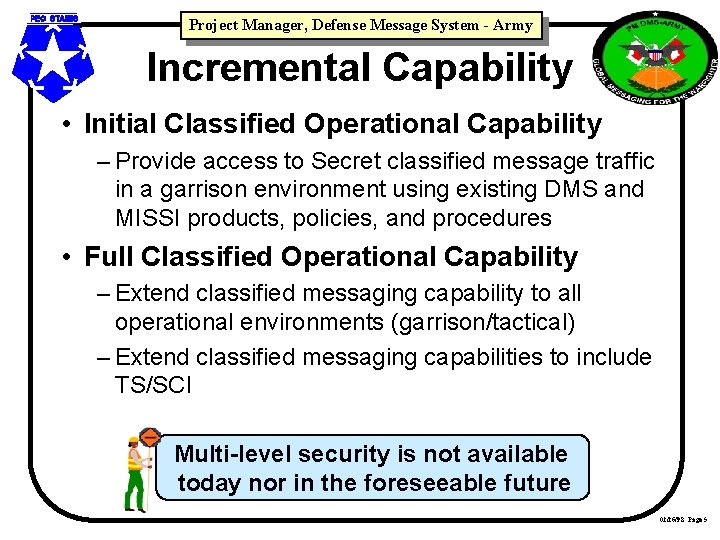

Project Manager, Defense Message System - Army Incremental Capability • Initial Classified Operational Capability – Provide access to Secret classified message traffic in a garrison environment using existing DMS and MISSI products, policies, and procedures • Full Classified Operational Capability – Extend classified messaging capability to all operational environments (garrison/tactical) – Extend classified messaging capabilities to include TS/SCI Multi-level security is not available today nor in the foreseeable future 02/26/98 Page 5

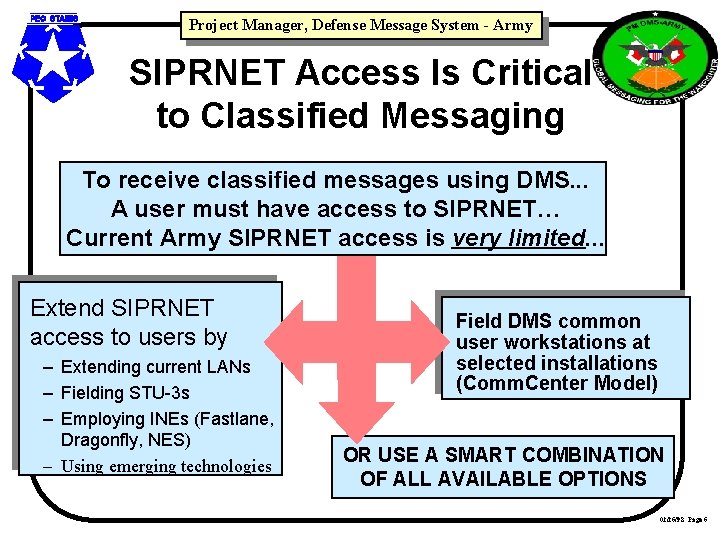

Project Manager, Defense Message System - Army SIPRNET Access Is Critical to Classified Messaging To receive classified messages using DMS. . . A user must have access to SIPRNET… Current Army SIPRNET access is very limited. . . Extend SIPRNET access to users by – Extending current LANs – Fielding STU-3 s – Employing INEs (Fastlane, Dragonfly, NES) – Using emerging technologies Field DMS common user workstations at selected installations (Comm. Center Model) OR USE A SMART COMBINATION OF ALL AVAILABLE OPTIONS 02/26/98 Page 6

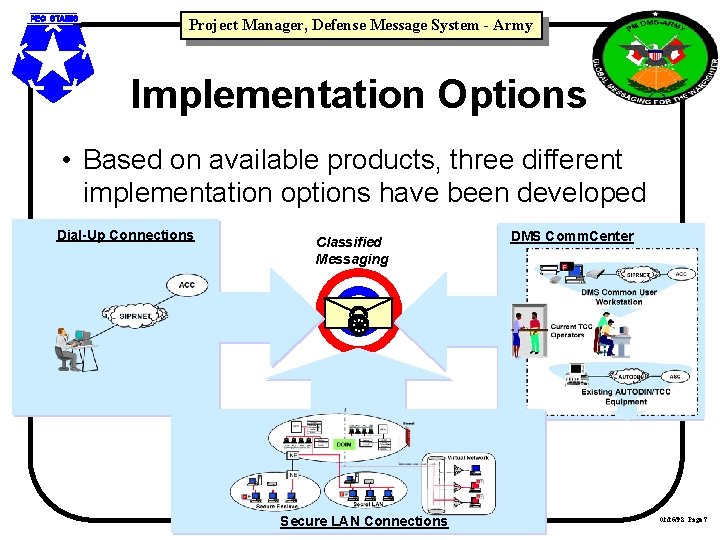

Project Manager, Defense Message System - Army Implementation Options • Based on available products, three different implementation options have been developed Dial-Up Connections Classified Messaging 0 70 DMS Comm. Center 10 60 20 50 40 30 Secure LAN Connections 02/26/98 Page 7

Project Manager, Defense Message System - Army Classified Messaging Topologies PUA SMS MLA MFI (option) (UA) LMTA Dial-Up (164) X. 400 Primary S Groupware. M T Server P Dial-Up Native Groupware Server ACC (5) Native NIPRNET Installation (124) LMTA X. 400 Primary S Groupware. M T Server P PUA MLA MFI SMS (option)(option)(UA) Firewall LMTA Native PUA SMS MLA MFI (option) (UA) Native Groupware Server DOIM Native Groupware Server X. 400 Primary S M Groupware Server TP Native INE Virtual Network INE Secure Enclave Secret LAN 02/26/98 Page 8

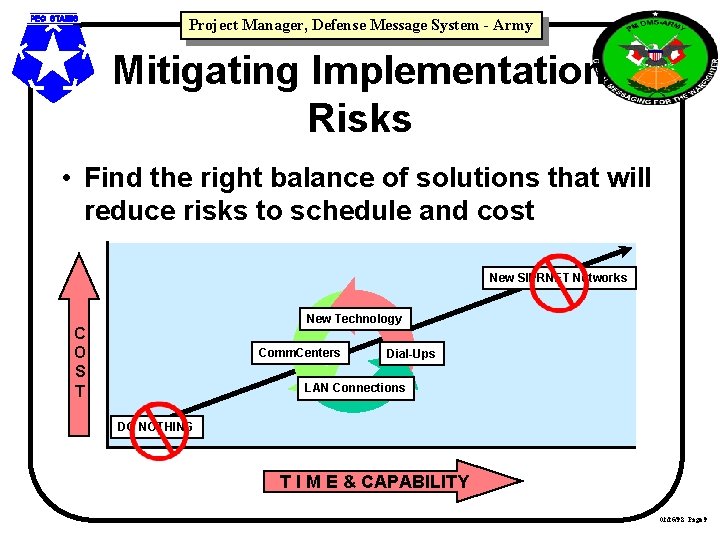

Project Manager, Defense Message System - Army Mitigating Implementation Risks • Find the right balance of solutions that will reduce risks to schedule and cost New SIPRNET Networks New Technology C O S T Comm. Centers Dial-Ups LAN Connections DO NOTHING T I M E & CAPABILITY 02/26/98 Page 9

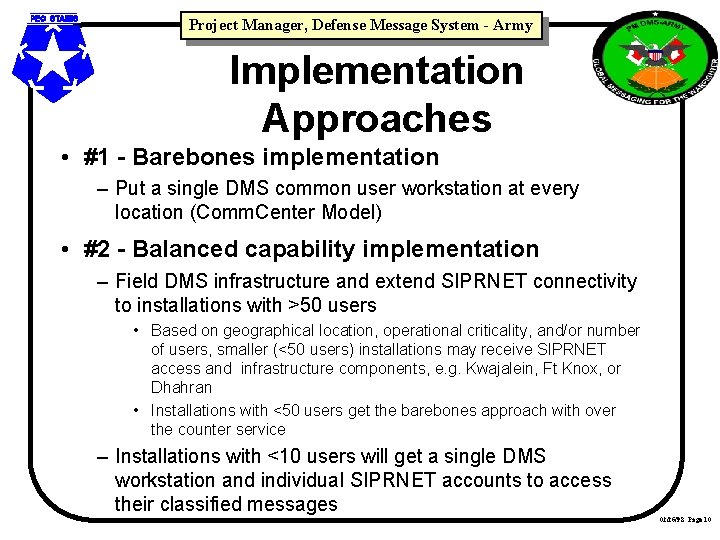

Project Manager, Defense Message System - Army Implementation Approaches • #1 - Barebones implementation – Put a single DMS common user workstation at every location (Comm. Center Model) • #2 - Balanced capability implementation – Field DMS infrastructure and extend SIPRNET connectivity to installations with >50 users • Based on geographical location, operational criticality, and/or number of users, smaller (<50 users) installations may receive SIPRNET access and infrastructure components, e. g. Kwajalein, Ft Knox, or Dhahran • Installations with <50 users get the barebones approach with over the counter service – Installations with <10 users will get a single DMS workstation and individual SIPRNET accounts to access their classified messages 02/26/98 Page 10

Project Manager, Defense Message System - Army Worldwide “Barebones” Implementation Dial-Up Comm. Center - 124 Installations - 15, 676 Users supported - $856, 964 (installation) - $979, 284 (fees/year) - $3, 724, 340 (personnel/year) 0 70 60 10 - 164 Installations - 2, 680 Users supported - $448, 540 (installation) - $53, 136 (fees/year) All Solutions 20 50 40 30 - 288 Installations - 18, 356 Users supported - $1, 305, 504 (installation) - $1, 032, 420 (fees/year) - $3, 724, 340 (personnel/year) 02/26/98 Page 11

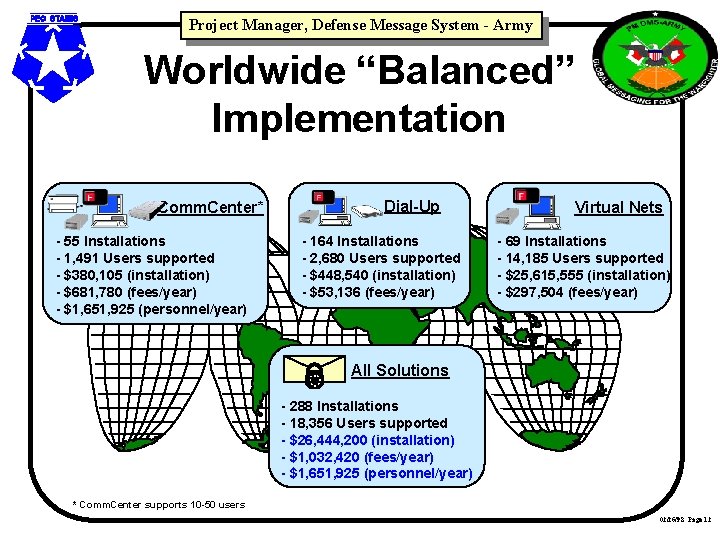

Project Manager, Defense Message System - Army Worldwide “Balanced” Implementation Dial-Up Comm. Center* - 55 Installations - 1, 491 Users supported - $380, 105 (installation) - $681, 780 (fees/year) - $1, 651, 925 (personnel/year) - 164 Installations - 2, 680 Users supported - $448, 540 (installation) - $53, 136 (fees/year) 0 70 60 10 Virtual Nets - 69 Installations - 14, 185 Users supported - $25, 615, 555 (installation) - $297, 504 (fees/year) All Solutions 20 50 40 30 - 288 Installations - 18, 356 Users supported - $26, 444, 200 (installation) - $1, 032, 420 (fees/year) - $1, 651, 925 (personnel/year) * Comm. Center supports 10 -50 users 02/26/98 Page 12

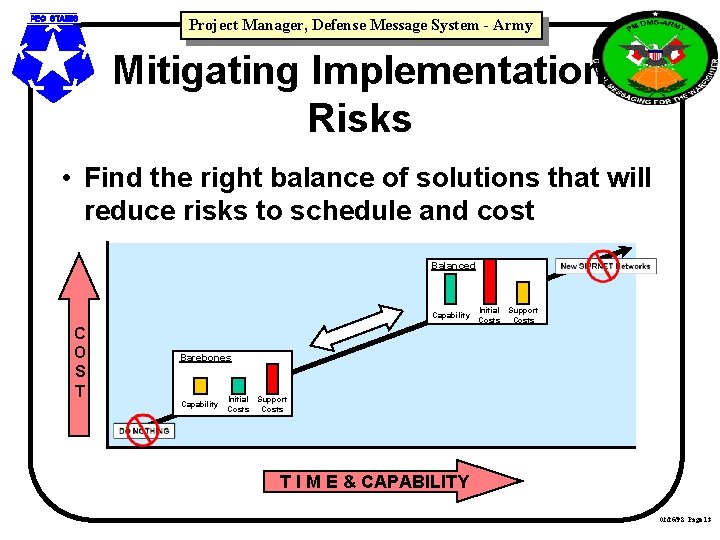

Project Manager, Defense Message System - Army Mitigating Implementation Risks • Find the right balance of solutions that will reduce risks to schedule and cost Balanced Capability C O S T Initial Support Costs Barebones Capability Initial Support Costs T I M E & CAPABILITY 02/26/98 Page 13

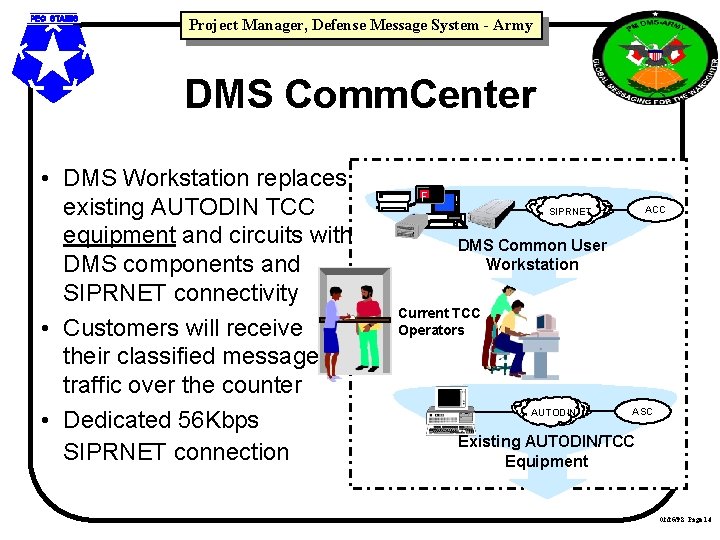

Project Manager, Defense Message System - Army DMS Comm. Center • DMS Workstation replaces existing AUTODIN TCC equipment and circuits with DMS components and SIPRNET connectivity • Customers will receive their classified message traffic over the counter • Dedicated 56 Kbps SIPRNET connection F ACC SIPRNET DMS Common User Workstation Current TCC Operators AUTODIN ASC Existing AUTODIN/TCC Equipment 02/26/98 Page 14

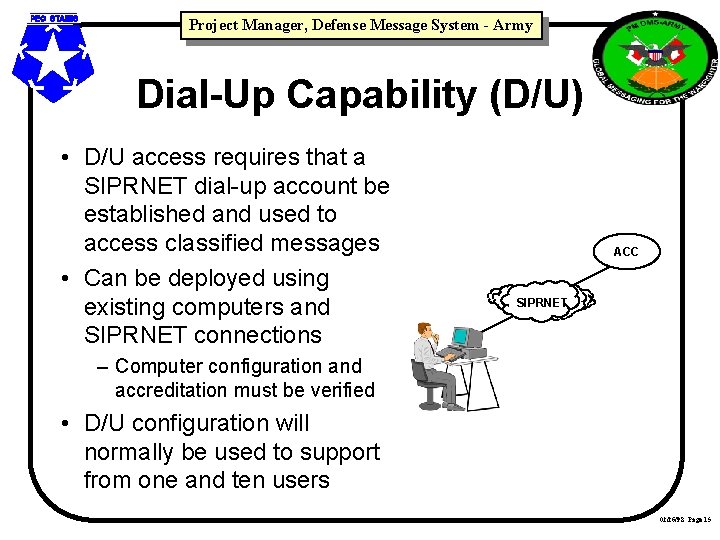

Project Manager, Defense Message System - Army Dial-Up Capability (D/U) • D/U access requires that a SIPRNET dial-up account be established and used to access classified messages • Can be deployed using existing computers and SIPRNET connections ACC SIPRNET – Computer configuration and accreditation must be verified • D/U configuration will normally be used to support from one and ten users 02/26/98 Page 15

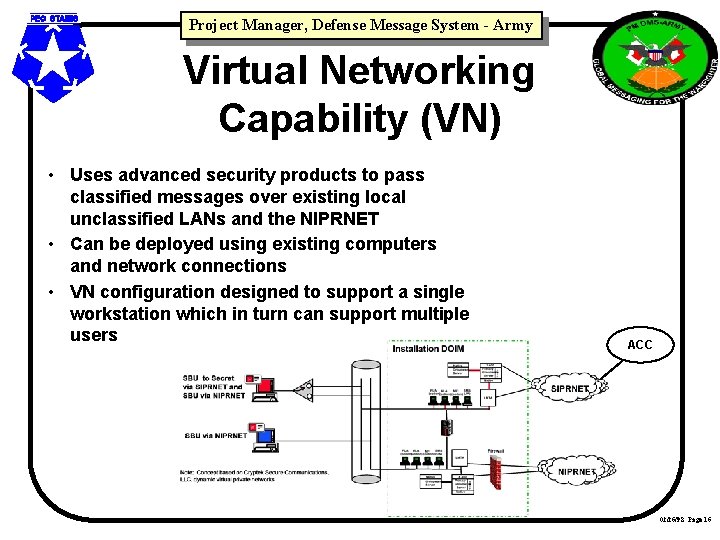

Project Manager, Defense Message System - Army Virtual Networking Capability (VN) • Uses advanced security products to pass classified messages over existing local unclassified LANs and the NIPRNET • Can be deployed using existing computers and network connections • VN configuration designed to support a single workstation which in turn can support multiple users ACC 02/26/98 Page 16

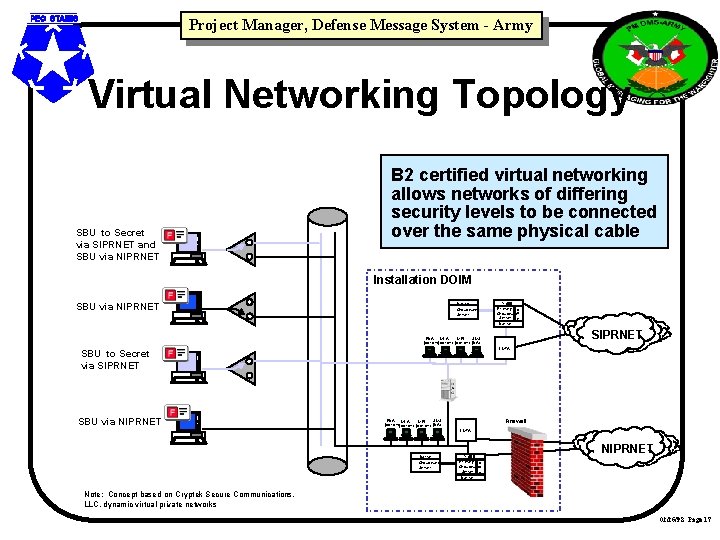

Project Manager, Defense Message System - Army Virtual Networking Topology SBU to Secret via SIPRNET and SBU via NIPRNET B 2 certified virtual networking allows networks of differing security levels to be connected over the same physical cable Installation DOIM SBU via NIPRNET Native Groupware Server X. 400 Primary S Groupware. M T Server P Native SIPRNET PUA SMS MLA MFI (option) (UA) LMTA SBU to Secret via SIPRNET SBU via NIPRNET Firewall PUA SMS MLA MFI (option) (UA) LMTA Native Groupware Server X. 400 Primary S Groupware. M T Server P NIPRNET Native Note: Concept based on Cryptek Secure Communications, LLC. dynamic virtual private networks 02/26/98 Page 17

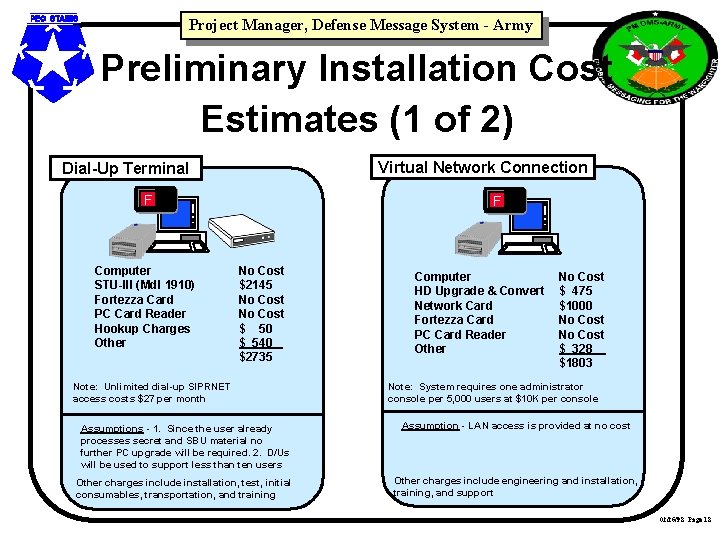

Project Manager, Defense Message System - Army Preliminary Installation Cost Estimates (1 of 2) Virtual Network Connection Dial-Up Terminal F Computer STU-III (Mdl 1910) Fortezza Card PC Card Reader Hookup Charges Other F No Cost $2145 No Cost $ 50 $ 540 $2735 Note: Unlimited dial-up SIPRNET access costs $27 per month Computer HD Upgrade & Convert Network Card Fortezza Card PC Card Reader Other No Cost $ 475 $1000 No Cost $ 328 $1803 Note: System requires one administrator console per 5, 000 users at $10 K per console Assumptions - 1. Since the user already processes secret and SBU material no further PC upgrade will be required. 2. D/Us will be used to support less than ten users Assumption - LAN access is provided at no cost Other charges include installation, test, initial consumables, transportation, and training Other charges include engineering and installation, training, and support 02/26/98 Page 18

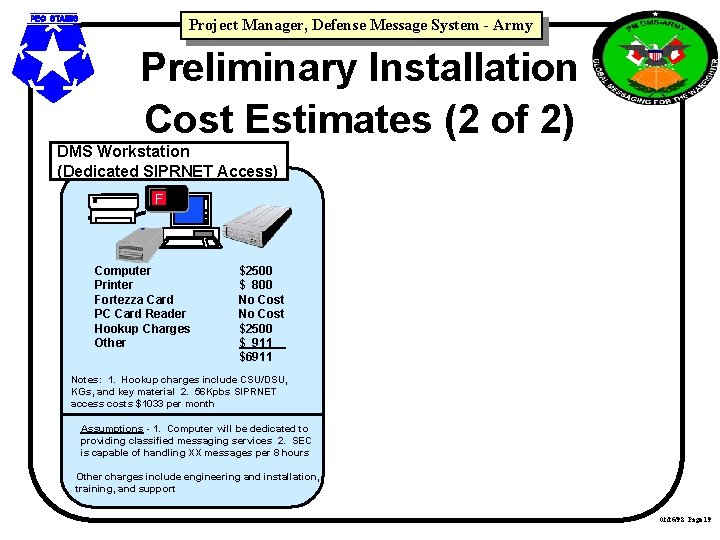

Project Manager, Defense Message System - Army Preliminary Installation Cost Estimates (2 of 2) DMS Workstation (Dedicated SIPRNET Access) F Computer Printer Fortezza Card PC Card Reader Hookup Charges Other $2500 $ 800 No Cost $2500 $ 911 $6911 Notes: 1. Hookup charges include CSU/DSU, KGs, and key material 2. 56 Kpbs SIPRNET access costs $1033 per month Assumptions - 1. Computer will be dedicated to providing classified messaging services 2. SEC is capable of handling XX messages per 8 hours Other charges include engineering and installation, training, and support 02/26/98 Page 19
