PROJECT LOCATION 676678 Neptune Ave Project Location 660
- Slides: 12
PROJECT LOCATION 676/678 Neptune Ave Project Location 660 Neptune Ave Google Maps
PROJECT BOUNDARIES 676/678 660 Neptune Ave Property Line 676/678 660 Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org
EXISTING UNPERMITTED ARMORING STRUCTURES 676/678 • UPPER BLUFF WALL • MID BLUFF WALL • SEAWALL Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org 660
Bluff Top Rear Yard Fence

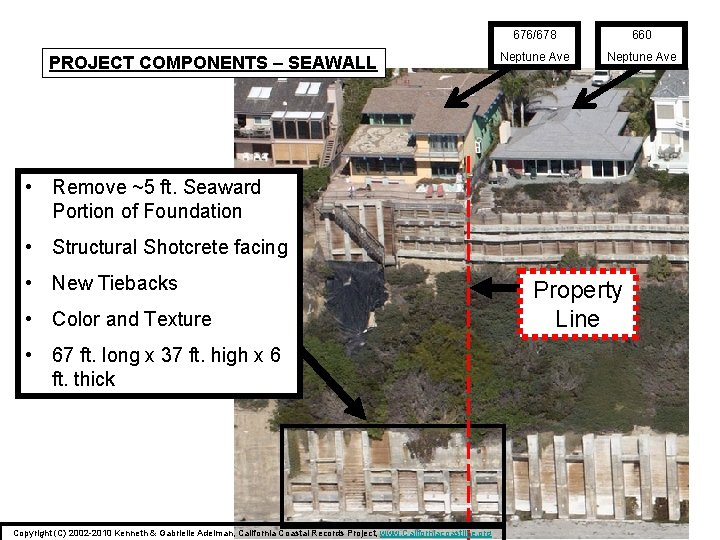

PROJECT COMPONENTS – SEAWALL 676/678 660 Neptune Ave • Remove ~5 ft. Seaward Portion of Foundation • Structural Shotcrete facing • New Tiebacks • Color and Texture • 67 ft. long x 37 ft. high x 6 ft. thick Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org Property Line
PROJECT COMPONENTS – MID BLUFF WALL • Remove ~15 in. off top of wall • Structural Shotcrete facing • New Tiebacks • 15 ft. long x 7 ft. 9 in. high x ~18 in. thick Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org 676/678 660 Neptune Ave Property Line • No Change to mid bluff wall at 660 Neptune
PROJECT COMPONENTS – UPPER BLUFF WALL 676/678 660 Neptune Ave • Remove Stairs • Structural Shotcrete facing • Color and Texture • 50 ft. long x ~20 ft. high x ~1. 5 ft. thick and lateral return wall on north side • Cut down wall to match neighbor to south Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org Property Line
PROJECT COMPONENTS – MID BLUFF GEOGRID 676/678 660 Neptune Ave • Geogrid soil structure • Container plantings and hydro-seed • ~25 ft. long x ~40 ft. high Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org Property Line
NORTHERN RETURN WALL
UPPER BLUFF WALL LOWERED ON SOUTH SIDE Top of wall to the south The triangular area above this line is proposed for removal to match top of wall height to the south
CDP HISTORY – 680, 676/678, 660, and 656 Neptune Avenue 680 6 -ENC-07 -127 656 660 676/678 Unpermitted 6 -ENC-99 -148/6 -92 -167 -G Unpermitted 6 -07 -133/6 -05 -16 -G Unpermitted 6 -99 -009/6 -92 -86 -G Copyright (C) 2002 -2010 Kenneth & Gabrielle Adelman, California Coastal Records Project, www. Californiacoastline. org
PREVIOUSLY RECORDED AND ACCEPTED LATERAL ACCESS AREA
