Project Ghana Emergency Medicine Collaborative Document Title Pain

Project: Ghana Emergency Medicine Collaborative Document Title: Pain Management Author(s): Heather Hartney (University of Michigan), RN 2012 License: Unless otherwise noted, this material is made available under the terms of the Creative Commons Attribution Share Alike-3. 0 License: http: //creativecommons. org/licenses/by-sa/3. 0/ We have reviewed this material in accordance with U. S. Copyright Law and have tried to maximize your ability to use, share, and adapt it. These lectures have been modified in the process of making a publicly shareable version. The citation key on the following slide provides information about how you may share and adapt this material. Copyright holders of content included in this material should contact open. michigan@umich. edu with any questions, corrections, or clarification regarding the use of content. For more information about how to cite these materials visit http: //open. umich. edu/privacy-and-terms-use. Any medical information in this material is intended to inform and educate and is not a tool for self-diagnosis or a replacement for medical evaluation, advice, diagnosis or treatment by a healthcare professional. Please speak to your physician if you have questions about your medical condition. Viewer discretion is advised: Some medical content is graphic and may not be suitable for all viewers. 1

Attribution Key for more information see: http: //open. umich. edu/wiki/Attribution. Policy Use + Share + Adapt { Content the copyright holder, author, or law permits you to use, share and adapt. } Public Domain – Government: Works that are produced by the U. S. Government. (17 USC § 105) Public Domain – Expired: Works that are no longer protected due to an expired copyright term. Public Domain – Self Dedicated: Works that a copyright holder has dedicated to the public domain. Creative Commons – Zero Waiver Creative Commons – Attribution License Creative Commons – Attribution Share Alike License Creative Commons – Attribution Noncommercial Share Alike License GNU – Free Documentation License Make Your Own Assessment { Content Open. Michigan believes can be used, shared, and adapted because it is ineligible for copyright. } Public Domain – Ineligible: Works that are ineligible for copyright protection in the U. S. (17 USC § 102(b)) *laws in your jurisdiction may differ { Content Open. Michigan has used under a Fair Use determination. } Fair Use: Use of works that is determined to be Fair consistent with the U. S. Copyright Act. (17 USC § 107) *laws in your jurisdiction may differ Our determination DOES NOT mean that all uses of this 3 rd-party content are Fair Uses and we DO NOT guarantee that your use of the content is Fair. 2 To use this content you should do your own independent analysis to determine whether or not your use will be Fair.

Critical outcome • The emergency nurse assesses, identifies and manages acute and chronic pain within the emergency setting. 3

Specific Outcomes • Define the types of pain and complications of pain management. • Delineate pain physiology and mechanisms of addressing pain with medications. • Define the general assessment of the patient in pain. • Delineate the nursing process and role in the management of the patient with acute and chronic pain. 4

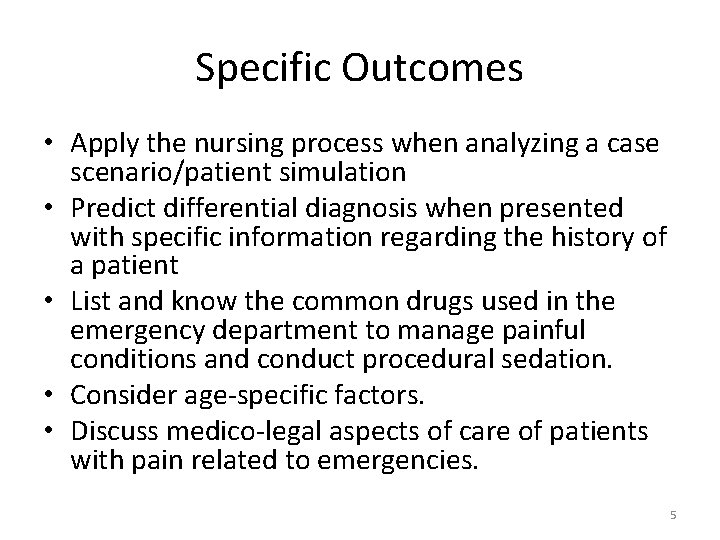

Specific Outcomes • Apply the nursing process when analyzing a case scenario/patient simulation • Predict differential diagnosis when presented with specific information regarding the history of a patient • List and know the common drugs used in the emergency department to manage painful conditions and conduct procedural sedation. • Consider age-specific factors. • Discuss medico-legal aspects of care of patients with pain related to emergencies. 5

Definitions • Pain – An unpleasant sensory and emotional experience – Associated with actual or potential tissue damage or described in terms of such damage – Personal and subjective experience • Can ONLY be described by person experiencing pain • Exists whenever the person says it does 6

Tolerance • Greatest level of discomfort a person is prepared to endure • Person requires increased amount of substance to achieve desired effect 7

Dependence • Reliance on a substance • Abrupt discontinuance would cause impairment of function 8

Addiction • Behavioral pattern characterized by compulsively obtaining and using a substance • Results in physical, social, and psychological harm to user 9

Allodynia • Pain caused by a stimulus not normally causing pain • Mechanical: – Static mechanical allodynia- pain in response to a light touch/pressure – Dynamic mechanical allodynia- pain in response to brushing • Thermal: – (Hot or Cold) allodynia- pain in response to mild skin temperatures in the affected area • Can be from neuropathy, fibromyalgia, migraines or spinal cord injuries 10

Pain Management • Comprehensive approach to patient needs when experiencing problems associated with acute or chronic pain 11

Pain Threshold • Least level of stimulus intensity perceived as painful 12

Suffering • Physical or emotional reaction to pain • Feeling of helplessness, hopelessness, or uncontrollability 13

Pain Physiology • Emergency nurses need an understanding of basic physiology of pain to effectively assess, intervene, and evaluate patient outcomes. 14

Physiology A. Neuroanatomy 1. Afferent pathway a) Nociceptors (pain receptors) in the tissues respond to pleasant and painful stimuli 1) 2) 3) 4) Stimulation of nociceptors produces impulse transmission through fibers a) Small C fibers: unmyelinated; transmit burning and aching sensations; relatively slow b) Larger A-delta fibers: myelinated; transmit sharp and welllocalized sensations; relatively fast Terminate in the dorsal horn of the spinal cord Modulate pain patterns in the dorsal horn Transmit impulses to the midbrain via the neospinothalamic tract (acute pain) and to the limbic system via the paleospinothalamic tract (dull and burning pain) 15

Central nervous system (CNS) • Includes all the limbic system, reticular formation, thalamus, hypothalamus, medulla, and cortex • Arousal, discrimination, and localization of pain; coping response; release of corticosteroids; cardiovascular response; modulation of spinal pain transmission 16

Ruth Lawson, Wikimedia Commons 17

C fiber, A delta, dorsal horn Delldot, Wikimedia Commons 18

Efferent pathway • Fibers connecting the reticular formation, midbrain, and substantia gelatinosa in the dorsal horn of the spinal cord • Afferent fibers stimulate the periaqueductal gray matter in the midbrain, which then stimulates the efferent pathway • Modulates or inhibits pain impulses 19

Neuromodulation A. Endorphins: A group of neuropeptides that inhibit pain transmission in the brain and spinal cord 1) Beta-Lipotropin: responsible for feeling of well-being 2) Enkephalin: weaker than other endorphins but longer lasting and more potent than morphine 3) Dynorphin: generally impedes pain impulse 4) Endomorphin: very antinociceptive 5) Opiate receptors: mu receptors on the membrane of afferent neurons, inhibit the release of excitatory neurotransmitters; beta receptors react with enkephalins to modulate pain transmission; kappa receptors produce sedation and some analgesia; sigma receptors cause pupil dilation and dysphoria 20

Effects of medications on modulating pain • Stimulation of afferent pathways results in activation of circuits in supraspinal and spinal cord levels. Each synaptic link is subject to modulation • Mechanisms of drug action – ASA and Acetaminophen: inhibit prostaglandin synthesis in the CNS – NSAIDs: synthesized at the site of injury; inhibit prostaglandin synthesis, which reduces hyperalgesia – Opiates: interact with mu and kappa receptors; powerful effect on the brainstem and the periphery – Local anesthetics: block sodium channels and thus prevent transmission of nerve impulses 21

Specific theory – A specific sensation that is independent of other sensations. Experiments on animals provided clinical evidence of separate spots for heat, cold, and touch 22

Gate control theory – Modulations of inputs in the spinal dorsal horns and the brain act as a gating mechanism – With a stimulus, the following sequence of events occurs: • The pain impulse is transmitted via nociceptors fibers in the periphery to the substantia gelatinosa through large A-delta and small C fibers • A gating mechanism regulates transmission from the spinal cord to the brain, where pain is perceived • Stimulation of large fibers closes the gate and thus decreases transmission of impulses unless persistent • Stimulation of small fibers opens the gate and enhances pain perception 23

. . more on the gating mechanism – The spinal gating mechanism is also influenced by fibers descending from the brain – The conducting fibers carry precise information about the nature and location of the stimulus – Through efferent pathways the CNS may close, partially close, or open the gate – Descending fibers release endogenous opioids that bind to opioid receptor sites that thereby prevent the release of neurotransmitters such as substance P, this inhibiting transmission of pain impulses and producing analgesia – Cognitive function can also modulate the pain perception and the individual’s pain response 24

Neuromatrix theory • A widespread network of neurons consist of loops between the thalamus and cortex and between the cortex and limbic systems; neural processes are modulated by stimuli from the body but can also act in the absence of stimuli – Stimuli trigger neural patterns but do not produce them – Cyclic processing of impulses produces a characteristic pattern in the entire matrix that leaves a neurosignature – Signature patterns are converted to awareness of the experience and activation of spinal cord neurons to produce muscle patterns for action 25

Neuromatrix theory • Neural inputs modulate the continuous output of the neuromatrix to produce a wide variety of experiences felt by the individual – Awareness of the experience involves multiple dimensions (e. g. , sensory, affective, and evaluative) simultaneously – Pain qualities are not learned; rather, they are innately produced by the neurosignatures and interpreted by the brain 26

Types of pain • • Acute Chronic Nociceptive Neuropathic 27

Acute • Elicited by injury to body tissues • Typically seen with trauma, acute illness, surgery, burns, or other conditions of limited duration; generally relieved when healing takes place. 28

Acute pain Wellcome Library London, Wellcome Images 29

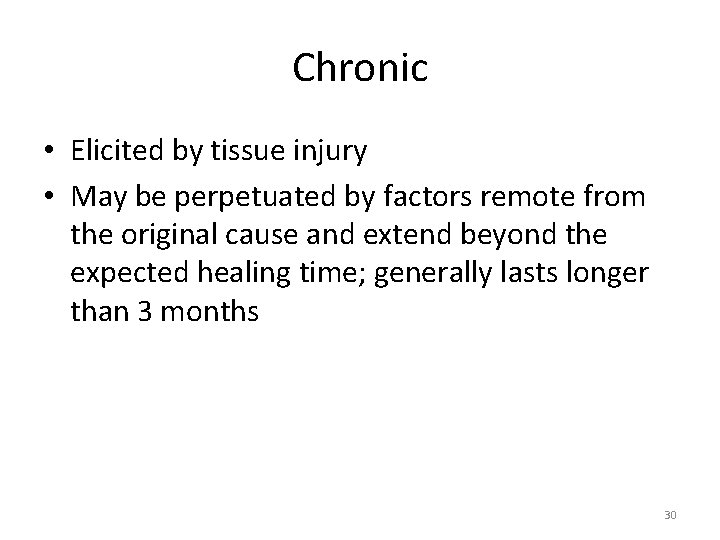

Chronic • Elicited by tissue injury • May be perpetuated by factors remote from the original cause and extend beyond the expected healing time; generally lasts longer than 3 months 30

Chronic pain Adrian Cousins, Wellcome Images 31

Nociceptive • Elicited by noxious stimuli that damages tissues or has the potential to do so if the stimuli are prolonged. – Somatic pain: arises from skin, muscle, joint, connective tissue, or bone; generally well localized and described as aching or throbbing. – Visceral pain: arises from internal organs such as the bladder or intestine; poorly localized and described as cramping. 32

Somatic pain Wellcome Library London, Wellcome Images 33

Visceral pain Theuplink, Wikimedia Commons 34

Neuropathic • Caused by damage to peripheral or central nerve cells – Peripheral: • Arises from injury to either single or multiple peripheral nerves • Felt along nerve distributions • Burning, shooting, stabbing or like an electric shock • Diabetic neuropathy, herpetic neuralgia, radiculopathy, or trigeminal neuralgia – Central: • Associated with autonomic nervous system dysregulation • Phantom limb pain (peripheral) or complex regional pain syndromes (central) 35

Peripheral neuropathic pain Lubyanka, Wikimedia Commons 36

Central neuropathic pain J. H. Shepherd/Mütter Museum, Wikimedia Commons 37

General strategy • • • Assessment Analysis Planning and Implementation/Intervention Evaluation and Ongoing monitoring Documentation 38

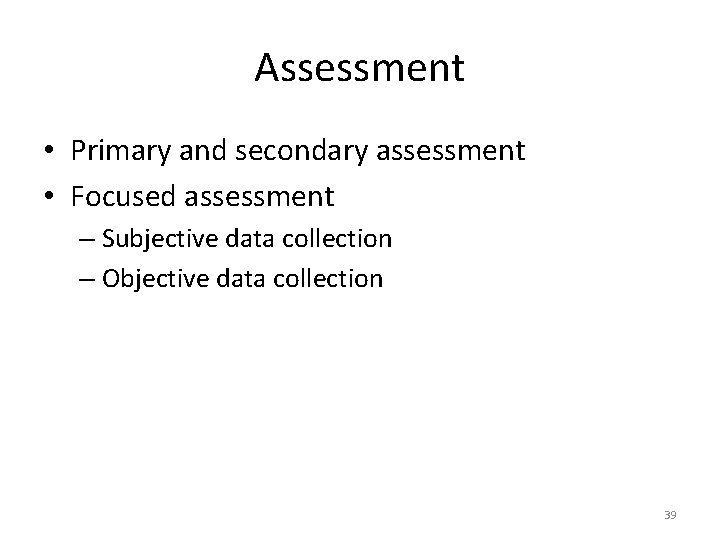

Assessment • Primary and secondary assessment • Focused assessment – Subjective data collection – Objective data collection 39

Subjective data 1. HPI (history of present illness/injury) or Chief Complaint • History of pain (PQRST) – – – Pain Quality Region/Radiation Severity Timing • Efforts to relieve symptoms 40

Subjective data 2. Past medical history a) b) c) d) e) f) g) h) i) Current or preexisting diseases/illness New or recurring problem Substance and/or alcohol use/abuse LNMP Current medications Non-pharmacologic interventions Food or drink Coping mechanisms Allergies 41

Subjective data 3. Psychological/social/environmental factors: a) b) c) d) Anxiety, Depression Aggravating or alleviating factors Expressions of pain Pain behavior is learned, yet adaptive, and it r/t pain threshold and pain tolerance e) Pain expressions can be verbal, behavioral, emotional, and physical 42

Objective data 1. General appearance a) Psychological b) Observations of behavior and vital signs should not be used solely in place of self-report c) Positioning and movement d) Physiologic e) Level of distress/discomfort 43

Objective data 2. Obtain pain rating a) Adults 1. 2. 3. 4. Visual analog scale Numeric rating scale Graphic rating scale Thermometer-like scale 44

Visual Analog Scale http: //0. tqn. com/d/ergonomics/1/0/C/-/-/-/painscale. jpg 45

Numeric Rating Scale http: //0. tqn. com/d/pain/1/0/S/-/-/-/Pain. Scale. gif 46

Graphic Rating Scale http: //img. medscape. com/fullsize/migrated/editorial/journalcme/2007/7993/artmannion. box 1. gif 47

Thermometer-like Scale http: //img. medscape. com/fullsize/migrated/574/105/574105. fig 1. gif 48

Objective data 2. Obtain pain rating b) Pediatric 1. 2. 3. 4. FACES scale Poker chip Numeric rating scale Color matching 49

FACES / Numeric combined No pain Clker. com, Clker Images Minor pain Moderate pain Severe pain Worst pain of my life 50

Objective data 2) Obtain a pain rating c) Infant 1. Neonatal Infant Pain Scale (NIPS) 2. Neonatal Pain, Agitation, and Sedation Scale (NPASS) 3. Pain Assessment Tool (PAT) 51

NIPS http: //www. natalnurses. net/images/22. jpg 52

NPASS http: //www. anestesiarianimazione. com/Immagini/npass%208 -01. jpg 53

PAT http: //img. medscape. com/fullsize/migrated/452/694/pn 452694. tab 3. gif 54

Objective data • Inspection – Position, skin color, external bleeding, skin integrity, obvious deformity, edema • Auscultation – Breath sounds, bowel sounds • Palpation – Areas of tenderness: light, deep – Save painful part until last 55

Diagnostic procedures • Laboratory studies • Imaging • Electrocardiogram • Purpose: TO FIND THE CAUSE OF THE PAIN 56

Analysis: Differential diagnosis • ACUTE PAIN • CHRONIC PAIN 57

Planning and Implementation/Interventions 1. Determine priorities of care a) b) c) d) e) f) g) Maintain ABC Provide supplemental oxygen IV access Obtain and set up equipment Prepare/assist with medical interventions Provide measures for pain relief Administer pharmacological therapy as ordered 58

Administer pharmacological therapy as ordered 1. The World Health Organization (WHO) recommends the use of the analgesic ladder as a systematic plan for the use of analgesic medications. 1. Step 1: use non-opioid analgesics for mild pain 2. Step 2: adds a mild opioid for moderate pain 3. Step 3: use of stronger opioids when pain is moderate to severe 59

Patient-controlled analgesia (PCA) • Used for patients with acute or chronic pain who are able to communicate, understand explanations, and follow directions • Assess vital signs and pain level • Explain the use of the pump • Collaborate with the physician, patient, and family about dosage, lockout interval, basal rate, and amount of dosage on demand • Assist the patient to use the PCA pump 60

Planning and Implementation/Interventions 2. Relieve anxiety and apprehension 3. Allow significant others to remain with patient if supportive 4. Educate patient and significant others • about the efficacy and safety of opioid analgesics 61

Evaluation and Ongoing Monitoring 1. Continuously monitor and treat as indicated 2. Monitor patient response/outcomes, and modify nursing care plan as appropriate 3. If positive patient outcomes are not demonstrated, reevaluate assessment and/or plan of care 62

Documentation • Document vitals and pain score before and after intervention along with patient response 63

Age-related concerns 1. Pediatrics: Growth or development related • • • Children’s pain tolerance increases with age Children’s developmental level influences pain behavior Localization of pain begins during infancy Preschoolers can anticipate pain School age children can verbalize pain and describe location and intensity 64

Pediatrics “Pearls” • Children may not admit to pain to avoid injection • Distraction techniques can aid in keeping the child’s mind occupied and away from pain • Opioids are no more dangerous for children than for adults 65

Age Related concerns 2. Geriatrics: Age related • • • Pain is not a normal aging consequence Chronic pain alters the person’s quality of life Chronic pain may be caused by a myriad of conditions 66

Geriatric “Pearls” • Adequate treatment may require deviation from clinical pathways • Administer pain relieving medications at lower dose and increase slowly 67

Barriers to effective pain management 1. 2. 3. 4. 5. 6. 7. Attitudes of emergency health care providers Hidden biases and misconceptions about pain Inadequate pain assessment Failure to accept patients’ reports of pain Withholding pain-relieving medication Exaggerated fears of addiction Poor communication 68

Improving pain management • Changing attitudes • Continuing education related to the realities and myths of pain management • Evidence-based practice • Cultural sensitivity 69

Procedural sedation • The Joint Commission (TJC) has standard definitions for four levels of sedation and anesthesia: 1. 2. 3. 4. minimal sedation moderate sedation/analgesia deep sedation/analgesia (pt not easily aroused) anesthesia (requires assisted ventilation) 70

Procedural sedation • Indications: suturing, fracture reduction, abscess incision and drainage, joint relocation • Assessment: Allergies, Last oral intake 71

Procedural Sedation • Procedure: – – – – Baseline VS and LOC Explain procedure to patient and family Obtain venous access Equipment: cardiac monitor, blood pressure monitor, pulse oximeter, suction, oxygen equipment, endotracheal intubation equipment and capnography device, IV supplies, reversal agents. Assist with medications Maintain continuous monitoring during procedure Document vital signs, LOC, and cardiopulmonary status every 15 min. Post procedure discharge criteria 72

Medication review • • Non-narcotic Narcotics Sedatives / anesthetics Local anesthetics 73

Non-narcotic • Acetaminophen • Salicylates • NSAIDs 74

Narcotic • • • Codeine Fentanyl Hydromorphone Morphine sulfate Oxycodone 75

Sedatives / Anesthetics • • • Diazepam Ketamine Lorazepam Midazolam Propofol Etomidate 76

Local anesthetics • • • Lidocaine Mepivacaine Procaine Tetracaine LET (lidocaine, epinephrine, tetracaine) EMLA cream 77

THE END 78
