PROJECT COMMENTS Project Submission Final Report 5 10

PROJECT COMMENTS • Project Submission – Final Report: ~5 -10 pages, or – 10 page Power. Point style report – Due: 12/11 by 5 pm – If you worked in teams, add 1 slide each that lets me know your individual contributions 1

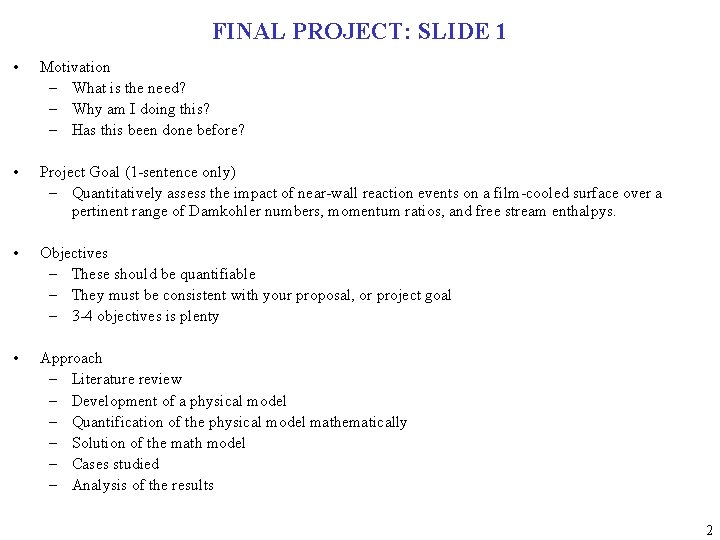

FINAL PROJECT: SLIDE 1 • Motivation – What is the need? – Why am I doing this? – Has this been done before? • Project Goal (1 -sentence only) – Quantitatively assess the impact of near-wall reaction events on a film-cooled surface over a pertinent range of Damkohler numbers, momentum ratios, and free stream enthalpys. • Objectives – These should be quantifiable – They must be consistent with your proposal, or project goal – 3 -4 objectives is plenty • Approach – Literature review – Development of a physical model – Quantification of the physical model mathematically – Solution of the math model – Cases studied – Analysis of the results 2

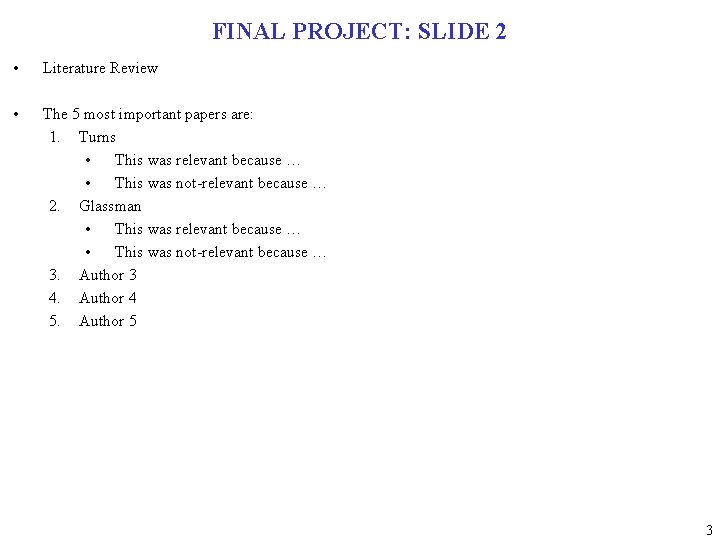

FINAL PROJECT: SLIDE 2 • Literature Review • The 5 most important papers are: 1. Turns • This was relevant because … • This was not-relevant because … 2. Glassman • This was relevant because … • This was not-relevant because … 3. Author 3 4. Author 4 5. Author 5 3

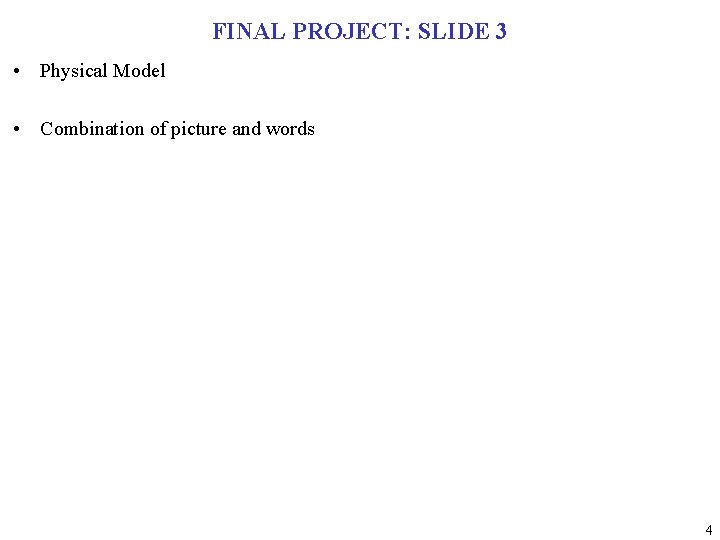

FINAL PROJECT: SLIDE 3 • Physical Model • Combination of picture and words 4

FINAL PROJECT: SLIDE 4 • Math Model • Show governing equations • Define every symbol you use 5

FINAL PROJECT: SLIDE 5 • Math Model • How to solve – Discritization – Limiting assumptions – Neglected terms (why) – Order of magnitude scoping – Etc. 6

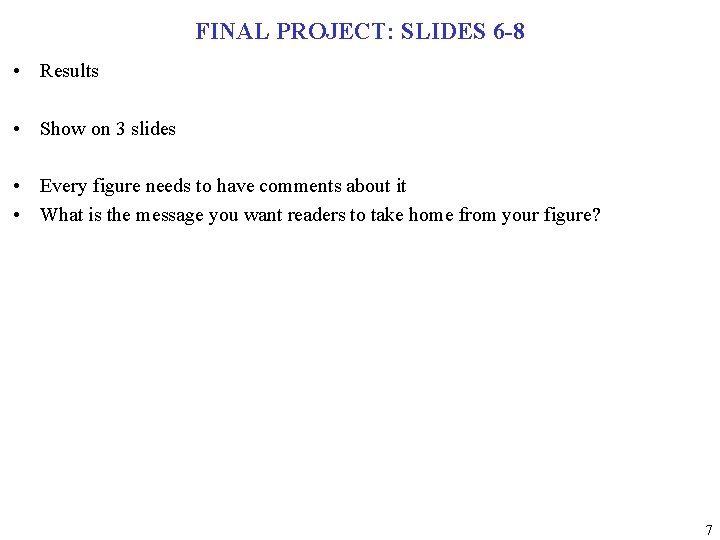

FINAL PROJECT: SLIDES 6 -8 • Results • Show on 3 slides • Every figure needs to have comments about it • What is the message you want readers to take home from your figure? 7

FINAL PROJECT: SLIDE 9 • Cases performed – 1 < Da < 1000, 0. 5 < I < 2. 0, 20, 000 < QR < 100, 000 J/kg • Summarize results • What do these results imply and mean FINAL PROJECT: SLIDE 10 • Conclusions – What did you learn – How can what you learned be extended to other problems • What went well • What needs to be improved – What I know how to improve on – What I don’t know how to improve on (MS) – What no one knows how to improve on (Ph. D) 8
