Project 2 Steve Klesper Tom Ondick Garry Meadows

Project # 2 Steve Klesper Tom Ondick Garry Meadows Aaron Hurt Tim Wade 1

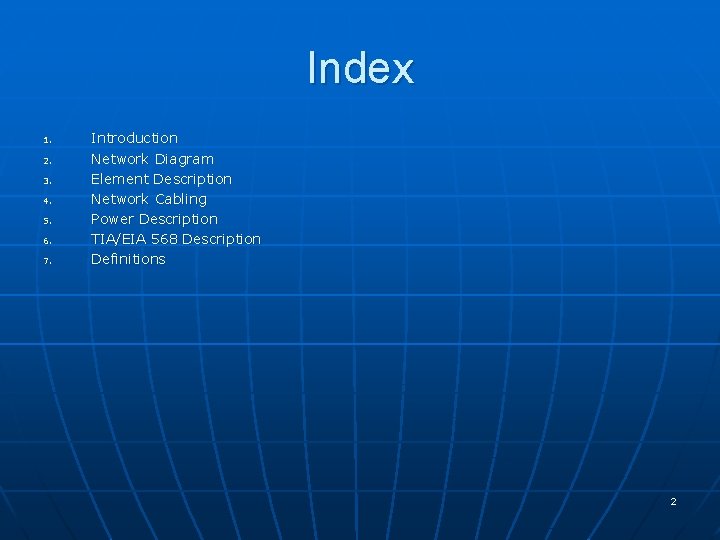

Index 1. 2. 3. 4. 5. 6. 7. Introduction Network Diagram Element Description Network Cabling Power Description TIA/EIA 568 Description Definitions 2

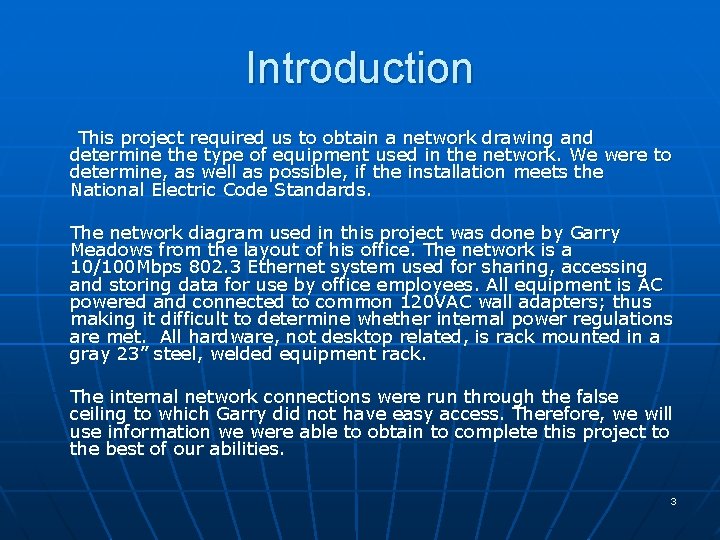

Introduction This project required us to obtain a network drawing and determine the type of equipment used in the network. We were to determine, as well as possible, if the installation meets the National Electric Code Standards. The network diagram used in this project was done by Garry Meadows from the layout of his office. The network is a 10/100 Mbps 802. 3 Ethernet system used for sharing, accessing and storing data for use by office employees. All equipment is AC powered and connected to common 120 VAC wall adapters; thus making it difficult to determine whether internal power regulations are met. All hardware, not desktop related, is rack mounted in a gray 23” steel, welded equipment rack. The internal network connections were run through the false ceiling to which Garry did not have easy access. Therefore, we will use information we were able to obtain to complete this project to the best of our abilities. 3

Network Diagram 4

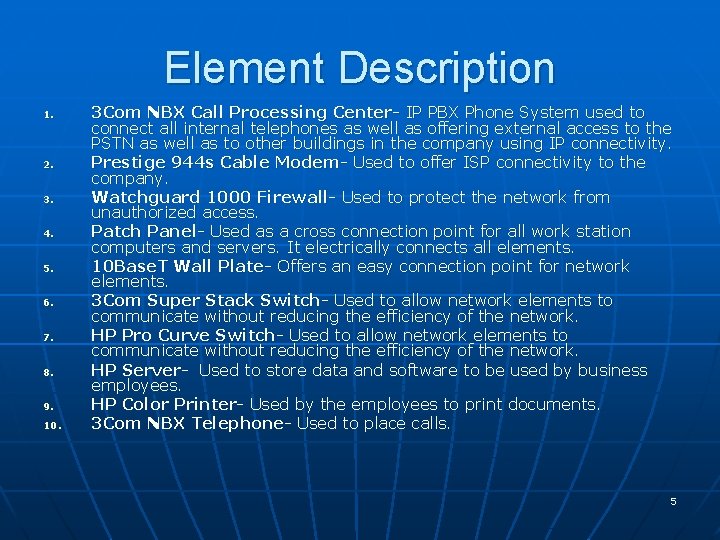

Element Description 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 3 Com NBX Call Processing Center- IP PBX Phone System used to connect all internal telephones as well as offering external access to the PSTN as well as to other buildings in the company using IP connectivity. Prestige 944 s Cable Modem- Used to offer ISP connectivity to the company. Watchguard 1000 Firewall- Used to protect the network from unauthorized access. Patch Panel- Used as a cross connection point for all work station computers and servers. It electrically connects all elements. 10 Base. T Wall Plate- Offers an easy connection point for network elements. 3 Com Super Stack Switch- Used to allow network elements to communicate without reducing the efficiency of the network. HP Pro Curve Switch- Used to allow network elements to communicate without reducing the efficiency of the network. HP Server- Used to store data and software to be used by business employees. HP Color Printer- Used by the employees to print documents. 3 Com NBX Telephone- Used to place calls. 5

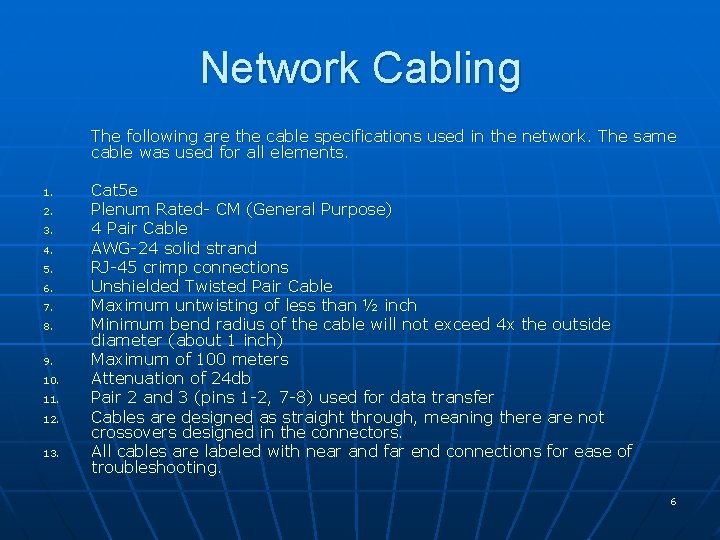

Network Cabling The following are the cable specifications used in the network. The same cable was used for all elements. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Cat 5 e Plenum Rated- CM (General Purpose) 4 Pair Cable AWG-24 solid strand RJ-45 crimp connections Unshielded Twisted Pair Cable Maximum untwisting of less than ½ inch Minimum bend radius of the cable will not exceed 4 x the outside diameter (about 1 inch) Maximum of 100 meters Attenuation of 24 db Pair 2 and 3 (pins 1 -2, 7 -8) used for data transfer Cables are designed as straight through, meaning there are not crossovers designed in the connectors. All cables are labeled with near and far end connections for ease of troubleshooting. 6

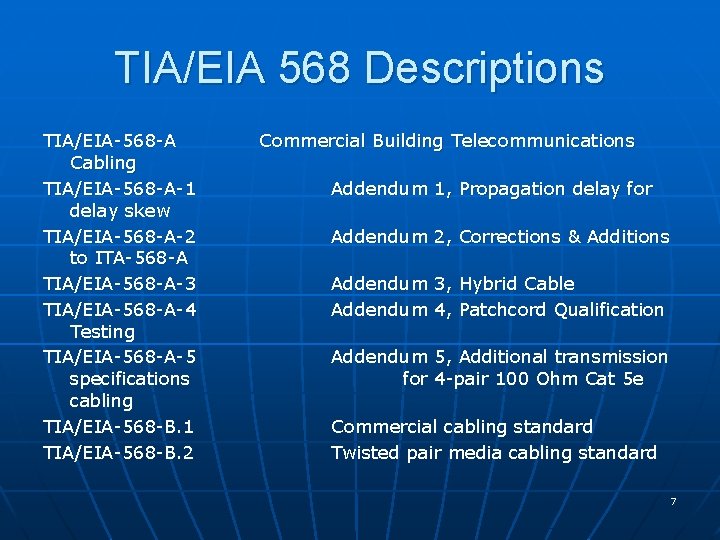

TIA/EIA 568 Descriptions TIA/EIA-568 -A Cabling TIA/EIA-568 -A-1 delay skew TIA/EIA-568 -A-2 to ITA-568 -A TIA/EIA-568 -A-3 TIA/EIA-568 -A-4 Testing TIA/EIA-568 -A-5 specifications cabling TIA/EIA-568 -B. 1 TIA/EIA-568 -B. 2 Commercial Building Telecommunications Addendum 1, Propagation delay for Addendum 2, Corrections & Additions Addendum 3, Hybrid Cable Addendum 4, Patchcord Qualification Addendum 5, Additional transmission for 4 -pair 100 Ohm Cat 5 e Commercial cabling standard Twisted pair media cabling standard 7

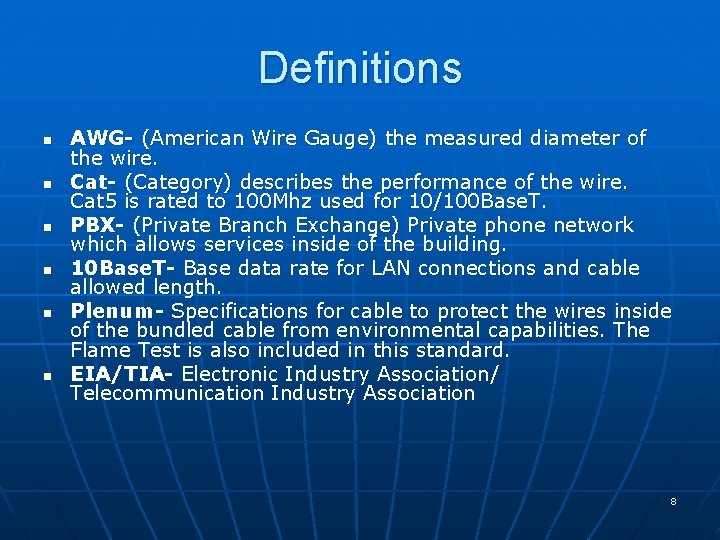

Definitions n n n AWG- (American Wire Gauge) the measured diameter of the wire. Cat- (Category) describes the performance of the wire. Cat 5 is rated to 100 Mhz used for 10/100 Base. T. PBX- (Private Branch Exchange) Private phone network which allows services inside of the building. 10 Base. T- Base data rate for LAN connections and cable allowed length. Plenum- Specifications for cable to protect the wires inside of the bundled cable from environmental capabilities. The Flame Test is also included in this standard. EIA/TIA- Electronic Industry Association/ Telecommunication Industry Association 8
