PROGRESS PRESENTATION Done By Aisha AlKuwari Maha AlNaimi

PROGRESS PRESENTATION Done By Aisha Al-Kuwari Maha Al-Naimi Muneera Abdulla Nouf Al-Khalifa 1

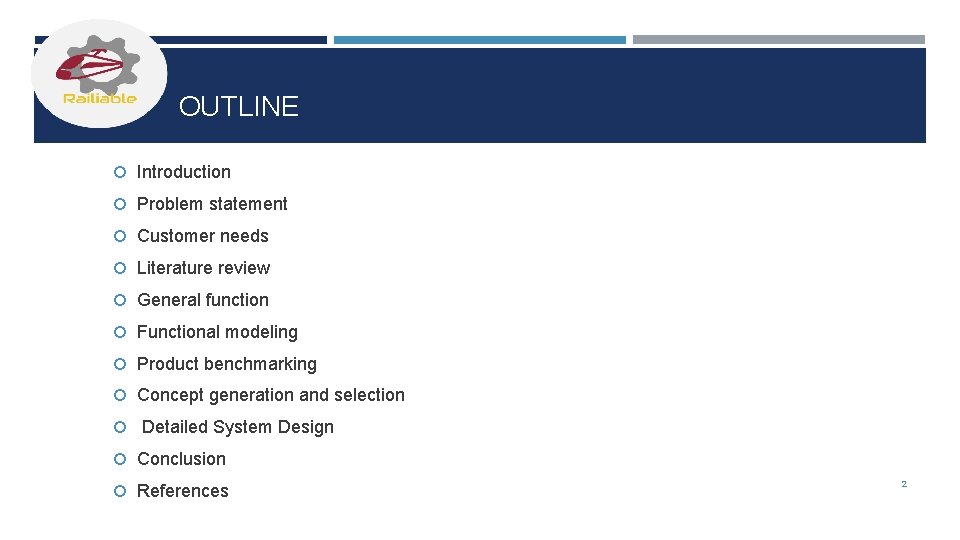

OUTLINE Introduction Problem statement Customer needs Literature review General function Functional modeling Product benchmarking Concept generation and selection Detailed System Design Conclusion References 2

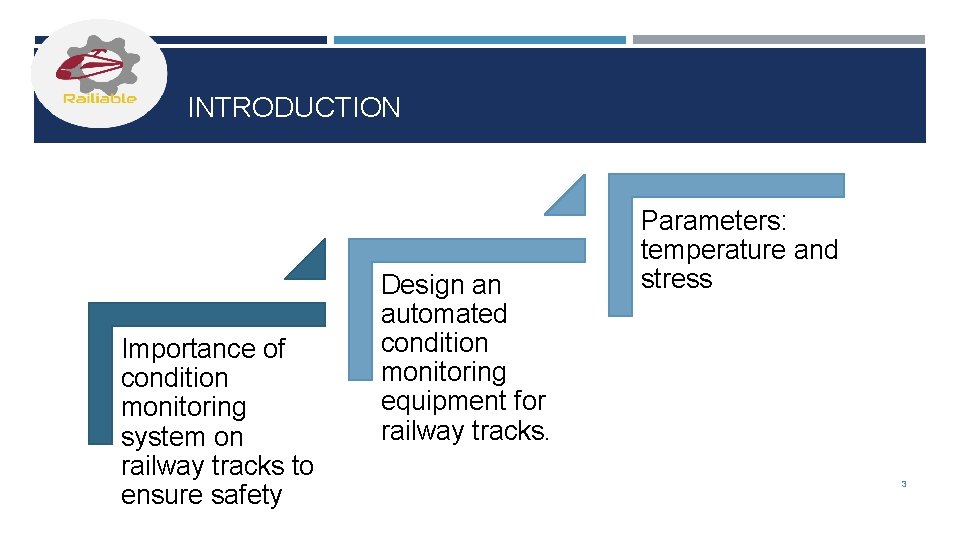

INTRODUCTION Importance of condition monitoring system on railway tracks to ensure safety Design an automated condition monitoring equipment for railway tracks. Parameters: temperature and stress 3

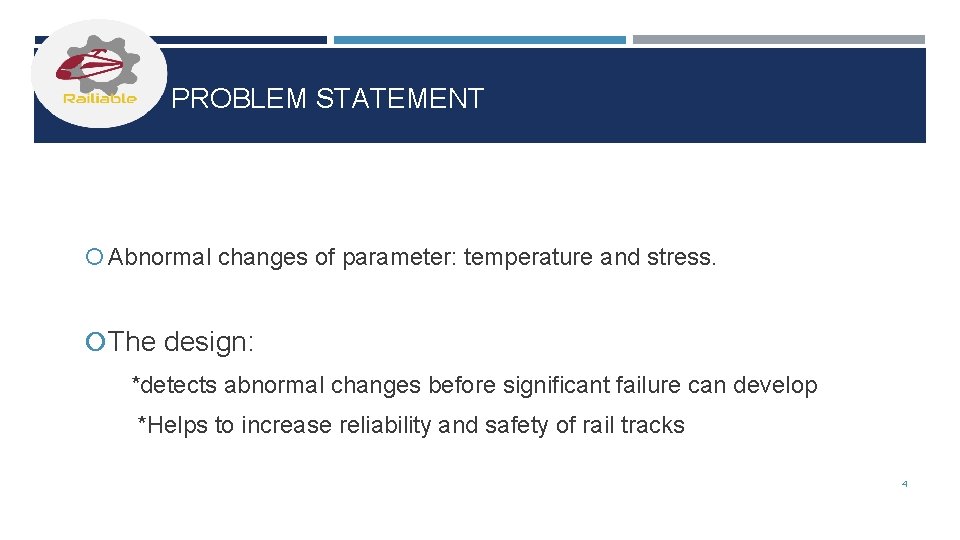

PROBLEM STATEMENT Abnormal changes of parameter: temperature and stress. The design: *detects abnormal changes before significant failure can develop *Helps to increase reliability and safety of rail tracks 4

CUSTOMER NEEDS ANALYSIS Customer needs • Interview with engineers working in Method 1 Siemens company who are responsible for the Qatar foundation City people : mover project in Qatar Method • electronic survey using Survey Monkey website 2: 5

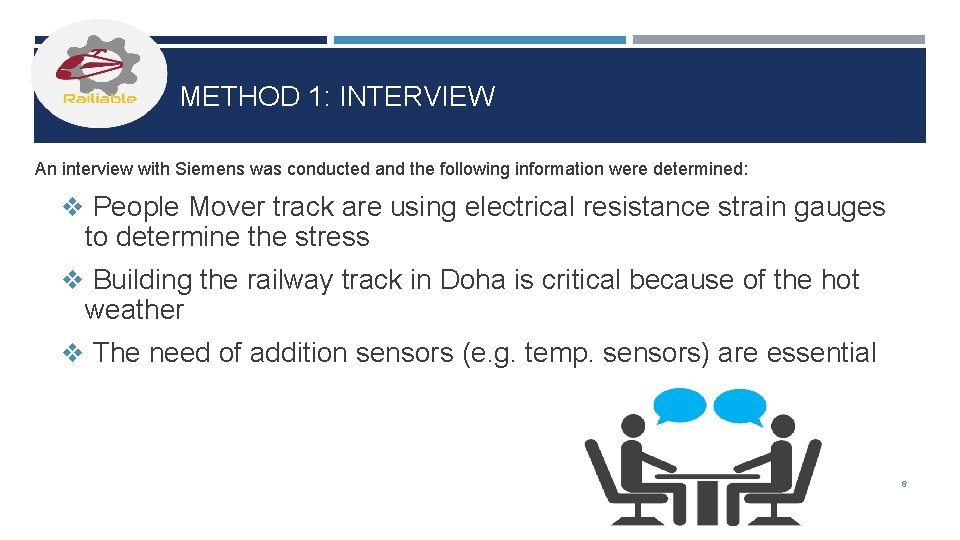

METHOD 1: INTERVIEW An interview with Siemens was conducted and the following information were determined: v People Mover track are using electrical resistance strain gauges to determine the stress v Building the railway track in Doha is critical because of the hot weather v The need of addition sensors (e. g. temp. sensors) are essential 6

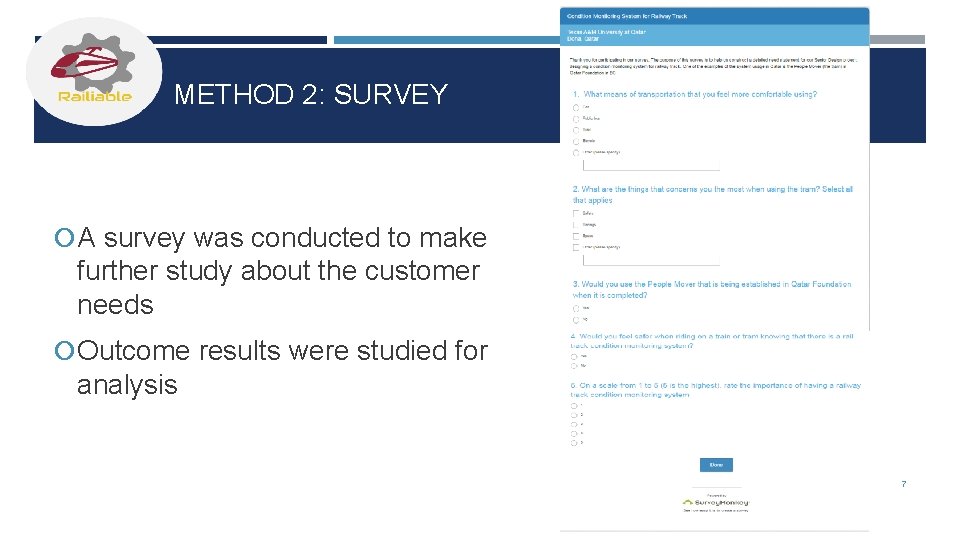

METHOD 2: SURVEY A survey was conducted to make further study about the customer needs Outcome results were studied for analysis 7

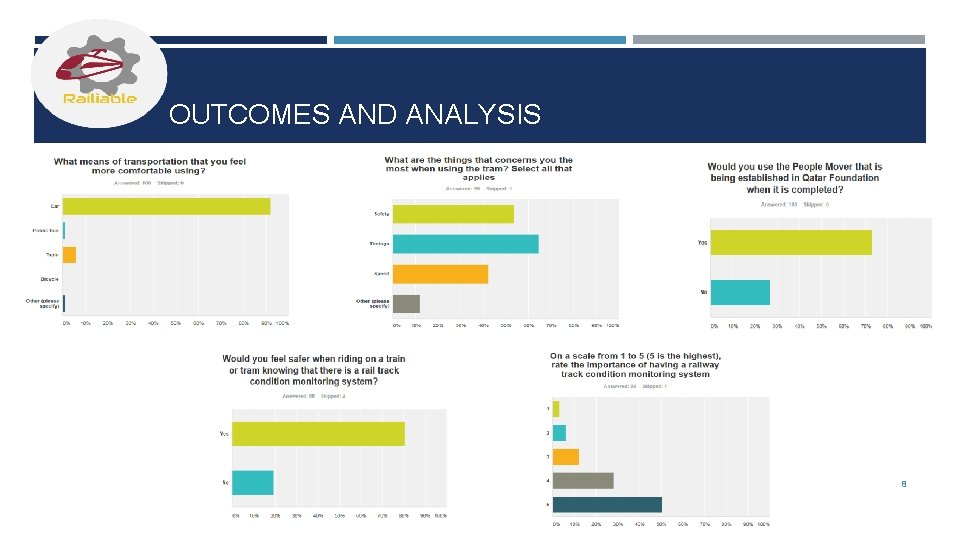

OUTCOMES AND ANALYSIS 8

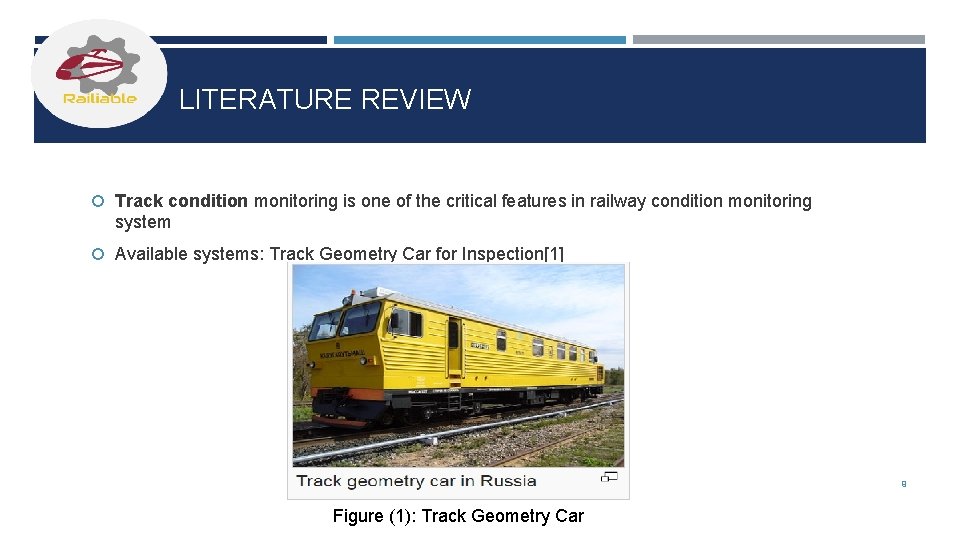

LITERATURE REVIEW Track condition monitoring is one of the critical features in railway condition monitoring system Available systems: Track Geometry Car for Inspection[1] 9 Figure (1): Track Geometry Car

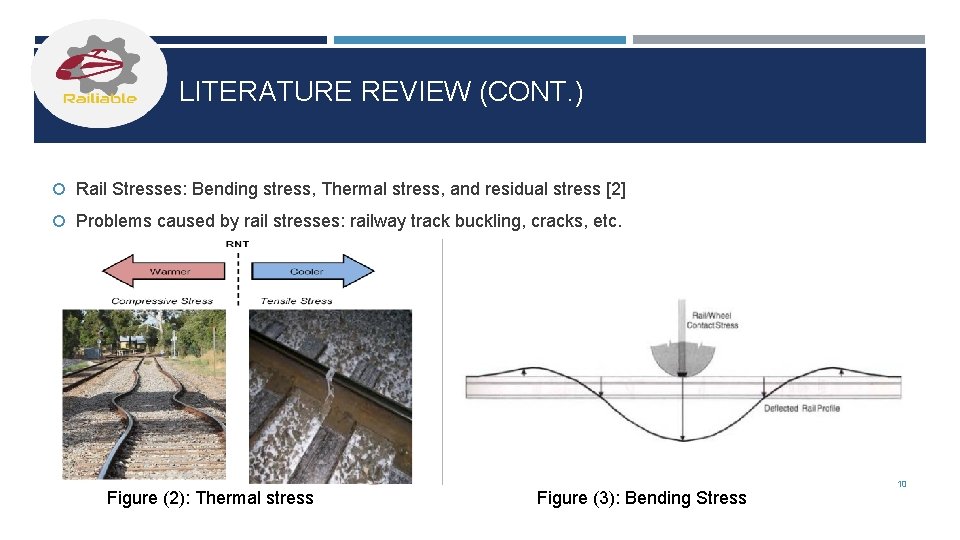

LITERATURE REVIEW (CONT. ) Rail Stresses: Bending stress, Thermal stress, and residual stress [2] Problems caused by rail stresses: railway track buckling, cracks, etc. Figure (2): Thermal stress Figure (3): Bending Stress 10

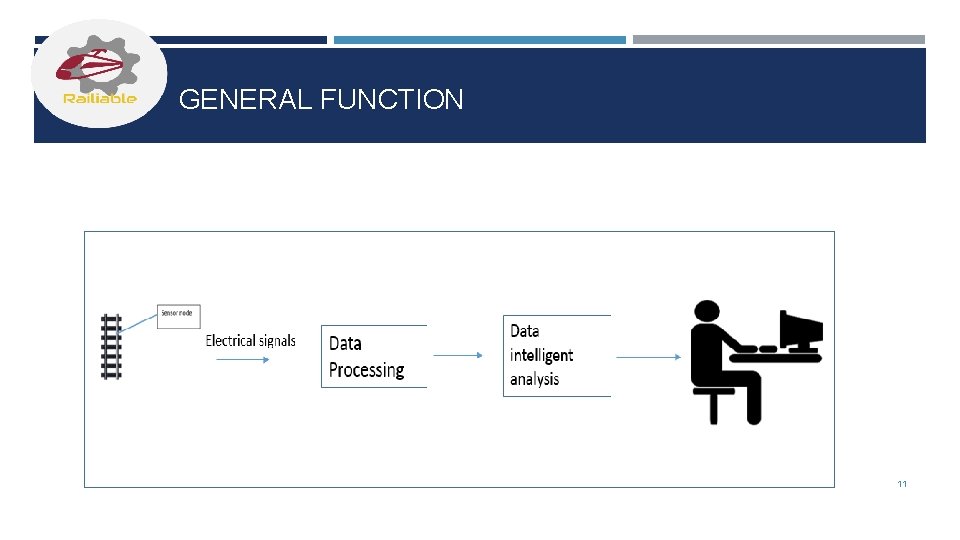

GENERAL FUNCTION 11

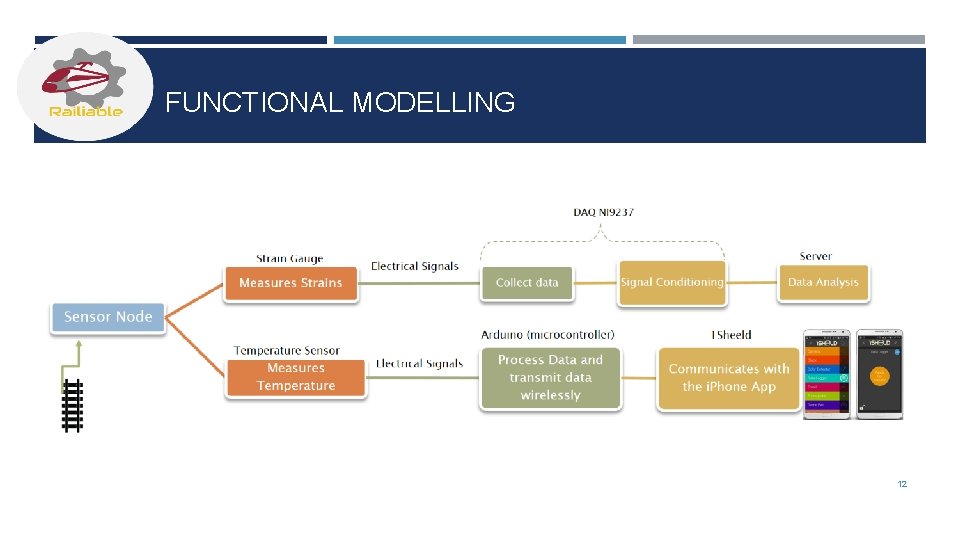

FUNCTIONAL MODELLING 12

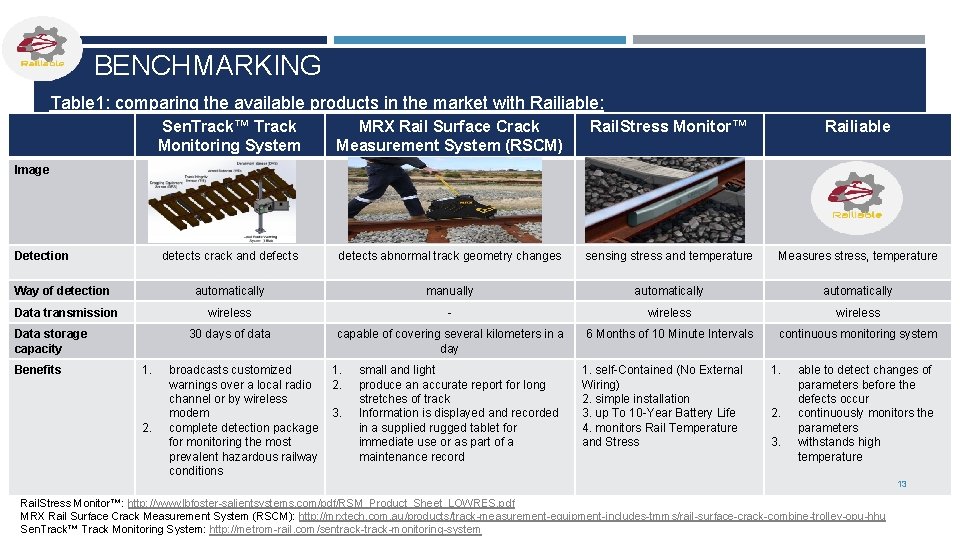

BENCHMARKING Table 1: comparing the available products in the market with Railiable: Sen. Track™ Track Monitoring System MRX Rail Surface Crack Measurement System (RSCM) Rail. Stress Monitor™ Railiable detects crack and defects detects abnormal track geometry changes sensing stress and temperature Measures stress, temperature automatically manually automatically wireless - wireless 30 days of data capable of covering several kilometers in a day 6 Months of 10 Minute Intervals continuous monitoring system Image Detection Way of detection Data transmission Data storage capacity Benefits 1. 2. broadcasts customized 1. warnings over a local radio 2. channel or by wireless modem 3. complete detection package for monitoring the most prevalent hazardous railway conditions small and light produce an accurate report for long stretches of track Information is displayed and recorded in a supplied rugged tablet for immediate use or as part of a maintenance record 1. self-Contained (No External Wiring) 2. simple installation 3. up To 10 -Year Battery Life 4. monitors Rail Temperature and Stress 1. 2. 3. able to detect changes of parameters before the defects occur continuously monitors the parameters withstands high temperature 13 Rail. Stress Monitor™: http: //www. lbfoster-salientsystems. com/pdf/RSM_Product_Sheet_LOWRES. pdf MRX Rail Surface Crack Measurement System (RSCM): http: //mrxtech. com. au/products/track-measurement-equipment-includes-tmms/rail-surface-crack-combine-trolley-opu-hhu Sen. Track™ Track Monitoring System: http: //metrom-rail. com/sentrack-monitoring-system

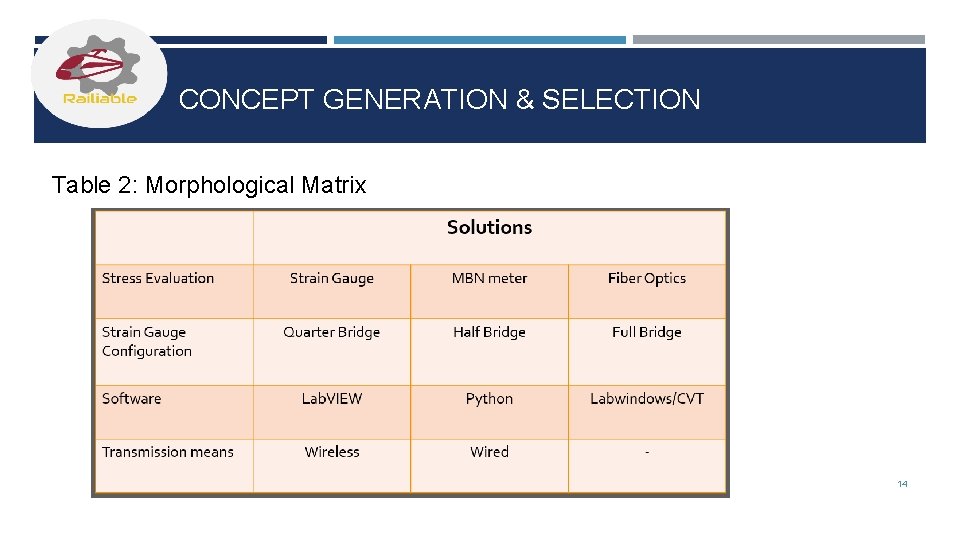

CONCEPT GENERATION & SELECTION Table 2: Morphological Matrix 14

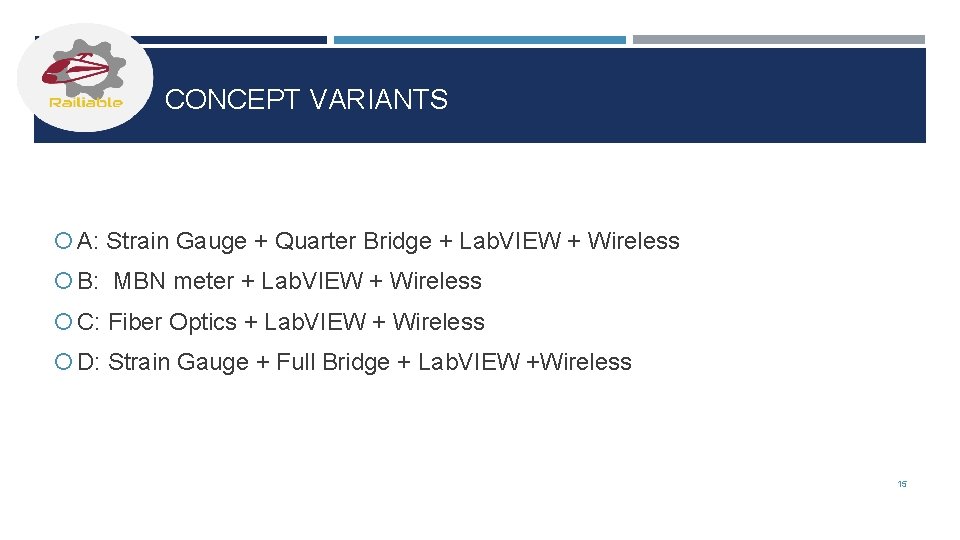

CONCEPT VARIANTS A: Strain Gauge + Quarter Bridge + Lab. VIEW + Wireless B: MBN meter + Lab. VIEW + Wireless C: Fiber Optics + Lab. VIEW + Wireless D: Strain Gauge + Full Bridge + Lab. VIEW +Wireless 15

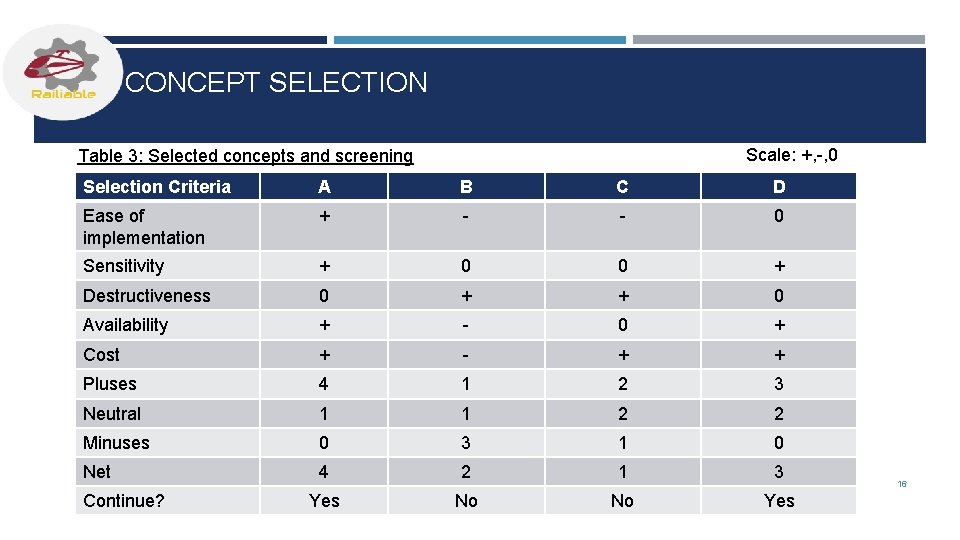

CONCEPT SELECTION Scale: +, -, 0 Table 3: Selected concepts and screening Selection Criteria A B C D Ease of implementation + - - 0 Sensitivity + 0 0 + Destructiveness 0 + + 0 Availability + - 0 + Cost + - + + Pluses 4 1 2 3 Neutral 1 1 2 2 Minuses 0 3 1 0 Net 4 2 1 3 Yes No No Yes Continue? 16

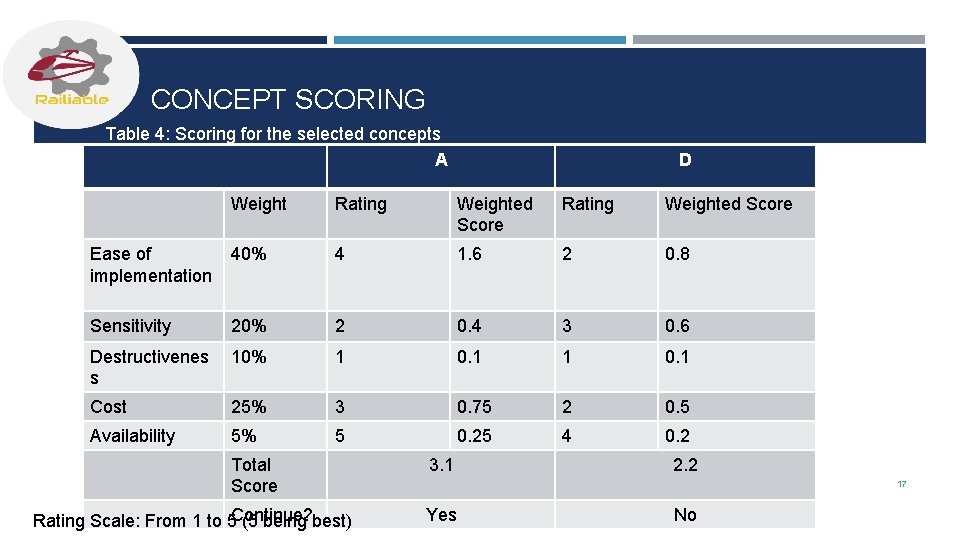

CONCEPT SCORING Table 4: Scoring for the selected concepts A D Weight Rating Weighted Score Ease of implementation 40% 4 1. 6 2 0. 8 Sensitivity 20% 2 0. 4 3 0. 6 Destructivenes s 10% 1 0. 1 Cost 25% 3 0. 75 2 0. 5 Availability 5% 5 0. 25 4 0. 2 Total Score Continue? Rating Scale: From 1 to 5 (5 being best) 3. 1 2. 2 17 Yes No

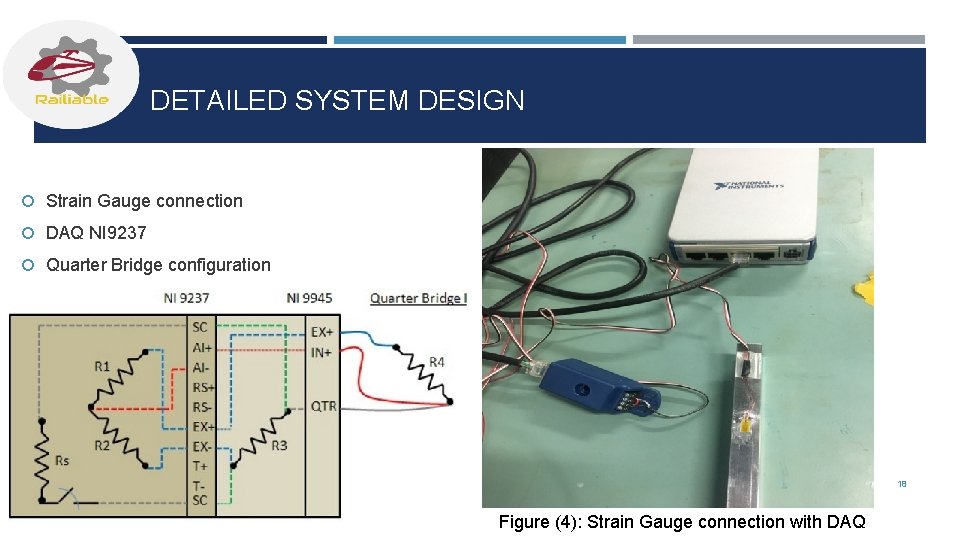

DETAILED SYSTEM DESIGN Strain Gauge connection DAQ NI 9237 Quarter Bridge configuration 18 Figure (4): Strain Gauge connection with DAQ

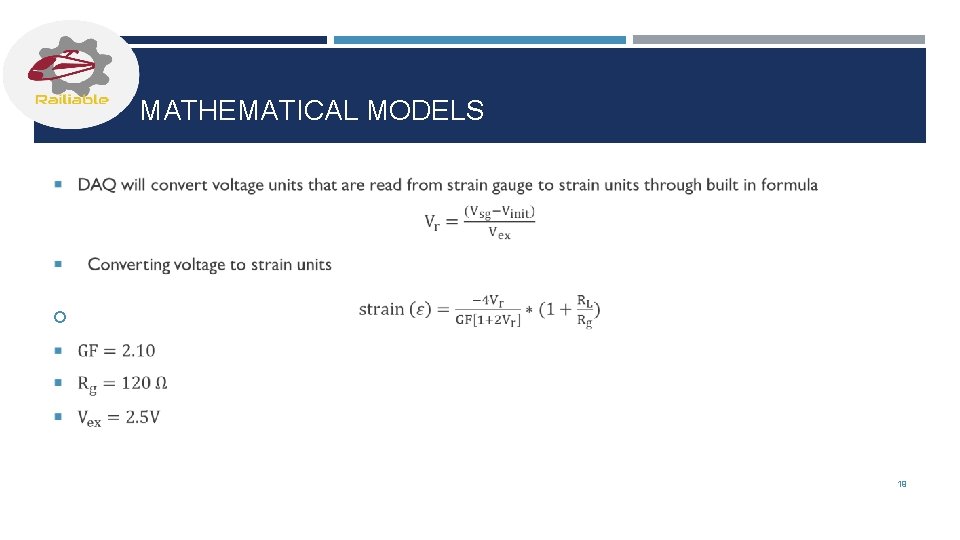

MATHEMATICAL MODELS 19

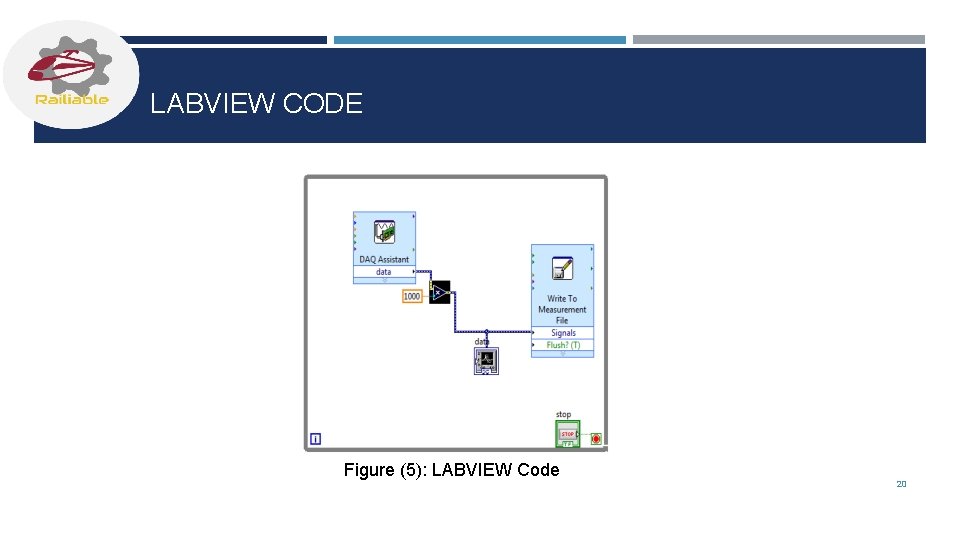

LABVIEW CODE Figure (5): LABVIEW Code 20

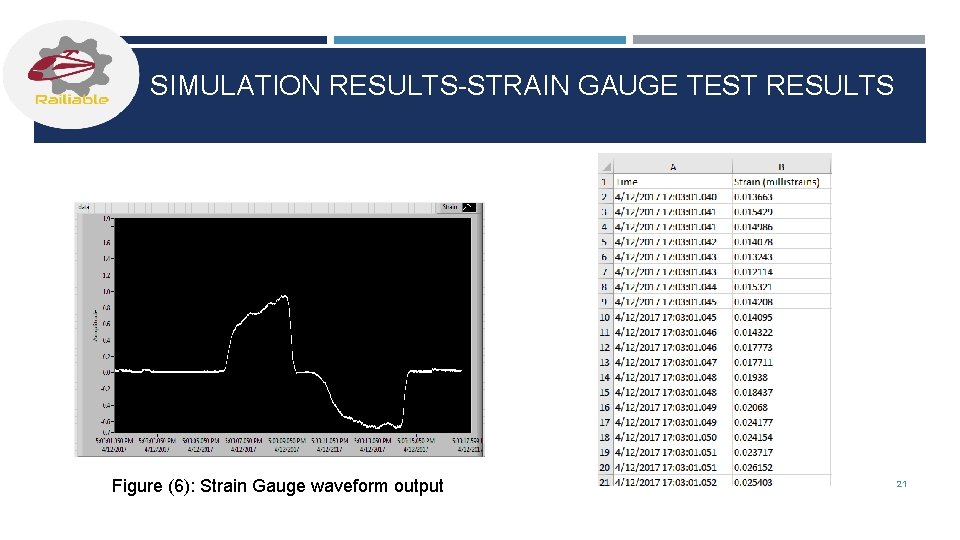

SIMULATION RESULTS-STRAIN GAUGE TEST RESULTS Figure (6): Strain Gauge waveform output 21

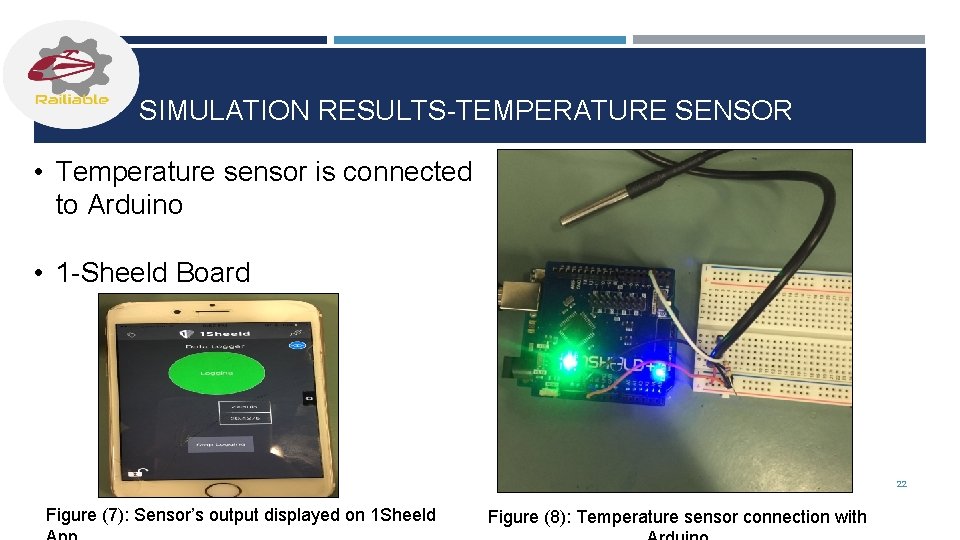

SIMULATION RESULTS-TEMPERATURE SENSOR • Temperature sensor is connected to Arduino • 1 -Sheeld Board 22 Figure (7): Sensor’s output displayed on 1 Sheeld Figure (8): Temperature sensor connection with

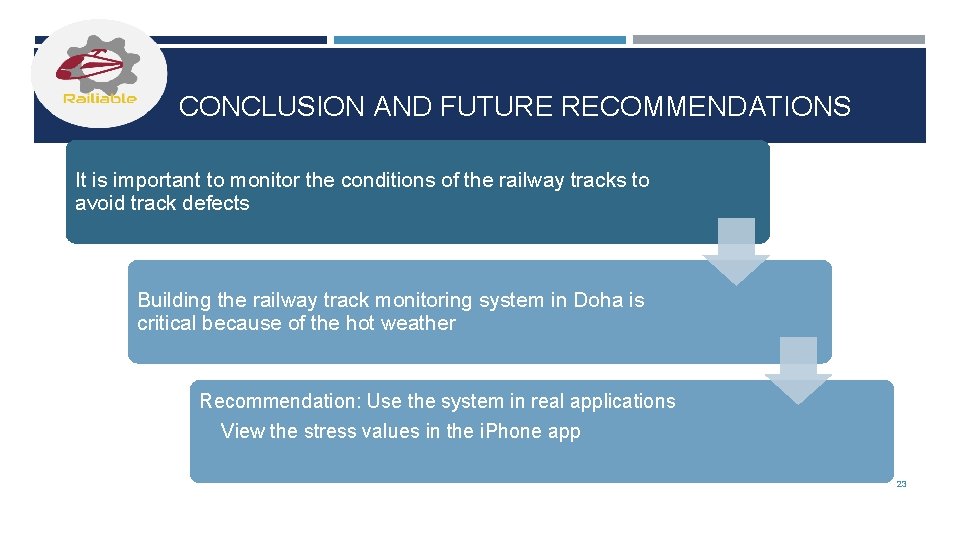

CONCLUSION AND FUTURE RECOMMENDATIONS It is important to monitor the conditions of the railway tracks to avoid track defects Building the railway track monitoring system in Doha is critical because of the hot weather Recommendation: Use the system in real applications View the stress values in the i. Phone app 23

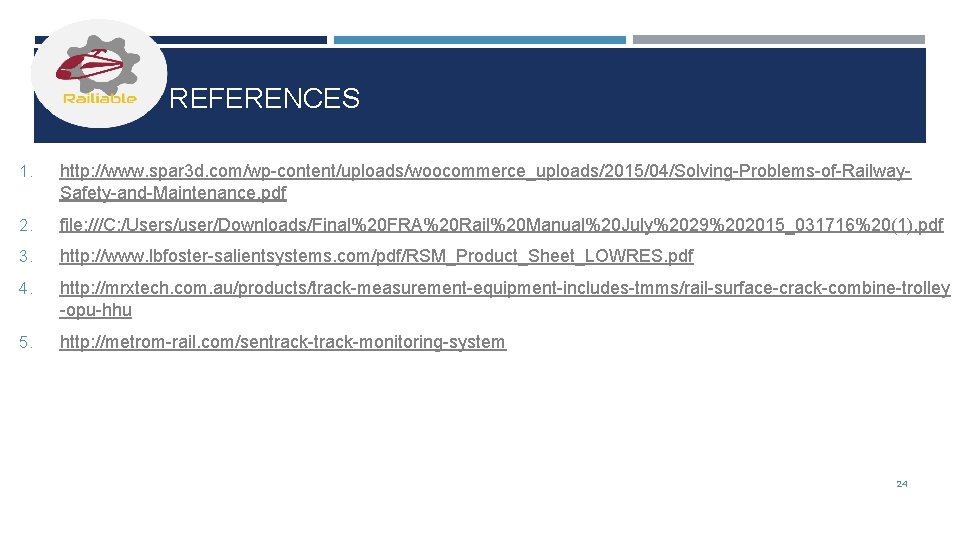

REFERENCES 1. http: //www. spar 3 d. com/wp-content/uploads/woocommerce_uploads/2015/04/Solving-Problems-of-Railway. Safety-and-Maintenance. pdf 2. file: ///C: /Users/user/Downloads/Final%20 FRA%20 Rail%20 Manual%20 July%2029%202015_031716%20(1). pdf 3. http: //www. lbfoster-salientsystems. com/pdf/RSM_Product_Sheet_LOWRES. pdf 4. http: //mrxtech. com. au/products/track-measurement-equipment-includes-tmms/rail-surface-crack-combine-trolley -opu-hhu 5. http: //metrom-rail. com/sentrack-monitoring-system 24
