Programming with Microsoft Visual Basic 2012 Chapter 5: More on the Selection Structure

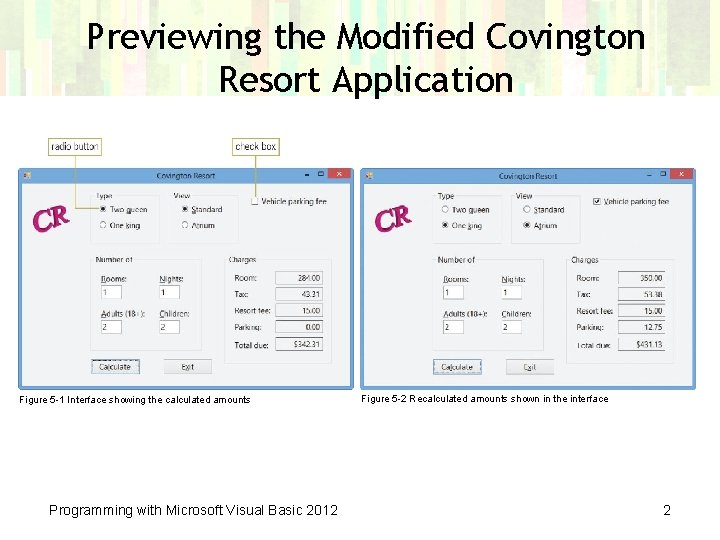

Previewing the Modified Covington Resort Application Figure 5 -1 Interface showing the calculated amounts Programming with Microsoft Visual Basic 2012 Figure 5 -2 Recalculated amounts shown in the interface 2

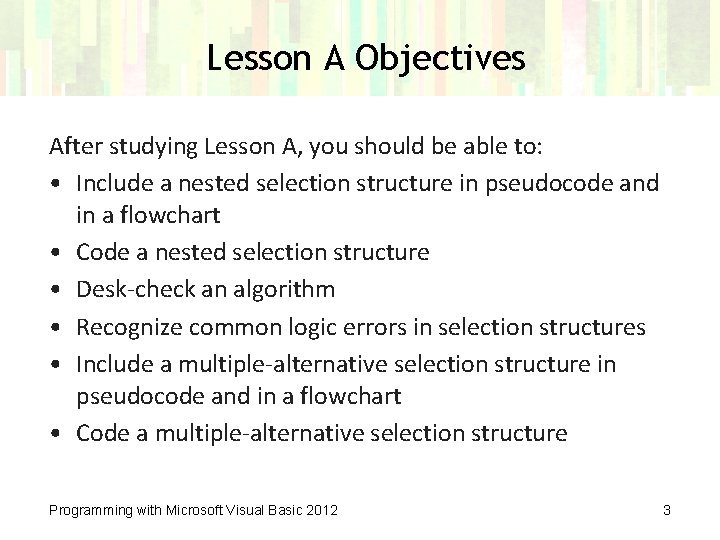

Lesson A Objectives After studying Lesson A, you should be able to: • Include a nested selection structure in pseudocode and in a flowchart • Code a nested selection structure • Desk-check an algorithm • Recognize common logic errors in selection structures • Include a multiple-alternative selection structure in pseudocode and in a flowchart • Code a multiple-alternative selection structure Programming with Microsoft Visual Basic 2012 3

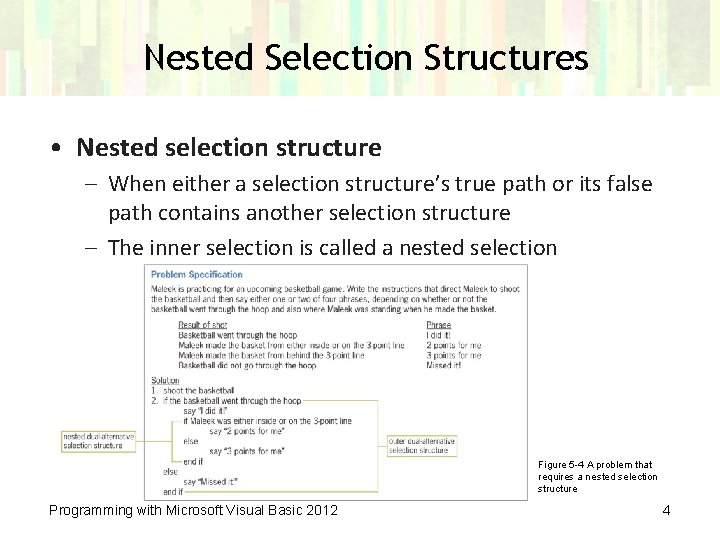

Nested Selection Structures • Nested selection structure – When either a selection structure’s true path or its false path contains another selection structure – The inner selection is called a nested selection Figure 5 -4 A problem that requires a nested selection structure Programming with Microsoft Visual Basic 2012 4

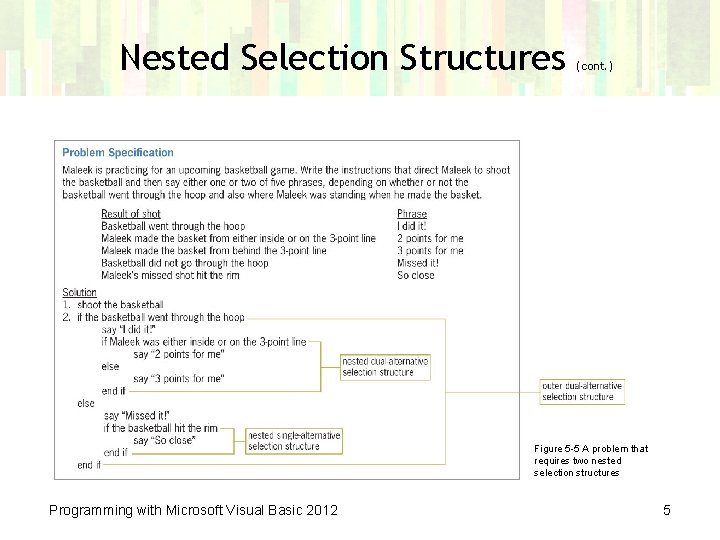

Nested Selection Structures (cont. ) Figure 5 -5 A problem that requires two nested selection structures Programming with Microsoft Visual Basic 2012 5

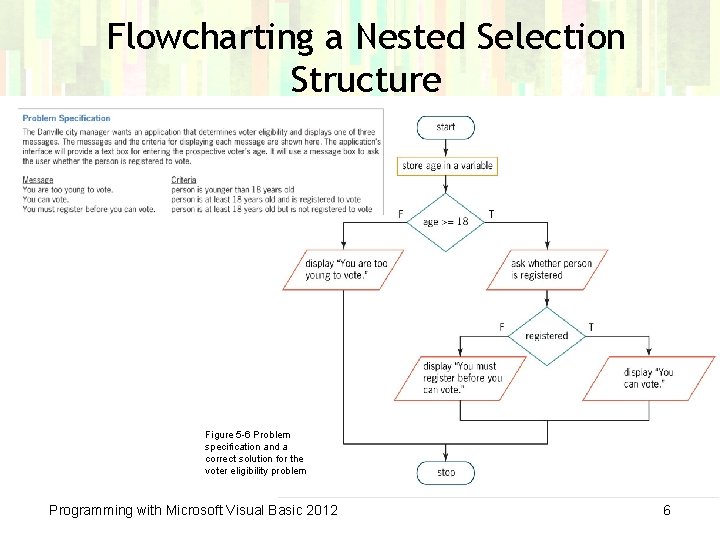

Flowcharting a Nested Selection Structure Figure 5 -6 Problem specification and a correct solution for the voter eligibility problem Programming with Microsoft Visual Basic 2012 6

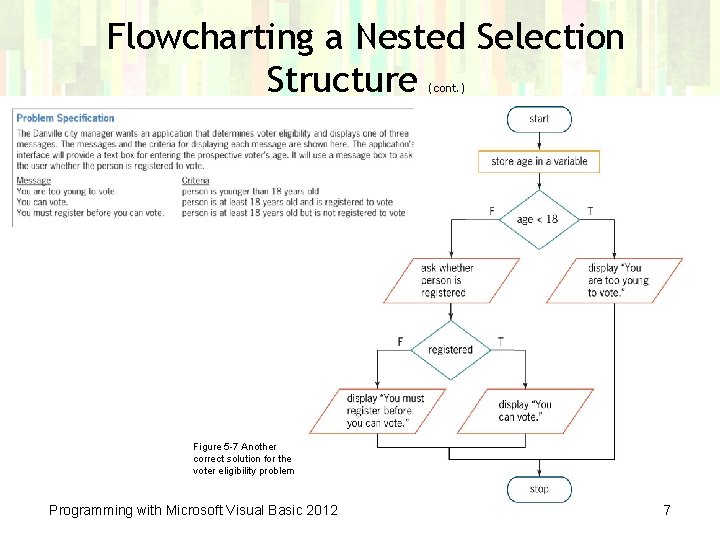

Flowcharting a Nested Selection Structure (cont. ) Figure 5 -7 Another correct solution for the voter eligibility problem Programming with Microsoft Visual Basic 2012 7

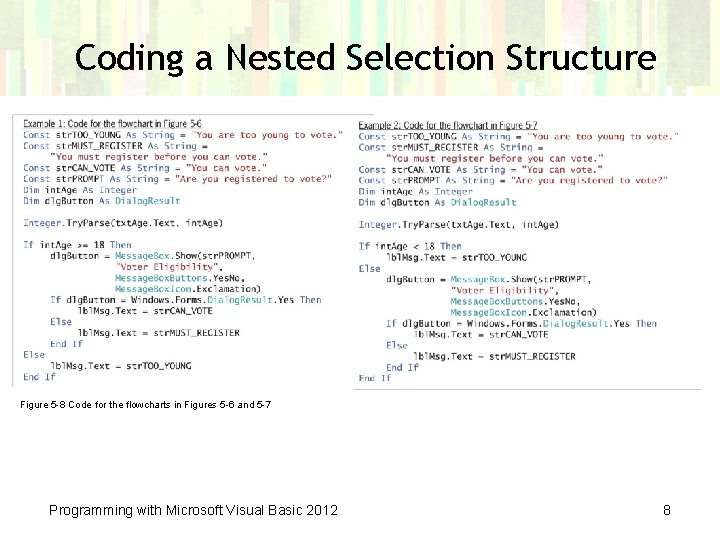

Coding a Nested Selection Structure Figure 5 -8 Code for the flowcharts in Figures 5 -6 and 5 -7 Programming with Microsoft Visual Basic 2012 8

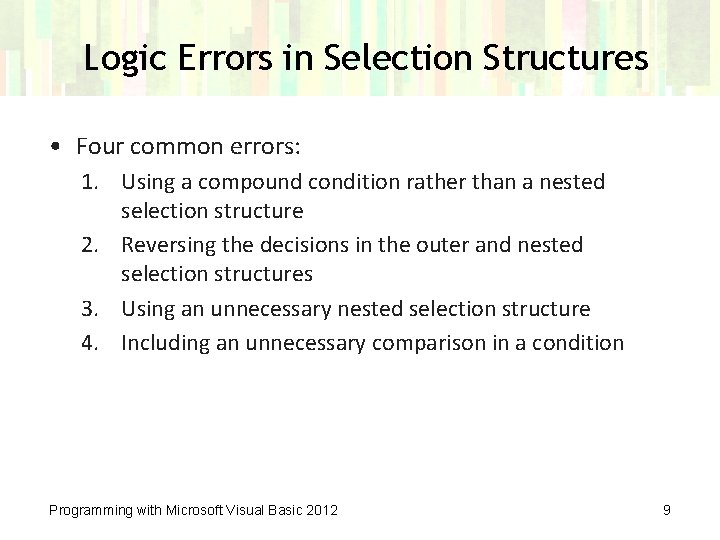

Logic Errors in Selection Structures • Four common errors: 1. Using a compound condition rather than a nested selection structure 2. Reversing the decisions in the outer and nested selection structures 3. Using an unnecessary nested selection structure 4. Including an unnecessary comparison in a condition Programming with Microsoft Visual Basic 2012 9

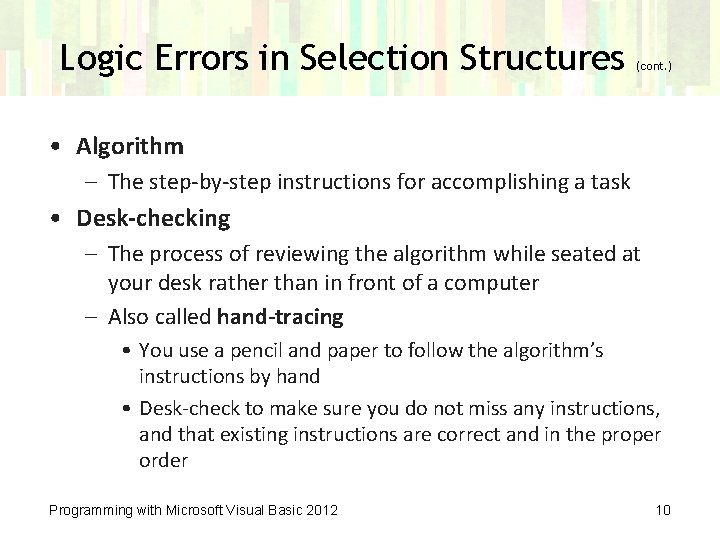

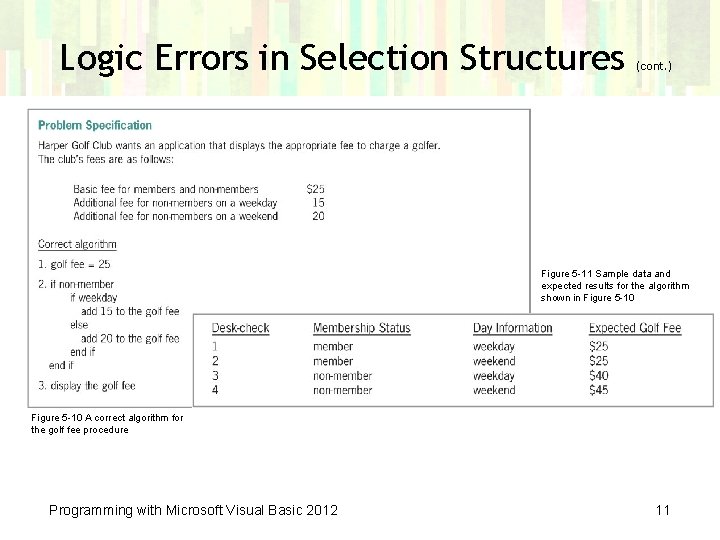

Logic Errors in Selection Structures (cont. ) • Algorithm – The step-by-step instructions for accomplishing a task • Desk-checking – The process of reviewing the algorithm while seated at your desk rather than in front of a computer – Also called hand-tracing • You use a pencil and paper to follow the algorithm’s instructions by hand • Desk-check to make sure you do not miss any instructions, and that existing instructions are correct and in the proper order Programming with Microsoft Visual Basic 2012 10

Logic Errors in Selection Structures (cont. ) Figure 5 -11 Sample data and expected results for the algorithm shown in Figure 5 -10 A correct algorithm for the golf fee procedure Programming with Microsoft Visual Basic 2012 11

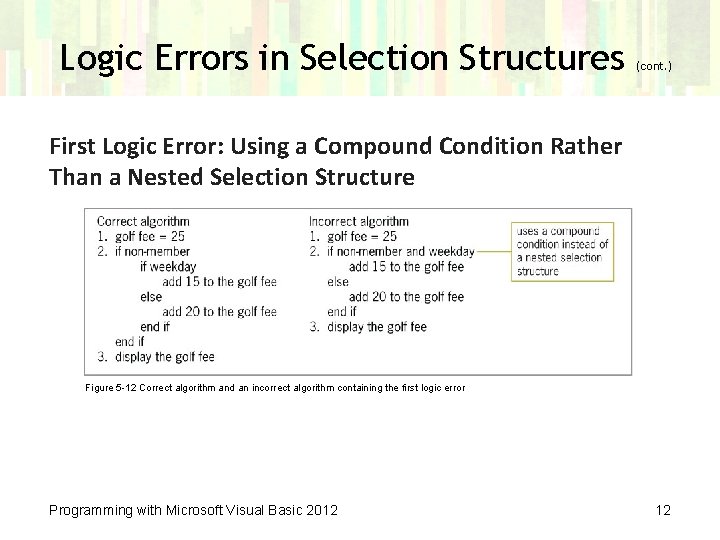

Logic Errors in Selection Structures (cont. ) First Logic Error: Using a Compound Condition Rather Than a Nested Selection Structure Figure 5 -12 Correct algorithm and an incorrect algorithm containing the first logic error Programming with Microsoft Visual Basic 2012 12

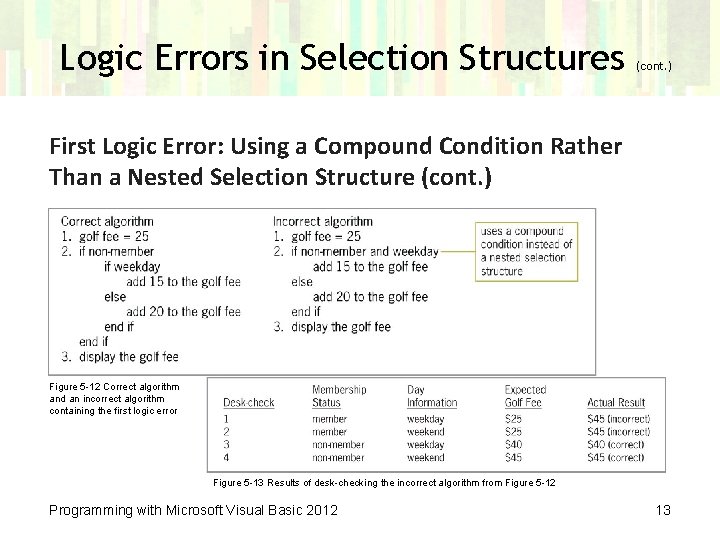

Logic Errors in Selection Structures (cont. ) First Logic Error: Using a Compound Condition Rather Than a Nested Selection Structure (cont. ) Figure 5 -12 Correct algorithm and an incorrect algorithm containing the first logic error Figure 5 -13 Results of desk-checking the incorrect algorithm from Figure 5 -12 Programming with Microsoft Visual Basic 2012 13

Logic Errors in Selection Structures (cont. ) Second Logic Error: Reversing the Outer and Nested Decisions Figure 5 -14 Correct algorithm and an incorrect algorithm containing the second logic error Figure 5 -15 Results of desk-checking the incorrect algorithm from Figure 5 -14 Programming with Microsoft Visual Basic 2012 14

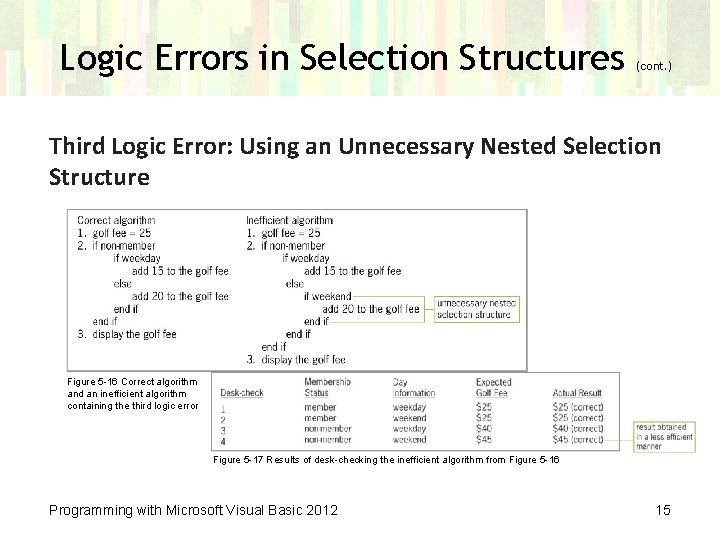

Logic Errors in Selection Structures (cont. ) Third Logic Error: Using an Unnecessary Nested Selection Structure Figure 5 -16 Correct algorithm and an inefficient algorithm containing the third logic error Figure 5 -17 Results of desk-checking the inefficient algorithm from Figure 5 -16 Programming with Microsoft Visual Basic 2012 15

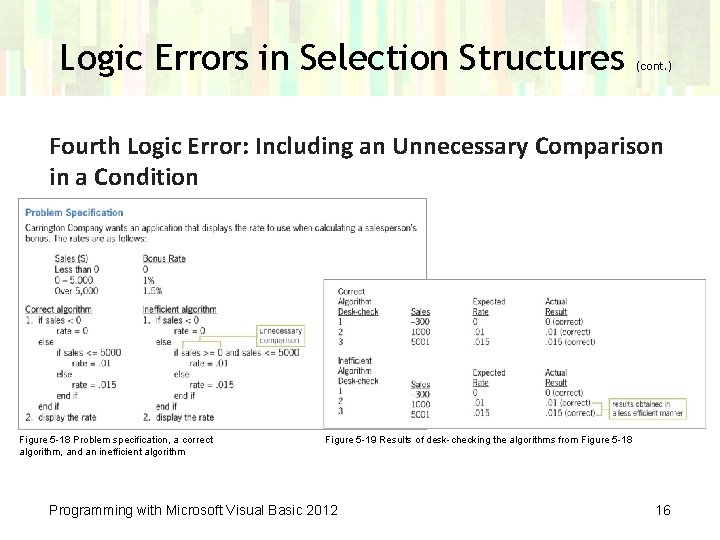

Logic Errors in Selection Structures (cont. ) Fourth Logic Error: Including an Unnecessary Comparison in a Condition Figure 5 -18 Problem specification, a correct algorithm, and an inefficient algorithm Figure 5 -19 Results of desk-checking the algorithms from Figure 5 -18 Programming with Microsoft Visual Basic 2012 16

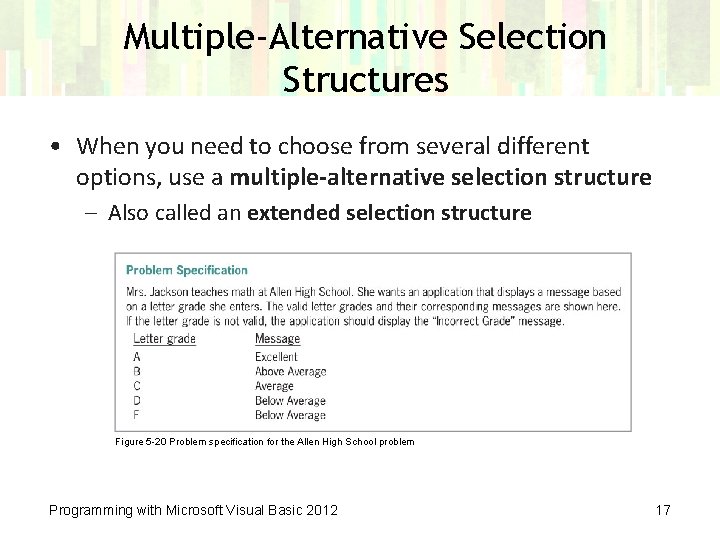

Multiple-Alternative Selection Structures • When you need to choose from several different options, use a multiple-alternative selection structure – Also called an extended selection structure Figure 5 -20 Problem specification for the Allen High School problem Programming with Microsoft Visual Basic 2012 17

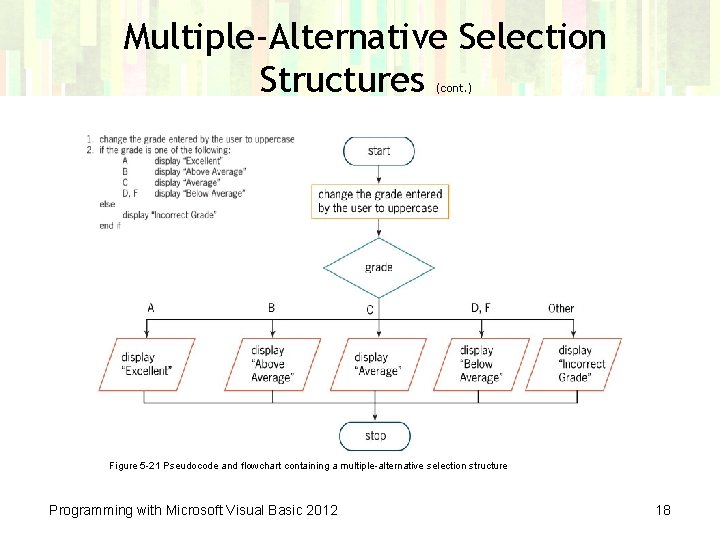

Multiple-Alternative Selection Structures (cont. ) Figure 5 -21 Pseudocode and flowchart containing a multiple-alternative selection structure Programming with Microsoft Visual Basic 2012 18

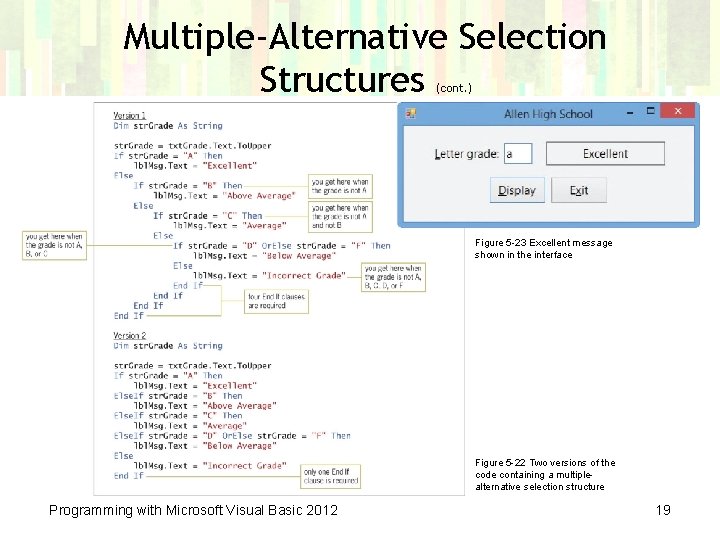

Multiple-Alternative Selection Structures (cont. ) Figure 5 -23 Excellent message shown in the interface Figure 5 -22 Two versions of the code containing a multiplealternative selection structure Programming with Microsoft Visual Basic 2012 19

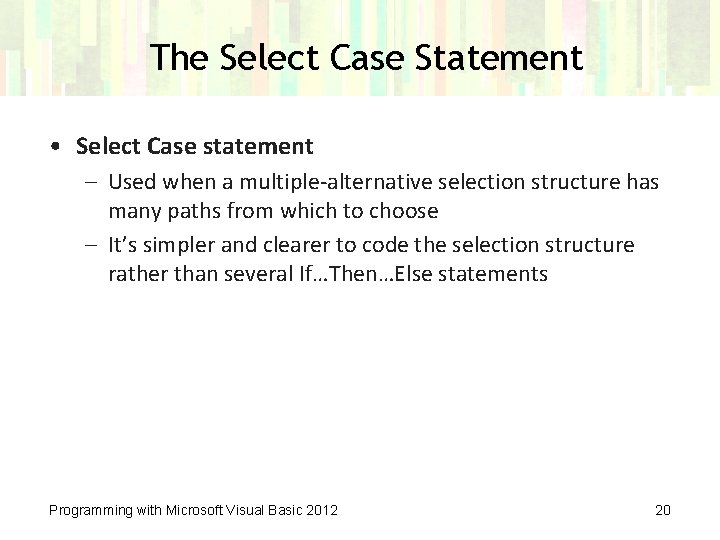

The Select Case Statement • Select Case statement – Used when a multiple-alternative selection structure has many paths from which to choose – It’s simpler and clearer to code the selection structure rather than several If…Then…Else statements Programming with Microsoft Visual Basic 2012 20

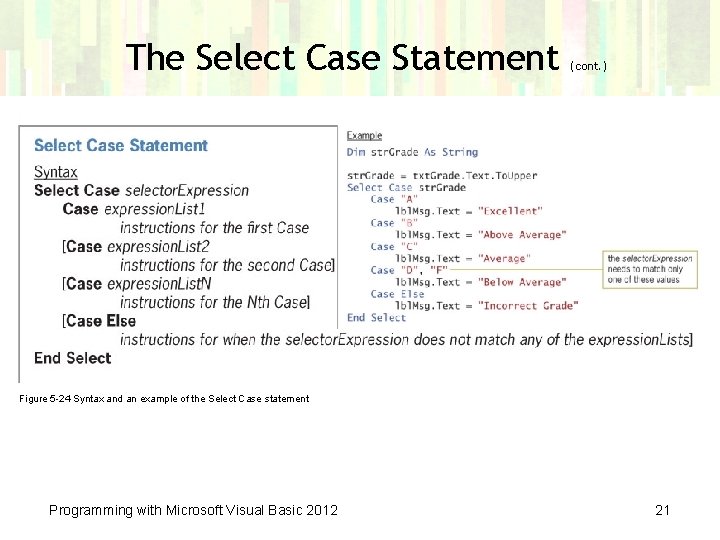

The Select Case Statement (cont. ) Figure 5 -24 Syntax and an example of the Select Case statement Programming with Microsoft Visual Basic 2012 21

The Select Case Statement (cont. ) Specifying a Range of Values in a Case Clause Figure 5 -25 Syntax and an example of specifying a range of values Programming with Microsoft Visual Basic 2012 22

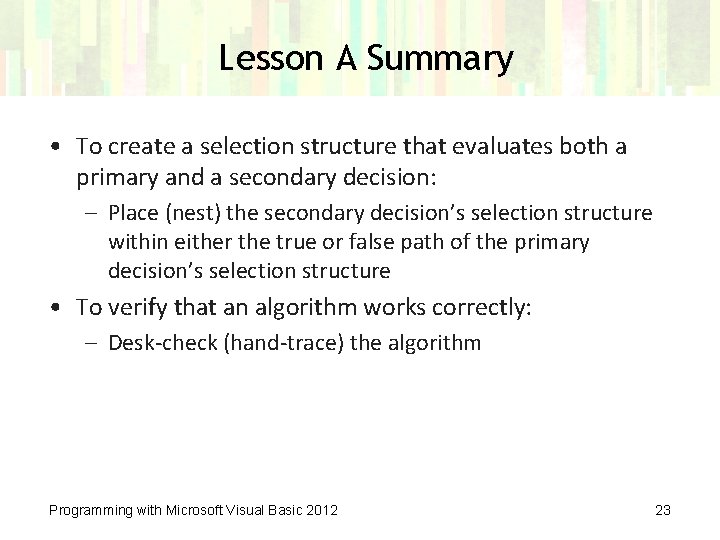

Lesson A Summary • To create a selection structure that evaluates both a primary and a secondary decision: – Place (nest) the secondary decision’s selection structure within either the true or false path of the primary decision’s selection structure • To verify that an algorithm works correctly: – Desk-check (hand-trace) the algorithm Programming with Microsoft Visual Basic 2012 23

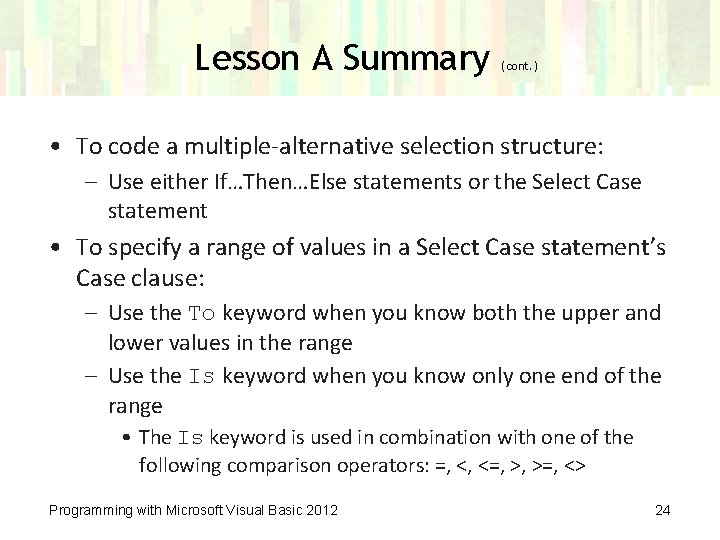

Lesson A Summary (cont. ) • To code a multiple-alternative selection structure: – Use either If…Then…Else statements or the Select Case statement • To specify a range of values in a Select Case statement’s Case clause: – Use the To keyword when you know both the upper and lower values in the range – Use the Is keyword when you know only one end of the range • The Is keyword is used in combination with one of the following comparison operators: =, <, <=, >, >=, <> Programming with Microsoft Visual Basic 2012 24

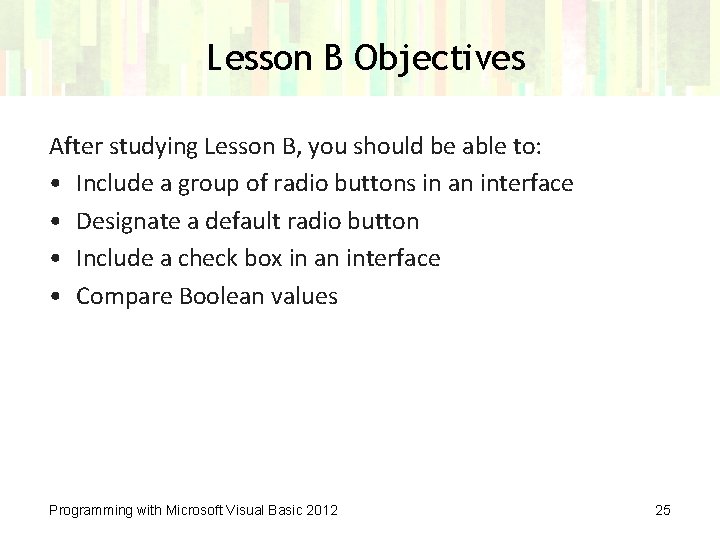

Lesson B Objectives After studying Lesson B, you should be able to: • Include a group of radio buttons in an interface • Designate a default radio button • Include a check box in an interface • Compare Boolean values Programming with Microsoft Visual Basic 2012 25

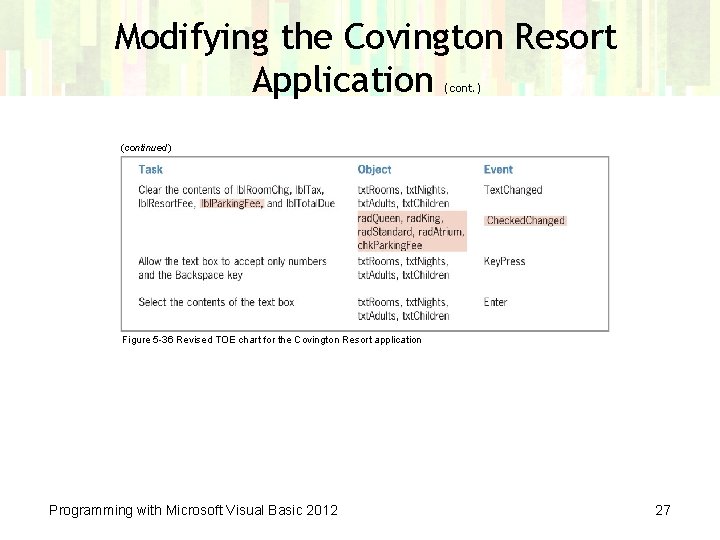

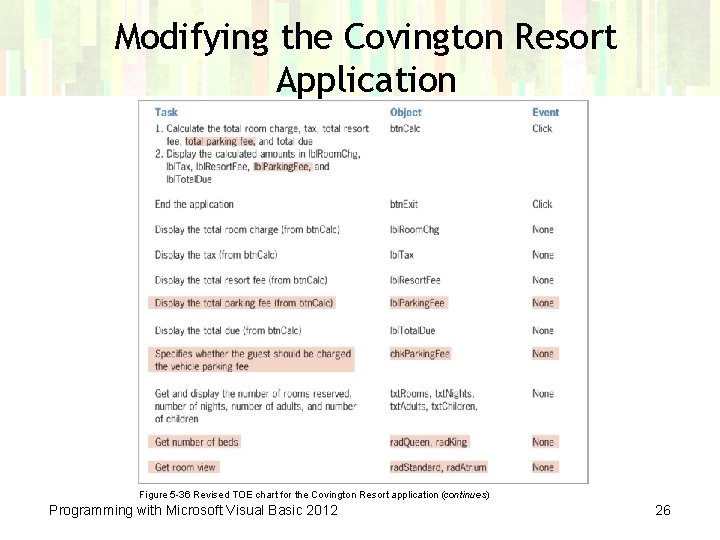

Modifying the Covington Resort Application Figure 5 -36 Revised TOE chart for the Covington Resort application (continues) Programming with Microsoft Visual Basic 2012 26

Modifying the Covington Resort Application (cont. ) (continued) Figure 5 -36 Revised TOE chart for the Covington Resort application Programming with Microsoft Visual Basic 2012 27

Modifying the Covington Resort Application (cont. ) Figure 5 -37 Partially completed interface for the Covington Resort application Programming with Microsoft Visual Basic 2012 28

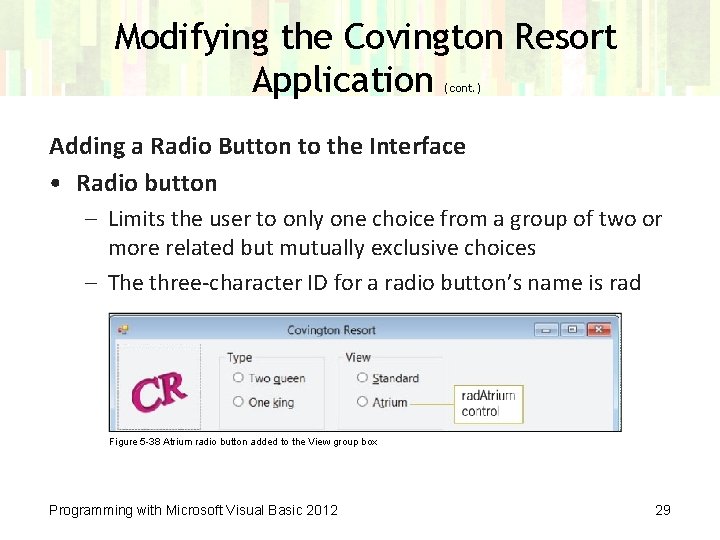

Modifying the Covington Resort Application (cont. ) Adding a Radio Button to the Interface • Radio button – Limits the user to only one choice from a group of two or more related but mutually exclusive choices – The three-character ID for a radio button’s name is rad Figure 5 -38 Atrium radio button added to the View group box Programming with Microsoft Visual Basic 2012 29

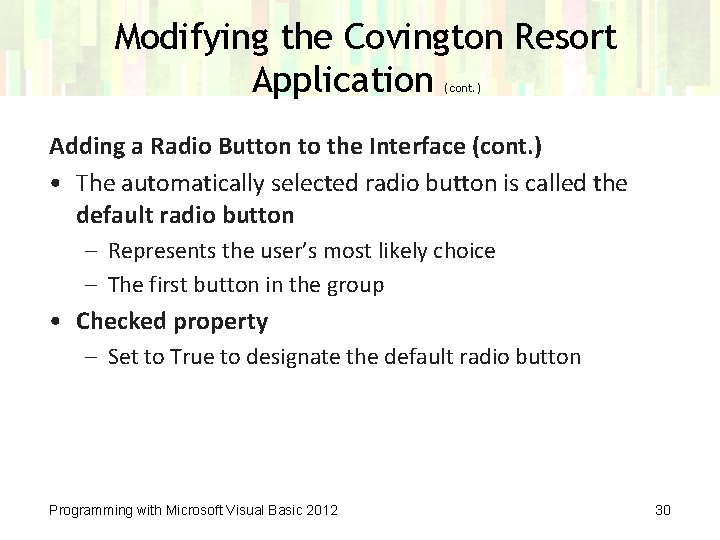

Modifying the Covington Resort Application (cont. ) Adding a Radio Button to the Interface (cont. ) • The automatically selected radio button is called the default radio button – Represents the user’s most likely choice – The first button in the group • Checked property – Set to True to designate the default radio button Programming with Microsoft Visual Basic 2012 30

Modifying the Covington Resort Application (cont. ) Adding a Check Box to the Interface • Unlike radio buttons, check boxes provide one or more independent and nonexclusive items from which the user can choose • Any number of check boxes on a form can be selected at the same time • The three-character ID for a check box’s name is chk Figure 5 -39 Vehicle parking fee check box added to the interface Programming with Microsoft Visual Basic 2012 31

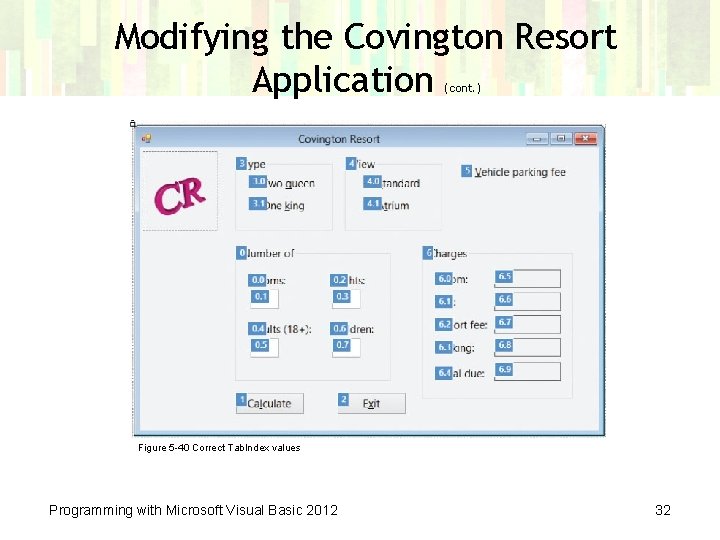

Modifying the Covington Resort Application (cont. ) Figure 5 -40 Correct Tab. Index values Programming with Microsoft Visual Basic 2012 32

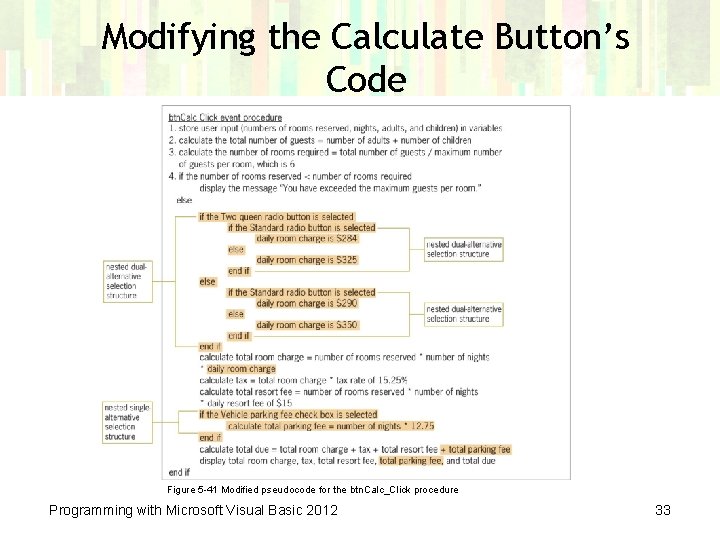

Modifying the Calculate Button’s Code Figure 5 -41 Modified pseudocode for the btn. Calc_Click procedure Programming with Microsoft Visual Basic 2012 33

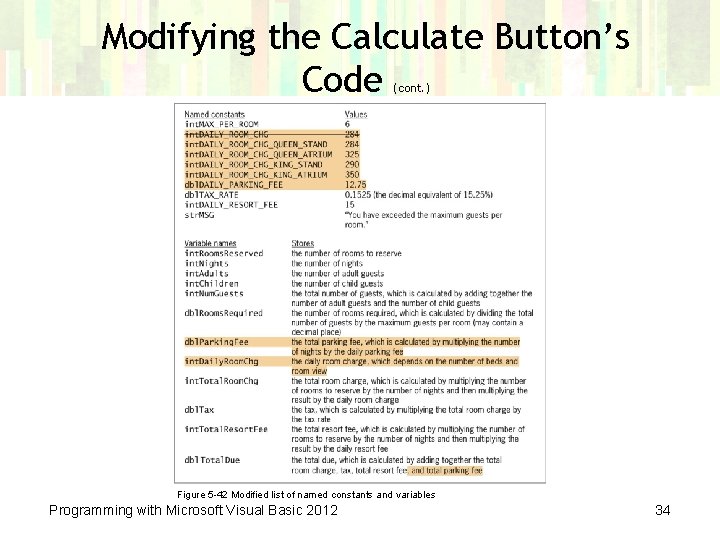

Modifying the Calculate Button’s Code (cont. ) Figure 5 -42 Modified list of named constants and variables Programming with Microsoft Visual Basic 2012 34

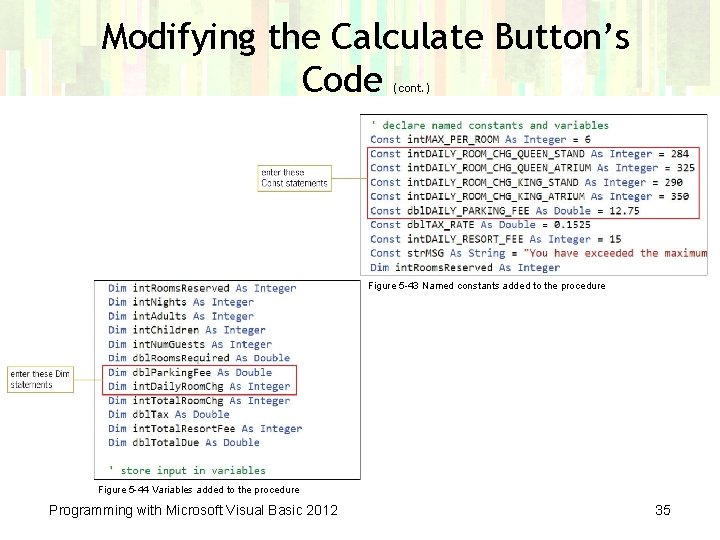

Modifying the Calculate Button’s Code (cont. ) Figure 5 -43 Named constants added to the procedure Figure 5 -44 Variables added to the procedure Programming with Microsoft Visual Basic 2012 35

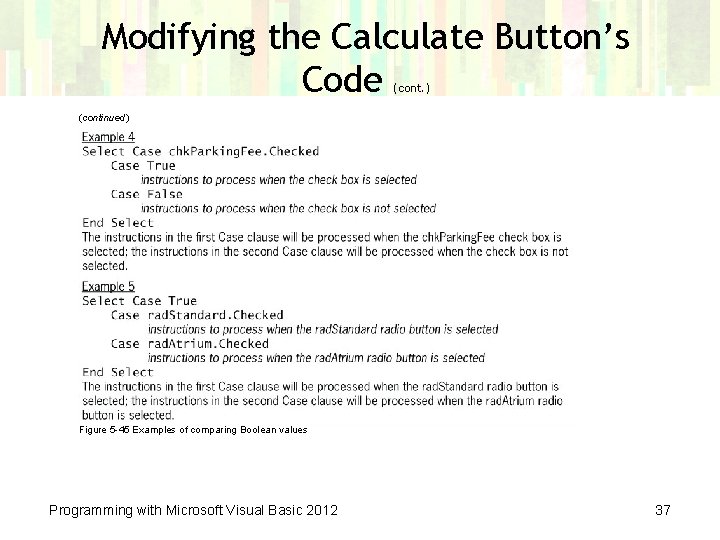

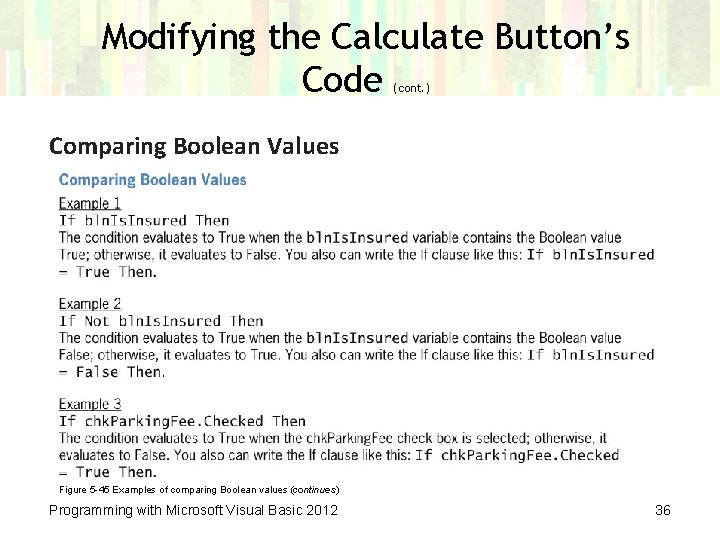

Modifying the Calculate Button’s Code (cont. ) Comparing Boolean Values Figure 5 -45 Examples of comparing Boolean values (continues) Programming with Microsoft Visual Basic 2012 36

Modifying the Calculate Button’s Code (cont. ) (continued) Figure 5 -45 Examples of comparing Boolean values Programming with Microsoft Visual Basic 2012 37

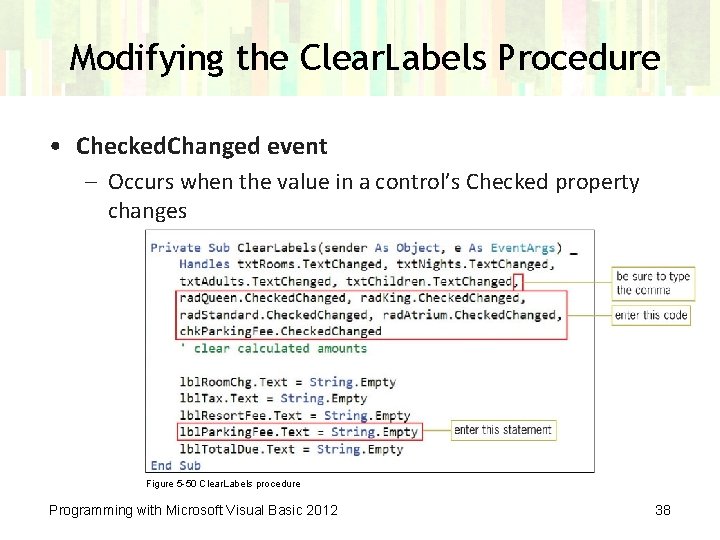

Modifying the Clear. Labels Procedure • Checked. Changed event – Occurs when the value in a control’s Checked property changes Figure 5 -50 Clear. Labels procedure Programming with Microsoft Visual Basic 2012 38

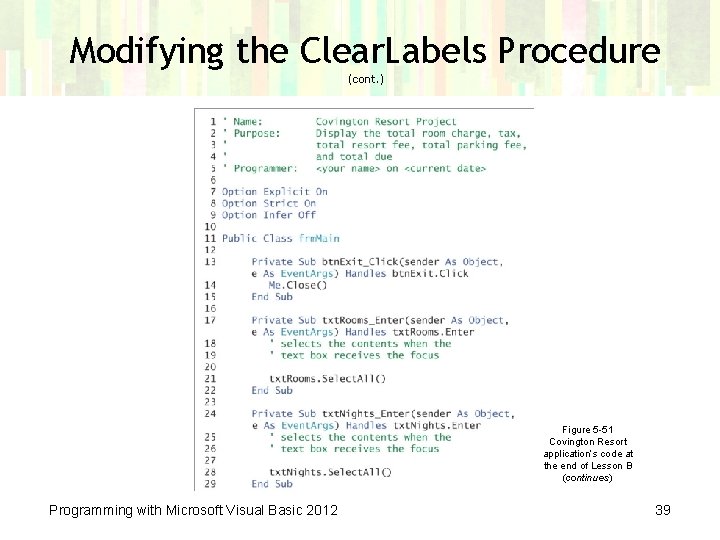

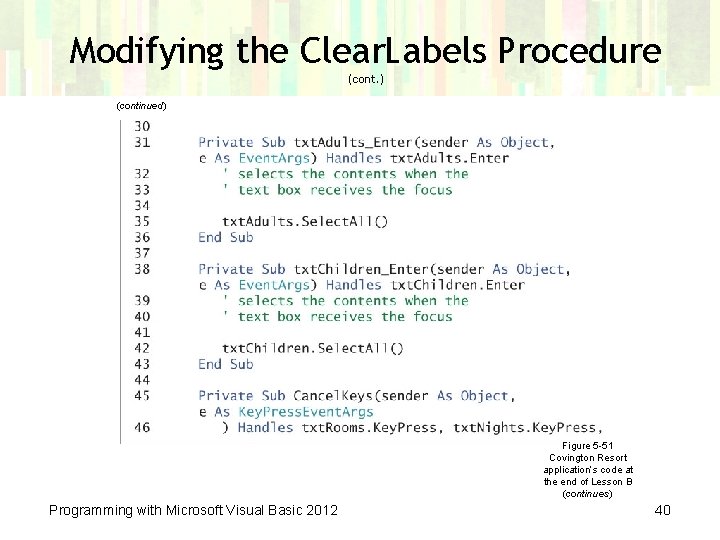

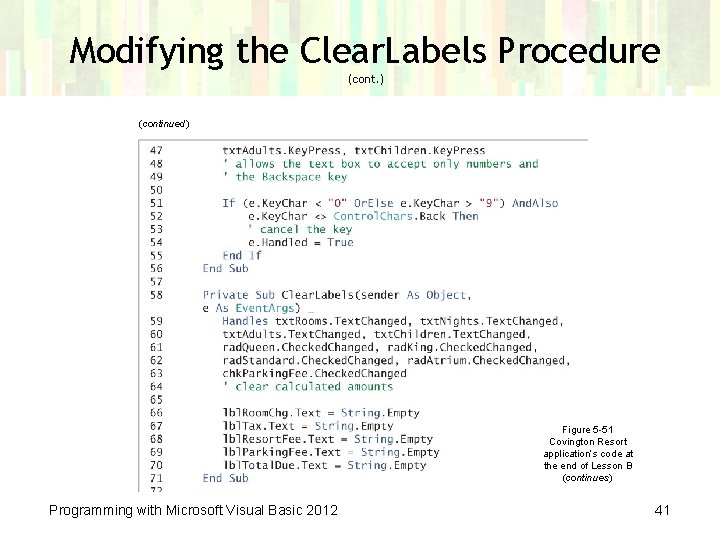

Modifying the Clear. Labels Procedure (cont. ) Figure 5 -51 Covington Resort application’s code at the end of Lesson B (continues) Programming with Microsoft Visual Basic 2012 39

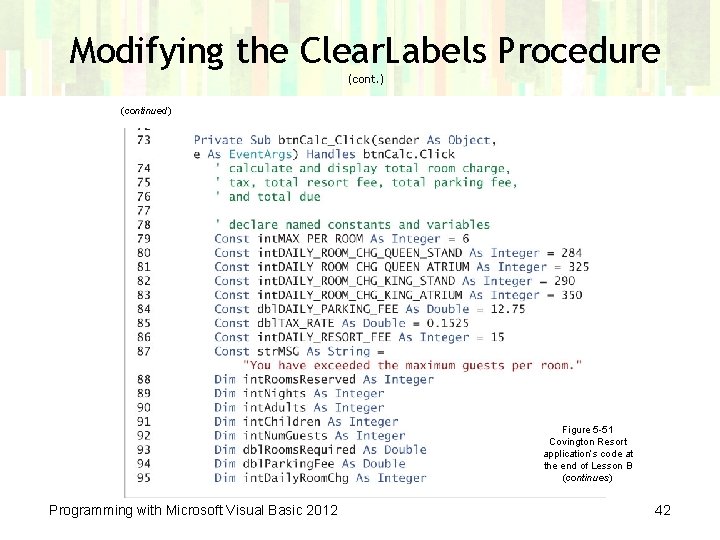

Modifying the Clear. Labels Procedure (cont. ) (continued) Figure 5 -51 Covington Resort application’s code at the end of Lesson B (continues) Programming with Microsoft Visual Basic 2012 40

Modifying the Clear. Labels Procedure (cont. ) (continued) Figure 5 -51 Covington Resort application’s code at the end of Lesson B (continues) Programming with Microsoft Visual Basic 2012 41

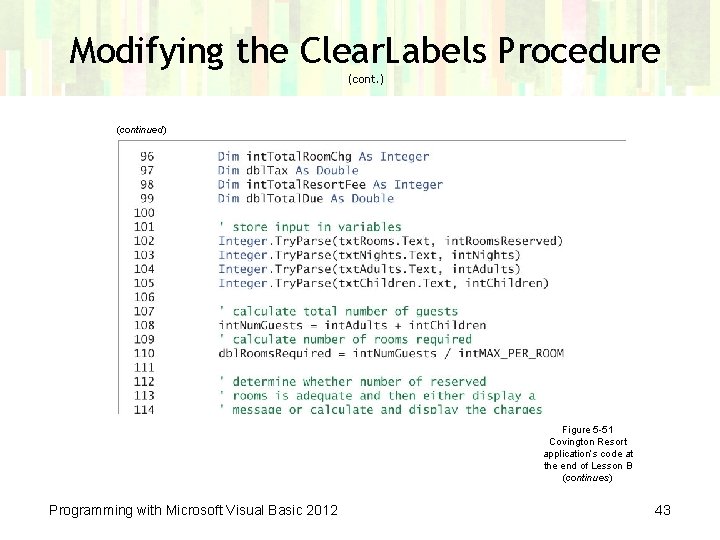

Modifying the Clear. Labels Procedure (cont. ) (continued) Figure 5 -51 Covington Resort application’s code at the end of Lesson B (continues) Programming with Microsoft Visual Basic 2012 42

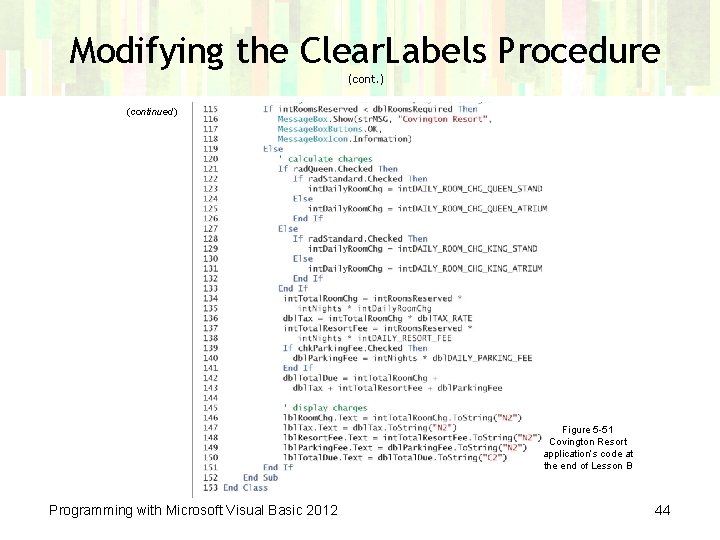

Modifying the Clear. Labels Procedure (cont. ) (continued) Figure 5 -51 Covington Resort application’s code at the end of Lesson B (continues) Programming with Microsoft Visual Basic 2012 43

Modifying the Clear. Labels Procedure (cont. ) (continued) Figure 5 -51 Covington Resort application’s code at the end of Lesson B Programming with Microsoft Visual Basic 2012 44

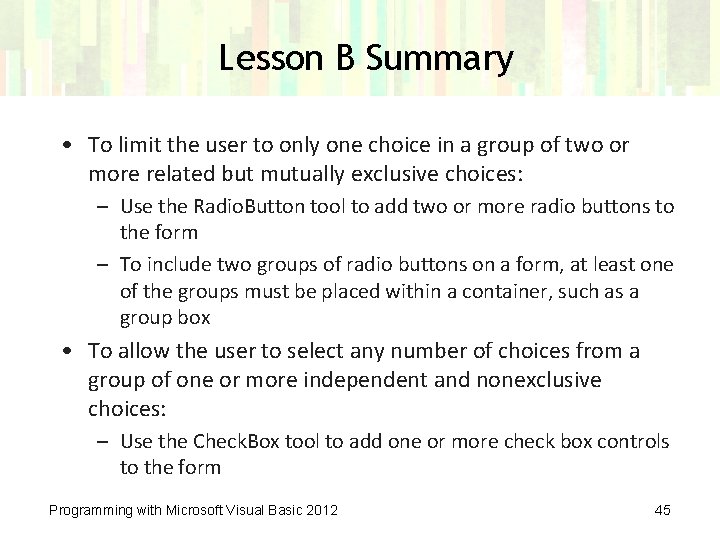

Lesson B Summary • To limit the user to only one choice in a group of two or more related but mutually exclusive choices: – Use the Radio. Button tool to add two or more radio buttons to the form – To include two groups of radio buttons on a form, at least one of the groups must be placed within a container, such as a group box • To allow the user to select any number of choices from a group of one or more independent and nonexclusive choices: – Use the Check. Box tool to add one or more check box controls to the form Programming with Microsoft Visual Basic 2012 45

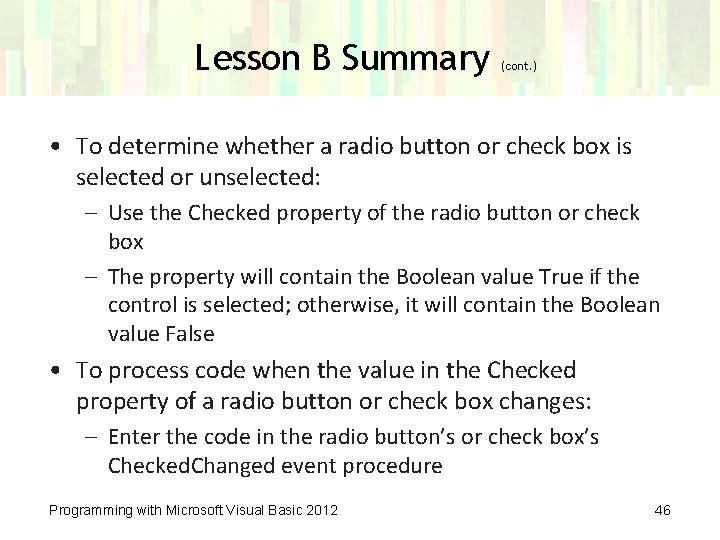

Lesson B Summary (cont. ) • To determine whether a radio button or check box is selected or unselected: – Use the Checked property of the radio button or check box – The property will contain the Boolean value True if the control is selected; otherwise, it will contain the Boolean value False • To process code when the value in the Checked property of a radio button or check box changes: – Enter the code in the radio button’s or check box’s Checked. Changed event procedure Programming with Microsoft Visual Basic 2012 46

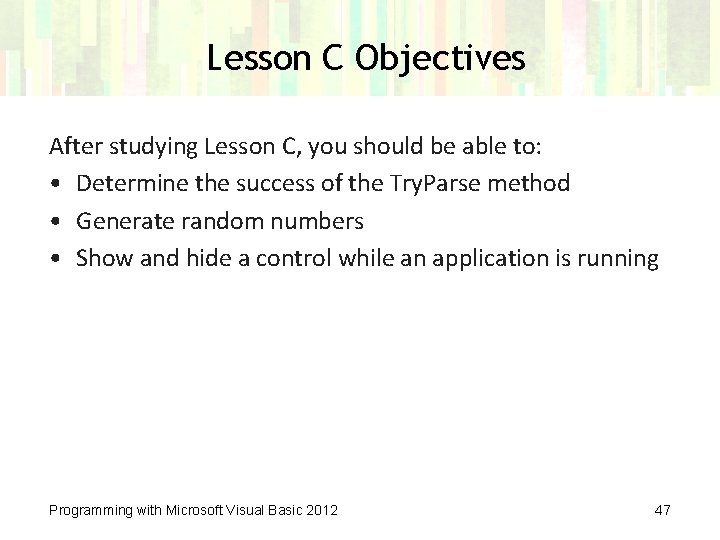

Lesson C Objectives After studying Lesson C, you should be able to: • Determine the success of the Try. Parse method • Generate random numbers • Show and hide a control while an application is running Programming with Microsoft Visual Basic 2012 47

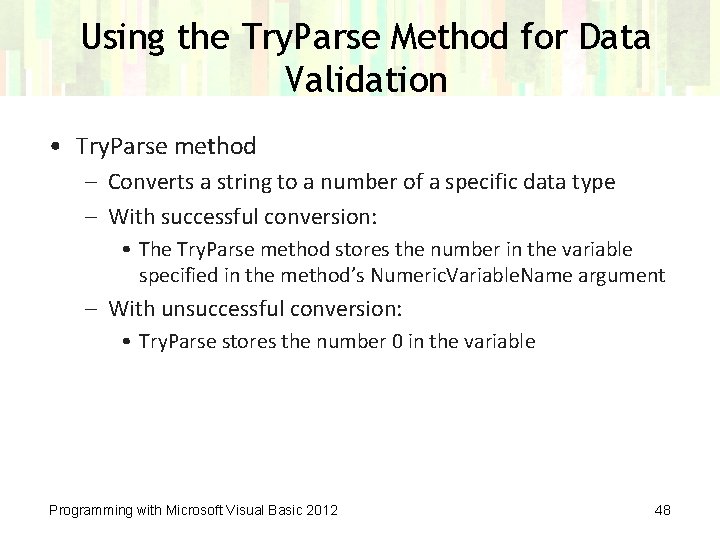

Using the Try. Parse Method for Data Validation • Try. Parse method – Converts a string to a number of a specific data type – With successful conversion: • The Try. Parse method stores the number in the variable specified in the method’s Numeric. Variable. Name argument – With unsuccessful conversion: • Try. Parse stores the number 0 in the variable Programming with Microsoft Visual Basic 2012 48

Using the Try. Parse Method for Data Validation (cont. ) Figure 5 -58 Syntax and an example of using the Boolean value returned by the Try. Parse method Programming with Microsoft Visual Basic 2012 49

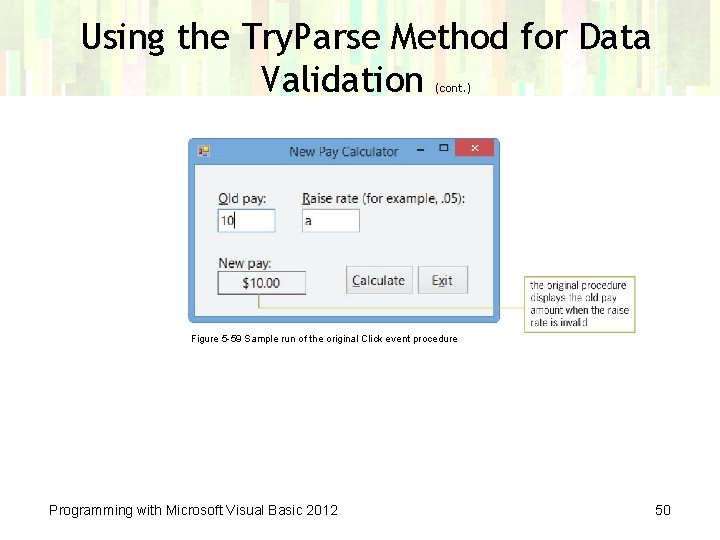

Using the Try. Parse Method for Data Validation (cont. ) Figure 5 -59 Sample run of the original Click event procedure Programming with Microsoft Visual Basic 2012 50

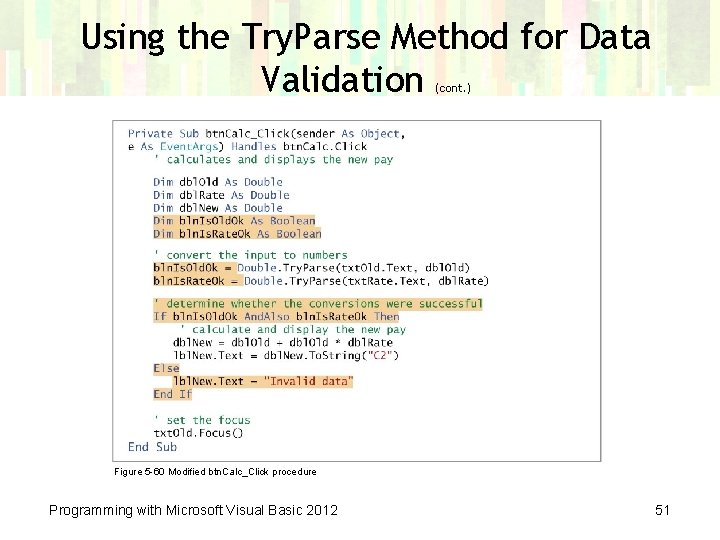

Using the Try. Parse Method for Data Validation (cont. ) Figure 5 -60 Modified btn. Calc_Click procedure Programming with Microsoft Visual Basic 2012 51

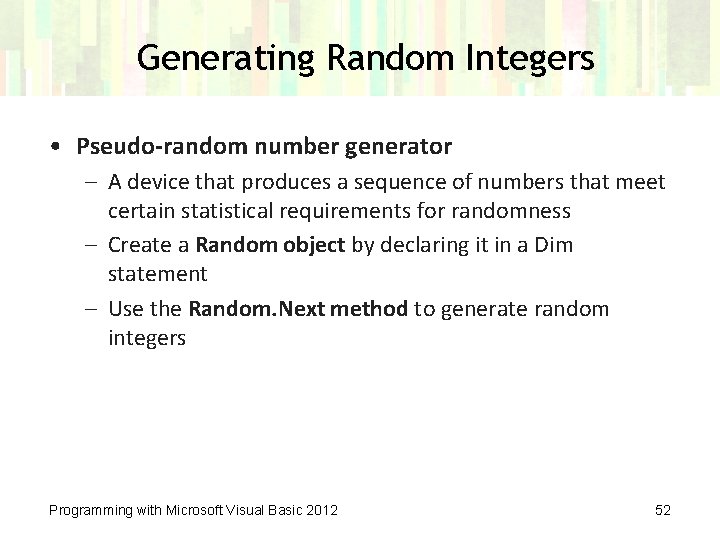

Generating Random Integers • Pseudo-random number generator – A device that produces a sequence of numbers that meet certain statistical requirements for randomness – Create a Random object by declaring it in a Dim statement – Use the Random. Next method to generate random integers Programming with Microsoft Visual Basic 2012 52

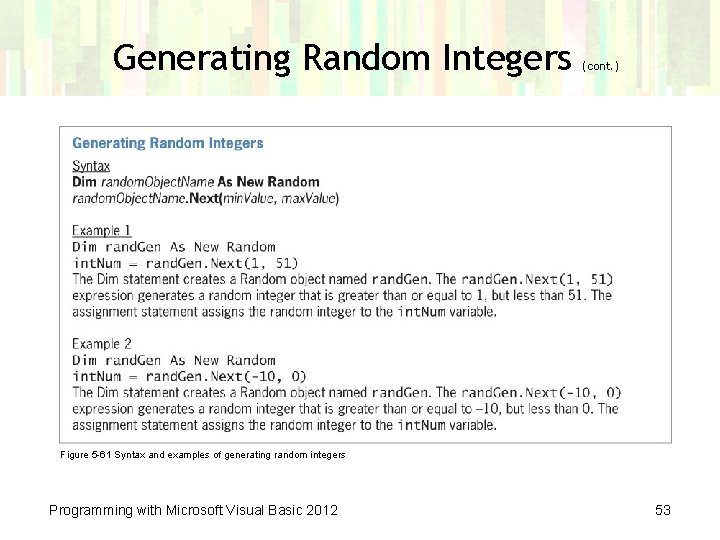

Generating Random Integers (cont. ) Figure 5 -61 Syntax and examples of generating random integers Programming with Microsoft Visual Basic 2012 53

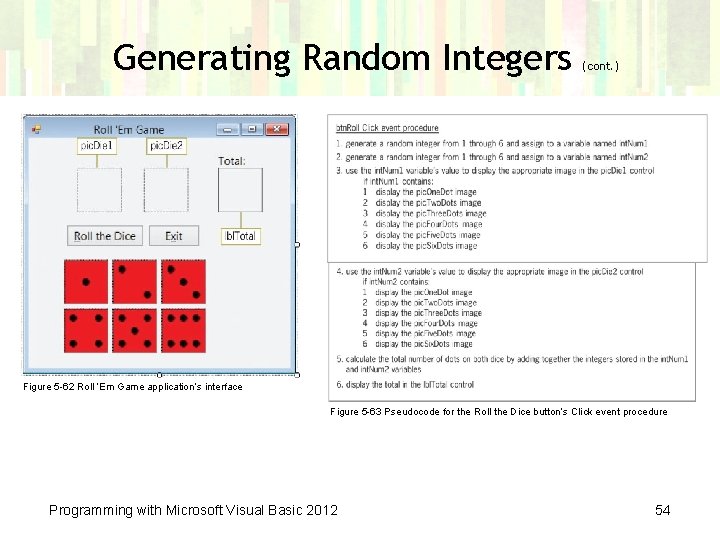

Generating Random Integers (cont. ) Figure 5 -62 Roll ‘Em Game application’s interface Figure 5 -63 Pseudocode for the Roll the Dice button’s Click event procedure Programming with Microsoft Visual Basic 2012 54

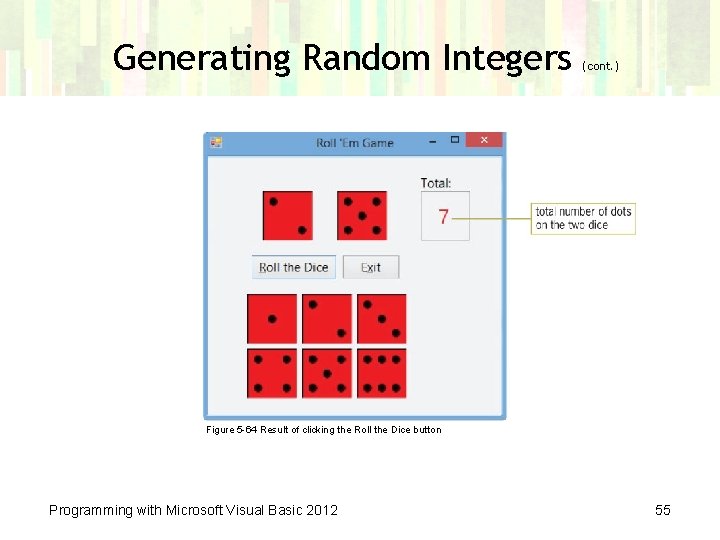

Generating Random Integers (cont. ) Figure 5 -64 Result of clicking the Roll the Dice button Programming with Microsoft Visual Basic 2012 55

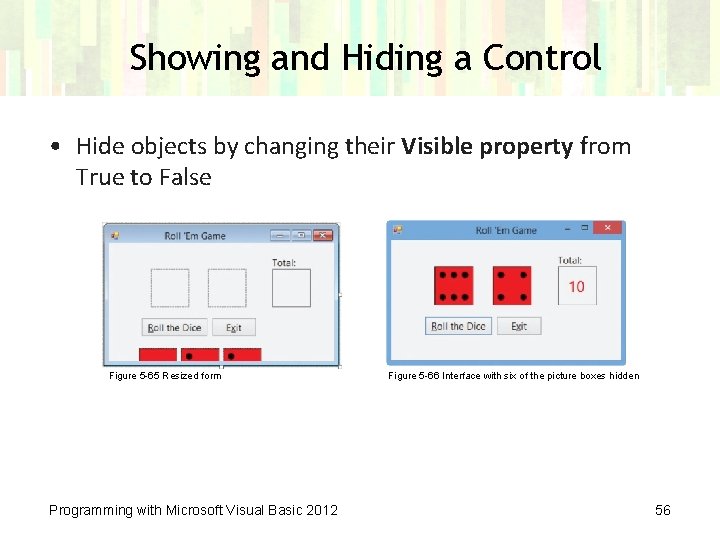

Showing and Hiding a Control • Hide objects by changing their Visible property from True to False Figure 5 -65 Resized form Programming with Microsoft Visual Basic 2012 Figure 5 -66 Interface with six of the picture boxes hidden 56

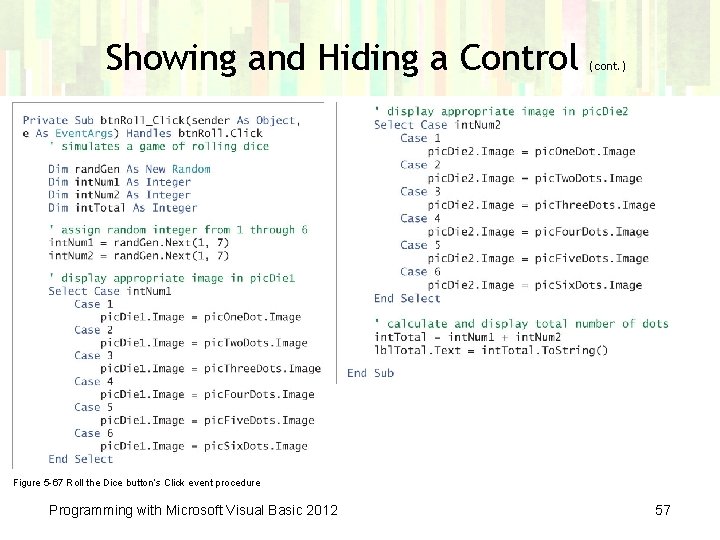

Showing and Hiding a Control (cont. ) Figure 5 -67 Roll the Dice button’s Click event procedure Programming with Microsoft Visual Basic 2012 57

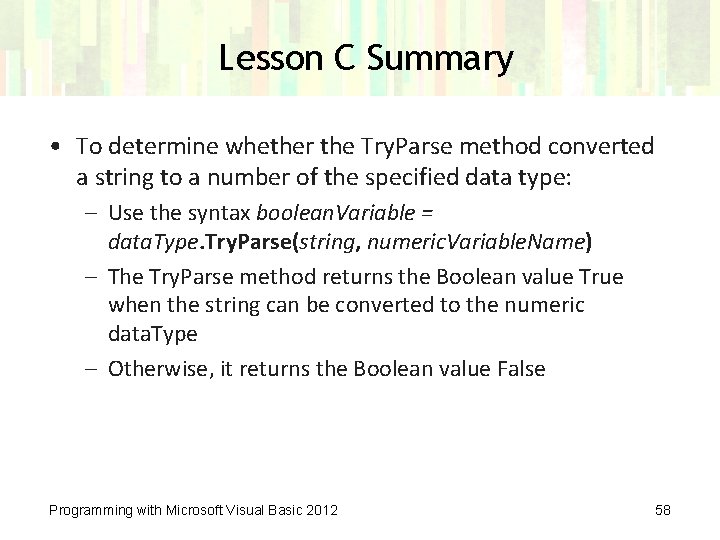

Lesson C Summary • To determine whether the Try. Parse method converted a string to a number of the specified data type: – Use the syntax boolean. Variable = data. Type. Try. Parse(string, numeric. Variable. Name) – The Try. Parse method returns the Boolean value True when the string can be converted to the numeric data. Type – Otherwise, it returns the Boolean value False Programming with Microsoft Visual Basic 2012 58

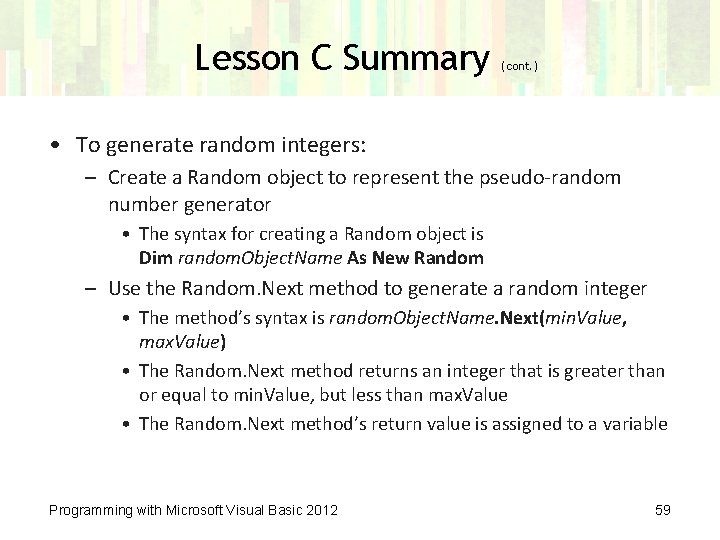

Lesson C Summary (cont. ) • To generate random integers: – Create a Random object to represent the pseudo-random number generator • The syntax for creating a Random object is Dim random. Object. Name As New Random – Use the Random. Next method to generate a random integer • The method’s syntax is random. Object. Name. Next(min. Value, max. Value) • The Random. Next method returns an integer that is greater than or equal to min. Value, but less than max. Value • The Random. Next method’s return value is assigned to a variable Programming with Microsoft Visual Basic 2012 59

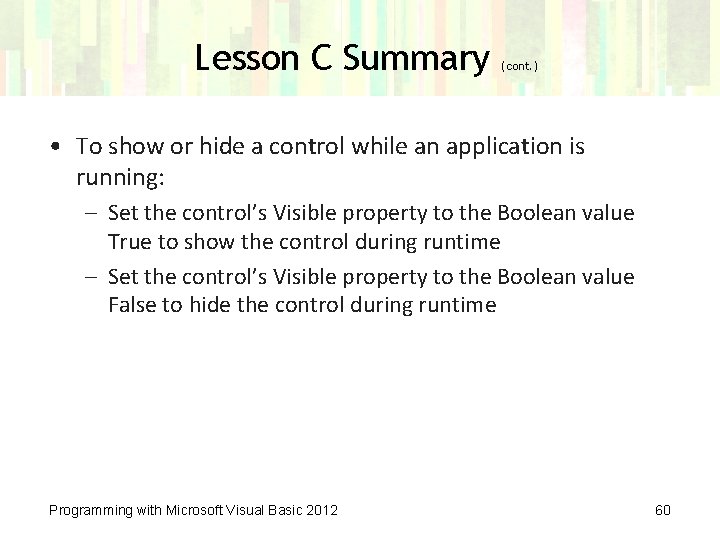

Lesson C Summary (cont. ) • To show or hide a control while an application is running: – Set the control’s Visible property to the Boolean value True to show the control during runtime – Set the control’s Visible property to the Boolean value False to hide the control during runtime Programming with Microsoft Visual Basic 2012 60
