Programming with Microsoft Visual Basic 2008 Fourth Edition
Programming with Microsoft Visual Basic 2008 Fourth Edition Chapter Six The Repetition Structure

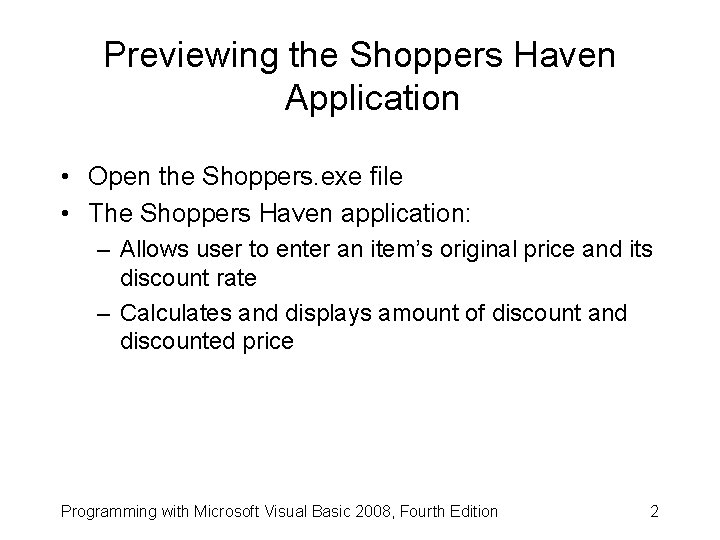

Previewing the Shoppers Haven Application • Open the Shoppers. exe file • The Shoppers Haven application: – Allows user to enter an item’s original price and its discount rate – Calculates and displays amount of discount and discounted price Programming with Microsoft Visual Basic 2008, Fourth Edition 2
Previewing the Shoppers Haven Application (continued) Figure 6 -1: Discount and discounted price shown in the interface Programming with Microsoft Visual Basic 2008, Fourth Edition 3
Lesson A Objectives After studying Lesson A, you should be able to: • Code the repetition structure using the Do. . . Loop statement • Include the repetition structure in pseudocode • Include the repetition structure in a flowchart • Initialize and update counters and accumulators • Code the repetition structure using the For. . . Next statement Programming with Microsoft Visual Basic 2008, Fourth Edition 4
The Repetition Structure • Repetition structure (or loop): Repeatedly processes instructions until condition is met – Example: Calculate net pay for each employee • Pretest loop: Evaluates condition prior to processing instructions • Posttest loop: Evaluates condition after processing instructions Programming with Microsoft Visual Basic 2008, Fourth Edition 5
The Do…Loop Statement • Do…Loop statement: Used to code both pretest loop and posttest loop • Two variations of syntax: – One for pretest loop and one for posttest loop – While keyword: Indicates that instructions should be processed while condition is true – Until keyword: Indicates that instructions should be processed until condition becomes true Programming with Microsoft Visual Basic 2008, Fourth Edition 6
The Do…Loop Statement (continued) • Do…Loop statement: – Begins with Do clause, ends with Loop clause – Instructions to be repeated are placed between Do and Loop clauses – Use While or Until keyword before condition – Condition must evaluate to Boolean True or False • Location of {While|Until} condition: – Pretest loop: Appears in Do clause – Posttest loop: Appears in Loop clause • Diamond: Represents loop condition in flowchart Programming with Microsoft Visual Basic 2008, Fourth Edition 7
The Do…Loop Statement (continued) Figure 6 -2: Syntax versions and examples of the Do. . . Loop statement Programming with Microsoft Visual Basic 2008, Fourth Edition 8
The Do…Loop Statement (continued) Figure 6 -3: Processing steps for the pretest loop example from Figure 6 -2 Programming with Microsoft Visual Basic 2008, Fourth Edition 9
The Do…Loop Statement (continued) Figure 6 -4: Processing steps for the posttest loop example from Figure 6 -2 Programming with Microsoft Visual Basic 2008, Fourth Edition 10
The Do…Loop Statement (continued) Figure 6 -5: Pseudocode and flowchart for the pretest loop example shown in Figure 6 -2 Programming with Microsoft Visual Basic 2008, Fourth Edition 11
The Do…Loop Statement (continued) Figure 6 -6: Pseudocode and flowchart for the posttest loop example shown in Figure 6 -2 Programming with Microsoft Visual Basic 2008, Fourth Edition 12
Counters and Accumulators • Used to calculate subtotals, and averages • Counter: Numeric variable used for counting • Accumulator: Variable used to tally various amounts • Initializing: Assigning initial value to counter or accumulator • Updating (incrementing or decrementing): – Changing value stored in counter or accumulator – Update statement must be within repetition structure Programming with Microsoft Visual Basic 2008, Fourth Edition 13
The Sales Express Application • Objective: Display average annual sales of company • Application uses pretest loop • Priming read: Use to prime (prepare or set up) loop by performing first action prior to entering loop Programming with Microsoft Visual Basic 2008, Fourth Edition 14
The Sales Express Application (continued) Figure 6 -7: Pseudocode for the bnt. Calc control’s Click event procedure Programming with Microsoft Visual Basic 2008, Fourth Edition 15
The For…Next Statement • For…Next statement: – Processes instructions specific number of times – Condition tested before processing (pretest loop) – Also called counter controlled loop • Must specify start value, end value, and step value – Start value and end value provide looping range – Step value increments or decrements counter • Hexagon: Flowchart symbol Programming with Microsoft Visual Basic 2008, Fourth Edition 16
The For…Next Statement (continued) Figure 6 -11: Pseudocode and flowchart for Example 1 in Figure 6 -9 Programming with Microsoft Visual Basic 2008, Fourth Edition 17
The Monthly Payment Calculator Application • Task of btn. Calc control’s Click event procedure: – Calculate and display monthly car payments – Use term of five years and rates from 5 – 10% • Basic structure of For…Next statement – Use procedure level variable, dbl. Rate, as counter – Set starting and ending values to 0. 05 and 0. 1 – Set step value to 0. 01 – Calculate monthly payment for current rate – Display interest rate and corresponding payment Programming with Microsoft Visual Basic 2008, Fourth Edition 18
The Monthly Payment Calculator Application (continued) Figure 6 -11: Additional code entered in the btn. Calc control’s Click event procedure Programming with Microsoft Visual Basic 2008, Fourth Edition 19
The Monthly Payment Calculator Application (continued) Figure 6 -12: Monthly payments shown in the interface Programming with Microsoft Visual Basic 2008, Fourth Edition 20
Lesson A Summary • Repetition structure (loop): Repeats set of instructions until some condition is met • Use Do. . . Loop statement to code pretest and posttest loops • Counters are used to track count of something • Accumulators are used to tally up an amount • Counters and accumulators must be: – Initialized – Updated within loop Programming with Microsoft Visual Basic 2008, Fourth Edition 21
Lesson A Summary (continued) • Use For. . . Next statement to code pretest loops • Use hexagon to show a For…Next loop in flowchart Programming with Microsoft Visual Basic 2008, Fourth Edition 22
Lesson B Objectives After studying Lesson B, you should be able to: • Nest repetition structures • Refresh the screen • Delay program execution Programming with Microsoft Visual Basic 2008, Fourth Edition 23
Nested Repetition Structures • Nested repetition structure: – Inner loop placed entirely within outer loop – Inner loop is referred to as nested loop • Clocks use nested loops to keep track of time • Minute and hour hands of clock can be compared to loops: – Outer loop corresponds to hour hand – Inner loop corresponds to minute hand Programming with Microsoft Visual Basic 2008, Fourth Edition 24
Nested Repetition Structures (continued) Figure 6 -16: Logic used by a clock’s hour and minute hands Programming with Microsoft Visual Basic 2008, Fourth Edition 25
The Refresh and Sleep Methods • Refresh method: Ensures that any code appearing before it that affects interface’s appearance is processed • Syntax: Me. Refresh() – Me refers to current form • Sleep method: Delays program execution • Syntax: System. Threading. Thread. Sleep(milliseconds) – Millisecond: 1/1000 of second Programming with Microsoft Visual Basic 2008, Fourth Edition 26
The Refresh and Sleep Methods (continued) Figure 6 -18: Refresh and Sleep methods added to the procedure Programming with Microsoft Visual Basic 2008, Fourth Edition 27
Monthly Payment Calculator Application—Nested For. . . Next Statements • Objective: Calculate and display car payments • Use nested loops in btn. Calc control’s Click event • Outer For…Next statement: – Control interest rates ranging from 5 - 10% – Increment rates at each iteration by 1% • Inner For…Next statement: – Controls terms from 3 - 5 years Programming with Microsoft Visual Basic 2008, Fourth Edition 28
Monthly Payment Calculator Application— Nested For. . . Next Statements (continued) Figure 6 -19: Outer and inner (nested) loops entered in the procedure Programming with Microsoft Visual Basic 2008, Fourth Edition 29

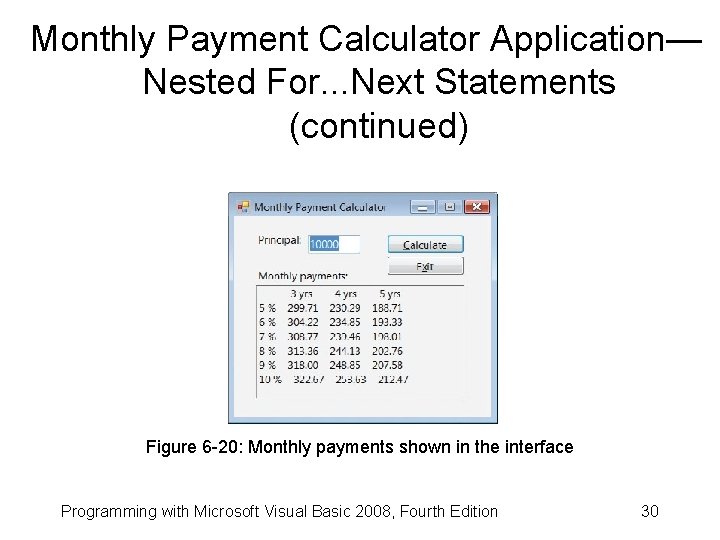

Monthly Payment Calculator Application— Nested For. . . Next Statements (continued) Figure 6 -20: Monthly payments shown in the interface Programming with Microsoft Visual Basic 2008, Fourth Edition 30
Lesson B Summary • To nest repetition structure, place entire inner loop within outer loop • To refresh interface, use Refresh method • To pause program execution, use Sleep method Programming with Microsoft Visual Basic 2008, Fourth Edition 31
Lesson C Objectives After studying Lesson C, you should be able to: • Include a list box in an interface • Select a list box item from code • Determine the selected item in a list box Programming with Microsoft Visual Basic 2008, Fourth Edition 32
Coding the Shoppers Haven Application • Objective: Allow entry of price and discount rate • Application requirements: – – Discount rates range from 10% through 30% Discount rate should be incremented by 5% Calculate discount amount and discounted price Display discount amount and discounted price Programming with Microsoft Visual Basic 2008, Fourth Edition 33
Coding the Shoppers Haven Application (continued) Figure 6 -23: TOE chart for the Shoppers Haven application Programming with Microsoft Visual Basic 2008, Fourth Edition 34

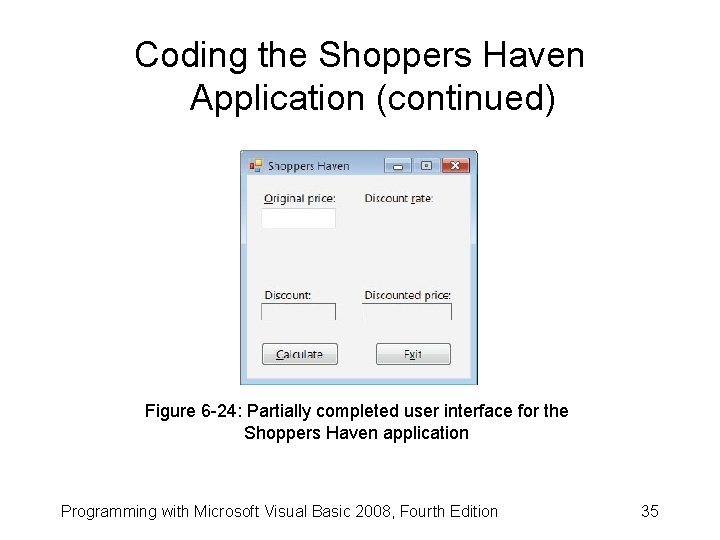

Coding the Shoppers Haven Application (continued) Figure 6 -24: Partially completed user interface for the Shoppers Haven application Programming with Microsoft Visual Basic 2008, Fourth Edition 35

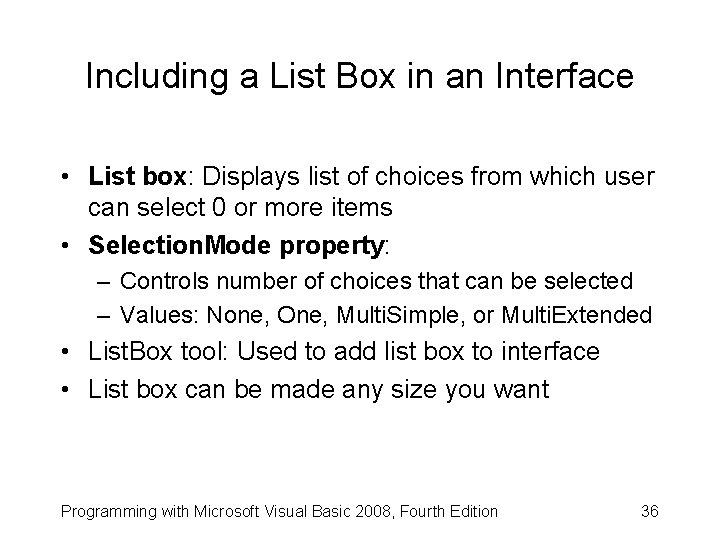

Including a List Box in an Interface • List box: Displays list of choices from which user can select 0 or more items • Selection. Mode property: – Controls number of choices that can be selected – Values: None, One, Multi. Simple, or Multi. Extended • List. Box tool: Used to add list box to interface • List box can be made any size you want Programming with Microsoft Visual Basic 2008, Fourth Edition 36
Adding Items to a List Box • Collection: Group of objects treated as one unit • Items collection: Refers to group of items in list box • Index: Unique number that identifies each item in collection – Is zero-relative (starts with 0) • Items collection’s Add method: Used to add item to list box – Implemented in form’s Load event procedure to prepare list box before form is displayed Programming with Microsoft Visual Basic 2008, Fourth Edition 37
Adding Items to a List Box (continued) Figure 6 -26: Syntax and examples of the Add method Programming with Microsoft Visual Basic 2008, Fourth Edition 38

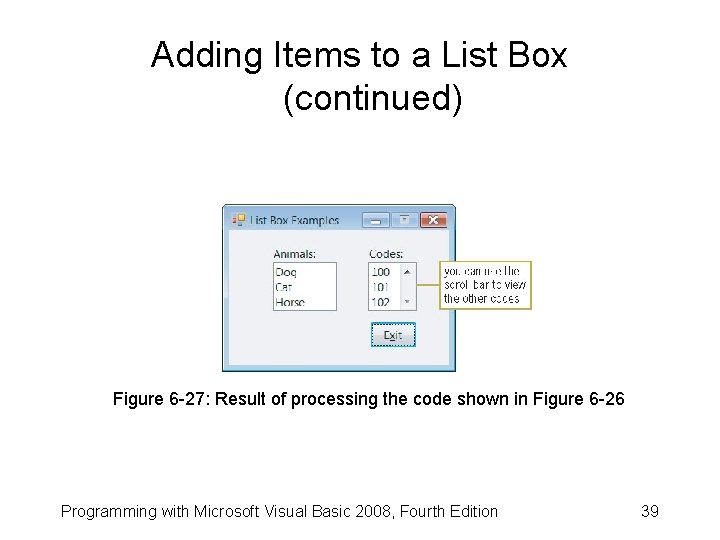

Adding Items to a List Box (continued) Figure 6 -27: Result of processing the code shown in Figure 6 -26 Programming with Microsoft Visual Basic 2008, Fourth Edition 39
Adding Items to a List Box (continued) • Sorted property of list box: Determines order in which items are displayed in list box – If true, newly added item is placed in its proper position – If false, newly added item is placed at end of list – Uses dictionary sort order Programming with Microsoft Visual Basic 2008, Fourth Edition 40
The Selected. Item And Selected. Index Properties • Selected. Item property: Contains value of item selected in list box – Contains empty string when no item is selected • Selected. Index property: Contains index of item selected in list box – Contains -1 when no item is selected • Default list box item: Appears when application is first loaded – Can be chosen by setting either Selected. Item or Selected. Index property Programming with Microsoft Visual Basic 2008, Fourth Edition 41
The Selected. Item And Selected. Index Properties (continued) Figure 6 -30: Examples of the Selected. Item and Selected. Index properties Programming with Microsoft Visual Basic 2008, Fourth Edition 42

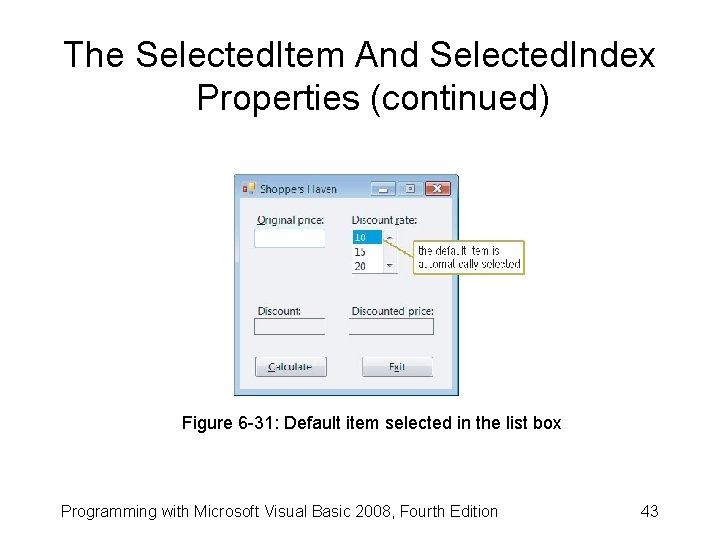

The Selected. Item And Selected. Index Properties (continued) Figure 6 -31: Default item selected in the list box Programming with Microsoft Visual Basic 2008, Fourth Edition 43
The Selected. Value. Changed and Selected. Index. Changed Events • Selected. Value. Changed and Selected. Index. Changed events: Occur when user or code statement selects item in list box – Can use these events to process instructions when selection is made Programming with Microsoft Visual Basic 2008, Fourth Edition 44
Coding the btn. Calc Control’s Click Event Procedure Figure 6 -32: Pseudocode for the btn. Calc control’s Click event procedure Programming with Microsoft Visual Basic 2008, Fourth Edition 45
Coding the btn. Calc Control’s Click Event Procedure (continued) Figure 6 -33: Discount and discounted price shown in the interface Programming with Microsoft Visual Basic 2008, Fourth Edition 46
Lesson C Summary • A list box displays list of items • Use Selection. Mode property to set number of items that can be selected in list box • Use Items. Add method to add items to list box • Use Sorted property to sort list box items in dictionary order • Use Selected. Item or Selected. Index property to determine which item was selected Programming with Microsoft Visual Basic 2008, Fourth Edition 47

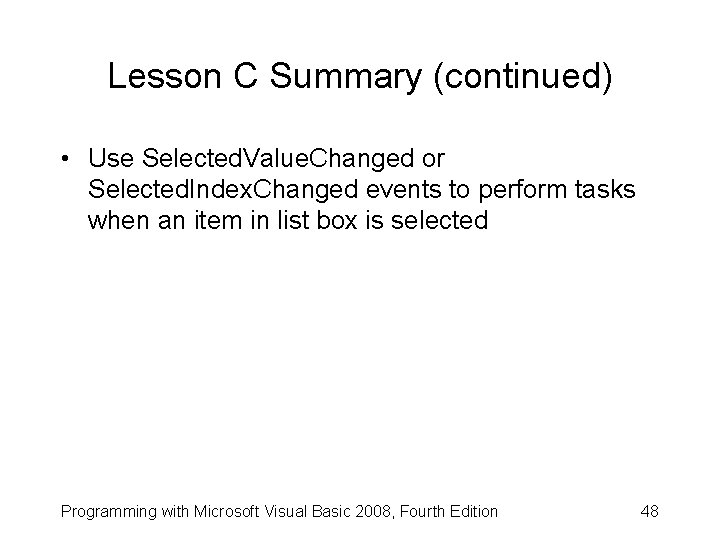

Lesson C Summary (continued) • Use Selected. Value. Changed or Selected. Index. Changed events to perform tasks when an item in list box is selected Programming with Microsoft Visual Basic 2008, Fourth Edition 48
