Programming DataDriven Web Sites ASPX Active Server Pages
Programming Data-Driven Web. Sites (ASPX, Active Server Pages) Chris North CS 4604: DB
Win. App vs Web. App • Standard client application (Win. App) • • • E. g. C#, Java Single user, location Portability is less critical Power, dynamics Targeted audience Distributed executable • Server-side application (Web. App) • • • Broad user class Lightweight, Supports lo-fi clients One-time users, quick, no installation/updates Distributed simultaneous users Simpler functionality, information access Centralized executable, data
Data-Driven Web. Sites Client (Browser) URL request html page Server (Web server) html Database Table • Page = Server-side script • Dynamically generates page at client request • Pulls data from DB to create page contents • E. g. E-Bay, Amazon, …
Sequence 1. 2. 3. 4. 5. 6. User clicks http: //server. com/script. aspx link Client requests script. aspx from server. com Server. com executes script. aspx Script. aspx generates html page (using DB data) Server. com sends html page to client Client displays page
Example Amazon. com server Books. asp Cart. asp Purchase. asp • Shows books list • Add to cart • Displays cart contents • Delete items • Charges credit card • Displays ‘thankyou’ • View cart button • Purchase button • Link back to books
ASPX • Microsoft Active Server Pages, . Net • IIS server • Old ASP: If install IIS after install VStudio. Net, must run: C: /windows/MS. net/framework/Vx. x/aspnet_regiis. exe -i • Html with embedded server scripts • Session support • Visual Basic script • ASPX. Net: • • Separation of html and code Additional state-preservation capability C# (or any other lang) Visual Studio. net, C# Web Application
ASP = html + script • New server-script tags: <% code %> <%= expression %> • Tag contents are executed and replaced with script’s output • Myscript. asp: <%@ Page language="c#” %> <html><body> The time is <%= System. Date. Now. To. String() %> <% if(System. Date. Now < “ 12: 00 pm”){ %> <p>Good morning <% }else{ %> <p>Good afternoon <% } %> </body></html> At page request, Server executes script • Client receives: <html><body> The time is 2: 03 pm <p>Good afternoon </body></html> <%= expr %> Replaced with value of expr <% code %> Executes code
ASPX: Separate code • • . aspx = html with asp tags. aspx. cs = associated Csharp code Also supports ASP-style embedded code Env. similar to Win. App, execution different • Execution order: 1. 2. 3. 4. Constructor, On. Init (auto-generated code) Page load Any events from form submit request Embedded code in. aspx
Processing Form Input • POST (aspx default) • <form action=“myscript. exe” method=post> • Myscript. aspx. cs reads input from Control properties » E. g: List. Box 1. Selected. Value • GET querystring • <form action=“myscript. exe” method=get> • http: //myserver. com/myscript. aspx? var 1=value&… • Myscript. aspx. cs reads input from Request. Query. String » E. g: this. Request. Query. String[“var 1”]
Problems • Many simultaneous users • Who’s who? • Request-Response HTTP model (page requests are independent) • How to maintain contiguous program state? • UI (browser) disconnect from back-end (server) • How to keep UI in sync with back-end? (e. g. ‘Back’ button) … Books. asp Cart. asp Purchase. asp

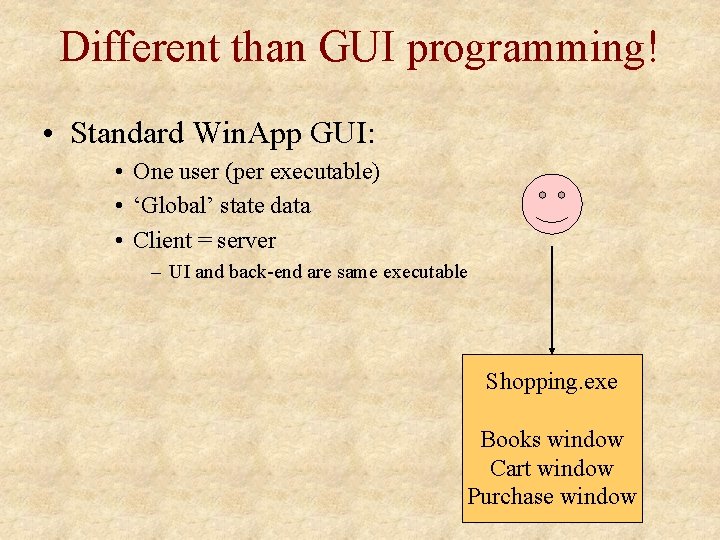

Different than GUI programming! • Standard Win. App GUI: • One user (per executable) • ‘Global’ state data • Client = server – UI and back-end are same executable Shopping. exe Books window Cart window Purchase window
Solutions in ASPX • Provides user ‘session’ awareness • (a) Recognizes users by cookies • (b) Maintains contiguous state info for each user in global storage. » E. g: this. session[“var 1”] • (c) Keeps page state info in a hidden form item. » Maintains properties of all UI controls • Automatic • Who is the user? • What is his data? • Where is he in the ‘application’?
Form Input & Session State Enter your name: • Process form input, store state info: Button 1_Click() this. Session(“myname”) = Text. Box 1. Text; chris Send • HTML output based on session state: Label 1. Text = “Welcome “ + this. Session(“myname”); Or: <html><body> Welcome, <%= this. Session(“myname”) %> </body></html> Welcome, chris
Useful ASPX Objects • this. properties: • • • . Session: specific to each user. Application: global, all users. Request: . querystring, . form, …. Response: . redirect, . write, …. Server: utilities. Is. Post. Back • Global. asax events: • Session_Start, Session_End • Application_Start, Application_End
Database Access • The usual connect & query code: Ole. Db. Connection con = new Ole. Db. Connection( "Provider=Microsoft. Jet. OLEDB. 4. 0; Data Source=c: /census 4604. mdb"); // Jet=Access Ole. Db. Command cmd = new Ole. Db. Command( "SELECT * FROM States 4604", con); // SQL query Ole. Db. Data. Adapter adpt = new Ole. Db. Data. Adapter(cmd); Data. Set data = new Data. Set( ); adpt. Fill(data); // execute the query and put result in ‘data’
Database Display • Binding data to UI controls: List. Box 1. Data. Source = data. Tables[0]; List. Box 1. Data. Text. Field = "Name"; List. Box 1. Data. Value. Field = “ID"; List. Box 1. Data. Bind(); // always do this to make it finalized Data. Grid 1. Data. Source = data. Tables[0]; Data. Grid 1. Data. Bind(); // always do this to make it finalized • Limited customization capability • Can get events • Simple coding, similar to Win. App
Database Display • Inline scripting: <table> <% foreach(Data. Row r in data. Tables[0]. Rows){ %> <tr> <% foreach(Object v in r. Item. Array){ %> <td> <%= v. To. String( ) %> </td> <% } %> </tr> <% } %> </table> • Complete customization, html-level control, more complex code
Database Display • Repeater control (combines binding & inline) In file. aspx. cs: Repeater 1. Data. Source = data. Tables[0]; Repeater 1. Data. Bind(); In file. aspx: <asp: repeater id="Repeater 1" runat="server"> <Header. Template> <ul> </Header. Template> <Item. Template> <li> <%# Data. Binder. Eval(Container, "Data. Item. Name") %> </li> </Item. Template> <Footer. Template> </ul> </Footer. Template> </asp: repeater> • Compromise: some customization, some automation
Info. Vis tricks on web pages • Simple graphics: Item 1 Item 2 Item 3 Item 4 Item 5 … • Image trick: red. gif = 1 x 1 red pixel gif • Control the location (dhtml, xhtml): <img href=“red. gif” STYLE="position: absolute; left: 100 px; top: 49 px; z-index: -1" > » places the gif at (100, 49) on the page » Z-index -1 means put it behind the page text • Control the size (html): <img href=“red. gif” width=75 height=10> » Stretches it into a 75 x 100 red rectangle
Open Problems: Client-Server Out of Sync • ‘Re-post’ problem: • E. g: Submit, Back, Submit; purchased twice! • Solution: give each form unique ID, counter • ‘Jump in too deep’ problem • E. g: nav by bookmark deep into app, without logging in. • On deep page, check for username, redirect to login page • Test page state against session state. • Browser cache problem • E. g: browser shows old page instead of getting new content • Defeat cache using expiration tags
Defeating Browser Cache • Expiration tags: <% Response. Expires = -1 Response. Expiresabsolute = Now() - 2 Response. Add. Header "pragma", "no-cache" Response. Add. Header "cache-control", "private" Response. Cache. Control = "no-cache" %> • Random query. String: <a href=“myscript. asp? Nocache=<%=rnd()%>” > <a href=“myscript. asp? Nocache=4857493>”
Consistent look-and-feel • Banner, Navigation bar, … • Server-side ‘include’ files: • Put banner, nav bar in separate ‘include’ file: • Can be used in. html files too <!-- #include file = "myfile. asp" -->
Document Object Model • (more useful in old ASP) <form name=“myform”> <input type=“button” name=“mybutton” value=“OK” onclick=“document. myform. mybutton. color=red”> </form> document myform mybutton … …
