Programming and Verifying Distributed and Adaptable Autonomous Components
Programming and Verifying Distributed and Adaptable Autonomous Components with GCM/Pro. Active Ludovic Henrio SCALE Team INRIA – UNS – I 3 S – CNRS Sophia Antipolis
SCALE : Safe Composition of Autonomous applications with Large-scale Execution environment Unified Programming Model • Multi-level parallelism (multi-active objects) with rich synchronisation primitives • Formal methods: spec & verif • Target Multicore, GPU, Clusters, Clouds, … Runtime Support • • Middleware + VM placement SLA-aware management Green scheduling Debugging and fault-tolerance Application Domains • Big Data programming analytics • Simulation
How we use formal methods Programming model and definitions Generic properties Implementation Java Optimizations Verification tools Model checking Optimizations
Agenda I. Distributed Components: GCM/Pro. Active II. Non-functional and autonomic components III. Dynamic adaptation IV. Behavioural specification and verification

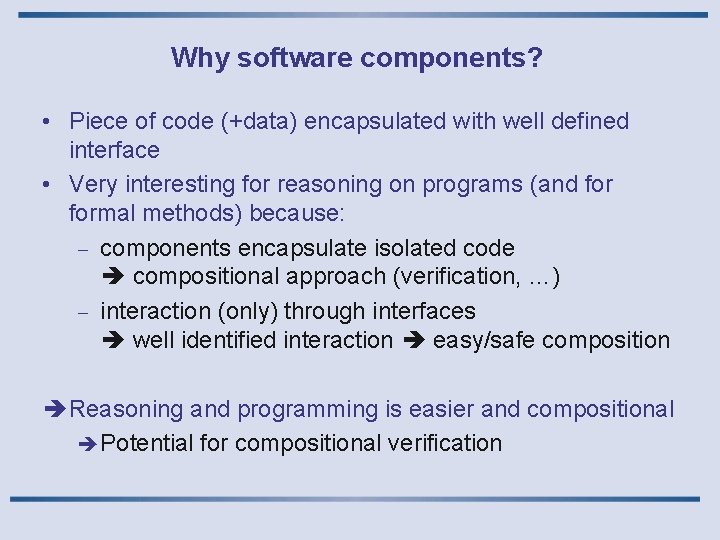

Why software components? • Piece of code (+data) encapsulated with well defined interface • Very interesting for reasoning on programs (and formal methods) because: - components encapsulate isolated code compositional approach (verification, …) - interaction (only) through interfaces well identified interaction easy/safe composition Reasoning and programming is easier and compositional Potential for compositional verification
What are Components? Primitive component Business code Server / input Client / output

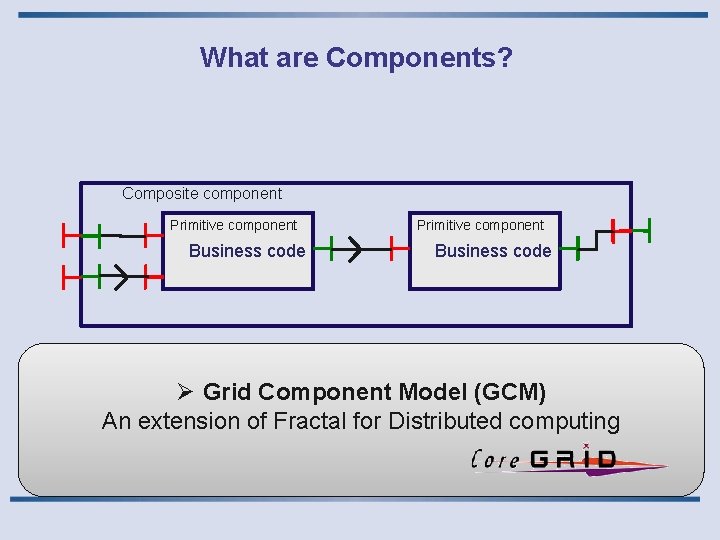

What are Components? Composite component Primitive component Business code Ø Grid Component Model (GCM) An extension of Fractal for Distributed computing
But what is a Good size for a (primitive) Component? Not a strict requirement, but somehow imposed by the model design • According to CCA or SCA, a service (a component contains a provided business function) • According to Fractal, a few objects • According to GCM, a process Ø In GCM/Pro. Active, 1 Component (data/code unit) = 1 Active object (1 thread = unit of concurrency) = 1 Location (unit of distribution) GCM: A Grid Extension to Fractal for Autonomous Distributed Components - F. Baude, D. Caromel, C. Dalmasso, M. Danelutto, V. Getov, L. Henrio, C. Pérez - Annals of Telecom. - 2008

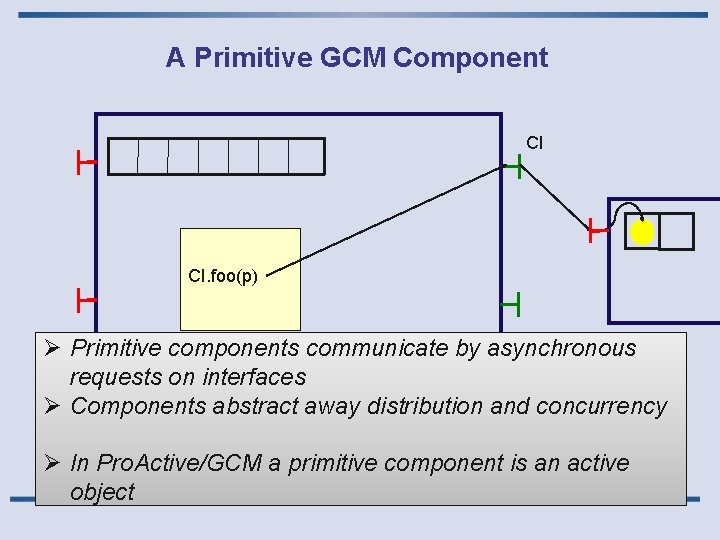

A Primitive GCM Component CI CI. foo(p) Ø Primitive components communicate by asynchronous requests on interfaces Ø Components abstract away distribution and concurrency Ø In Pro. Active/GCM a primitive component is an active object

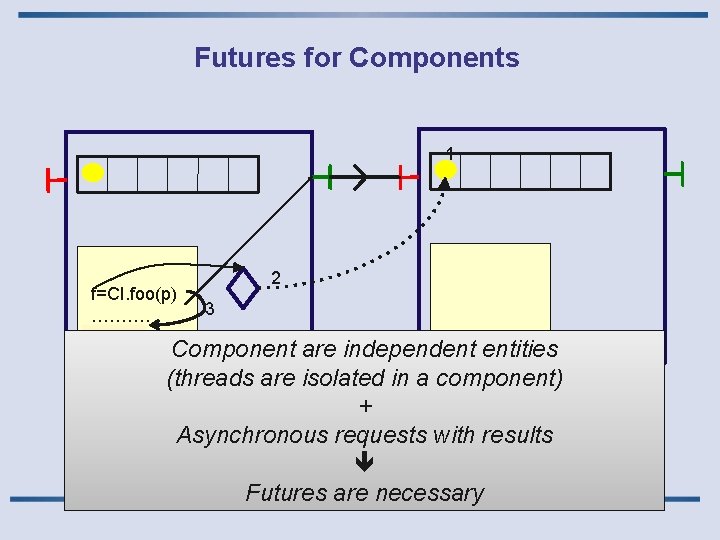

Futures for Components 1 f=CI. foo(p) ………. g=f+3 2 3 Component are independent entities (threads are isolated in a component) + Asynchronous requests with results Futures are necessary

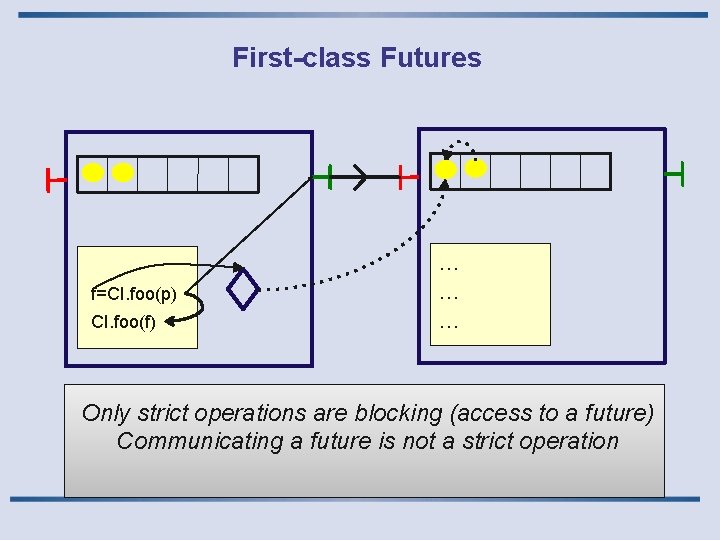

First-class Futures f=CI. foo(p) CI. foo(f) … … … Only strict operations are blocking (access to a future) Communicating a future is not a strict operation
First-class Futures and Hierarchy return C 1. foo(x) … … … Without first-class futures, one thread is systematically blocked in the composite component. A lot of blocked threads In GCM/Pro. Active systematic deadlock

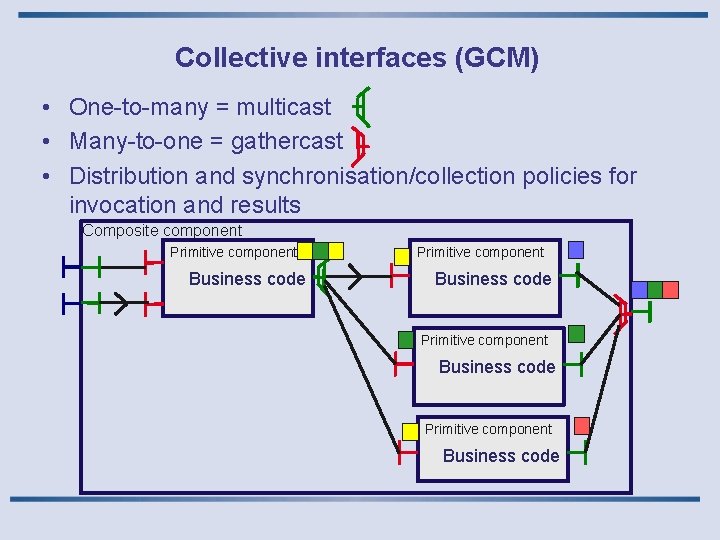

Collective interfaces (GCM) • One-to-many = multicast • Many-to-one = gathercast • Distribution and synchronisation/collection policies for invocation and results Composite component Primitive component Business code

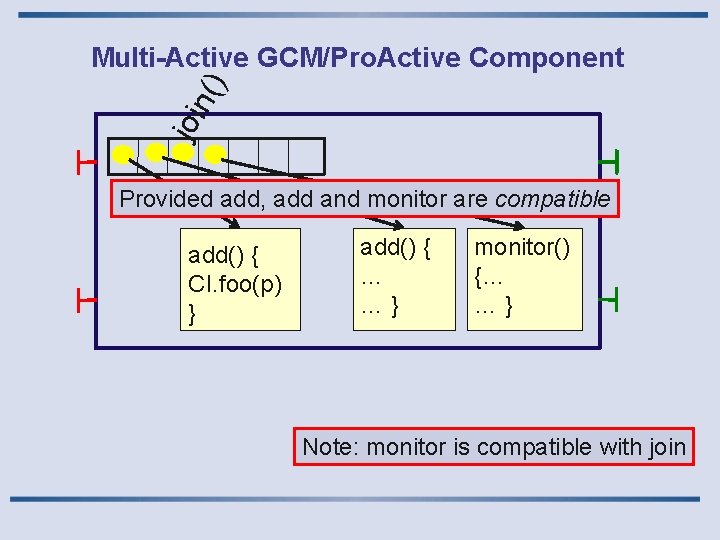

joi n() Multi-Active GCM/Pro. Active Component Provided add, add and monitor are compatible add() { CI. foo(p) } add() { … …} monitor() {… …} Note: monitor is compatible with join

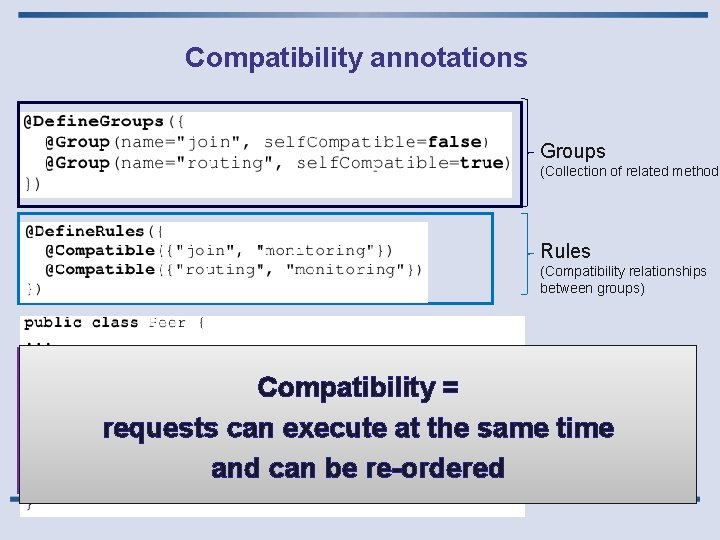

Compatibility annotations Groups (Collection of related methods Rules (Compatibility relationships between groups) Compatibility = Memberships requests can execute at the same(Totime which group each method belongs) and can be re-ordered

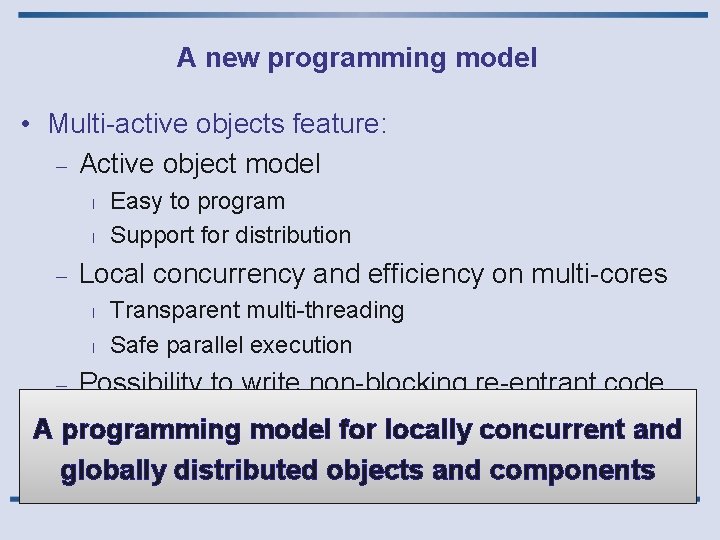

A new programming model • Multi-active objects feature: - Active object model l l - Easy to program Support for distribution Local concurrency and efficiency on multi-cores l l Transparent multi-threading Safe parallel execution Possibility to write non-blocking re-entrant code Simple annotations A -programming model for locally concurrent and - globally distributed objects and components

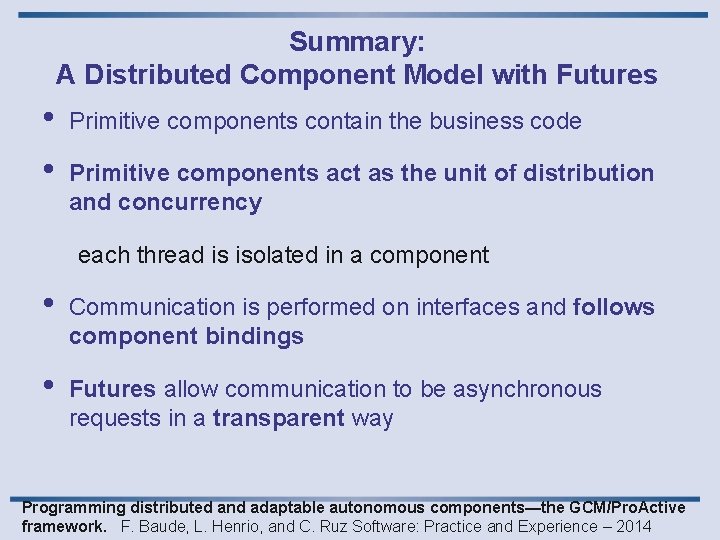

Summary: A Distributed Component Model with Futures • • Primitive components contain the business code Primitive components act as the unit of distribution and concurrency each thread is isolated in a component • Communication is performed on interfaces and follows component bindings • Futures allow communication to be asynchronous requests in a transparent way Programming distributed and adaptable autonomous components—the GCM/Pro. Active framework. F. Baude, L. Henrio, and C. Ruz Software: Practice and Experience – 2014
A Framework for Reasoning on Components • Formalise GCM in a theorem prover (Isabelle/HOL ) Component hierarchical Structure Composite component Primitive component • Bindings, etc… • Design Choices - Suitable abstraction level - Suitable representation (List / Finite Set, etc …) • Basic lemmas on component structure. Prove Generic Business code Primitive component Business code Prove Generic properties A Framework for Reasoning on Component Composition Ludovic Henrio, Florian Kammüller, and Muhammad Uzair Khan - FMCO 2009, Springer

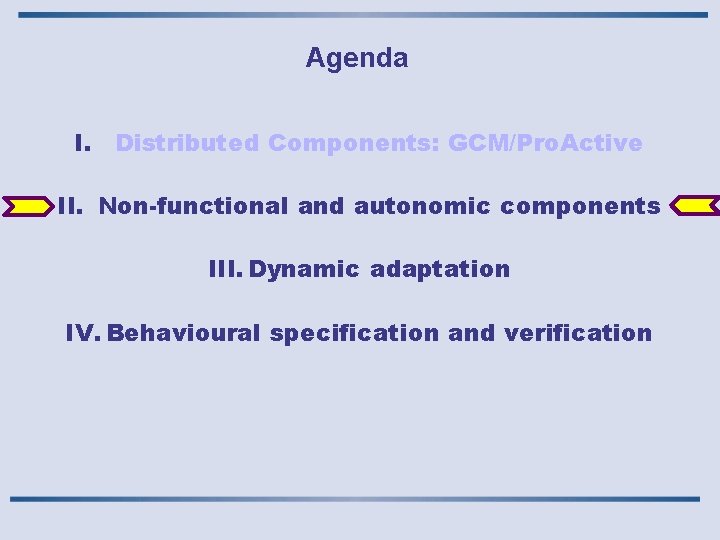

Agenda I. Distributed Components: GCM/Pro. Active II. Non-functional and autonomic components III. Dynamic adaptation IV. Behavioural specification and verification

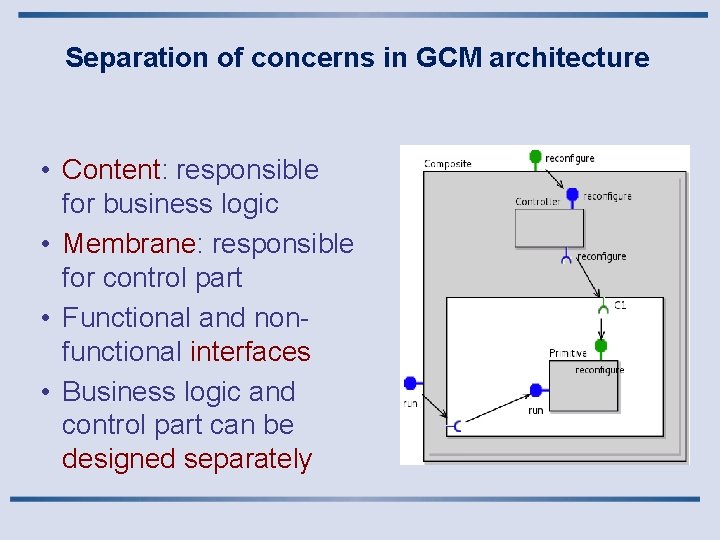

Separation of concerns in GCM architecture • Content: responsible for business logic • Membrane: responsible for control part • Functional and nonfunctional interfaces • Business logic and control part can be designed separately
Ca co n b m e po fu ne rth nt er ize d Autonomic components: MAPE loop in GCM/Pro. Active

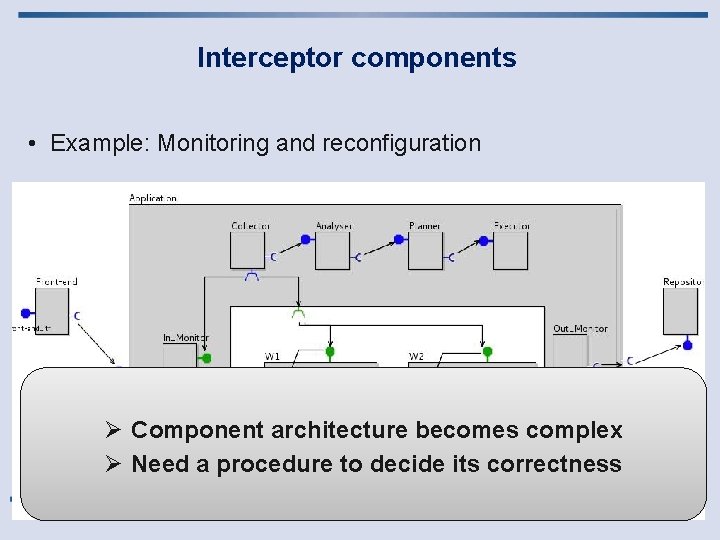

Interceptor components • Example: Monitoring and reconfiguration Ø Component architecture becomes complex Ø Need a procedure to decide its correctness

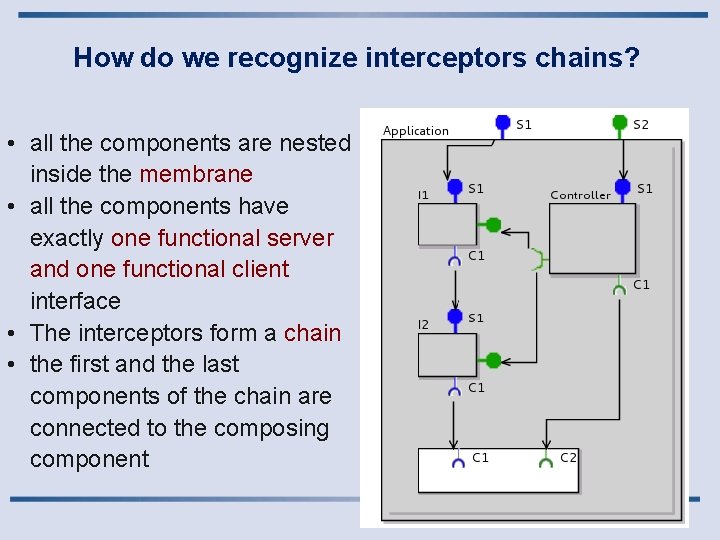

How do we recognize interceptors chains? • all the components are nested inside the membrane • all the components have exactly one functional server and one functional client interface • The interceptors form a chain • the first and the last components of the chain are connected to the composing component
Static properties and validation rules (1) Component encapsulation Bindings do not cross the boundaries of the components Correct typing Interfaces connected by bindings have compatible roles Interfaces connected by bindings have compatible methods

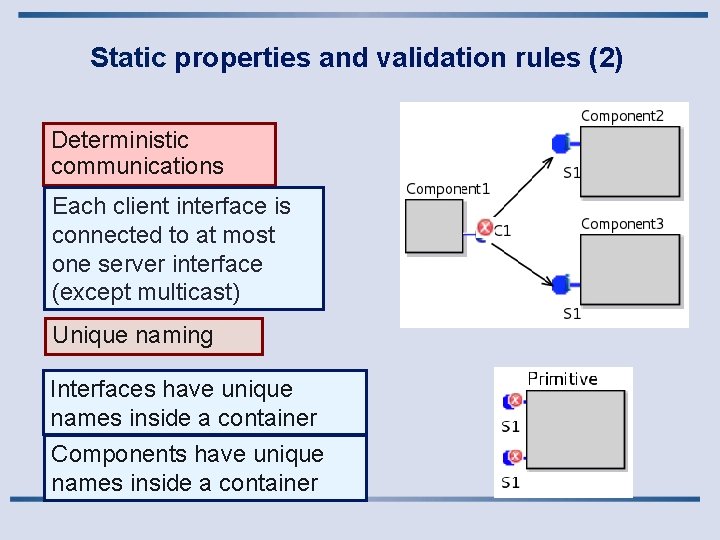

Static properties and validation rules (2) Deterministic communications Each client interface is connected to at most one server interface (except multicast) Unique naming Interfaces have unique names inside a container Components have unique names inside a container
Static properties and validation rules (3) Separation of concerns The interfaces connected by a binding should have compatible control levels • CL of a functional interface = 1 • CL of a non-functional interface = 2 • CL is increased by 1 for interfaces of controllers • Compatible CLs: either both = 1, or both >1

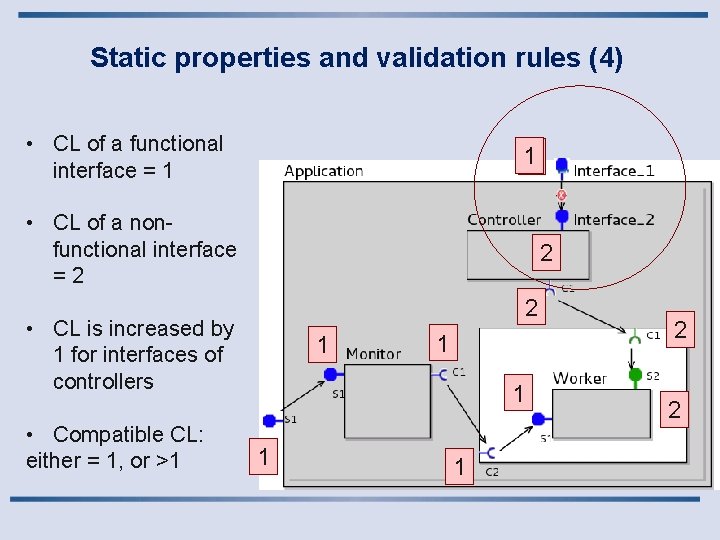

Static properties and validation rules (4) • CL of a functional interface = 1 12 • CL of a nonfunctional interface =2 2 2 • CL is increased by 1 for interfaces of controllers • Compatible CL: either = 1, or >1 1 1 2 2

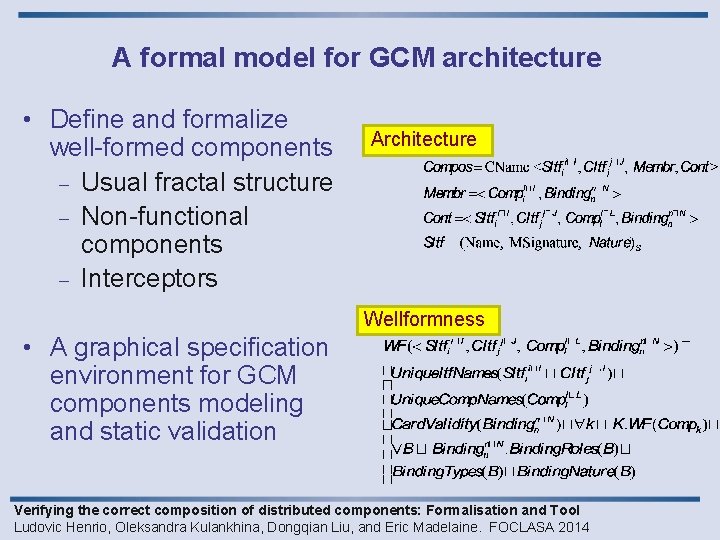

A formal model for GCM architecture • Define and formalize well-formed components - Usual fractal structure - Non-functional components - Interceptors Architecture Wellformness • A graphical specification environment for GCM components modeling and static validation Verifying the correct composition of distributed components: Formalisation and Tool Ludovic Henrio, Oleksandra Kulankhina, Dongqian Liu, and Eric Madelaine. FOCLASA 2014
30 Tool: Ver. Cors • Based on Obeo Designer • Graphical environment for GCM Components and UML Diagrams Produces ADL files, Java classes and Java interfaces Distributed as Eclipse plugins

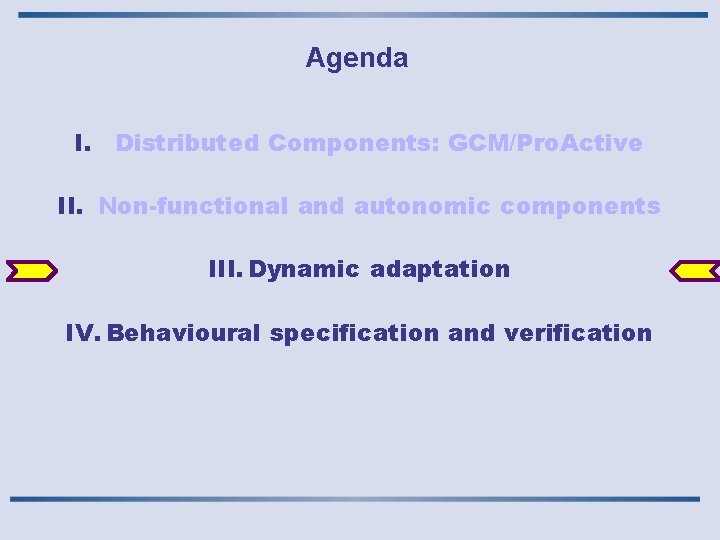

Agenda I. Distributed Components: GCM/Pro. Active II. Non-functional and autonomic components III. Dynamic adaptation IV. Behavioural specification and verification

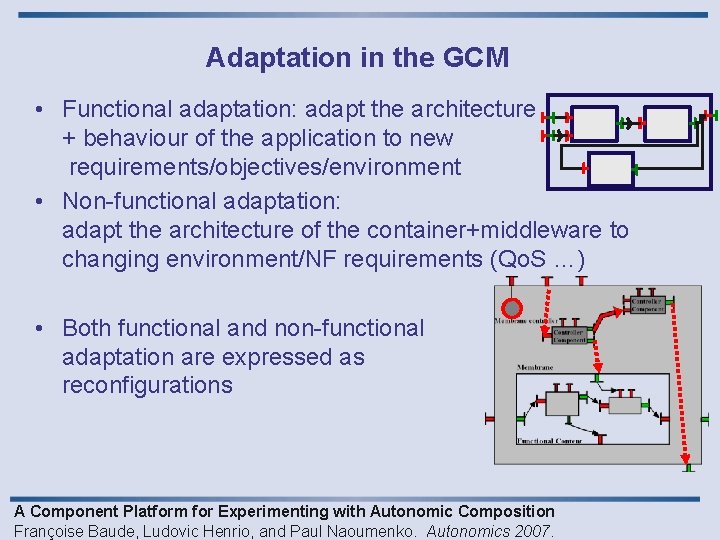

Adaptation in the GCM • Functional adaptation: adapt the architecture + behaviour of the application to new requirements/objectives/environment • Non-functional adaptation: adapt the architecture of the container+middleware to changing environment/NF requirements (Qo. S …) • Both functional and non-functional adaptation are expressed as reconfigurations A Component Platform for Experimenting with Autonomic Composition Françoise Baude, Ludovic Henrio, and Paul Naoumenko. Autonomics 2007.

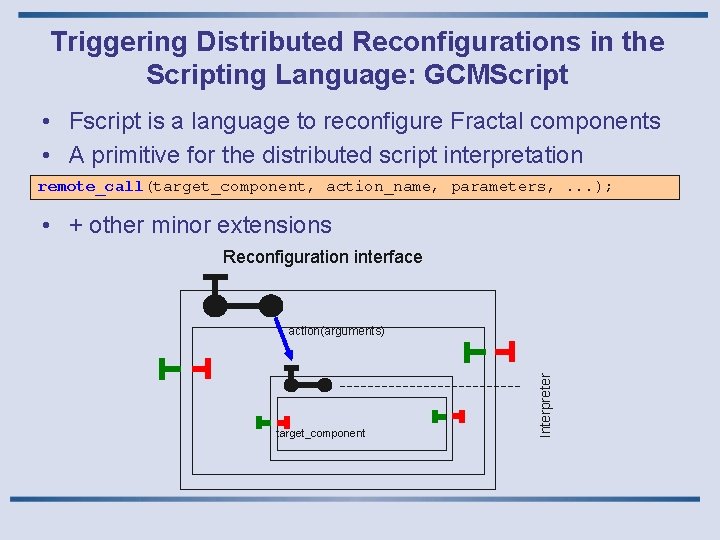

Triggering Distributed Reconfigurations in the Scripting Language: GCMScript • Fscript is a language to reconfigure Fractal components • A primitive for the distributed script interpretation remote_call(target_component, action_name, parameters, . . . ); • + other minor extensions Reconfiguration interface target_component Interpreter action(arguments)

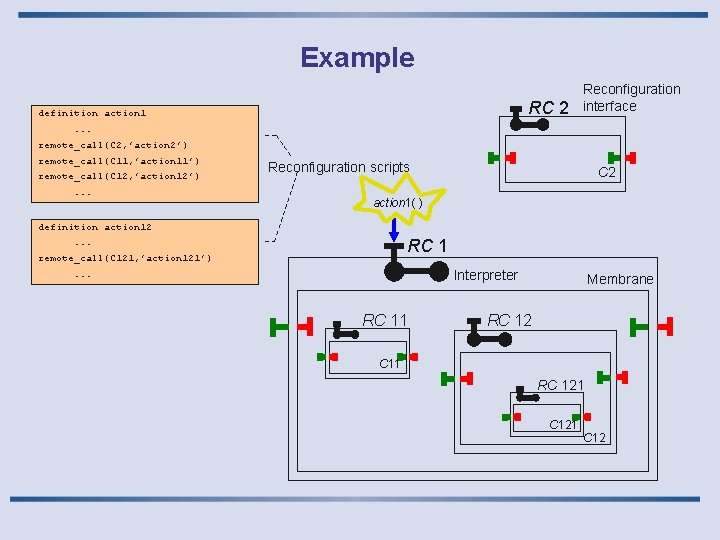

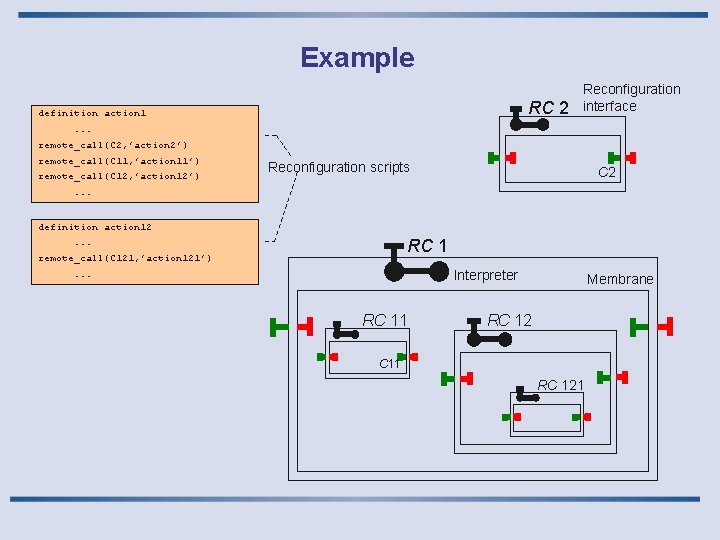

Example RC 2 definition action 1 Reconfiguration interface . . . remote_call(C 2, ’action 2’) remote_call(C 11, ’action 11’) remote_call(C 12, ’action 12’) Reconfiguration scripts C 2 . . . definition action 12 RC 1 . . . remote_call(C 121, ’action 121’) Interpreter . . . RC 11 Membrane RC 12 C 11 RC 121
Example RC 2 definition action 1 Reconfiguration interface . . . remote_call(C 2, ’action 2’) remote_call(C 11, ’action 11’) remote_call(C 12, ’action 12’). . . Reconfiguration scripts C 2 action 1( ) definition action 12 RC 1 . . . remote_call(C 121, ’action 121’) Interpreter . . . RC 11 Membrane RC 12 C 11 RC 121 C 12

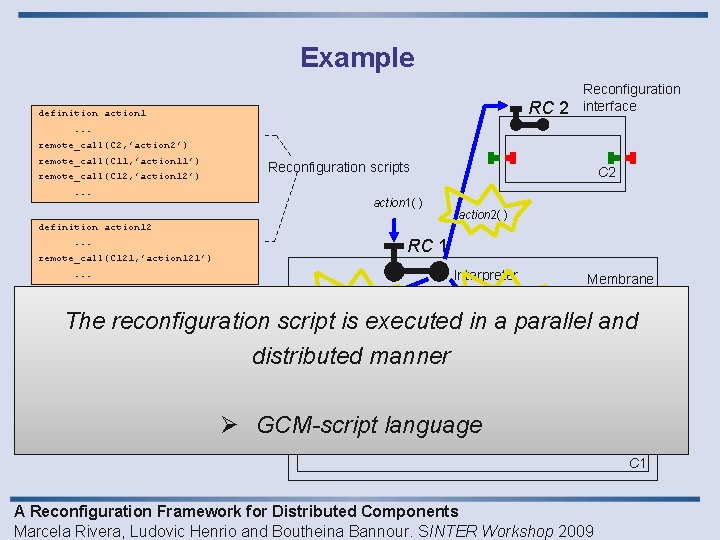

Example RC 2 definition action 1 Reconfiguration interface . . . remote_call(C 2, ’action 2’) remote_call(C 11, ’action 11’) remote_call(C 12, ’action 12’). . . Reconfiguration scripts action 1( ) C 2 action 2( ) definition action 12 RC 1 . . . remote_call(C 121, ’action 121’) Interpreter . . . action 11( ) Membrane action 12( ) 12 11 The reconfiguration script is RC executed in. RC a parallel and distributed manner C 11 RC 121 Ø GCM-script language C 121 C 12 C 1 A Reconfiguration Framework for Distributed Components Marcela Rivera, Ludovic Henrio and Boutheina Bannour. SINTER Workshop 2009
Typical usecase – Farm pattern • Implemented and tested on a matrix multiplication application • Adaptation and performance improvement (for sufficiently large runs)
Agenda I. Distributed Components: GCM/Pro. Active II. Non-functional and autonomic components III. Dynamic adaptation IV. Behavioural specification and verification

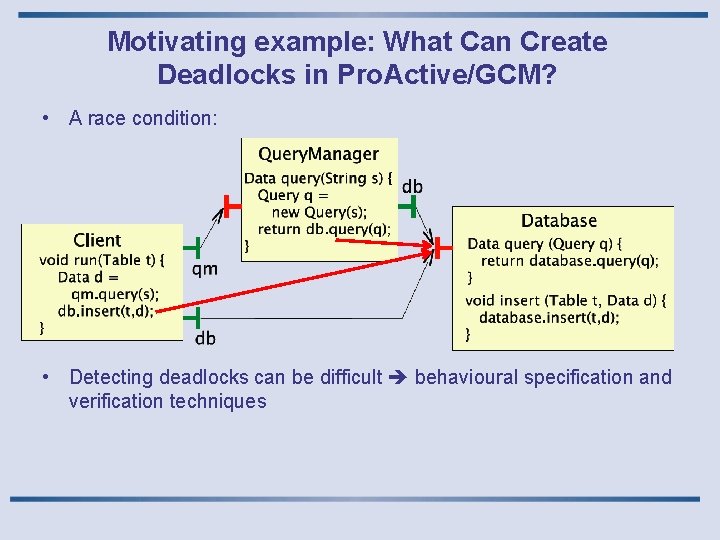

Motivating example: What Can Create Deadlocks in Pro. Active/GCM? • A race condition: • Detecting deadlocks can be difficult behavioural specification and verification techniques
How to ensure the correct behaviour of a given program? • Theorem proving too complicated for the Pro. Active programmer • Our approach: behavioural specification Service methods Step to be fully automatized p. Nets: Ø Trust the implementation step Ø Or static analysis Ø Generate correct (skeletons of) components from Vercors specification (+static and/or runtime checks) Behavioural Models for Distributed Fractal Components Antonio Cansado, Ludovic Henrio, and Eric Madelaine - Annals of Telecommunications - 2008

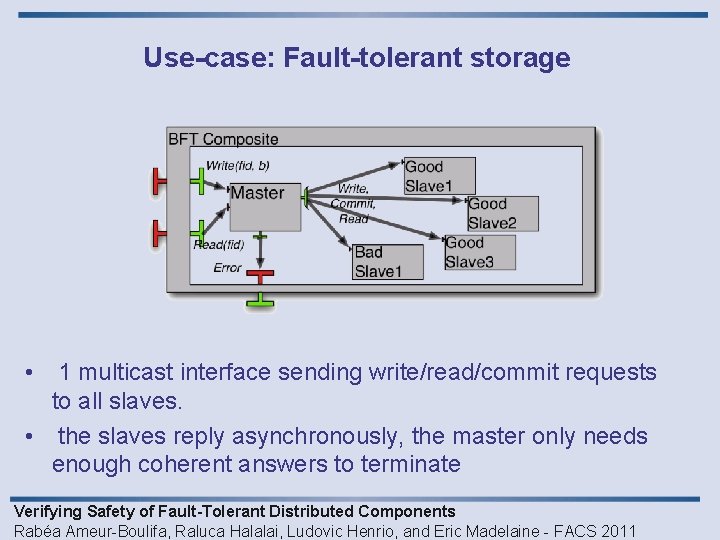

Use-case: Fault-tolerant storage • 1 multicast interface sending write/read/commit requests to all slaves. • the slaves reply asynchronously, the master only needs enough coherent answers to terminate Verifying Safety of Fault-Tolerant Distributed Components Rabéa Ameur-Boulifa, Raluca Halalai, Ludovic Henrio, and Eric Madelaine - FACS 2011

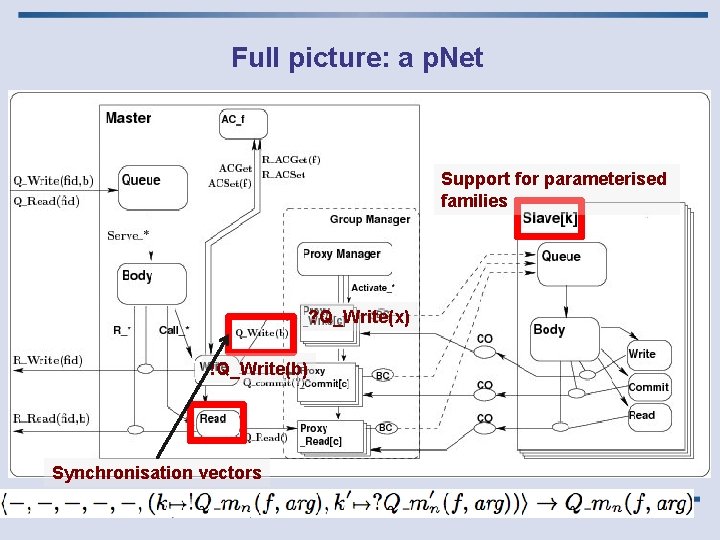

Full picture: a p. Net Support for parameterised families ? Q_Write(x) !Q_Write(b) Synchronisation vectors

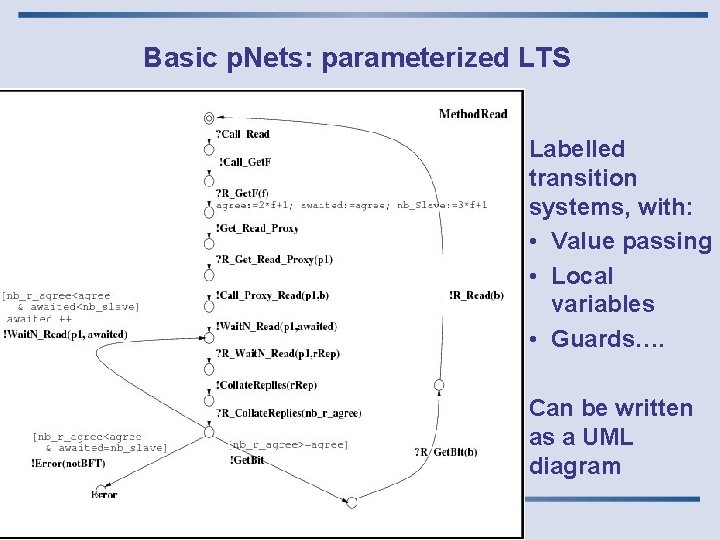

Basic p. Nets: parameterized LTS Labelled transition systems, with: • Value passing • Local variables • Guards…. Can be written as a UML diagram Eric MADELAINE

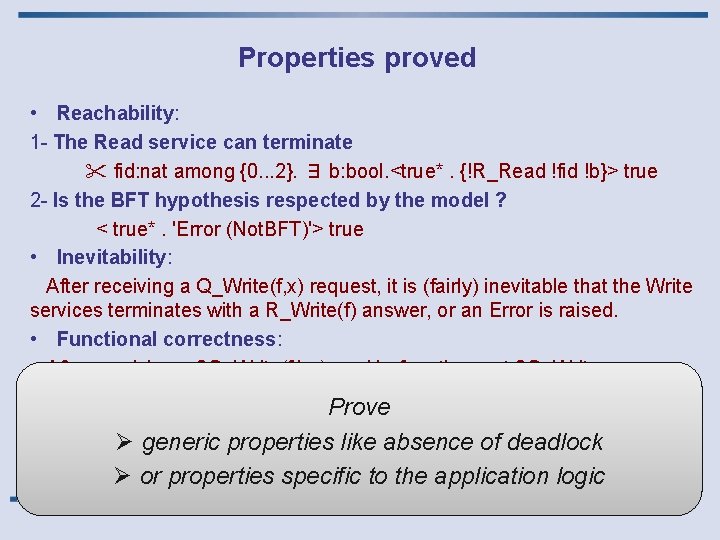

Properties proved • Reachability: 1 - The Read service can terminate fid: nat among {0. . . 2}. ∃ b: bool. <true*. {!R_Read !fid !b}> true 2 - Is the BFT hypothesis respected by the model ? < true*. 'Error (Not. BFT)'> true • Inevitability: After receiving a Q_Write(f, x) request, it is (fairly) inevitable that the Write services terminates with a R_Write(f) answer, or an Error is raised. • Functional correctness: After receiving a ? Q_Write(f 1, x), and before the next ? Q_Write, a ? Q_Read requests raises a !R_Read(y) response, with y=x Prove generic properties like absence of(MCL), deadlock (written inØ mu-calculus or Model Checking Language Mateescu et al, FM’ 08) Ø or properties specific to the application logic
Conclusion Each component has its own state and its own activity (threads) • Asynchronous and ``autonomous’’ distributed components - Based on (Multi-)Active object and futures - Communicate by asynchronous requests and replies Adapted to large-scale distribution • Convenient for programming autonomic computing and adaptation procedures - Programming model and decoupling of entities - Componentized membranes and monitoring components - Specified architecture correctness • Convenient for verifying correct execution of distributed applications - Behavioural specification and model-checking Implemented: GCM/Pro. Active + a specification and development environment: Vercors

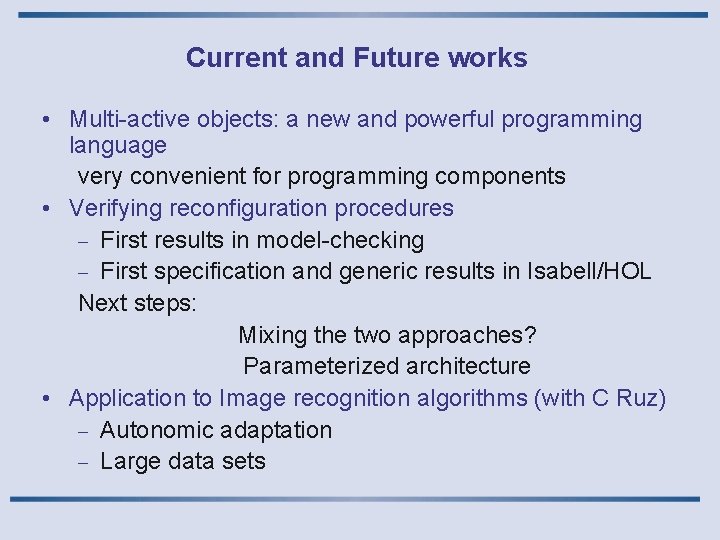

Current and Future works • Multi-active objects: a new and powerful programming language very convenient for programming components • Verifying reconfiguration procedures - First results in model-checking - First specification and generic results in Isabell/HOL Next steps: Mixing the two approaches? Parameterized architecture • Application to Image recognition algorithms (with C Ruz) - Autonomic adaptation - Large data sets

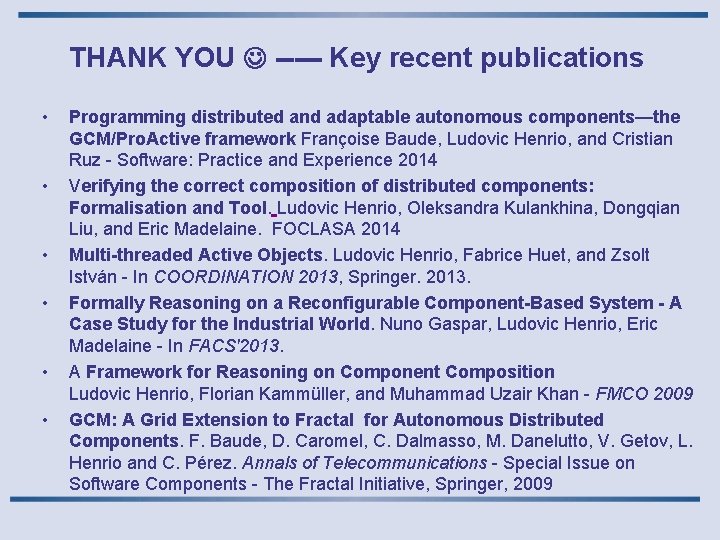

THANK YOU ----- Key recent publications • • • Programming distributed and adaptable autonomous components—the GCM/Pro. Active framework Françoise Baude, Ludovic Henrio, and Cristian Ruz - Software: Practice and Experience 2014 Verifying the correct composition of distributed components: Formalisation and Tool. Ludovic Henrio, Oleksandra Kulankhina, Dongqian Liu, and Eric Madelaine. FOCLASA 2014 Multi-threaded Active Objects. Ludovic Henrio, Fabrice Huet, and Zsolt István - In COORDINATION 2013, Springer. 2013. Formally Reasoning on a Reconfigurable Component-Based System - A Case Study for the Industrial World. Nuno Gaspar, Ludovic Henrio, Eric Madelaine - In FACS'2013. A Framework for Reasoning on Component Composition Ludovic Henrio, Florian Kammüller, and Muhammad Uzair Khan - FMCO 2009 GCM: A Grid Extension to Fractal for Autonomous Distributed Components. F. Baude, D. Caromel, C. Dalmasso, M. Danelutto, V. Getov, L. Henrio and C. Pérez. Annals of Telecommunications - Special Issue on Software Components - The Fractal Initiative, Springer, 2009
