Programmable Logic Controller PLC Training Software Program Exercise

Programmable Logic Controller (PLC) Training Software Program Exercise 1 Easy PLC Program Familiarization Utah Robotics Core 144231 Common Core High School Algebra Reasoning Common Core High School Interpreting Functions

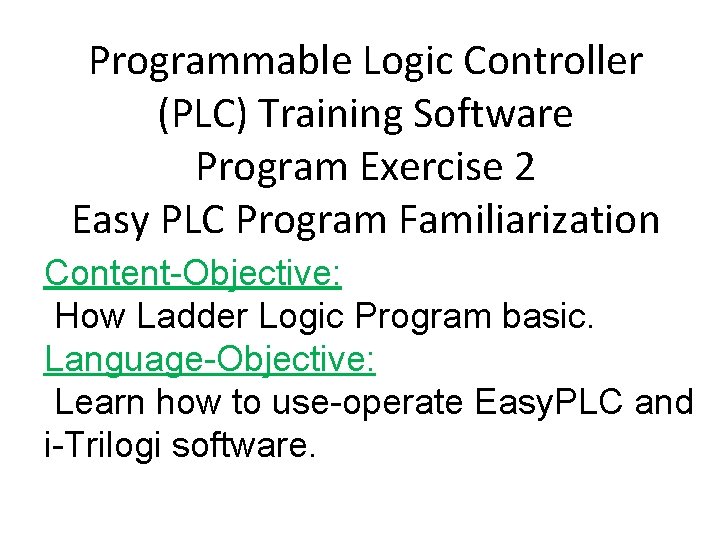

Programmable Logic Controller (PLC) Training Software Program Exercise 2 Easy PLC Program Familiarization Content-Objective: How Ladder Logic Program basic. Language-Objective: Learn how to use-operate Easy. PLC and i-Trilogi software.

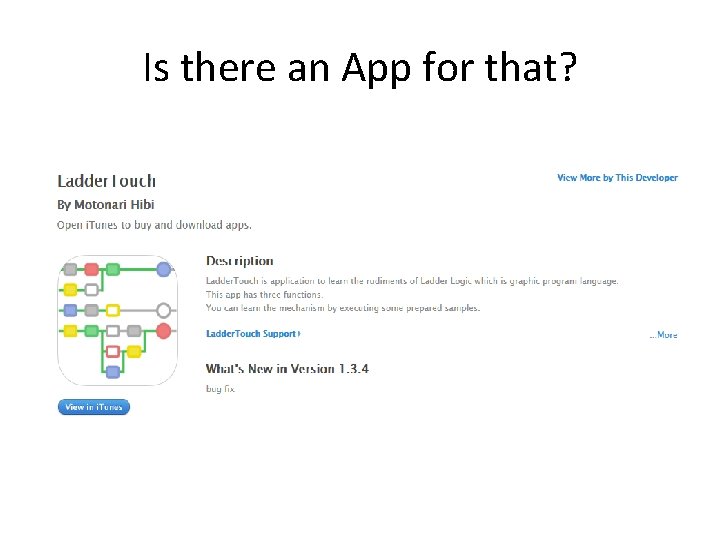

Is there an App for that?

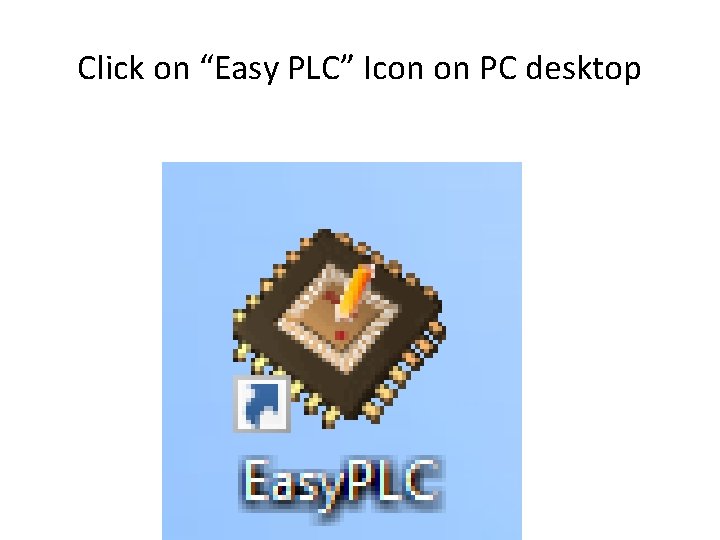

Click on “Easy PLC” Icon on PC desktop

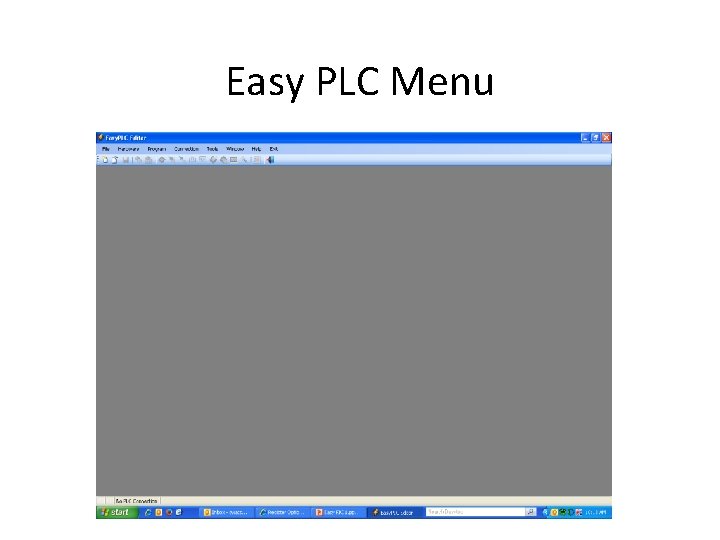

Easy PLC Menu

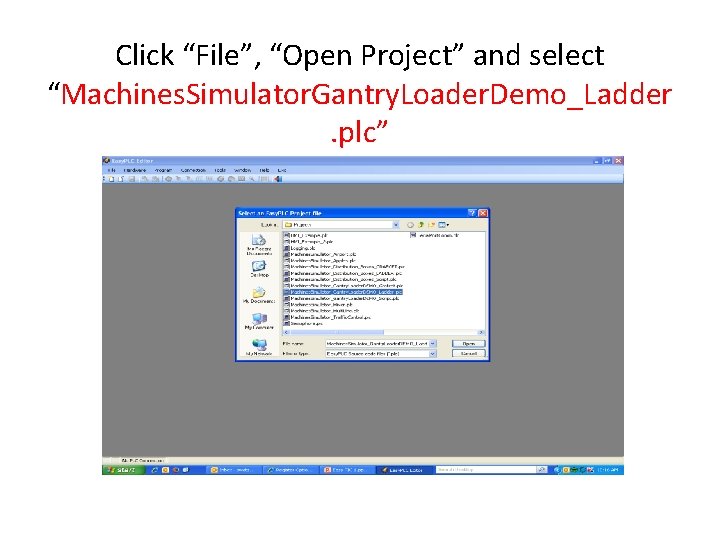

Click “File”, “Open Project” and select “Machines. Simulator. Gantry. Loader. Demo_Ladder. plc”

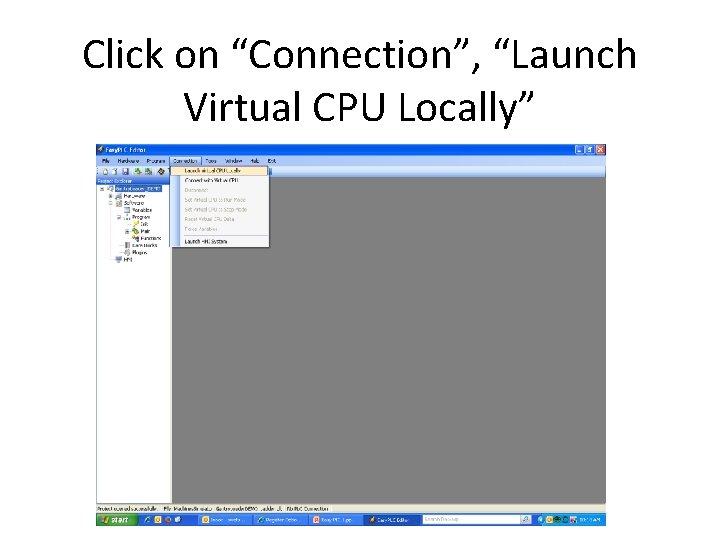

Click on “Connection”, “Launch Virtual CPU Locally”

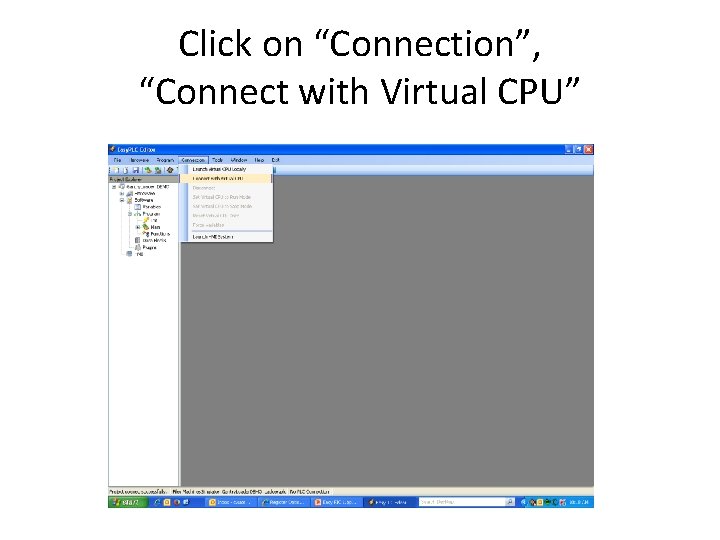

Click on “Connection”, “Connect with Virtual CPU”

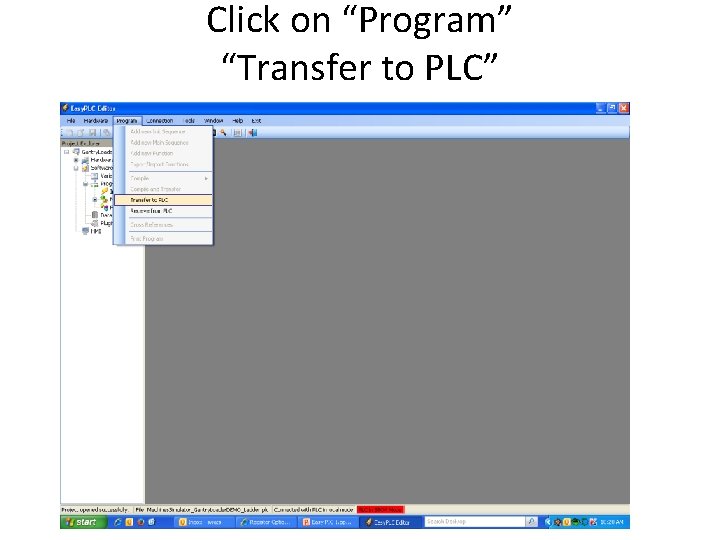

Click on “Program” “Transfer to PLC”

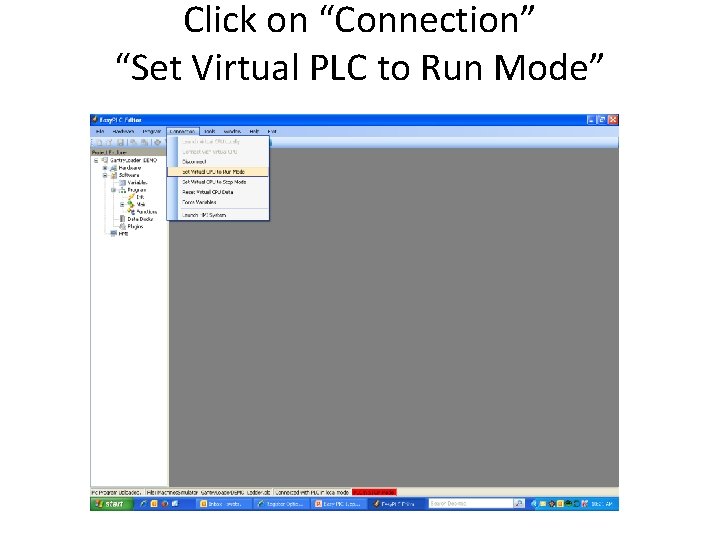

Click on “Connection” “Set Virtual PLC to Run Mode”

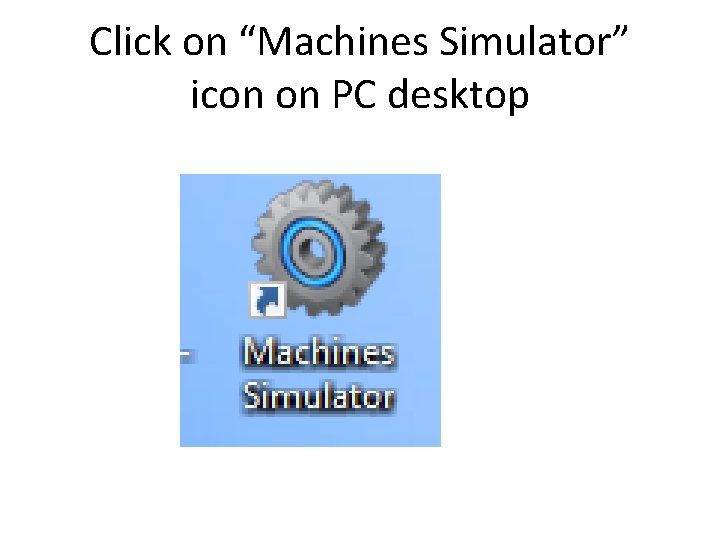

Click on “Machines Simulator” icon on PC desktop

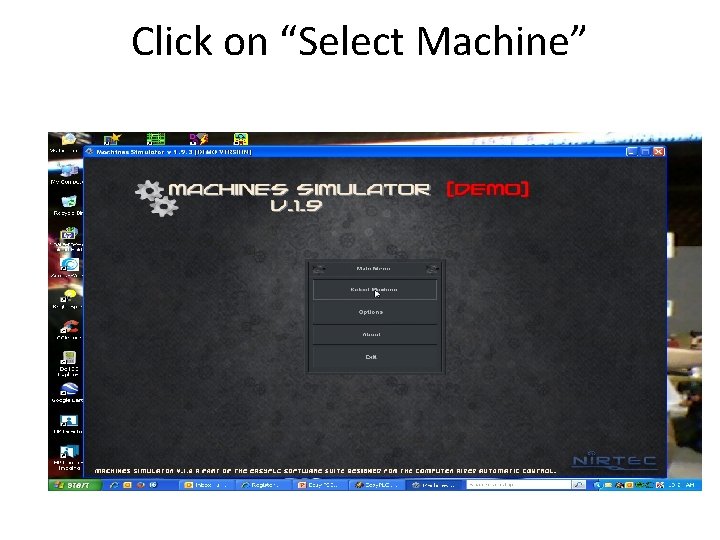

Click on “Select Machine”

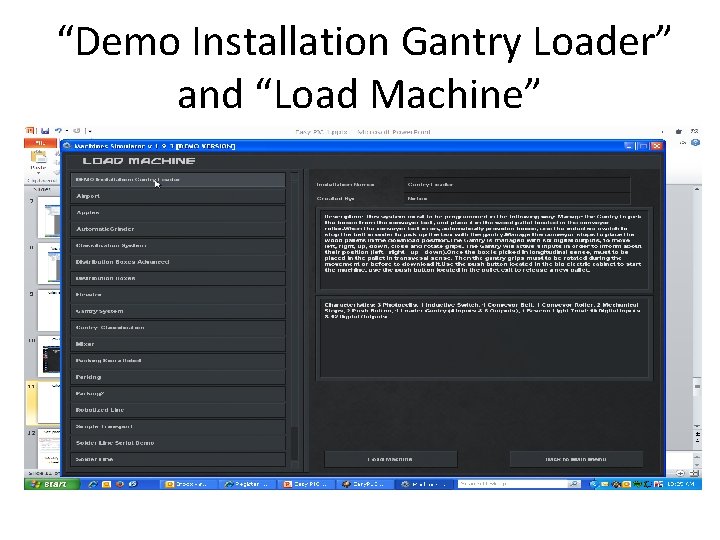

“Demo Installation Gantry Loader” and “Load Machine”

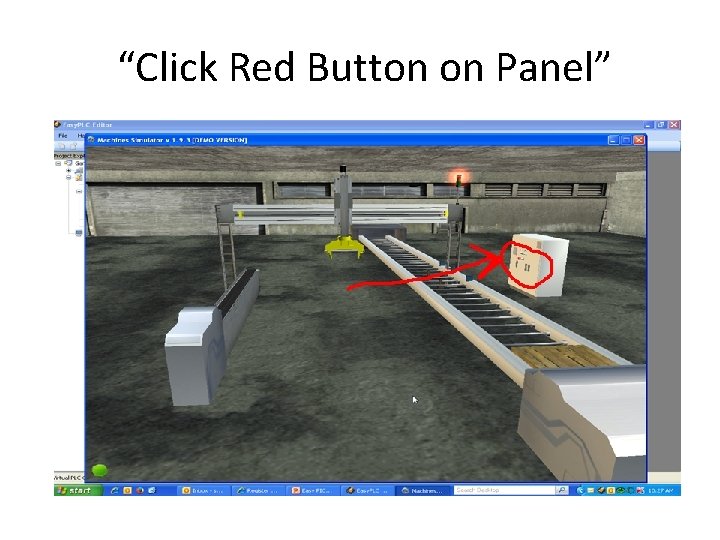

“Click Red Button on Panel”

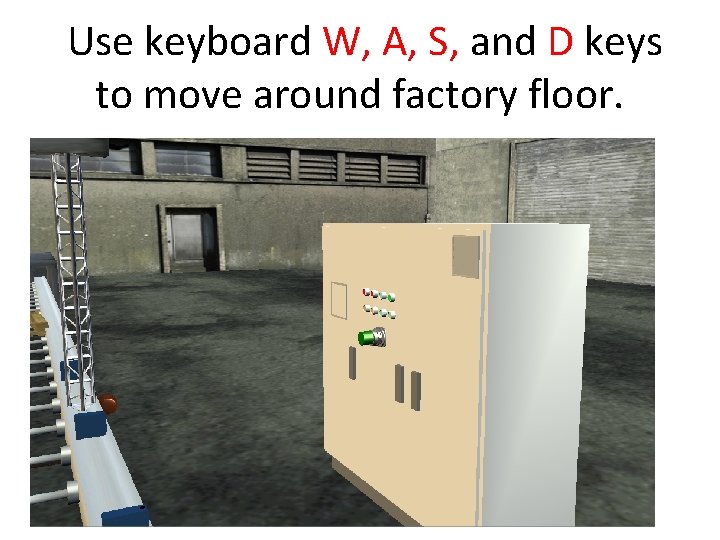

Use keyboard W, A, S, and D keys to move around factory floor.

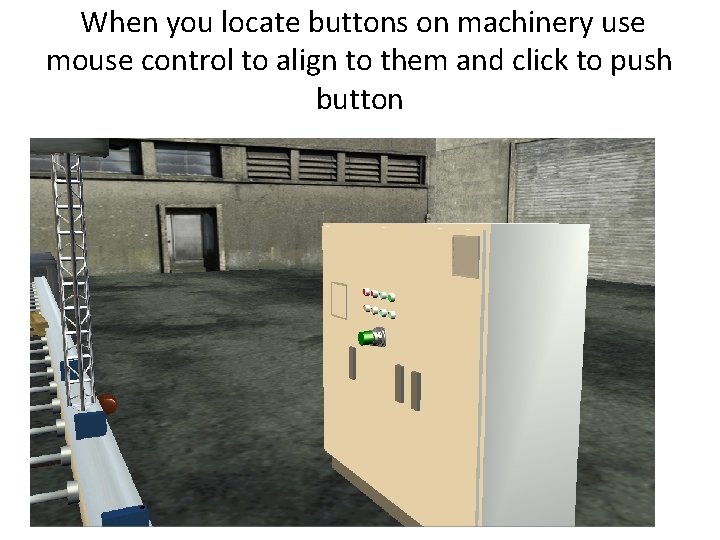

When you locate buttons on machinery use mouse control to align to them and click to push button

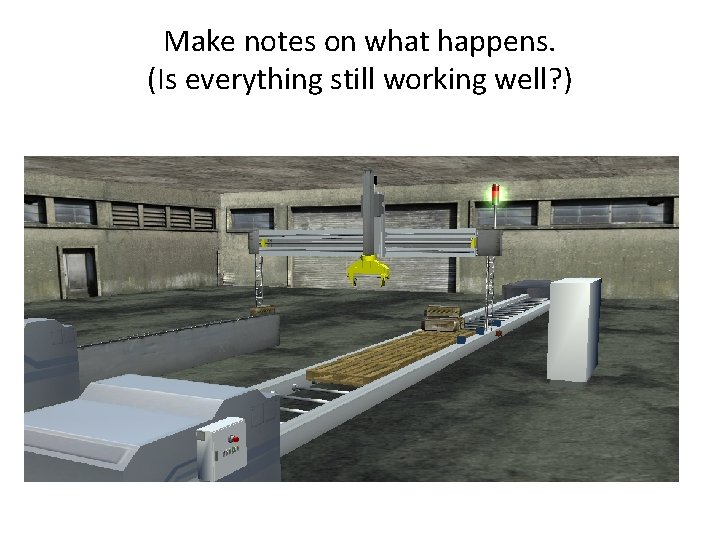

Make notes on what happens. (Is everything still working well? )

Screen Capturing Windows Snipping Tool (All Apps, Windows Accessories, Snipping Tool)

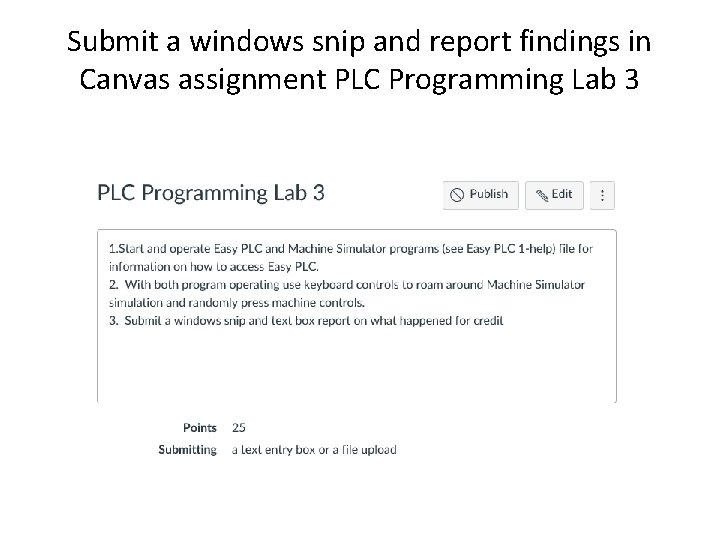

Submit a windows snip and report findings in Canvas assignment PLC Programming Lab 3
