Program verification 096229 Ofer Strichman Room 412 ofersie

Program verification -- 096229 Ofer Strichman Room 412 ofers@ie. technion. ac. il Office hours: after class 1

Agenda for the first class n n Up to slide 36: what is this course about ? Slide 37: Slide 38 -39: Slide 40: why not take this course why take this course requirements 2

The goal – reliable software systems n n Importance of reliable software – almost needless to mention. A nice collection of famous bugs: http: //en. wikipedia. org/wiki/Software_bugs 3

The goal – reliable software systems n Here are some famous ones: n ESA Ariane 5 Flight 501 self-destruction 40 seconds after takeoff (June 4, 1996). n n A conversion from 64 -bit floating point to 16 bit integer with a value larger than possible with Arian 4. The overflow caused a hardware trap. The 2003 North America blackout was triggered by a local outage that went undetetected. n A race condition in General Electric’s monitoring software prevented an alarm. 4

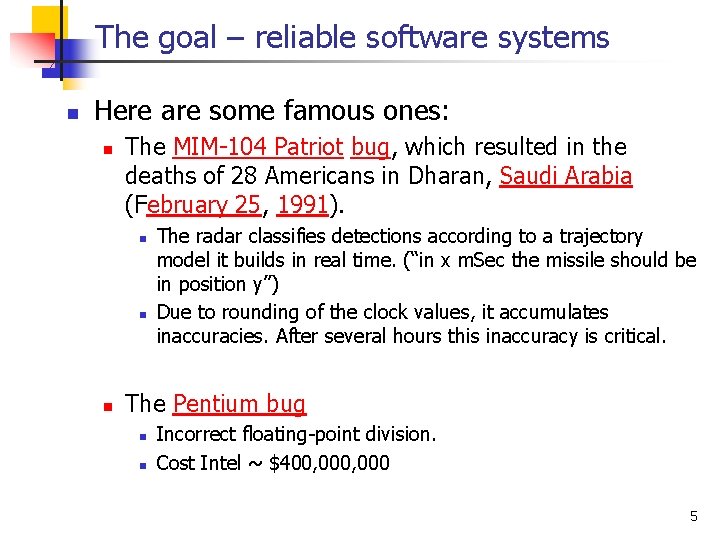

The goal – reliable software systems n Here are some famous ones: n The MIM-104 Patriot bug, which resulted in the deaths of 28 Americans in Dharan, Saudi Arabia (February 25, 1991). n n n The radar classifies detections according to a trajectory model it builds in real time. (“in x m. Sec the missile should be in position y”) Due to rounding of the clock values, it accumulates inaccuracies. After several hours this inaccuracy is critical. The Pentium bug n n Incorrect floating-point division. Cost Intel ~ $400, 000 5

The goal – reliable software systems n n Not unusual to have more than 50% of resources allocated to testing Testing and verification are (becoming) the bottleneck of development 6

b. Eg. In. Sl. Id. E Remarks by Bill Gates 17 th Annual ACM Conference on Object-Oriented Programming, Seattle, Washington, November 8, 2002 “… When you look at a big commercial software company like Microsoft, there's actually as much testing that goes in as development. We have as many testers as we have developers. Testers basically test all the time, and developers basically are involved in the testing process about half the time… 7

b. Eg. In. Sl. Id. E Remarks by Bill Gates 17 th Annual ACM Conference on Object-Oriented Programming, Seattle, Washington, November 8, 2002 “… We've probably changed the industry we're in. We're not in the software industry; we're in the testing industry, and writing the software is the thing that keeps us busy doing all that testing. ” “…The test cases are unbelievably expensive; in fact, there's more lines of code in the test harness than there is in the program itself. Often that's a ratio of about three to one. ” 8

The goal – reliable software systems n n Quality dilemma: quality / features / time More efficient methods for test and verification are always needed n n No ‘silver-bullet’ when it comes to testing. Formal verification is on the rise. . . 9

Formal methods n Formal = based on rigorous mathematical logic concepts. n n It is ‘machine-readable’, and hence can be used by a verification algorithm. Once we formally specify what we expect from the program, we can try to prove that the program satisfies the specification. 10

Specification can be: Informal, textual, visual. . . n Local assertions: at this point in the program always x > y. n n n How is it different than writing ‘assert ( x > y); ’ ? A more global property: The array bound is never exceeded Temporal properties: If a request is sent, acknowledgement is eventually received 11

. . . or it can be formal (1· x · 5 U x=7) Æ G (x¸ 0) (Translated from: The value of x will be between 1 and 5, until at some point it will become 7, and it will always (“Globally”) be positive. ) x=7 1· x · 5 x¸ 0 12

A system can be general and messy. . . struct node *copy_node(struct node *f) { static int count = 0; struct node *temp; count ++; if (f == NULL) return NULL; if ((temp = (struct node *) malloc (sizeof (struct node))) == NULL) fprintf(stderr, "Out of memory"); temp -> tag = f -> tag; temp -> name = strdup(f -> name); temp -> left = copy_node(f -> left); temp -> right = copy_node(f -> right); temp -> cnf_id = f -> cnf_id; return temp; } 13

. . . or its underlying algorithm can be modeled n E. g. , as a finite-state machine release s 1 pull s 2 extended release s 3 malfunction 14

The program can be tested. . . n Try inputs n n n . . . As good as the set of input test-cases. . . and as good as the reference system n n x 1 = 2, x 2 = 25, str = ‘llk’ x 1 = 0, x 2 = 31, str = ‘aaa’. . . Manual inspection Regression testing Specification-based testing For simple, non-critical code, this is the easiest and most immediate option. 15

. . . or can be formally verified n n Given the formal specification G(: malfunction) // always not malfunctioning And the system model release s 1 pull s 2 extended n release s 3 malfunction Run a model-checker program to formally verify that the system satisfies the specification. 16

b. Eg. In. Sl. Id. E Remarks by Bill Gates 17 th Annual ACM Conference on Object-Oriented Programming, Seattle, Washington, November 8, 2002 “We also went back and say, OK, what is the state-ofthe-art in terms of being able to prove programs, prove that a program behaves in a certain way? This is the kind of problem that has been out there for many decades. . . When I dropped out of Harvard, this was an interesting problem that was being worked on, and actually at the time I thought, well, if I go and start a company it will be too bad, I'll miss some of the big breakthroughs in proving software programs because I'll be off writing payroll checks. “ 17

b. Eg. In. Sl. Id. E Remarks by Bill Gates 17 th Annual ACM Conference on Object-Oriented Programming, Seattle, Washington, November 8, 2002 . . . and it turns out I didn't miss all that much in terms of rapid progress which now has become, I'd say, in a sense, a very urgent problem. And although a full general solution to that is in some ways unachievable, for many very interesting properties this idea of proof has come a long way in helping us quite substantially just in the last year. We call the system that does this kind of proof -- a model-checking system. 18

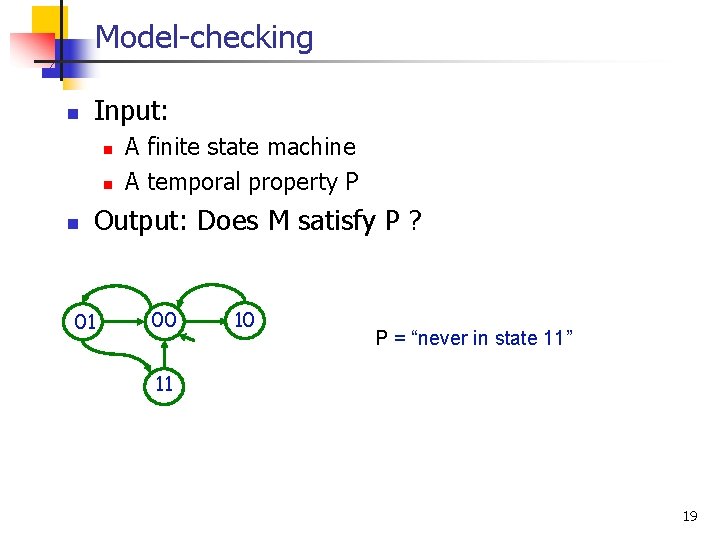

Model-checking n Input: n n n A finite state machine M A temporal property P P Output: Does M satisfy P ? 01 00 10 P = “never in state 11” 11 M 19

Model-checking n Nondeterminism is used to model systems with inputs Model-checking is exponential in the number of inputs 00 11 10 = inputs 01 M outputs n M 20

Model-checking n n The model M defines a set of behaviors (traces) L(M) The model P defines a set of allowed behaviors L(P) 01 00 10 11 11 M P Never “ 11” 21

Model-checking as language-inclusion ? n The model checking problem: L(M) µ L(P) error L(P) L(M) n Q: What if this problem is too hard in practice? 22

Program verification n n Bill: Prove that the program is correct ! MS-employee: let me quote Carl Popper’s answer about verification vs. falsification in science. n n Science does not progress by finding eternal truths. . . only by refuting previous theories. 23

Program verification n n Bill: Ok, So just prove that the program satisfies the specification ! MS-employee : n n ok. . . but even if I prove that the system satisfies the specification, there can still be an error in the proof process or the proof tool that I use. . . and there is no guarantee that the specification fully specifies what we consider as ‘correct’. 24

Program verification n n Bill: Ok, fine, so just increase the probability that the program is correct ! MS-employee : n Well, boss, if you want this process to be automatic, please provide me n n n a model of the program, and a formal (machine-readable) specification. . . Such that checking the model with respect to the specification is a decidable problem. 25

Program verification n n Bill: Will it be better than testing ? MS-employee: when it is possible, it is much better. 26

Testing / Formal Verification A very crude dichotomy: Testing Correct with respect to the set of test inputs, and reference system Easy to perform Dynamic In practice: Many types of testing, Many types of formal verification. 27

Testing / Formal Verification A very crude dichotomy: Testing Formal Verification Correct with respect to the set of test inputs, and reference system Correct with respect to all inputs, with respect to a formal specification Easy to perform Decidability problems, Computational problems, Dynamic Static In practice: Many types of testing, Many types of formal verification. 28

Testing + formal-verification n n Bill: is there a mid-way ? MS-employee: Yes: Specify formally, verify informally This is called run-time verification. . . n n The idea is to write a small program that monitors the tested program It checks during run-time that the tested program satisfies a given (Formal) specification. 29

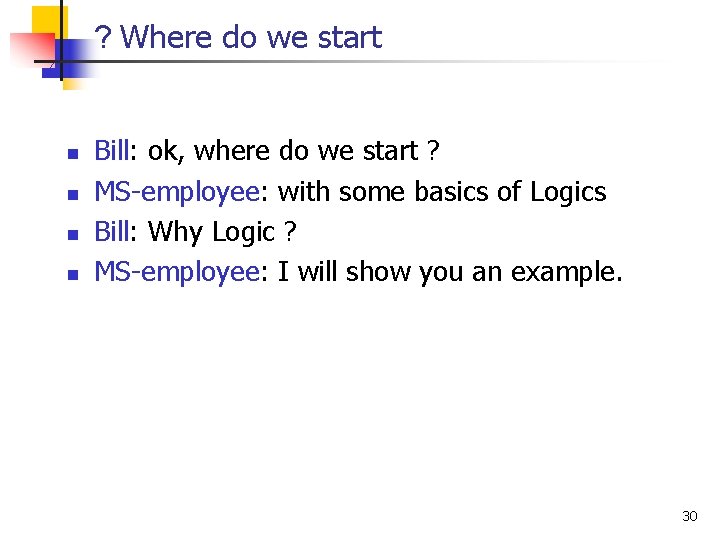

? Where do we start n n Bill: ok, where do we start ? MS-employee: with some basics of Logics Bill: Why Logic ? MS-employee: I will show you an example. 30

Reminder: some Boolean connectives n n n Æ Ç : ! $ and or not implies equal A propositional formula: : (a Ç (b ! (c Æ : a))) 31

Program transformation if(!a && !b) h(); else if(!a) g(); else f(); + if(!a) { if(!b) h(); else g(); } else f(); if(a) f(); else if(b) g(); else h(); * ) if(a) f(); else { if(!b) h(); else g(); } How can we check that these two versions are equivalent? 32

Code transformation example – cont’d n Represent procedures as independent Boolean variables original : = if : a Æ b then h else if : a then g else f n optimized : = if a then f else if b then g else h Transform if-then-else chains into Boolean formulas transform(if x then y else z) ≡ (x Æ y) Ç (: x Æ z) n Check equivalence of boolean formulae 33

Code transformation example – cont’d original ≡ if : a Æ : b then h else if : a then g else h ≡ (: a Æ : b) Æ h Ç : (: a Æ : b) Æ if : a then g else f ≡ (: a Æ : b) Æ h Ç : (: a Æ : b) Æ (: a Æ g Ç a Æ f ) optimized ≡ if a then f else if b then g else h ≡ (a Æ f ) Ç ( : a Æ if b then g else h ) ≡ ( a Æ f ) Ç ( : a Æ (b Æ g Ç : bÆ h) ) Verification Condition : ((: a Æ : b) Æ h Ç : (: a Æ : b) Æ (: a Æ g Ç a Æ f )) $ (a Æ f ) Ç (: a Æ (b Æ g Ç : b Æ h)) The question: is valid ? 34

. . . Not just software Prove the equivalence of two circuits: Ç Æ Ç 35

. . . So n We will learn: n A brief introduction to Propositional Logic n n n Incl. General logic jargon such as: validity, satisfiability, soundness, completeness, . . . In a later stage in the course we will also learn algorithms for checking whether a given formula is valid/satisfiable Temporal Logic, and its ability to formally specify systems 36

. . . So n . . . and n n n . . . And also n n n Specification-based testing (specifically: Run-time verification) Other types of testing Modeling of systems Formal verification of systems against formal specification with model-checking. More. . . if we have the time 37

Why not take this course n In the end of the course you will NOT be able to automatically verify the big software you wrote in C n n n No one can, (completely) automatically. After your Ph. D, you might be able to do it with some manual guidance. On the bright side. . . with certain restrictions, or compromises on what it means to ‘verify’, you might be able to verify even large C programs. 38

Why take this course n There are some restricted type of programs that can be verified automatically. n n n There is an industry behind it, incl. in Haifa. n n n Finite-state programs (e. g. protocols) and more. The ‘killer-application’: hardware circuits. Developers of verification tools: IBM, Intel. Users of such tools: IBM, Intel, Melanox, Freescale, Verisity (now Cadence), Galileo (now Marvel). . . Background in hardware is not necessary at all. n Most developers & users in this field do not have it. 39

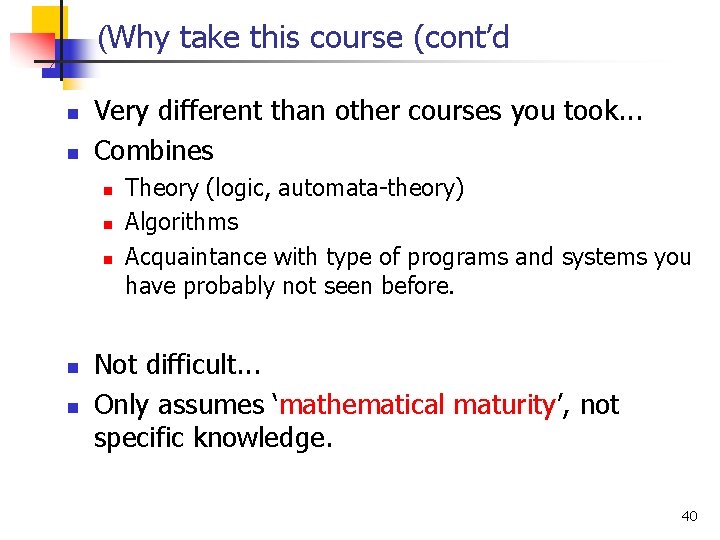

(Why take this course (cont’d n n Very different than other courses you took. . . Combines n n n Theory (logic, automata-theory) Algorithms Acquaintance with type of programs and systems you have probably not seen before. Not difficult. . . Only assumes ‘mathematical maturity’, not specific knowledge. 40

Requirements n n 5~homework assignments 2 exams, 3 -questions each (1. 5 hours. ( 41
