Agenda Ø p p p Overview of TPTP Profiling tools TPTP Testing tools What’s new? November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 2

Overview - Eclipse TPTP ØEclipse top level project • 2002 : Eclipse tools subproject - Hyades • 2004 : Eclipse top-level project - TPTP Ø Mission: • To build a generic, extensible, standards-based platform for test and performance tracing tools. Ø Goals: • Platform of choice for test, performance, and monitoring tools. • Exemplary tooling. • Enable value-added third-party tooling through extensibility and high-quality APIs. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 3

Overview - TPTP project structure Ø Comprised of four projects • Platform • Test • Trace • Monitoring Ø Developed by a number of strategic contributors • Active contributors: Intel, IBM, OC Systems • Inactive contributors: Scapa Technologies, Computer Associates, Compuware, FOKUS Ø For more information visit http: //www. eclipse. org/tptp/ November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 4

Overview - TPTP framework Ø TPTP offers a common, extendable framework as well as reference implementations for the following functions: • • • Testing Profiling Static code analysis Static and dynamic Bytecode Instrumentation (BCI) Application monitoring and log analysis November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 5

Overview - TPTP Test tools Ø Common framework for testing tools thereby integrating disparate test types and execution environments. • Common perspectives and views for interacting with target systems and resources. • Reference navigators, viewers, editors and wizards through extension points. • Standard EMF data model, query framework and assets repository. • Common data collection and execution framework on local and remote targets. Ø Reference implementations for the TPTP Test framework: • Manual testing. • JUnit and JUnit Plug-in testing. • URL testing. • Automated GUI Recording/Playback. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 6

Overview - TPTP Profile tools Ø Common framework for profiling simple Java applications or complex Web applications running on multiple platforms, on different hosts. • User interface actions to interact with the profiled application. • Start, stop, attach, detach from the profiled application. • Views framework used to analyze the profiled application. • Views can be extended and customized using extension points. Ø Reference implementation of the Profiling framework: • Java Profiling tools based on JVMPI and JVMTI. • Actions to interact with the profile application: run garbage collection, collect object references, filter and sort data • Views to analyze collected data: performance, memory analysis, thread views Ø Probekit, a generic tool for probe creation and insertion. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 7

Demo Ø Eclipse TPTP: Ø 4. 4. 0. 3 all-in-one Ø API Recorder Technology Preview Ø Demo Java Application: Ø Simple store November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 8

Agenda ü Ø p p Overview of TPTP Profiling tools TPTP Testing tools What’s new? November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 9

Profiling Tools Ø Profiling Perspective November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 10

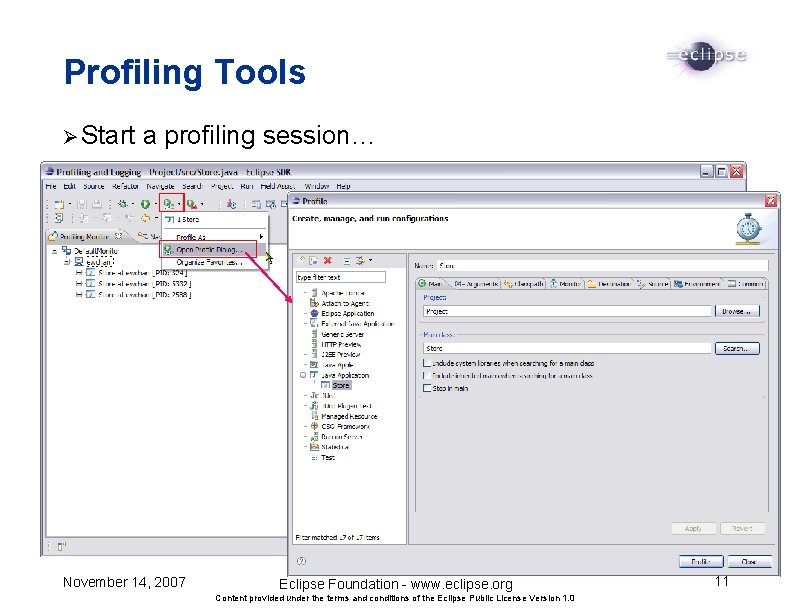

Profiling Tools Ø Start a profiling session… November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 11

Profiling Tools Ø Profiling Filter November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 12

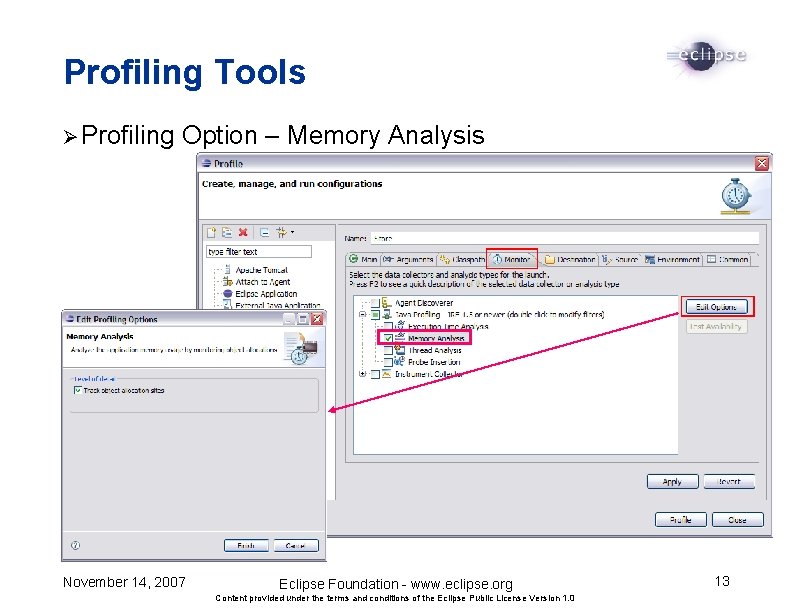

Profiling Tools Ø Profiling Option – Memory Analysis November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 13

Profiling Tools Ø Open Profiling View November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 14

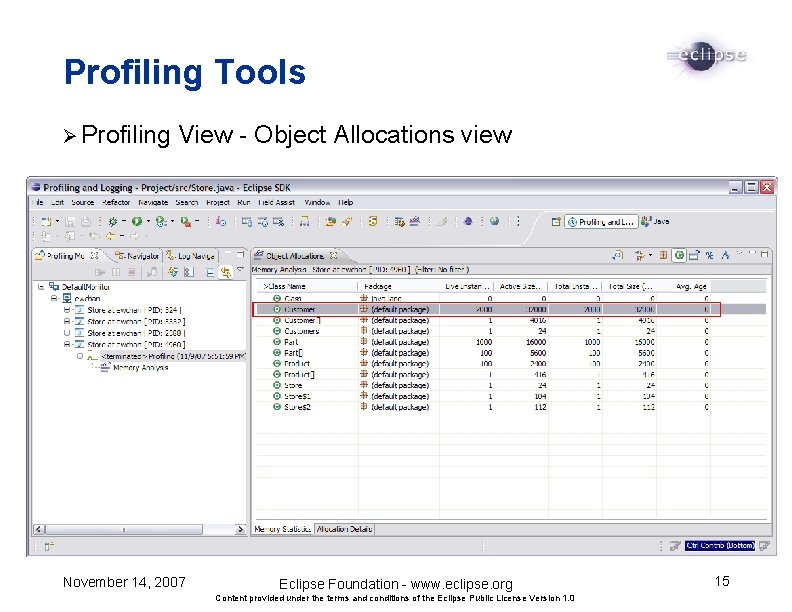

Profiling Tools Ø Profiling View - Object Allocations view November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 15

Profiling Tools Ø Profiling View – Object Allocation View November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 16

Profiling Tools Ø Profiling – Object Allocation November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 17

Profiling Tools Ø Profiling Option – Execution Time Analysis November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 18

Profiling Tools Ø Profiling View – Execution Statistic View November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 19

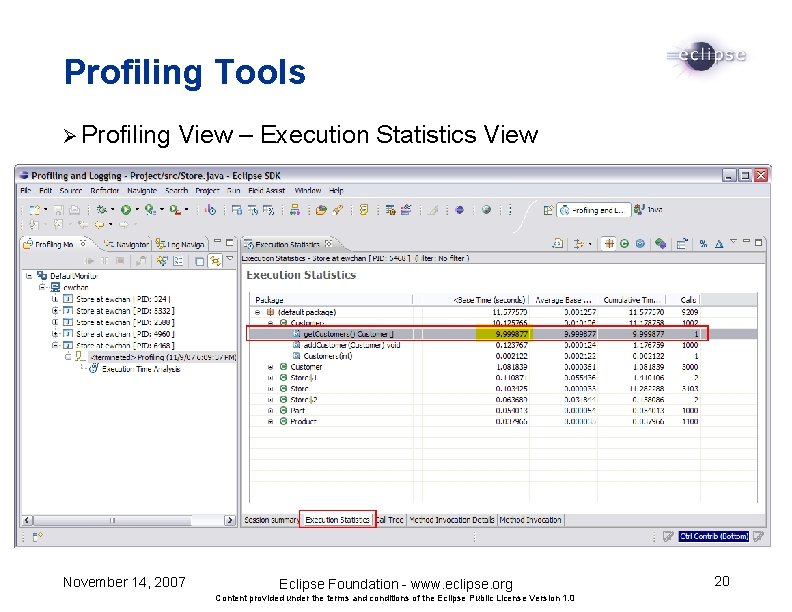

Profiling Tools Ø Profiling View – Execution Statistics View November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 20

Profiling Tools Ø Profiling View – Open Source Action November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 21

Profiling Tools Ø Profiling – Execution Analysis November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 22

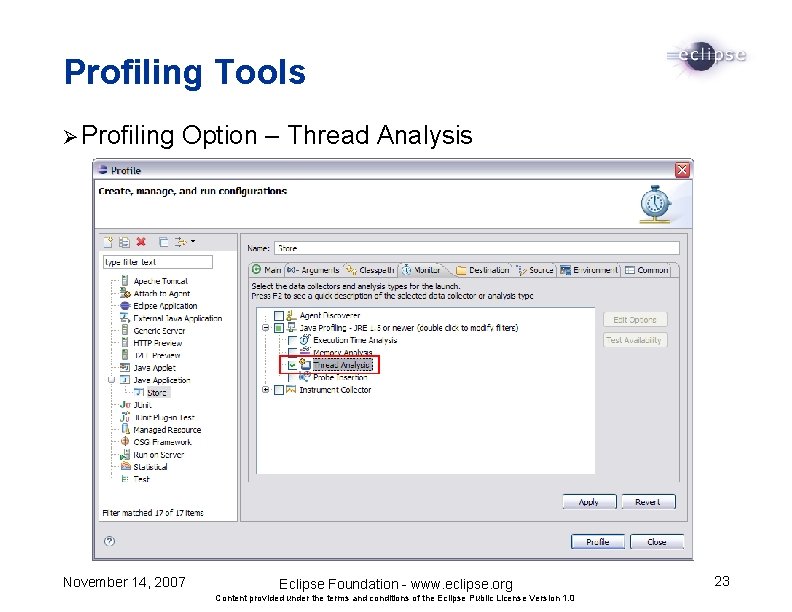

Profiling Tools Ø Profiling Option – Thread Analysis November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 23

Profiling Tool Ø Profiling View – Thread Analysis View November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 24

Profiling Tool Ø Profiling View – Call Stack November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 25

Profiling Tool Ø Profiling Views – Toolbar Actions November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 26

Profiling Tool Ø Profiling On Sever Ø Simplify web application profiling. Ø A pre-configured shortcut to launch and attach to web application for profile. Ø Ø Context menu Servers view November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 27

Profiling Tool Ø Help > Help Contents November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 28

Agenda ü ü Ø p Overview of TPTP Profiling tools TPTP Testing tools What’s new? November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 29

Testing Tools – Basic Concepts Ø Test Perspective Ø Set of navigators, viewers, editors and wizards for tests and test assets. Ø Test Suite Ø Consists of test cases and behaviors. Ø Created manually with the test suite editor or automatically by a recorder. Ø May be associated with a test script or Java class. Ø Executable with TPTP test execution framework. Ø Datapool Ø Provides input and expected output data to a test. Ø Consists of equivalence classes, variables and records. Ø Created with the datapool editor or imported from *. CSV files. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 30

Testing Tools – Basic Concepts Ø Test Execution Ø Framework for local and remote test deployment, execution, results collection. Ø Typically started from Launch Configuration. Ø Automatable Services Framework (ASF) for launching tests programmatically via scripts (e. g. shell and ANT) and external applications (e. g. Java). Ø Test Log Ø Persisted execution results. Ø Test log viewer to summarize, view, navigate and filter execution events, and associated defects. Ø Report Ø Aggregates and summarizes numerous test execution results over a period of time (report window). Ø BIRT integration and extensible report generators. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 31

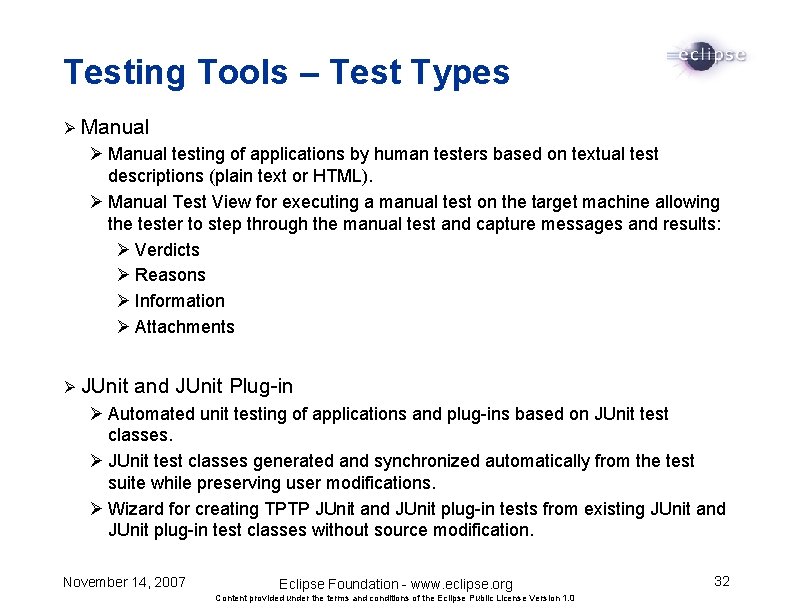

Testing Tools – Test Types Ø Manual testing of applications by human testers based on textual test descriptions (plain text or HTML). Ø Manual Test View for executing a manual test on the target machine allowing the tester to step through the manual test and capture messages and results: Ø Verdicts Ø Reasons Ø Information Ø Attachments Ø JUnit and JUnit Plug-in Ø Automated unit testing of applications and plug-ins based on JUnit test classes. Ø JUnit test classes generated and synchronized automatically from the test suite while preserving user modifications. Ø Wizard for creating TPTP JUnit and JUnit plug-in tests from existing JUnit and JUnit plug-in test classes without source modification. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 32

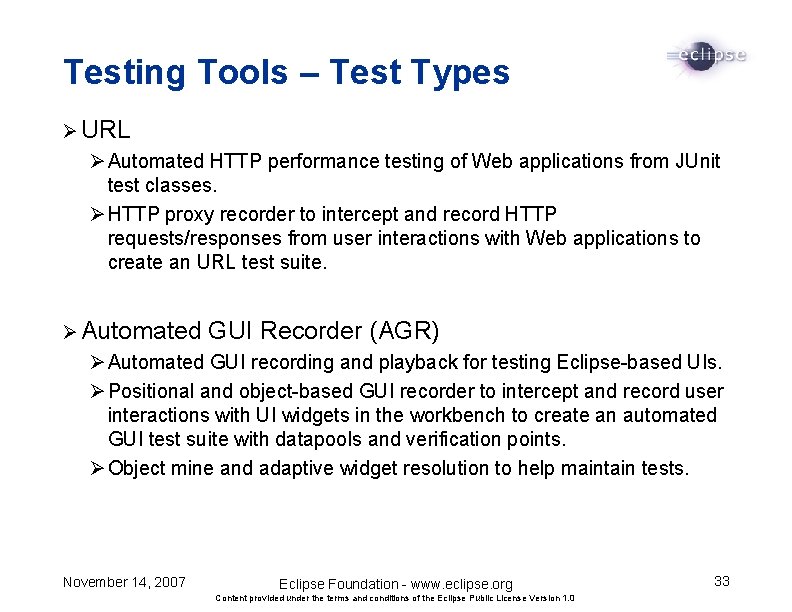

Testing Tools – Test Types Ø URL Ø Automated HTTP performance testing of Web applications from JUnit test classes. Ø HTTP proxy recorder to intercept and record HTTP requests/responses from user interactions with Web applications to create an URL test suite. Ø Automated GUI Recorder (AGR) Ø Automated GUI recording and playback for testing Eclipse-based UIs. Ø Positional and object-based GUI recorder to intercept and record user interactions with UI widgets in the workbench to create an automated GUI test suite with datapools and verification points. Ø Object mine and adaptive widget resolution to help maintain tests. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 33

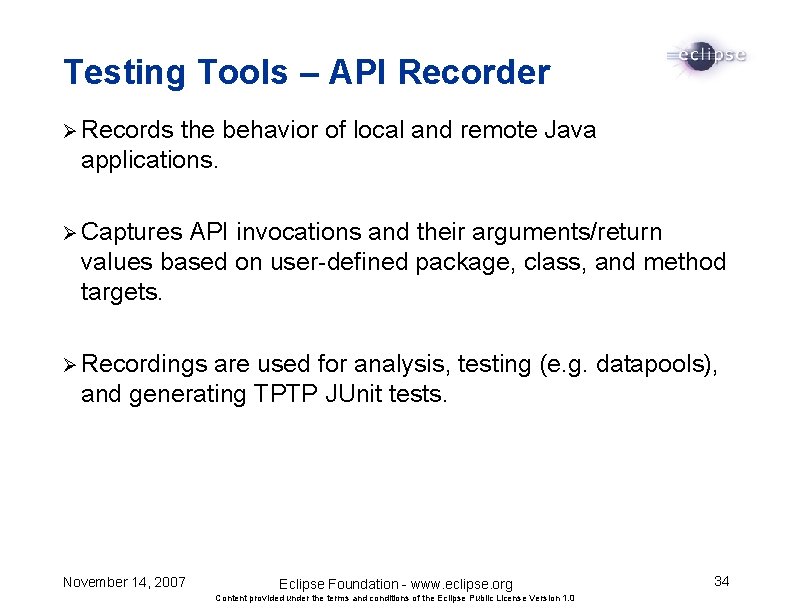

Testing Tools – API Recorder Ø Records the behavior of local and remote Java applications. Ø Captures API invocations and their arguments/return values based on user-defined package, class, and method targets. Ø Recordings are used for analysis, testing (e. g. datapools), and generating TPTP JUnit tests. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 34

Testing Tools - Demo Ø Target API November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 35

Testing Tools - Demo Ø Start an API Recording… November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 36

Testing Tools - Demo Ø API Recording Configuration – Test Suite Generator November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 37

Testing Tools - Demo Ø API Recording Configuration – Target API November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 38

Testing Tools - Demo Ø JUnit Test Suite - Overview November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 39

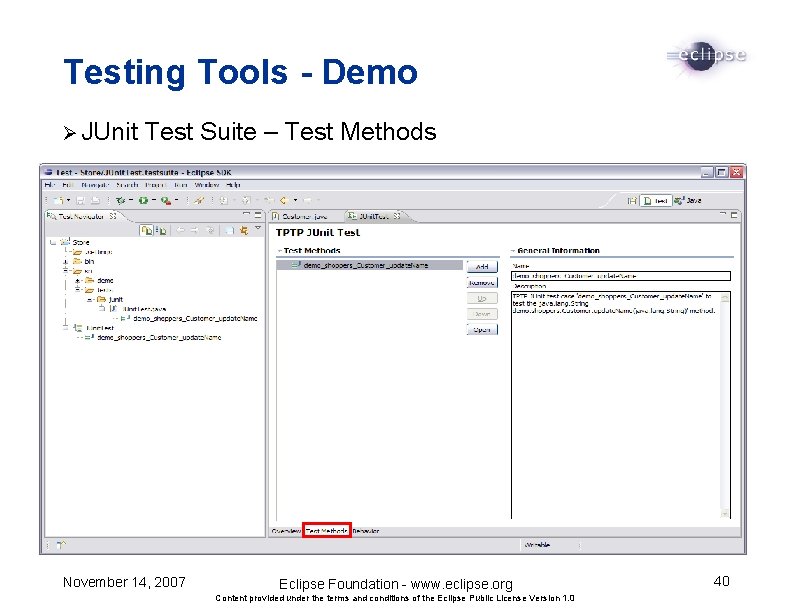

Testing Tools - Demo Ø JUnit Test Suite – Test Methods November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 40

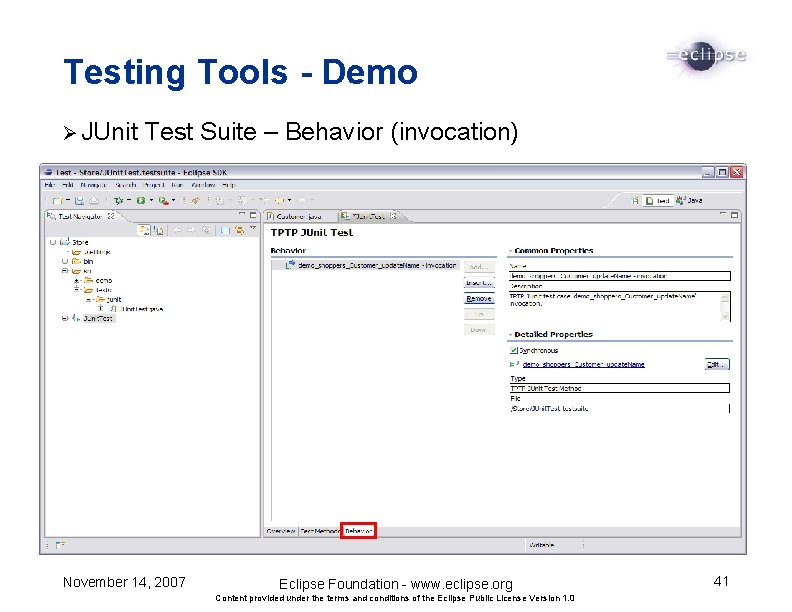

Testing Tools - Demo Ø JUnit Test Suite – Behavior (invocation) November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 41

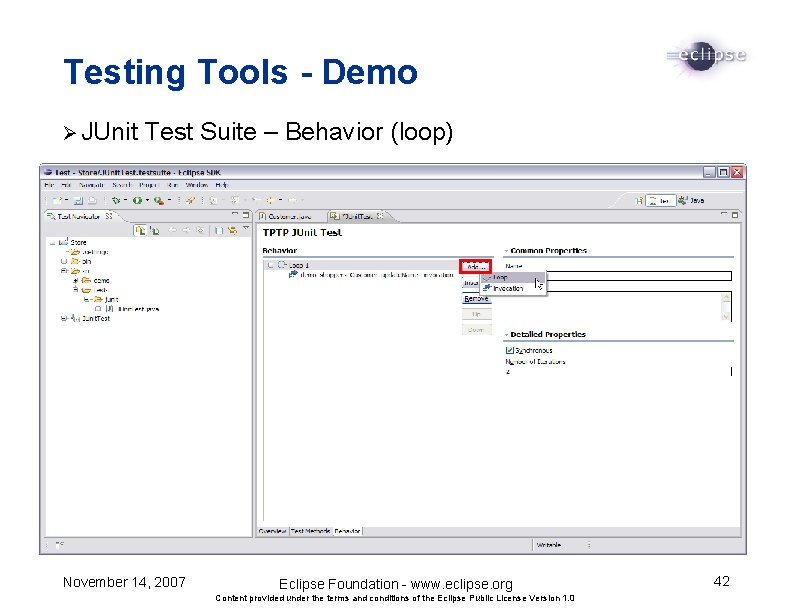

Testing Tools - Demo Ø JUnit Test Suite – Behavior (loop) November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 42

Testing Tools - Demo Ø JUnit Test Suite – Test Class November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 43

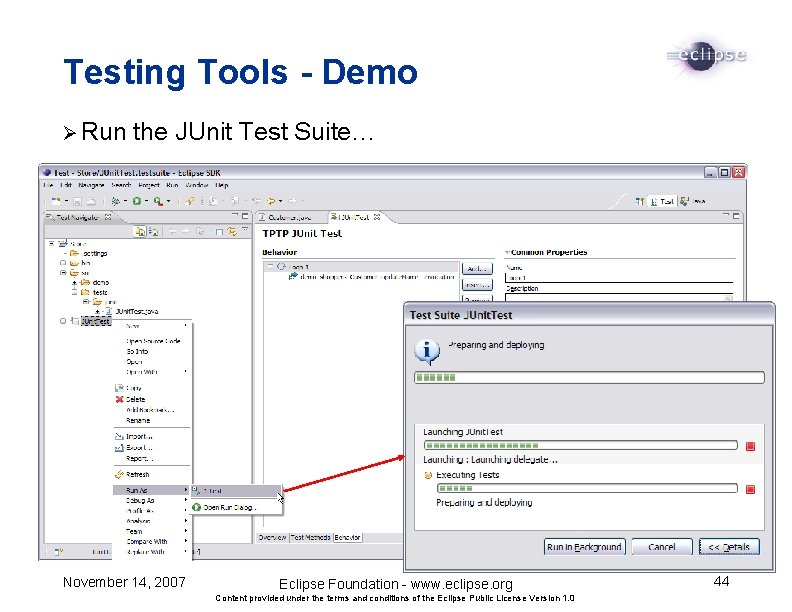

Testing Tools - Demo Ø Run the JUnit Test Suite… November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 44

Testing Tools - Demo Ø Test Log - Overview November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 45

Testing Tools - Demo Ø Test Log - Events November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 46

Testing Tools - Demo Ø Create a Test Report… November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 47

Testing Tools - Demo Ø BIRT Test Pass Report November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 48

Testing Tools - Demo Ø Create a Datapool… November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 49

Testing Tools - Demo Ø Datapools November 14, 2007 - Overview Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 50

Testing Tools - Demo Ø Datapools November 14, 2007 – Equivalence Class Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 51

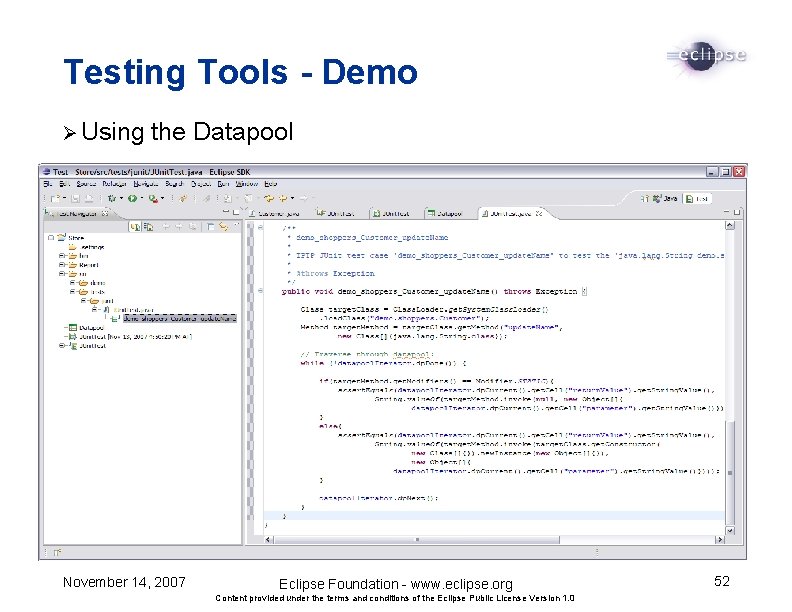

Testing Tools - Demo Ø Using the Datapool November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 52

Testing Tools - Demo Ø Help > Help Contents November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 53

Agenda ü ü ü Ø Overview of TPTP Profiling tools TPTP Testing tools What’s new? November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 54

What’s New in TPTP 4. 5 Ø Profiling Tools: Ø Secure profiling (JVMTI) including authentication and encryption. Ø Hover details for method invocations in the Method Statistics view. Ø Simplified stand-alone profiling (JVMTI). Ø Thread contention analysis for locating monitor and data contention. Ø Improved profiling filters (filter sets). Ø Binary data format to increase profiler performance and scalability. Ø Support for Java 6 and IPv 6 networks. Ø Test Tools: Ø Encrypted datapool variables for testing with confidential data. Ø Parallel test execution for launching multiple tests concurrently. Ø Reference maintenance when moving, copying, deleting, renaming, and importing/exporting test assets. Ø URL recording on IPv 6 networks. November 14, 2007 Eclipse Foundation - www. eclipse. org Content provided under the terms and conditions of the Eclipse Public License Version 1. 0 55
