PROFILES CREATE STATION LABELS n LABEL CENTERLINES OF

PROFILES CREATE STATION LABELS n LABEL CENTERLINES OF DAMS, WATERWAYS, DIVERSIONS ETC. n To create a profile, you must first sample the existing ground from a surface. n Sampling the existing ground creates elevational values for the profile. When sampling the existing ground data from surfaces, you have the option to sample one or multiple surfaces at the same time. n To sample multiple surfaces, you must first create a file of the surface names that you want to sample using the Select Multiple Surfaces command. Then you must enable the use of multiple surfaces before sampling the data using the Toggle Multiple Surfaces command.

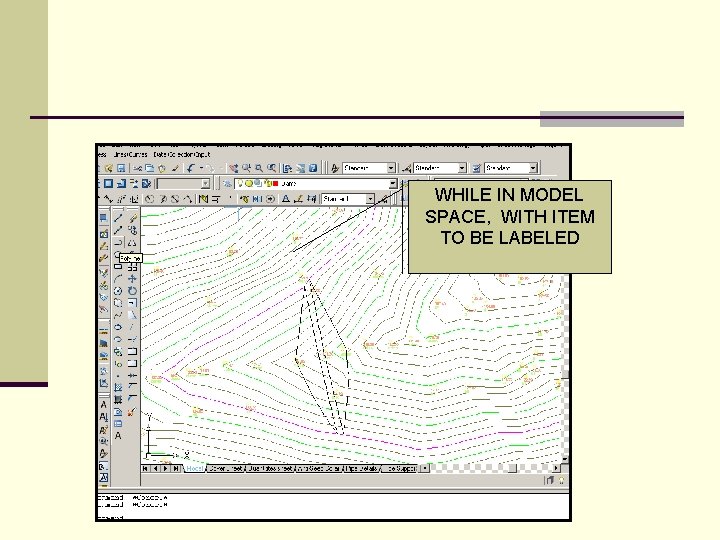

WHILE IN MODEL SPACE, WITH ITEM TO BE LABELED

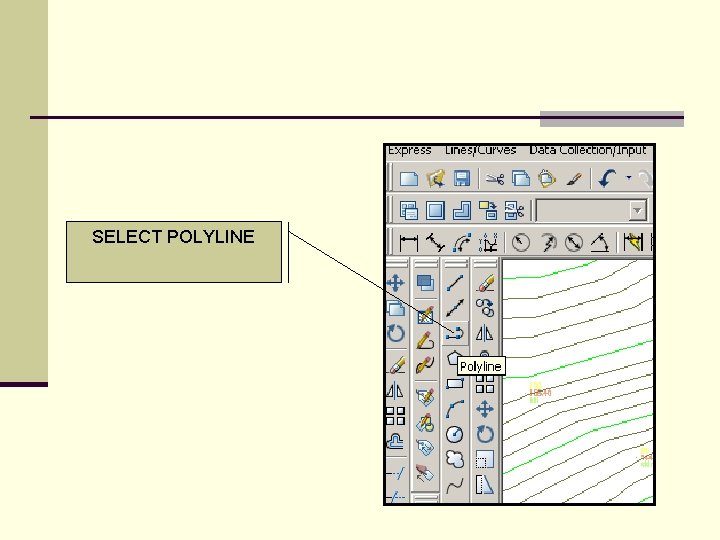

SELECT POLYLINE

START POLYLINE WHERE YOU WOULD LIKE TO START THE SAMPLING

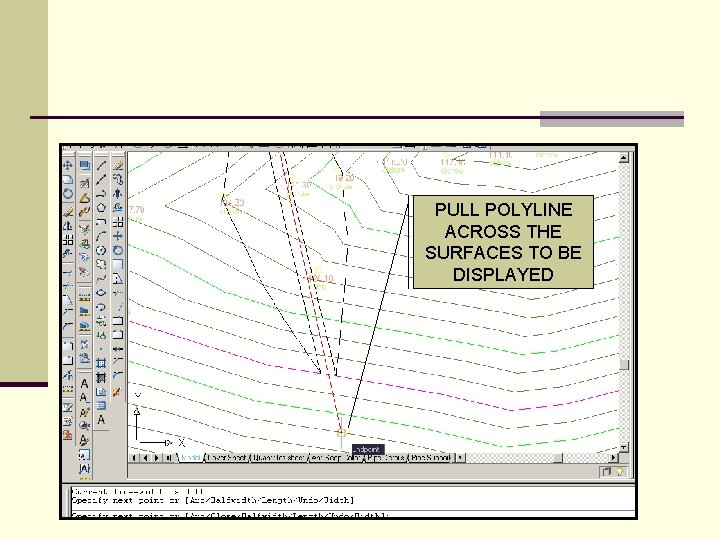

PULL POLYLINE ACROSS THE SURFACES TO BE DISPLAYED

FROM TERRAIN, SELECT DEFINE FROM POLYLINE

SELECT THE POLYLINE JUST CREATED

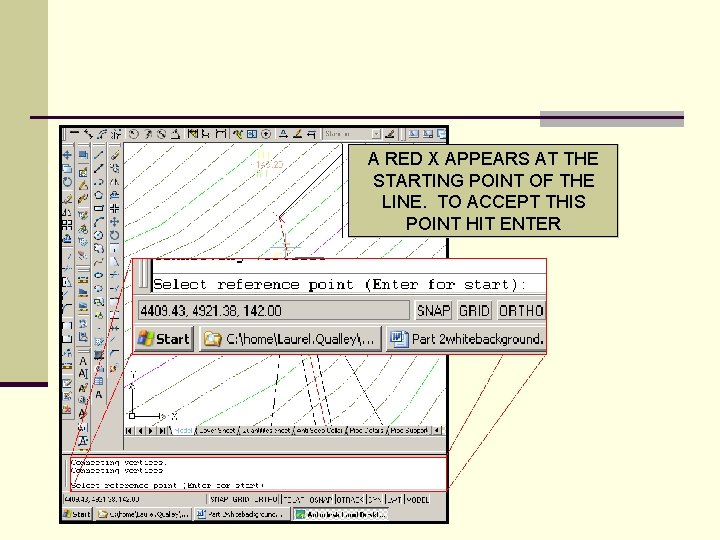

A RED X APPEARS AT THE STARTING POINT OF THE LINE. TO ACCEPT THIS POINT HIT ENTER

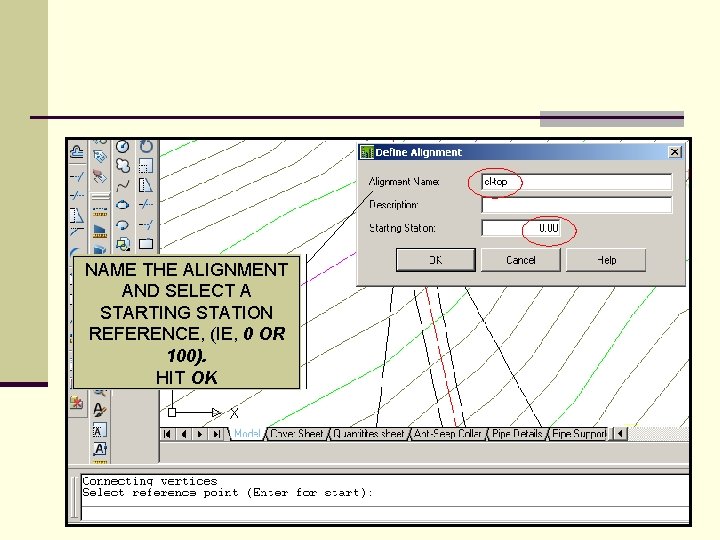

NAME THE ALIGNMENT AND SELECT A STARTING STATION REFERENCE, (IE, 0 OR 100). HIT OK

PROFILES SURFACES SET CURRENT SURFACE

SELECT THE EXISTING GROUND SURFACE HIT OK

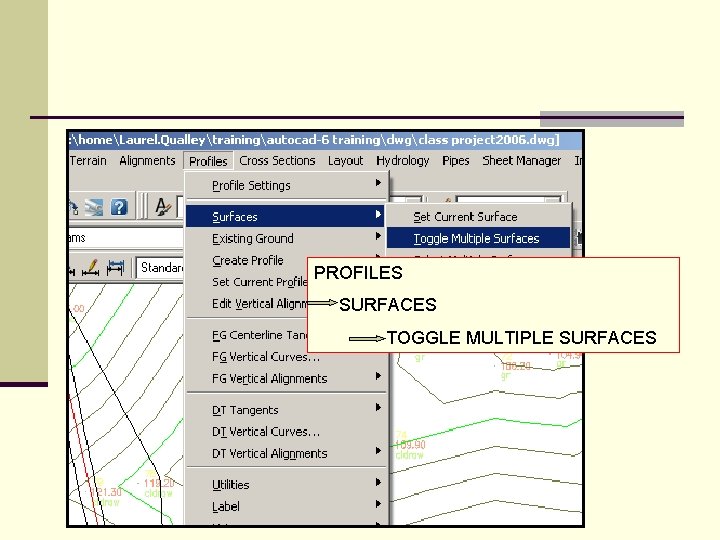

PROFILES SURFACES TOGGLE MULTIPLE SURFACES

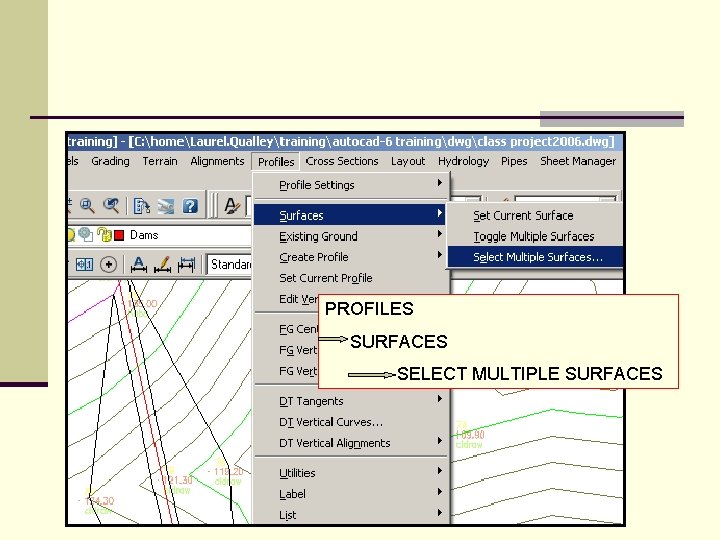

PROFILES SURFACES SELECT MULTIPLE SURFACES

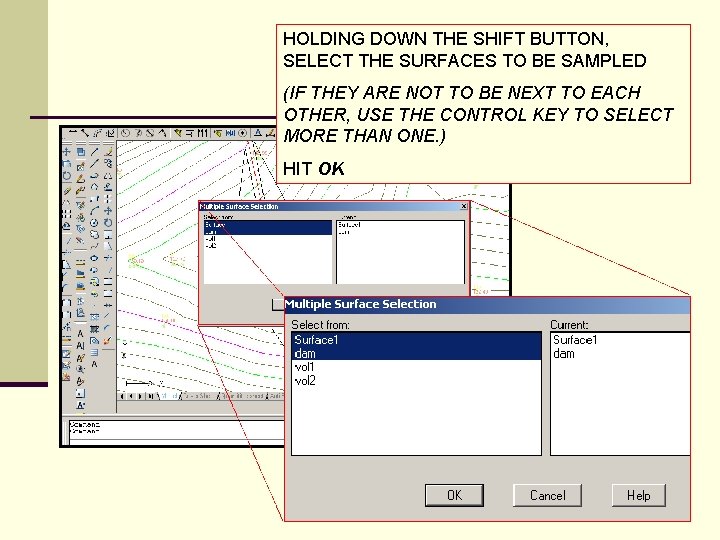

HOLDING DOWN THE SHIFT BUTTON, SELECT THE SURFACES TO BE SAMPLED (IF THEY ARE NOT TO BE NEXT TO EACH OTHER, USE THE CONTROL KEY TO SELECT MORE THAN ONE. ) HIT OK

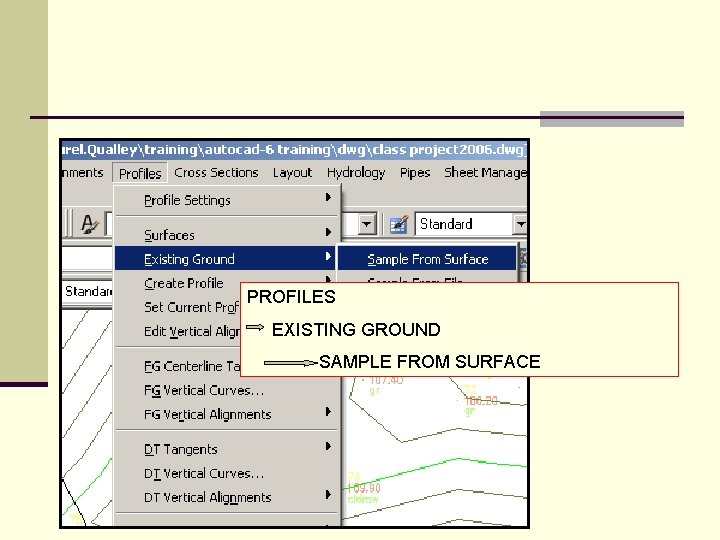

PROFILES EXISTING GROUND SAMPLE FROM SURFACE

LEAVE UNCHECKED, SAMPLED DATA APPEARS ON BOTTOM, HIT OK

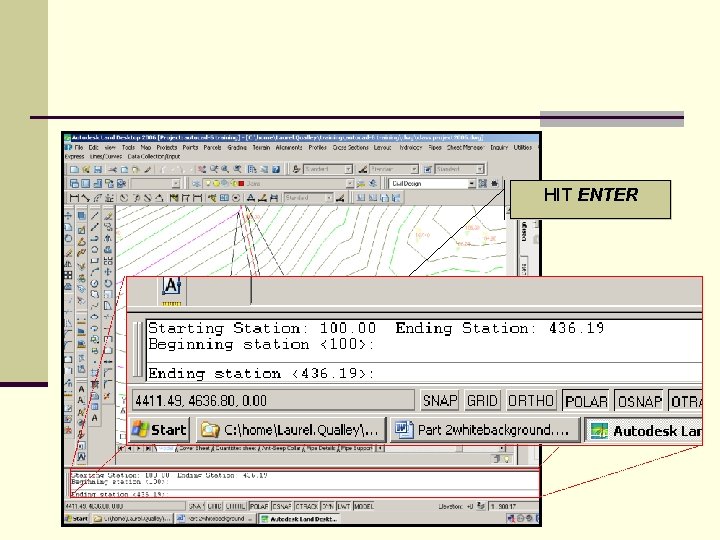

HIT ENTER

HIT ENTER

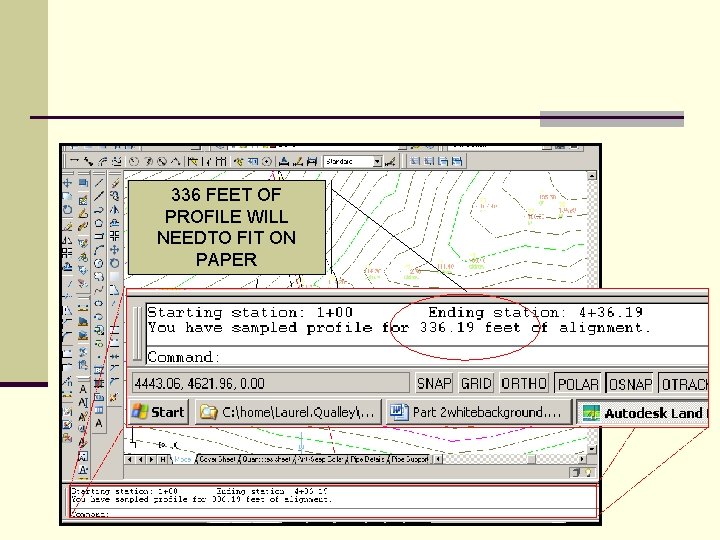

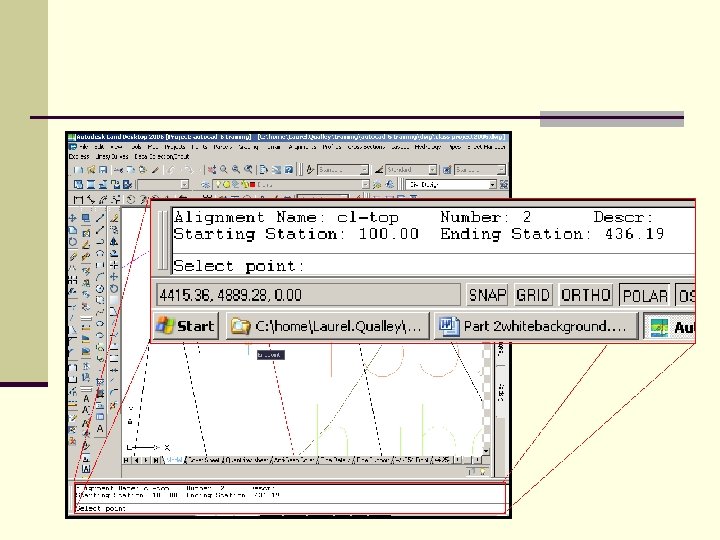

336 FEET OF PROFILE WILL NEEDTO FIT ON PAPER

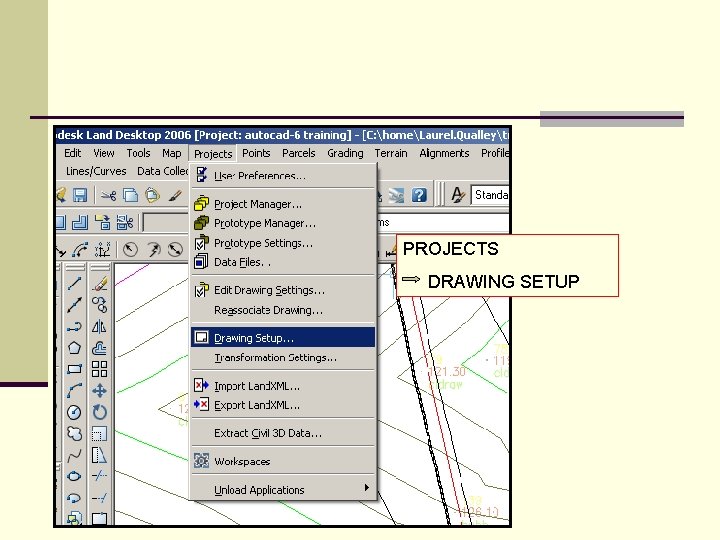

PROJECTS DRAWING SETUP

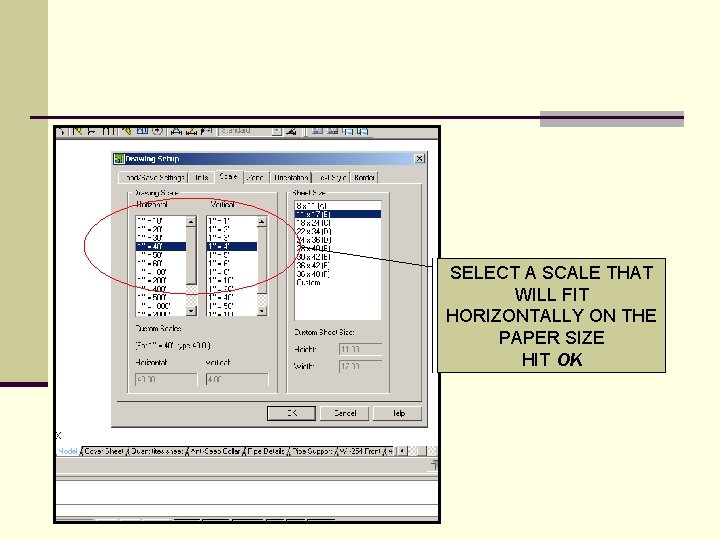

SELECT A SCALE THAT WILL FIT HORIZONTALLY ON THE PAPER SIZE HIT OK

PROFILES CREATE PROFILE FULL PROFILE

SELECT THE EXISTING GROUND SURFACE, SELECT OK

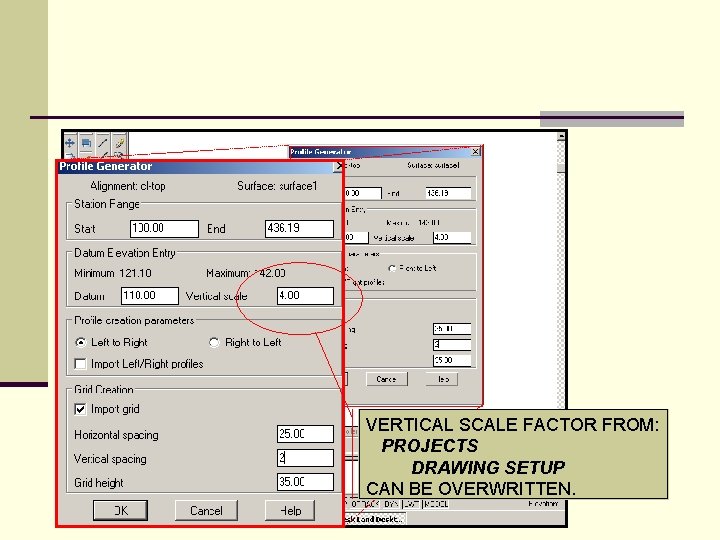

VERTICAL SCALE FACTOR FROM: PROJECTS DRAWING SETUP CAN BE OVERWRITTEN.

SELECT A POINT AWAY FROM SURVEY

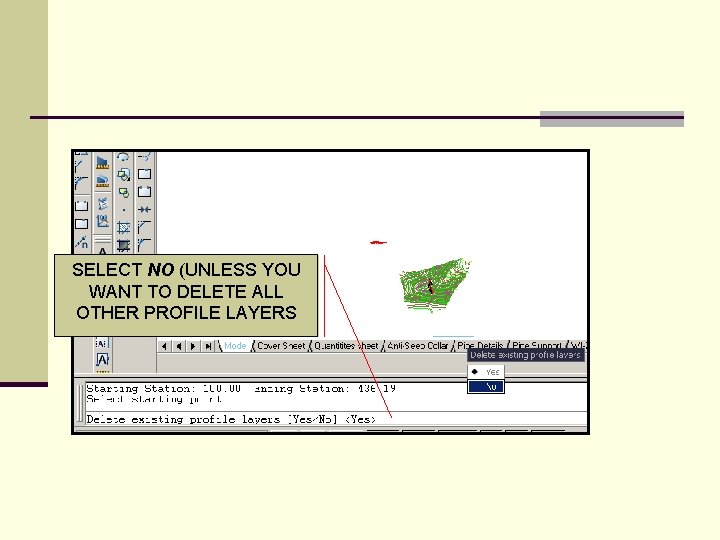

SELECT NO (UNLESS YOU WANT TO DELETE ALL OTHER PROFILE LAYERS

PROFILE BROUGHT INTO DRAWING STILL IN MODEL SPACE

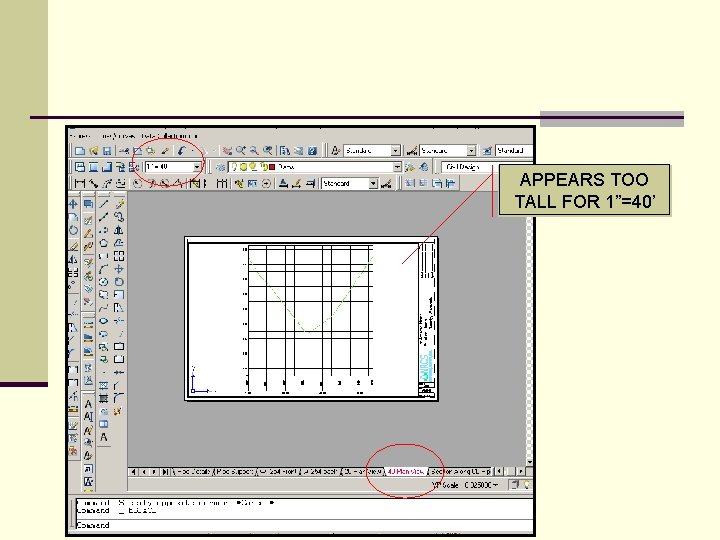

APPEARS TOO TALL FOR 1”=40’

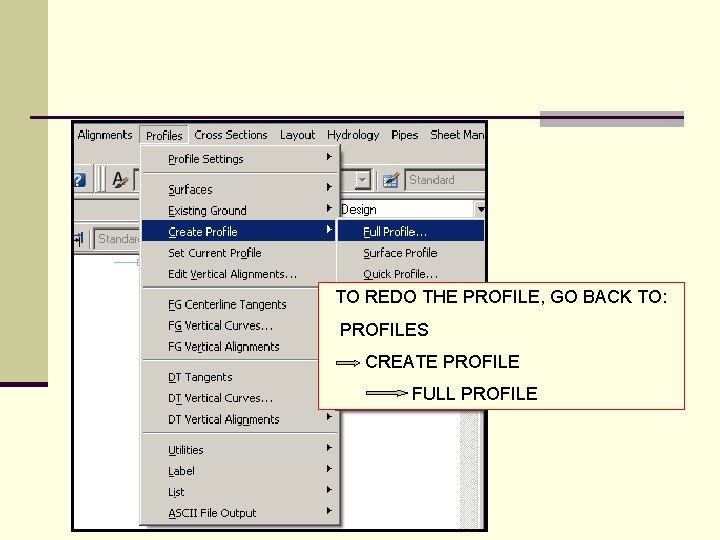

TO REDO THE PROFILE, GO BACK TO: PROFILES CREATE PROFILE FULL PROFILE

CHANGE VERTICAL SCALE FACTOR TO ALTER THE APPEARANCE OF THE PROFILE, NEW VALUE OF 8 WAS ENTERED

NEW PROFILE IS NEATER

TO LABEL THE ALIGNMENT FROM ALIGNMENTS SELECT CURRENT ALIGNMENT

FROM ALIGNMENTS SELECT STATION LABEL SETTINGS

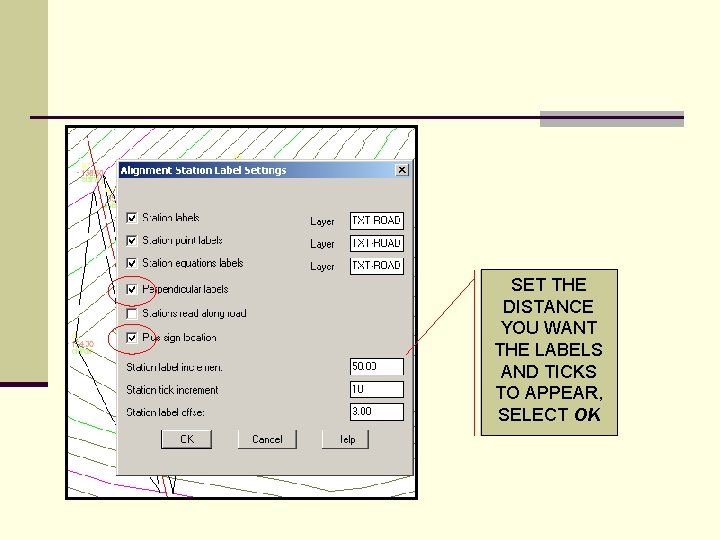

SET THE DISTANCE YOU WANT THE LABELS AND TICKS TO APPEAR, SELECT OK

FROM ALIGNMENTS SELECT CREATE STATION LABELS BEGINNING STATION DEFAULTS ON THE FIRST STATION, CHANGE OR HIT ENTER

ENTER TO ACCEPT THE STATIONS

IF YOU HAVE EXISTING ```YOU DO NOT LABELS THAT WANT TO LOSE , SELECT NO ```

TO LABEL SPECIFIC POINTS: FROM ALIGNMENTS SELECT STATIONOFFSET, LABEL

PULL LINE OUT

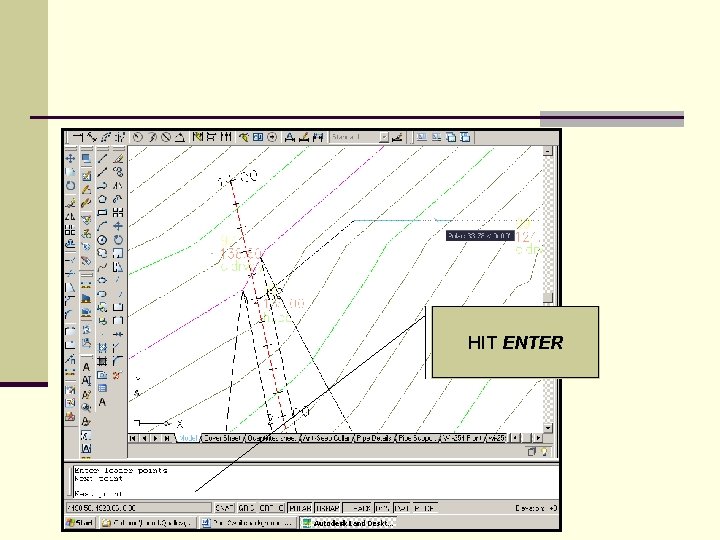

HIT ENTER

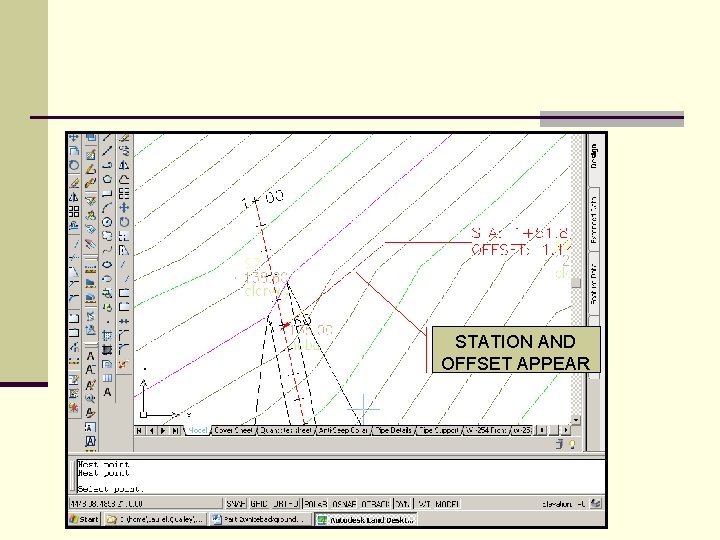

STATION AND OFFSET APPEAR

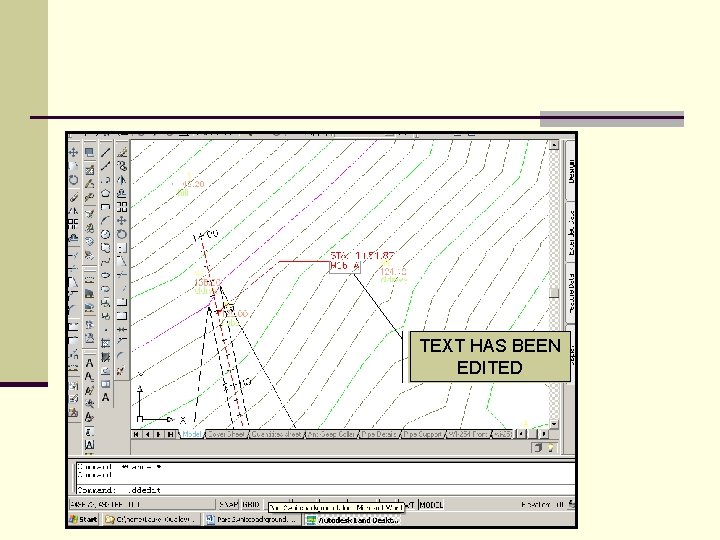

TEXT HAS BEEN EDITED
