PROFIBUS Ready for anything SIMATIC NET Networking for

PROFIBUS "Ready for anything!" SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

OPC is Standard Programming Interface n Openness n System-wide operation between automation products of different manufacturers n Ease of Use n Same user interface for different components n Connectability n Can be reached by any computer in the LAN/WAN (via COM/DCOM) SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

S 7 Communication n Optimized within the SIMATIC S 7/M 7/C 7 DP-M DP-S PG/OP S 7 -K n Network independent software interfaces S 5 -K FMS DPV 1 DPV 2 n for MPI, PROFIBUS and Industrial Ethernet n Connection of PCs and workstations possible n Useful data quantity per job up to 64 Kbytes SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

FMS Fieldbus Message Specification n Standardized protocol DP-M DP-S PG/OP S 7 -K n Layer 7 to ISO corresp. to EN 50170 n Communication between different automation systems from different manufacturers S 5 -K FMS DPV 1 DPV 2 n SIMATIC S 5, SIMATIC S 7, PC, Non-Siemens systems and field devices n Availability of different communication services on level 7 SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

S 5 -Compatible Communication (SEND/RECEIVE) n Communication via FDL DP-M DP-S PG/OP S 7 -K n Layer 2 to ISO corresp. to EN 50170 n For communication between different automation systems n SIMATIC S 5, SIMATIC S 7, PC, -Siemens systems S 5 -K FMS DPV 1 DPV 2 non n Simple, safe transfer of unstructured data blocks SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

PG/OP Communication n Communication functions between DP-M DP-S PG/OP S 7 -K n SIMATIC PG (STEP 7, STEP 5) n or HMI devices (e. g. TD/OP) S 5 -K FMS DPV 1 DPV 2 n and the SIMATIC automation systems n Supports MPI, PROFIBUS and Industrial Ethernet SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

DP and PA Distributed I/O n Standardized protocol DP-M DP-S PG/OP S 7 -K n Layer 2 to ISO corresp. to EN 50170 n Connection of distributed I/O to one master (PLC, PC) S 5 -K FMS DPV 1 DPV 2 n ET 200, field devices n Fast, cyclic data exchange n PROFIBUS PA (process automation) n Expands PROFIBUS-DP by the intrinsically safe transmission technique according to the international IEC 61158 -2 standard SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

Functional Levels of PROFIBUS DPV 0. . . DPV 2) PROFInet (Ethernet) n Horizontal Integration n Vertical Integration (MES) DP-V 2 DP-V 1 DP-V 0 extension: n Data Exchange Broadcast (Publisher / Subscriber) n Isochron Mode n Clock Synchronization & Time Stamps n Up/Download (Firmwareupdate) n Redundancy extension: n Acyclic Data Exchange between PC or PLC and Slave Devices n Integration within Engineering: EDD and FDT n Portable PLC Software Function Blocks (IEC 61131 -3) n Fail-Safe Communication (PROFIsafe) n Cyclic Data Exchange between Master and Slave Devices n GSD Configuration n Diagnosis SIMATIC NET Networking for Industry Time PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

DPV 1 Extensions to DP n Standardized protocol DP-M DP-S PG/OP S 7 -K n Layer 2 to ISO corresp. to EN 50170 n Acyclic communication to access Data Sets S 5 -K FMS DPV 1 DPV 2 n Master Class 1 n Master Class 2 n Alarm Handling SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

DPV 2 Extensions to DP n Standardized protocol DP-M DP-S PG/OP S 7 -K n Layer 2 to ISO corresp. to EN 50170 n Support of Motion-Control Applications S 5 -K FMS DPV 1 DPV 2 n Isochrone-Mode n DXB (Data-Exchange-Broadcast) SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

SIMATIC NET CP 5613 DP-M DP-S PG/OP S 7 -K S 5 -K FMS DPV 1 DPV 2 n The fastest Profibus PC card of the world n Optimized functions for DP, DPV 1 and DPV 2 n PROFIBUS solution for all communication protocols, also for multi protocol mode SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

PC based Control with PROFIBUS PG/PC/OP PROFIBUS-DP, PG/OP Comm. PROFIBUS Slaves SIMATIC NET Networking for Industry CP 5613 PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

Visualization with PROFIBUS S 7 Communication PC with Win. AC® Pro S 7 PLCs SIMATIC NET Networking for Industry CP 5613 PB_products_eng. ppt Foil 13 A&D PT 2 M / Sept 2001

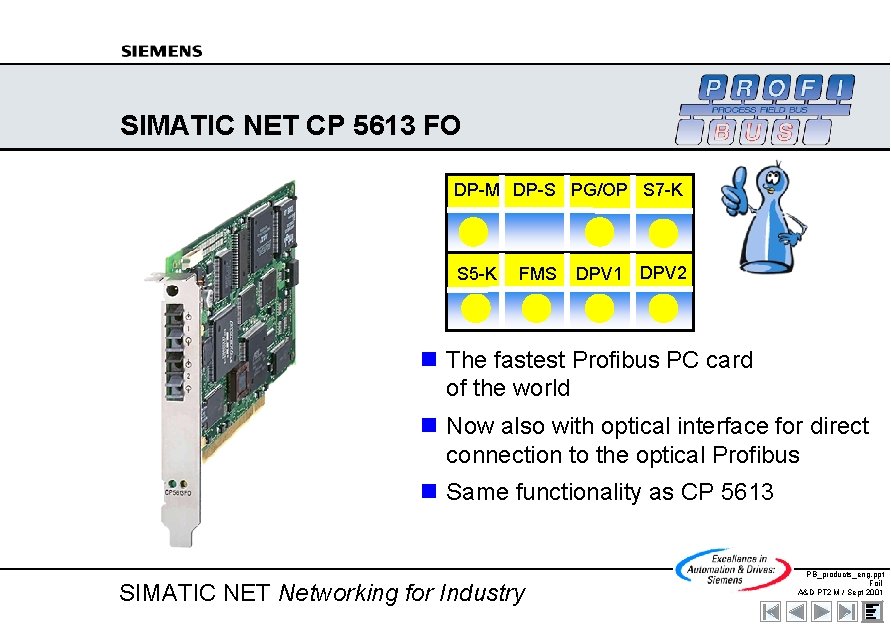

SIMATIC NET CP 5613 FO DP-M DP-S PG/OP S 7 -K S 5 -K FMS DPV 1 DPV 2 n The fastest Profibus PC card of the world n Now also with optical interface for direct connection to the optical Profibus n Same functionality as CP 5613 SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

Integrated FO Optical PROFIBUS on PG/PC Soft Control ET 200 B ET 200 X with BM 143/DESINA O B T R S 4 8 5 ET 200 S with IM 151 FO M a s t e r PROFIBUS optical SIMATIC NET Networking for Industry CP 5613 FO S 7 -300 with CP 342 -5 FO ET 200 M with IM 153 -2 FO further nodes PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

SIMATIC NET CP 5614 DP-M DP-S PG/OP S 7 -K S 5 -K FMS DPV 1 DPV 2 n The fastest Profibus PC card of the world n PROFIBUS-DP master and DP slave on one module SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

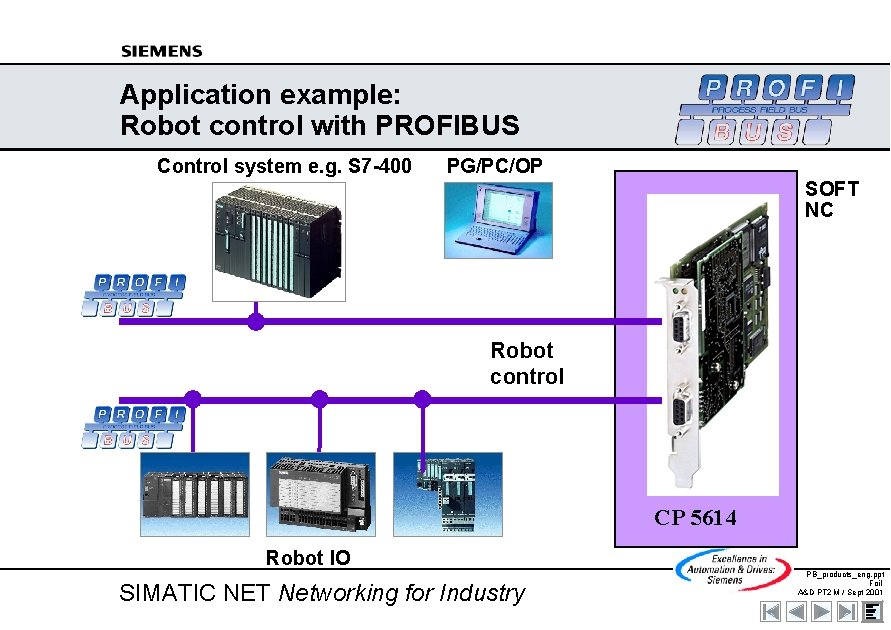

Application example: Robot control with PROFIBUS Control system e. g. S 7 -400 PG/PC/OP SOFT NC Robot control CP 5614 Robot IO SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

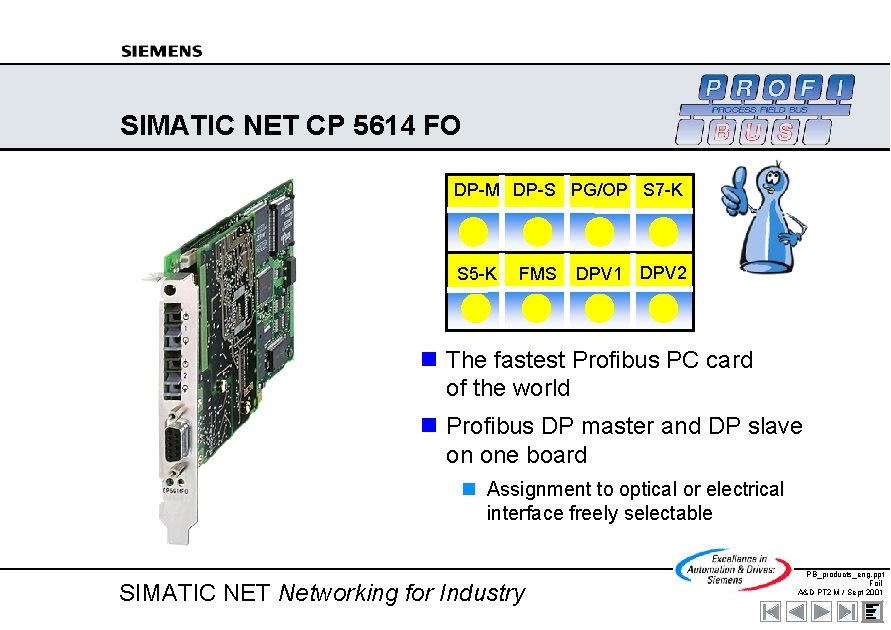

SIMATIC NET CP 5614 FO DP-M DP-S PG/OP S 7 -K S 5 -K FMS DPV 1 DPV 2 n The fastest Profibus PC card of the world n Profibus DP master and DP slave on one board n Assignment to optical or electrical interface freely selectable SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

Integrated FO Optical PROFIBUS on PG/PC ET 200 X Soft. Control ET 200 S with BM 143/DESINA with IM 151 FO S 7 -300 with IM 153 -2 FO with CP 342 -5 FO Master CP 5614 FO ET 200 M further nodes Slave Master PROFIBUS optical ET 200 M with IM 153 ET 200 S with IM 151 PG/PC with CP 5613 PROFIBUS electrical SIMATIC NET Networking for Industry further nodes PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

CP 5613 / CP 5614 Development Kit DK-5613 n For integration of CP 5613 and CP 5614 in all PC-based operating system environments n Source code free n Technical Support and service for incorporation in any operating system environment http: //www. ad. siemens. de/net/dk 5613 SIMATIC NET Networking for Industry PB_products_eng. ppt Foil 20 A&D PT 2 M / Sept 2001

SOFTNET for PROFIBUS DP-M DP-S PG/OP S 7 -K S 5 -K SIMATIC NET Software FMS DPV 1 DPV 2 n Low-cost protocol stacks for many PROFIBUS protocols n Can be used with CP 5511, CP 5512 and CP 5611 SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

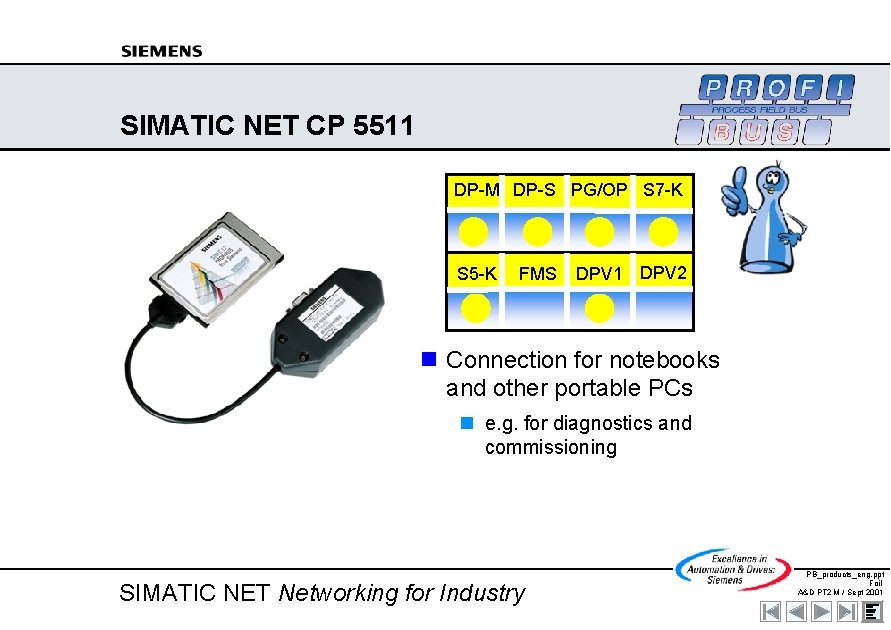

SIMATIC NET CP 5511 DP-M DP-S PG/OP S 7 -K S 5 -K FMS DPV 1 DPV 2 n Connection for notebooks and other portable PCs n e. g. for diagnostics and commissioning SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

SIMATIC NET CP 5611 DP-M DP-S PG/OP S 7 -K S 5 -K FMS DPV 1 DPV 2 n Connection for portable PCs n e. g. for diagnostics and commissioning n Simple installation and startup SIMATIC NET Networking for Industry PB_products_eng. ppt Foil A&D PT 2 M / Sept 2001

Automation Made Easy! Totally Integrated Automation with SIMATIC NET Networking for Industry PB_products_eng. ppt Foil 24 A&D PT 2 M / Sept 2001
