PROFIBUS Profibus DPDecentralized periphery IO PAProcess Automation MBPMachester
第一篇 PROFIBUS概述 一. Profibus 总线分类 DP(Decentralized periphery) 一种高速低成本通信,用于设备级控制系统与分散 式I/O的通信。 PA(Process Automation) 专为过程自动化设计,使用MBP(Machester coded, Bus powered)、IS技术。 FMS(Fieldbus Message Specification) 用于车间级网络监控。是一个令牌结构、实时多主网络。

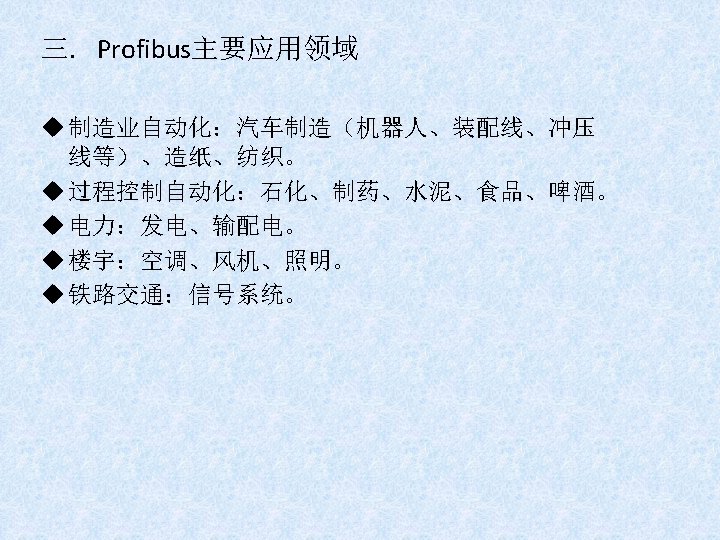

二. Profibus 标准

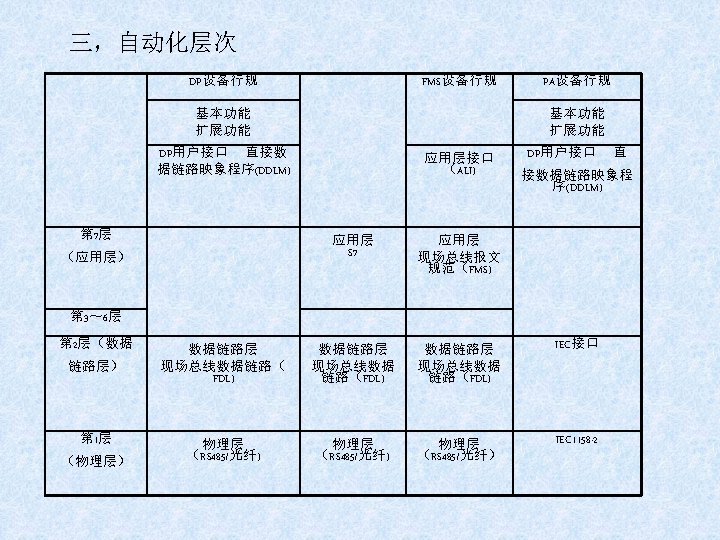

1,PROFIBUS总线段 5 V 5 V 0 V 390 Oh m 220 Oh m 390 Oh m …… 总线终 端电阻 开关 连PROFIBUS电缆 0 V

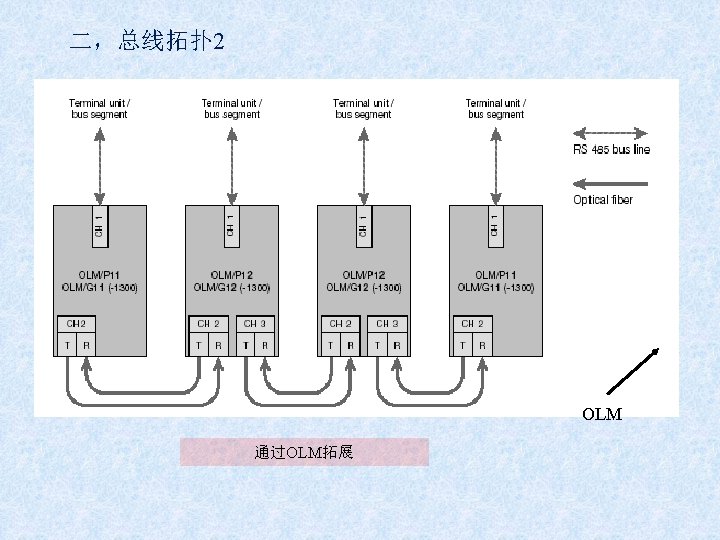

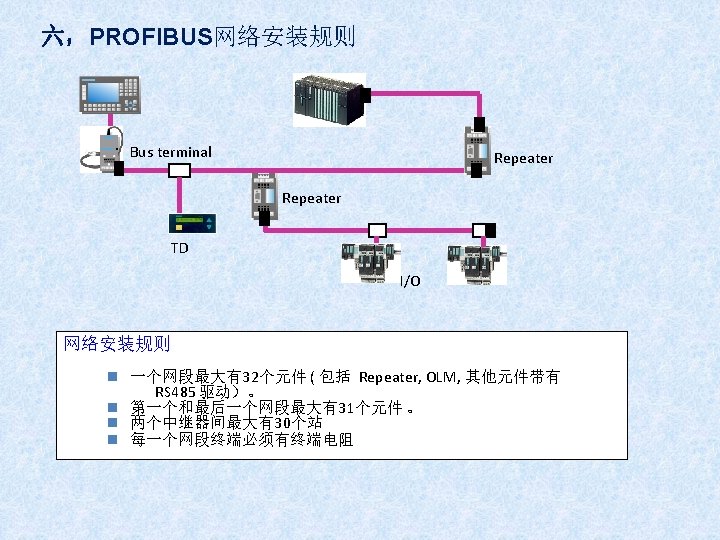

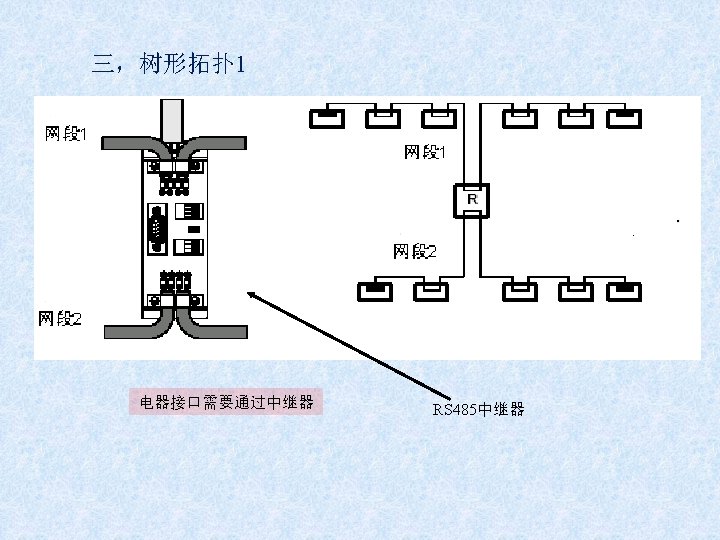

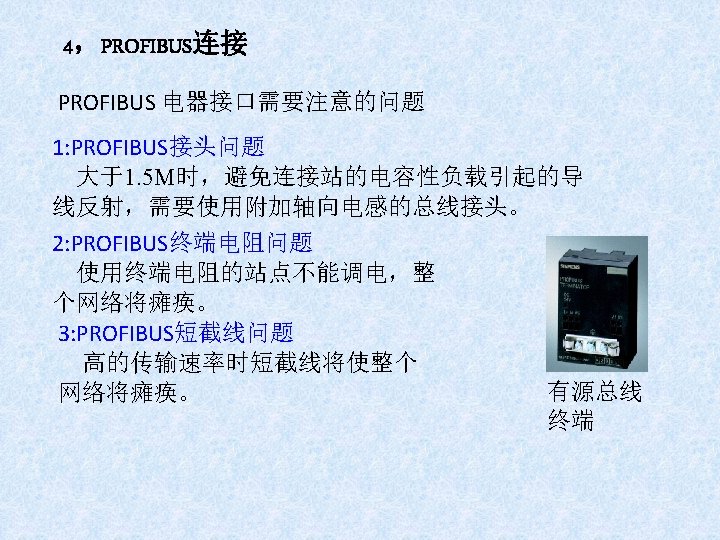

七,PROFIBUS连接图 1 分布式 电气柜 DP or PA 接口 Transmitter 现场 控制室 Positioner PEL = potential equalisation line(等电势线)
八,PROFIBUS连接图 2 DP or PA 接口 分布式 电气柜 Transmitter 现场 控制室 Positioner PEL 适合使用接地故障监视和延伸 PEL = potential equalisation line 很大区域的安装

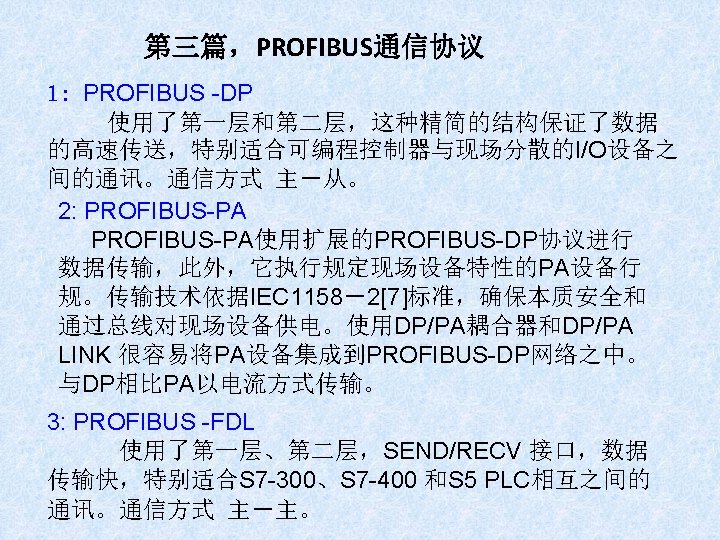

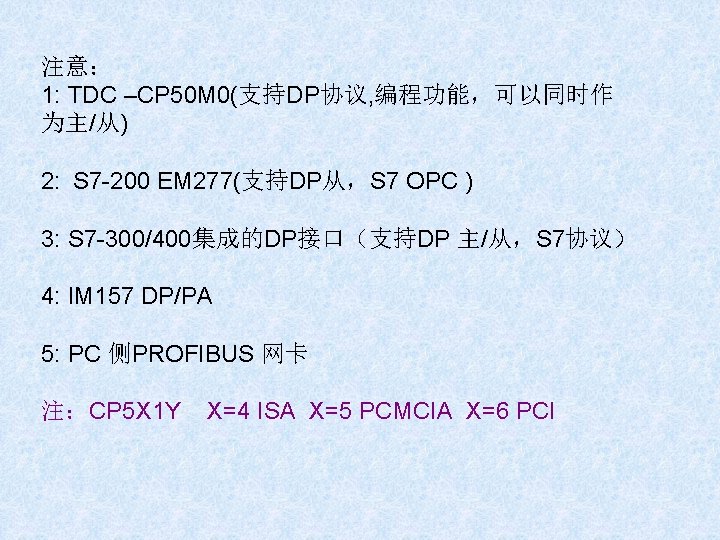

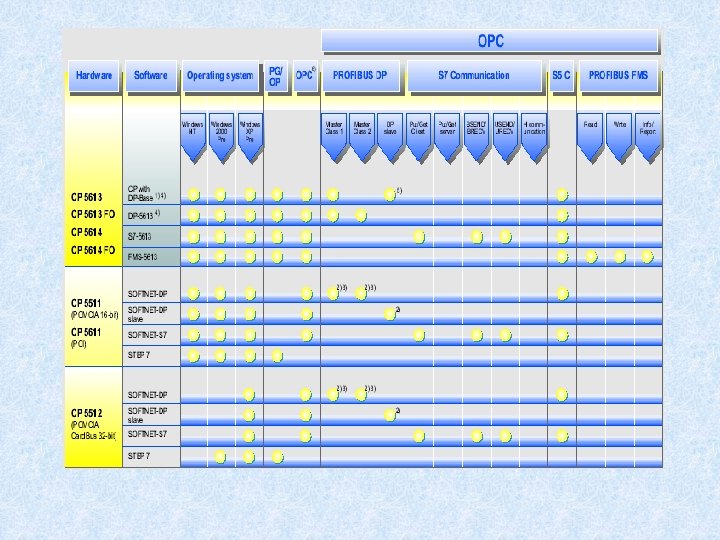

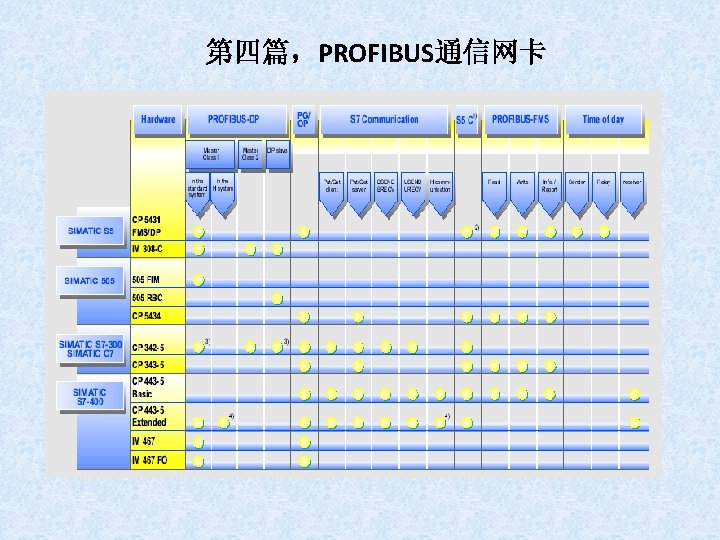

注意: 1: TDC –CP 50 M 0(支持DP协议, 编程功能,可以同时作 为主/从) 2: S 7 -200 EM 277(支持DP从,S 7 OPC ) 3: S 7 -300/400集成的DP接口(支持DP 主/从,S 7协议) 4: IM 157 DP/PA 5: PC 侧PROFIBUS 网卡 注:CP 5 X 1 Y X=4 ISA X=5 PCMCIA X=6 PCI

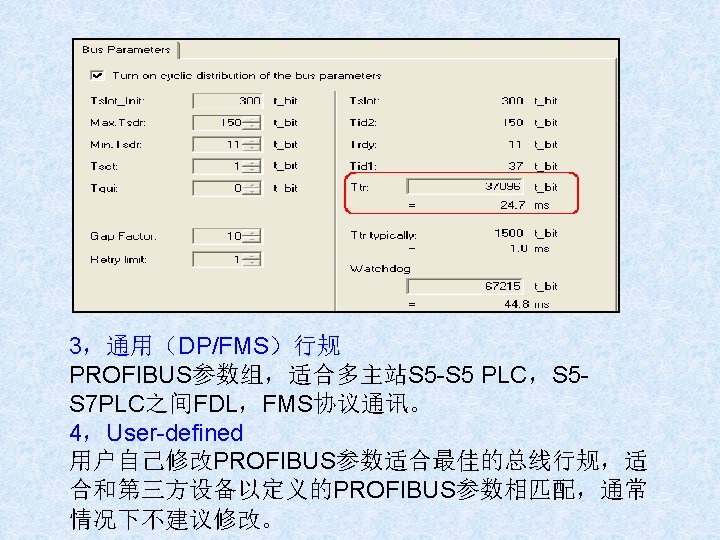

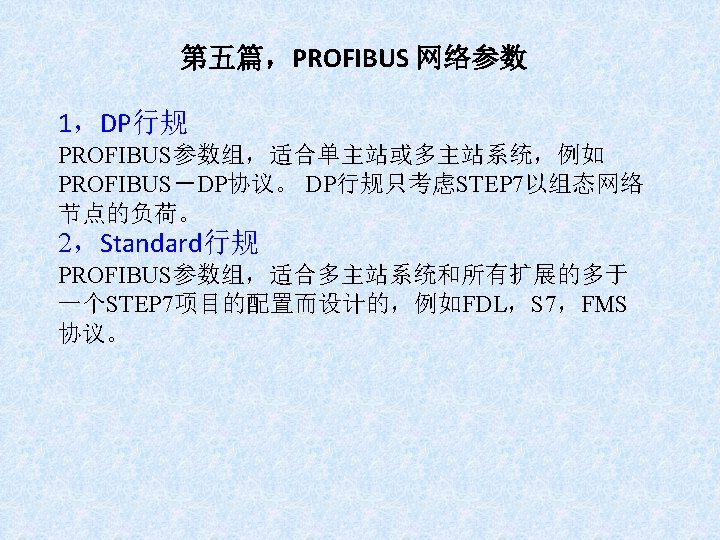

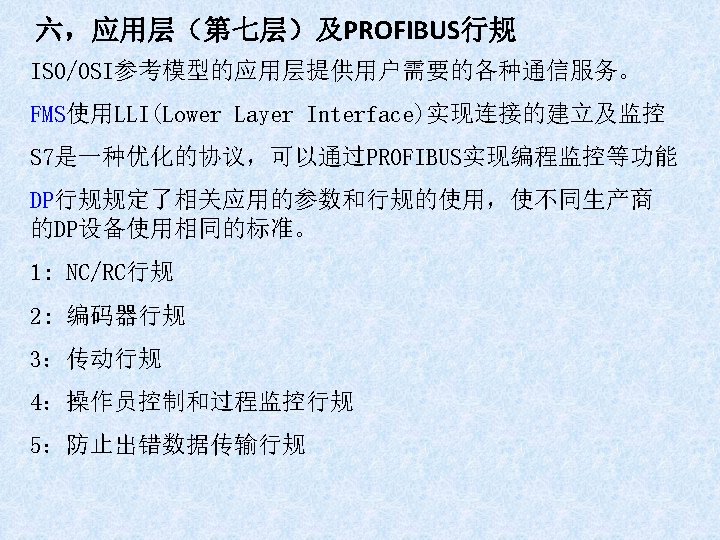

如果没有激活“Include network configuration below”选 项,与DP行规相同。 如果没有激活“Include network configuration below”选项, 会有什么问题?整个网络可能瘫痪。
2,DP 1类、2类主站 Class 1 Master (C 1) CPU 315 -2 Class 2 Master (C 2) Profibus DP F M Slave 3 153 -2 F M Slave 2 153 -2 Slave 1 CPU 315 -2 Token OP S 1 S 2 S 3 Cyclic DP Processing C 1 Token Acyclic DP Processing (C 1) C 2 Token Acyclic DP Processing (C 2) S 1
3,DP 多主方式 Class 1 Master (C 1) Class 2 Master (C 2) Class 1 Master (C 1) 令牌 CPU 315 -2 F M Slave 2 Slave 3 153 -2 F M Profibus DP 153 -2 Slave 1

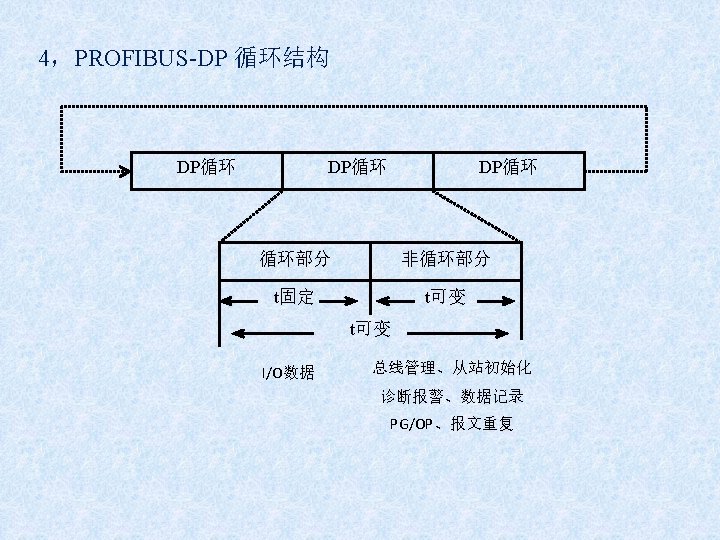

6,DX通信 CPU 315 -2 PN/DP作为主站 CPU 314 C-2 DP作为接收站 CPU 315 -2 DP作为发布站 Receiver 站 CPU 314 C-2 DP Publisher 站 CPU 315 -2 DP
PROFIBUS-DP功能划分

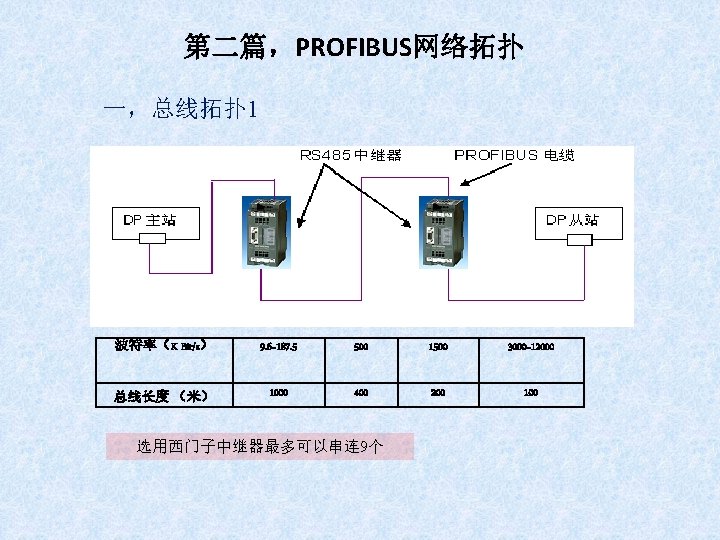

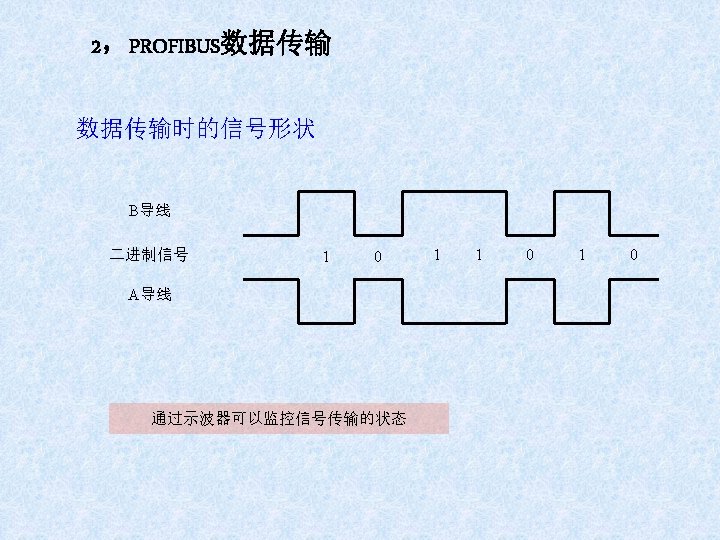

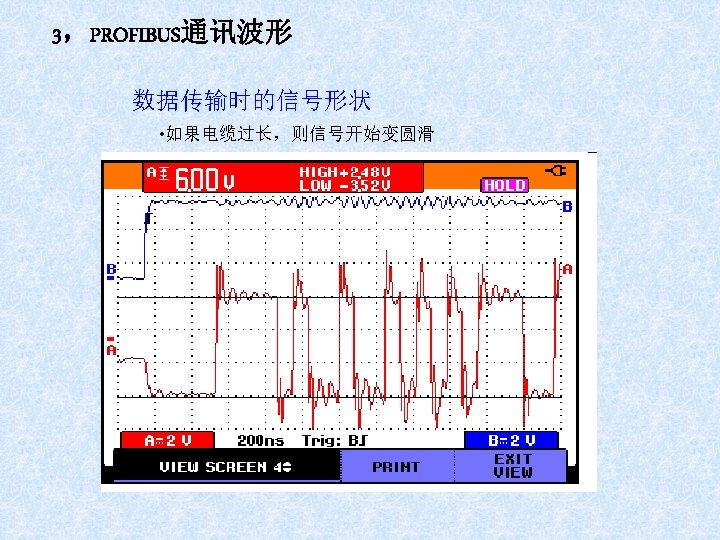

RS 485 / RS 485 -IS的应用 最大段长度 [m] Transmission Rate [k. Bits/s] RS-485 [m] RS-485 -IS [m] 9. 6; 19. 2; 45. 45; 93. 75 1200 187. 5 1000 500 400 1500 200 3, 000; 6, 000; 12, 000 100 The values refer to cable type A with the following properties: Impedance 135 to 165Ω Capacity ≤ 30 p. F/m Loop resistance ≤ 110 Ω/km Wire diameter > 0. 64 mm Core cross-section > 0. 34 mm²

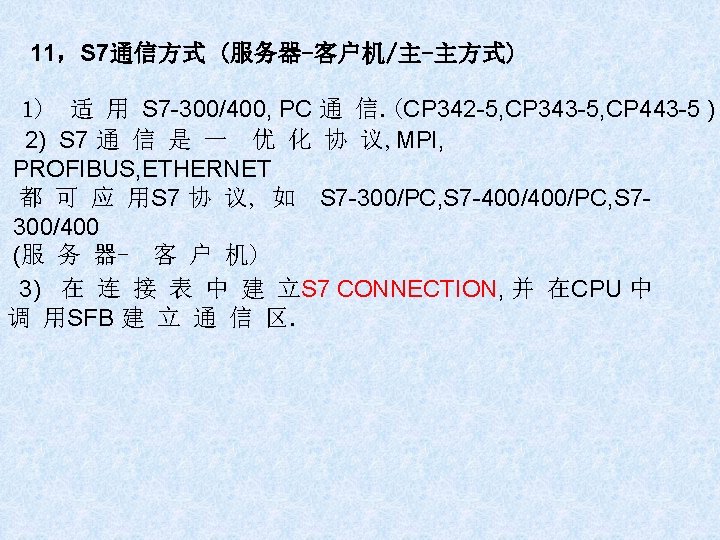

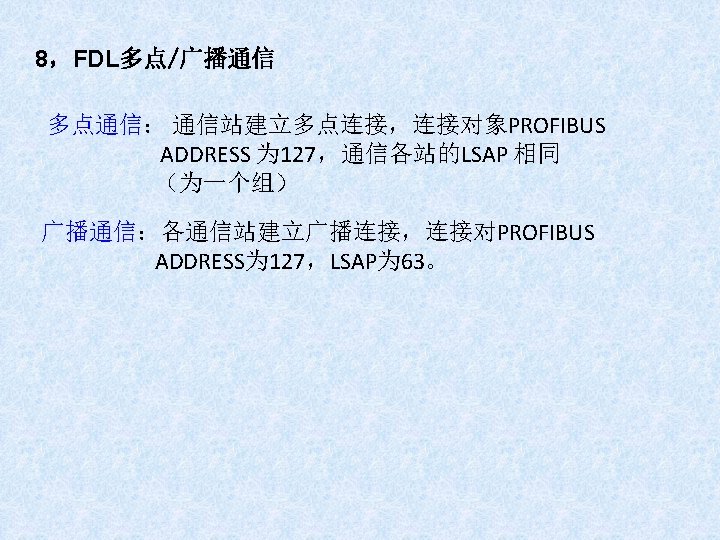

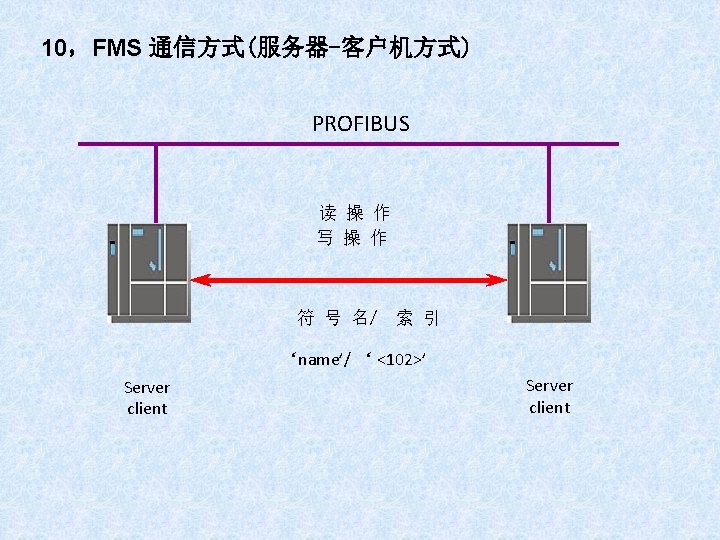

PROFIBUS OTHER STATION 映射区空间 STATION 2 PROFIBUS ADDRESS LSAP NO. STATION 4

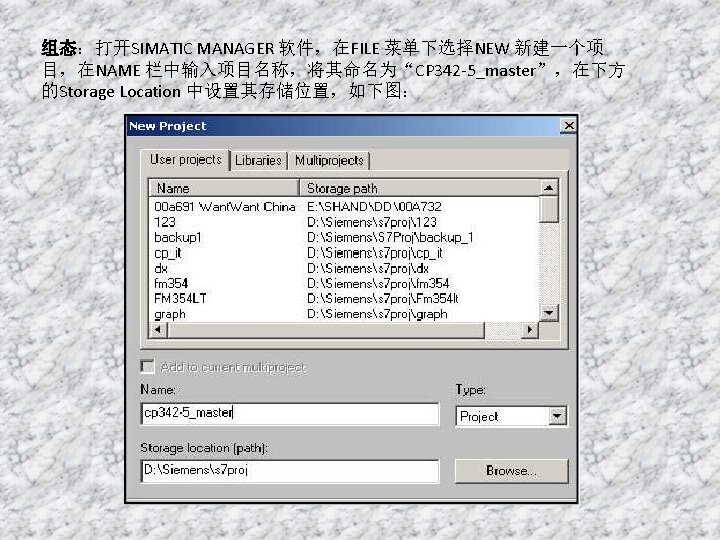

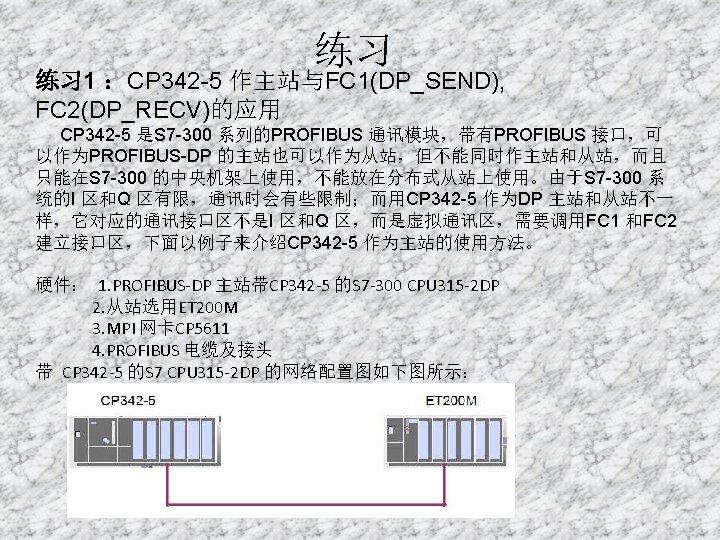

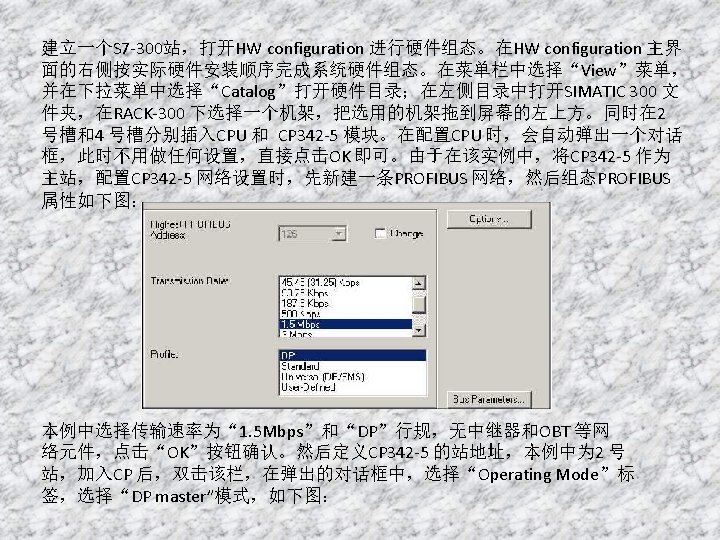

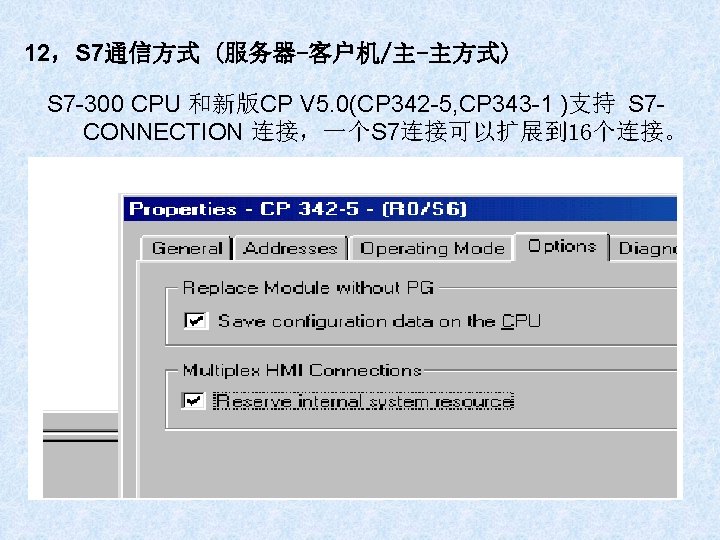

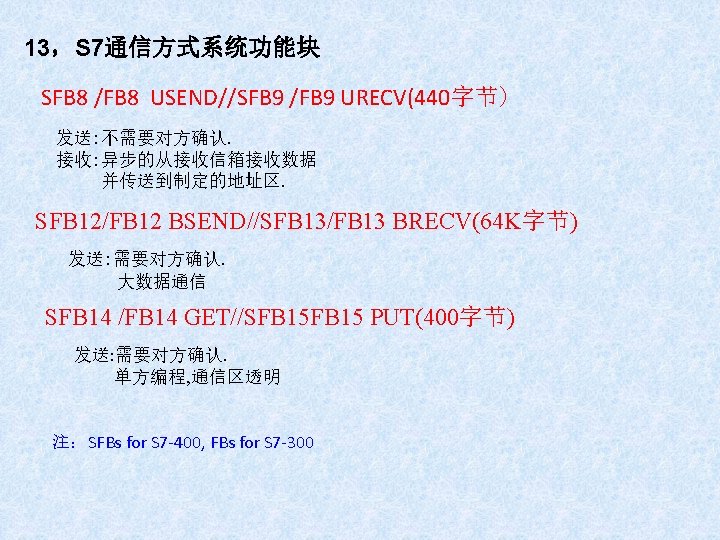

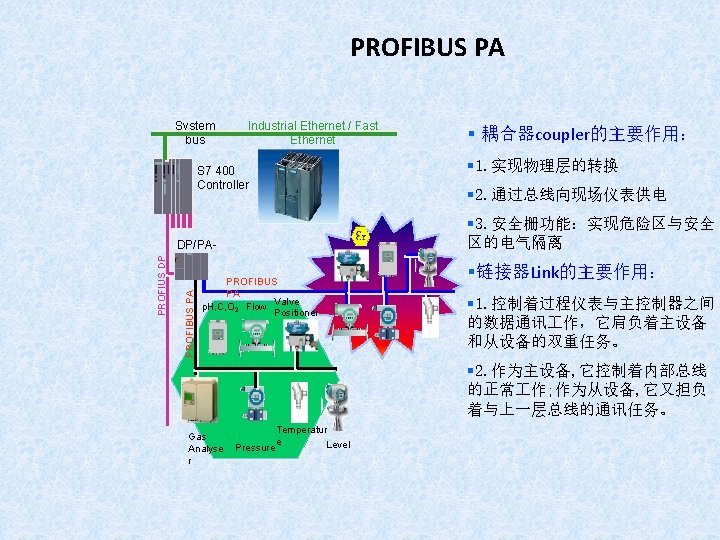

第七篇,PROFIBUS PA简介 1,PROFIBUS PA 网络拓扑结构 1
2,PROFIBUS PA 网络拓扑结构2
3,PROFIBUS PA 网络拓扑结构3
4,PROFIBUS PA连接图
- Slides: 57
