Prof dr Mile Petrovi doc dr Branimir Jaki

Prof. dr Mile Petrović, doc. dr Branimir Jakšić WP 2: Preparation of Infrastructure (DBBT Laboratory) Faculty of Technical Sciences Madrid, 28 -29 September 2016.

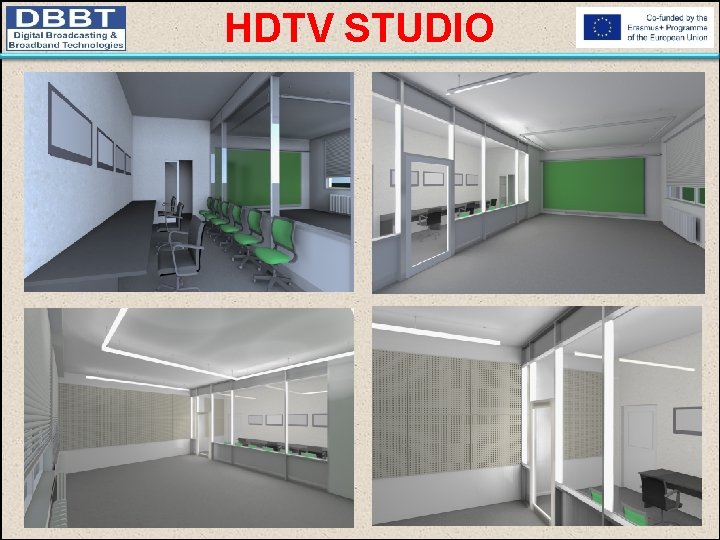

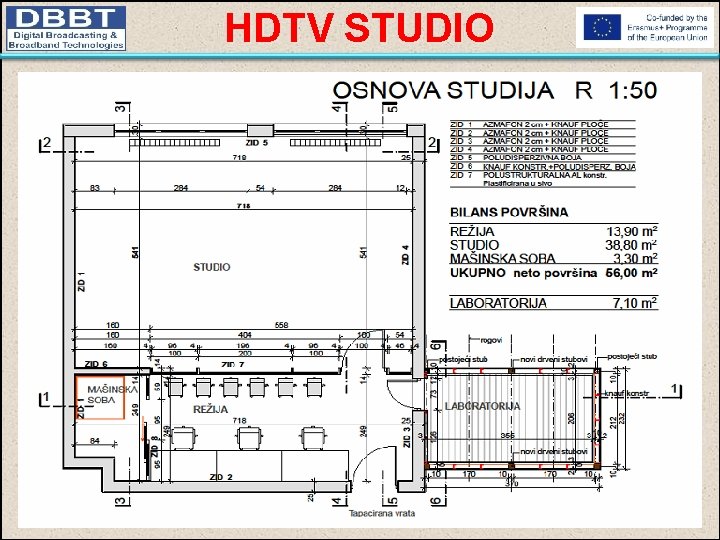

HDTV STUDIO

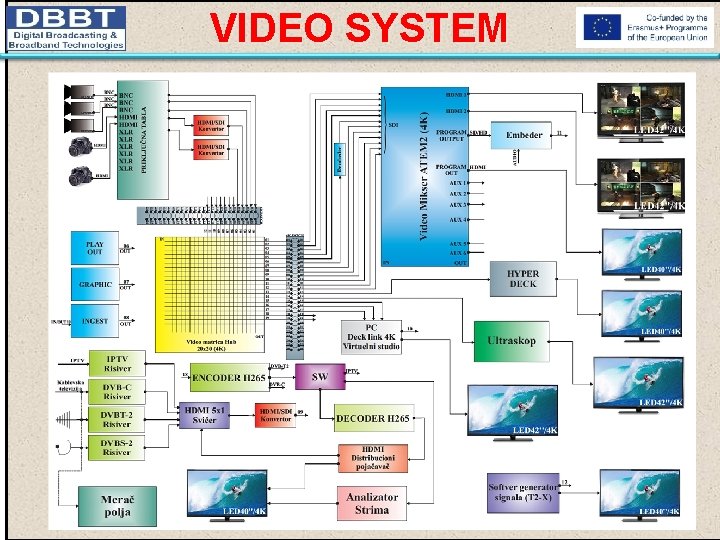

VIDEO SYSTEM

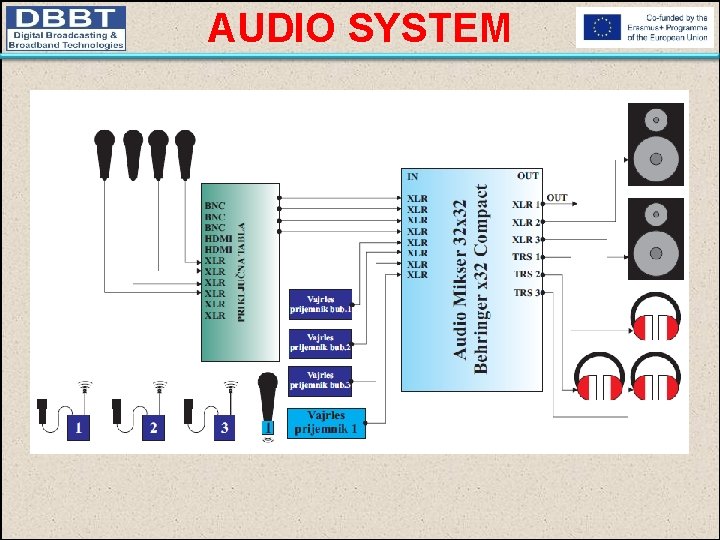

AUDIO SYSTEM

EQUIPMENT Type 1. Video 2. Audio 3. Computers 4. Lighting 5. Measuring 6. Installation

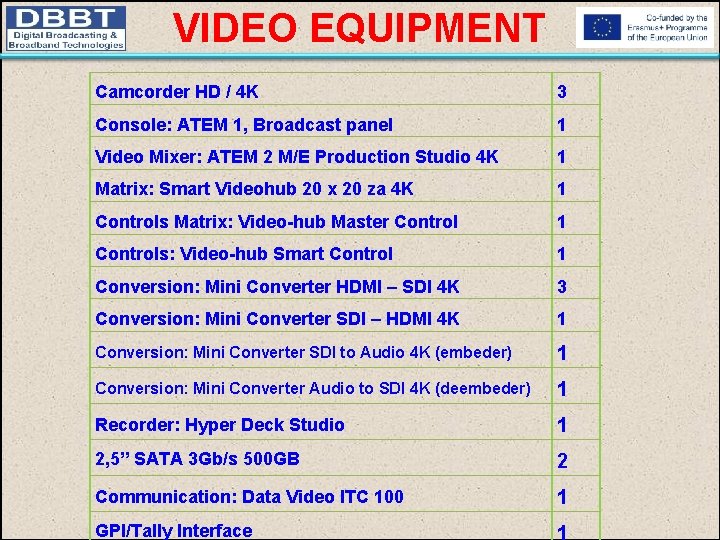

VIDEO EQUIPMENT Camcorder HD / 4 K 3 Console: ATEM 1, Broadcast panel 1 Video Mixer: ATEM 2 M/E Production Studio 4 K 1 Matrix: Smart Videohub 20 x 20 za 4 K 1 Controls Matrix: Video-hub Master Control 1 Controls: Video-hub Smart Control 1 Conversion: Mini Converter HDMI – SDI 4 K 3 Conversion: Mini Converter SDI – HDMI 4 K 1 Conversion: Mini Converter SDI to Audio 4 K (embeder) 1 Conversion: Mini Converter Audio to SDI 4 K (deembeder) 1 Recorder: Hyper Deck Studio 1 2, 5” SATA 3 Gb/s 500 GB 2 Communication: Data Video ITC 100 1 GPI/Tally Interface

VIDEO EQUIPMENT LG 40 UF 695 V LED UHD 4 K Smart 5 LG 43 UF 680 V LED UHD 4 K Smart 4 Bracket LED monitor for 32'' to 63'' 8 HDMI extender up to 60 m 8 HDMI switch 5 -IN/2 -OUT 1 HDMI splitter 1 -IN/4 -OUT 1 USB 1. 1 & 2. 0 extender up to 50 m 3 Computer Switch 1 -IN/5 OUT 1 Encoder MSE - RS 265 1 Decoder BD - RS 265 1 Camera: Canon EOS 100 D 18 -55 IS 1 Camera: Panasonic Lumix DMC-GH 4 1 4 K Video Jackfields 2 X 26 (4 K Video Patch Panels) 1

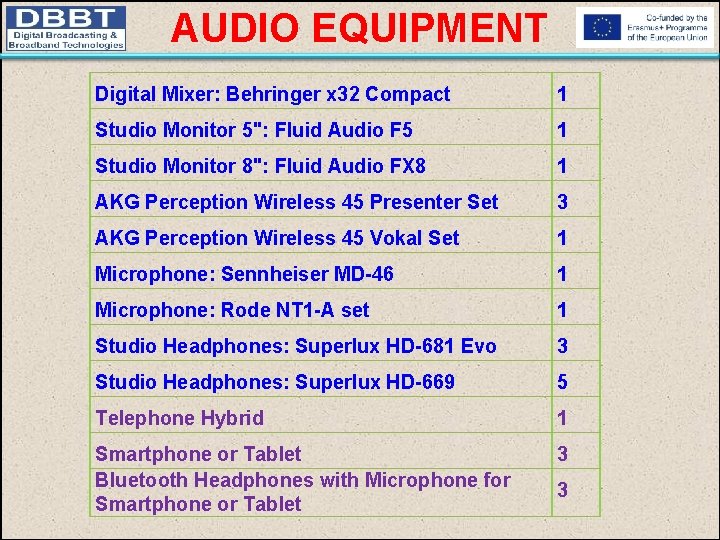

AUDIO EQUIPMENT Digital Mixer: Behringer x 32 Compact 1 Studio Monitor 5": Fluid Audio F 5 1 Studio Monitor 8": Fluid Audio FX 8 1 AKG Perception Wireless 45 Presenter Set 3 AKG Perception Wireless 45 Vokal Set 1 Microphone: Sennheiser MD-46 1 Microphone: Rode NT 1 -A set 1 Studio Headphones: Superlux HD-681 Evo 3 Studio Headphones: Superlux HD-669 5 Telephone Hybrid 1 Smartphone or Tablet Bluetooth Headphones with Microphone for Smartphone or Tablet 3 3

COMPUTER EQUIPMENT Computers (destop or lap top, for the installation 6 measuring equipment and software) Computer (laptop) with Gigabit Ethernet port 1 Monitor for Computers: Samsung S 24 C 300 HS 6 Keyboard and Mouse 6 Speakers for Computers: GENIUS SP-HF 500 4 Speakers for Computers: GENIUS SP-M 200 2 Speaker: Genius SW-HF 5. 1 4800 1 Deck. Link 4 K Extreme Card 1 Deck. Link Studio 4 K Card 1 Blackmagic Ultra. Scope (PCIe card Mac OS X and PC hosted waveform monitoring with 6 simultaneous scopes) 1

COMPUTER EQUIPMENT D-LINK DES-1005 D 5 -Port Fast Ethernet Unmanaged Switch 1 1 HDMI splitter (mini) CKL HD-94 M 1 -IN/4 -out, Fully HDMI 1. 4 Complaint up to 1080 p Software: Elements Systems Playout 1 Software: V Mix Software: Wowza Streaming Engine Magic. Soft Playout and Magic. Soft CG 1 1 1

LIGHTING EQUIPMENT Fluorescent softlights 4 lamps 55 W, 3200 K, with standard accessories Fluorescent softlights 2 lamps 55 W, 3200 K, with standard accessories 4 Digital Luxmeter Instrument for measuring the color temperature 1 DMX Controler 1 Chroma Key Green Screen 3 x 6 m 1 4 1

MEASURING EQUIPMENT DTA-2115 All-standard all-band modulator for PCIe or DTU-215 -T 2 -SP USB-2 VHF/UHF modulator with modulation and Stream. Xpess 1 T 2 Xpress DVB-T 2 signal generator software 1 Divi. Catch RF-T/C T 2/C 2, DVB-T DVB-C DVB-T 2 DVB-C 2 Professional 1 RF Analyzer Meter Field and Spectrum Analyzer Televes H 60 1 Professional DVB TS multiplexer ASI/TS Multiplexer 8 ASI in ASI out 1 TBS 6910 DVB-S 2 Dual Tuner Dual CI PCIe Card 1 INTEX TV/FM USB DVB-T/T 2 HDTV PCIe Card 1 LEADTEK Win. Fast TV 2000 XP Global TV/FM 1 DVB-S 2 receiver Amiko HD 8150 1 Combo Receiver DVB-T 2/C Amiko Imuplse T 2/C 1 Internet IPTV / DVB-S 2 Combo Receiver 1

MEASURING EQUIPMENT Amiko mini HD combo receiver dvb-s 2 dvb-t 2 1 DVB-T 2 PCTV nanostick HDTV tuner 1 RTL 2832 U + R 820 T Mini DVB-T + DAB+ + FM USB Digital TV Dongle 1 Hot DVB-T 2 Digital USB TV Stick Tuner Satellite receiver DVB T 2 1 USB 2. 0 TV Receiver Support DVB-T DVB-C FM DAB DRM Receiver DTU-245 -SY-SXP Fant. ASI USB-2 ASI/SDI, Dt. Grabber+, Sd. Eye, Stream. Xpert and Stream. Xpress (adapter for analysis, generation and monitoring ASI and SD-SDI video streams and MPEG-2 transport stream) 1 SDR ETTUS Research USRP N 210 1 Card. SBX 400 MHz-4, 4 GHz 1 SMA-Bulk. Head. Cable 2 VERT 900 Antenna 2 1

INSTALLATION EQUIPMENT Rack 800 x 800/600 Shelf fixed heavy duty - for the rack depth 800 mm L carriers for supporting equipment - for rack depth of 800 mm (pair) Blank panel 1 U/19" Blank panel 2 U/19" 220 V junction boxes Cable FTP kabl kat. 6 DRAKA tip UC 400 S 27 4 P FRNC Connector RJ-45 connector FTP/STP kat. 6 – oklopljen, 8 P 8 C 8 pinski HD/SDI Video cable Belden 1855 HD/SDI Video cable Belden 1505 flexi Audio multicore 16 line Microphone cable 2 8 8 4 8 6 100 m 60 100 m 50 m 30 m 50 m

INSTALLATION EQUIPMENT Connector BNC za kabal kao Belden 1855 Connector BNC za kabal kao Belden 1505 flexi Connector XLR-F Neutrik NC 3 FD-LX Connector XLR-M Neutrik NC 3 MD-LX Connector XLR-F Neutrik NC 5 FD-LX Connector HDMI Neutrik NAHDMI-W Connector BNC Neutrik NBB 75 DFI Isolated Connector XLR-F Neutrik Connector XLR-M 5 pin NC 5 MXX Connector. TRS Neutrik Connector RCA Neutrik 100 20 15 15 10 15 15

Thank you for your attention
