PRODUCTS Interactive Whiteboards Interactive Touch Screens Interactive projectors
PRODUCTS
Interactive Whiteboards Interactive Touch Screens Interactive projectors Voting System Software Presentation Products

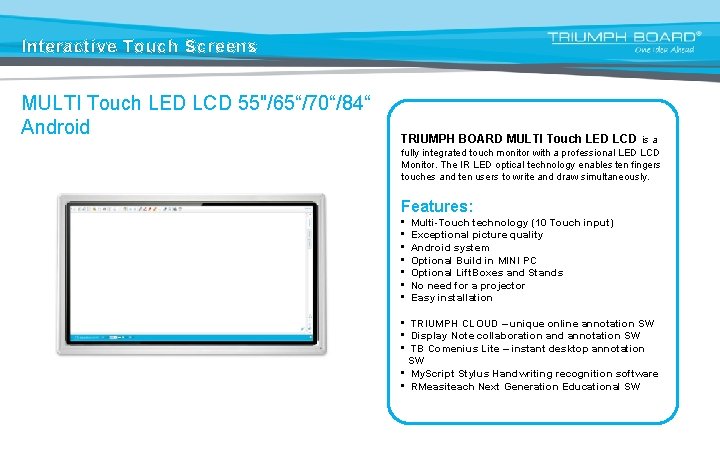

Interactive Touch Screens MULTI Touch LED LCD 55"/65“/70“/84“ Android TRIUMPH BOARD MULTI Touch LED LCD is a fully integrated touch monitor with a professional LED LCD Monitor. The IR LED optical technology enables ten fingers touches and ten users to write and draw simultaneously. Features: • • Multi-Touch technology (10 Touch input) Exceptional picture quality Android system Optional Build in MINI PC Optional Lift. Boxes and Stands No need for a projector Easy installation • TRIUMPH CLOUD – unique online annotation SW • Display Note collaboration and annotation SW • TB Comenius Lite – instant desktop annotation SW • My. Script Stylus Handwriting recognition software • RMeasiteach Next Generation Educational SW
Interactive Touch Screens MULTI Touch LED LCD 55"/65“/70“/84“ TRIUMPH BOARD MULTI Touch LED LCD is a fully integrated touch monitor with a professional LED LCD Monitor. The IR LED optical technology enables six fingers touches and six users to write and draw simultaneously. Features: • • • Multi-Touch technology (6 Touch input) Exceptional picture quality Optional Build in MINI PC Optional Lift. Boxes and Stands No need for a projector Easy installation • • TRIUMPH CLOUD – unique online annotation SW Display Note collaboration and annotation SW My. Script Stylus Handwriting recognition software RMeasiteach Next Generation Educational SW
Interactive Touch Screens MINI PC PC 6 A / MINI PC PC 7 A Processor Intel 5 / Intel 7 Graphics Integrated Intel® HD Graphic Card/ Independent Graphic Card GT 745 N Memory 4 GB DDSRIII / 8 GB DDSRIII Hard Drive 500 GB SATA / 1000 GB SATA WIFI 802. 11 a/b/g/n, 2 x 2 dual-band Wi-Fi 2, 4/5, GHz, Bluetooth 4. 0 USB 4 x USB 2. 0. and 2 x USB 3. 0
Interactive Touch Screens MINI PC PC 5 / MINI PC PC 6 Processor Intel Huron River Sandy Bridge i 5 Graphics Integrated Intel HD 3000 / Integrated Intel HD 4000 Memory 4 GB DDSRIII Hard Drive 320 GB SATA / 500 GB SATA WIFI 802. 11 n (2. 4 GHZ) / 802. 11 a/b/g/n, 2 x 2 dual-band Wi-Fi 2, 4/5, GHz, USB 4 / 4 x USB 2. 0 and 2 x USB 3. 0

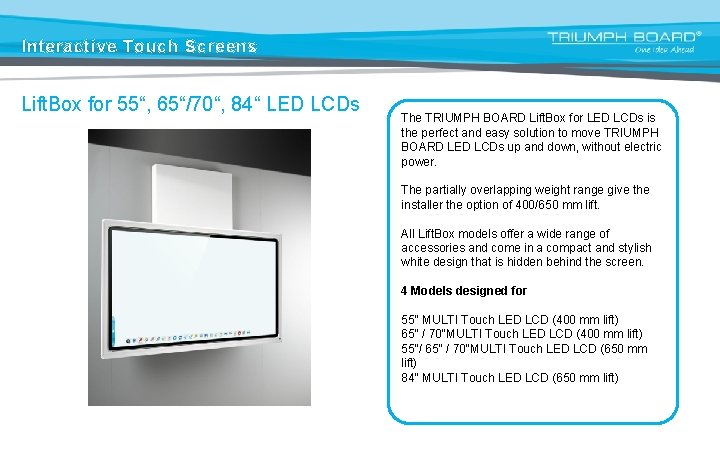

Interactive Touch Screens Lift. Box for 55“, 65“/70“, 84“ LED LCDs The TRIUMPH BOARD Lift. Box for LED LCDs is the perfect and easy solution to move TRIUMPH BOARD LED LCDs up and down, without electric power. The partially overlapping weight range give the installer the option of 400/650 mm lift. All Lift. Box models offer a wide range of accessories and come in a compact and stylish white design that is hidden behind the screen. 4 Models designed for 55“ MULTI Touch LED LCD (400 mm lift) 65“ / 70“MULTI Touch LED LCD (400 mm lift) 55“/ 65“ / 70“MULTI Touch LED LCD (650 mm lift) 84“ MULTI Touch LED LCD (650 mm lift)

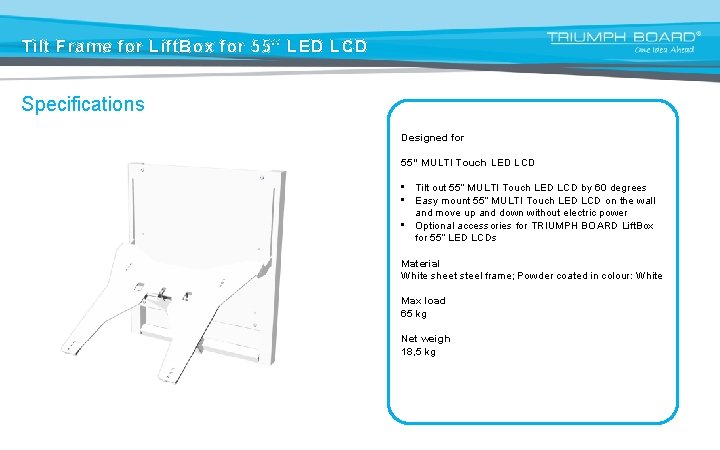

Tilt Frame for Lift. Box for 55“ LED LCD Specifications Designed for 55“ MULTI Touch LED LCD • Tilt out 55“ MULTI Touch LED LCD by 60 degrees • Easy mount 55“ MULTI Touch LED LCD on the wall and move up and down without electric power • Optional accessories for TRIUMPH BOARD Lift. Box for 55“ LED LCDs Material White sheet steel frame; Powder coated in colour: White Max load 65 kg Net weigh 18, 5 kg
TRIUMPH BOARD Mobile Stand for Lift. Box for LED LCDs and IWBs Specifications Designed for All TRIUMPH BOARD IWBs and 55“ / 65“ / 70“ LED LCDs • • Long product lifetime Ergonomic design Fast and easy installation Maintenance-free and no electric power Lift 400 mm (combined with Lift. Box for LED LCDs and IWBs) Material Steel Max load 125 kg Net weigh 41 kg

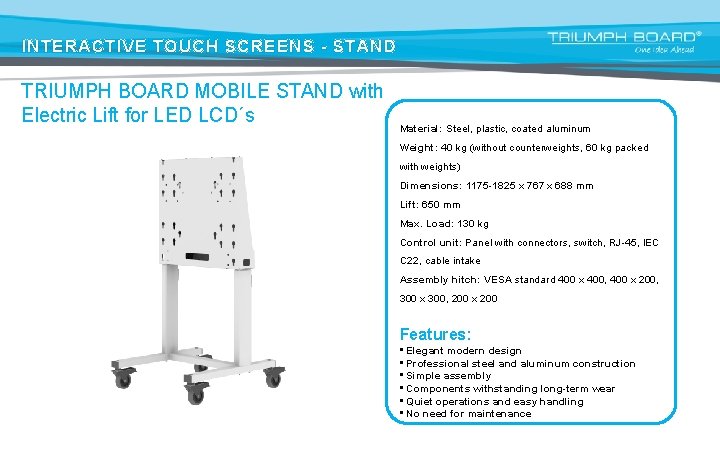

INTERACTIVE TOUCH SCREENS - STAND TRIUMPH BOARD MOBILE STAND with Electric Lift for LED LCD´s Material: Steel, plastic, coated aluminum Weight: 40 kg (without counterweights, 60 kg packed with weights) Dimensions: 1175 -1825 x 767 x 688 mm Lift: 650 mm Max. Load: 130 kg Control unit: Panel with connectors, switch, RJ-45, IEC C 22, cable intake Assembly hitch: VESA standard 400 x 400, 400 x 200, 300 x 300, 200 x 200 Features: • Elegant modern design • Professional steel and aluminum construction • Simple assembly • Components withstanding long-term wear • Quiet operations and easy handling • No need for maintenance

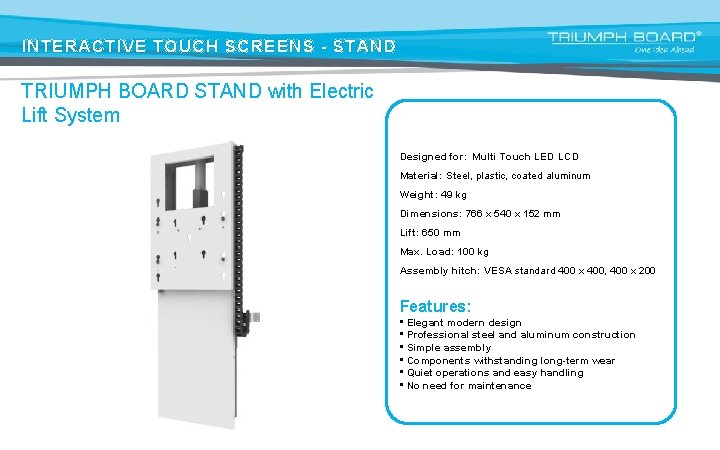

INTERACTIVE TOUCH SCREENS - STAND TRIUMPH BOARD STAND with Electric Lift System Designed for: Multi Touch LED LCD Material: Steel, plastic, coated aluminum Weight: 49 kg Dimensions: 766 x 540 x 152 mm Lift: 650 mm Max. Load: 100 kg Assembly hitch: VESA standard 400 x 400, 400 x 200 Features: • Elegant modern design • Professional steel and aluminum construction • Simple assembly • Components withstanding long-term wear • Quiet operations and easy handling • No need for maintenance
INTERACTIVE WHITEBOARDS TRIUMPH BOARD 78“ MULTI Touch Active screen area size: 78” (1988, 6 mm) diagonal Aspect ratio: 4: 3 Technology: IR (Infrared) cell LED optical Resolution: 12800 x 9600 Board size without packing: 1693 x 1284 x 31 mm Platform: Windows 8, Windows 7, XP and Vista, Linux, MAC Features: • True Multi-Touch (Four input) • Multi-Touch Gesture Recognition • Low Glare • Multipurpose • Hotkey • MS Office annotation tools / TB Comenius Lite • TB Comenius annotation software • My. Script Stylus Handwriting recognition software • RMeasiteach Next Generation Educational SW • Optional Display Note collaboration and annotation software
INTERACTIVE WHITEBOARDS TRIUMPH BOARD 89“ MULTI Touch Active screen area size: 89” (2265 mm) diagonal Aspect ratio: 16: 10 or 16: 9 (without the hotkeys) Technology: IR (Infrared) cell LED optical Resolution: 12800 x 9600 Projection screen area: 1824 x 1141 mm, Platform: Windows 8, Windows 7, XP and Vista, Linux, MAC Features: • True Multi-Touch (Four input) • Multi-Touch Gesture Recognition • Low Glare • Multipurpose • Hotkey • MS Office annotation tools / TB Comenius Lite • TB Comenius annotation software • My. Script Stylus Handwriting recognition software • RMeasiteach Next Generation Educational SW • Optional Display Note collaboration and annotation software
INTERACTIVE WHITEBOARDS TRIUMPH BOARD 96“ MULTI Touch Active screen area size: 96” (2446 mm) diagonal Aspect ratio: 16: 9 Technology: IR (Infrared) cell LED optical Resolution: 12800 x 9600 Projection screen area: 2044 x 1143 mm, Platform: Windows 8, Windows 7, XP and Vista, Linux, MAC Features: • True Multi-Touch (Four input) • Multi-Touch Gesture Recognition • Low Glare • Multipurpose • Hotkey • MS Office annotation tools / TB Comenius Lite • TB Comenius annotation software • My. Script Stylus Handwriting recognition software • RMeasiteach Next Generation Educational SW • Optional Display Note collaboration and annotation software
INTERACTIVE WHITEBOARDS TRIUMPH BOARD 78“ MULTI Touch (new model) Active screen area size: 1654 x 1161 mm (78, 1“) Aspect ratio: 4: 3 Technology: IR (Infrared) cell LED optical Resolution: 32767 x 32767 Board size without packing: 1740, 5 x 1247 x 32 mm Platform: Windows 8, Windows 7, XP and Vista, Linux, MAC Features: • True Multi-Touch (Six input) • Multi-Touch Gesture Recognition • Low Glare • Multipurpose • Hotkey • TRIUMPH CLOUD – the online annotation software with cloud data storage • Display Note – the collaboration software (Cloud) • My. Script Stylus – the handwriting recognition SW • RM Easiteach Next Generation – the comprehensive educational and teaching software
INTERACTIVE WHITEBOARDS TRIUMPH BOARD 89“ MULTI Touch (new model) Active screen area size: 1946 x 1161 mm (89, 2”) Aspect ratio: 16: 10 or 16: 9 Technology: IR (Infrared) cell LED optical Resolution: 32767 x 32767 Projection screen area: 1808 x 1130 mm Platform: Windows 8, Windows 7, XP and Vista, Linux, MAC Features: • True Multi-Touch (Six input) • Multi-Touch Gesture Recognition • Low Glare • Multipurpose • Hotkey • TRIUMPH CLOUD – the online annotation software with cloud data storage • Display Note – the collaboration software (Cloud) • My. Script Stylus – the handwriting recognition SW • RM Easiteach Next Generation – the comprehensive educational and teaching software

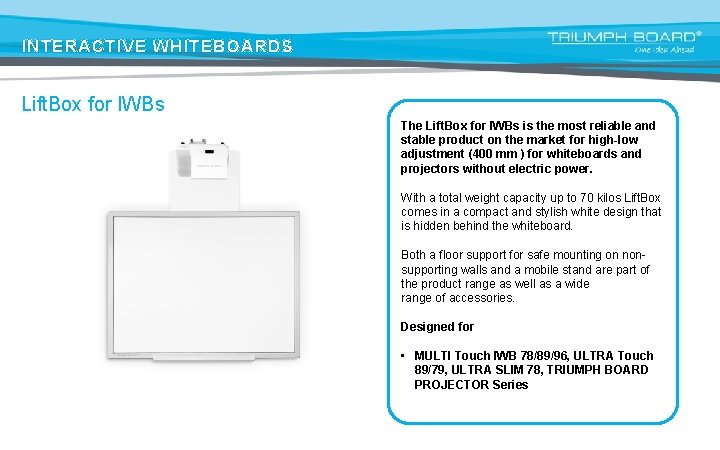

INTERACTIVE WHITEBOARDS Lift. Box for IWBs The Lift. Box for IWBs is the most reliable and stable product on the market for high-low adjustment (400 mm ) for whiteboards and projectors without electric power. With a total weight capacity up to 70 kilos Lift. Box comes in a compact and stylish white design that is hidden behind the whiteboard. Both a floor support for safe mounting on nonsupporting walls and a mobile stand are part of the product range as well as a wide range of accessories. Designed for • MULTI Touch IWB 78/89/96, ULTRA Touch 89/79, ULTRA SLIM 78, TRIUMPH BOARD PROJECTOR Series
TRIUMPH BOARD Mobile Stand for Lift. Box for LED LCDs and IWBs Specifications Designed for All TRIUMPH BOARD IWBs and 55“ / 65“ / 70“ LED LCDs • • Long product lifetime Ergonomic design Fast and easy installation Maintenance-free and no electric power Lift 400 mm (combined with Lift. Box for LED LCDs and IWBs) Material Steel Max load 125 kg Net weigh 41 kg

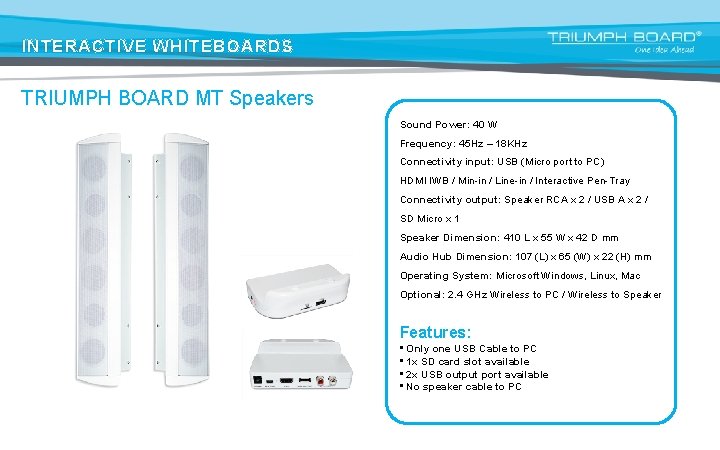

INTERACTIVE WHITEBOARDS TRIUMPH BOARD MT Speakers Sound Power: 40 W Frequency: 45 Hz – 18 KHz Connectivity input: USB (Micro port to PC) HDMI IWB / Min-in / Line-in / Interactive Pen-Tray Connectivity output: Speaker RCA x 2 / USB A x 2 / SD Micro x 1 Speaker Dimension: 410 L x 55 W x 42 D mm Audio Hub Dimension: 107 (L) x 65 (W) x 22 (H) mm Operating System: Microsoft Windows, Linux, Mac Optional: 2. 4 GHz Wireless to PC / Wireless to Speaker Features: • Only one USB Cable to PC • 1 x SD card slot available • 2 x USB output port available • No speaker cable to PC
INTERACTIVE WHITEBOARDS TRIUMPH BOARD MT Active pen tray Material: Aluminium, plastic Package content: Tray, 4 Styluses, Eraser, WR HDMI HUB, 2 screws Weight: 0, 7 kg Dimensions: 890 x 45 mm Functions: • 4 users can write simultaneously with different colors • Works with SW TB Comenius 5. 0. 2. 11 and newer versions • Easy installation
PRESENTATION PRODUCTS MULTI TOUCH 8” TABLET The TRIUMPH BOARD Multi Touch 8” Tablet is exciting to use and is distinguished by offering an integrated solution that starts with the uniqueness of the product’s design, which is specifi cally tailored to meet the needs of the education market. • 8“ IPS display • 5 - input touch capacitive technology • Intel® Quad-core processor technology • 32 GB ROM and 2 GB RAM • MS Office 365 (1 -year Offi ce 365 Personal subscription) OS: Microsoft Windows 8. 1 with Bing (OEM) 32 -bit Model size: 8“ (16: 10) ROM: 32 GB e. MMC RAM: 2 GB DDR 3 Ports: Micro USB 2. 0, HDMI port, Microphone and headphone port
PRESENTATION PRODUCTS Video Conferencing System VC 1 The TRIUMPH BOARD Video Conferencing System VC 1 provides uniquely cost-effective real-time full HD video streaming and HD real-time content sharing with recording capability. • One to One Site System • Full HD video & HD content sharing • Easy connection set up • One-touch recording • High definition (88° FOV) camera • High-efficiency lost packet recovery technology • Microphone array advanced audio processing technology • Software add-ons: TRIUMPHShare, TBLink, TBPlayer, Web Tool applicationn
Video Conferencing System Features: TBLink Share live images and snapshots directly from your mobile device TBLink TRIUMPHShare Wirelessly share content from your PC at any time during a call TRIUMPHShare TBPlayer Playback recorded meetings or convert the video files to a different format Web. Tool application Handy integration remote access tools Web. Tool application TBPlayer
PRESENTATION PRODUCTS TRIUMPH BOARD Tablet RF 40 Solution: Wireless 2. 4 G RF Resolution: 2000 lpi Active Area: 8” × 6” Size: 27. 8 cm × 26. 5 cm × 2 cm Battery Life: 25 hours Features: • • • Quick & easy installation, plug-and-play Supports multiple pairing of up to 50 devices USB dongle stored at the rear of the tablet 16 Programmable macro keys Built-in LCD indicator panel Intuitive express keys controls Energy saving stylus automatically turns on/off A 5 high resolution working area 8"x 6" Pen slot for storage and easy access My. Script Stylus Handwriting recognition software incl. calculator function
PRESENTATION PRODUCTS Ultra Short Throw Interactive Projectors PJ 2000 i UST DLP PJ 3000 i UST-W DLP Native Resolution: XGA 1024 x 768/ WXGA 1280 x 800 Brightness: 3000/ 3500 ANSI Lumens Contrast: 15 000: 1 Weight: <8. 0 kg Audio: 10 W Dimensions (W x D x H): 357 x 367 x 135 mm Image Size (Diagonal): 60”~90” /70”~100” Lamp Life: 3000 h (normal mode), 4000 h (eco mode) Features: • OS Support Windows 7, Windows 8 • Hover 3 ~6 mm@ <2 mm non-planarity 100” surface • Shadow-free images on projection surfaces • Bright images, vivid colures • Impressive sound quality – integrated 10 W speaker • Crystal clear images • Environmentally friendly design <0. 5 W standby mode • TB Comenius Office, RM Easiteach, My. Script Stylus
Whiteboards ULTRA Touch 79“ ULTRA Touch 89“ Aspect ratio: 4: 3/ 16: 10 Active Screen Area Size: 1620 x 1183 mm (79“ diagonal) / 1930 x 1183 mm (89, 1“ diagonal) Projection Screen Area Size: 1558 x 1173 mm / 1869 x 1173 mm Net Weight: 23, 2 kg / 27, 5 kg Features: • ideal with TRIUMPH BOARD Interactive PROJECTOR PJ 3000 i W-UST DLP • e 3 ceramic steel surface • preassembled holes for Laser Curtain
PRESENTATION PRODUCTS Ultra Short Throw Projectors PJ 2000 UST DLP PJ 3000 UST-W DLP Native Resolution: XGA 1024 x 768/ WXGA 1280 x 800 Brightness: 2500/ 3500 ANSI Lumens Contrast: 2000: 1 Native , 8000: 1 High contrast mode Weight: <8. 0 kg Audio: 10 W Throw Ratio: TR = 0. 35 Dimensions (W x D x H): 357 x 367 x 135 mm Image Size (Diagonal): 60”~90” /70”~100” Lamp Life: 3000 h (normal mode), 4000 h (eco mode) Features: • Security bar, Kensington lock • 3 LED indicators (lamp, temp and power/standby) • Shadow-free images on projection surfaces • Bright images, vivid colures • Impressive sound quality – integrated 10 W speaker • Crystal clear images • Environmentally friendly design <0. 5 W standby mode

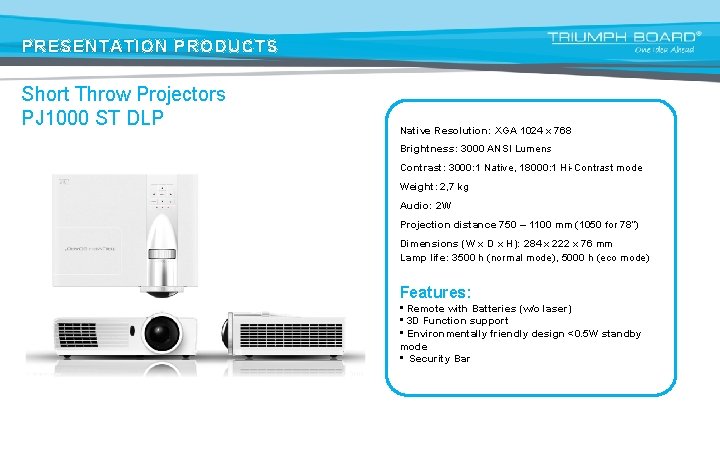

PRESENTATION PRODUCTS Short Throw Projectors PJ 1000 ST DLP Native Resolution: XGA 1024 x 768 Brightness: 3000 ANSI Lumens Contrast: 3000: 1 Native, 18000: 1 Hi-Contrast mode Weight: 2, 7 kg Audio: 2 W Projection distance 750 – 1100 mm (1050 for 78“) Dimensions (W x D x H): 284 x 222 x 76 mm Lamp life: 3500 h (normal mode), 5000 h (eco mode) Features: • Remote with Batteries (w/o laser) • 3 D Function support • Environmentally friendly design <0. 5 W standby mode • Security Bar

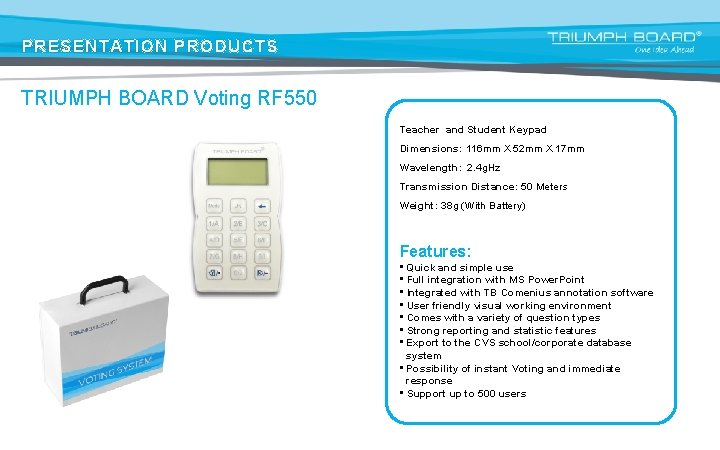

PRESENTATION PRODUCTS TRIUMPH BOARD Voting RF 550 Teacher and Student Keypad Dimensions: 116 mm X 52 mm X 17 mm Wavelength: 2. 4 g. Hz Transmission Distance: 50 Meters Weight: 38 g (With Battery) Features: • Quick and simple use • Full integration with MS Power. Point • Integrated with TB Comenius annotation software • User friendly visual working environment • Comes with a variety of question types • Strong reporting and statistic features • Export to the CVS school/corporate database system • Possibility of instant Voting and immediate response • Support up to 500 users

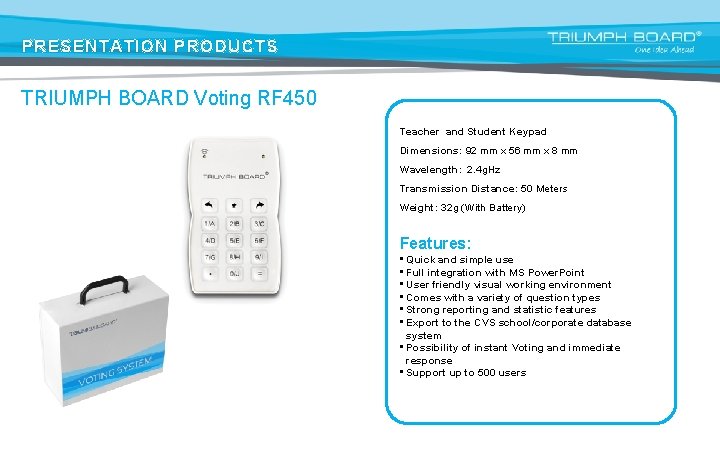

PRESENTATION PRODUCTS TRIUMPH BOARD Voting RF 450 Teacher and Student Keypad Dimensions: 92 mm x 56 mm x 8 mm Wavelength: 2. 4 g. Hz Transmission Distance: 50 Meters Weight: 32 g (With Battery) Features: • Quick and simple use • Full integration with MS Power. Point • User friendly visual working environment • Comes with a variety of question types • Strong reporting and statistic features • Export to the CVS school/corporate database system • Possibility of instant Voting and immediate response • Support up to 500 users
PRESENTATION PRODUCTS TRIUMPH BOARD A 405 Document Camera Image Sensor: 5. 0 Megapixel CMOS Color Sensor Shooting Area: Up to A 4 Size - 8. 3 x 11. 7” (210 x 297 mm) Resolution: 2592 x 1944 Image File Format: TIFF, JPG, BMP, PNG Connectivity Interface: USB 2. 0 Port Operating System: Windows 7, Windows Vista, and Windows XP Features: • 5 MP Visual Presenter • Webcam • Camera • Scanning • Digital File Copier • Electronic Faxing • Projector
MULTI Touch LED LCD Software The bun best dle s in t oftwa he m re ark et! • TRIUMPH CLOUD – unique online annotation software • Display Note is a desktop and mobile application that lets presenters and teachers stream content from their computer to multiple participants across multiple devices • TB Comenius Lite – SW for simple annotations in Android system • My. Script Stylus - best in class handwriting recognition software • The RM Easiteach Next Generation is a complete whole class teaching and learning
SOFTWARE TRIUMPH CLOUD Features: • Online (browser based) • Hardware – independent • No installation and automatic updates • Latest technology • Automatic data saving in the cloud • Automatic updates • Ease of use • Mobile content in my files • Networking and collaboration • Localized into 27 languages • Windows, MAC OS, i. OS, Android, Linux, Chrome, any. . .
SOFTWARE TB Comenius Lite Features: • TB Comenius Lite annotation over desktop, which sources information in Android • It can be further used also in Windows interface for simple desktop annotation and screen capture • Pen , Eraser, new page… • Picture in picture • Image import

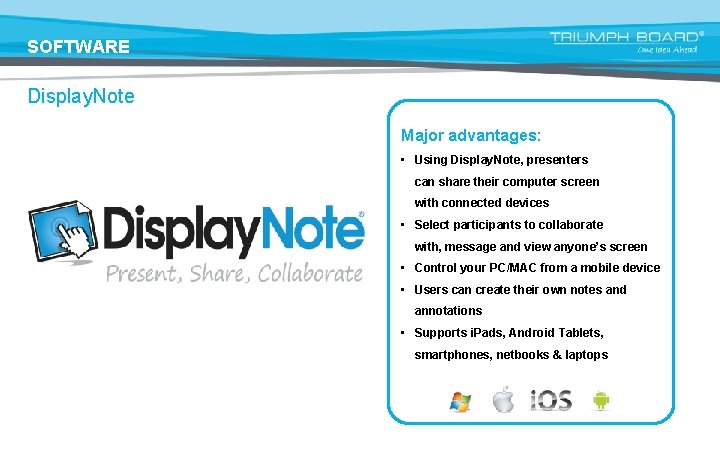

SOFTWARE Display. Note Major advantages: • Using Display. Note, presenters can share their computer screen with connected devices • Select participants to collaborate with, message and view anyone’s screen • Control your PC/MAC from a mobile device • Users can create their own notes and annotations • Supports i. Pads, Android Tablets, smartphones, netbooks & laptops
SOFTWARE My. Script Stylus Features: • Includes Calculator – enables the solution of mathematical equations, conversion of symbols and digits and gives results in real time • Highest accuracy on the market with consistent quality for all languages • Recognition of all kinds of writing styles • Largest language coverage • Text editor, Web search, Agenda • Word Processors • Calendars

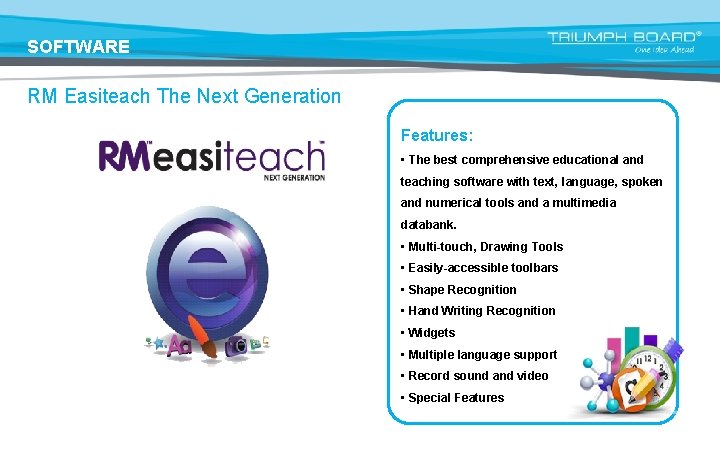

SOFTWARE RM Easiteach The Next Generation Features: • The best comprehensive educational and teaching software with text, language, spoken and numerical tools and a multimedia databank. • Multi-touch, Drawing Tools • Easily-accessible toolbars • Shape Recognition • Hand Writing Recognition • Widgets • Multiple language support • Record sound and video • Special Features

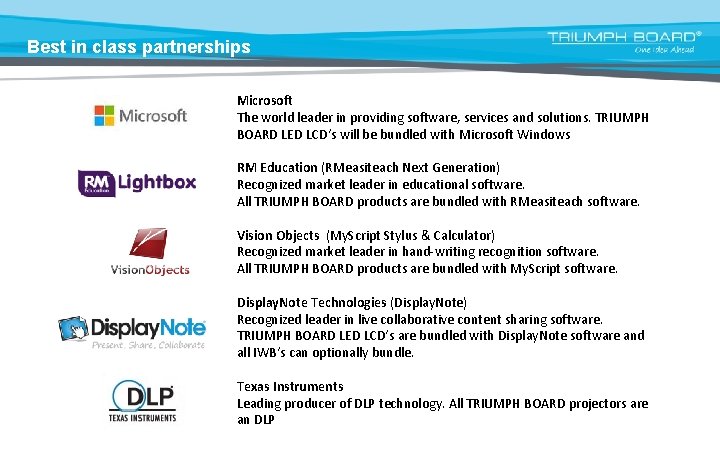

Best in class partnerships Microsoft The world leader in providing software, services and solutions. TRIUMPH BOARD LED LCD‘s will be bundled with Microsoft Windows RM Education (RMeasiteach Next Generation) Recognized market leader in educational software. All TRIUMPH BOARD products are bundled with RMeasiteach software. Vision Objects (My. Script Stylus & Calculator) Recognized market leader in hand-writing recognition software. All TRIUMPH BOARD products are bundled with My. Script software. Display. Note Technologies (Display. Note) Recognized leader in live collaborative content sharing software. TRIUMPH BOARD LED LCD‘s are bundled with Display. Note software and all IWB‘s can optionally bundle. Texas Instruments Leading producer of DLP technology. All TRIUMPH BOARD projectors are an DLP
Thank you for your attention!
