Production Readiness Review for Series Coil Production Coil
- Slides: 12
Production Readiness Review for Series Coil Production Coil QA Plan Interface from 302. 07 Magnet Structures Katherine Ray, LBNL AUP QA Manager Dan Cheng, Deputy Structures L 3 1
Outline § § § Project organization Interface control documents Electrical QA Plan Mechanical QA Plan ES&H Summary 4/29/2020 PRR for Series Coil Production, Structures QA 2
Organization US HL-LHC Accelerator Upgrade Project: 302. 2 MQXFA Magnets Fabrication 302. 2 L 2: G. Ambrosio (M. Baldini) Control Account Magnet Design, Integration and Coordination 302. 2. 01 L 3/CAM: G. Ambrosio (M. Baldini) Strand Procurement and Testing 302. 2. 02 L 3: L. Cooley (V. Lombardo) CAM: V. Lombardo Cable Fabrication 302. 2. 03 L 3/CAM: I. Pong (C. Sanabria) US-Hi. Lumi Document 104 Coil Parts, Materials, and Tooling Procurement 302. 2. 04 L 3/CAM: M. Yu (A. Nobrega) Coil Fabrication at FNAL 302. 2. 05 L 3/CAM: A. Nobrega (M. Yu) Coil Fabrication at BNL 302. 2. 06 L 3/CAM: J. Schmalzle (M. Anerella) Structure Fabrication and Magnets Assembly 302. 2. 07 L 3/CAM: S. Prestemon (D. Cheng) Heng Pan: Engineering analysis, QC Paolo Ferracin: Engineering and Coils analysis Katherine Ray: QC & QA Manager Mike Solis: Procurements, QC Brian Zatkow: Subcontract Administrator Technical Support T. Lipton: Supervisor Ahmet Pekedis (Lead tech) Joshua Herrera Matt Reynolds Juan Rodriguez Bob Memmo (electrical QA) 4/29/2020 PRR for Series Coil Production, Structures QA 3

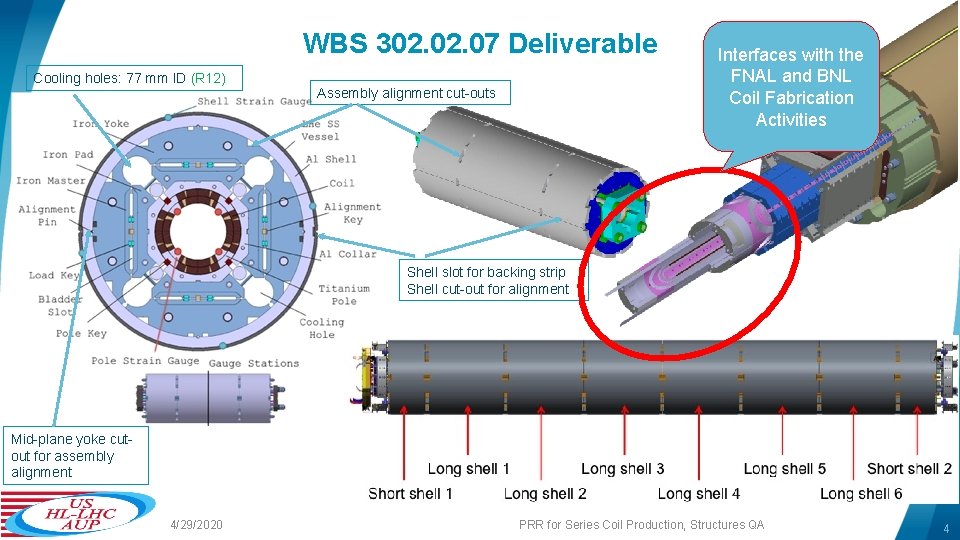

WBS 302. 07 Deliverable Cooling holes: 77 mm ID (R 12) Assembly alignment cut-outs Interfaces with the FNAL and BNL Coil Fabrication Activities Shell slot for backing strip Shell cut-out for alignment Mid-plane yoke cutout for assembly alignment 4/29/2020 PRR for Series Coil Production, Structures QA 4
C 1 Interface Control Documents With Coil Fabrication Coils from FNAL 302. 2. 05 Coils from BNL 302. 2. 06 US-Hi. Lumi-doc-252 US-Hi. Lumi-doc-309 4/29/2020 PRR for Series Coil Production, Structures QA 5
C 3, 4 Electrical QC § Electrical QC tests are performed according to US-Hi-Lumi. Doc-956 (LBNL DCC #SU-1010 -1903) § Includes use of Hypot. Ultra hipotting system (10 V/sec ramp) § Updated with definition of impulse test acceptance criteria § LBNL Coil Acceptance data is captured in the same format as the FNAL spreadsheet, based on US-Hi-Lumi-Doc-521 § New technician has been hired to perform EQC operations § Once QEW training is complete we expect to have timely feedback with coil electrical tests § OJT will continue for the next several pre-series coils 4/29/2020 PRR for Series Coil Production, Structures QA 6
C 3, 4 Mechanical QC (CMM) § Starting with MQXFA 05 coils the usual Zeiss Accura system (Calypso) measurements have been compared to the new Leica system (LBNL DCC #SU-10124076, US-Hi. Lumi Doc. DB #3079) § We will measure the rest of the pre-series magnets’ coils (MQXFA 06 and MQXFA 07) with both systems to build more statistics § We will transition to using only the Leica system for the series coils (“Record of Decision LBNL Leica Laser Tracker”, USHi. Lumi Doc. DB #3088) 4/29/2020 PRR for Series Coil Production, Structures QA 7
Mechanical QC (Leica vs. Zeiss) § Comparisons between the Leica and Zeiss include visual comparisons of the profile and graphs of radius, midplane and keyway data § Data will be generated for each coil and will be reported to the Coil Fabrication L 3 s for disposition by uploading to Coil Interface Vector travelers § To facilitate faster feedback to coil tasks an initial measurement will be reported § The 2 nd set of measurements and comparative processing can take place shortly after 4/29/2020 PRR for Series Coil Production, Structures QA 8

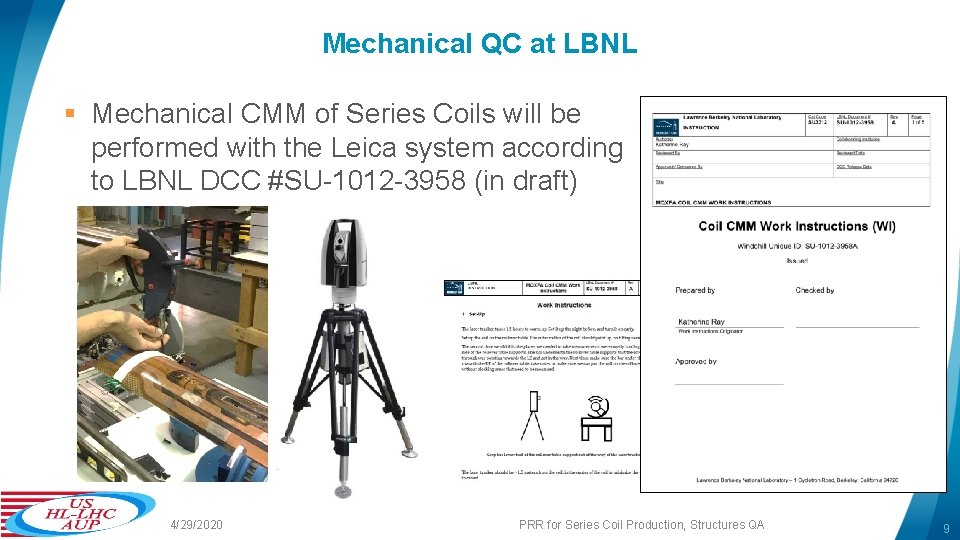

Mechanical QC at LBNL § Mechanical CMM of Series Coils will be performed with the Leica system according to LBNL DCC #SU-1012 -3958 (in draft) 4/29/2020 PRR for Series Coil Production, Structures QA 9
Mechanical QC at LBNL (cont. ) § Measurements will be taken and processed on § OD, ID § Midplanes § Arc Length excess § Keyway slot § Disposition will be reported based on specifications in US-Hilumi-doc-3043 “Impregnated Coil Dimensional QC Plan at LBNL” 4/29/2020 PRR for Series Coil Production, Structures QA 10
ES&H § Hazards for Coil QA Work § Laser Tracker (WPC #EG-0126) (Class 2 Laser) § Trained personnel § Electrical Testing (WPC #EG-0087) § Tasks may only be performed by a QEW (qualified electrical worker) § Area roped off with signage and lights during hipot 4/29/2020 PRR for Series Coil Production, Structures QA 11
Summary § Series Coil fabrication interfaces are clearly defined § The use of Zeiss and Leica Systems will continue through coils used in the pre-series magnets (up to MQXFA-07) § The Coil Acceptance criteria (Electrical, Mechanical) are defined § Coil measurements and data will be reported back to respective Coil Fabrication L 3 s via Vector traveler system for disposition and coil approval § ES&H considerations are controlled 4/29/2020 PRR for Series Coil Production, Structures QA 12
