Product Training Module V-Series Contura® XIV Sealed Rocker Switch

PRODUCT OVERVIEW The V-Series Contura® XIV rocker switch features a sleek design with an intuitive feel provided by recessed ridges along with a center groove, which effectively defines the boundary between top and bottom switch functions. Typical Applications: § § § On/Off Highway Equipment Marine Military Armored Vehicles Mining Machinery and Equipment Any Application Requiring Sealed Rocker Switch Actuation

TYPICAL APPLICATIONS NAICS and SIC Codes On/Off Highway Equipment NAICS SIC Military Armored Vehicle, Tank, and Tank Components 336992 3795 All Other Transportation Equipment 336999 3799 Heavy Duty Truck Manufacturing 336120 3711 Construction Machinery Manufacturing 333120 3531 Farm Machinery & Equipment Manufacturing 333111 3523 3559 Mining Machinery & Equipment Manufacturing 333131 3532 Motor Home Manufacturing 336213 3716 336612 3732 Marine Boat Building

PRODUCT HIGHLIGHTS § Recessed ridges and center groove define boundary between top and bottom switch functions § Countless options for ratings, circuits, colors, illuminations and legends § Certified to IP 66 and IP 68 for front panel components § Vibration, shock, thermoshock, moisture and salt spray resistant § Temperature ratings from -40°C to +85°C

DESIGN FEATURES INTERCHANGEABLE ACTUATORS Panel redesign is a snap with our wide range of rocker styles. Achieve maximum design variety with minimum inventory. Simply swap rockers to create an entirely new look for your panel. OPTIONAL PANEL SEAL Prevents water/dust ingress behind panel. MULTIPLE LIGHTING OPTIONS In addition to Incandescent lamps, our LED illumination is offered in a wide array of light intensities, colors, as well as dual level, tri-color, and flashing options. SILVER PLATED BUTT CONTACT MECHANISM Providing 50 k to 100 k electrical cycles and a variety of different electrical ratings.

DESIGN FEATURES DUAL SEAL PROTECTION Seals out water, dust, debris, and enables switch certification to IP 66/IP 68 for front panel components. CLEAN CONNECTIONS Options for both eight and ten terminal base styles with AMP & Packard compatible connectors affords myriad circuit options while providing ease of assembly. BRASS ROLLER PIN Robust mechanism eliminates the need for lubricants. Enables switch to withstand -40°C to +85°C temperatures.

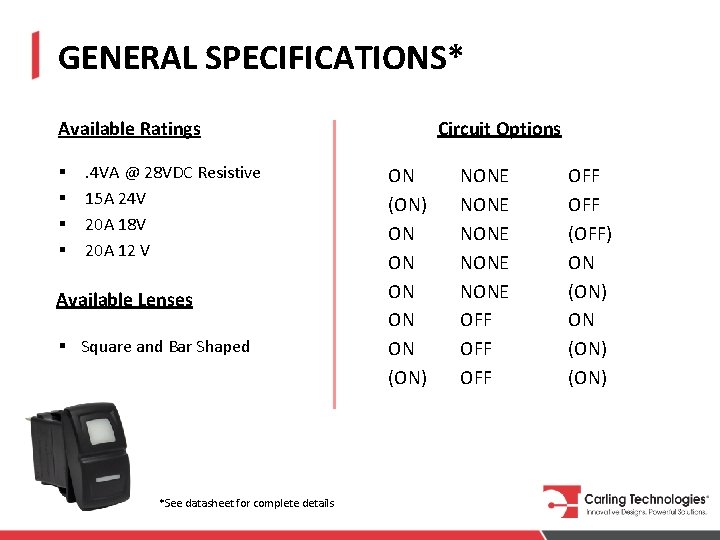

GENERAL SPECIFICATIONS* Circuit Options Available Ratings § § . 4 VA @ 28 VDC Resistive 15 A 24 V 20 A 18 V 20 A 12 V Available Lenses § Square and Bar Shaped *See datasheet for complete details ON (ON) ON ON ON (ON) NONE NONE OFF OFF OFF (OFF) ON (ON)

ADDITIONAL INFORMATION § Country of origin is Mexico § International Harmonization Code: 8536. 50. 0060 § ECCN: EAR 99
